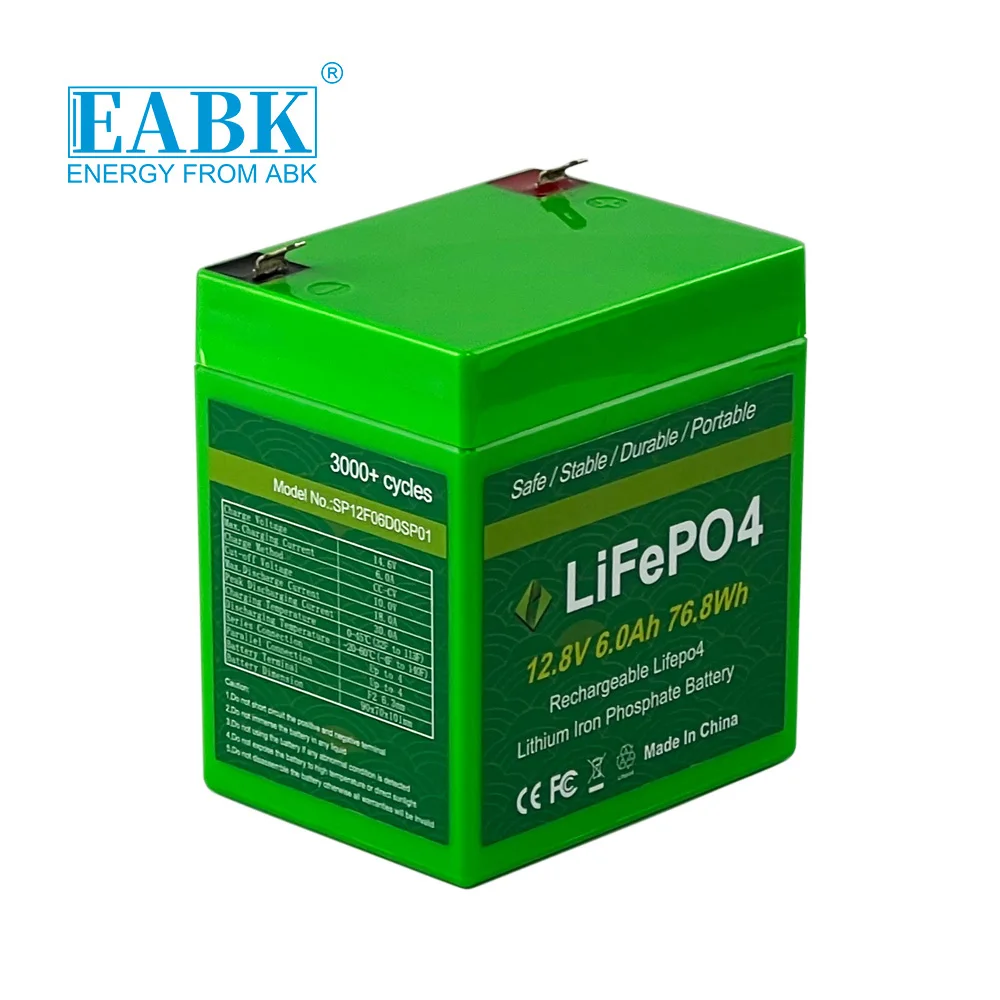

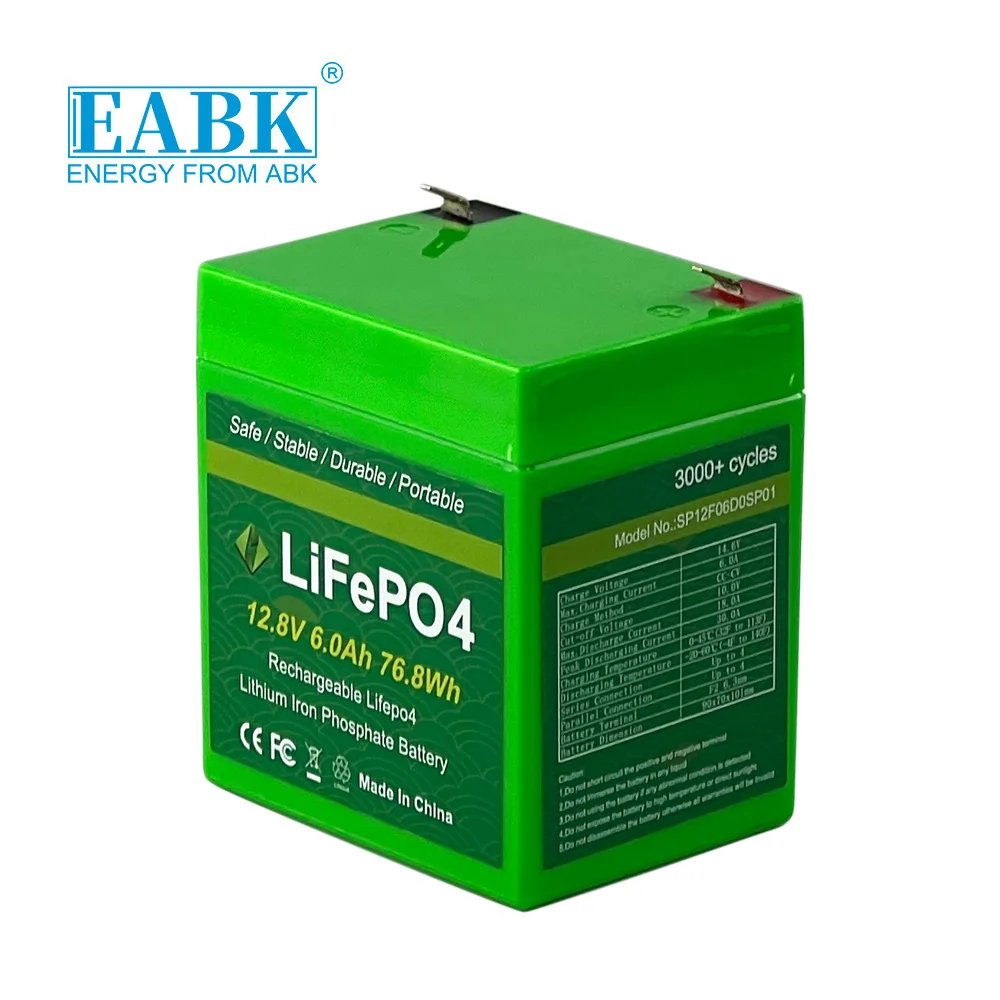

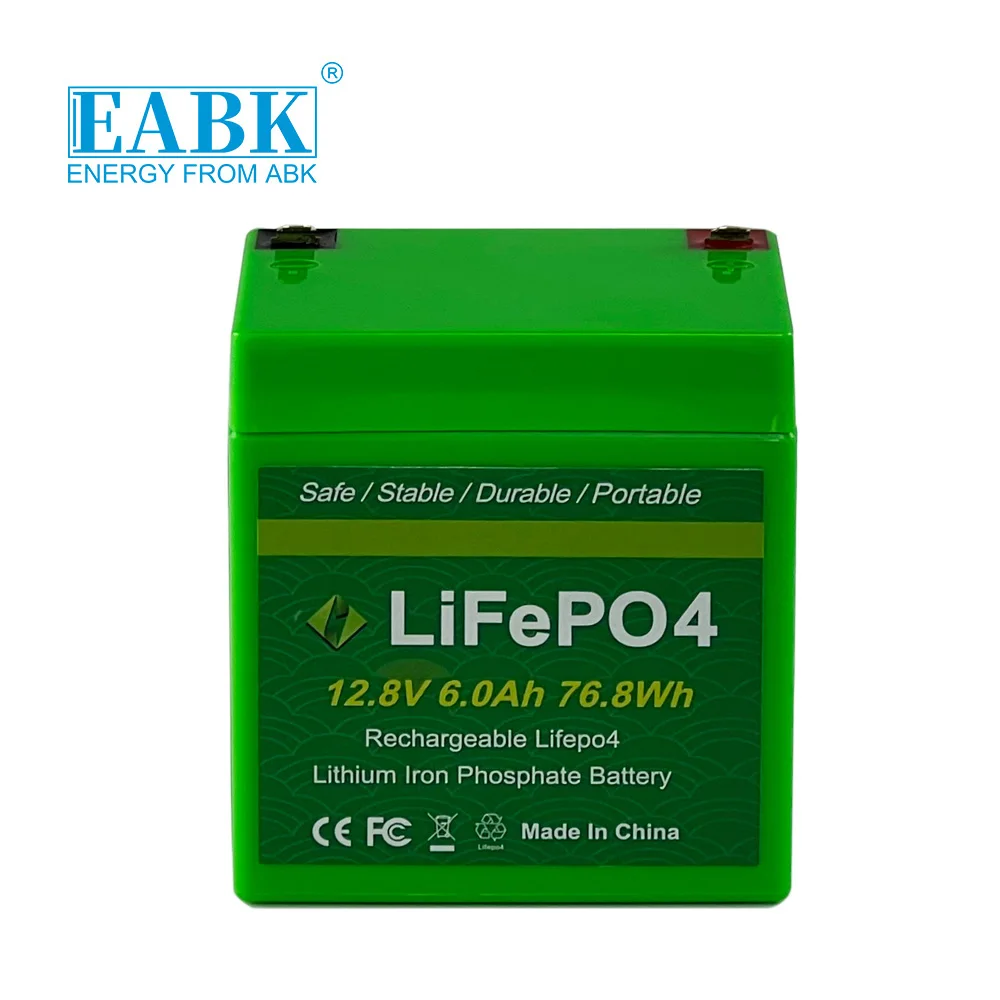

Rechargeable portable customized LiFePO4 12V 6AH 7AH lithium iron phosphate battery pack 12 v 6ah
- Category: >>>
- Supplier: Suzhou Ebak Electronics Co. Ltd.
Share on (1600914745637):
Product Overview
Description
Products Description
Safety
1. All Battery cells will pass rigorous testing
2. All Battery Packs are Certified and are compliant with regulatory and safety requirements
2. All Battery Packs are Certified and are compliant with regulatory and safety requirements
Strong R&D ability
1. Unique ability to develop custom lithium battery packs to fit your needs.
2. Our expert team of electronic engineers, mechanical engineers and Process engineers work together to make best, safety, smaller battery.
High Quality
1. We Make Battery packs with updated battery cells.
2. Consistent, reliable, top performance cells from the industry highest quality suppliers.
2. Consistent, reliable, top performance cells from the industry highest quality suppliers.
3. Tested and proven design
Customer Support
1. Customer assembly design and engineering assistance
2. Quick turn-around on battery assemblies
2. Quick turn-around on battery assemblies
LiFePO4 battery is widely applicable to E-bikes, E-motorcycles, EVs, golf carts, lawn mowers, electric tools and toys, portable power supply, safe mining equipments, UPS, telecommunication backup power, photovoltaic and wind power storage, etc. Batteries can
also be used in digital apparatus such as laptop computers, LED torches, portable DVDs, handheld GPS devices and medical equipment.
also be used in digital apparatus such as laptop computers, LED torches, portable DVDs, handheld GPS devices and medical equipment.
Specification
Specification | ||||||
NO | Item | General Parameter | Remark | |||
1 | Model | NE12F7D2SP01 | Single | |||
2 | Cell Type | 26650 Lifepo4 Cell | Cylindrical Cell | |||
3 | Standard capacity(@0.2C) | 6Ah | ||||
4 | Mininum Capacity(@1C) | 6Ah | ||||
5 | Rated voltage | 12.8V | 3.20V(Single Cell) | |||
6 | Charging voltage | 14.6V | 3.65V(Single Cell) | |||
7 | Charge Method | CC-CV | ||||
8 | Cut-off voltage | 10.0V | 2.50V(Single Cell) | |||
9 | Standard charge current | 3.6A | @0.5C | |||
10 | Charging Time | 3.0hours | @0.5C | |||
11 | Max Continuous discharge current | 21.6A | @3C | |||
12 | Peak discharge current | 28.8A | @4C 10seconds | |||
13 | Battery dimension | 70*90*101mm | ||||
14 | Total weight(Approx.) | About 0.9kg | ||||
15 | (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) | ≤ 45mΩ | ||||
16 | Series Connection | Up to 4 | ||||
17 | Parallel Connection | Up to 4 | ||||
18 | Battery Terminal | F2 6.3mm | ||||
19 | (CC/CV) Charge method (CC/CV) | Standard | 0℃~45℃ | |||
discharge | -20℃~60℃ | |||||
storage | -20℃~45℃ | |||||
Why Choose Us
Details Images
By connecting a Bluetooth or WIFI module, there are a multitude of possibilities for manufacturers and end users. This integration of a Bluetooth or WIFI module in the battery (a key part of a battery-powered application) not only allows access to data and parameters in the battery but also to information in the end application and the charger. The processing of service operations also becomes child’s play.
EBAK developed an app for Android and iPhone mobile phone, with which all relevant information from the battery can be read, displayed and evaluated. As required, access to battery and end device is possible. Using this app, the live data from the battery can also be graphically displayed and logged. The app can be provided with access rights or restrictions. Software can be tailored for your specific application in order to adapt the advantages of the system in devices already available on the market.
Features
1. Lighter in weight, heavier on power
2. Excellent cycle life. More than 3000 cycle times and there is a 3-year warranty
3. Deep cycle. can be discharged to 100% depth of discharge.
4. Maintenance free
5. Safer performance. Our batteries have passed different safety tests.
6. Blue-tooth function and heated function can be added.
Built in BMS overall protection
1. Over-charge protection
2. Over-discharge protection
3. Over-current protection
4. Over-load protection
5. Temperature protection
1. Lighter in weight, heavier on power
2. Excellent cycle life. More than 3000 cycle times and there is a 3-year warranty
3. Deep cycle. can be discharged to 100% depth of discharge.
4. Maintenance free
5. Safer performance. Our batteries have passed different safety tests.
6. Blue-tooth function and heated function can be added.
Built in BMS overall protection
1. Over-charge protection
2. Over-discharge protection
3. Over-current protection
4. Over-load protection
5. Temperature protection
Battery Testing & Quality Control:
Production
Hot Selling
Why Choose Us
Company Profile
Cooperation
Packaging Transportation
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2012,sell to North America(20.00%),Southern Europe(10.00%),Northern
Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South
America(10.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
lithium Iron Phosphate Battery Pack,LITHIUM Iron Phosphate Battery Protection Board,LiFePO4 Battery,Lithium Ion Battery,Battery
Chargers
4. Why should you buy from us not from other suppliers?
Suzhou EBAK Electronics Co., Ltd. is an experienced and professional battery manufacturer, concentrated on developing and
producing Lithium Iron Phosphate battery(LiFePO4).LITHIUM Iron Phosphate Battery Protection Board.We have dedicated designer team.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Korean,Italian
We are based in Jiangsu, China, start from 2012,sell to North America(20.00%),Southern Europe(10.00%),Northern
Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South
America(10.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
lithium Iron Phosphate Battery Pack,LITHIUM Iron Phosphate Battery Protection Board,LiFePO4 Battery,Lithium Ion Battery,Battery
Chargers
4. Why should you buy from us not from other suppliers?
Suzhou EBAK Electronics Co., Ltd. is an experienced and professional battery manufacturer, concentrated on developing and
producing Lithium Iron Phosphate battery(LiFePO4).LITHIUM Iron Phosphate Battery Protection Board.We have dedicated designer team.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Korean,Italian
