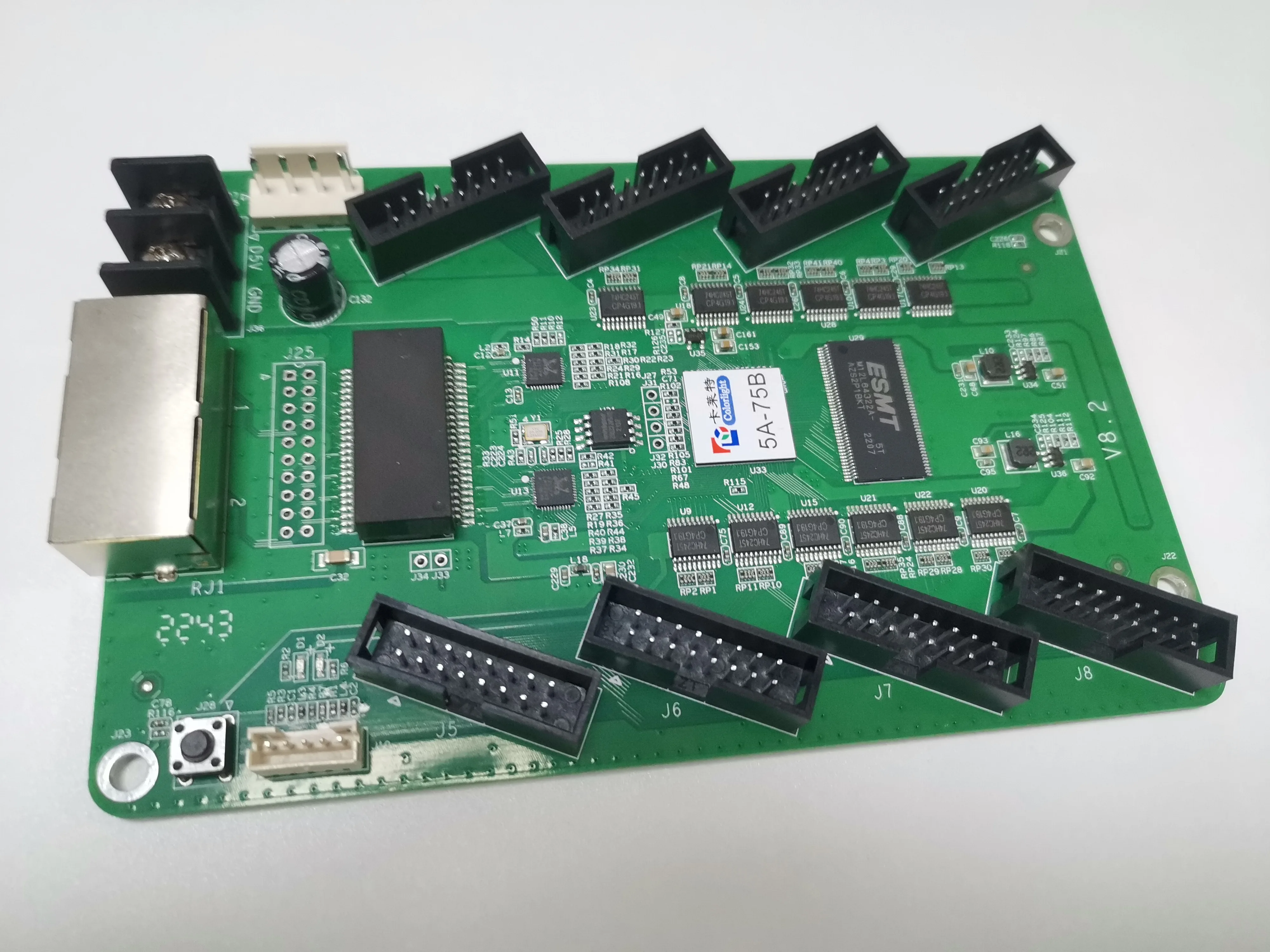

Colorlight 5A 75B Receiving Card Use for RGB Led Display Screen
- Category: >>>
- Supplier: Shenzhen Muenled Co. Ltd.
Share on (1600914749148):
Product Overview
Description
Hot-selling products in the industry
Product Description
Setting Information | ||
Model Number | Colorlight 5A-75b | |
Maximum load Resolution | 1024X256 | |
Grey Scale Levels(Adjustable) | ≤16bit | |
Riser | No adapter plate, 12 HUB75 | |
Working Voltage | DC 4.5~5.5V | |
Power Consumption | 4W | |
Working Temperature | -20℃~70℃ | |
Shelf life | 1 years | |
Certificate | CE,ROHS,FCC,ISO9001,TUV | |

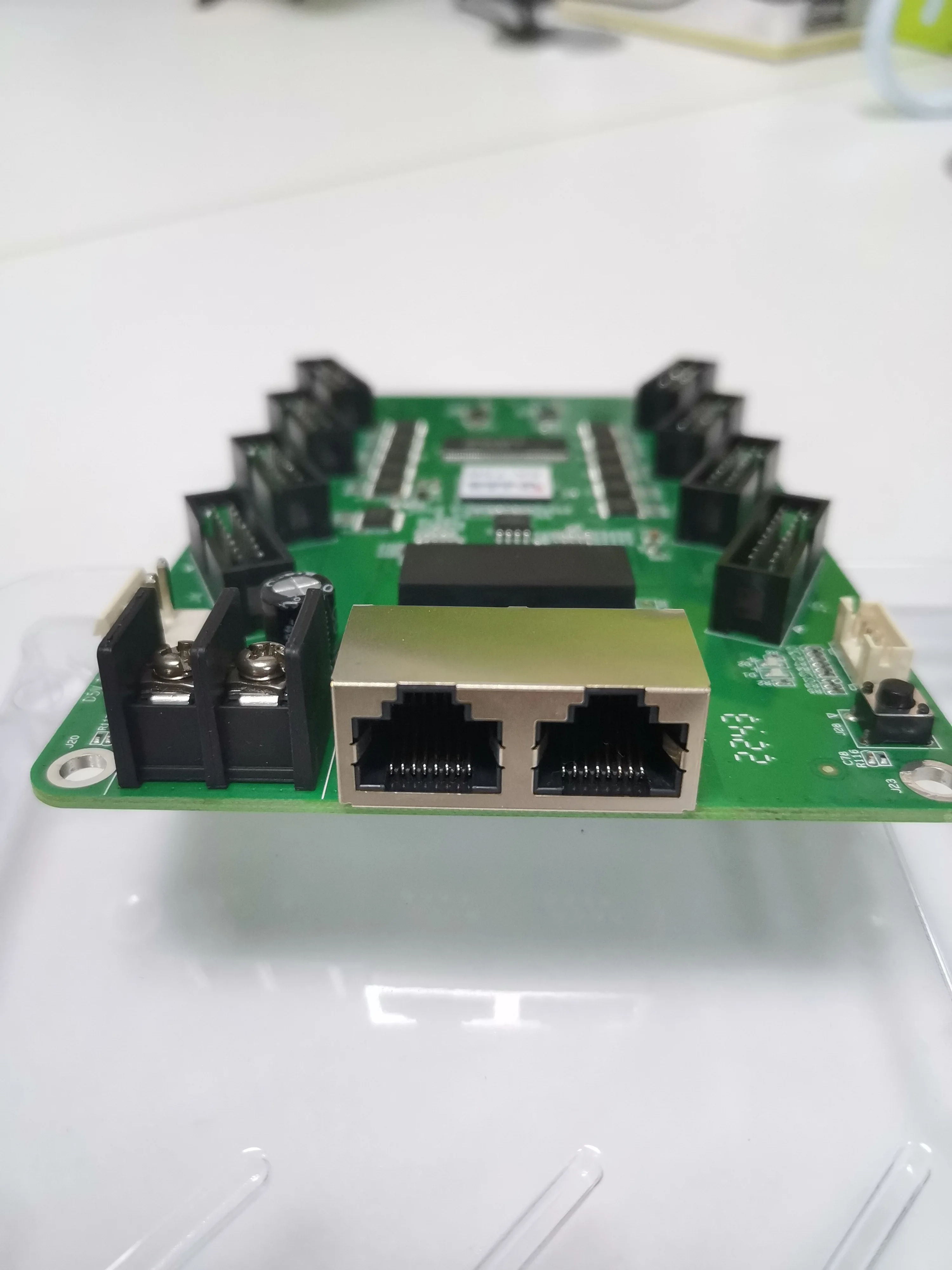

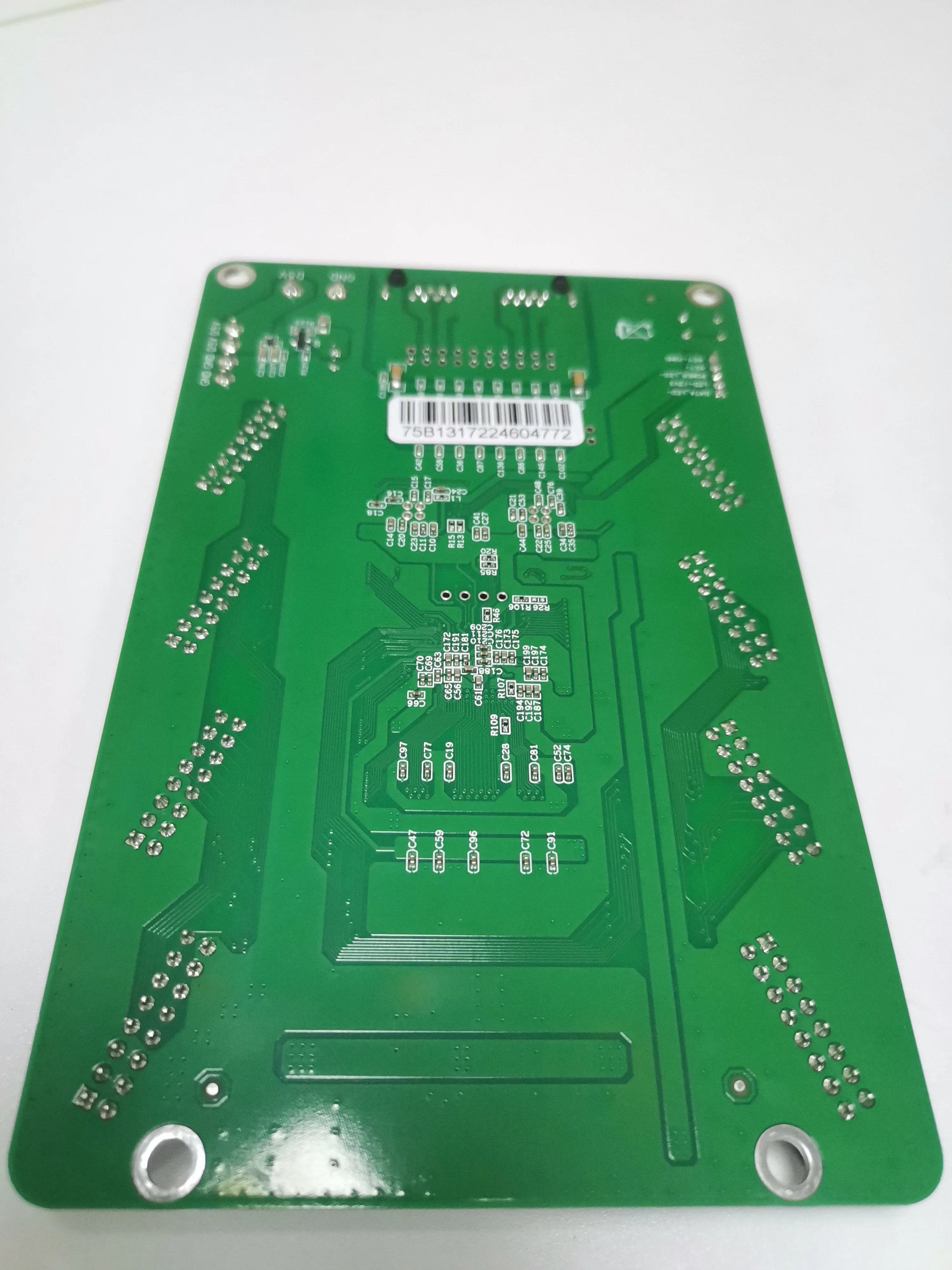

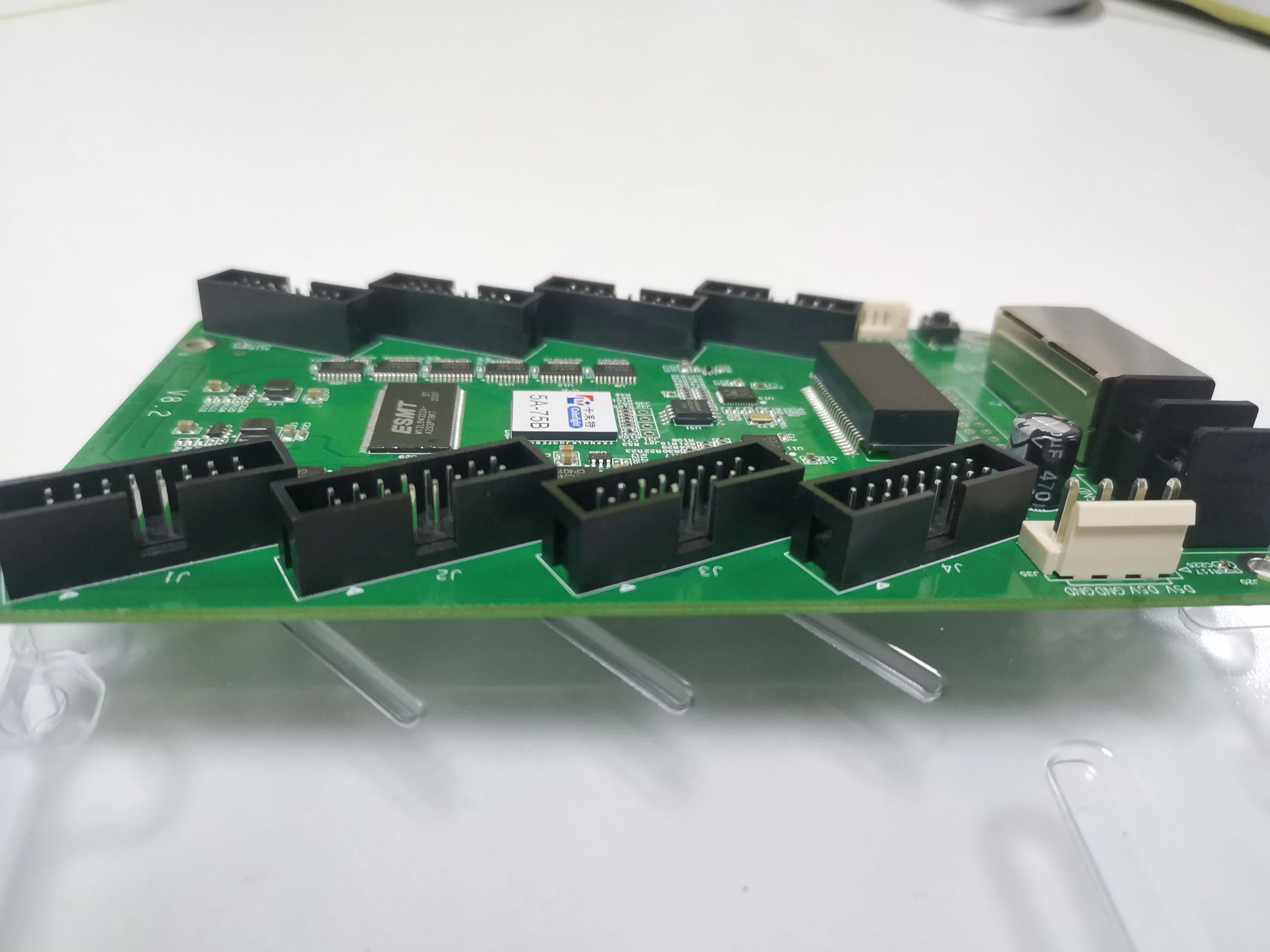

Colorlight 5A-75b LED Screen Receiver Card
1)Single card can output 16 groups RGBR' data;
2)Single card can output 20 groups RGB data;
3)Single card can output 31 groups serial data;
4)Single card maximum supports 1024X256 pixels(Please note
that there are recommendation values for different design of
led screen);.
2)Single card can output 20 groups RGB data;
3)Single card can output 31 groups serial data;
4)Single card maximum supports 1024X256 pixels(Please note
that there are recommendation values for different design of
led screen);.
Details
5) Support pixel-by-pixel brightness calibration; single-card
color space conversion;
6) Support network cable BER test;
7) High refresh rate and high grey level with most of the driver
ICs;
8) In line with EU standards RoHS;
color space conversion;
6) Support network cable BER test;
7) High refresh rate and high grey level with most of the driver
ICs;
8) In line with EU standards RoHS;
Details
2. Colorlight 5A-75b PINOUT
1) Normal mode (default mode)
Support full-color screen, virtual full-color screen and
double-color screen, each 50-pin interface has 8 groups of
full-color / virtual screen data or 16 groups of two-color
screen data.
In normal mode, 50pin is defined as follow.
1) Normal mode (default mode)
Support full-color screen, virtual full-color screen and
double-color screen, each 50-pin interface has 8 groups of
full-color / virtual screen data or 16 groups of two-color
screen data.
In normal mode, 50pin is defined as follow.
Product Features
（1）Integrated HUB75 interface, more convenient with less cost.
（2）Reduces the plug connectors and malfunction, lower failure rate.
（3）Superior display quality: high refresh rate, high grayscale, and high brightness with the conventional chips.
（4）Perfect performance under lower grayscale status.
（5）Better detail processing: partial dark at row, reddish at low gray, shadow problems can be solved.
（6）Supports high-precision point-by-point calibration in the Brightness and the chromaticity.
（7）Supports conventional chips, PWM chips and lighting chips.
（8）Supports any scan mode from static to 64 scans.
（9）Supports any pumping point and data arbitrary offset to realize various freeform display, spherical display, creative display,etc.
（10）Supports 16 groups of RGB signal output.
（11）Large loading capacity.
（12）Advanced design, high quality components, rigorous aging test, zero malfunction of final products.
（13）Wide working voltage range with DC3.3~6V.
（14）First adopt all components face up configuration to reduce damage.
（15）Compatible with all series of Colorlight’s sending devices.
（2）Reduces the plug connectors and malfunction, lower failure rate.
（3）Superior display quality: high refresh rate, high grayscale, and high brightness with the conventional chips.
（4）Perfect performance under lower grayscale status.
（5）Better detail processing: partial dark at row, reddish at low gray, shadow problems can be solved.
（6）Supports high-precision point-by-point calibration in the Brightness and the chromaticity.
（7）Supports conventional chips, PWM chips and lighting chips.
（8）Supports any scan mode from static to 64 scans.
（9）Supports any pumping point and data arbitrary offset to realize various freeform display, spherical display, creative display,etc.
（10）Supports 16 groups of RGB signal output.
（11）Large loading capacity.
（12）Advanced design, high quality components, rigorous aging test, zero malfunction of final products.
（13）Wide working voltage range with DC3.3~6V.
（14）First adopt all components face up configuration to reduce damage.
（15）Compatible with all series of Colorlight’s sending devices.
