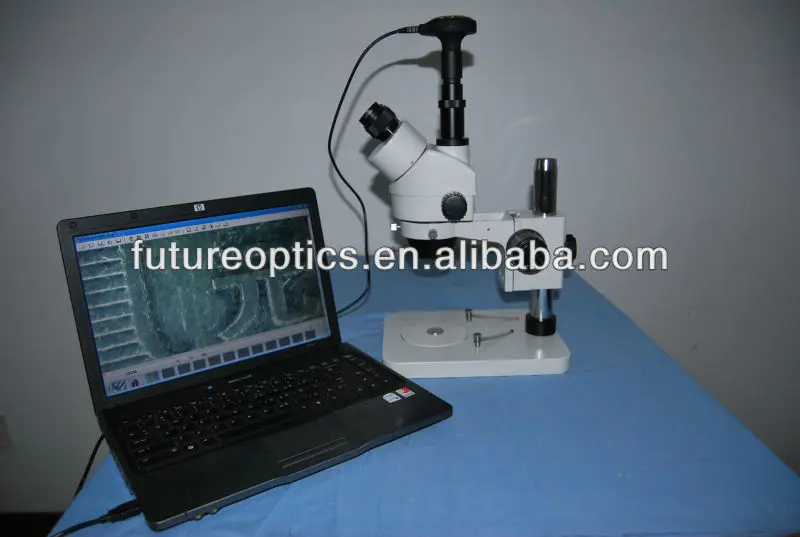

5.0 MP 0.7X 4.5X Optical Zoom USB LED illumination Digital Trinocular Microscope with Built in Relay lens for PCB Inspection
- Category: >>>
- Supplier: Hangzhou Future Optics Sci & Tech Co. Ltd.
Share on (1600914749893):
Product Overview
Description

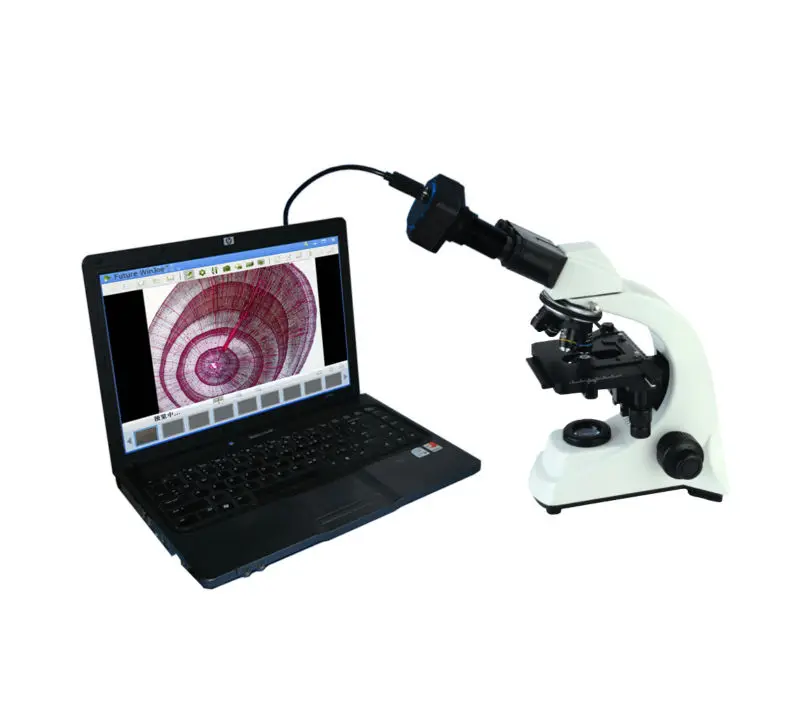

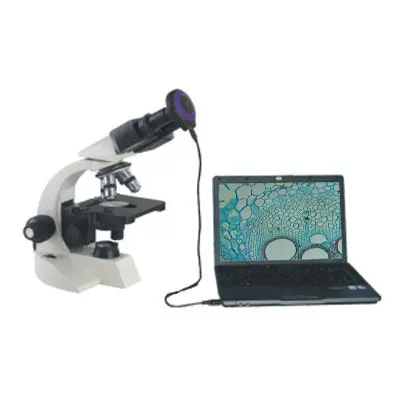

A new digital microscope made by yourself when inserting digital eyepiece into eyepiece tube to replace the ocular eyepiece of microscope. All features and specifications of microscope remain, and digital modules can keep updating easy. In compare with the built in digital microscope, this compounding microscope can do all the things covering analog mode and digital mode.
Specifications:

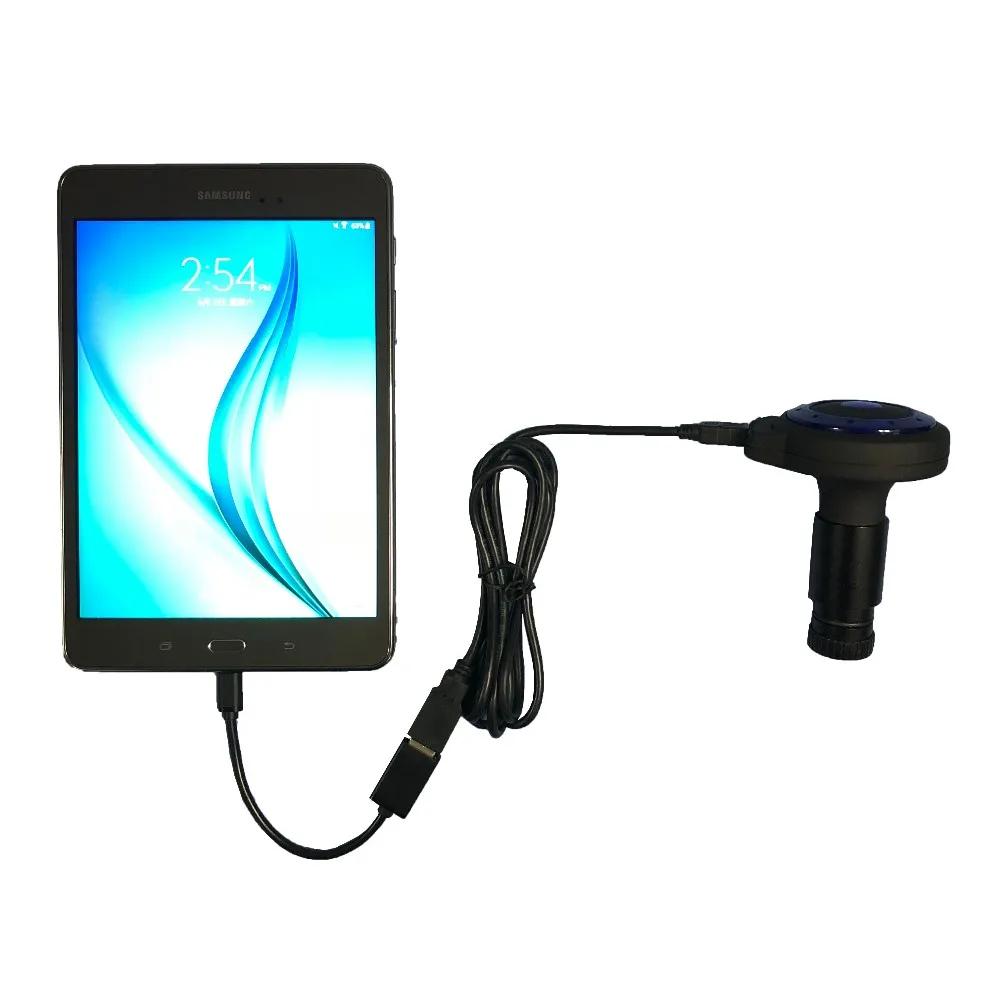

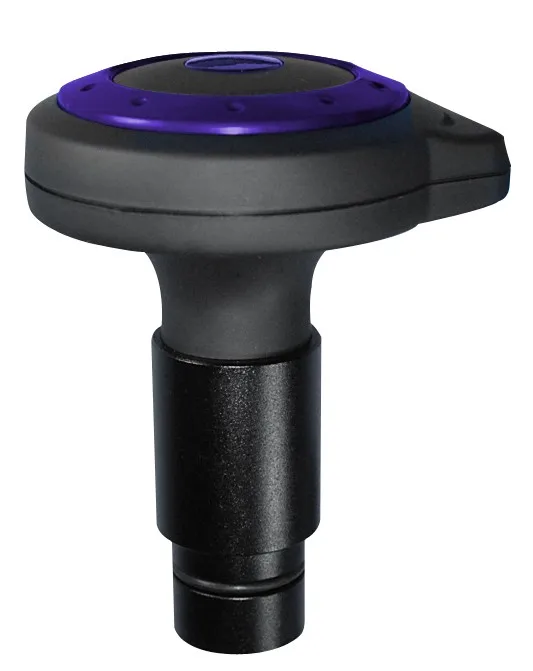

Digital eyepiece | 5.0 MP USB digital camera equipped with built-in relay lens |
Active resolution of sensor | 2592*1944 |
Sensitivity | 1.4V/ lux-sec |
Dynamic rage | 70.1 dB |
Frame rate | 10fps@2592*1944 |
Total magnification (optical eyepiece loaded ) | 7X ~ 45X |
Equivalent magnification of digital eyepiece | 28X (17” LCD screen display pixel size: 0.2625mm ) |
Total magnification (digital eyepiece loaded ) | 19.6X ~ 126X |
Optical eyepiece | WF10X20mm |
Viewing head | Trinocular hand, 45°inclined, 55-75mm interpupillary distance adjustment range |
Objective | 0.7X ~ 4.5X |
Total optical magnification | 7X ~ 45X |
Working distance | 100.0 mm |
Optical viewing field | 28.6mm (7X) |
Micro ruler | 0.1mm / 10 mm |
Illumination | Reflected and transmitted LED illumination with adjustable brightness |
Working stage (base) | Pillar LED base 285mm X 238mm |
Focusing adjustment range | 49mm ( pillar vertical size 240mm) |
CD of software | Future Win Joe imaging software with movable reticle |

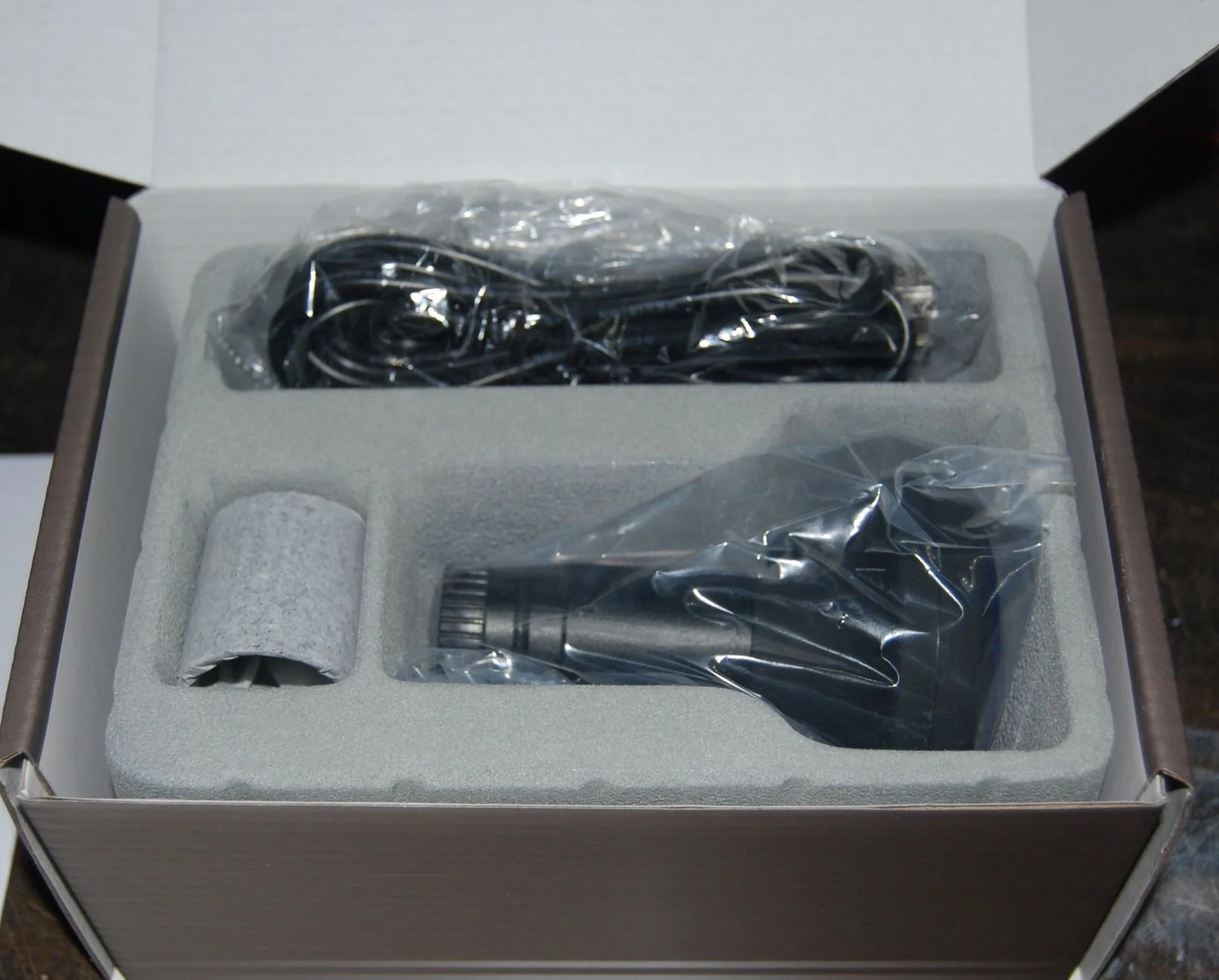

Packing | Carton size: 43cm X 25cm X 38cm |
