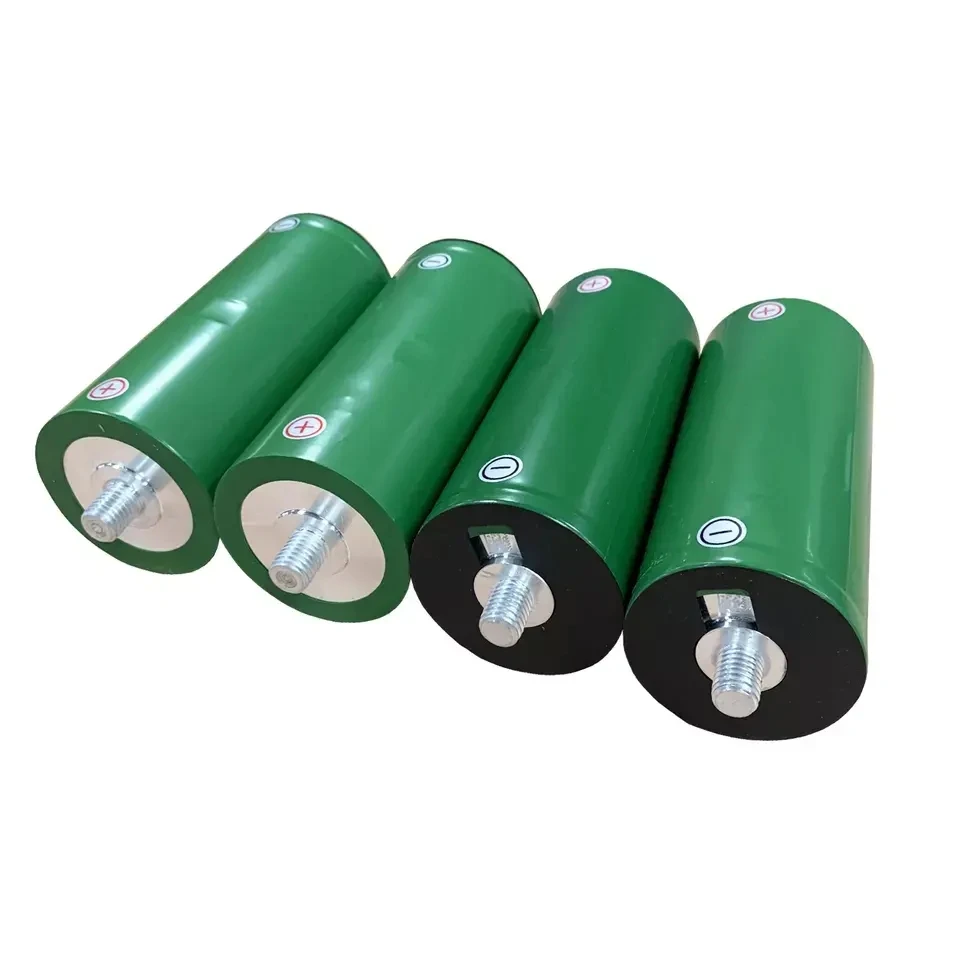

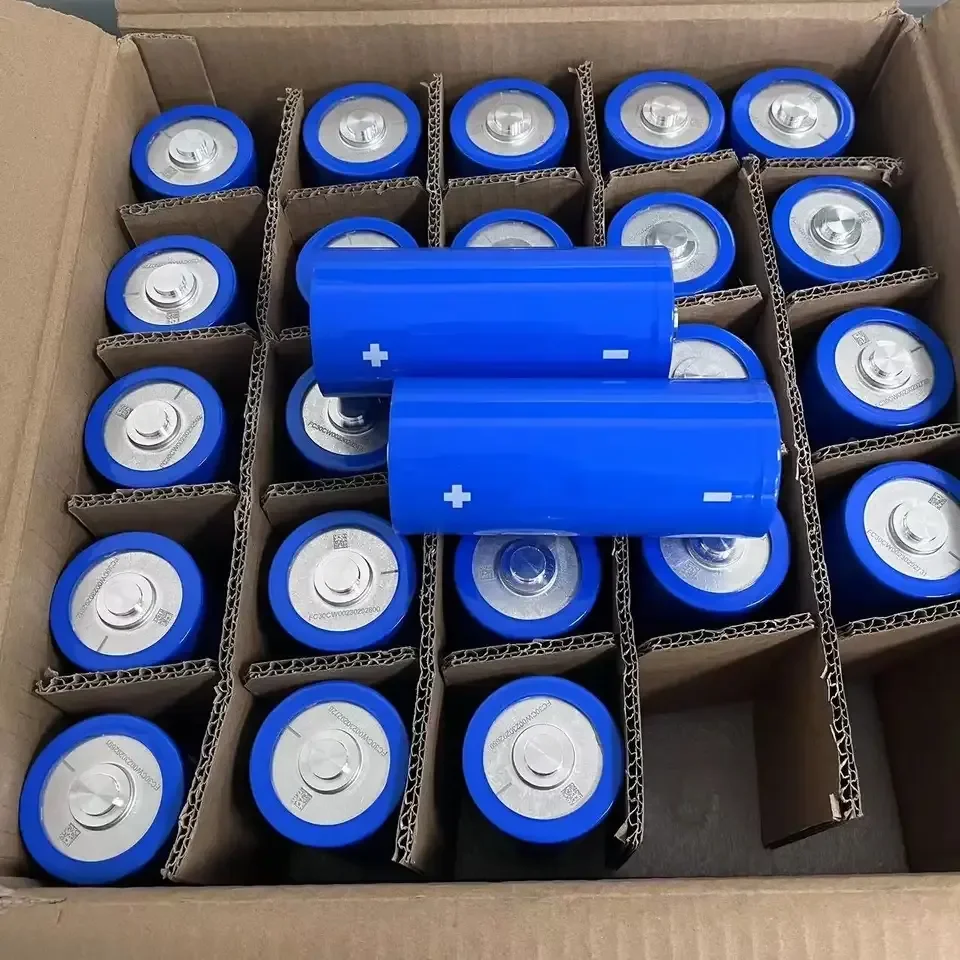

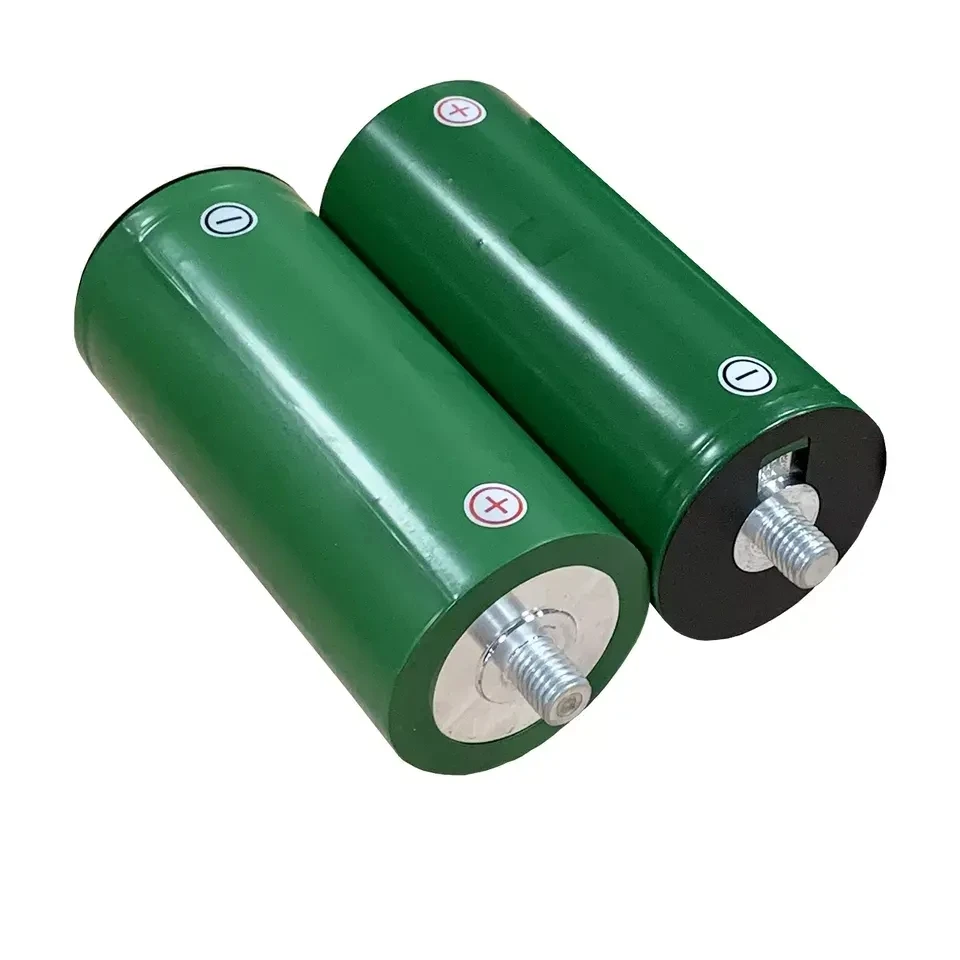

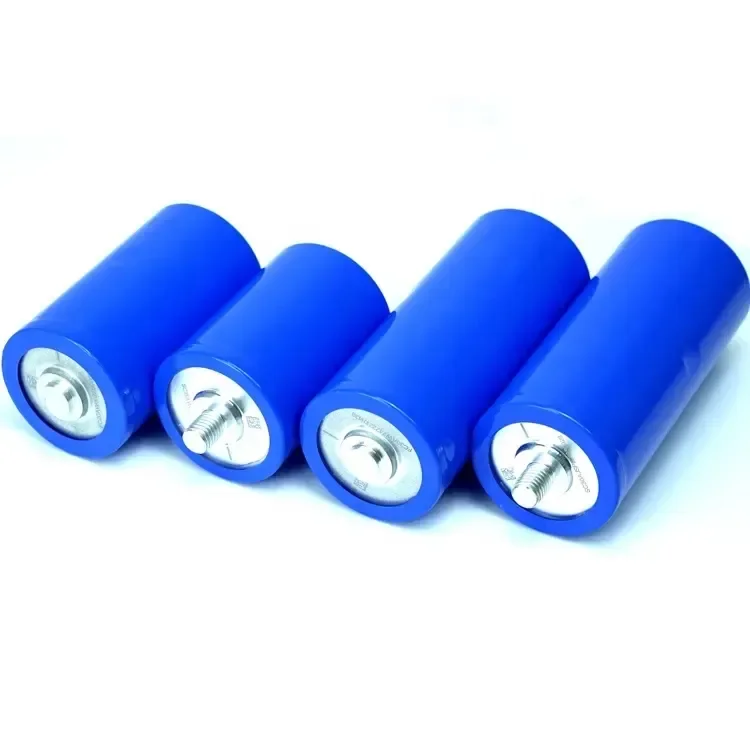

NEW LTO 66165 20C High Discharge Rate Battery Cell 2.4V 37Ah

Product Overview

Description

Product item:

NEW LTO 66165 20C High Discharge Rate  Battery Cell 2.4V 37Ah



Product introduction:

Lithium titanate batteries have extraordinary long life cycles, fast charging and much safer than conventional Li-Ion batteries. This new method of energy storing is currently revolutionizing the industry and is a game-changing factor for e-cars, hybrid cars and the automotive industry.

No	Item	Parameters
	Model	OSN-60165-37Ah
	Materials	LTO
	Nominal capacity	37Ah
	Nominal voltage	2.4 V

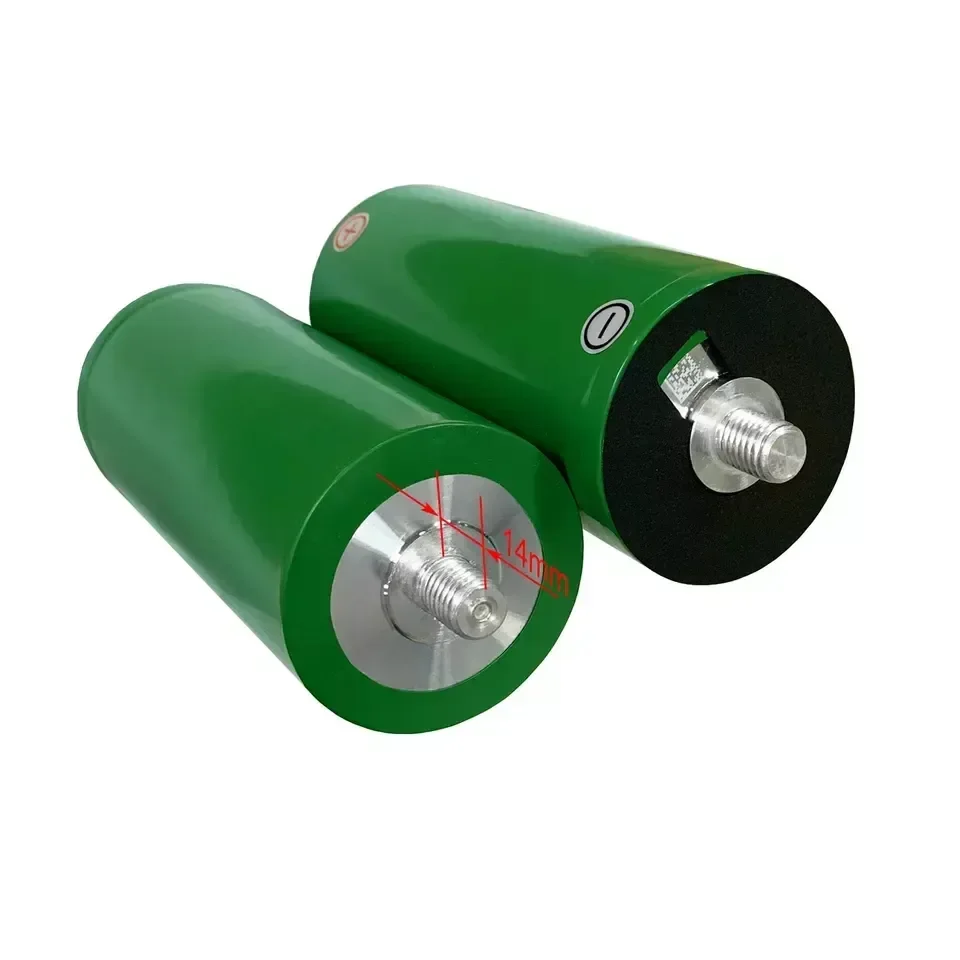

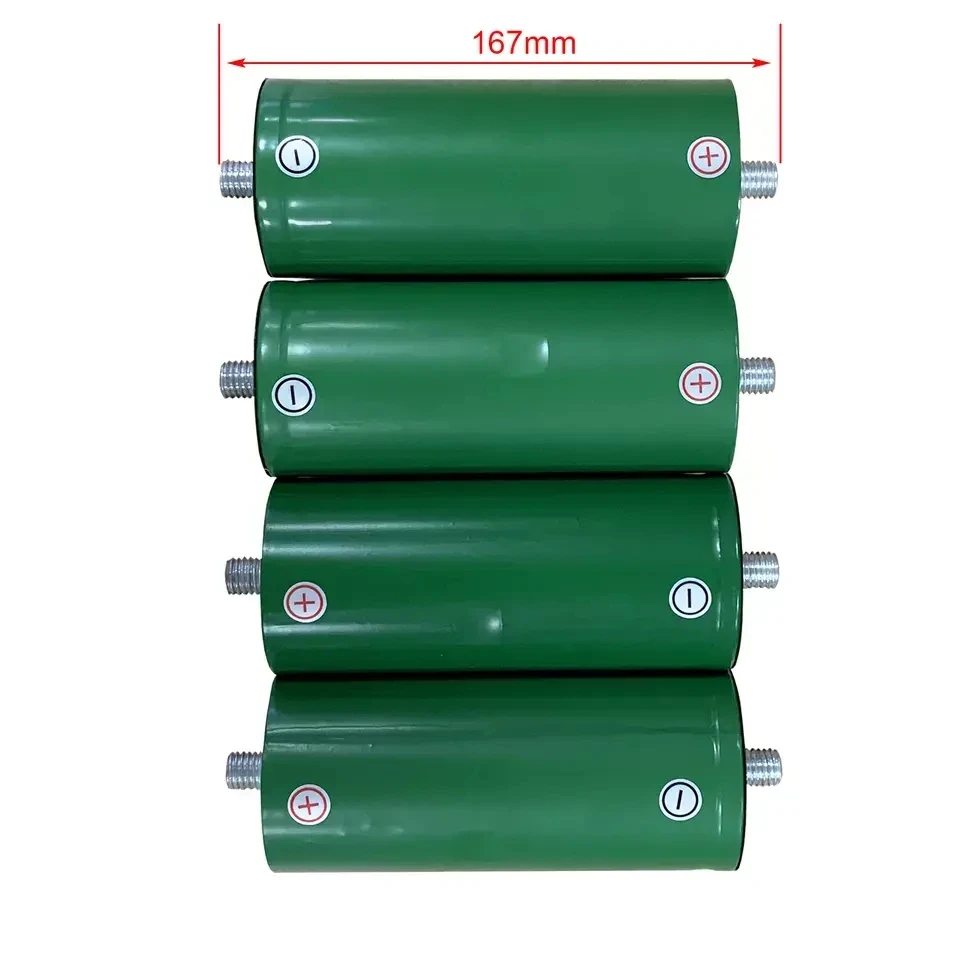

	Dimension	Length: 165±0.5mm
		Diameter: 60±0.4mm
	Weight	1050g
	Internal Resistance	≤0.5mΩ
	Operating voltage	Charge cut-off voltage	2.8 V
		Discharge cut-off voltage	1.5 V
	Standard charge/discharge current	Charge current	4C(148 A)
		Discharge current	8C(296A)
	Maximum charge current	12C
	Maximum discharge	20C
	Cycle life	15000 times
	Operating Thermal Ambient	Charging	-40℃~ 60℃
		Discharging	-50℃~ 60℃
	Storage Thermal Ambient	Short term(within 1 month)	-30℃~ 45℃
		Short term(within 1 year)	-10℃~ 25℃







Features&advantages:

1.  Excellent c-rates performance                                              2. Excellent low temperature performance



Fast charging performance ,which is very suitable                Suitable for low temperature areas and cold  winters,          for EV application ,can be very fast fully charged                  such as Russia ,  Ukraine etc.

3.Super long cycle life                                                              4. Extremely Safety

15000 cycle times of 100%DOD≥80% of nominal                 LTO cells can also be re-op
