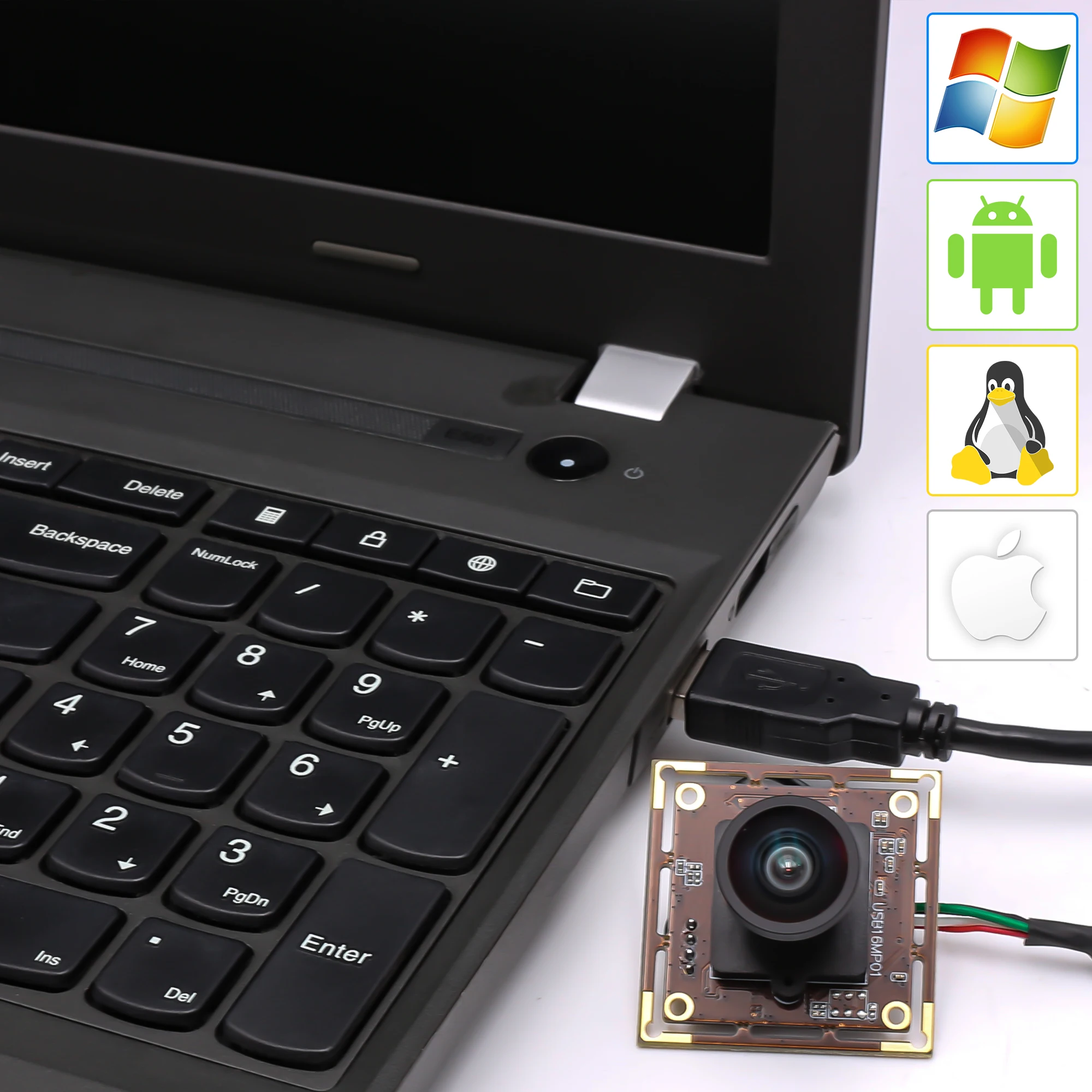

ELP Wide Angle 120 Degree Low Distortion 16MP IMX298 Mini USB Camera Module For Monitoring 3D Printer,industrial Equipment
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600914799294):
Product Overview
Description
Product Description
ELP Wide Angle 120 Degree Low Distortion 16MP IMX298 Mini USB Camera Module For Monitering 3D Printer,industrial Equipment

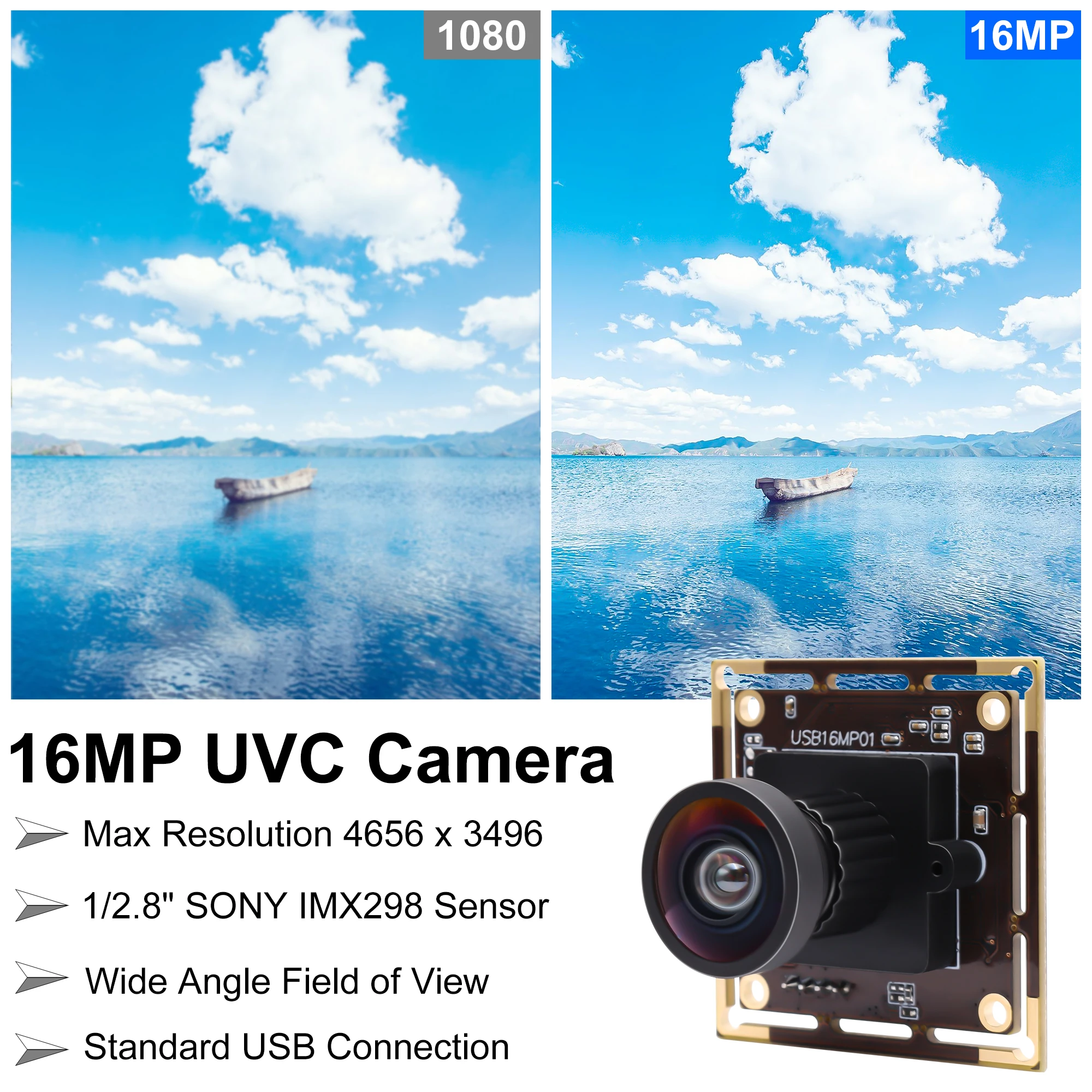

16MP UVC Camera
*1/2.8'' IMX298 sensor
*Wide angle field of view
*standard USB connection
Key Features:
* 16MP High Resolution 4656X3496 USB Camera Module
* High quality 1/2.8 inch IMX 298 Color CMOS image Sensor
* High speed USB 2.0 interface Camera Module
* With Wide Angle 118degree Low distortion Lens
* USB powered Low power consumption
* Small outline for embedded application
* Free Driver, Plug and Play,UVC Compliant for use in OS Windows, Linux, Android, Mac
* OTG Support, Can be connected to tablet, mobilephone, mini PC
* Suitable for document, passport, receipt, Code scanning
* 16MP High Resolution 4656X3496 USB Camera Module
* High quality 1/2.8 inch IMX 298 Color CMOS image Sensor
* High speed USB 2.0 interface Camera Module
* With Wide Angle 118degree Low distortion Lens
* USB powered Low power consumption
* Small outline for embedded application
* Free Driver, Plug and Play,UVC Compliant for use in OS Windows, Linux, Android, Mac
* OTG Support, Can be connected to tablet, mobilephone, mini PC
* Suitable for document, passport, receipt, Code scanning
Specification
Model NO. | ELP-USB16MP01-H120 (H120 Low distion Lens, HFOV 118degree) |
Optional Model NO. | No. Low Distortion Lens: ELP-USB16MP01-LC1100 (LC1100 no distion Lens, HFOV 63degree) ELP-USB16MP01-L75 (L75 no distion Lens, HFOV 76degree) ELP-USB16MP01-V100 (V1100 no distion Lens, HFOV 80degree) ELP-USB16MP01-H100 (H100 no distion Lens, HFOV 95degree) ELP-USB16MP01-H110 (H110 Low distion Lens, HFOV 107degree) Normal Lens: ELP-USB16MP01-F28 (2.8mm Lens, HFOV 90degree) ELP-USB16MP01-F36 (3.6mm Lens, HFOV 76degree) Fisheye Lens: ELP-USB16MP01-L170 (L170 fisheye Lens, HFOV 139degree) ELP-USB16MP01-L180 (L180 fisheye Lens, HFOV more than 180degree) |
Sensor | IMX298 |
Sensor Size | 1/2.8inch |
Pixel Size | 1.12um |
Image Area | 6.4mm x 5.3mm |
Max. Resolution | 4656(H) X 3496(V) 16 Megapixel |
Compression Format | MJPEG / YUY2 (YUYV) |
Resolution & Frame Rate | 4656 x 3496 MJPEG@10fps YUY2 @ 1fps 4208 x 3120 MJPEG@10fps YUY2 @ 1fps 4160 x 3120 MJPEG@10fps YUY2 @ 1fps 4000 x 3000 MJPEG@10fps YUY2 @ 1fps 3840 x 2160 MJPEG@10fps YUY2 @ 1fps 3264 x 2448 MJPEG@10fps YUY2 @ 1fps 2592 x 1944 MJPEG@10fps YUY2 @ 1fps 2320 x 1744 MJPEG@30fps YUY2 @ 1fps 2048 x 1536 MJPEG@30fps YUY2 @ 1fps 1920 x 1080 MJPEG@30fps YUY2 @ 5fps 1600 x 1200 MJPEG@30fps YUY2 @ 5fps 1280 x 960 MJPEG@30fps YUY2 @ 10fps 1280 x 720 MJPEG@30fps YUY2 @ 10fps 1024 x 768 MJPEG@30fps YUY2 @ 10fps 800 x 600 MJPEG@30fps YUY2 @ 15fps 640 x 480 MJPEG@30fps YUY2 @ 30fps |
Min Illumination | 0.5 Lux |
Shutter Type | Electronic Rolling Shutter / Frame Exposure |
Connecting Port Type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class (UVC) |
AEC | Support |
AWB | Support |
AGC | Support |
Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure |
Lens Parameter | Standard Low Distortion H120 Lens, FOV about 118 degree Optional 2.8mm/3.6mm, No Distortion Lens (FOV 60~120 degree optional), 140 degree /180 degree Fisheye Lens etc. |
Power Supply | USB BUS POWER 4P-2.0mm Socket |
Operating Voltage | DC5V |
Working Current | 150mA~240mA |
Working Temperature | -10~70℃ |
Storage Temperature | -20~85℃ |

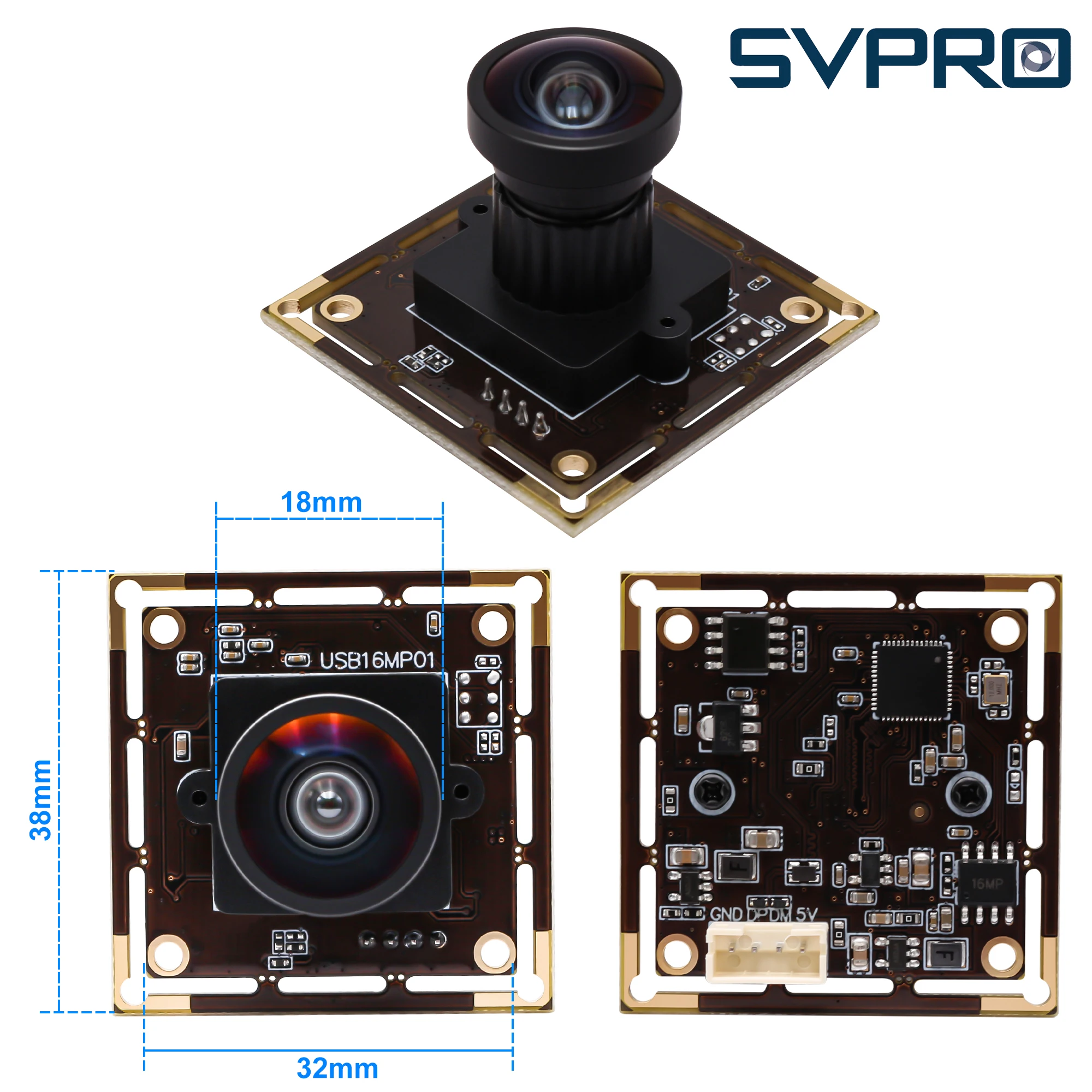

Board Size /Weight | 38X38mm (Compatible 32X32mm) / about 30g |
Cable | Standard 1m / Optional 2m,3m,5m |
Operating System Request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above Linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Details Images

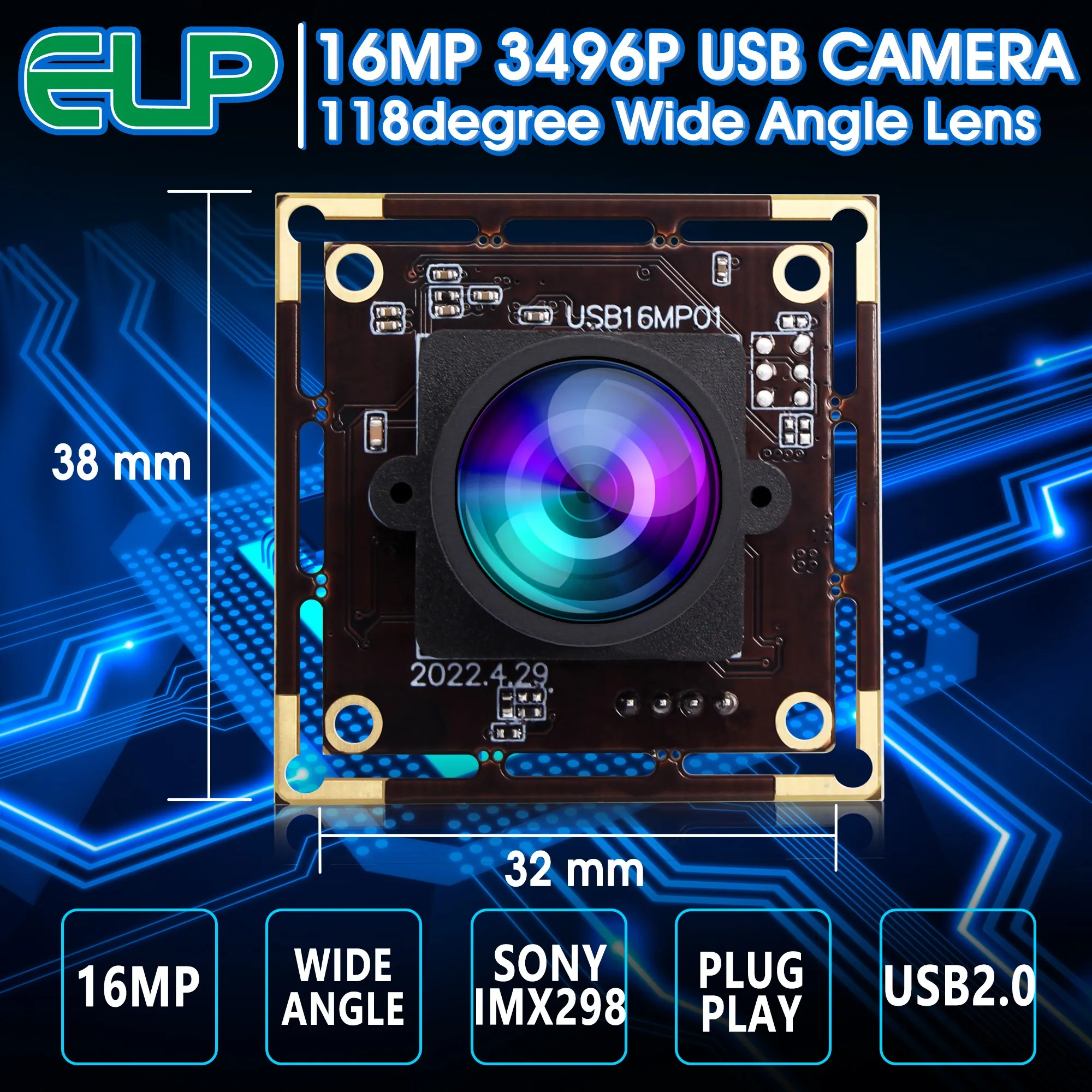

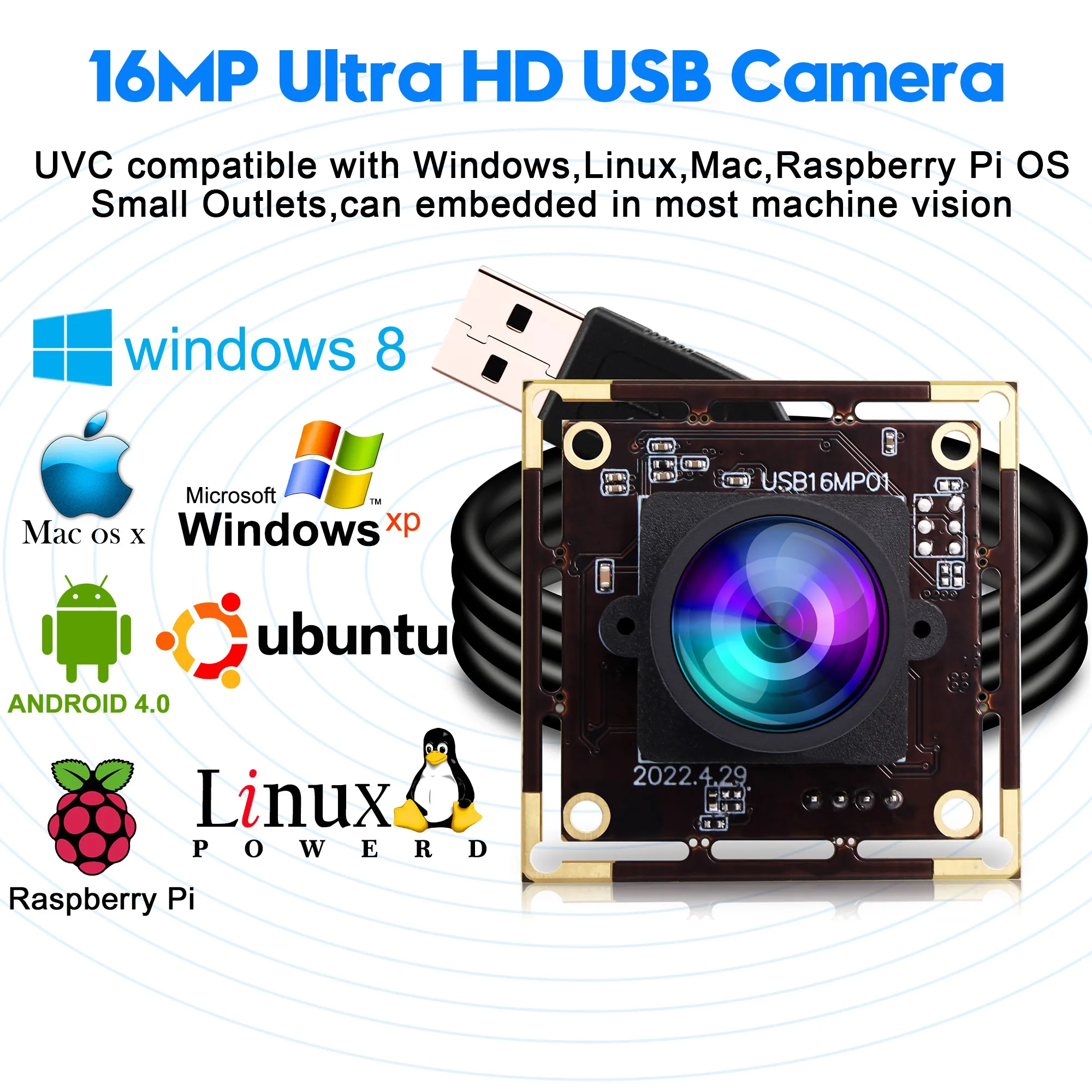

16MP High Definition USB Camera
Wide view angle :
Micro distortion H120 Lens, FOV about 118 degree.
Optional 2.8mm/3.6mm, No Distortion Lens (FOV 60~120 degree optional), 140
degree /180 degree Fisheye Lens etc.
Optional 2.8mm/3.6mm, No Distortion Lens (FOV 60~120 degree optional), 140
degree /180 degree Fisheye Lens etc.
UVC free driver
Supported OS:Win7/8/10,Linux,Mac,Wince and Android with UVC.Size:38x38mm/32x32mm. Plug and Play,UVC compliant for most os.,

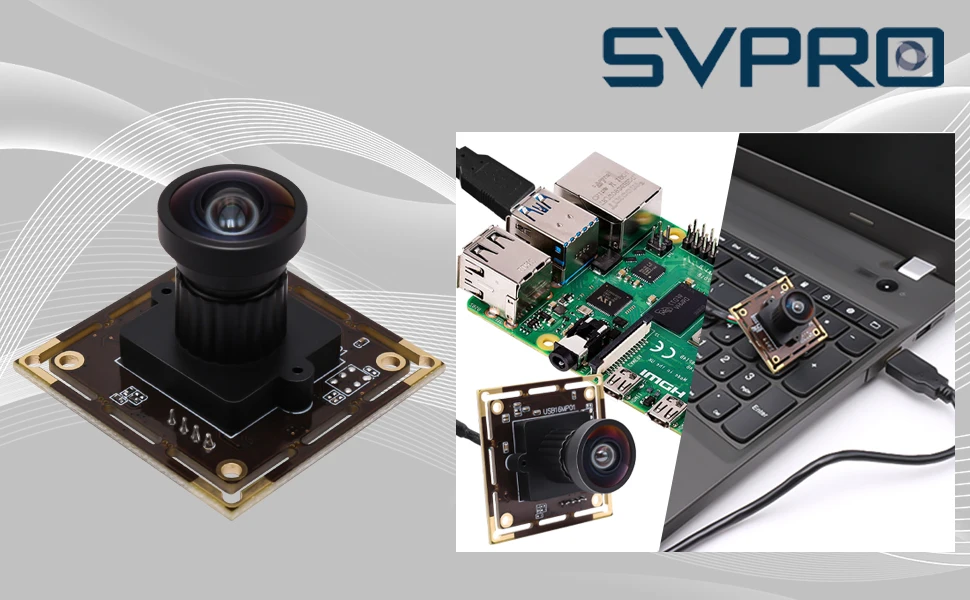

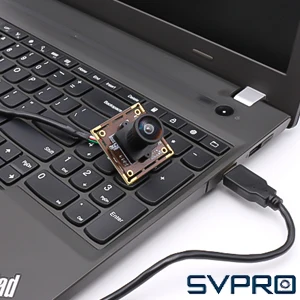

Plug&Play
Plug-&-Play (UVC compliant),USB2.0 camera module with 1 meter USB2.0 cable. Embedded with 1/2.8”SONY IMX298 image sensor for better picture performance.
HOW TO USE THE 16MP 120 DEGREE LOW DISTORTION USB CAMERA
Applications
Widely Used for all kinds of machine and equipment
machinery equipment, all-in-one machine, POS equipment, STB,smart box TV BOX, advisement player,LED display,automatic vending machine,safety box,notebook,video door phone, MID, Tablet external, evaluator,medical Equipment, ttendance machine, Voting system etc
Recommend Products
Company Profile
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,
Camerafi,VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,
Camerafi,VLC Player
