20L high quality alcohol distillation glass rotary evaporator
- Category: >>>
- Supplier: Nanbei Instrument Limited
Share on (1600914802908):
Product Overview
Description
Product Description

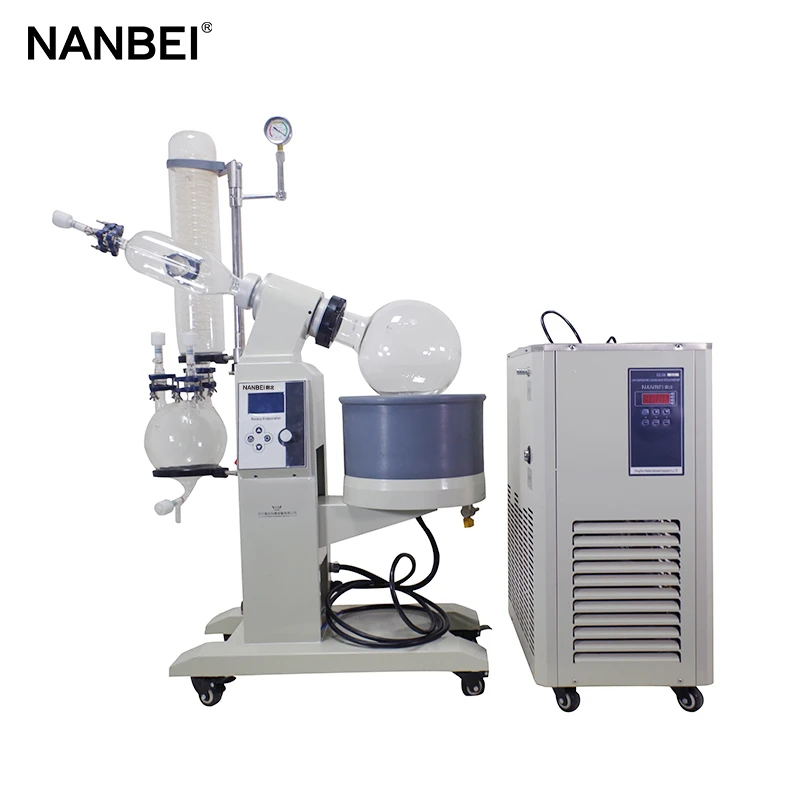

20 liter high quality alcohol distillation glass rotary evaporator
Motor has the function of 10-120 RPM stepless speed regulation and automatic lifting, revolving consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-120 RPM range, it has reached the advanced level at home and abroad.
1 Quick and easy lifting mechanism
2 Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.
3 Vertical condensation system of high rate of evaporation
4 Vacuum sealing way
5 Automatic control temperature digital display
1 Quick and easy lifting mechanism
2 Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.
3 Vertical condensation system of high rate of evaporation
4 Vacuum sealing way
5 Automatic control temperature digital display
Specification
Model | NBRE-50L | NBRE-100L |
Glass meterial | GG-17 | GG-17 |
Holder material | Stainless steel | Stainless steel |
Pot shell Material | Spray anti-corrosion 710*620*700mm | Spray anti-corrosion 820*820mm |
Pot bravery | Stainless steel 550*320mm | Stainless steel 795*330mm |
Plate size | 804*574mm | 1600*830mm |
Evaporator flask | 50L flange mouth:Φ125mm | 100L flange mouth:Φ180mm |
Collect flask | 20L flange mouth:Φ60mm | 50L ball mouth:Φ40mm |
Vacuum degree | 0.098Mpa | 0.098Mpa |
Rotary speed | 0-110RPM | 0-110RPM |
Rotary power | 180W 220V/50HZ | 400W 220V/50HZ |
Heating power | 8KW 380V/50HZ | 12KW 380V/50HZ |
Heating temp. | 0-400℃ | 0-400℃ |
Temp. accuracy | ±1℃ | ±1℃ |
Lifting stroke | 180mm | 180mm |
Dimension | 1520*620*2470mm | 1700*850*2600mm |
Packing weight | 170kg | 400kg |
If You Need Other Model, Please Contact Us To Get More Information
