Growatt spf 5000es 6000es 48v 5000w 6000w 230V Solar Converter Single Phase Mppt Off Grid Solar Hybrid Inverte
*After-sales stations are located in more than 20 countries around the world.
Products Description
SPF5000ES | ||
Battery voltage | 48VDC | |
INVERTER OUTPUT | ||
RATED POWER | 5000VA/ 5000W | |
Parallel Capability | Yes, 6 units | |
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |
Surge Power | 10000VA | |
Efficiency (Peak) | 93% | |
Waveform | Pure sine wave | |
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |
SOLAR CHARGER | ||
Maximum PV Array Power | 5500W | |
MPPT Range @ Operating Voltage | 120VDC ~ 430VDC | |
Maximum PV Array Open Circuit Voltage | 450VDC | |
Maximum Solar Charge Current | 100A | |
Maximum Efficiency | 97% | |
AC CHARGER | ||
Charge Current | 80A | |
AC Input Voltage | 230 VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
PHYSICAL | ||
Dimension (D/W/H) in mm | 485/330/135 | |
Net Weight (kgs) | 12 | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | 0°C - 55°C | |
Storage Temperature | -15°C - 60°C | |

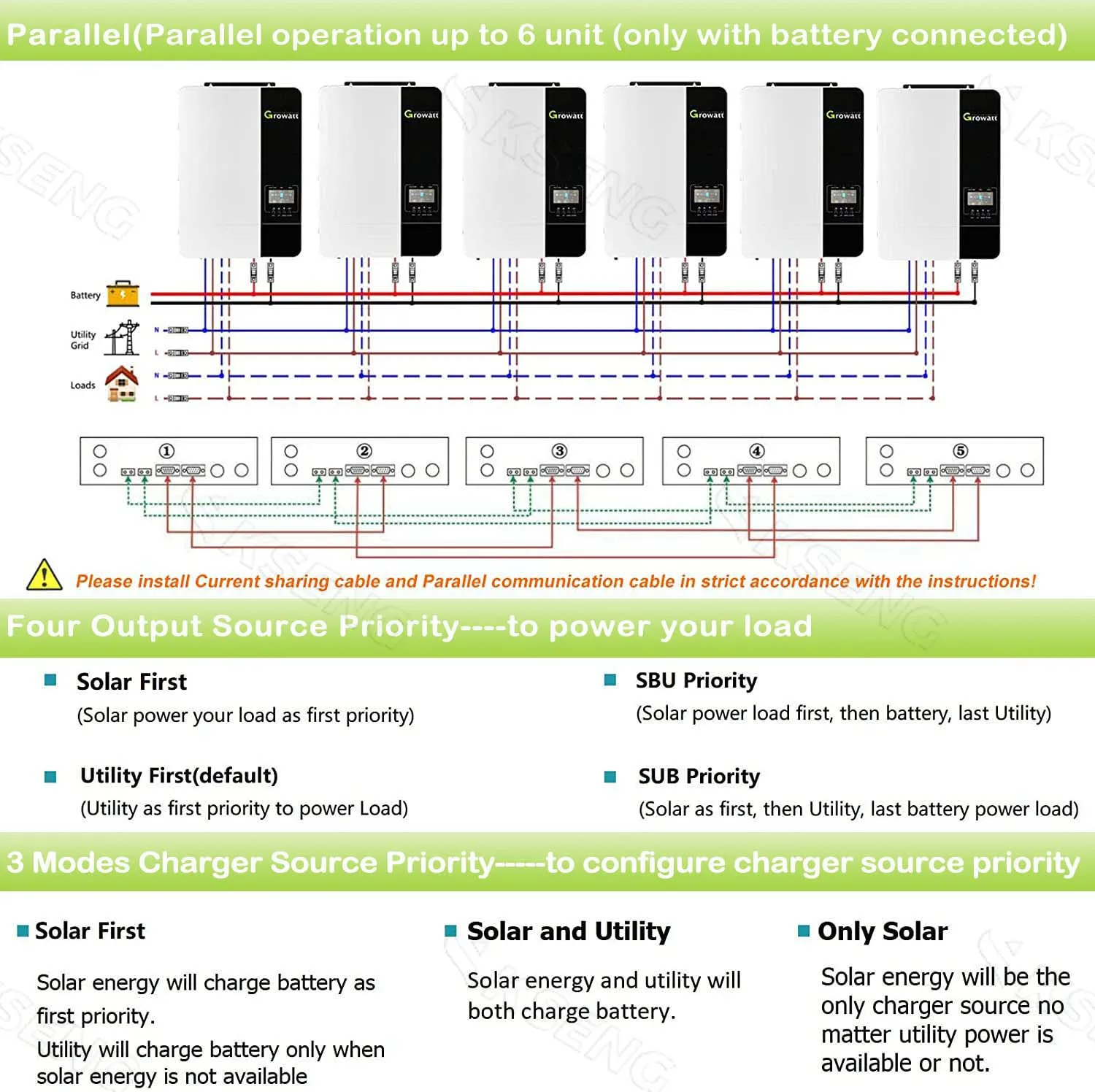

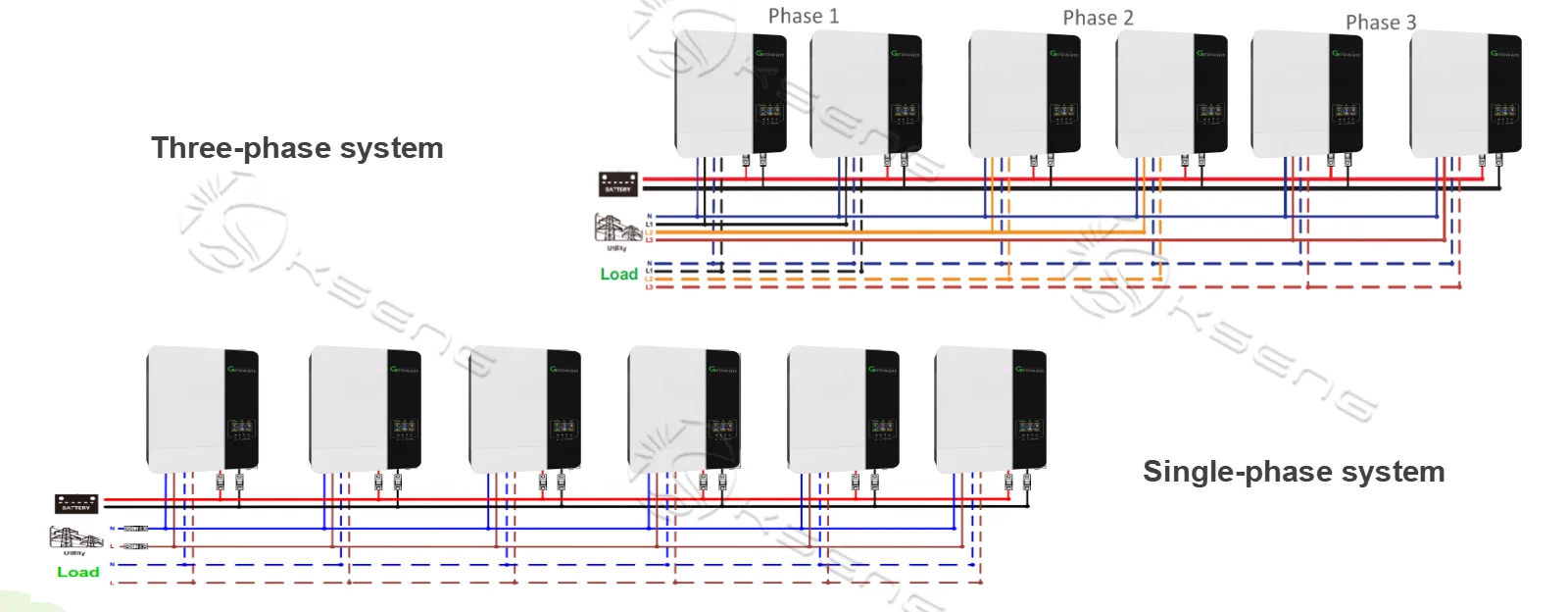

Parallel operation with up to 6 units only for 4/5KVA,the maximum system output up to 30KW,and also can be set to a three-phase system

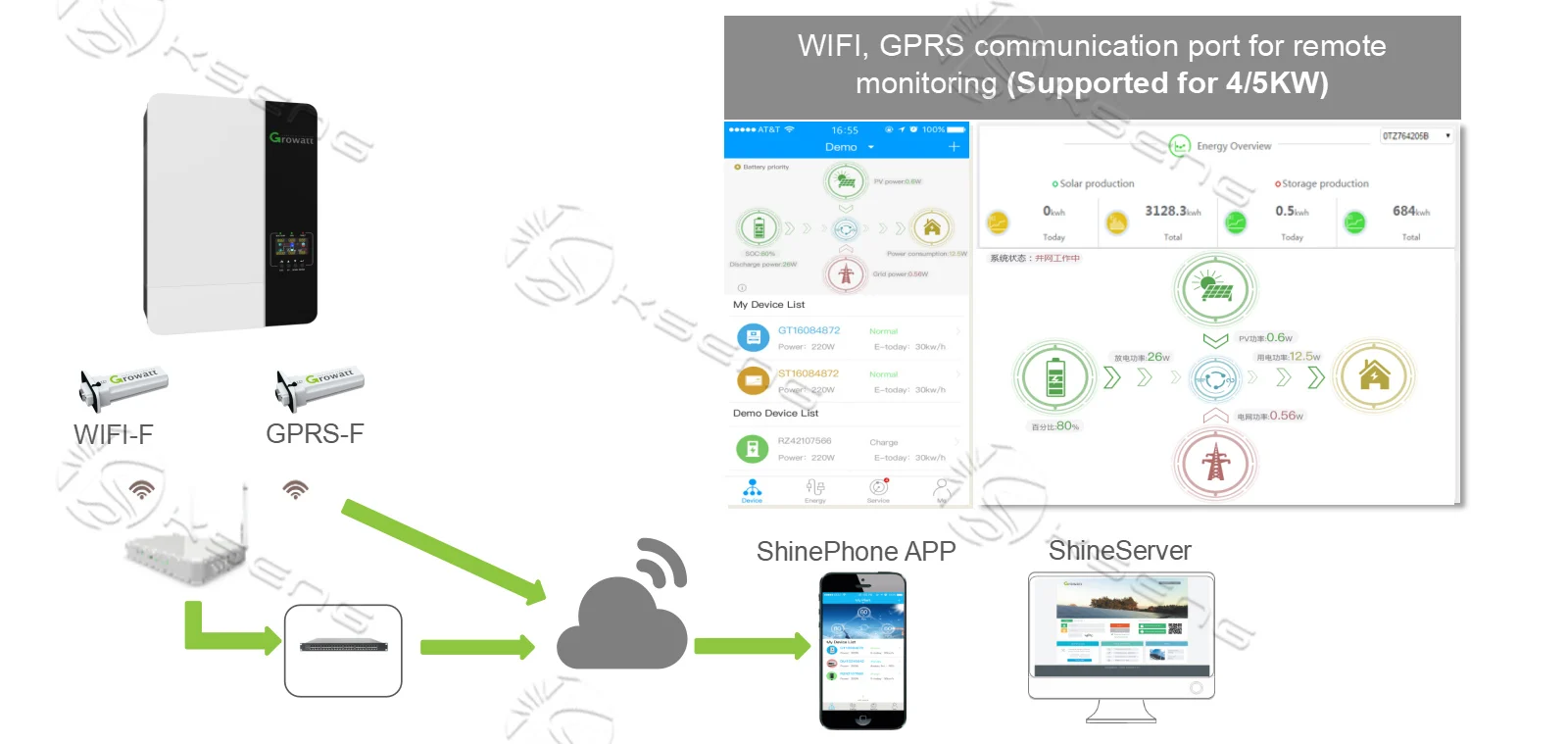

Remote monitoring

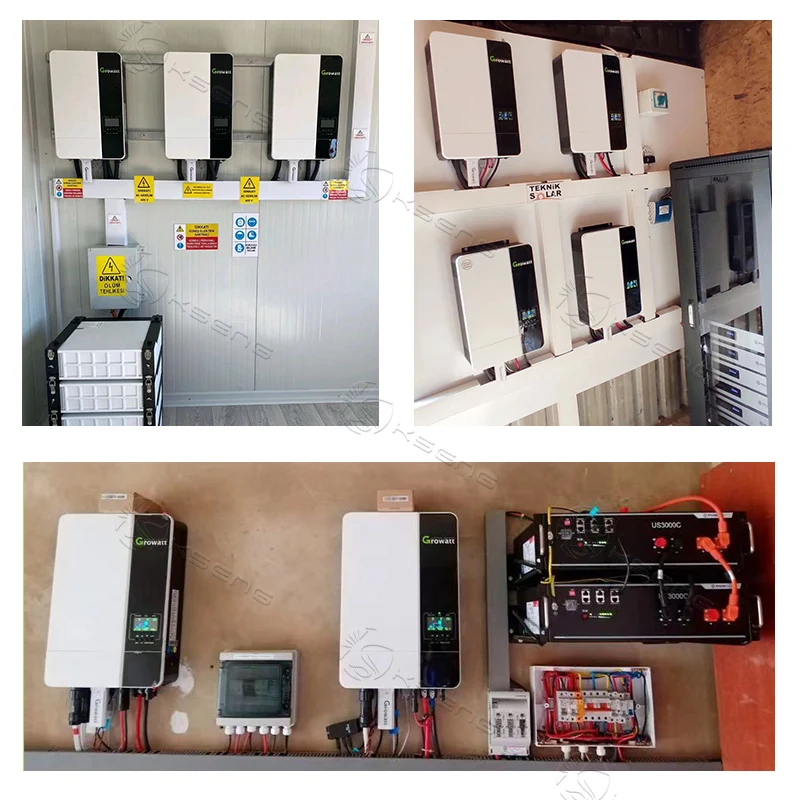

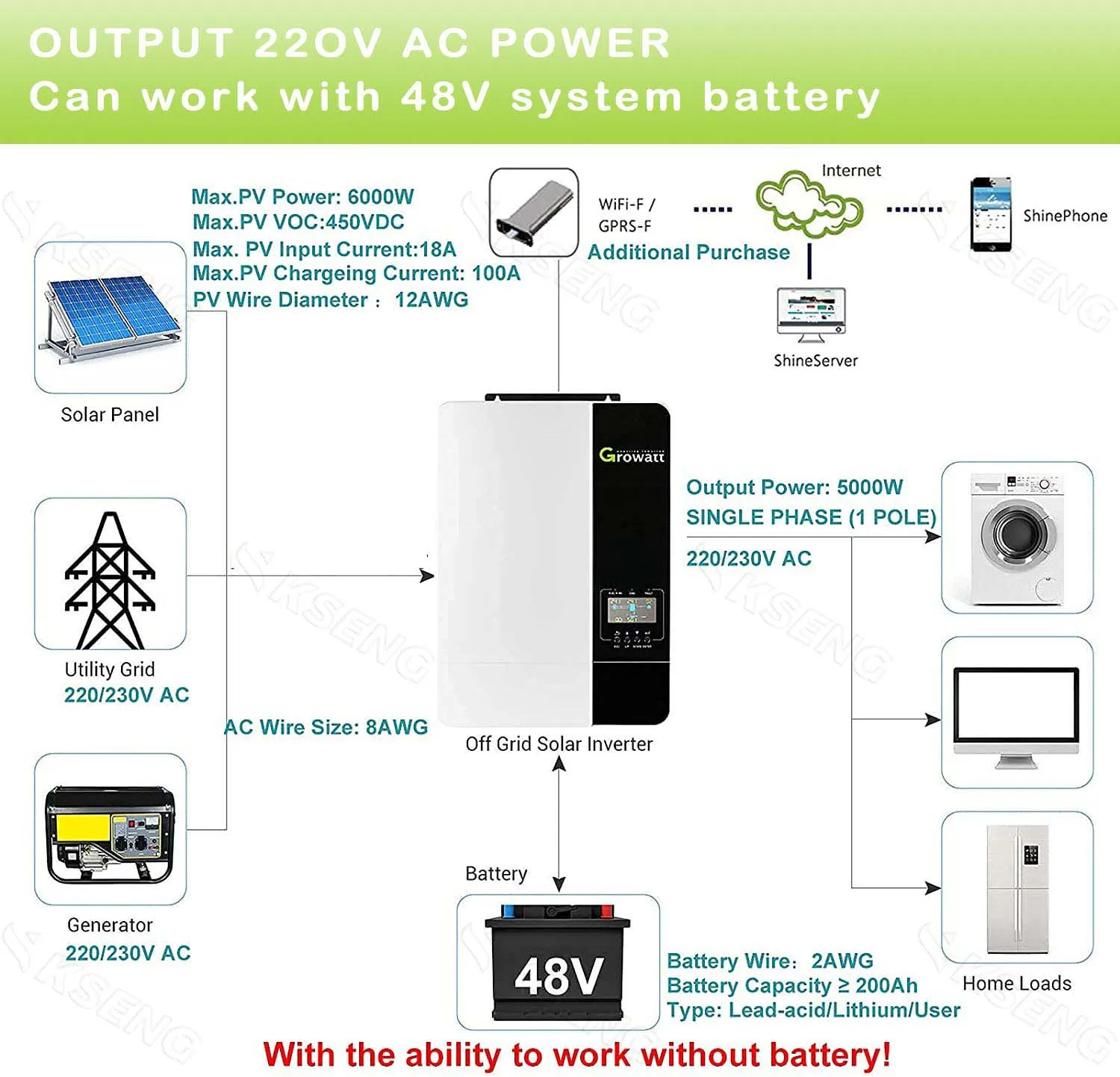

Product Application

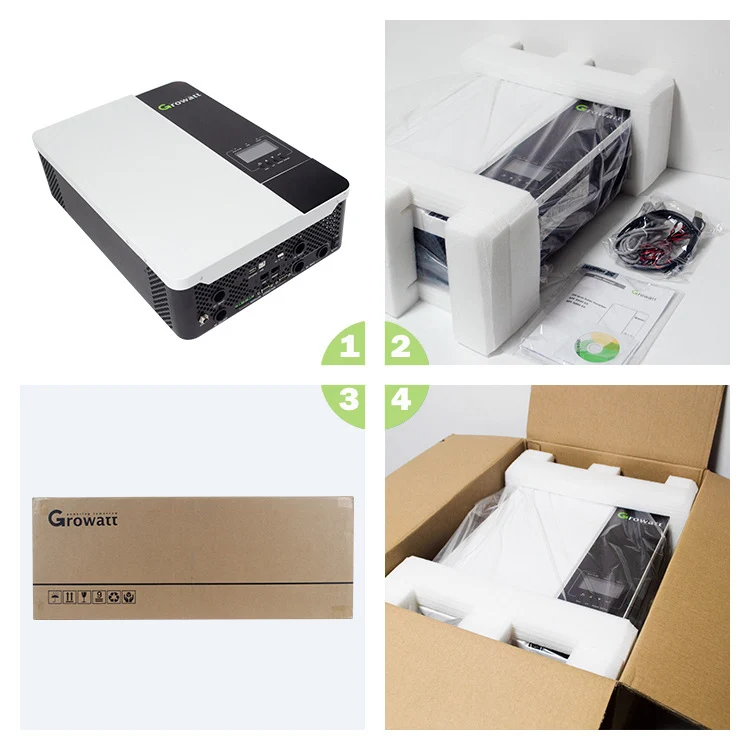

Product packaging
Production Process
Xiamen Kseng Metal Tech Co., Ltd is a national high-tech enterprise with independent intellectual property rights. Annual production capacity can reach 3GW. Headquartered in beautiful coastal city Xiamen, China, the company has branches and offices in Hong Kong S.A.R, Australia, Malaysia, Japan, South Korea, Vietnam and other countries and regions.With support of a professional team, the company provides its clients with safe, reliable,stable and efficient solutions for the solar photovoltaic power station. It focuses on core businesses like solar system,solar Inverter and cleaning equipment, PV mounting and related accessories, PV power plant construction business and so on.
