Product Overview
Description
GZV series mini conveyor / vibrating feeder
Product Description
GZV series mini conveyor / vibrating feeder is widely used in light industry, chemical industry, grain, food, grinding, and other industries, which is mainly used for processes of feeding, dosing and quantitative automatic packing, etc., and can realize control and automatic control of production process.
Specification
The following table shows the detailed data of different models of GZV series mini conveyor / vibrating feeder for your reference, and we will choose a suitable model accordting to your needs.
| Model | GZV1 | GZV2 | GZV3 | GZV4 | GZV5 | |
| Feeding capacity (t/h) | 0.1 | 0.5 | 1 | 2 | 4 | |
| Double amplitude (mm) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Frenquency (time/min) | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Power (w) | 5 | 8 | 20 | 25 | 30 | |
| Control device | Model | XKZV-II | ||||
| Control mode | Half wave controlled rectification | |||||
| Power supply volrage (v) | 220 | |||||
| Power supply frequency (HZ) | 50 | |||||
| Current (A) | 0.08 | 0.12 | 0.15 | 0.2 | 0.25 | |
| Total weight of equipment (kg) | 4 | 7 | 12 | 18 | 27 | |

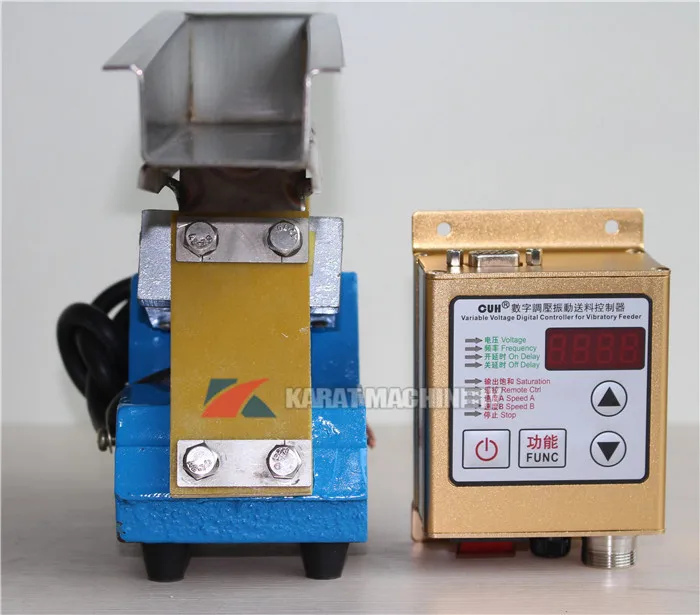

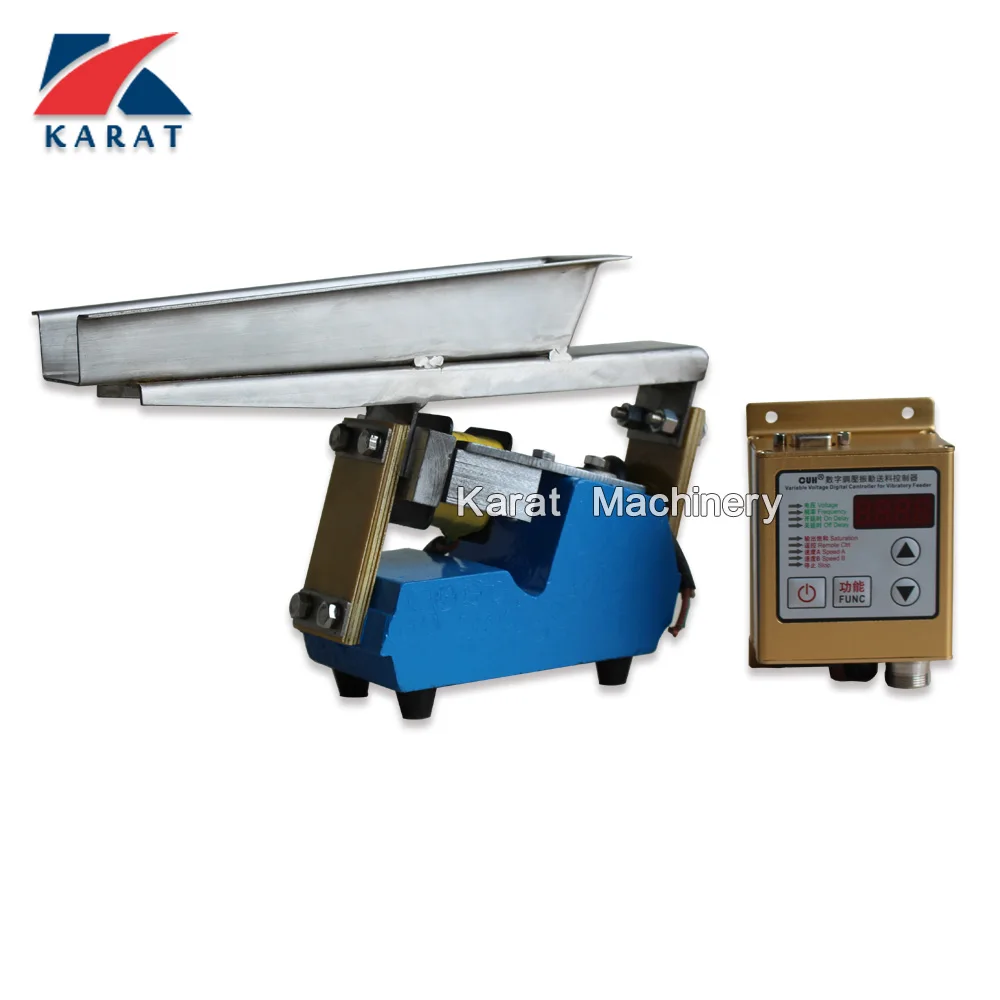

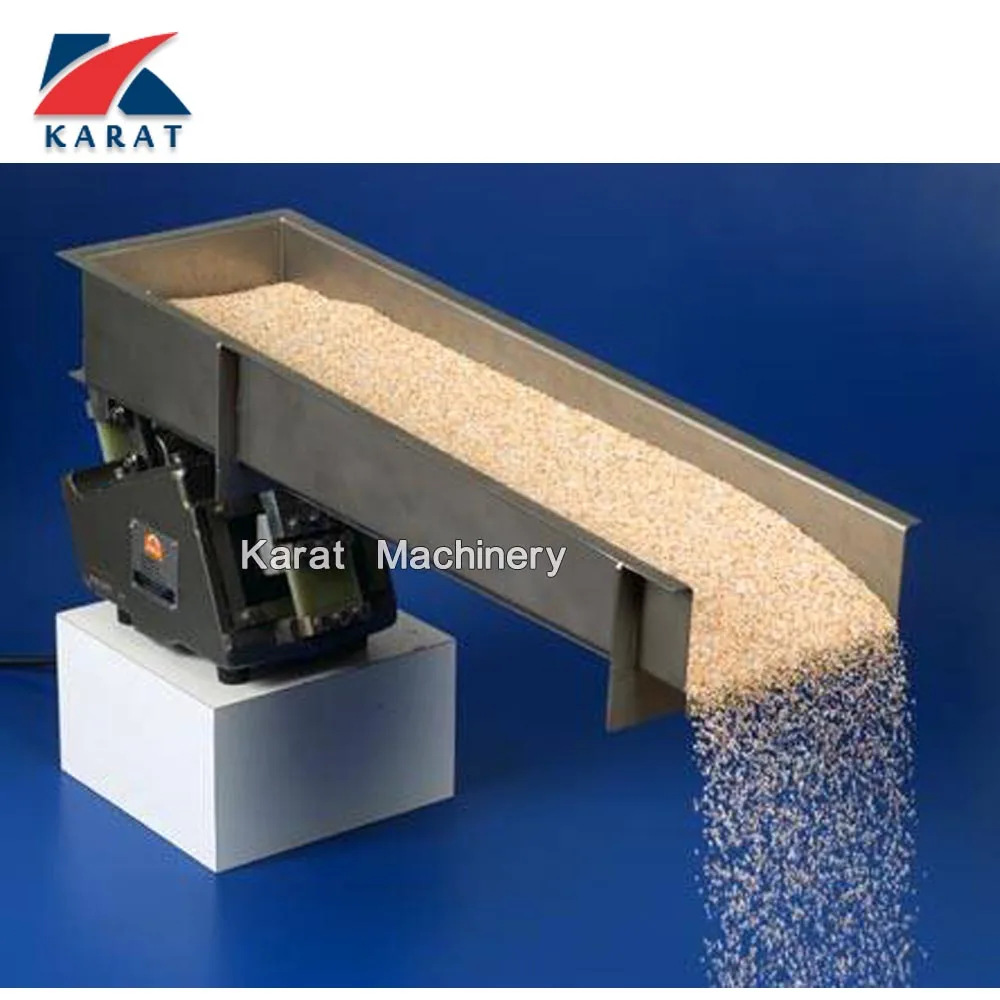

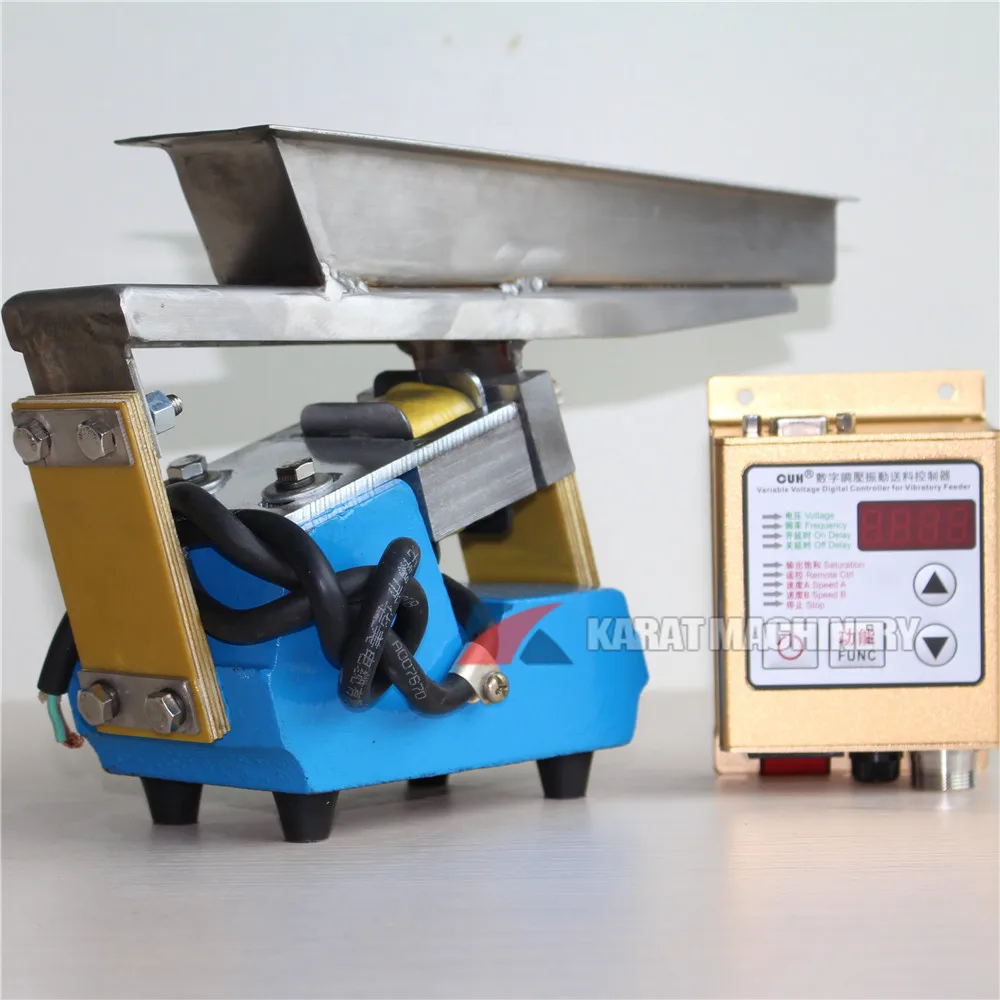

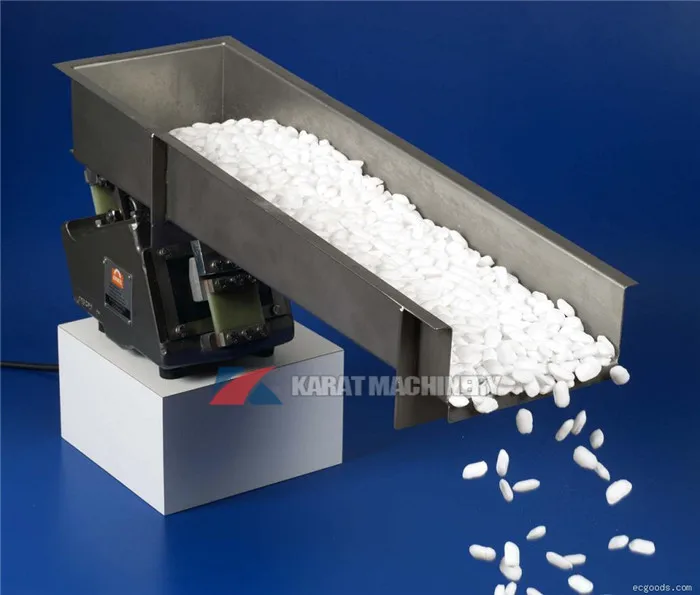

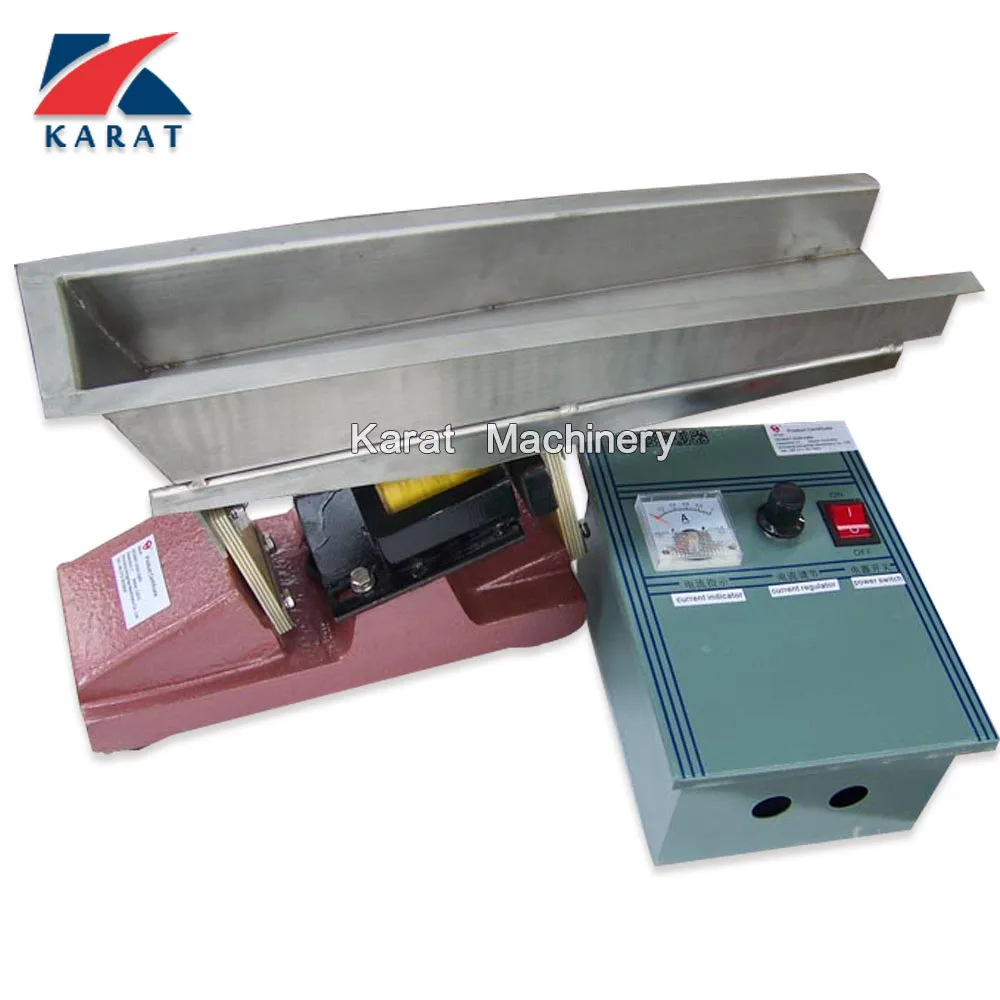

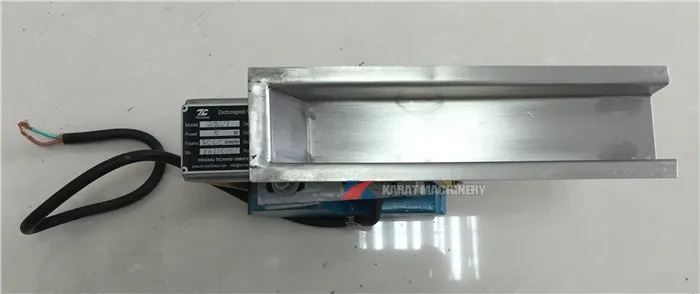

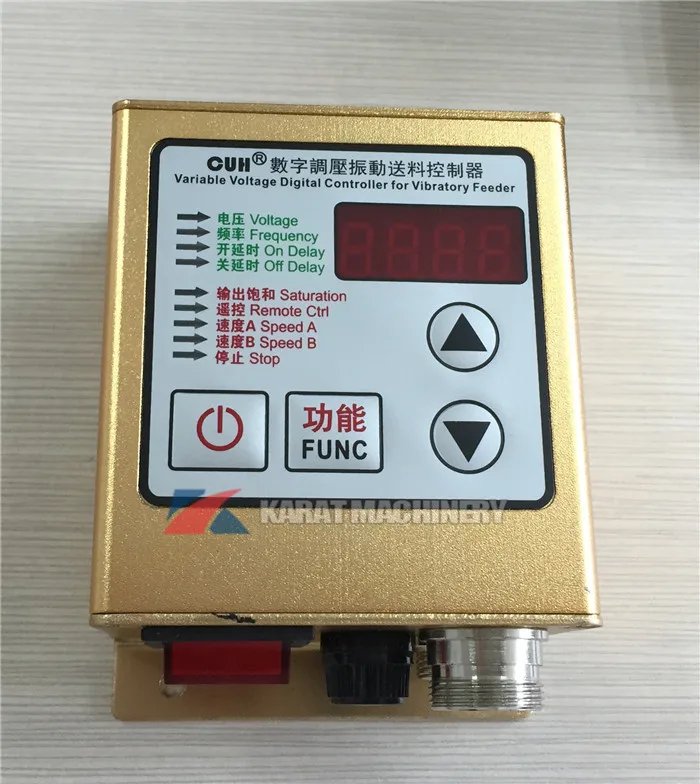

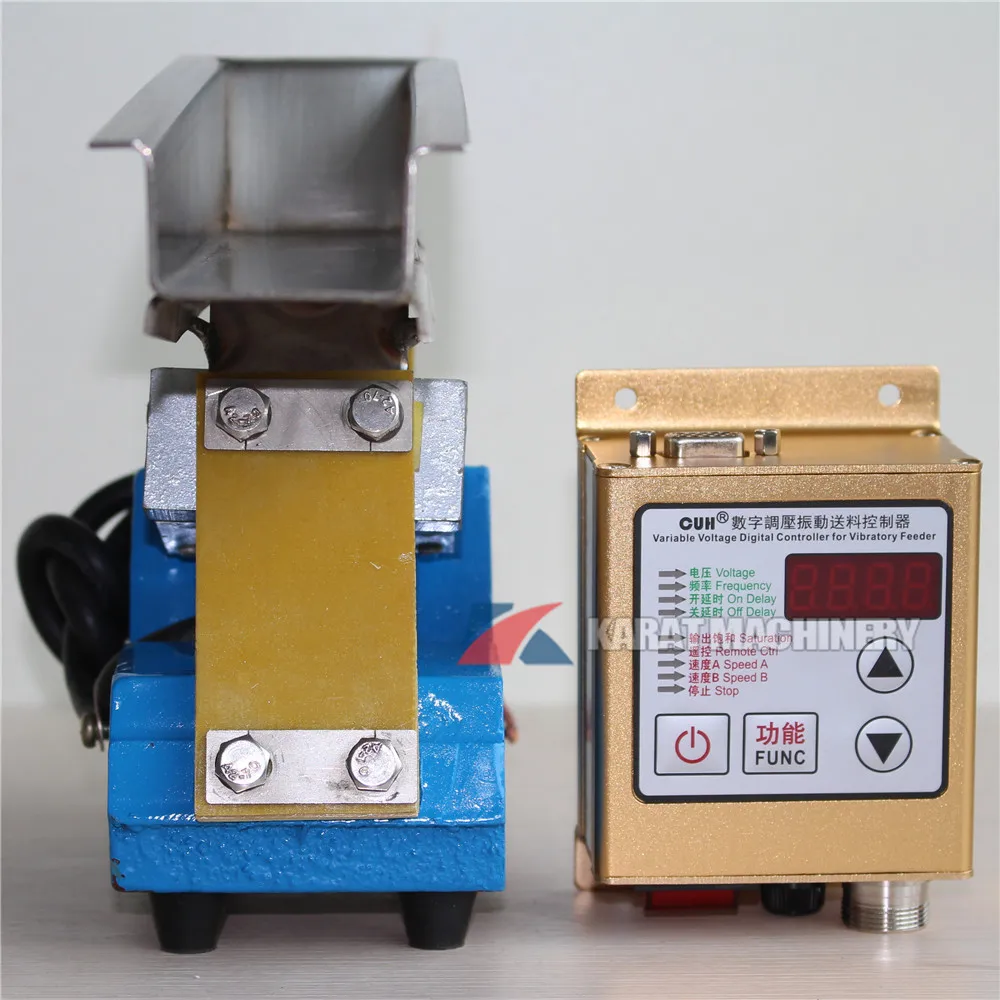

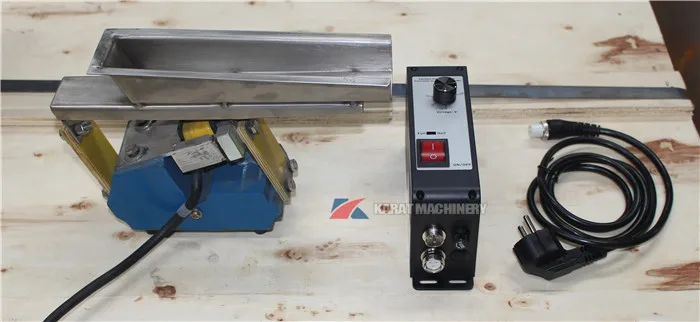

Detail Pictures
The following pictures of GZV series mini conveyor / vibrating feeder make you know more about each part of our products.
Customer Visiting
FAQ
Q: What information do I need to provide for getting an accurate quotation for GZV series mini conveyor / vibrating feeder?
A: 1. Material’s name, bulk density, and water content
2. Capacity you required___kg/h
3. Voltage and frequency
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 12 months from the shipping date.
