Product Overview

Description

R4 cnc router

ATC 4 Axis CNC Machine for Wood Carving woodworking atc spindle cnc router atcWood cnc router high quality ATC

Product Description

German Siemens controller Siemens servo motor 4 tools top quality ATC cnc router for wood aluminum mdf plastic cutting milling

Product Application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

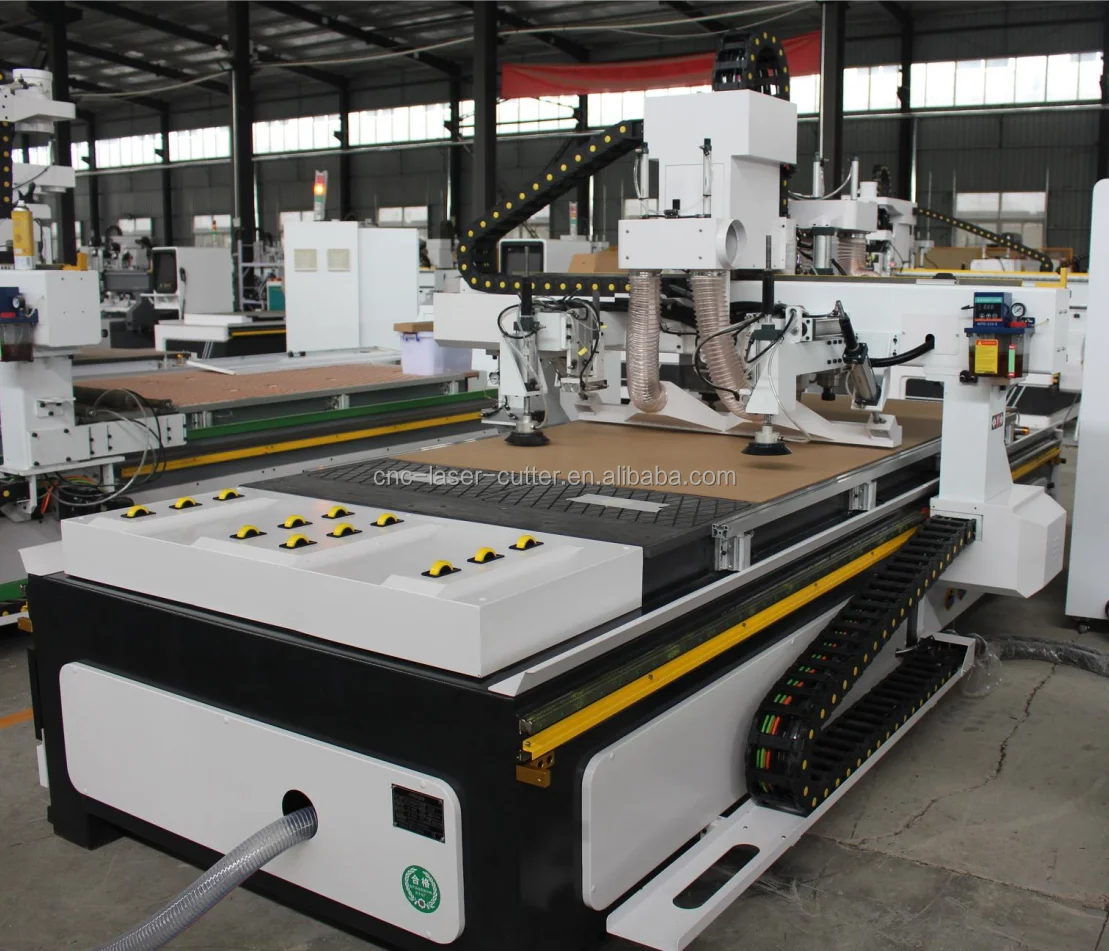

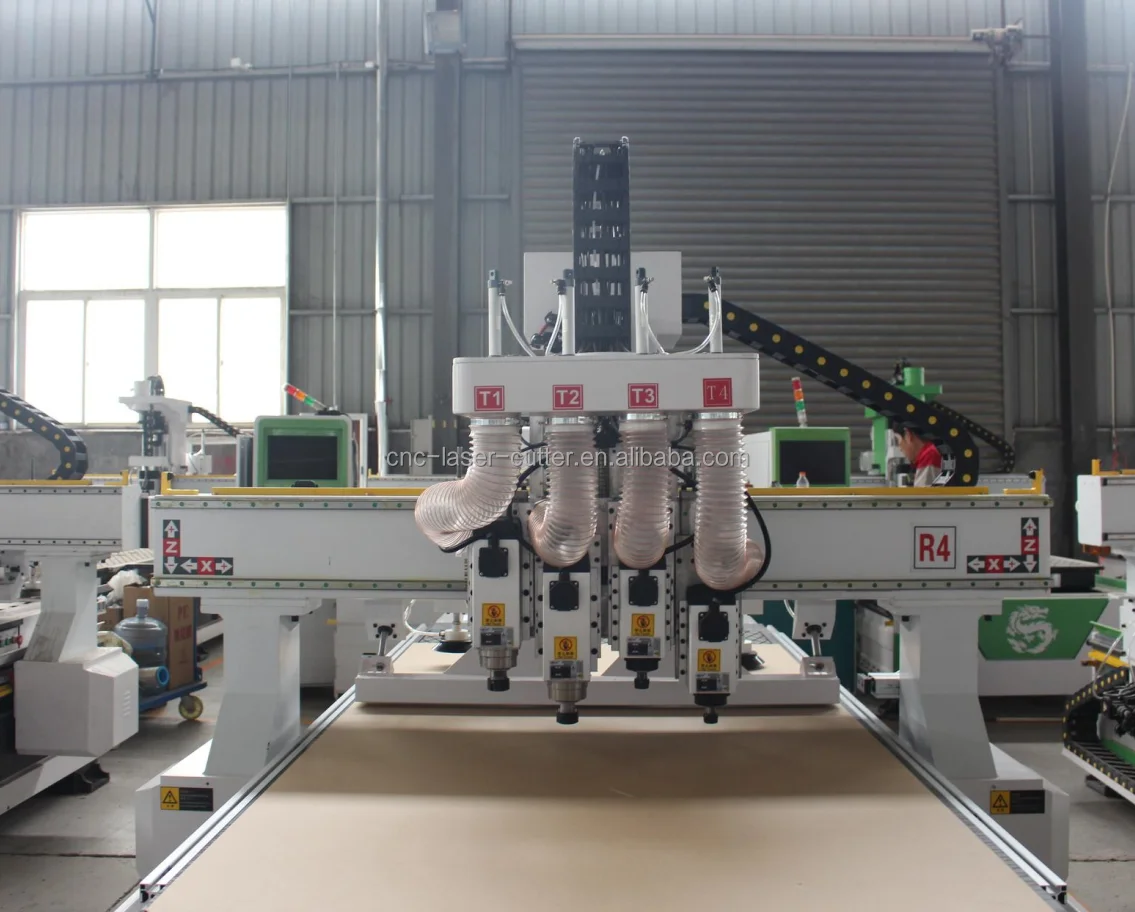

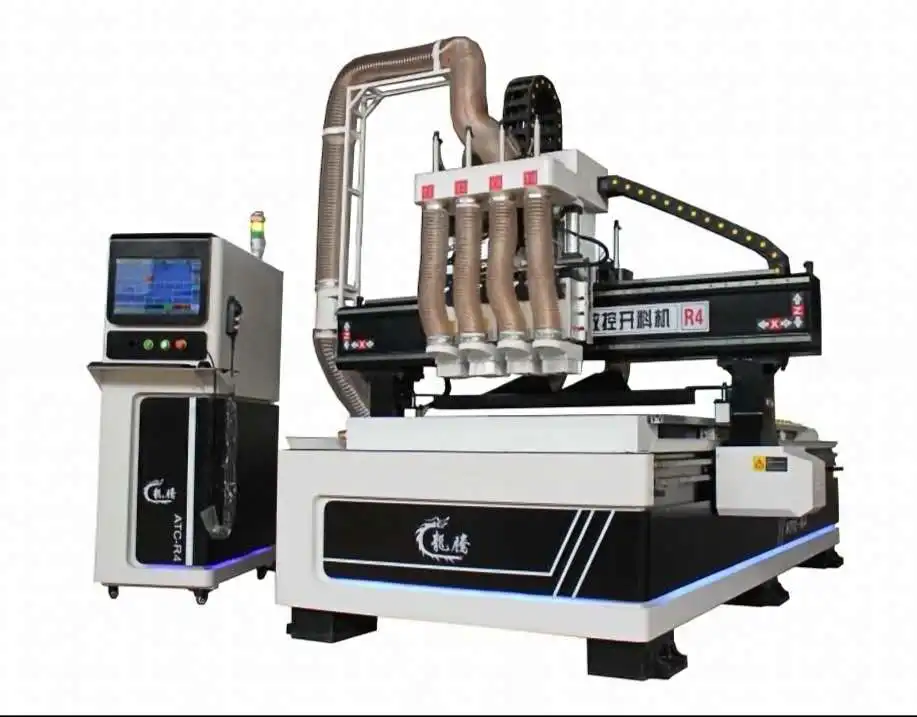

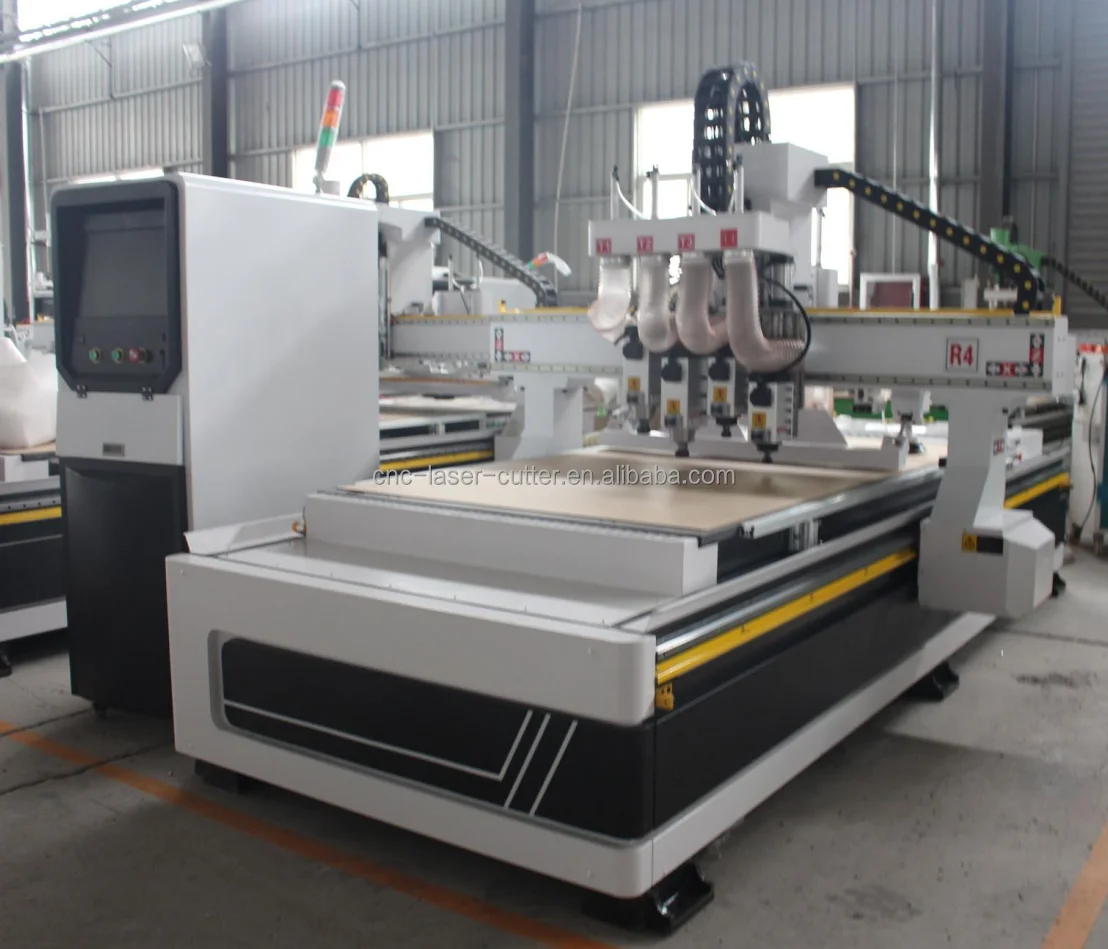

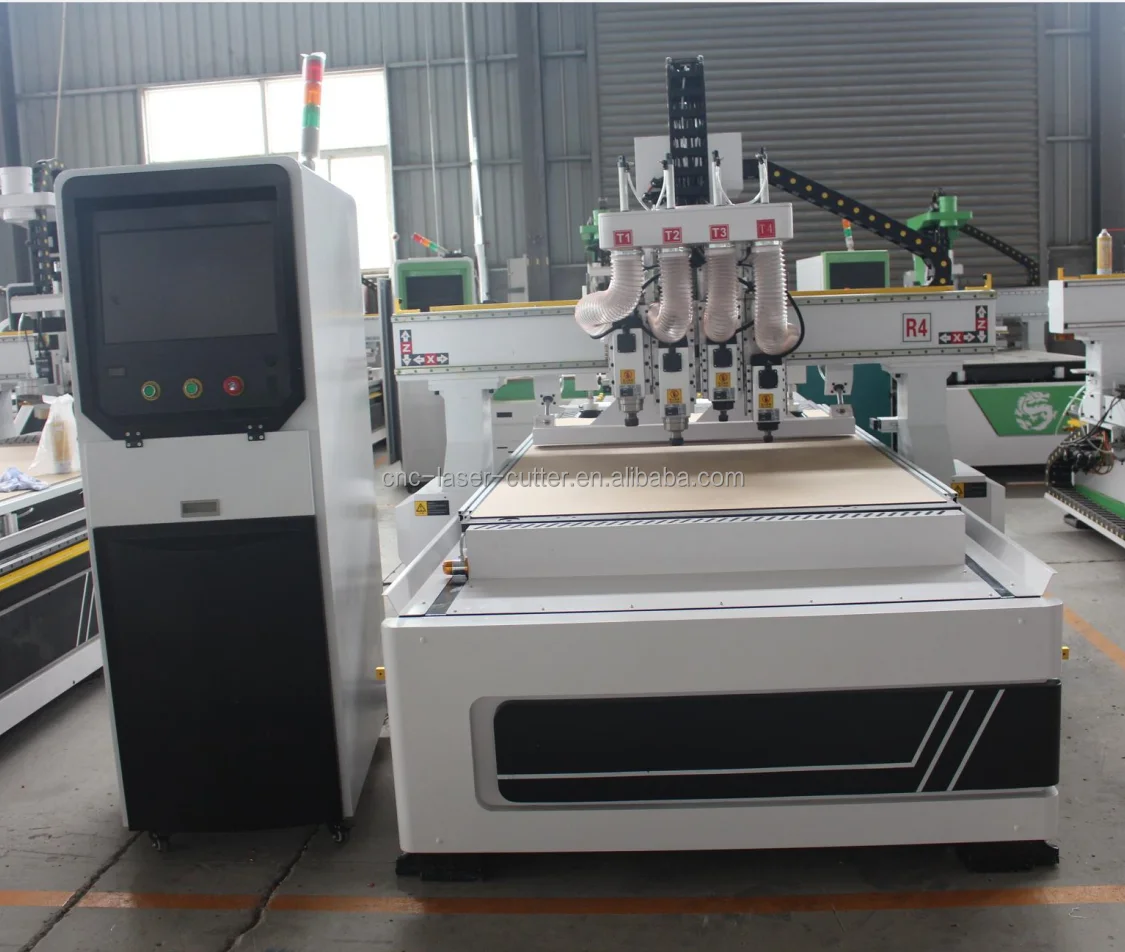

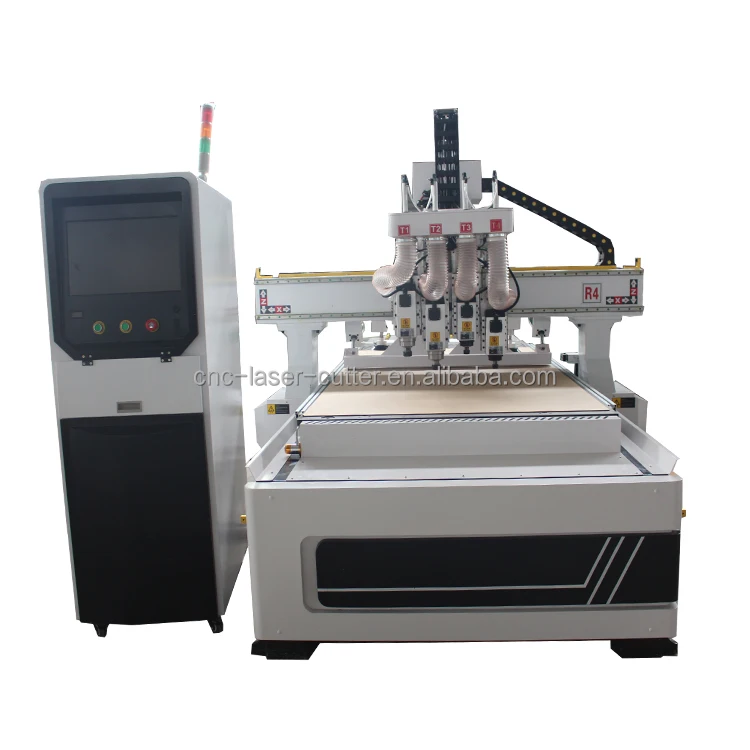

Machine Picture





Machine Configuration

R4  Four spindle ATC wood cnc router
Working area	1220*2440*200mm	Spindle speed	0-18000/MIN
Spindle	CS 6KW*4	Tool magazine	6kw*4
Servo motor	Leadshine 1500W	Servo drive	Matching servo motor driver
Inverter	Four in one inverter	Tool changing speed	Zero second switch
Control system	Taiwan LNC MW2200	Drive track	Haiwan Hiwin 25
Slider	Genuine original 25 slider	Ball screw	TBI 2510
cable	Highly flexible shielded towline cable	Limit	Dedicated to the forward and reverse direction of the feeder
rack	HICK	Electrical components	CHNT
Reducer	MOTOVARIO	cylinder	Huadeli (good quality and strong durability)
Idle speed	100000MM/MIN	Processing speed	35000MM/MIN
Vacuum pump	7.5KW water pump	Dust	5.5KW
Voltage	AC380	Weight	2600KG
Overall appearance	The third generation Longteng patent structure (independent control cabinet)
Bed structure	Heavy-duty aging welding bed (five-sided milling drilling accuracy 0.02mm)
Gantry	Machining process of synchronous beam bed with thick-walled square tube and steel strip for beam Column integral casting structure does not deform for a long time
Electric control operation cabinet	Longteng patented cabinet series, fully sealed intelligent operation cabinet
Z-axis components	Z axis motor holding brake function, Z axis integrated motor screw support seat
Vacuum suction table	Patented design 50MM adsorption caliber, good sealing of PVC pipe connection, no running board
Tool setting method	Automatic tool setting
Loading positioning	Double-sided all-inclusive positioning cylinder with aluminum bar
Automatic cutting	Fully automatic tiled horizontal push-down feeding with auxiliary aluminum bar blanking function
Dust removal method	Spindle automatic partition type integrated dust removal and secondary dust removal with pusher

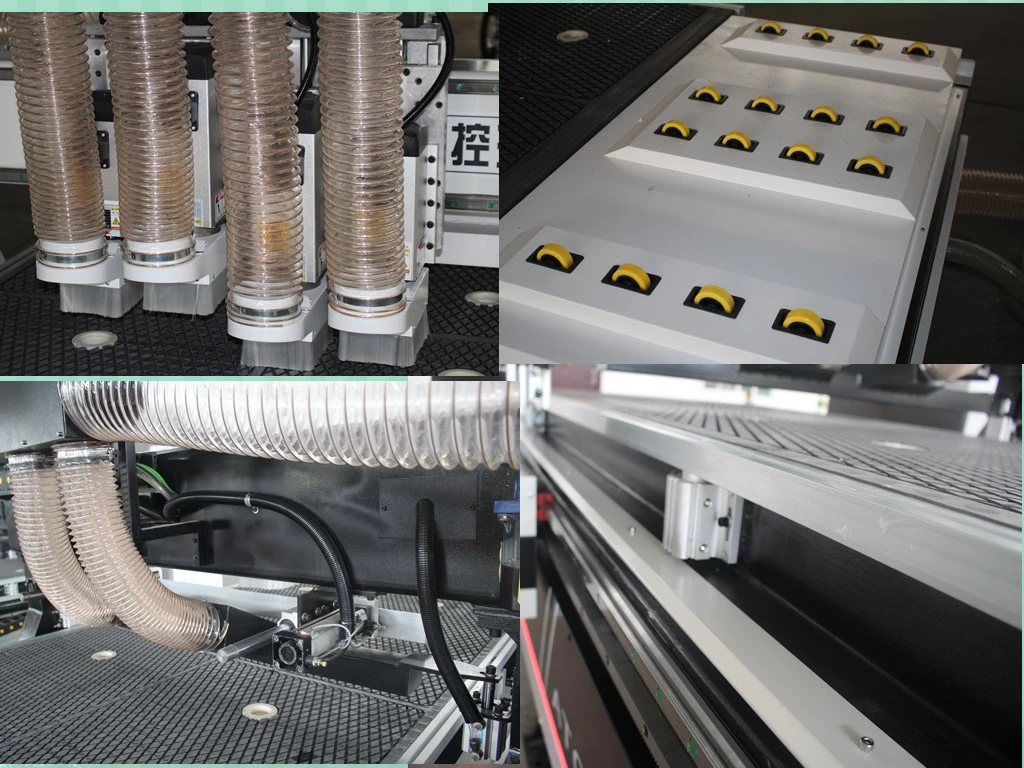

Product details



Product samples



Cetificate



About us

 JINAN JCUT CNC EQUIPMENT CO,.LTD is located in Jinan,Shandong,China. Our company was established in 2008.

    We are professional CNC router machine, laser cutting&engraving machine and plasma cutting machine manufacturer.Our machine mainly used for advertising,woodworking,steel cutting and stone processing industries.

After serval years' development, JCUT products are used by over 50,000 companies, schools , government offices in more than 30 countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on.



Factory picture



Our clients



FAQ



Q1:This is the first time I buy the machine, is it easy to operate?

We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.

Q2: How to choose a suitable machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q3 :How can I trust your company and your products?

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.

Q4.If machine have any problem after I ordered it, what could I do?

Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.

Q5. Can I visit your factory?

Yes! We greatly welcome customers to visit our factory!

Q6. What's your date of delivery?

For standard machine, about 15 working days; For customized machine, about 20 working day.

Q7.MOQ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
