Double Stage Air Driven Oxygen Booster Pump Gas Booster System for Cylinder Filling
- Category: >>>
- Supplier: Dongguan Suncenter Fluid Control Equipment Co. Ltd.
Share on (1600914899042):
Product Overview
Description

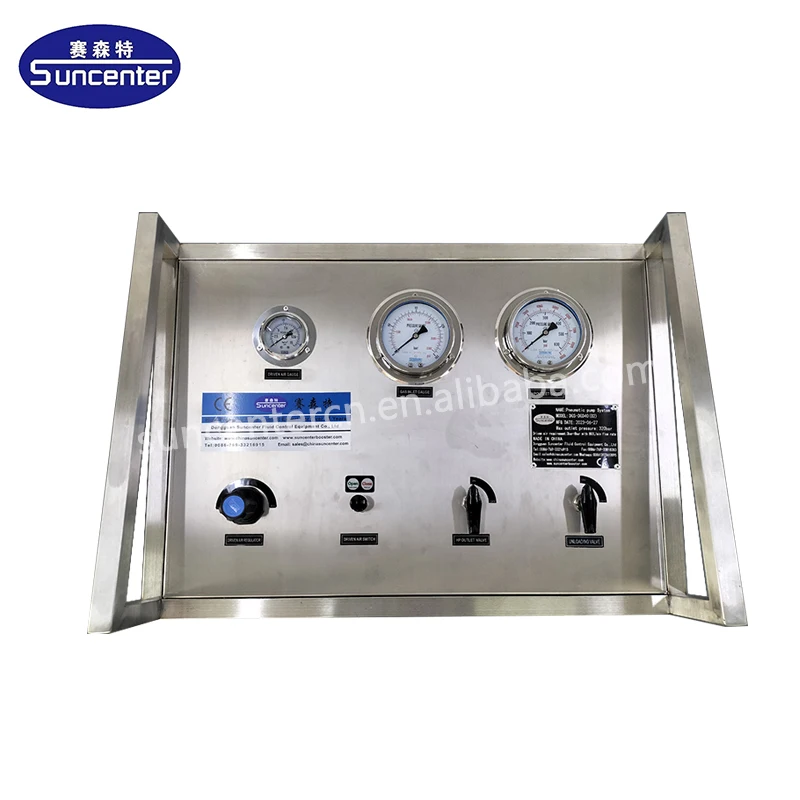

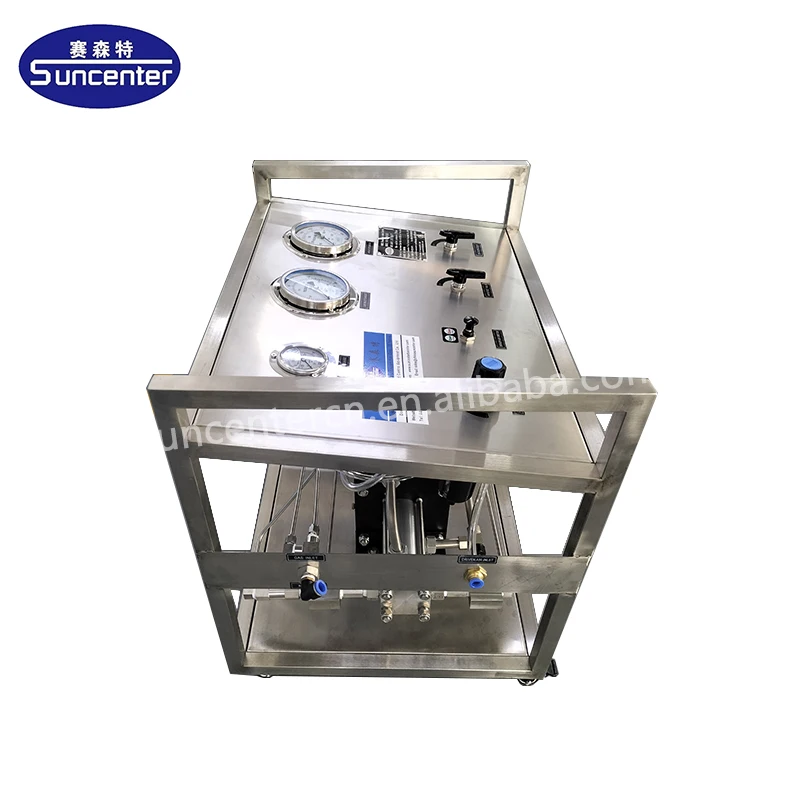

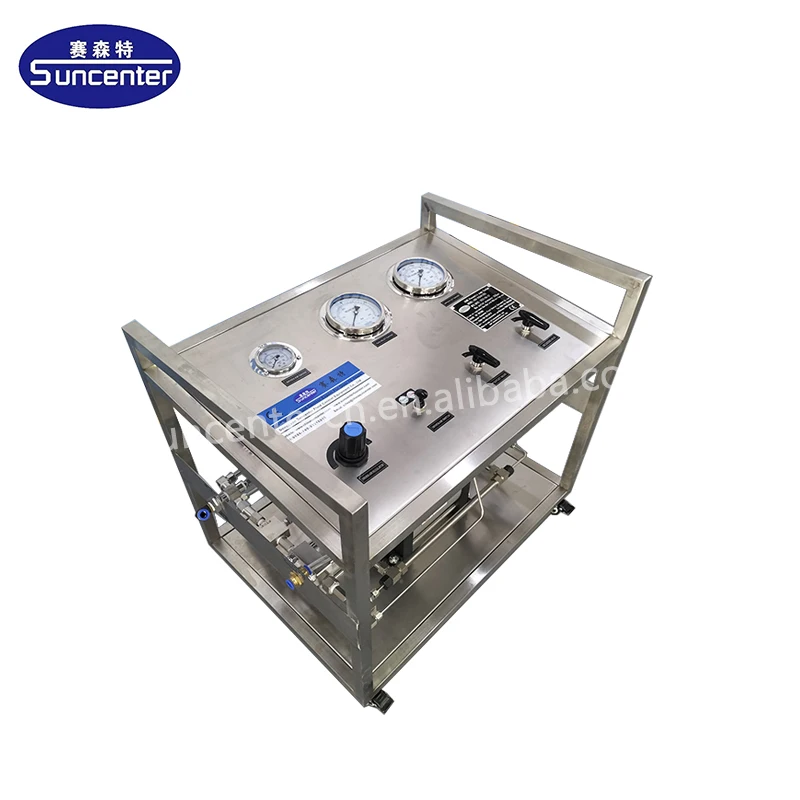

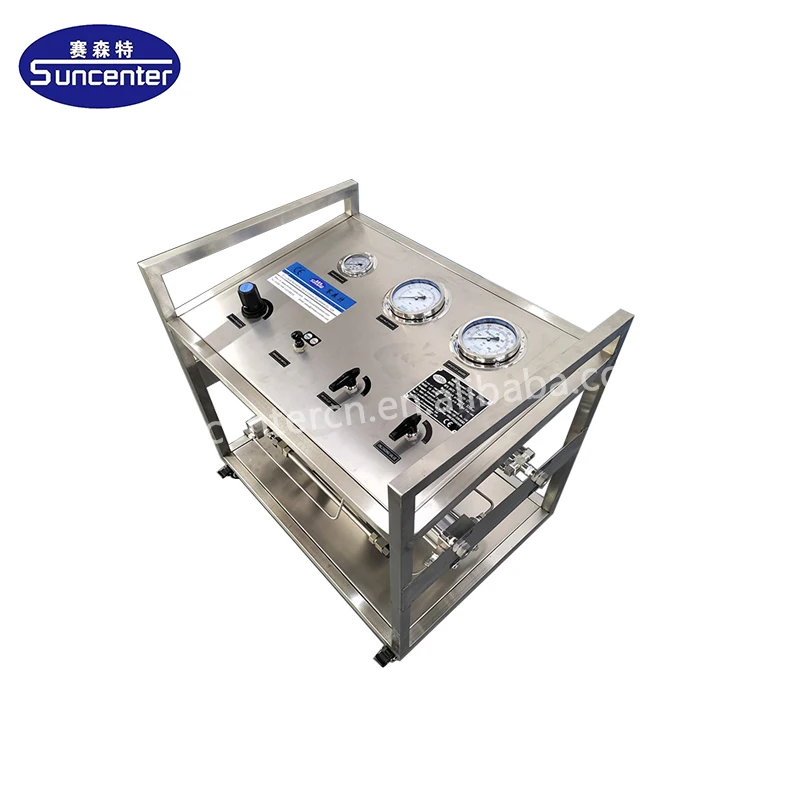

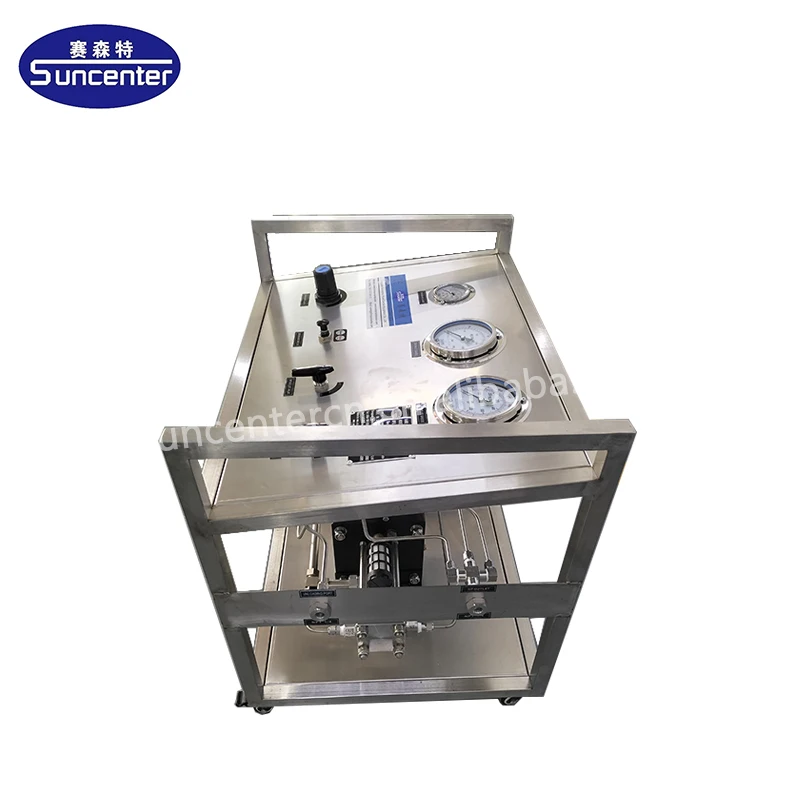

Gas booster pump system
Suncenter - Gas booster systems are compact and delicacy solution tailored to customer specific requirements with gas boosters as well as all accessories to be fitted and installed in the frame or a closed cabinet.
To operate this system, the pressure gauges, valves and pressure regulators have to be fitted on panels. The outlet pressure is easily to be set through a simple air regulator.
The pump stops automatically when this end pressure is reached and restarts with a slight drop in the outlet pressure or an increase in the air drive pressure.
Suncenter - Pneumatic booster system are used for oil free compression of clean shop air as well as industrial gases like Argon, Helium, Oxygen, Hydrogen and Nitrogen,CO2, etc..Driven air from 3 bar to 8 bar (from air compressor).
Operating pressure up to 80 MPa, for higher pressure, pump with double driven heads is an ideal option.
To operate this system, the pressure gauges, valves and pressure regulators have to be fitted on panels. The outlet pressure is easily to be set through a simple air regulator.
The pump stops automatically when this end pressure is reached and restarts with a slight drop in the outlet pressure or an increase in the air drive pressure.
Suncenter - Pneumatic booster system are used for oil free compression of clean shop air as well as industrial gases like Argon, Helium, Oxygen, Hydrogen and Nitrogen,CO2, etc..Driven air from 3 bar to 8 bar (from air compressor).
Operating pressure up to 80 MPa, for higher pressure, pump with double driven heads is an ideal option.
Applications
Pressure test with gas
Gas transfer and filling
(Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO22/CH4/LNG/LPG/CNG/FM200 etc.)
Charging of gas cylinder and accumulator with nitrogen
Supply for isolating gas systems
Gas assisted injection molding
Transfer of oxygen cylinders
Charging of breathing air bottles
Leak test
Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, BOPs, gas bottles and air craft components
Safety valve adjusting
Gas transfer and filling
(Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO22/CH4/LNG/LPG/CNG/FM200 etc.)
Charging of gas cylinder and accumulator with nitrogen
Supply for isolating gas systems
Gas assisted injection molding
Transfer of oxygen cylinders
Charging of breathing air bottles
Leak test
Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, BOPs, gas bottles and air craft components
Safety valve adjusting
DGS gas booster system = booster pump+ following valves, gages, and parts
Stainless steel (carbon steel) material cabinet (Three models for choosing)
F.R.L combination for driven air (adjusts air pressure, add lubricating oil and water filter)
Driven air switch (Pump starting switch), driven air pressure gauge
Gas inlet switch, Gas inlet pressure gauge
Gas outlet switch, Gas outlet pressure gauge, unloading valve, interconnecting pipes etc.
And we could also customize it according to clients’ special requirement.
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
Model | Pressure boost ratio | Min. gas Inlet pressure PA (bar) | Max.gas Inlet pressure PA (bar) | Max. gas outlet pressure PB (bar) | Driven air pressure PL | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet (NPT thread) | Max. flow at driven air pressure of 6bar (L/min) |
DGS-DGA02 | 2：1 | 1.0 | 16 | 16 | 2bar-8 bar | 2X PL | 1/2 / 1/2 | 960 (at PA of 6 bar ) |
DGS-DGA05 | 5：1 | 0 | 40 | 40 | 2bar-8 bar | 5XPL | 1/2 / 1/2 | 680(at PA of 6 bar ) |
DGS-DGA06 | 6：1 | 2.0 | 48 | 48 | 2bar-8 bar | 6XPL | 1/2 / 1/2 | 360(at PA of 10 bar ) |
DGS-DGA10 | 10：1 | 3.5 | 80 | 80 | 2bar-8 bar | 10XPL | 3/8/ 3/8 | 210(at PA of 10 bar ) |
DGS-DGA15 | 15：1 | 3.5 | 120 | 120 | 2bar-8 bar | 15XPL | 3/8/ 3/8 | 190(at PA of 10 bar ) |
DGS-DGA25 | 25：1 | 7.0 | 200 | 200 | 2bar-8 bar | 25XPL | 1/4/ 1/4 | 120(at PA of 20 bar ) |
DGS-DGA40 | 40：1 | 10 | 320 | 320 | 2bar-8 bar | 40XPL | 1/4/ 1/4 | 200(at PA of 40 bar ) |
DGS-DGA60 | 60：1 | 20 | 480 | 480 | 2bar-8 bar | 60XPL | 1/4/ 1/4 | 180(at PA of 40 bar ) |
DGS-DGA100 | 100：1 | 25 | 800 | 800 | 2bar-8 bar | 100XPL | 1/4/ M14X1.5 | 136(at PA of 40 bar ) |
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
Model | Pressure boost ratio | Min. gas Inlet pressure PA (bar) | Max.gas Inlet pressure PA (bar) | Max. gas outlet pressure PB (bar) | Driven air pressure PL | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet (NPT thread) | Max. flow at driven air pressure of 6bar (L/min) |
DGS-DGD10 | 10:1 | 3.5 | 80 | 80 | 2bar-8 bar | 10XPL+ PA | 3/8/3/8 | 410(at PA of 6 bar ) |
DGS-DGD15 | 15:1 | 5 | 120 | 120 | 2bar-8 bar | 15XPL+ PA | 3/8/3/8 | 350 (at PA of 6 bar ) |
DGS-DGD25 | 25:1 | 10 | 200 | 200 | 2bar-8 bar | 25XPL+ PA | 1/4/1/4 | 396(at PA of 20 bar ) |
DGS-DGD40 | 40:1 | 15 | 320 | 320 | 2bar-8 bar | 40XPL+ PA | 1/4/1/4 | 320(at PA of 40 bar ) |
DGS-DGD60 | 60:1 | 25 | 480 | 480 | 2bar-8 bar | 60XPL+ PA | 1/4/1/4 | 215(at PA of 40 bar ) |
DGS-DGD100 | 100:1 | 35 | 800 | 800 | 2bar-8 bar | 100XPL+ PA | 1/4/M14*1.5 | 300(at PA of 60 bar ) |
DGS-DGD130 | 130:1 | 50 | 1040 | 1040 | 2bar-8 bar | 130XPL+ PA | 1/4/M14*1.5 | 180(at PA of 60 bar ) |
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
Model | Pressure boost ratio | Min. gas Inlet pressure PA (bar) | Max.gas Inlet pressure PA (bar) | Max. gas outlet pressure PB (bar) | Driven air pressure PL | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet (NPT thread) | Max. flow at driven air pressure of 6bar (L/min) |
DGS-2DGD10 | 10:1 | 3 | 80 | 80 | 2bar-8 bar | 10XPL+ PA | 1/2 / 1/2 | 980(at PA of 6 bar ) |
DGS-2DGD25 | 25:1 | 6 | 200 | 200 | 2bar-8 bar | 25XPL+ PA | 3/8 / 3/8 | 560(at PA of 10 bar ) |
DGS-2DGD40 | 40:1 | 25 | 320 | 320 | 2bar-8 bar | 40XPL+ PA | 3/8 / 3/8 | 480(at PA of 40 bar ) |
DGS-2DGD60 | 60:1 | 30 | 480 | 480 | 2bar-8 bar | 60XPL+ PA | 3/8 / 3/8 | 320(at PA of 40 bar ) |
Technical specification for DGS-DGT Series:
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
Model | Pressure boost ratio | Min. gas Inlet pressure PA (bar) | Max.gas Inlet pressure PA (bar) | Max. gas outlet pressure PB (bar) | Driven air pressure PL | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet (NPT thread) | Max. flow at driven air pressure of 6bar (L/min) |
DGS-DGT15 | 15:1 | 0.1 | 56 | 120 | 2-8 bar | 15XPL | 3/8/ 1/4 | 230(at PA of 8 bar ) |
DGS-DGT25 | 25:1 | 0.1 | 10 | 200 | 2-8 bar | 25XPL | 3/8/ 1/4 | 156(at PA of 8 bar ) |
DGS-DGT7/25 | 25:1 | 5 | 56 | 200 | 2-8 bar | 25XPL | 3/8/ 1/4 | 156(at PA of 8 bar ) |
DGS-DGT40 | 40:1 | 0.1 | 10 | 320 | 2-8 bar | 40XPL | 3/8/ 1/4 | 124(at PA of 8 bar ) |
DGS-DGT15/40 | 40:1 | 5 | 120 | 320 | 2-8 bar | 40XPL | 3/8/ 1/4 | 124(at PA of 8 bar ) |
DGS-DGT60 | 60:1 | 0.1 | 10 | 480 | 2-8 bar | 60XPL | 3/8/ 1/4 | 80(at PA of 15 bar ) |
DGS-DGT15/60 | 60:1 | 6 | 120 | 480 | 2-8 bar | 60XPL | 3/8/ 1/4 | 80(at PA of 15 bar ) |
DGS-DGT100 | 100:1 | 0.1 | 10 | 800 | 2-8 bar | 100XPL | 3/8/ 1/4 | 63(at PA of 8 bar ) |
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
Model | Pressure boost ratio | Min. gas Inlet pressure PA (bar) | Max.gas Inlet pressure PA (bar) | Max. gas outlet pressure PB (bar) | Driven air pressure PL | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet (NPT thread) | Max. flow at driven air pressure of 6bar (L/min) |
DGS-2DGT7/15 | 15:1 | 4 | 56 | 120 | 2bar-8 bar | 15XPL | 3/8 / 3/8 | 430(at PA of 10 bar ) |
DGS-2DGT7/25 | 25:1 | 5 | 56 | 200 | 2bar-8 bar | 25XPL | 3/8 / 3/8 | 300(at PA of 10 bar ) |
DGS-2DGT15/40 | 40:1 | 7 | 120 | 320 | 2bar-8 bar | 40XPL | 3/8 / 3/8 | 180(at PA of 10 bar ) |
DGS-2DGT15/60 | 60:1 | 7 | 120 | 480 | 2bar-8 bar | 60XPL | 3/8 / 3/8 | 120(at PA of 10 bar ) |
Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure
In order to extend the lifetime of the pump, the driven air pressure should not be higher than 8 bar
In order to extend the lifetime of the pump, the driven air pressure should not be higher than 8 bar
In order to choose suitable booster pump or systems for you,
please kindly reply us the following questions:
1.What is your present gas pressure?( )bar
2.What is your gas?oxygen gas,nitrogen gas or other gases?
3.What outlet gas pressure do you want?( )bar
4.What driven air pressure (of your air compressor) can you offer?( )bar,
because our booster is completely air operated and no need any electricity
5.What outlet gas flow rate do you need?( )L/min
DGS-DGD40 gas booster system for nitrogen gas spring filling
DGS-DGT series gas boosters for gas cylinder transfer and filling
