KEYENCE LR X100C Digital CMOS Laser Sensor Standard Model, M8 Connector Type, 100mm range New Original
KEYENCE LR-X100C Digital CMOS Laser Sensor Standard Model, M8 Connector Type, 100mm range New Original

KEYENCE LR X100C Digital CMOS Laser Sensor Standard Model, M8 Connector Type, 100mm range New Original

Share on (1600914929186):


Price:US$289.00 - US$305.00

Quantity:


Product Overview

Description



Product Description


KEYENCE LR-X100C Digital CMOS Laser Sensor Standard Model,
M8 Connector Type, 50mm range
     New original


New original

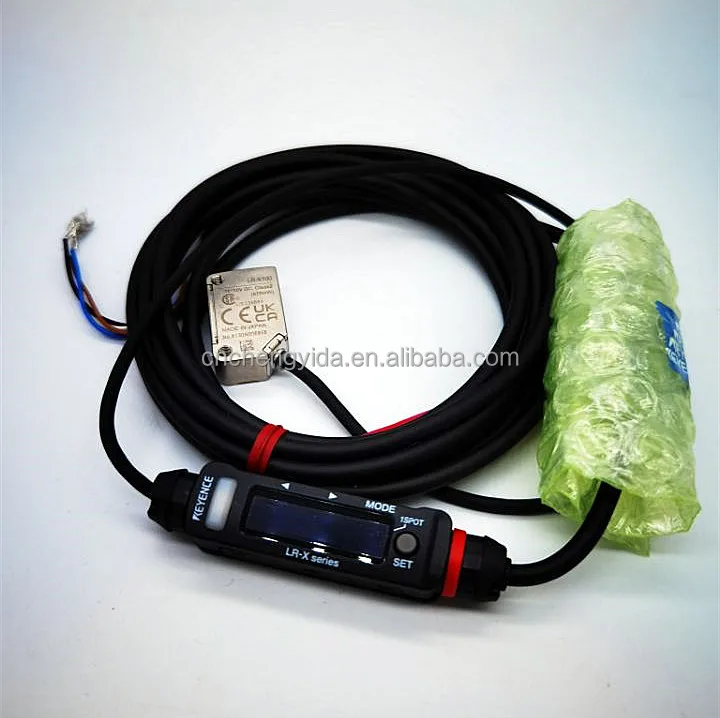

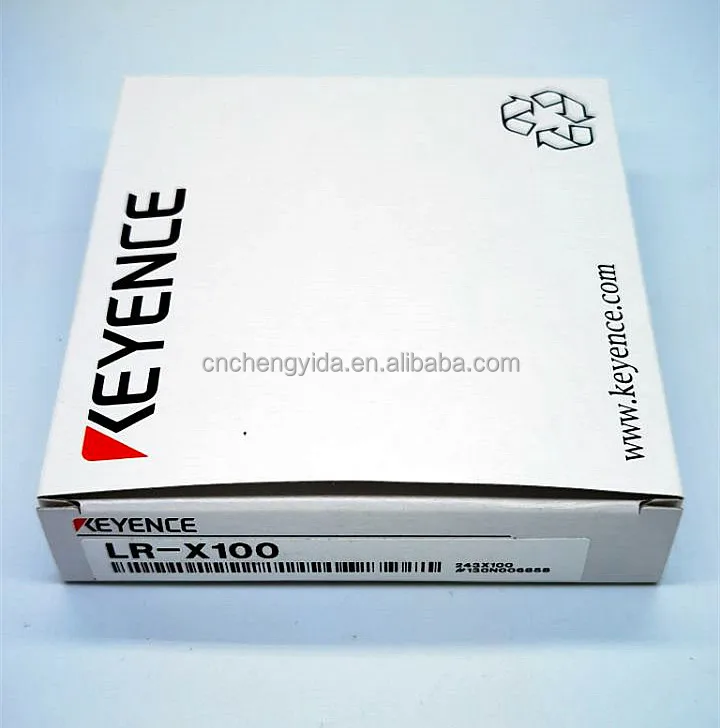

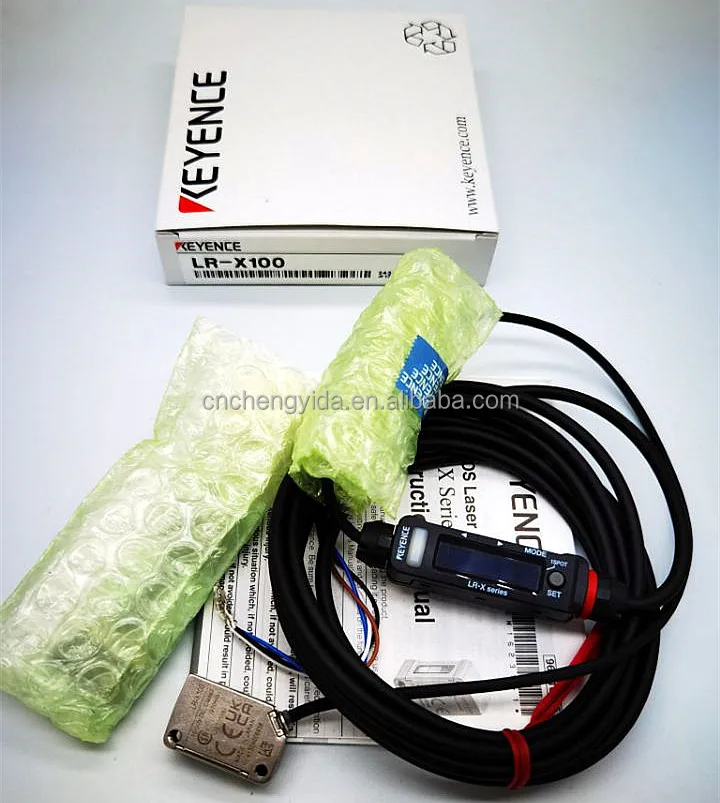

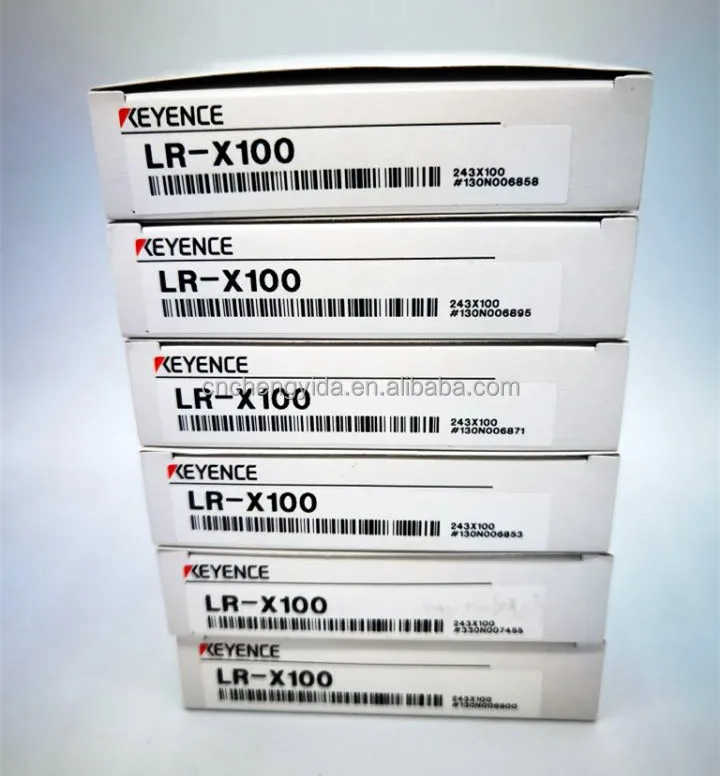

Detailed Images






SPECIFICATIONS


Model
LR-X100C
Type
M8 Connector Type*1
Detecting Distance
25.0 to 100.0 mm
Standard Detectable Deviation
1.0 mm
Display Resolution
0.1 mm
Spot Size
Approx. 0.3 mm × Approx. 2 mm
(at a detecting distance of 100 mm)
Response Time
500 μs*2/1 ms/3 ms/10 ms/200 ms Selectable
Light Source
Type
Green laser (505 nm)
Laser Class
Class 1 Laser Product (IEC60825-1,  (CDRH), Part1040.10*3)
IO-Link
Specification v1.1/COM2 (38.4 kbps)
Function
Timer Function
Timer OFF/Off-delay/On-delay/One-shot/On-Off delay/On-delay One-shot
Input/Output
Control Output
NPN open collector/PNP open collector, N.O./N.C. *4
30 VDC or less, 50 mA or lower, Residual voltage 2 V or less
External Input
External Set/Laser OFF/Zero Shift/Hold Reset/Gyro Alert RST selectable *4
Short circuit current - NPN: 1 mA or less, PNP: 2 mA or less
Input time 3 ms or more ON, 20 ms or more OFF
(25 ms or more ON, 25 ms or more OFF when External Set is selected only)
Protection Circuit
Protection against reverse power connection, protection against output overcurrent,
protection against output surge, protection against reverse output connection
Power supply
Power voltage
16 to 30 VDC (including 10% ripple (P-P) or less), class 2
Power consumption
During normal operation: 970 mW (38 mA or less at 24 V, 53 mA or less at 16 V) (Excluding Load Current)
ECO ON/ALL: 821 mW (32 mA or less at 24 V, 44 mA or less at 16 V) (Excluding Load Current)
Environmental resistance
Enclosure rating
IP65/IP67(IEC60529)
Ambient light
Incandescent lamp: 16,000 lx or less
Sunlight: 16,000 lx or less
Ambient temperature
-10°C to +50°C (no freezing)
Relative humidity
35 to 85% RH (no condensation)
Vibration resistance
10 to 500 Hz; Power Spectral Density: 0.816 G2/Hz for X, Y and Z axes
Shock resistance
1,000 m/s2 (100G) 6 times each for X, Y, and Z axes
Material
Head Case: SUS316L; Head Lens Cover: PSU
Head Packing: FKM (lens cover), EVM (cable)
Cable: PVC
Amplifier Case: PBT; Amplifier Display, Indicator: PAR; Amplifier Packing: NBR; Button: POM
Amplifier M8 Connector: SUS303
Accessories
Instruction manual, laser warning label
Weight
Approx. 35 g
*1 Ensure the cable length is 30 m or less for the M8 connector type. Ensure the cable length is 20 m or less when connecting via
IO-Link.
*2 If 500 μs is selected, the following limitations apply.
· Only 2-point calibration can be performed.
· The detection range masking is set during calibration. (Manual setting of the masking range is not supported.)
· Output 2 is limited to an alarm output for errors and gyro issues, and standard/area cannot be used.
*3 Classification performed based on IEC60825-1 standards in accordance with  (CDRH) Laser Notice No. 56.
*4 The I/O can be selected from the following combinations. Control output × 2, Control output + External input
