WIFI/4G/RS485/Lora 3 Phase 4 Loops Multi Channel Energy Meter Price Smart Electric Meter multi channel current logger
- Category: >>>
- Supplier: Henan Compere Smart Technology Co. Ltd.
Share on (1600914938701):
Product Overview
Description
WIFI/4G/RS485/Lora 3 Phase 4 Loops Multi Channel Energy Meter Price Smart Electric Meter multi channel current logger
Details Images

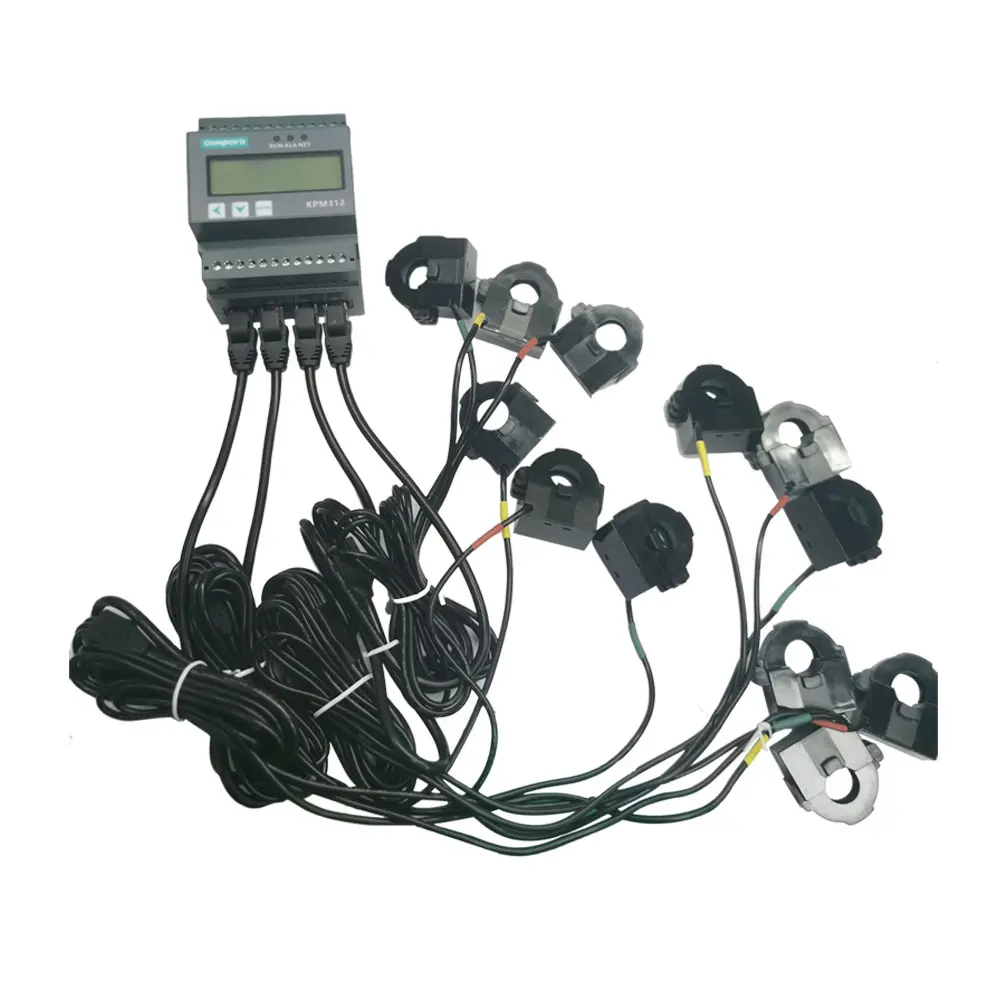

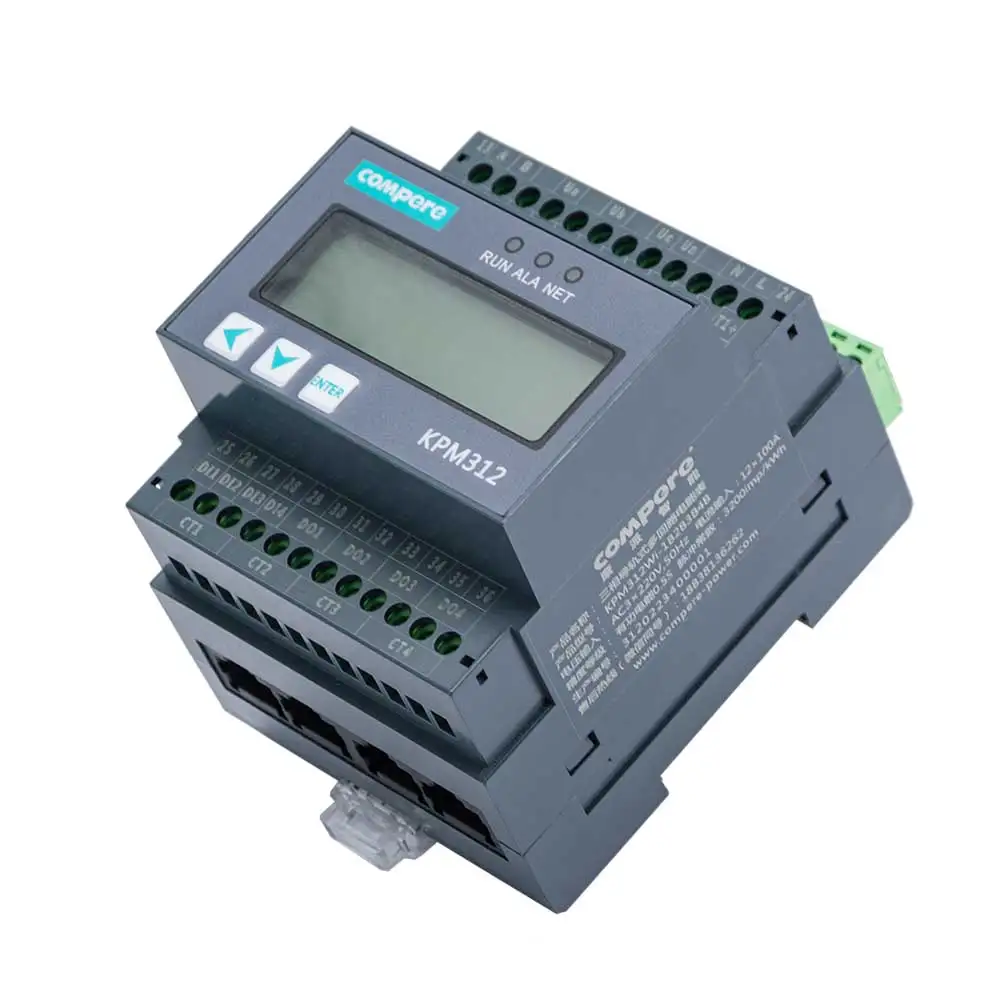

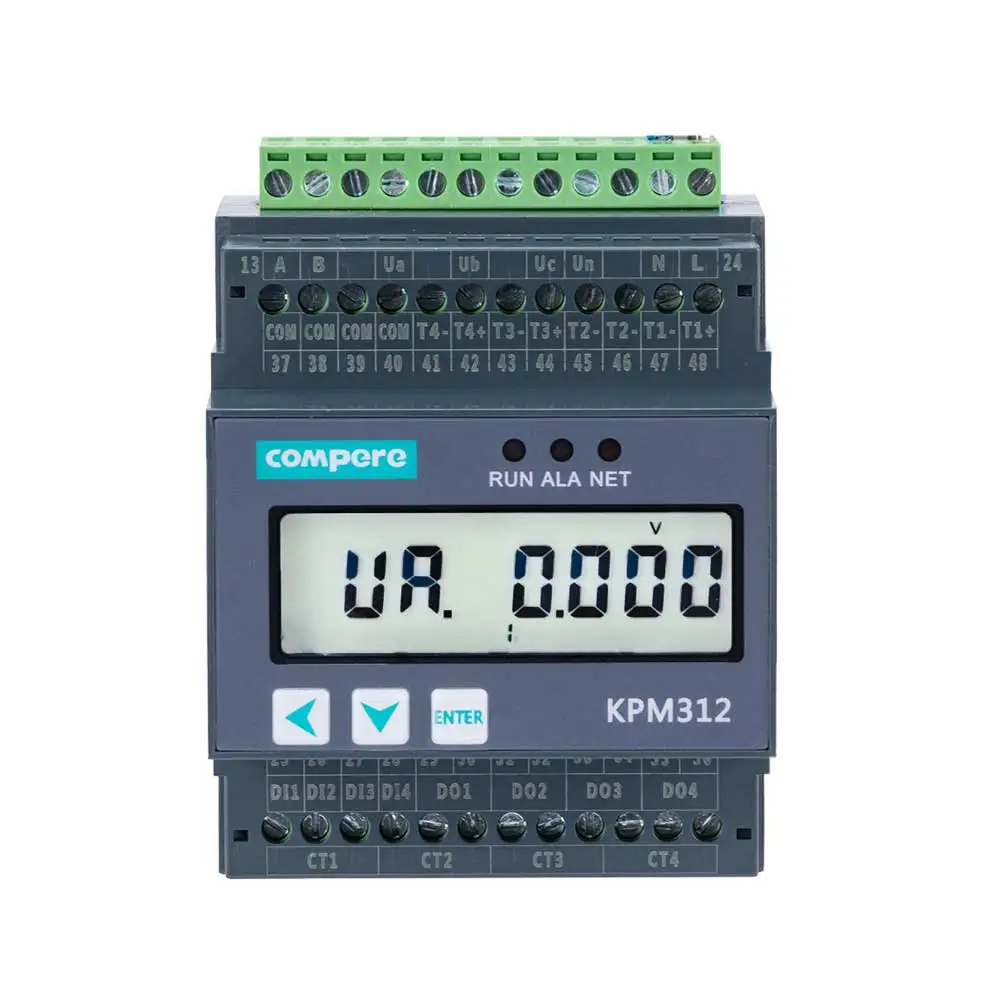

KPM312 DIN rail digital 3 phase multi circuit energy meter wifi 4 channel smart power meter measures three phase voltage, 4 channel three phase currents, active power, reactive power, apparent power, active and reactive energy, power factor,frequency,2-31st harmonic content, max& min value statistics, voltage and current imbalance rate, total power demand statistics,multi tariff power and historical power consumption statistics, load and operation time statistics, optional 4 wires temperature measurements and 4 wire digital inputs and outputs.
Default communication is Modbus-RTU by RS485 interface.

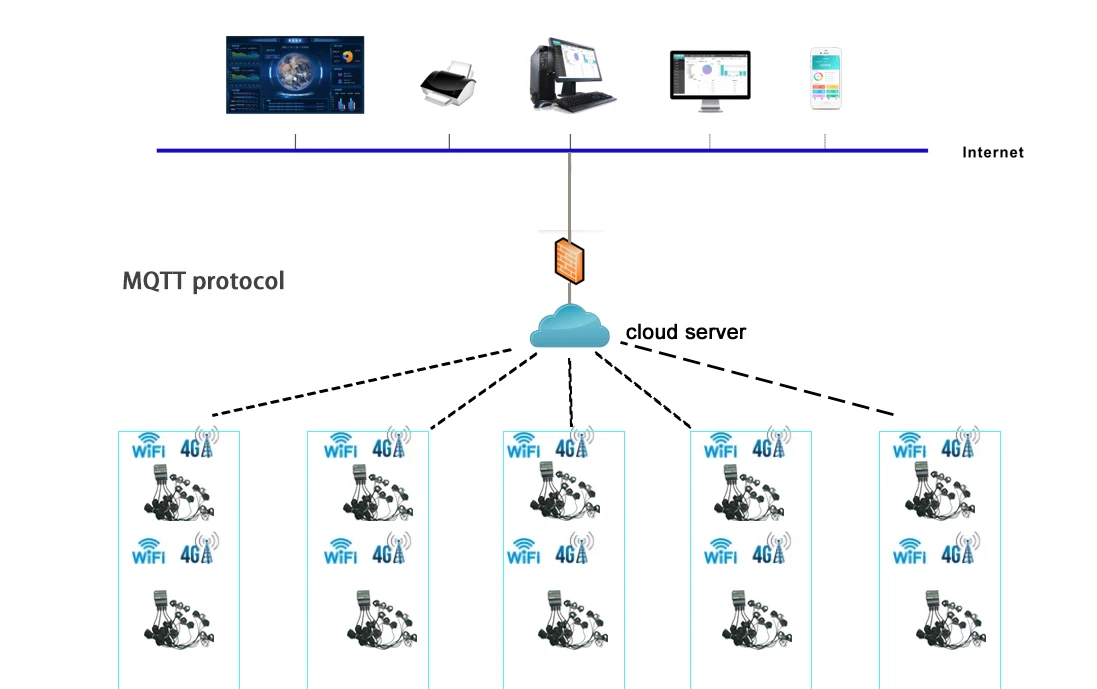

Optional WiFi, 4G, Lora communication.
Default communication is Modbus-RTU by RS485 interface.
Optional WiFi, 4G, Lora communication.

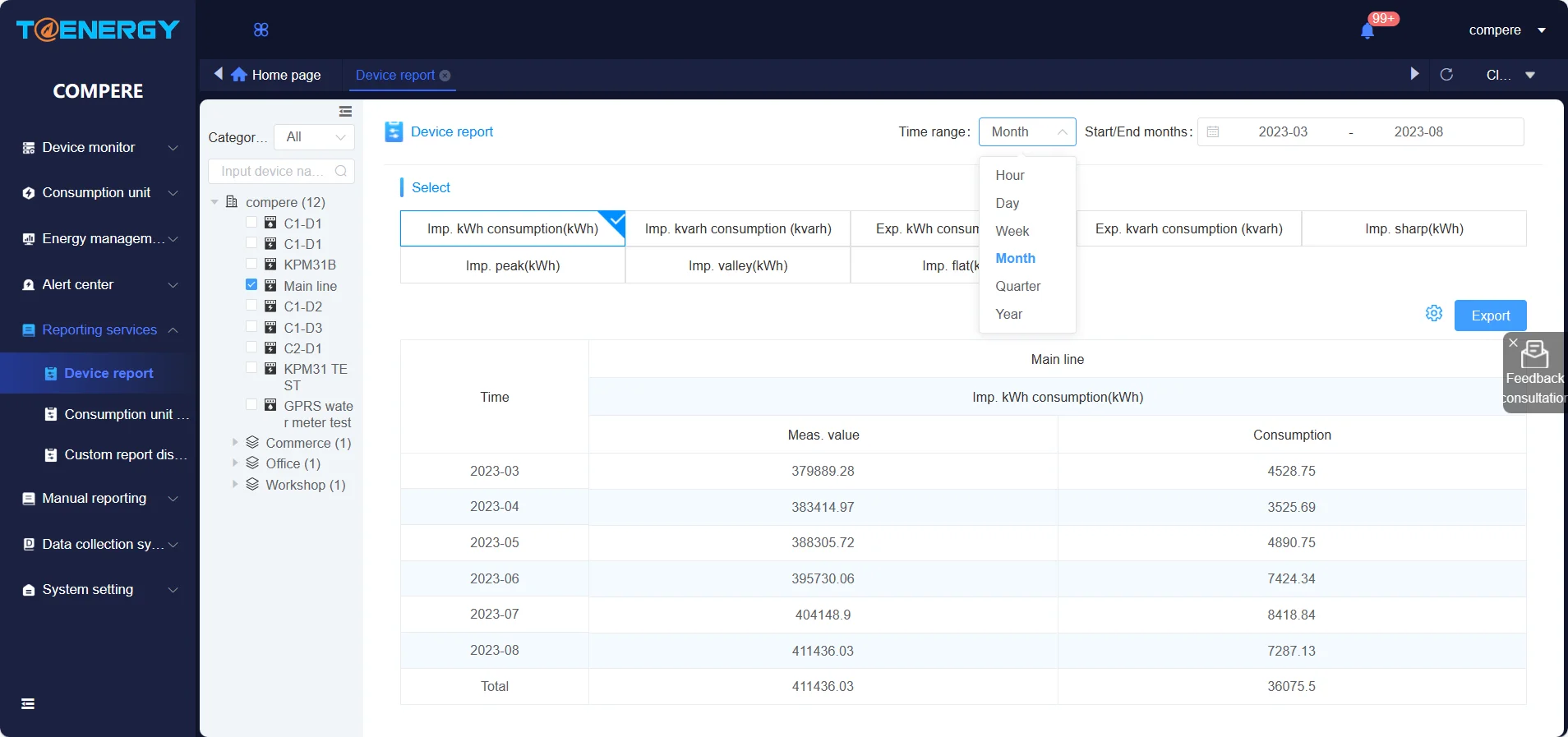

ENERGY CONSUMPTION REPORT

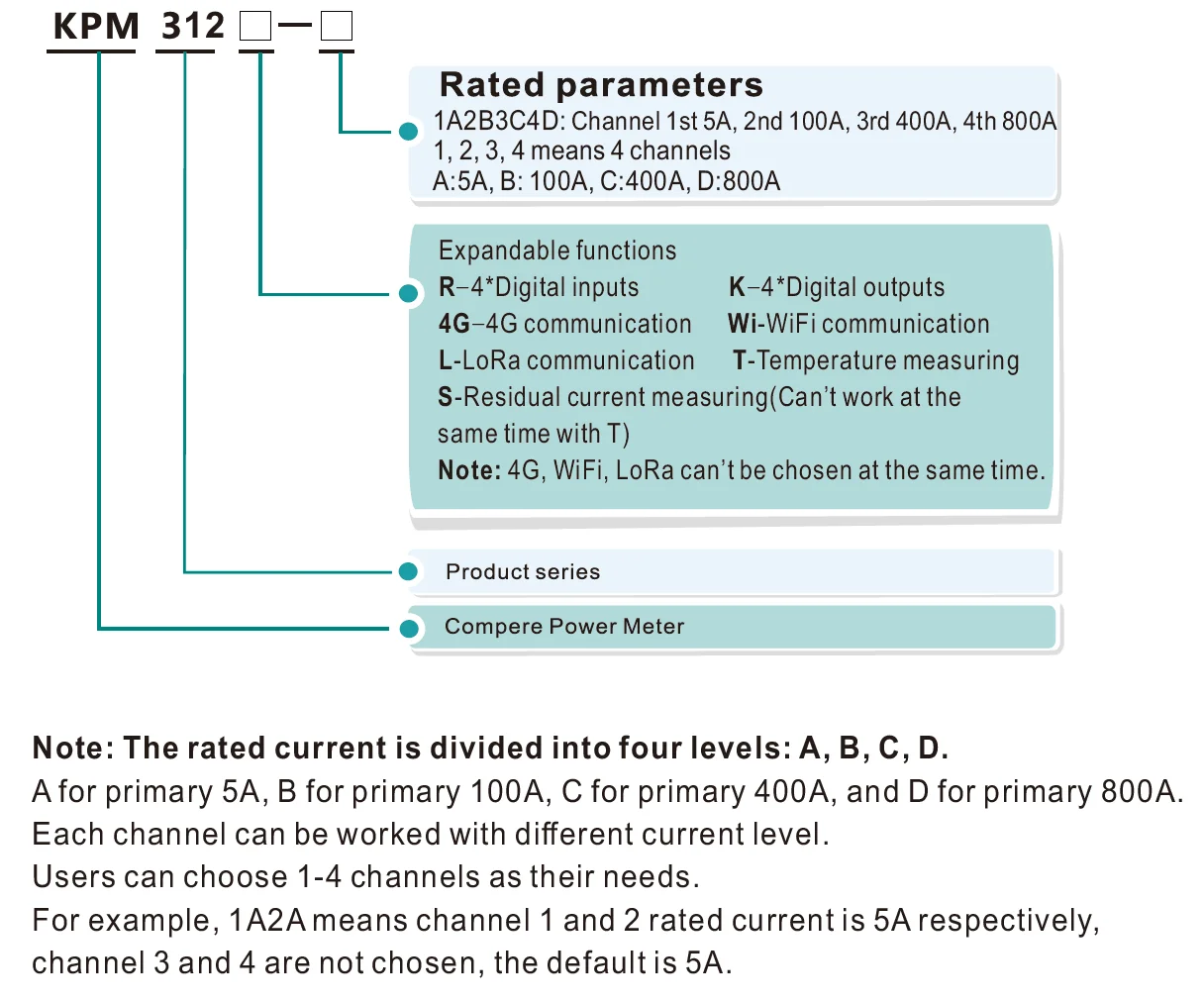

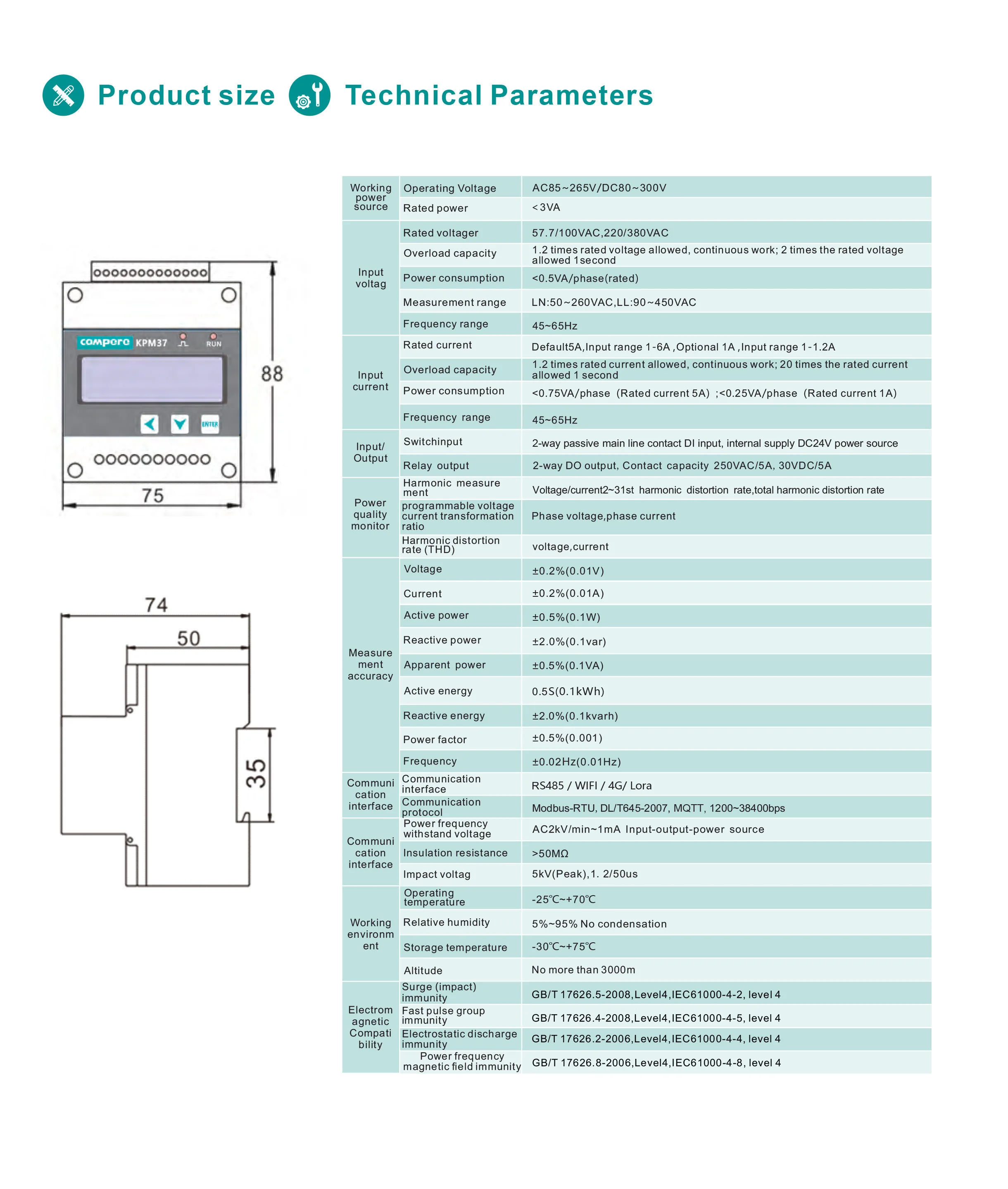

Product Paramenters
Technical Parameters - KPM312 3 phase 4g multi channel branch circuit electricity meter with sim card module | ||||||||
Accuracy class | Voltage: 0.2; Current: 0.2; Frequency: 0.02; Power Factor: 0.5 | |||||||
Active Power: 0.5S; Reactive Power: 2.0 | ||||||||
Active Energy: 0.5S; Reactive Energy: 2.0 | Voltage: 57.7/100V, 220/380V,380/660V | |||||||
Input | Rated Value | Voltage: 57.7/100V, 220/380V,380/660V | ||||||
Current: 5A， 100A， 400A， 800A； 4 loop can be chosen as ur need | ||||||||
Overload | Voltage: Sustained Overload: 1.2 times of the rated value | |||||||
Momentary Overload: 2 times of the rated value, allows 1s | ||||||||
Current: Sustained Overload: 1.2 times of the rated value | ||||||||
Momentary Overload: 20 times of the rated value, allows 1s | ||||||||
Frequency | 45-60Hz | |||||||
Functional Module | Pulse Output | 1 | ||||||
Interface | RS485 / WIFI / 4G/ LoraModbus-RTU,DL/T645-2007, MQTT, 1200~38400bps | |||||||
Power Supply | Working Range | AC: 85-265V; DC: 80-300V | ||||||
Consumption | < 0.5VA per phase | |||||||
Working Condition | Temperature | Operating: -25°C~+70°C. Storage: -30°C~ +75°C | ||||||
Humidity | 5%~95% No condensation | |||||||
Altitude | <3000m | |||||||
Dimensions: | 75*88*74mm | |||||||
