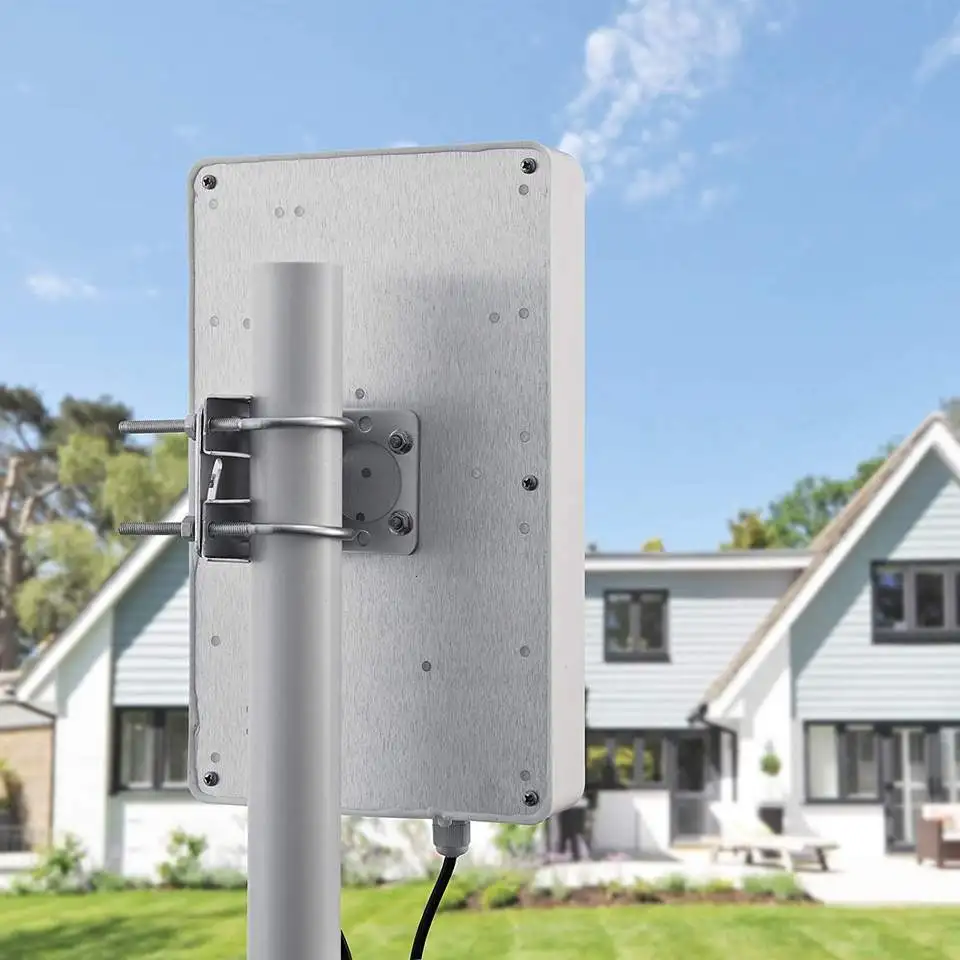

5G LTE MIMO 700 to 3800MHz 9/12dBi High Gain 45 Degrees Outdoor Indoor Panel Antenna For Huawei Router
- Category: >>>
- Supplier: Suzhou Cowin Antenna Electronics Co. Ltd.
Share on (1600914951122):
Product Overview
Description
Dual Polarized Directional LTE MIMO Antenna
Ideal for signal enhancement in cellular application
* Dual cross-polarized 75 degree transmitting
and receiving,enabling connection to distant
cell towers for LTE resulting in
higher performance.

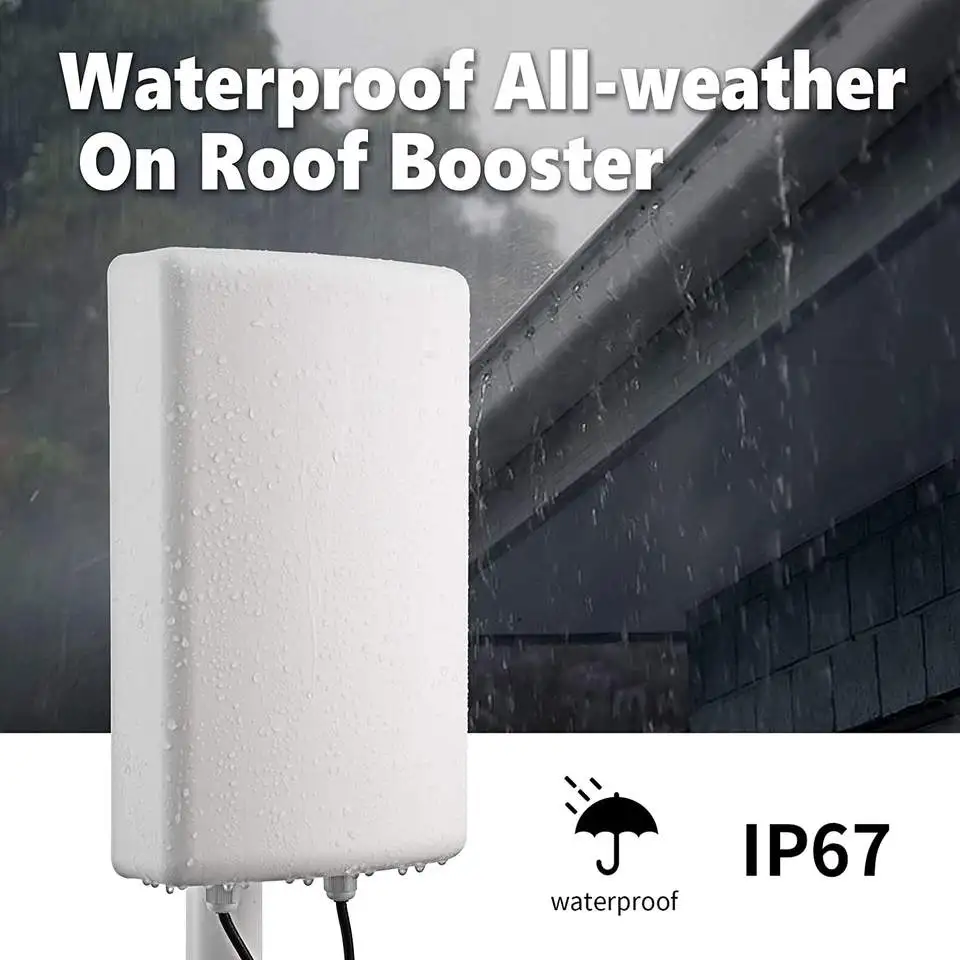

* ABS+ Aluminum rugged housing ,heavy duty
higher performance.
* ABS+ Aluminum rugged housing ,heavy duty
mounting hardware and corrosion-resistant
materials are ideal for outdoor
applications.
* Works on 3G, 4G, LTE, GSM & CDMA cellular
applications.
* Works on 3G, 4G, LTE, GSM & CDMA cellular
services, includes Sierra Wireless Verizon
AT&T,Netgear Sprint,Novatel Wireless
Verizon.
Product Description
Item | Specifications | ||
Antenna | Frequency Range | 698-3800MHz or customized 5G band | |
Gain | 9/12dBi | ||
V.S.W.R | ≤1.5 | ||
Impendance | 50Ω | ||
Antenna size | 15.7 x 9 x 3.2 inches | ||
Material | Polarization | Vertical + Horizontal | |
Mechanical | Antenna Cable Length | Dual 16.4foot (5M) RG58 low-loss coax cable | |
Connector type | Dual SMA male | ||
Mounting Method | Fixed Wall Mount | ||
Environmental | Operating Temperature | -20℃~+80℃ | |
Storage Temperature | -30℃~+85℃ | ||
Package | Environmentally Friendly | ROHS Compliant | |
Directional Antenna Installation Tips
* Please turn off the power of the signal
equipment before use, and then connect the
antenna.
* Determine location of nearest cell tower.

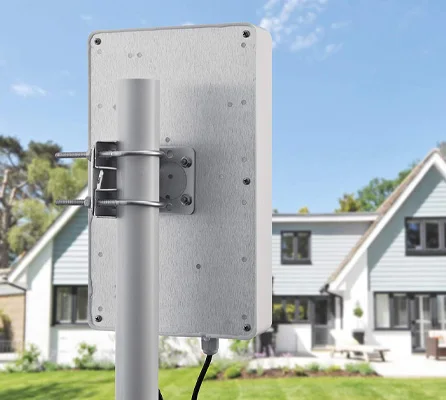

* Mount antenna to 2.0 inch max diameter
* Determine location of nearest cell tower.
* Mount antenna to 2.0 inch max diameter
mast or to wall as high as possible.
* keep the antenna facing the signal tower.
* Adjust antenna position left/right and
* keep the antenna facing the signal tower.
* Adjust antenna position left/right and
up/down tilt to find optimal signal.
* Point away from：other antennas,trees &
* Point away from：other antennas,trees &
buildings,large vertical metal or concrete
objects.
Note:
* Use 50 Ohm RF coax cables. DON’T Use
RG59/RG6 coax (75 Ohm cable) – signal will
be seriously degraded
* This antenna is for direct-wired connection
* This antenna is for direct-wired connection
to cellular data devices with 2 antenna
connectors.Keep cables as short as
possible.DON’T Use a splitter to connect 1
possible.DON’T Use a splitter to connect 1
modem port to both antenna leads.
* This directional antenna(one plastic side)
* This directional antenna(one plastic side)
must be pointed toward a cell tower.In order
to get a better signal, please keep the
antenna facing the signal tower as free of
antenna facing the signal tower as free of
obstacles and high enough.
