KP L 160 yinengtech cnc spreading machine used apparel & textile machinery
- Category: >>>
- Supplier: Wuhan King Suntime CNC Equipment Co. Ltd.
Share on (1600914973121):
Product Overview
Description

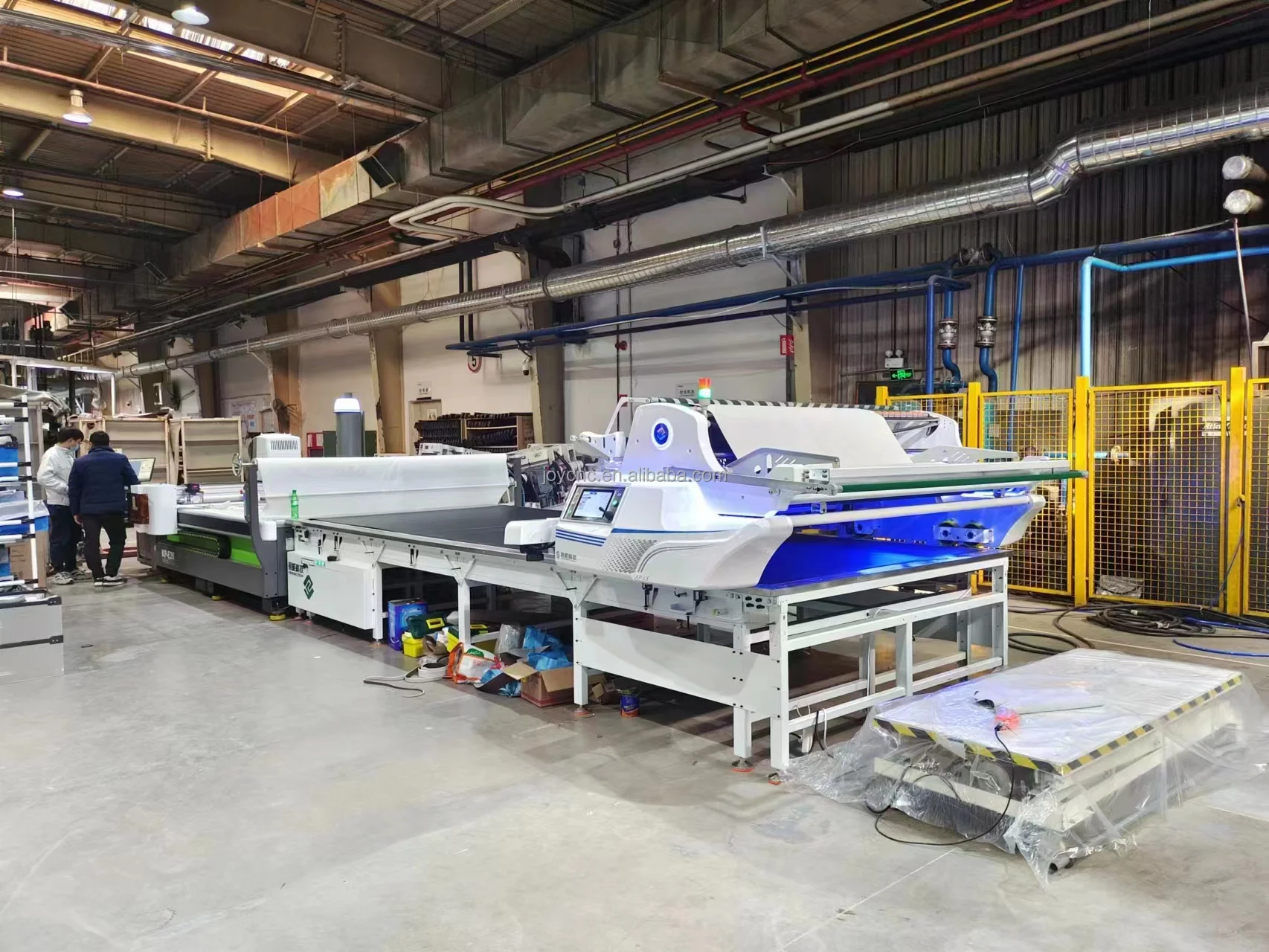

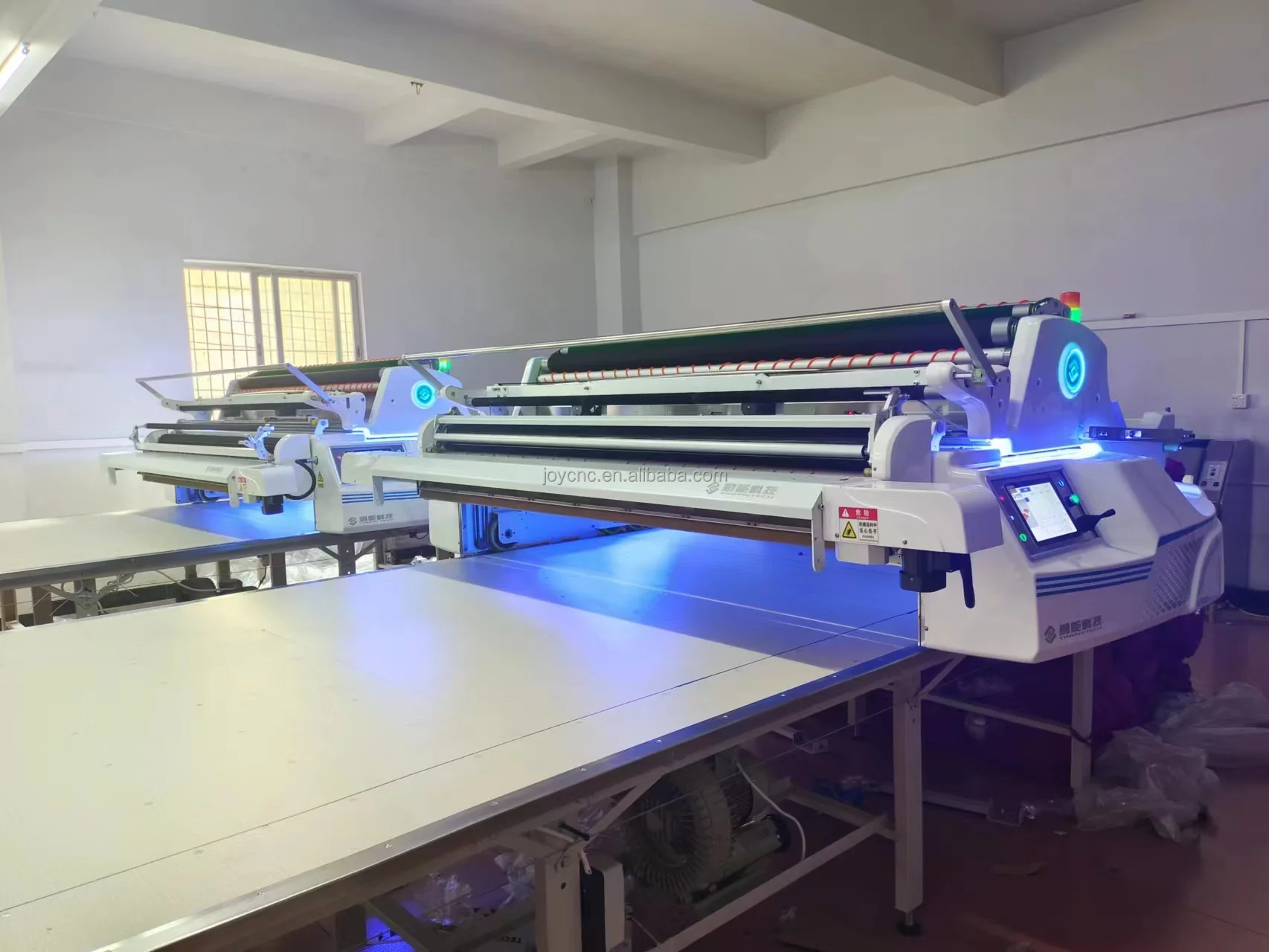

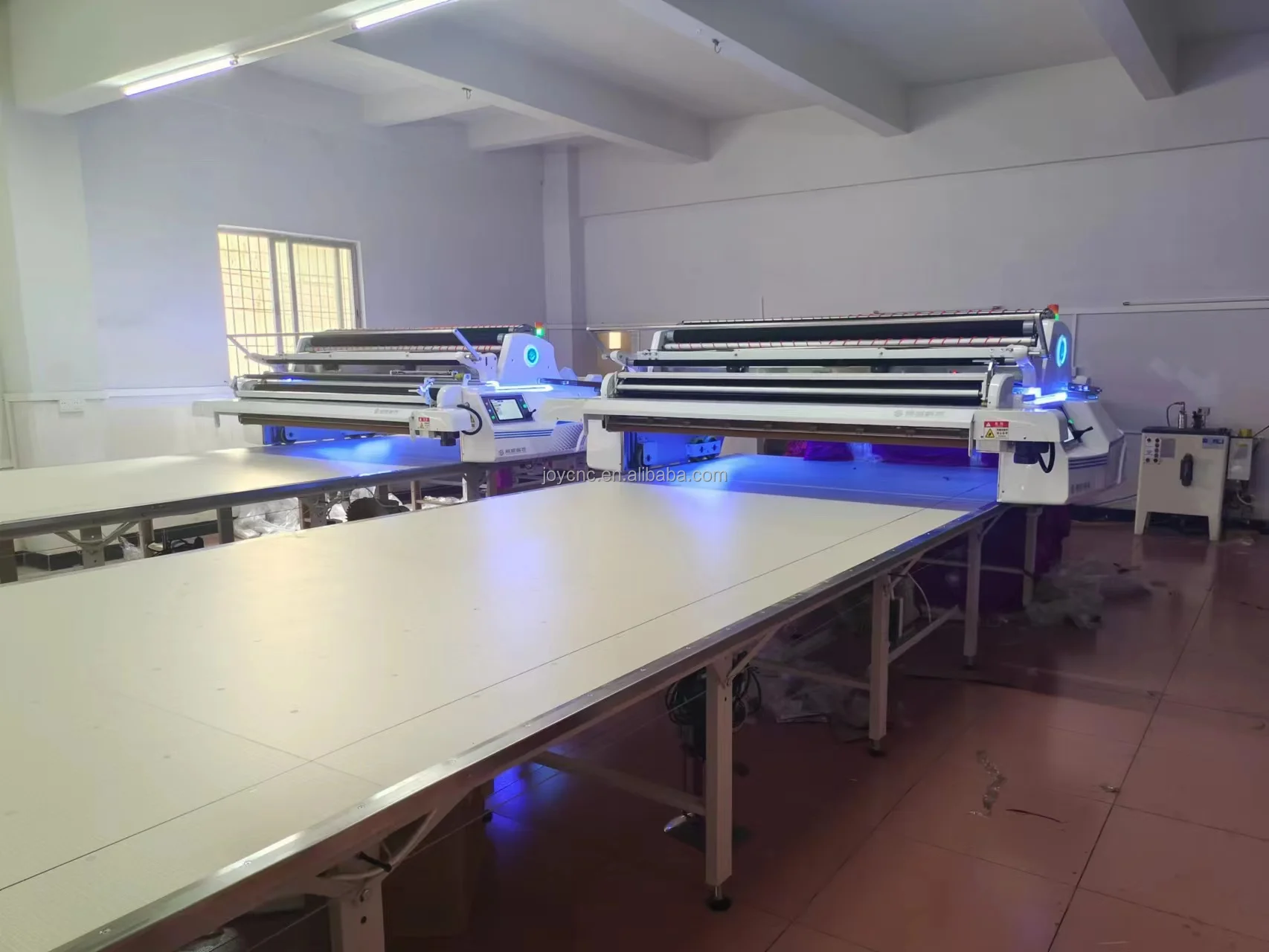

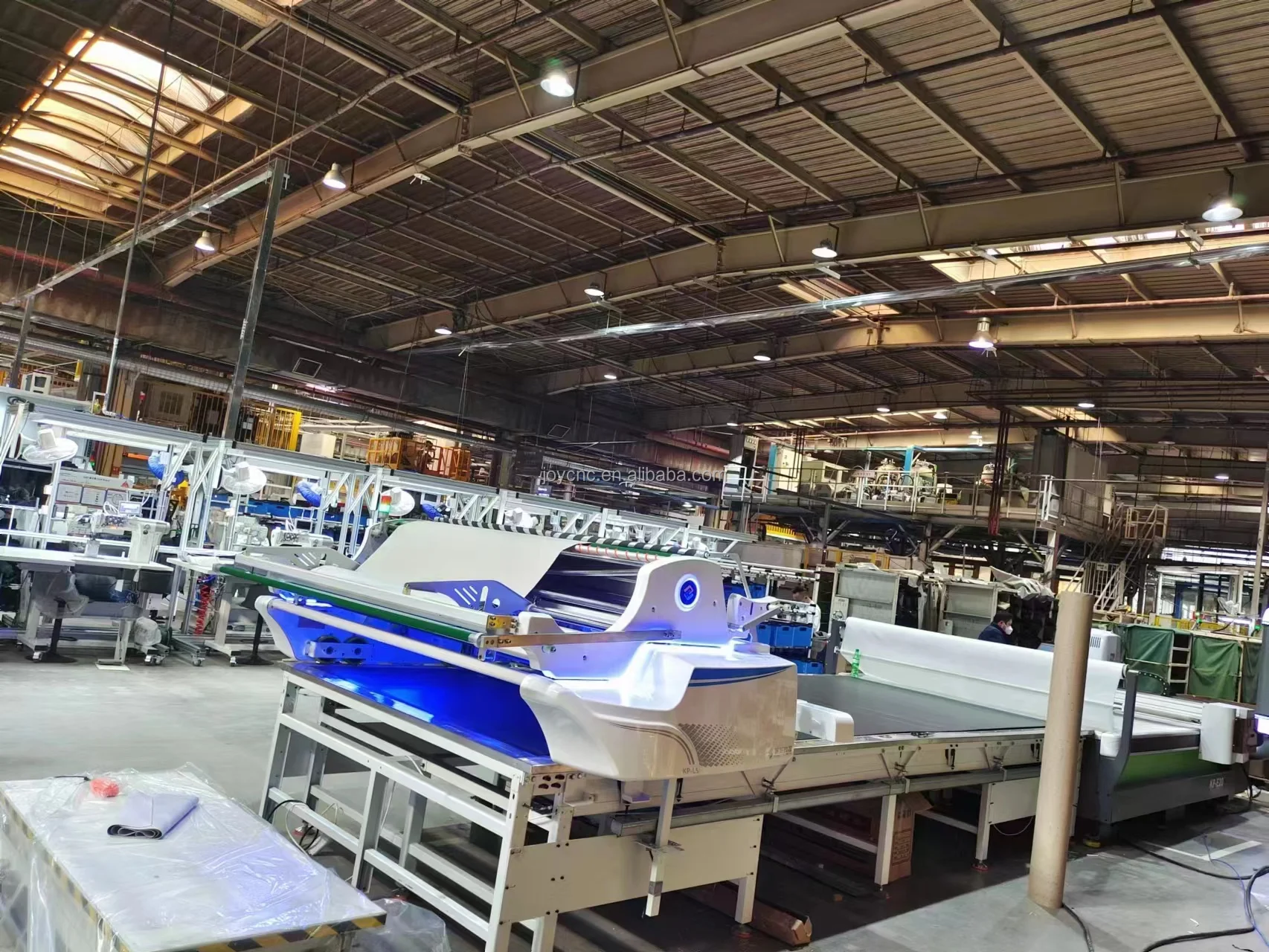

YINENGTECH CNC KP-LS210 fabric spreading machine for automatic fabric spreading
Product Description
YINENGTECH CNC KP-LS210 fabric spreading machine will auto shutdown once more than 5 minutes no operation/working on it. The Fabric Spreading Machine applies to knit,woven,denim,coating,plastic,man-made fiber fabric,etc.With neat cutting section and fully automatic one key operation,it's the ideal machine for intelligentized factory. It is specially designed for woven/ nowoven, medical gauze, and most no/low elastic fabric.
Full automatic: both cutting device and fabric catcher are automatic.
Technical Parameters
Model. NO | KP-LS210 |
Machine Dimensions | 2870*1850*950mm |
Package Size | 2950*2000*1250mm |
Voltage | 220V/AC |
Motor Power | 6KW |
Working Speed | 120m/min |
Single Pull Height | 25cm |
Double Pull Height | 23cm |
Fabric Weight | 200KG |
Diameter of Cloth | 80cm |
N.W | 500KG |
G.W | 560KG |
Product overview
Initiate Dual Drive System
Initiate dual-drive servo travel motor, there is no error on the left and right, stronger power, and the highest running speed can reach 120m/min.
The big six wheels run independ ently
Dual-drive four-wheel walking, stable operation, more precise braking, and the error can be controlled within 1mm.
Multi-rod cloth releasing device
The cloth bucket is equipped with multi-rod unwinding device makes the cloth tension-free, and truly realizes the replacement of knitted and woven fabrics at any time.
Autonomous control system
Independently developed control system, large expansible space, real-time connection to the data on IOT.
Intelligent identification system
such as intelligent cloth placement, intelligent cloth collection, intelligent knife lift, and intelligent cloth connection.
Video Description
Company Profile
Wuhan King Suntime CNC Equipment Co.,LTD is established in 2002. We are professional in researching , manufacturing full set of automatic cutting system, the production include automatic multiply fabric cutting machine & Mono layer cutter&spreading machine.
customers from more than 40 countries around the world, which all over Asia, Europe, North America, South America, and Africa,
After sales service
Pre-sales service -- professional individual consultation :
Free sample making For free sample making/testing, please send your samples or products CAD Graphics to our company in China.Trybefore you buy.
After-sales service – professional qualification and training One-year after-sales service includes:
We will offer some of the parts for free in the first year. The buyer needs to pay for the shipping cost for the parts. The user
needs to send us pictures of the broken one, then we will send out the part they need.
needs to send us pictures of the broken one, then we will send out the part they need.
Installation and technical training includes :
We will send our engineers to customer’s factory for the local training and the installation, and this is free. The buyer needs to pay hotel and meals for the engineers in the local. In-time golden services Responsive within 24 hours technical support
providedfor peace of mind.
providedfor peace of mind.
Customer-orient maintenance cost control guide：
Parts supply in time we produce on order, Parts in warehouse for over 30 sets to guarantee the delivery of order and maintenance.
Cetifications
