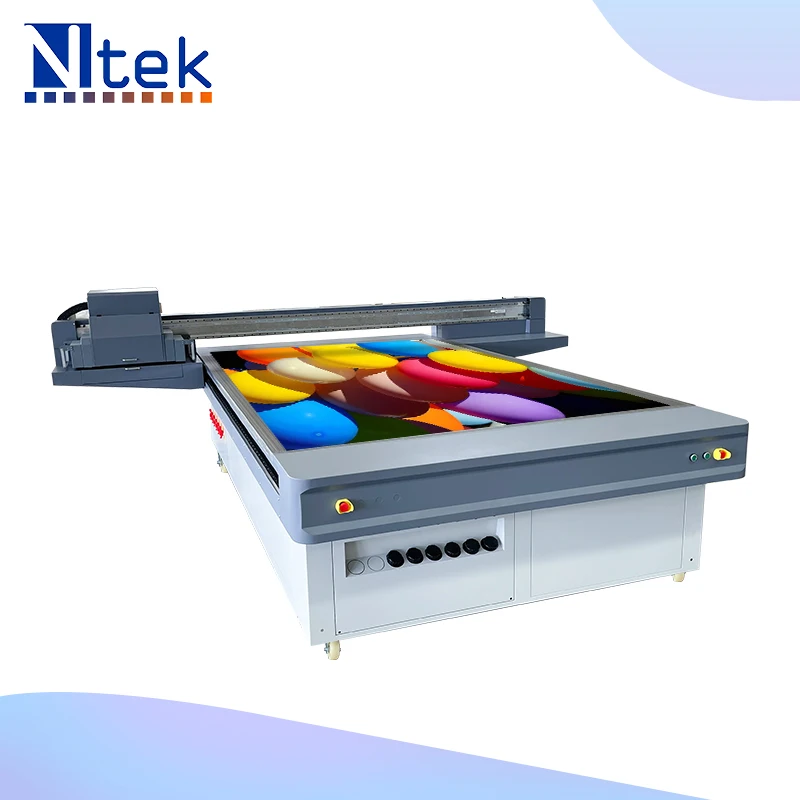

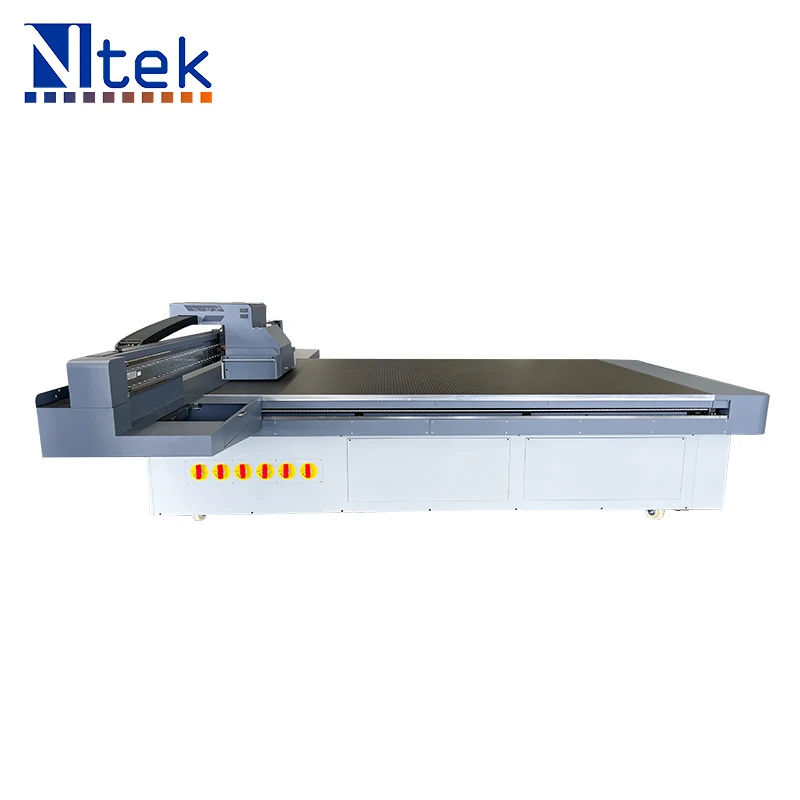

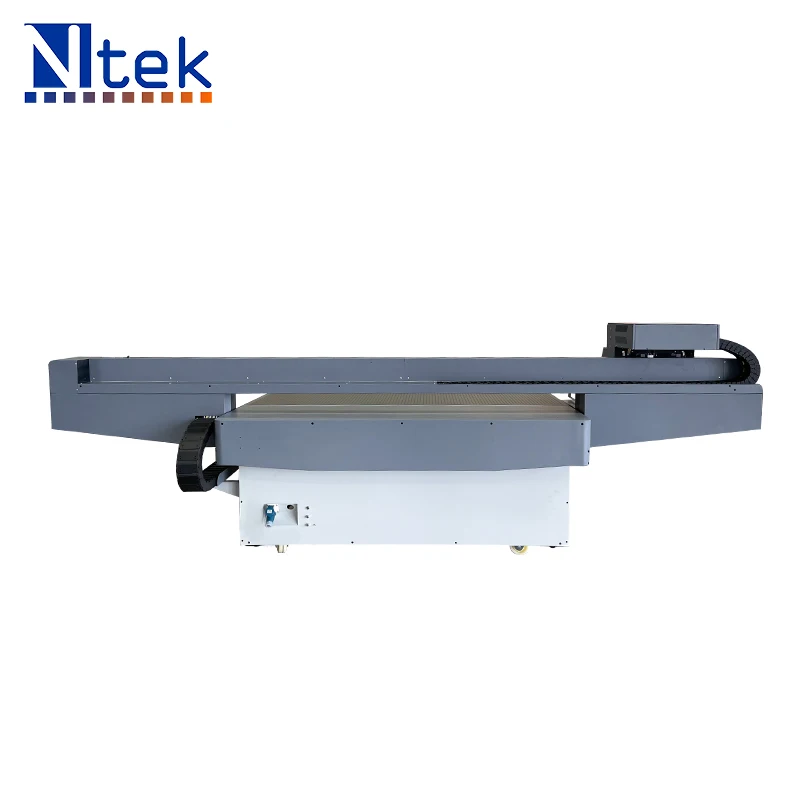

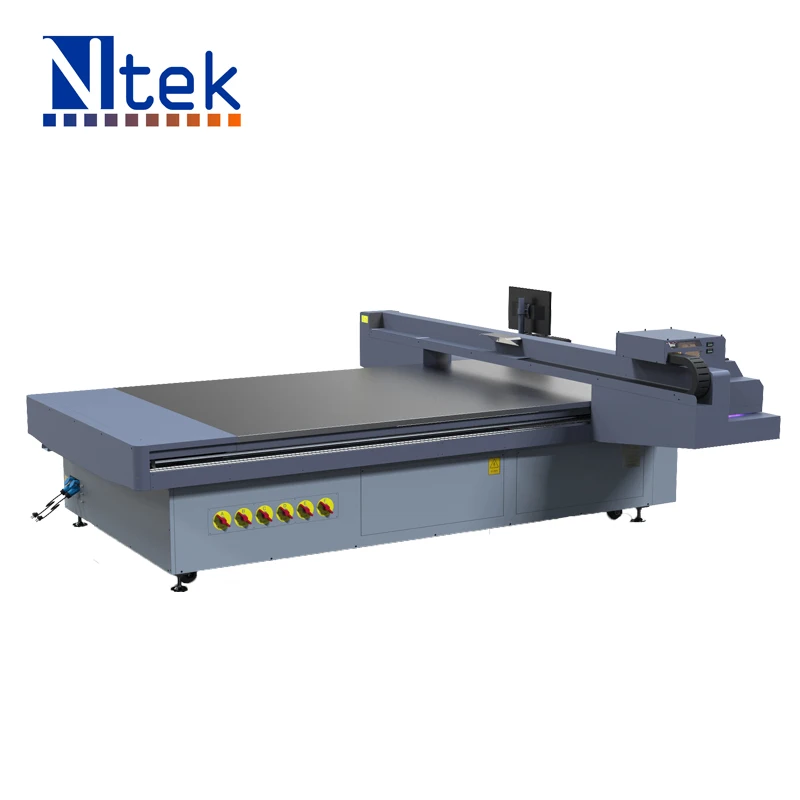

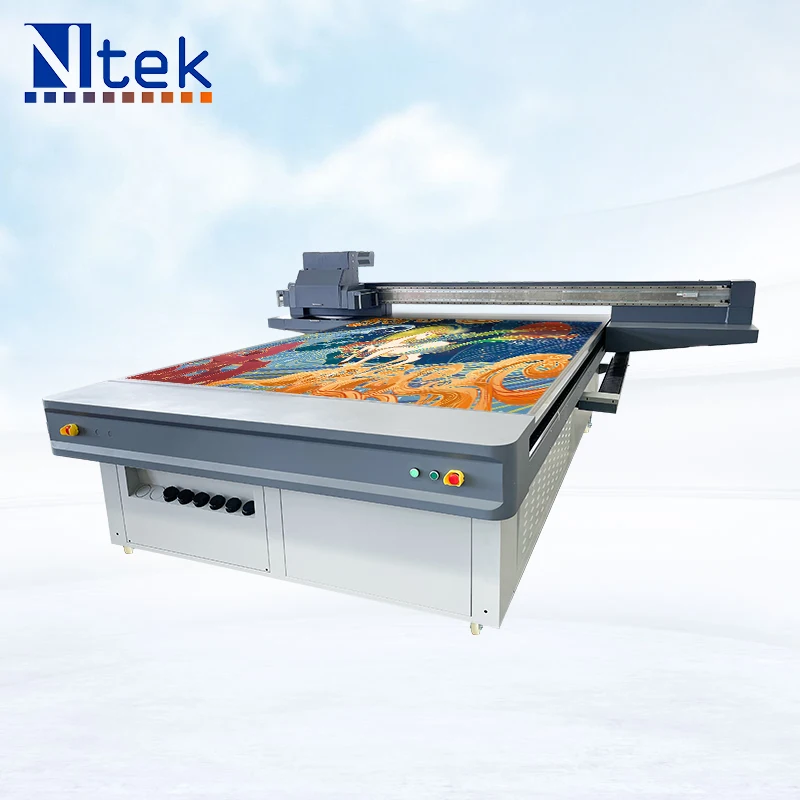

2030 UV Wide Format 3D UV Digital Plexiglass Printer Acrylic Photo Carpet Printing Machine
2030 UV Wide Format 3D UV Digital Plexiglass Printer Acrylic Photo Carpet Printing Machine
2030 UV Wide Format 3D UV Digital Plexiglass Printer Acrylic Photo Carpet Printing Machine
2030 UV Wide Format 3D UV Digital Plexiglass Printer Acrylic Photo Carpet Printing Machine
2030 UV Wide Format 3D UV Digital Plexiglass Printer Acrylic Photo Carpet Printing Machine
2030 UV Wide Format 3D UV Digital Plexiglass Printer Acrylic Photo Carpet Printing Machine
2030 UV Wide Format 3D UV Digital Plexiglass Printer Acrylic Photo Carpet Printing Machine

2030 UV Wide Format 3D UV Digital Plexiglass Printer Acrylic Photo Carpet Printing Machine

Share on (1600914985677):


Price:$12,000.00 - $25,000.00

Quantity:


Product Overview

Description



Product Description




Printhead
RICOH GEN5/GEN6
Printhead 2-8 units
Print Effect
Color,white,varnish and 3D
embossing effect optional
Printing Areas
Glass/Ceramic/Decoration/
Advertising&Sign industry.

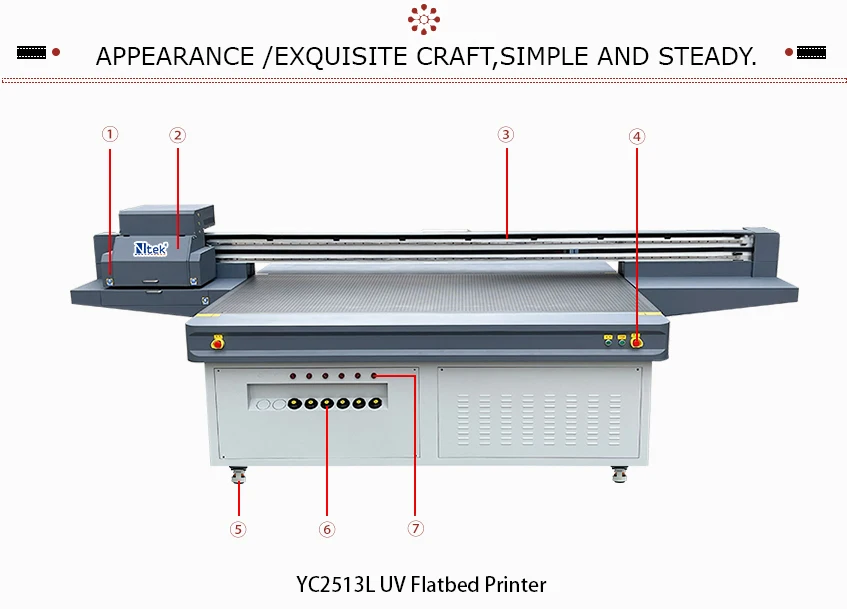

YC2513L UV Flatbed Printer
①UV LED Lamp ②Industrial Printhead ③TAIWAN HIWIN Guide Rail
④Switch And Power Switch Area ⑤Universal Wheel ⑥Ink Tank
⑦Ink Level Alarm System


Specification




Specifications
Product Model
YC2513L
Printhead Type
RICOH GEN5/GEN6
Printhead Number
2-8 heads
Ink Characteristics
UV Curing Ink (VOC Free)
Ink reservoirs
Refillable on the fly while printing/2500ml per color
LED UV Lamp
more than 30000-hours life made in Korea
Printhead arrangement
CMYK LC LM W V Optional
Printhead Cleaning System
Automatic Cleaning System
Guide Rail
TAIWAN HIWIN/THK Optional
Working Table
Vacuum Sucking
Printing Size
2500*1300mm
Print Interface
USB2.0/USB3.0/Ethernet Interface
Media Thickness
0-100mm
Print Resolution& Speed
720X600dpi
4PASS
15-33sqm/h
(GEN6 20% faster than this speed)
720X900dpi
6PASS
10-22sqm/h
720X1200dpi
8PASS
8-18sqm/h
Life of printed image
3 years(outdoor),10years(indoor)
File Format
TIFF,JPEG,Postscript,EPS,PDF etc.
RIP Software
RIP/Photoprint optional
Power Supply
220V 50/60Hz(10%)
Power
3100W
Operation Environment
Temperature 20 to 30 ℃,Humidity 40% to 60%

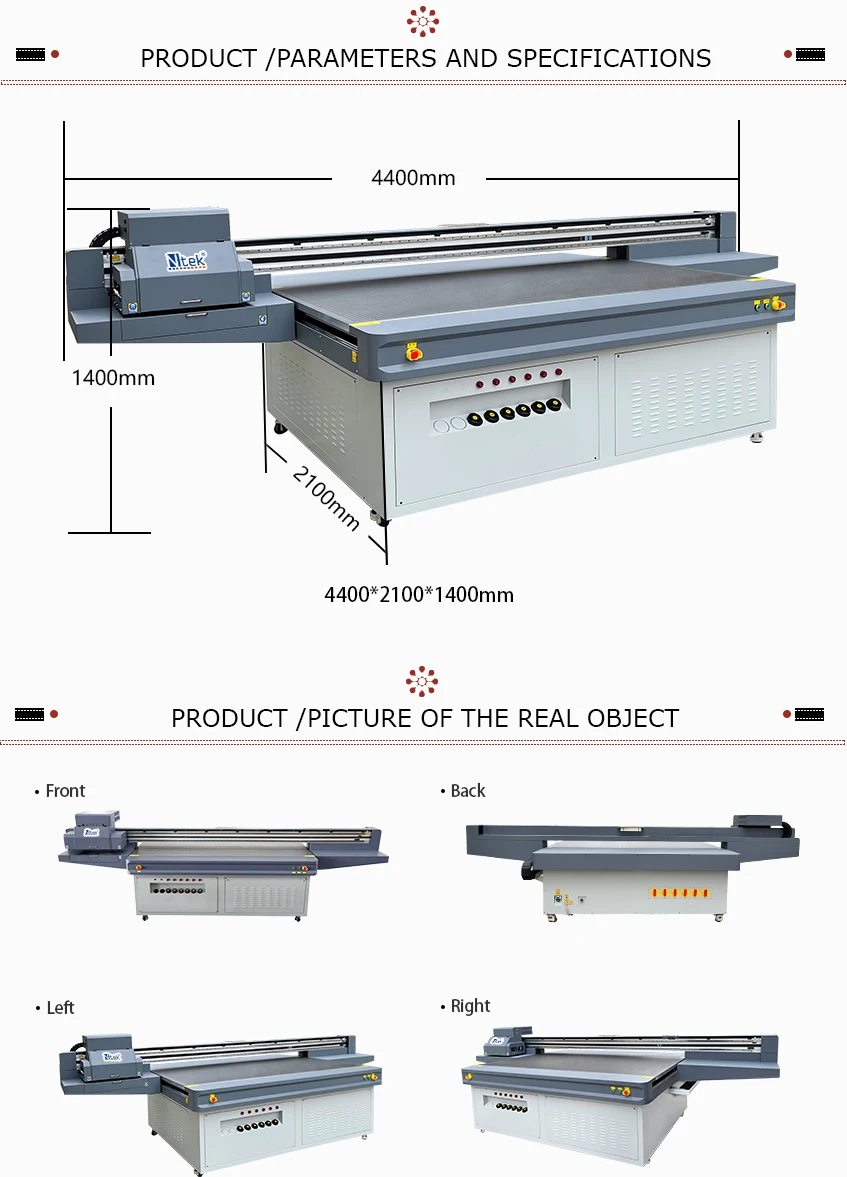

Machine Dimension
4400*2100*1400mm
Packing Dimension
4600*2300*1650mm
Weight
1200kg
Warranty
12 months exclude the consumables
Above specification subject to change without notice beforehand


Product Details

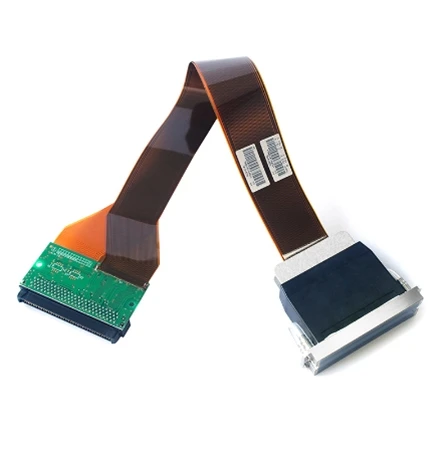

RICOH Print Head
Adopting gray level RICOH stainless steel internal heating industry head which has high performance in speed and resolution. It is suitable for long-time working, 24 hours running.

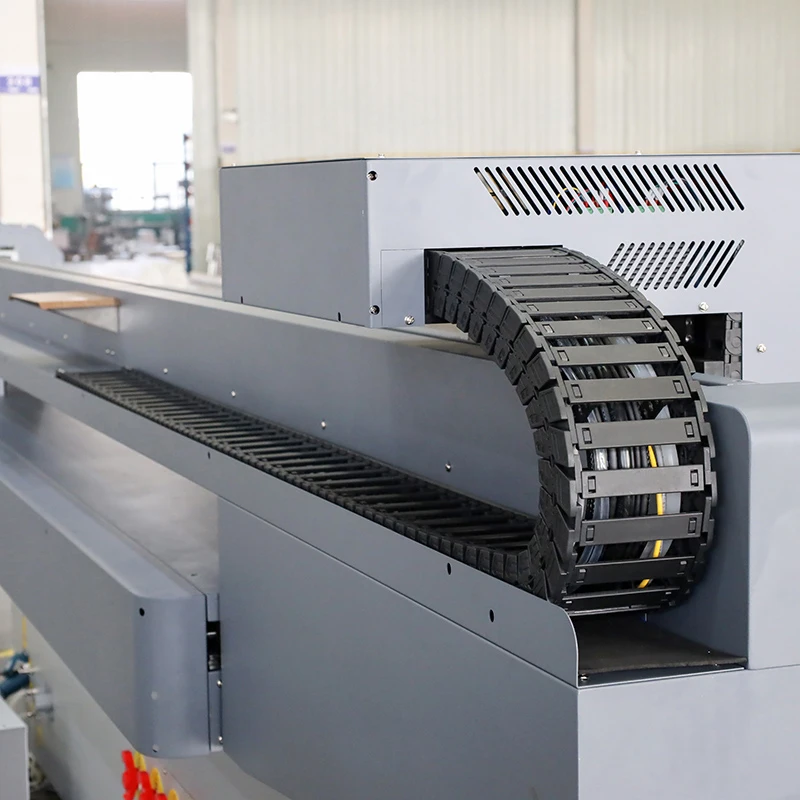

German Imported Towline
Germany imported towline on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.





Panasonic Servo Motors And Drives
Using Panasonic servo motor and driver, effectively over- come the step loss problem of step motor. High speed print- ing performance is good, low speed running is stable, dynamic response is timely,running stable.

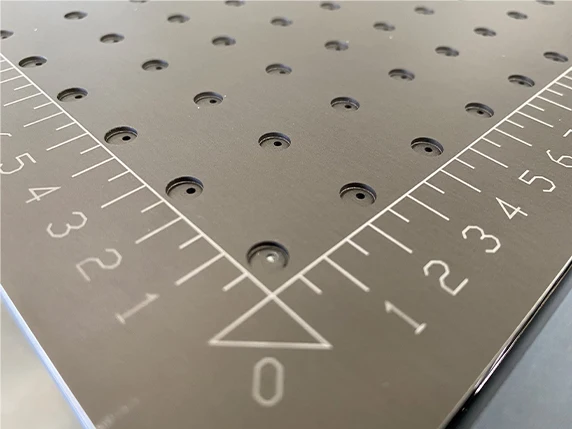

Vacuum Adsorption Platform
Hard oxidized honeycomb hole sectionalized adsorption plat-form, strong adsorption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing material, the plat- form surface hardness is high, scratch resista-nce,corrosion resistance.

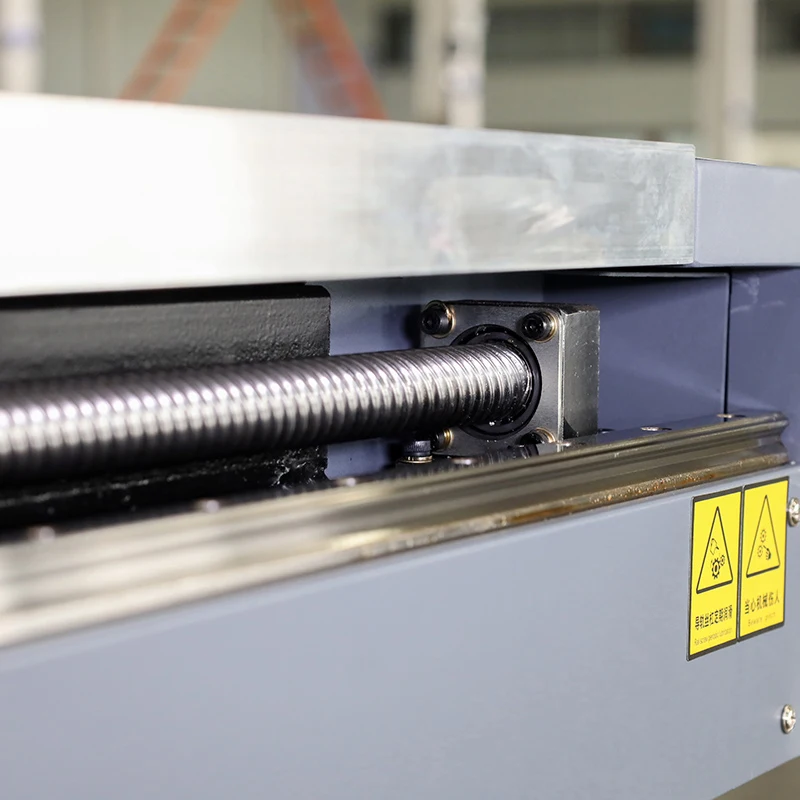

Taiwan HIWIN Screw Rod
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running




Large capacity ink tank and
ink shortage alarm system
Secondary Ink Cartridge
Temperature Control System


Universal Wheel
Printhead Anti-collision
Imported UV LED Lamp




Registration Pin
Anti-static System
Automatic Height Measurement




Image quality


RICOH Piezoelectric Nozzle
Adopt RICOH piezoelectric nozzle,one nozzle 384/1280 nozzles,the accuracy can reach 1440dpi, the new variable ink drop technology provide 7/14/21 pl ink dot size, can achieve high speed or low resolution cases can also easily achieve high quality picture, to achieve no point printing effect.

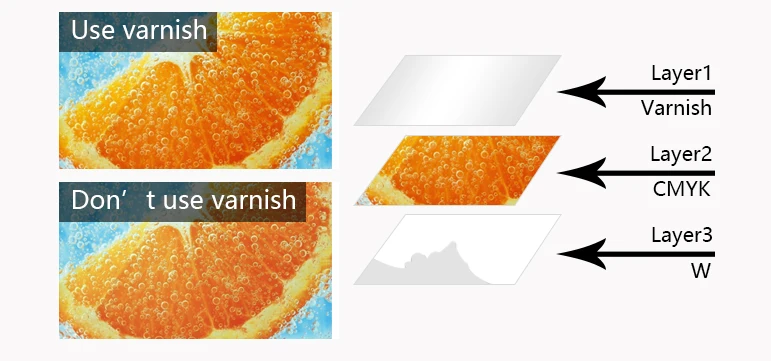

CMYK+W+V All Three Colors at Once
The use of gloss oil makes the product more gorgeous gloss and "high gloss' effect ,not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect but also can better protect the coating, make the product more durable.




Photo Case
Decorative Painting
Mouse Pad


Wood Panel
Plastic
Advertising Sign


Acrylic
Wall Background
Handicraft


Ceramic Tile
Fiber
Glass Photo

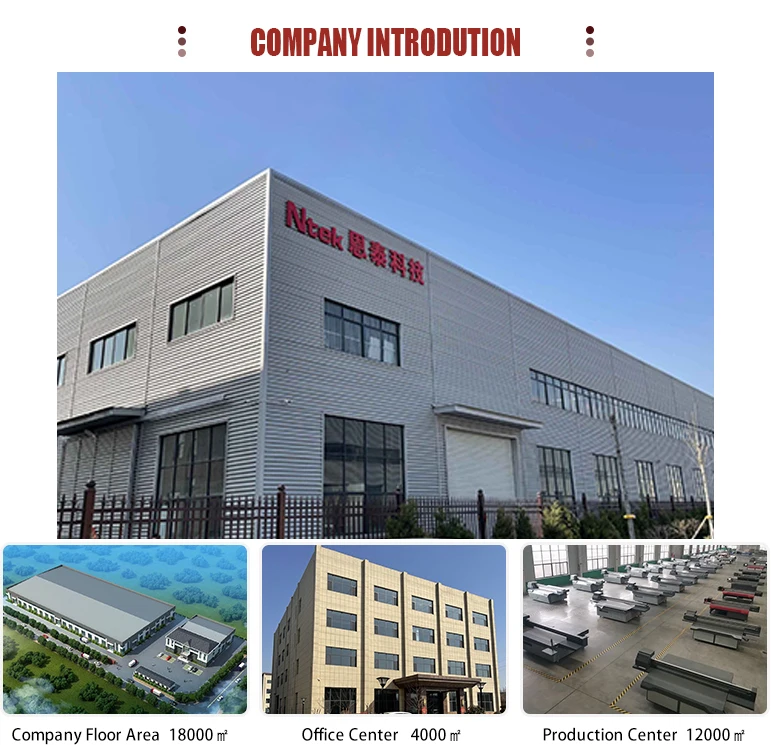

Company Profile


Linyi Win-Win Machinery Co. Ltd
Linyi Win-Win Machinery Co. Ltd is founded in 2009 in Linyi City, Shandong province, China.We are professional manufacturer of UV printer for 14 years in China. Our factory occupies more than 18,000 square meters. with six professional production lines to support annually sales volume.There are professional R&D center and sales team for domestic and international sales, and after-sales service team for customers.Some agents and third-party after sales service center to ensure timely service for our customers as well We export our printers since 2012, with high quality, friendly service and competitive price,our printers are welcome in Asia, Europe, Australia and Africa etc.As a professional manufacturer and exporter of UV flatbed printer in china. we have advanced manufacture center,stable parts supplier,consumables supplier and constantly updated technology department to provide excellent service and best price for our customers. OEM service is available. Welcome to contact us for cooperation.

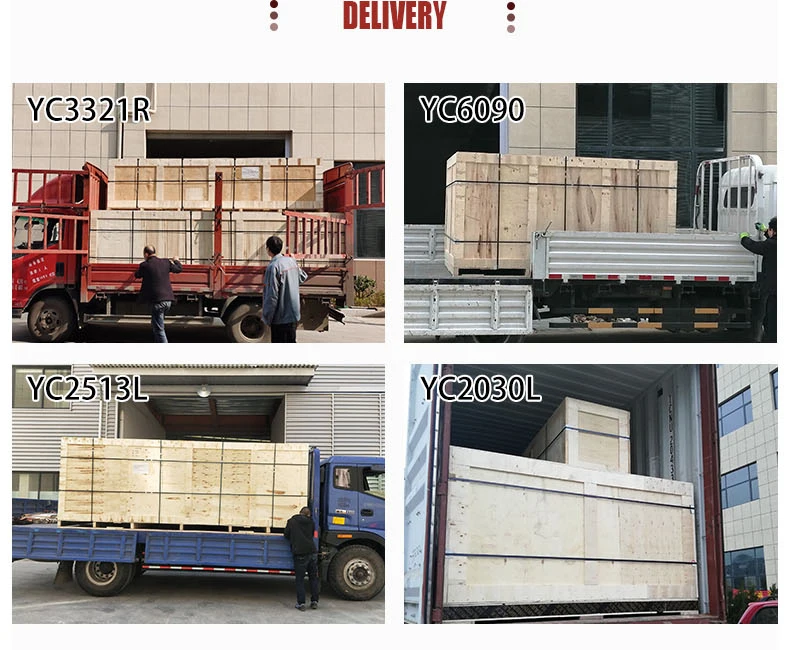

Packing & Delivery




Customer Photos




FAQ


1. How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.

2. What is the cost of ink for printing on the materials?
Normally it is around 0.5-1 USD per square meter for ink cost.

3. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.

4. How about the maintenance and after sales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But customer has to be responsible for the accommodation and transportation costs of the technical staff.

5. Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.

6. Is there any guarantee for this printer?
Yes, we have guarantee for the printer.We provide 13 months warranty for all the electronic parts including the main board,driver board, control board, motor, etc,except the consumables, such as ink pump, print head, ink filter, and slide block etc.

7. How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Team viewer. Whenever you have questions to the machine, you can contact our technician or me directly.

8. Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.

9. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48 hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.

10. What kinds of materials need premier before printing?
Glass,ceramic, metal, acrylic, marble etc
