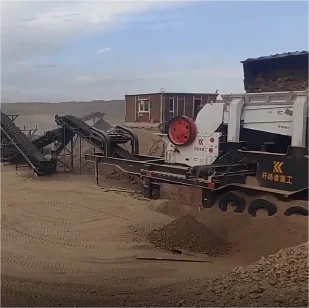

300t/h Aggregate Quarry Crushing Machine Jaw Crusher Station With Vibrating Feeder And Belt Conveyor
- Category: >>>
- Supplier: Xingaonai Heavy Industry (Zhengzhou) Group Co. Ltd.
Share on (1600915006541):
Product Overview
Description
Products Description

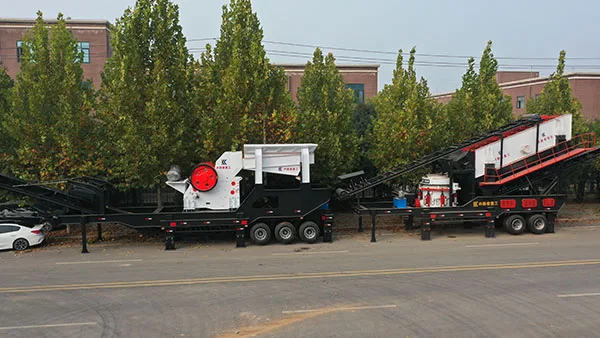

The mobile jaw crusher + cone crushing station is a new type of hard rock complete mobile crushing station newly launched by our company, which can solve various production operations such as feeding, crushing, sand making, and screening in one stop，pull-and-use, it is currently the most popular and ideal mobile hard rock production line.
1.Flexible configuration The main engine and supporting equipment can be customized according to needs, and the combination methods are various to meet the diversified aggregate production standards of users.
2.Freedom of movement One-stop complete production line, good mobility, reduce the loss of raw material transportation, save transportation costs.
3. Start work and pay back quickly It can be shipped as a whole vehicle, eliminating on-site installation procedures, and the crushing operation can be carried out after simple fixing, which greatly shortens the installation period.
4. Stable operation The new vehicle-mounted integrated automatic control and PLC automatic monitoring system save manpower; oil and electricity are dual-purpose, avoiding power failure troubles.
5. Energy saving and environmental protection The motor is selected reasonably, saving energy and cost; dust removal equipment + spray system can effectively suppress dust, and the crushing is more environmentally friendly.
Product Details

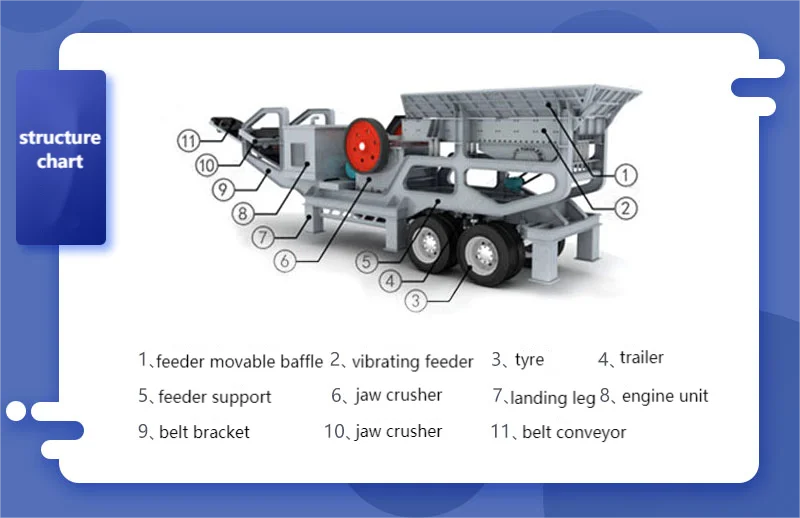

Working Principle & Product Structure
The complete equipment mainly includes feeders, jaw crushers, cone crushers, electric motors, iron removers, belt conveyors, control boxes, racks, etc.
Using a tire chassis and universal traction wheel as the moving method, power is obtained through a generator set. During the production process, various feeding, crushing, and screening equipment coordinate operations. After the stones that meet the particle size requirements enter the crusher, a series of crushing processing work is carried out by the equipment inside the machine, and then screening processing is carried out. Qualified stones enter the next processing process, and qualified stone products are discharged by the discharge device, Those that do not meet the standards will be returned to the machine for further processing work.
Product Parameters

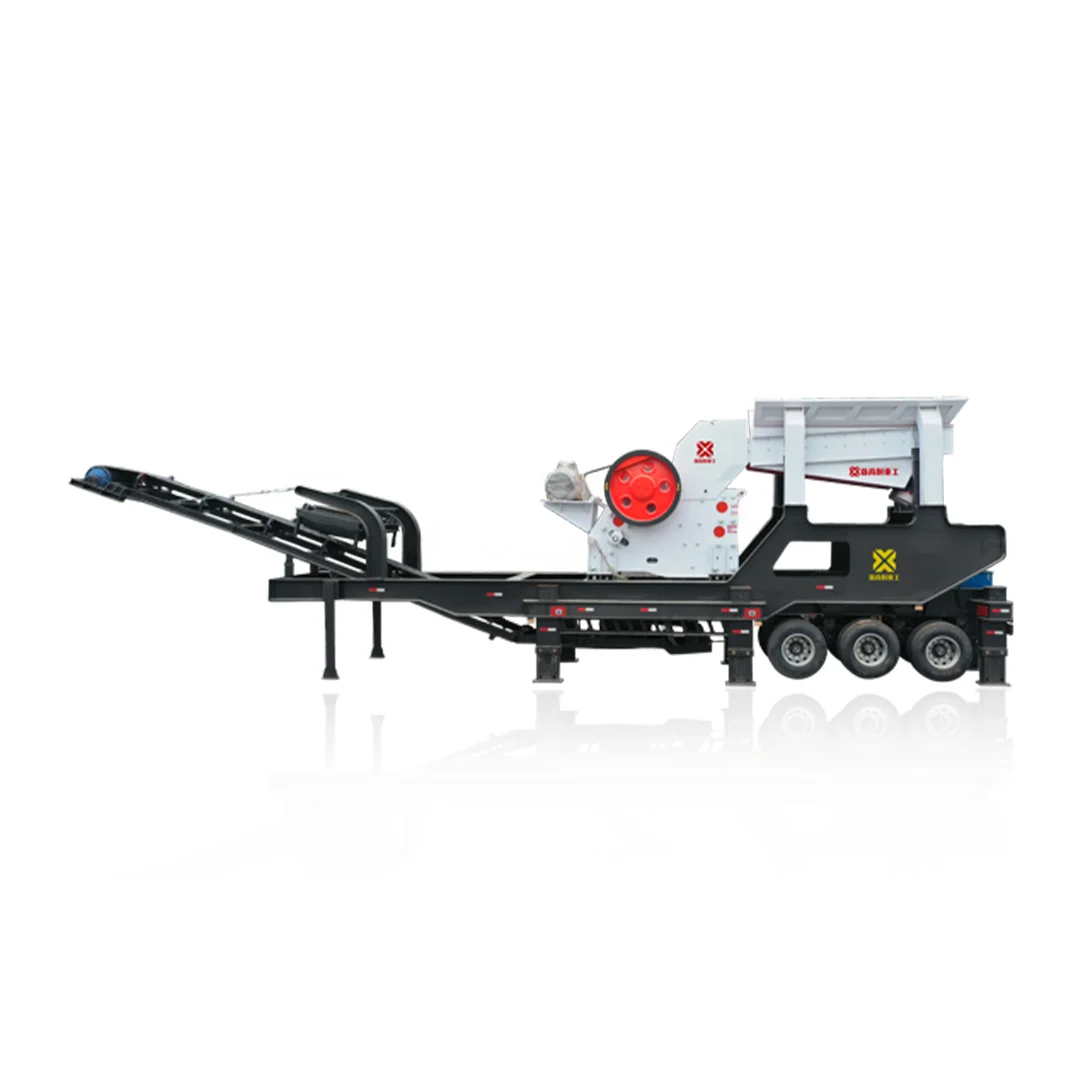

Jaw crusher mobile crushing station
Standard Model | Matching Equipment （mm） | Feeding Size(mm) | Capacity (t/h) | Complete Station Capacity (t/h) | Overall Size (mm) | ||
KPEV69-1 | ZGC1038 | KPEV600*900 | ≤500 | 100-180 | ≤100-220 | 13560*2890*4930 | |
KPEV75-1 | ZGC1238 | KPEV750*1060 | ≤630 | 100-300 | ≤120-330 | 15340*2920*5370 | |

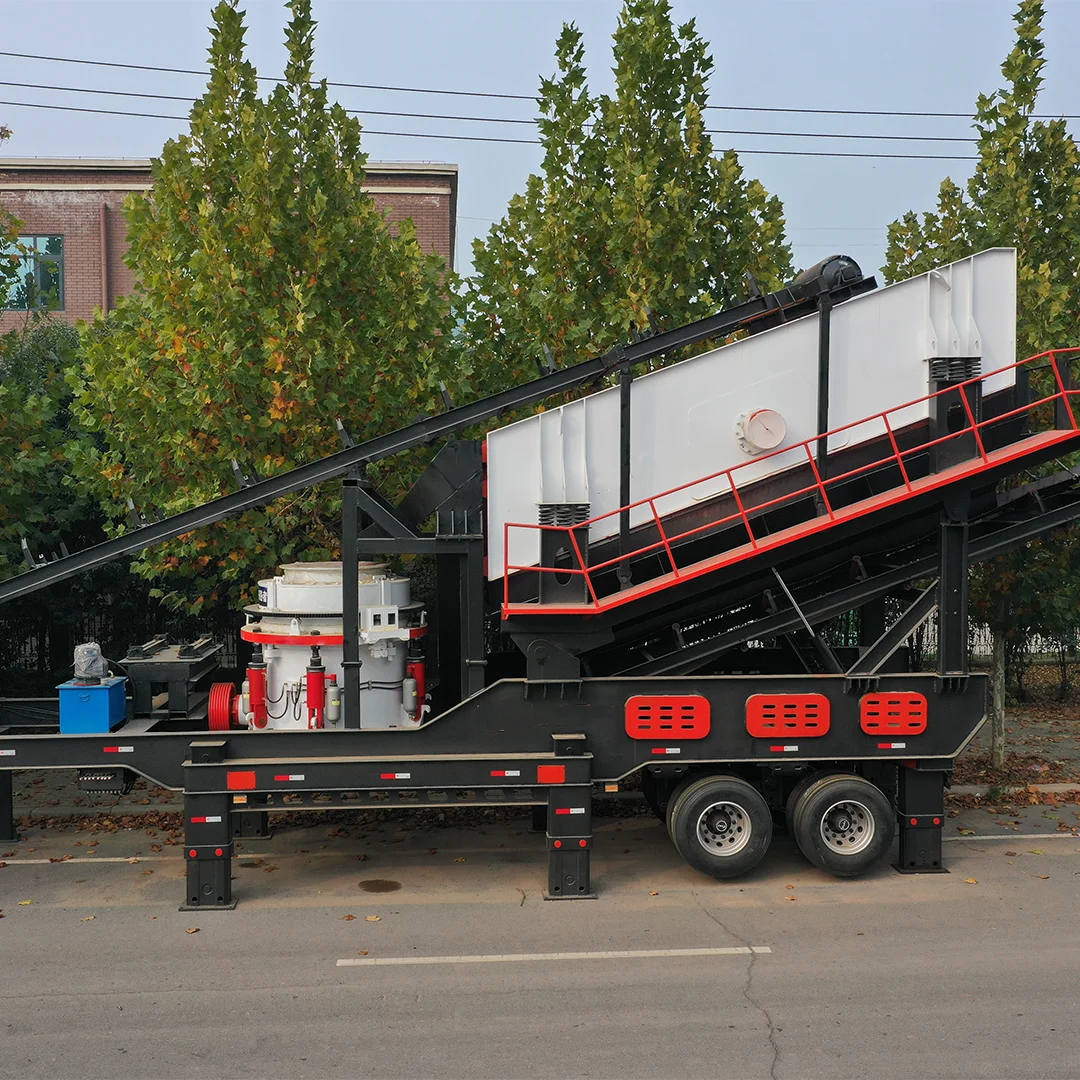

Cone fine crushing and screening mobile station
Standard Model | Matching Equipment（mm） | Feeding Size(mm) | Capacity(t/h) | Complete Station Capacity(t/h) | Overall Size(mm) | ||
KHP200 | HP200 | 3YK2160 | 70-190 | ---- | ≤70-220 | 14640*2920*6470 | |
KHP300 | HP300 | 3YK2470 | 80-200 | ---- | ≤120-380 | 14790*3050*6660 | |
Sand making shaping and screening mobile station
Standard Model | Matching Equipment（mm） | Feeding Size(mm) | Capacity(t/h) | Complete Station Capacity(t/h) | Overall Size(mm) | ||
VSI-9532 | VSI9532 | 2YK2470 | ≤40 | 150-220 | ≤180-250 | 14970*2920*7595 | |
VSI-8522 | VSI8522 | 2YK2160 | ≤40 | 100-120 | ≤100-150 | 14500*2800*7200 | |
Packaging & Logistics

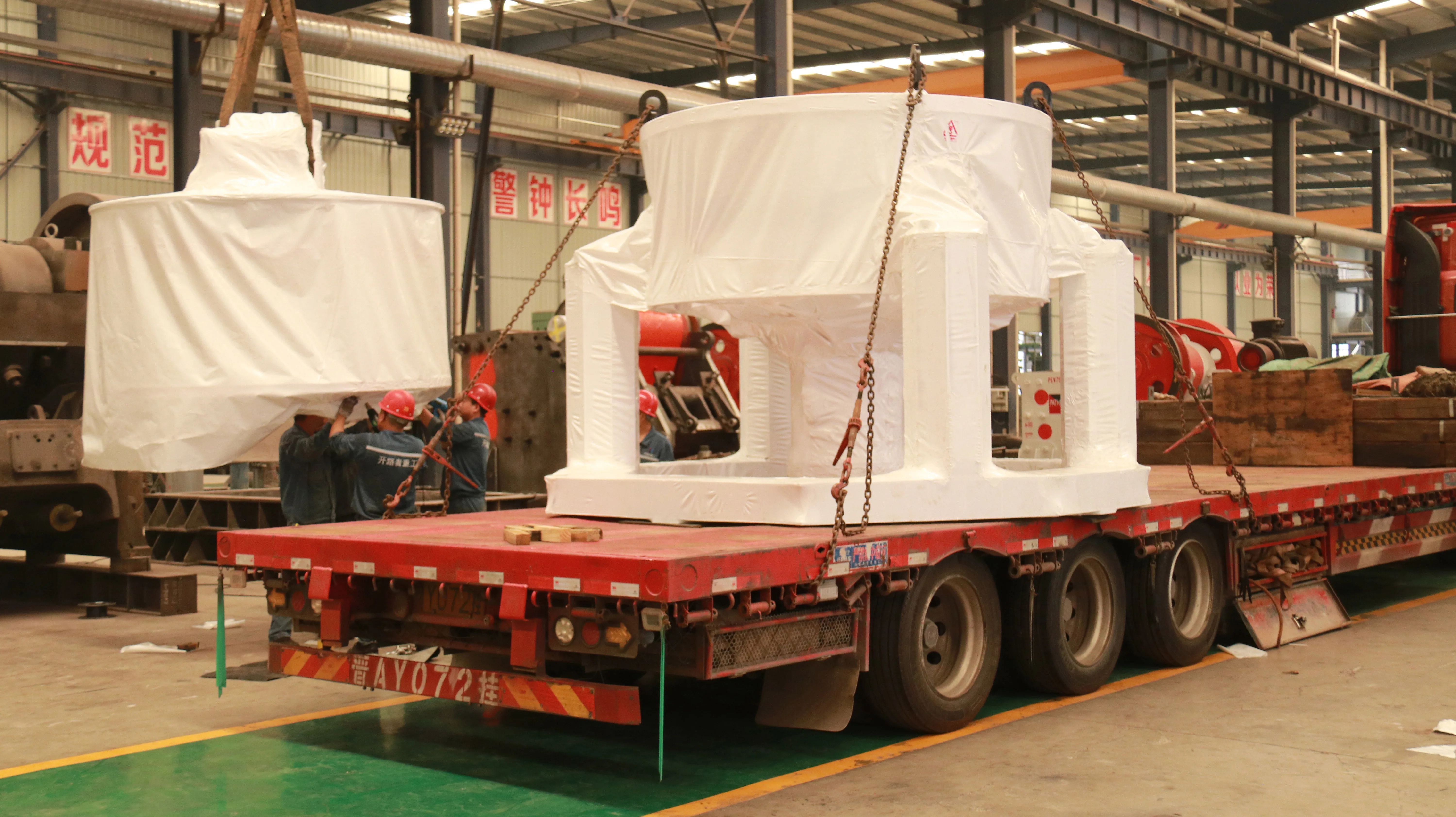

Packing
1.The equipment and wearing parts are packed in plastic film and wooden box.
2.FCL:Shipped in standard export container.
2.FCL:Shipped in standard export container.
3.Various packaging methods can be provided according to customer requirements, such as: fumigation-free wooden boxes, steel boxes, etc.

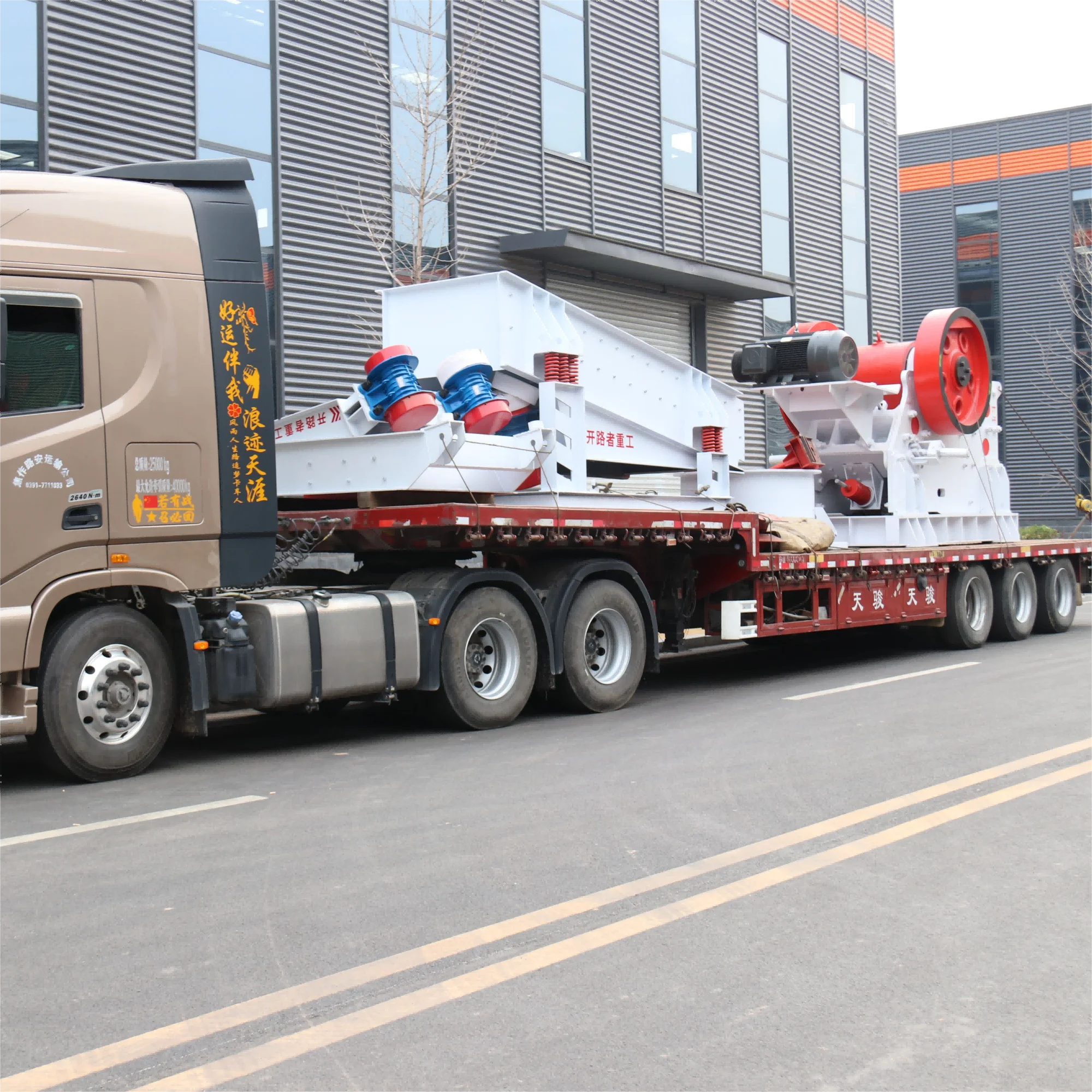

Sea freight
Sea freight
We ship the goods to China's main seaports, such as Qingdao, Tianjin, Shanghai, etc., and then ship the equipment to your country by sea.
Why Choose Us
Stone Crushing & Grinding First Brand
We have 3 manufacturing base
Zhengzhou City, Henan Province
Wuzhi City, Henan Province
Xiuwu City, Henan Province
We have 2 brand
Zhengzhou Xingaonai Heavy Industry Machinery Co., Ltd.
(For middle hard stone solutions)
Jiaozuo Pathfinder Heavy Industry
Machinery Co.,Ltd,
(For hard stone solutions)
We have 33 service station worldwide
Give clear solutions within 12 hours
Rush to the site within 24 hours
Xingaonai Group is specialized in R&D and manufacturing of stone crushing, sand making, powder grinding, screening, feeding, conveying, dust collecting and other equipment, we give One-stop Green-Smart-Efficient mining solutions.
Innovation can't just be said in words, it must be turned into a project, and the innovation must be implemented. Today, the company has continuously developed crushing equipment, sand making equipment, mineral processing equipment, supporting equipment, etc. with keen market insight and forward-looking Multi-series, more than 100 models of highly influential products have created more value for enterprises and society.
Our group continuously researches and develops new equipment, adjusts product structure, improves product system, intensively cultivates the core fields of "building crushing, mine crushing, industrial sand making, green building materials, and metal beneficiation", builds three modern equipment production bases, and establishes large-scale equipment The production line continuously improves the production capacity and market influence of the enterprise. In addition to the XGN-Q series hammer crusher, the types of medium and large intelligent crushing equipment are also becoming more and more perfect.
Certifications
Exhibition
FAQ
A) What is the core competitiveness of the company?
We regard product development as a key task, and develop new products with strong technology, intensive knowledge and good market prospects by tracking demand hot spots and aiming at technological progress in the industry.
B) Product line coverage?
The main business is the equipment required for the production line with an output of 100-6000 tons per hour.
C) What is the main business direction of the product?
Our comprehensive solutions for a range of processes in rock crushing and metal ore.
D) Does the company undertake to build a complete production line?
According to customer needs, we tailor-made recommendations or customization, fast and accurate understanding, special car transportation and distribution, customer inspection and after-sales service, escorting you.

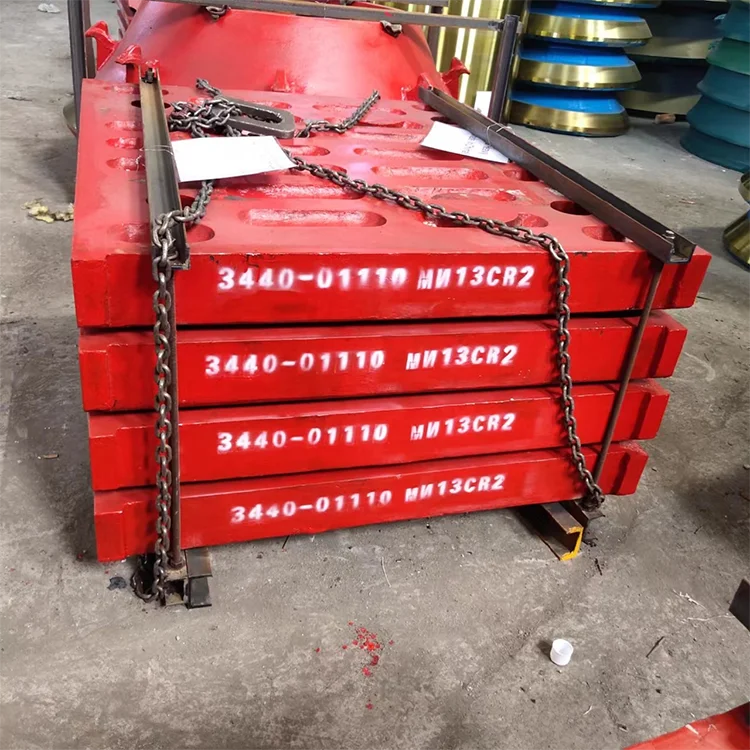

E) Does the company have relevant crusher parts services?
We can provide all kinds of accessories for crushing and screening equipment, with advanced technology, reliable performance and durability, to ensure that customers' needs can be met in a timely and effective manner.
