QINGYING outdoor mosquito proof winter patio canopy roller blinds
- Category: >>>
- Supplier: Guangzhou Qingying Shading Engineering Co. Ltd.
Share on (1600915166100):
Product Overview
Description
QINGYING is a professional outdoor roller blinds manufacturer with 15 years of experience.
Outdoor roller blinds has the function of Windproof, Waterproof, Anti UV, Mosquito Proof and Fire Resistance
VR
Products Description

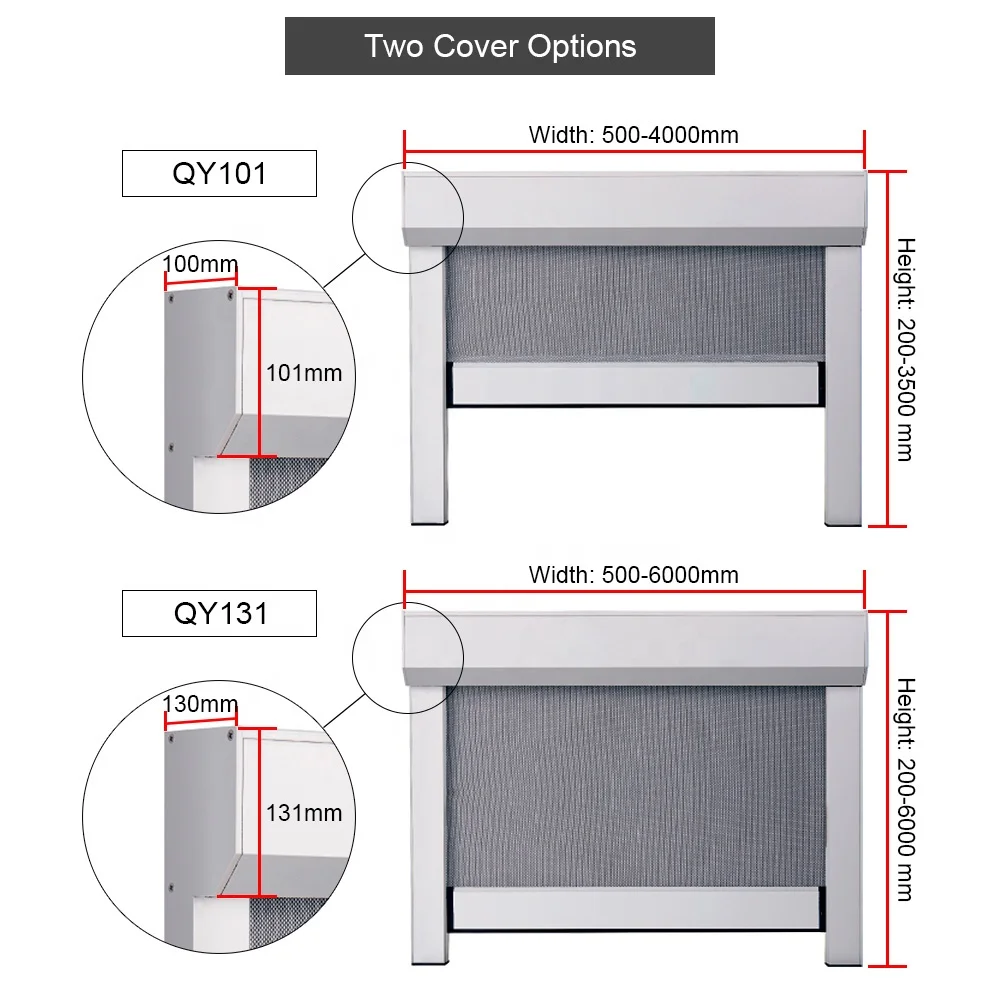

Model | QY101 | QY131 | |
Minimum Width | ≥0.5M | ≥0.5M | |
Maximum Width | ≤4.0M | ≤6.0M | |
Minimum Height | ≥0.5M | ≥0.5M | |
Maximum Height | ≤3.5M | ≤6.0M | |
Note | When Width＞3m height≤3.0M | When Width＞3m height≤3.0M | |
Suggestion | When width≤0.5m，maximum height need to＜3m; When width≤1.2m，maximum height need to＜5m | ||
Specification | A4000 Series | P4000 Series | QC4200 Series |
Composition factor | 30%Polyester, 70%PVC | 30%Polyester, 70%PVC | 30%Polyester, 70%PVC |
Openness factor | 1% | 3% | 10% |
Thickness(mm) | 0.72±5% | 0.7±5% | 0.72±5% |
Width(cm) | 183/250/300 | 200/250/300/320 | 200/250/300/320 |
Mesh weight(g/㎡) | 615±5% | 565±5% | 485±5% |
Breaking strength(N) | ≥3000N/5cm, ≥2500N/5cm | ≥2300N/5cm, ≥2200N/5cm | ≥2100N/5cm, ≥1600N/5cm |
Color fastness | ISO 105 BO2, GRADE 8 | ISO 105 BO2, GRADE 8 | ISO105 bo2, grade 8 |
Anti-ultraviolet | 99% | 97% | 90% |
Fire classification | FR NFPA 701-2015 TM#2 (USA), Type B BS 5867 Part2(U.K) B1 DIN 4102-1(GERMAN) | FR NFPA 701-2015 TM#2 (USA), Type B BS 5867 Part2(U.K) B1 DIN 4102-1(GERMAN) | FR NFPA 701-2015 TM#2 (USA), Type B BS 5867 Part2(U.K) B1 DIN 4102-1(GERMAN) |
Specification | 4300 Series | 1100 Series | 5500B Series |
Composition factor | 22%Polyester, 78%PVC | 25%Polyester, 75%PVC | 38%Polyester, 62%PVC |
Openness factor | 0% | 40% | 5% |
Thickness(mm) | 0.9±5% | 0.52±5% | 0.82±5% |
Width(cm) | 183/250/300 | 183/250/300 | 183/250/300 |
Mesh weight(g/㎡) | 710±5% | 230±5% | 610±5% |
Breaking strength(N) | ≥3000N/5cm, ≥2500N/5cm | ≥1100N/5cm, ≥1000N/5cm | ≥2800N/5cm, ≥2500N/5cm |
Color fastness | ISO 105 BO2, GRADE 8 | ISO 105 BO2, GRADE 8 | ISO105 Bo2, GRADE8 |
Anti-ultraviolet | 99% | 60% | 95% |
Fire classification | FR NFPA 701-2015 TM#2 (USA), Type B BS 5867 Part2(U.K) B1 DIN 4102-1(GERMAN) | FR NFPA 701-2015 TM#2 (USA), Type B BS 5867 Part2(U.K) B1 DIN 4102-1(GERMAN) | FR NFPA 701-2015 TM#2 (USA), Type B BS 5867 Part2(U.K) B1 DIN 4102-1(GERMAN) |

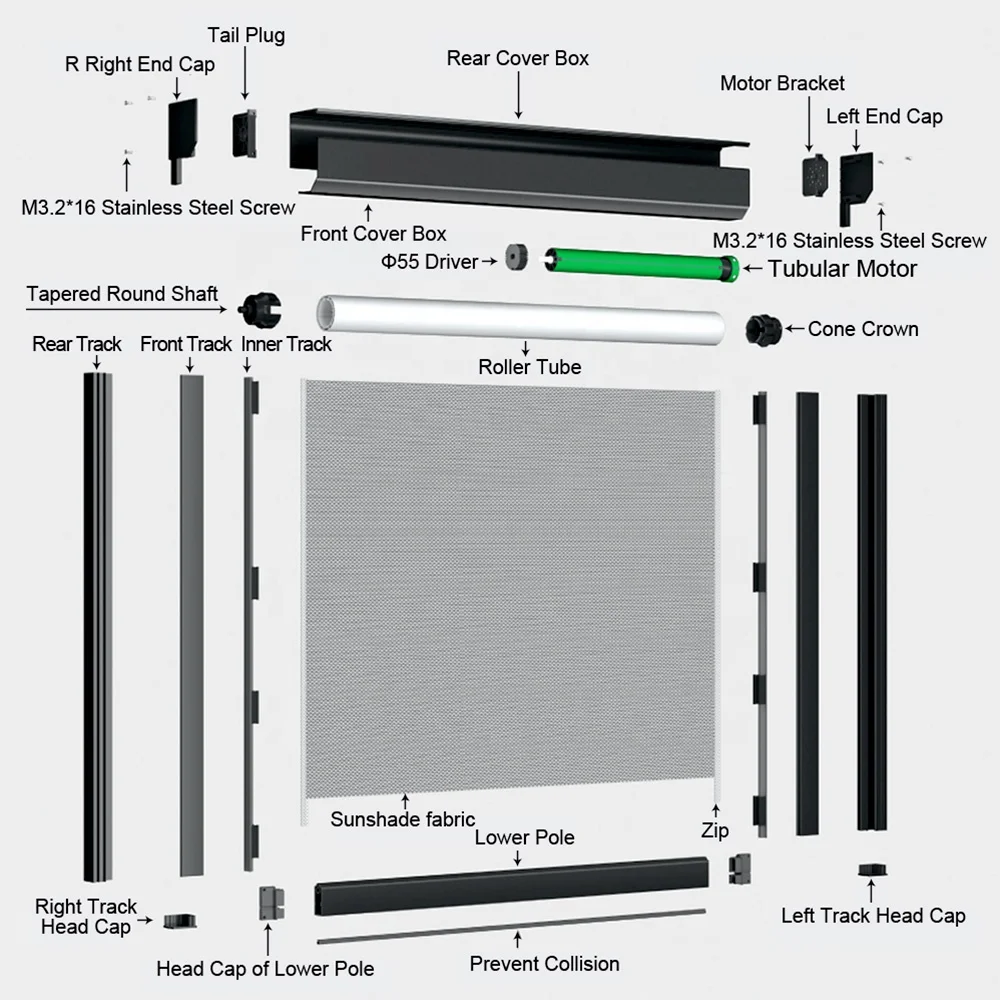

Product Details

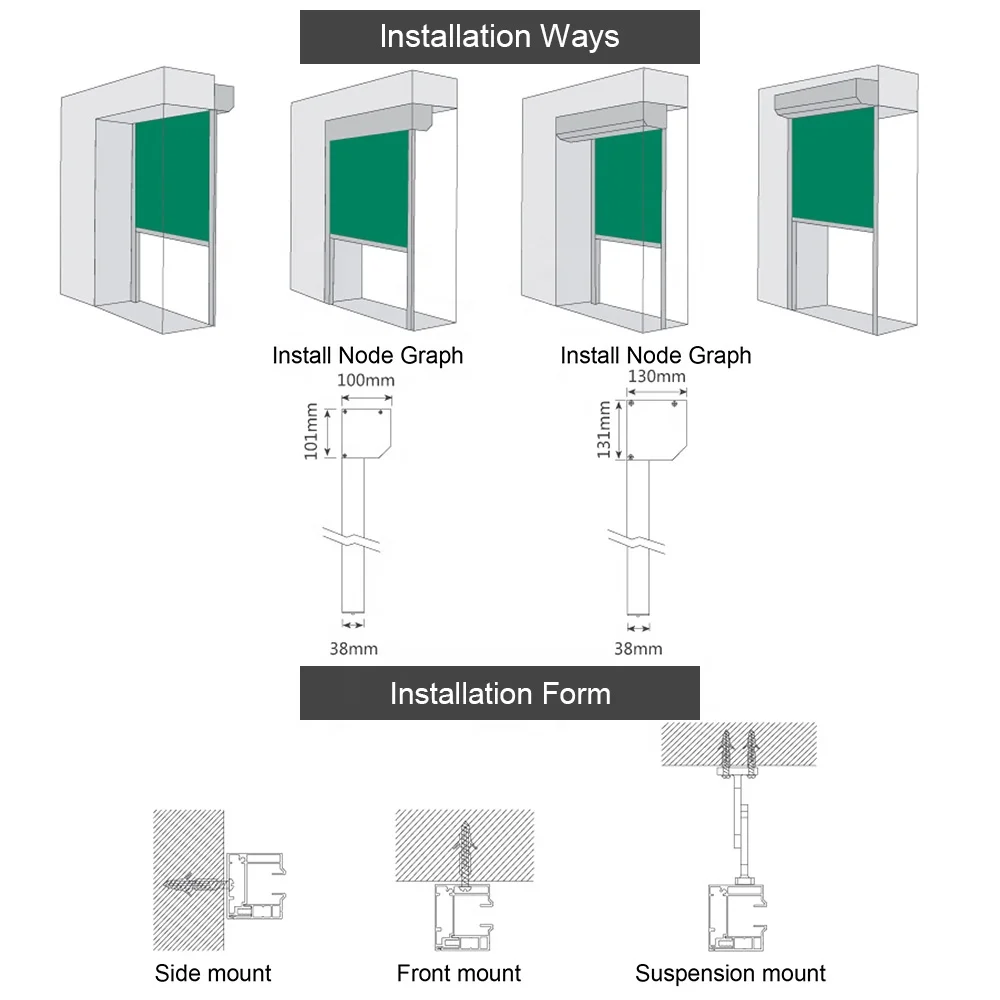

Installation Instructions

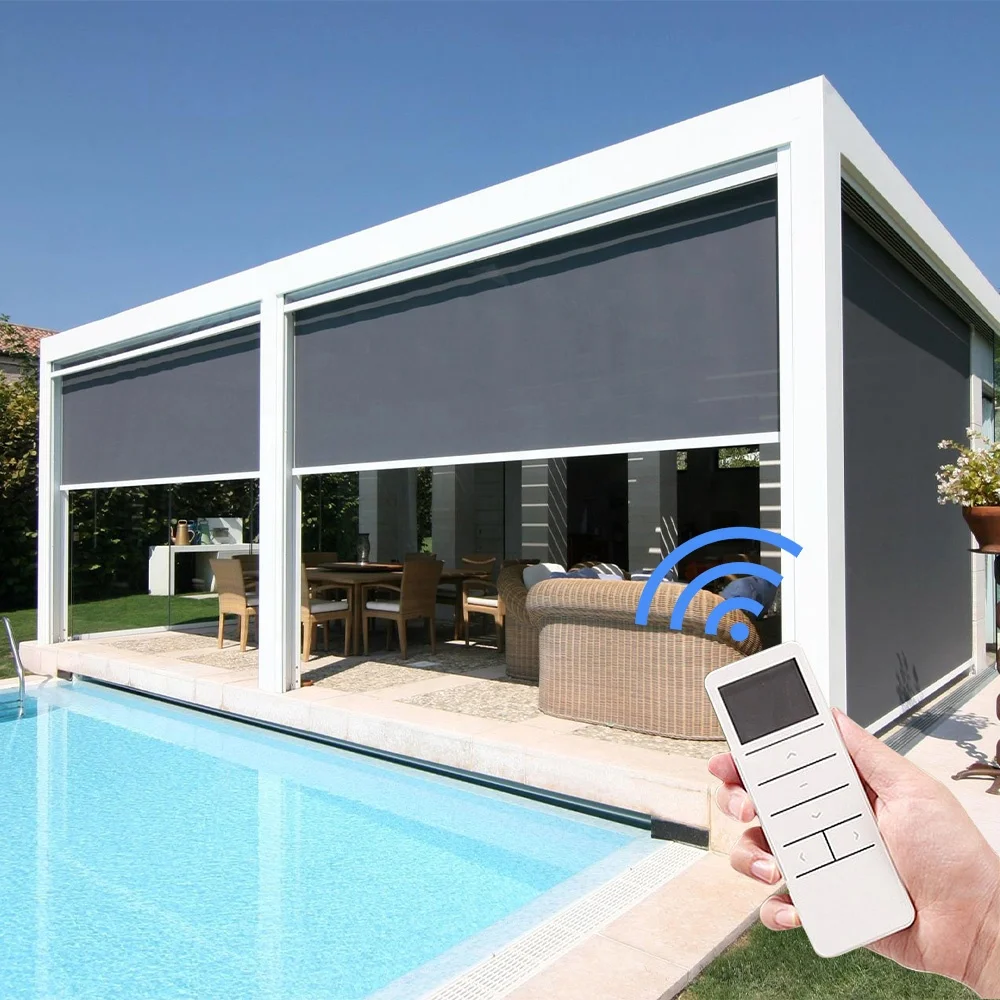

Applications
