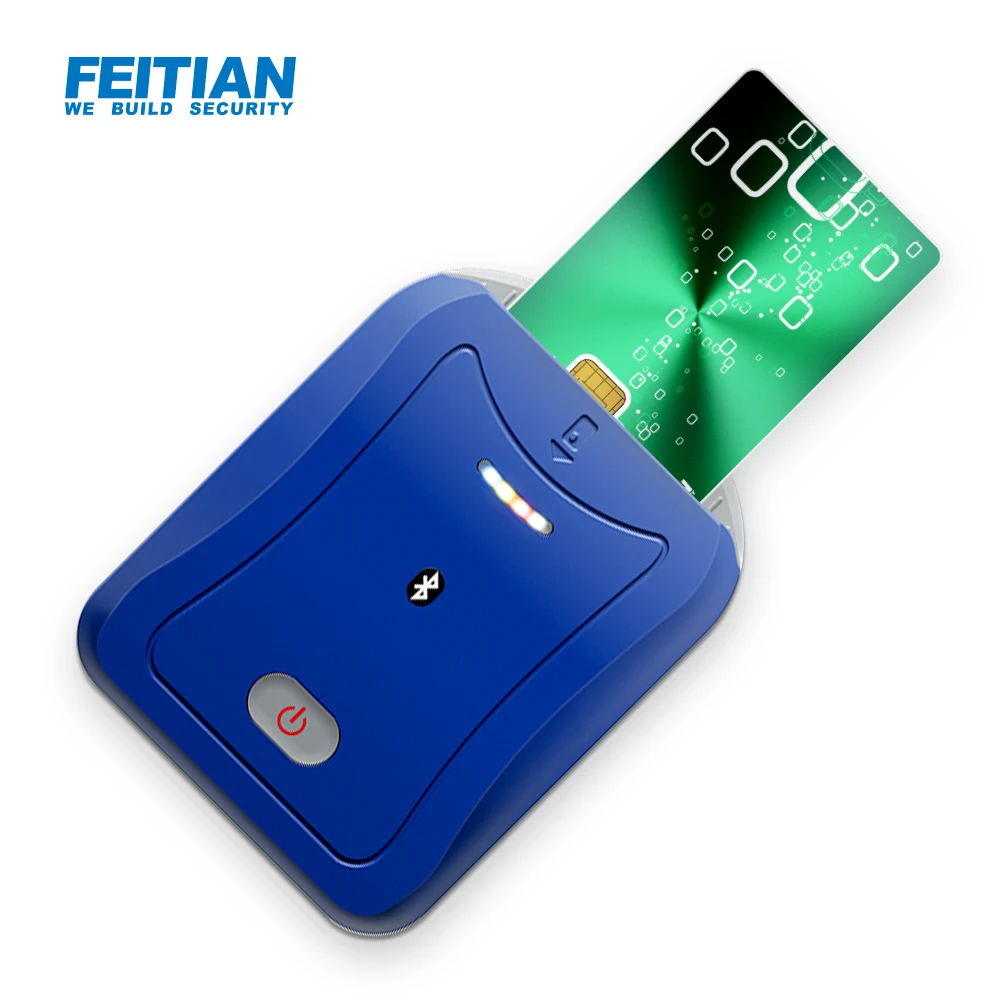

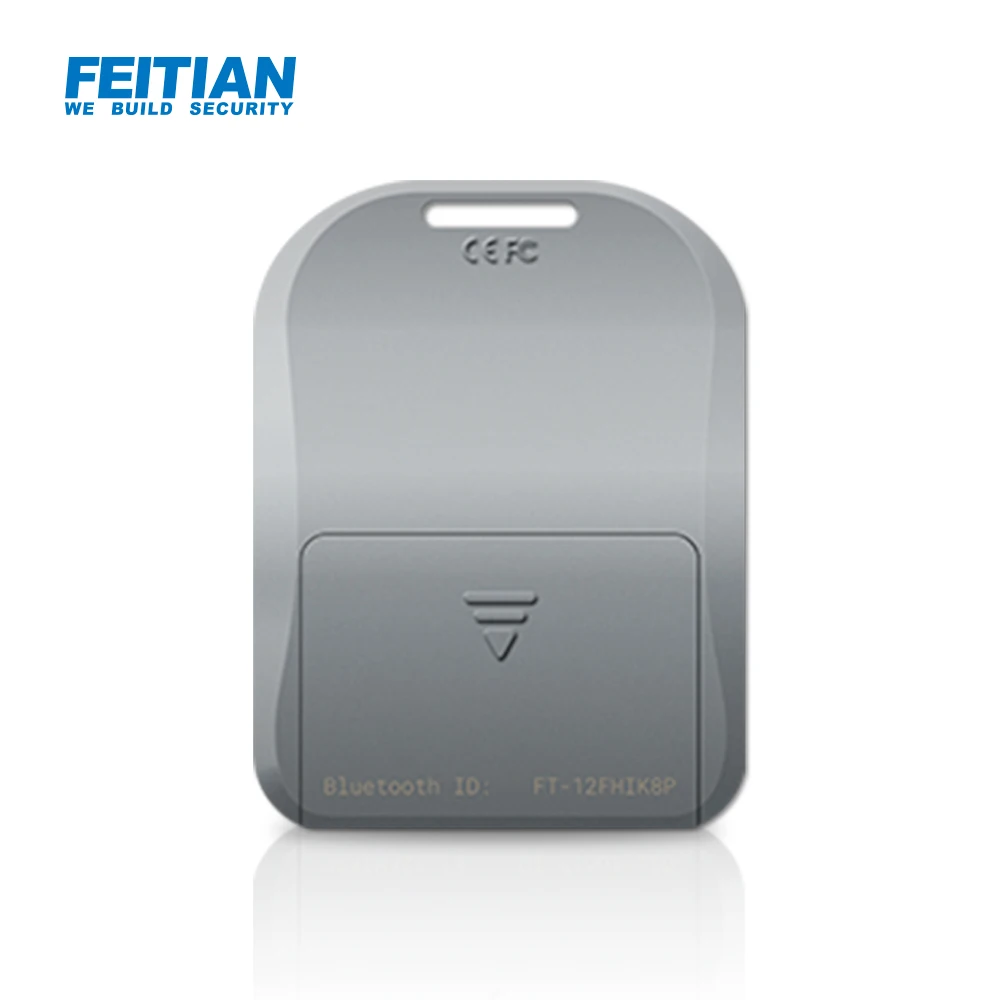

Bluetooth IC Chip Mobile Smart Card Reader BR301 C18
- Category: >>>
- Supplier: Shenzhen Huaying Industrial Co. Ltd.
Share on (1600915240205):
Product Overview
Description

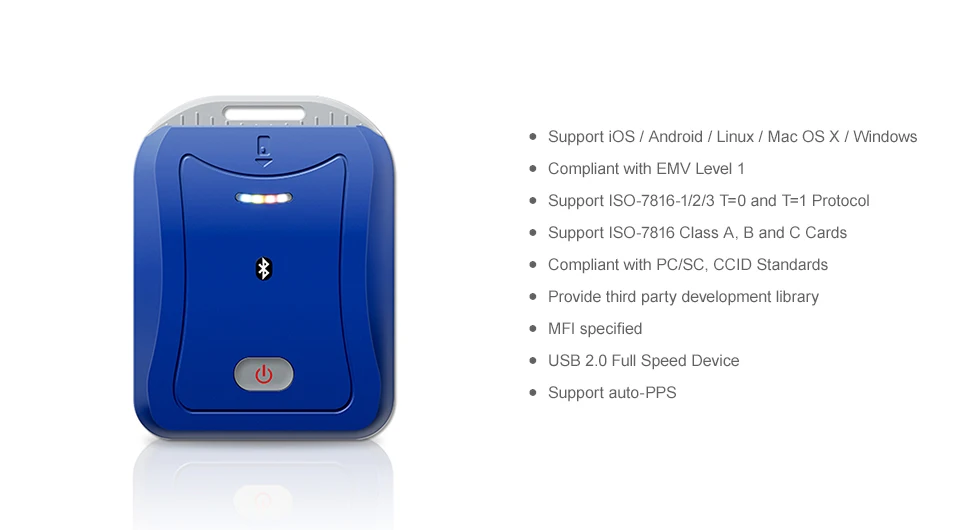

Features
Specification
| Product name | bR301 | ||
| Casing Model | C18 | ||
| Basic Parameter | Operating Voltage | 3.3V | |
| Operating Current | <55mA | ||
| Communication Rate | 10753~344086bps | ||
| Supported Card Type | T0, T1, CLASSB, CLASSC, CLASSBC | ||
| Communication Rate with iOS | 115200bps | ||
| Operating Temperature | 0°C~50°C (32°F~122°F) | ||
| Storage Temperature | -20°C~70°C (-4°F~158°F) | ||
| Operating Humidity | 60~90%RH non-condensing | ||
| Storage Humidity | 60~90%RH non-condensing | ||
| Port | Bluetooth/Micro USB | ||
| Device Type smart card | Contact (smart card) | ||
| Interface Type | Bluetooth | ||
| Battery | 890mAh | ||
| Charging Port | Micro USB | ||
| Dimension | 64 * 85 * 13.5mm (L*W*H) | ||
| Casing Material | PC+ABS | ||
| Card Deck | 8 contact points (ISO7816 standard) 100000 plugging and unplugging times | ||
| Supported OS | iOS/Android | ||
| Wireless Communications | Communications protocol | 2.4GHz frequency ISM band. IEEE 802.15.1(Bluetooth) with full security enabled | |
| RF Transmissions Range | <0.5m | ||
| Data Throughput | 750kb/s to 1MB/s | ||
| Communications Data Encryption | AES-128 | ||
Key Advantages
Packaging & Shipping
Packaging & Shipping
Packaging: Gift box & cartons
Shipping by: Air,Sea,Truck.(e.g. DHL, UPS, any other couriers)
Company Information
FAQ
FAQ:
| Warranty: 6-12 months depends on models |
| Payment term: Paypal, Alibaba, T/T, western union, moneygram, etc. |
| Shipping by: Air,Sea,Truck.(e.g. DHL, UPS, any other couriers) |
| Delivery time: 7-30 days after receiving payment |
| Trade term: EX Work |
