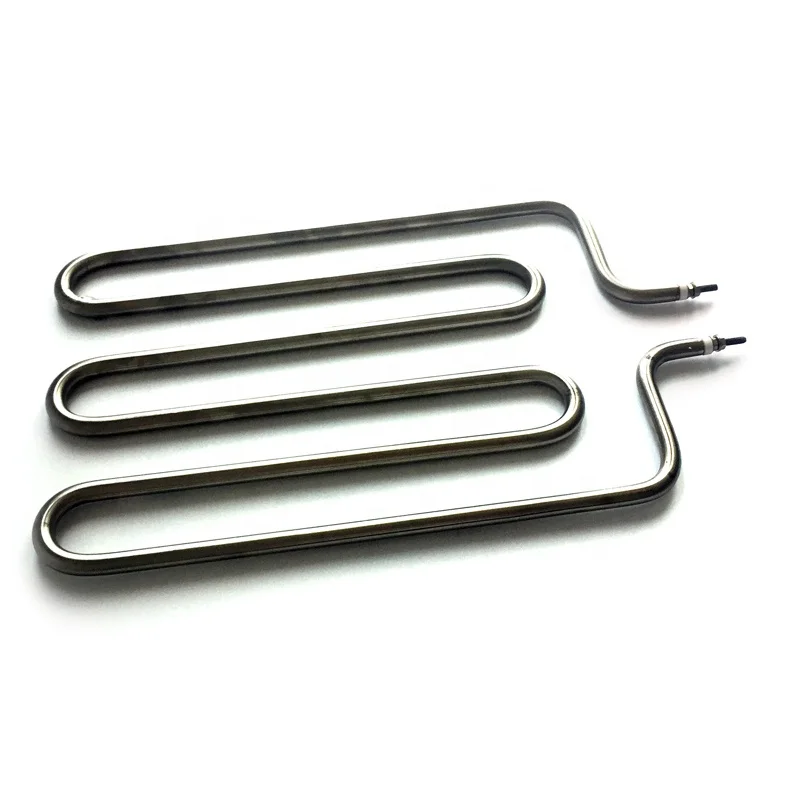

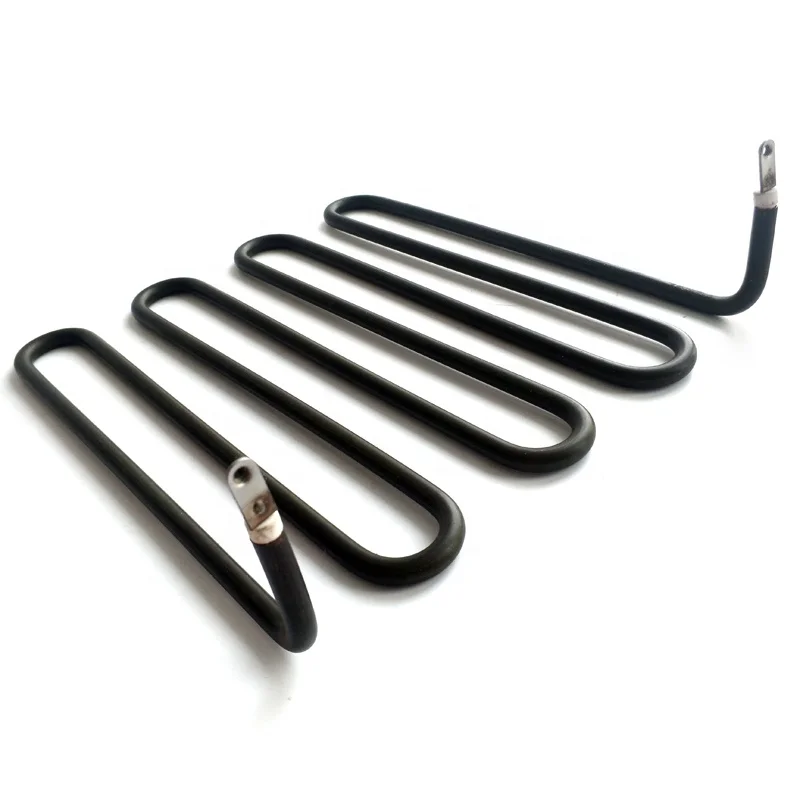

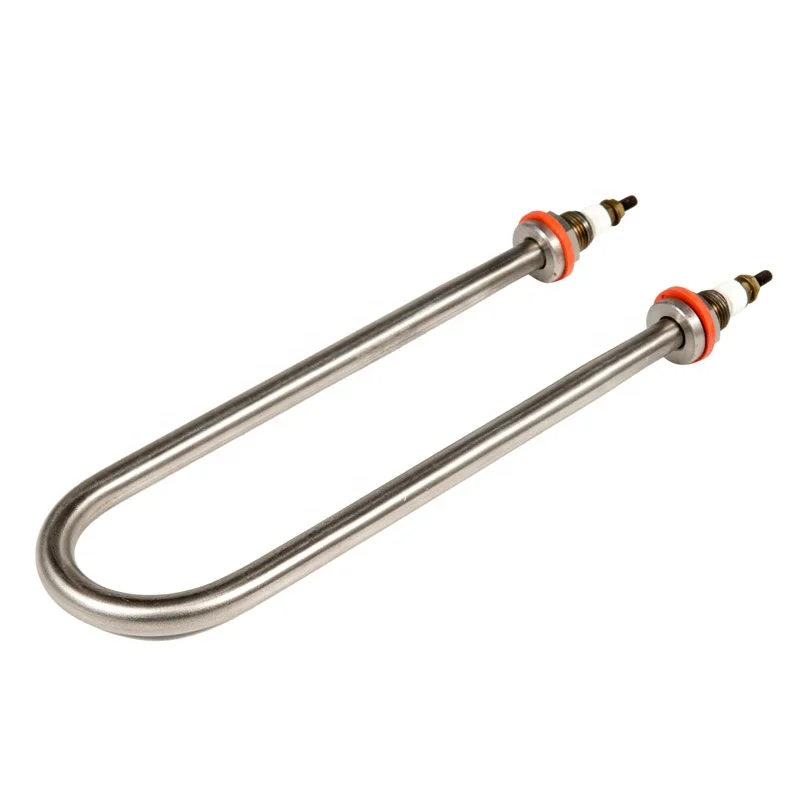

220v Water Tubular Stainless Steel immersion tubular heater with thread
- Category: >>>
- Supplier: Yancheng Songtai Electric Heating Element Factory
Share on (1600915265016):
Product Overview
Description
Products Description
110v 600w 220v 1500w spiral tubular heating element for washing machine

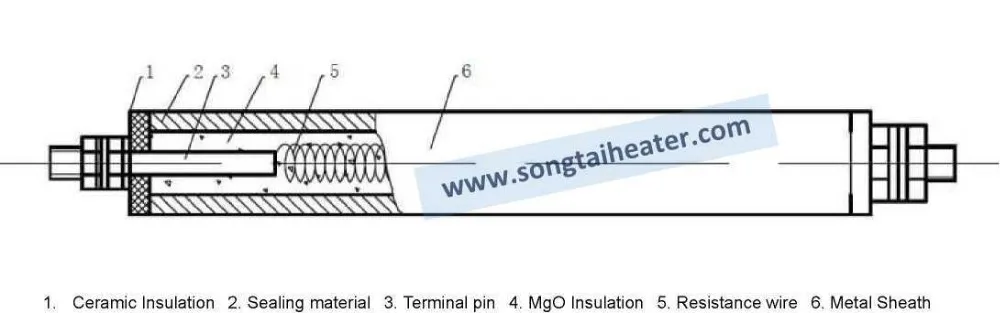

Industrial tubular heating elements are highly adaptable to most applications where electrical heating is required. They can be used in their straight form or bent into various shapes. Songtai Branded Tubular heaters are guranteed long life span with Nichrome 8020 Heating wires ( Nickle Assay reaches up to 76%) and with 99% Purity Mgo Insualation to reach highly good thermal conductivity. All the tubular heaters manufactured by our factory are under Swaging and centerless grinding workmanship for high performance in actual working.
Product Name | 110v 600w 220v 1500w spiral tubular heating element for washing machine | ||||||
Tube Material | Incoloy800, 840,Stainless Steel 304, 316L,310s,320 | ||||||
Voltage | 110V/220V/380V and other can be customized | ||||||
Wattage | 100w-20kw | ||||||
Insulation resistance (cold) | ≥ 500 MΩ | ||||||
Resistance tolerance | 10%, -5% | ||||||
Wattage Tolerance | +5%, -10% | ||||||

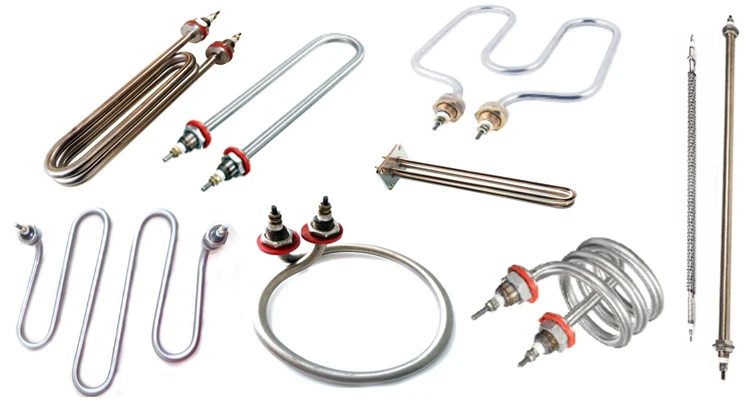

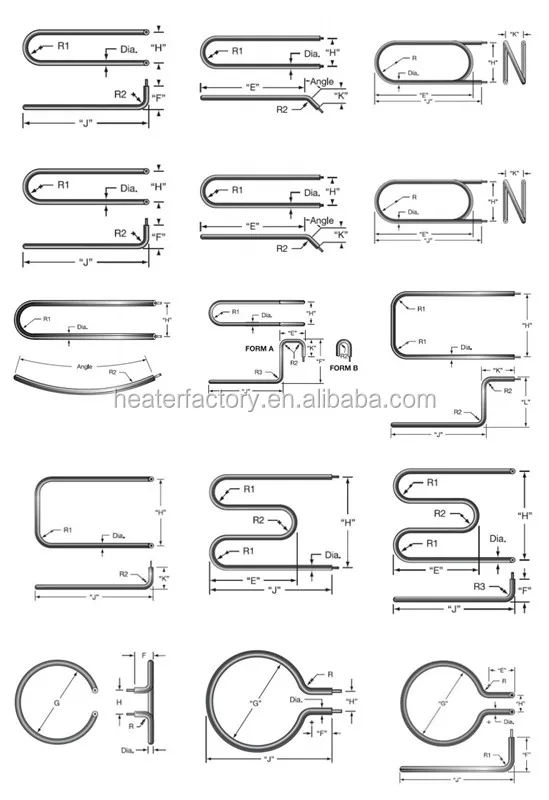

Shape | can be customized | ||||||
Applications
* Forced air heating
* Thermal forming machines
* Direct immersion in liquids
* Comfort radiant heaters

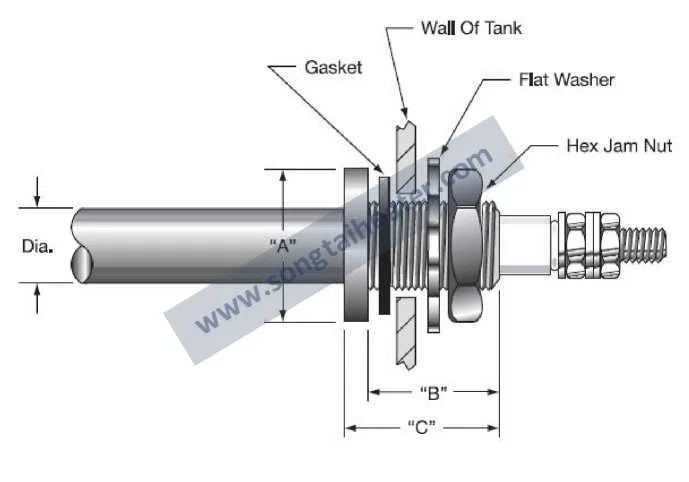

* Welded, brazed or clamped to tanks and pipes
* Combination radiant and convection heater for oven and dryers
* Thermal forming machines
* Direct immersion in liquids
* Comfort radiant heaters
* Welded, brazed or clamped to tanks and pipes
* Combination radiant and convection heater for oven and dryers
Applications | Sheath Matrial | Maximum Sheath Temperature |
Immersion into water and non corrosive low viscosity liquids | Copper | 350 °F (170 °C) |
Oil, wax, asphalt, cast in aluminum or iron | Stainless Steel 304, 316L. | 1200°F (600 °C) |
Corrosive liquids, food industry, sterilizers | Stainless 316L, 310S | 1200°F (600 °C) |
Air, corrosive liquids, clamped to surfaces | Incoloy800, 840 | 1500 °F (815 °C) |

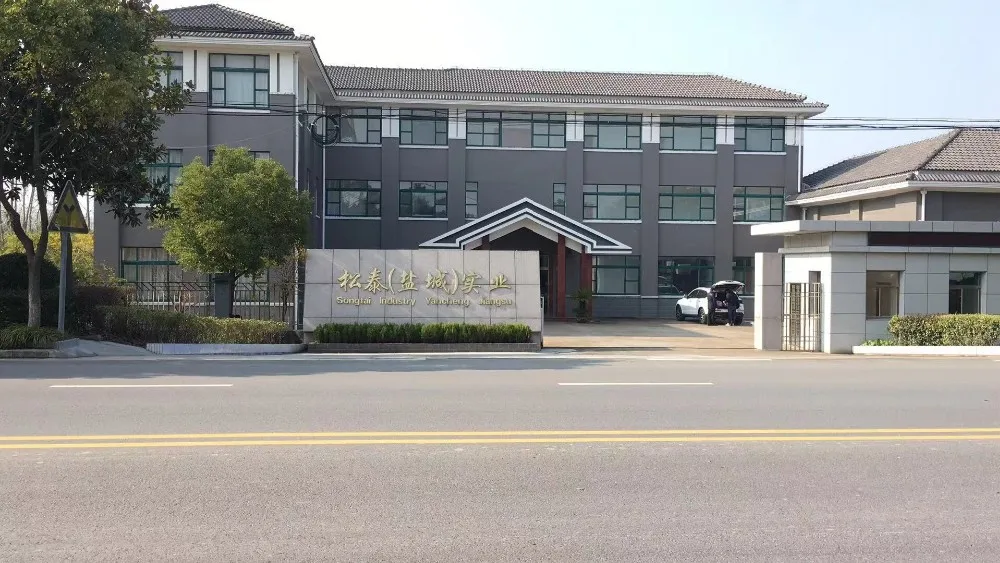

Our Factory
Founded in 2003, Yancheng Songtai Electric Heating Element Factory is a professional Heating element manufacturer.We have focused on management and quality control according to ISO 9001 standard.we produce top quality heaters and offer efficient service to meet customer's requirements.
Certifications
Customer Photos
Exhibition
Why Choose Us
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
Pls click below "Send" to get the free sample and quotation.Thank you for your order and cooperation with our sincere!
