Manual Steel Pipe Tube Cutting Machines Pipe Cutter Machine for Iron Steel Copper Aluminum
- Category: >>>
- Supplier: Zhangjiagang Heshun Machinery Manufacturer Co. Ltd.
Share on (1600915312969):
Product Overview
Description
Company Profile
Products Description
Main Technical Parameter | ||||||||
HC-275S (Manual) | HC-275SA (Semi Automatic) | |||||||
Blade position | 90° | 45° | 90° | 45° | ||||
◎ | 70 | 60 | 70 | 60 | ||||
□ | 60*60 | 50*50 | 60*60 | 50*50 | ||||
▙ | 60*60 | 50*50 | 60*60 | 50*50 | ||||
▭ | 60*80 | 45*60 | 60*80 | 45*60 | ||||
● | 38 | 25 | 38 | 25 | ||||
■ | 38 | 25 | 38 | 25 | ||||
Technical Information | ||||||||
HC-275S | HC-275SA | |||||||
Main engine motor | 2.0/2.4KW | 2.0/2.4KW | ||||||
Main axis | RPM96/48 | RPM96/48 | ||||||
Applied saw | 250/275mm | 250/275mm | ||||||
Cooling water pump | 40W | 40W | ||||||
Air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | ||||||
Size | 650*1050*1350mm | 650*1050*1350mm | ||||||
Weight | 190KG | 220KG | ||||||
Details Images

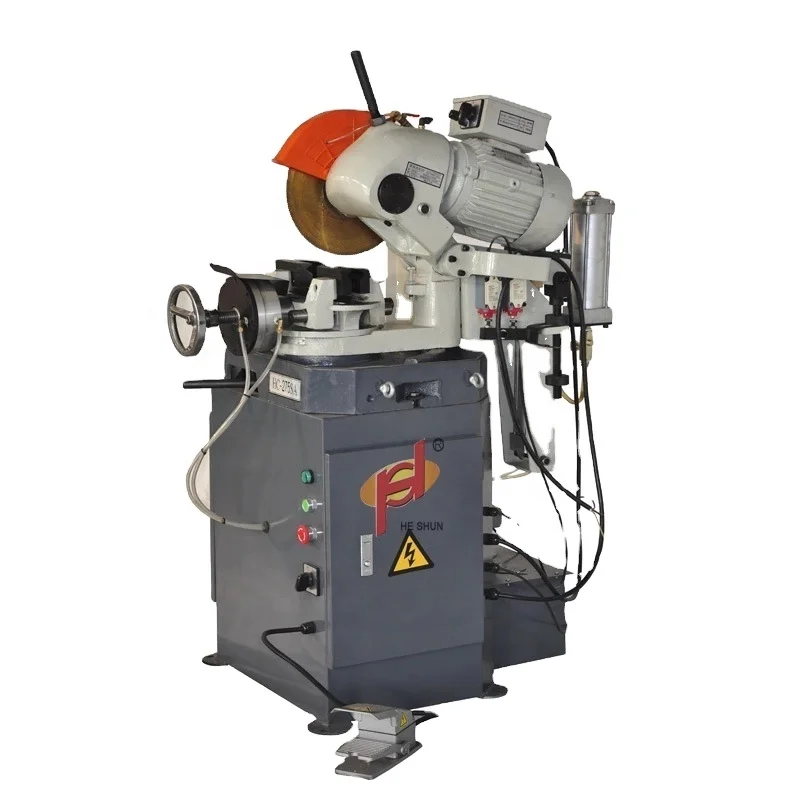

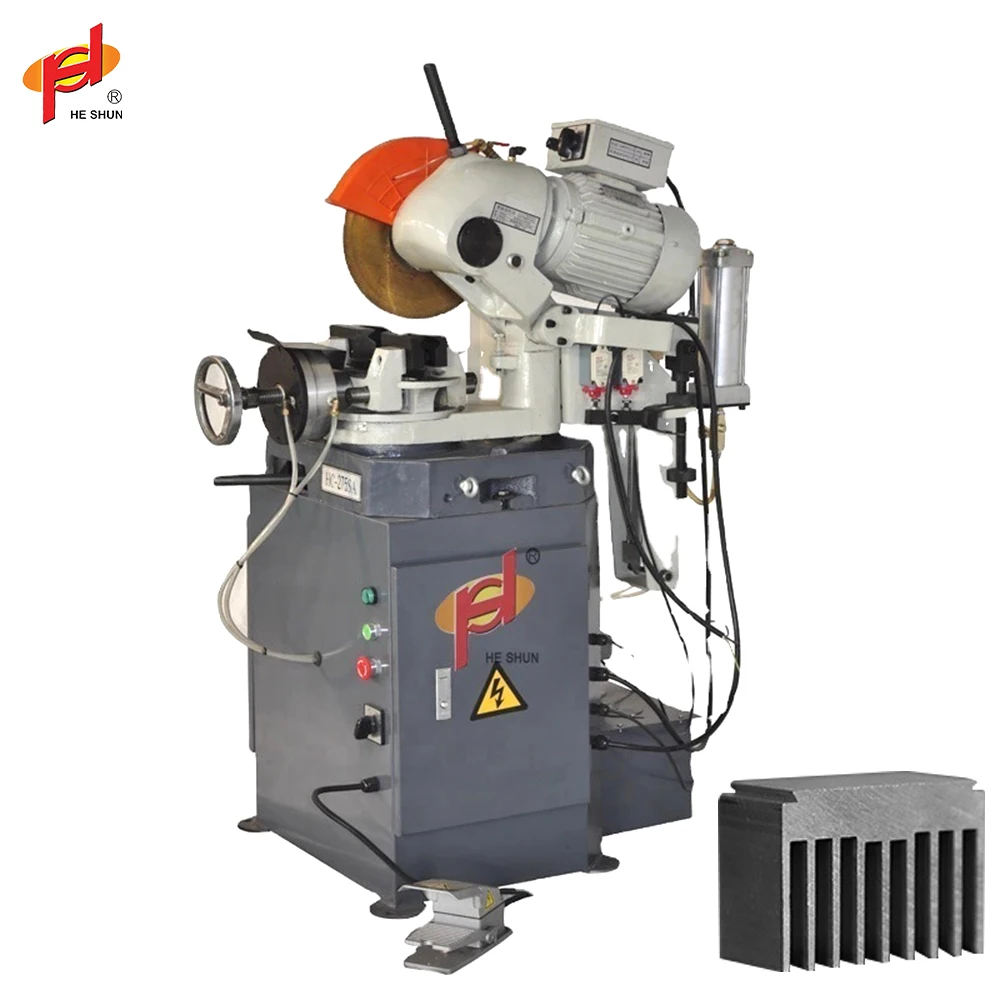

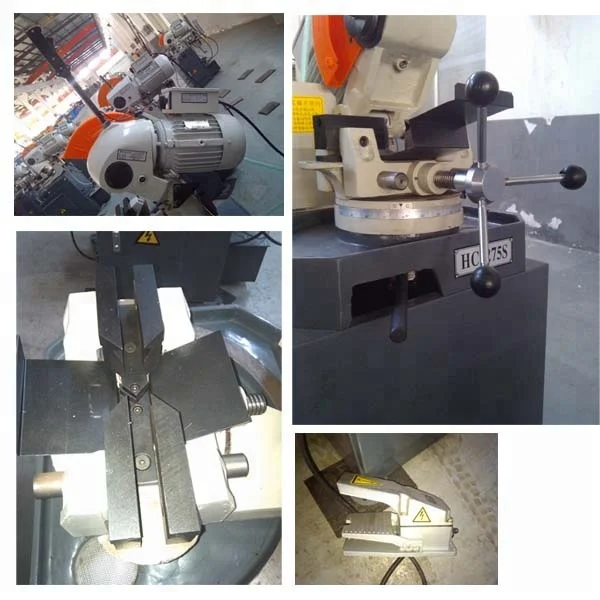

Semi-automatic pipe cutting machine

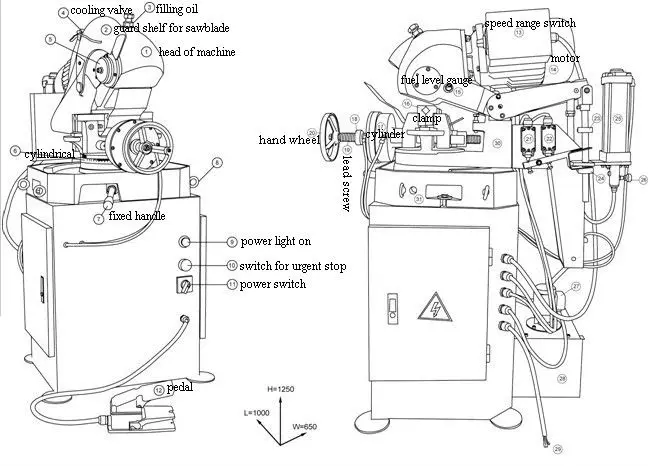

Adopt European high intensity head, equipped high effective worm and worm wheel transmission which raise the rate of cutting and make no raw edge,no noise.
The cutting machine adopt the method manual or gas drive,the head of machine can turn right or left by 45 degree. The line of angle is precise. Equipped with a referenced mast:45-90-45 which adjust easily.And it is equipped manual or gas drive clamping, auto cooling system and manual bar ruler.

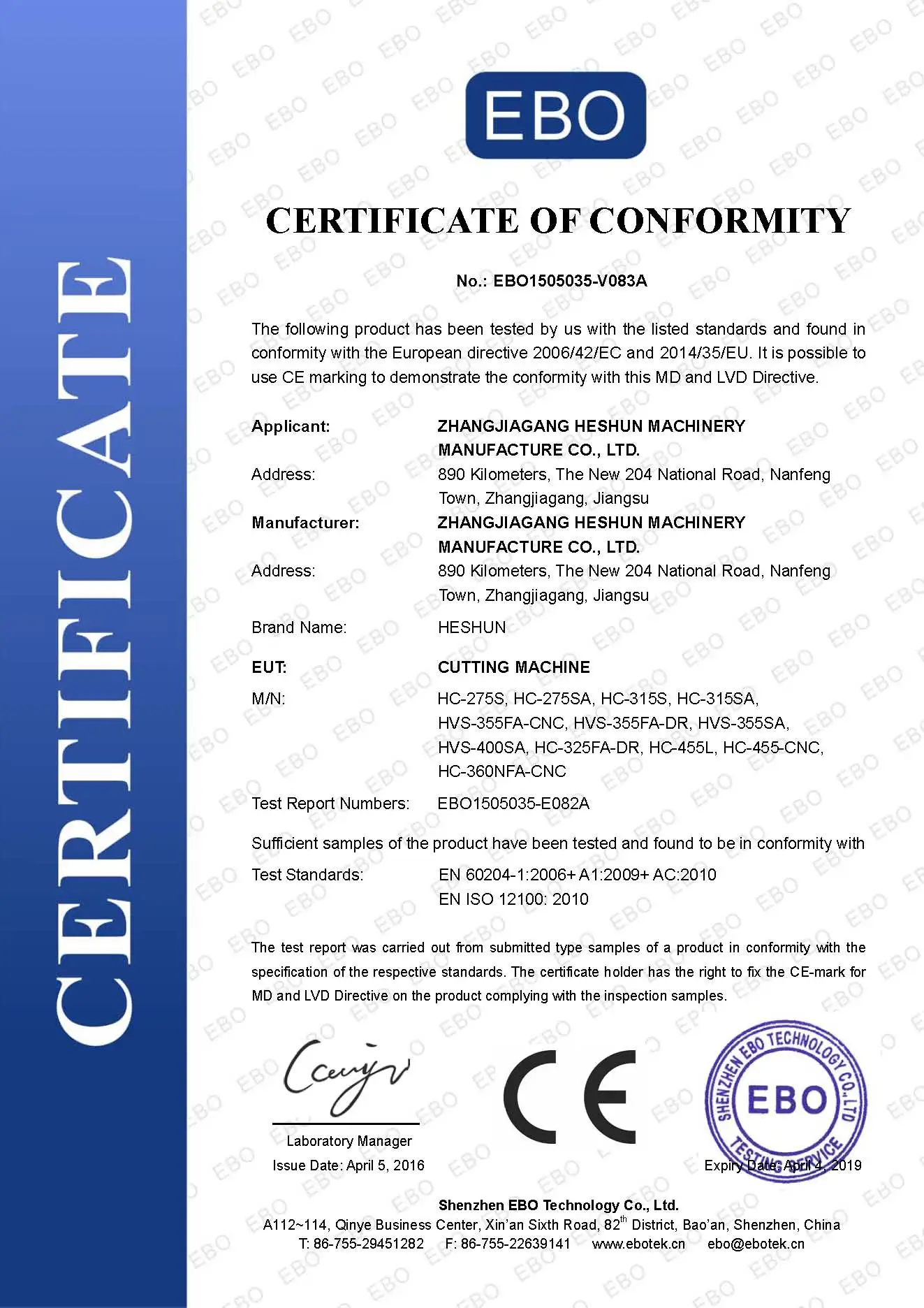

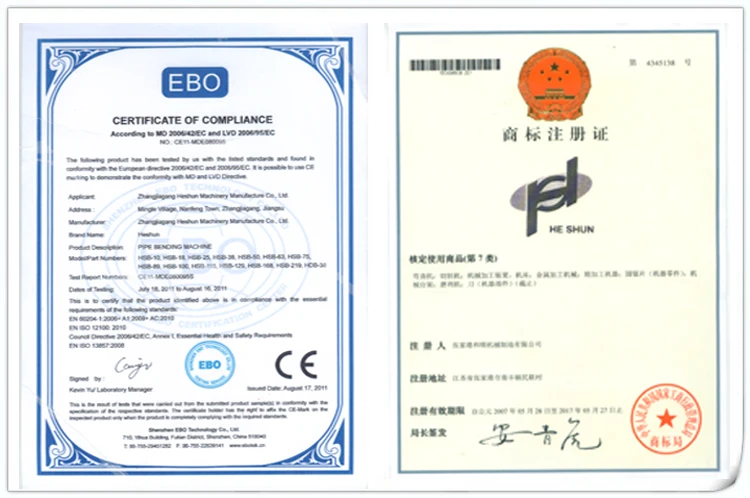

Certifications
Product packaging
Customer Photos
Recommend Products
1. Who are we?
We are based in Jiangsu, China, start from 2001,sell to Domestic Market(40.00%),Northern Europe(10.00%),Southern Europe(5.00%),South America(5.00%),Western Europe(5.00%),South Asia(5.00%),Mid East(5.00%),Oceania(5.00%),Africa(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%),North America(3.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
bending machine,pipe cutting machine,chamfering machine,pipe end forming machine,punching machine
4. Why should you buy from us not from other suppliers?
More than 20 years of experience in pipe machine design and development
Have the perfect quality control system to make sure the the machine quality
Have the perfect quality control system to make sure the the machine quality
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
