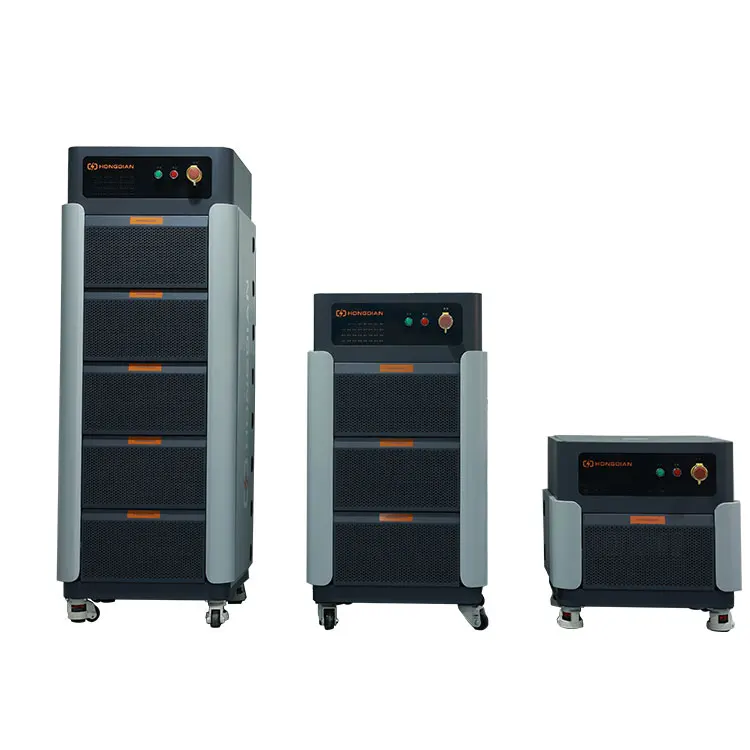

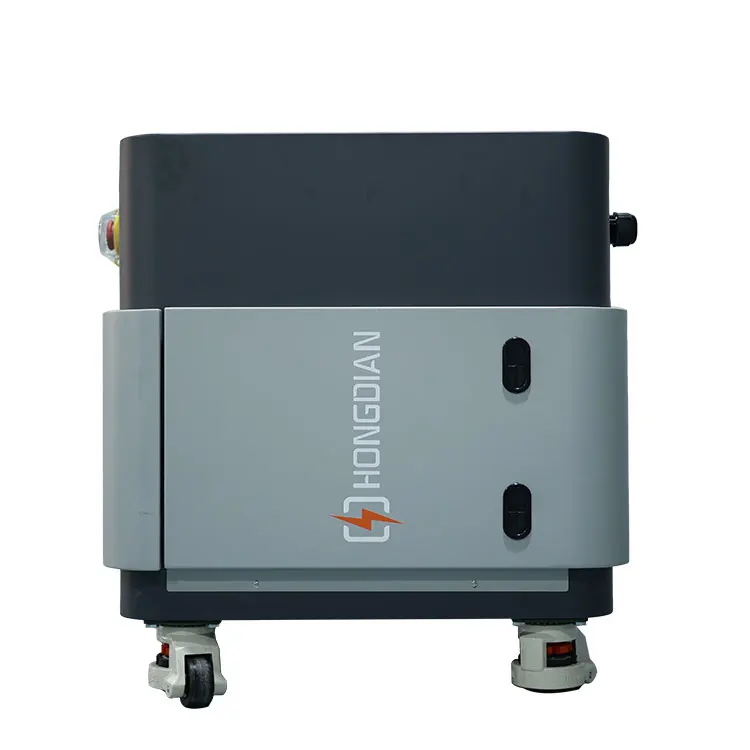

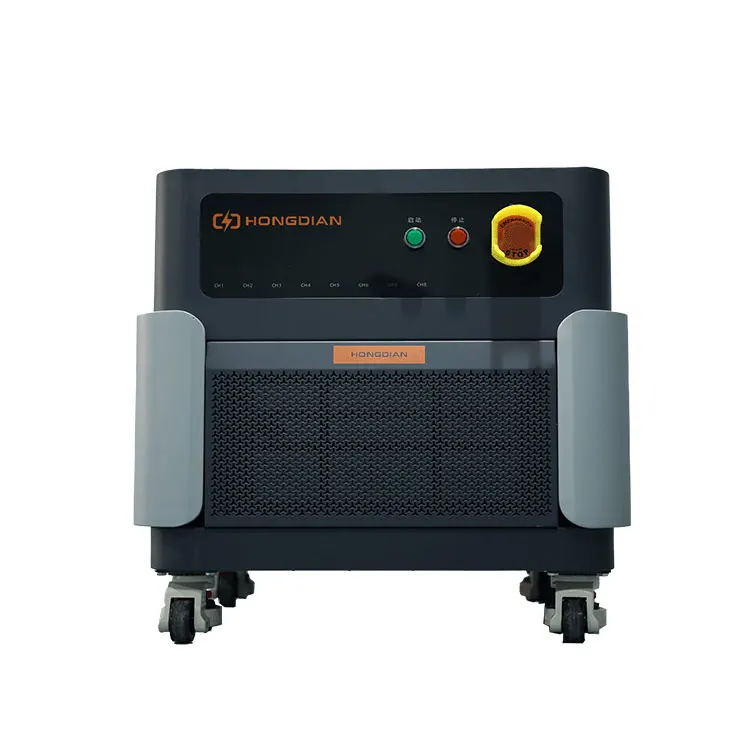

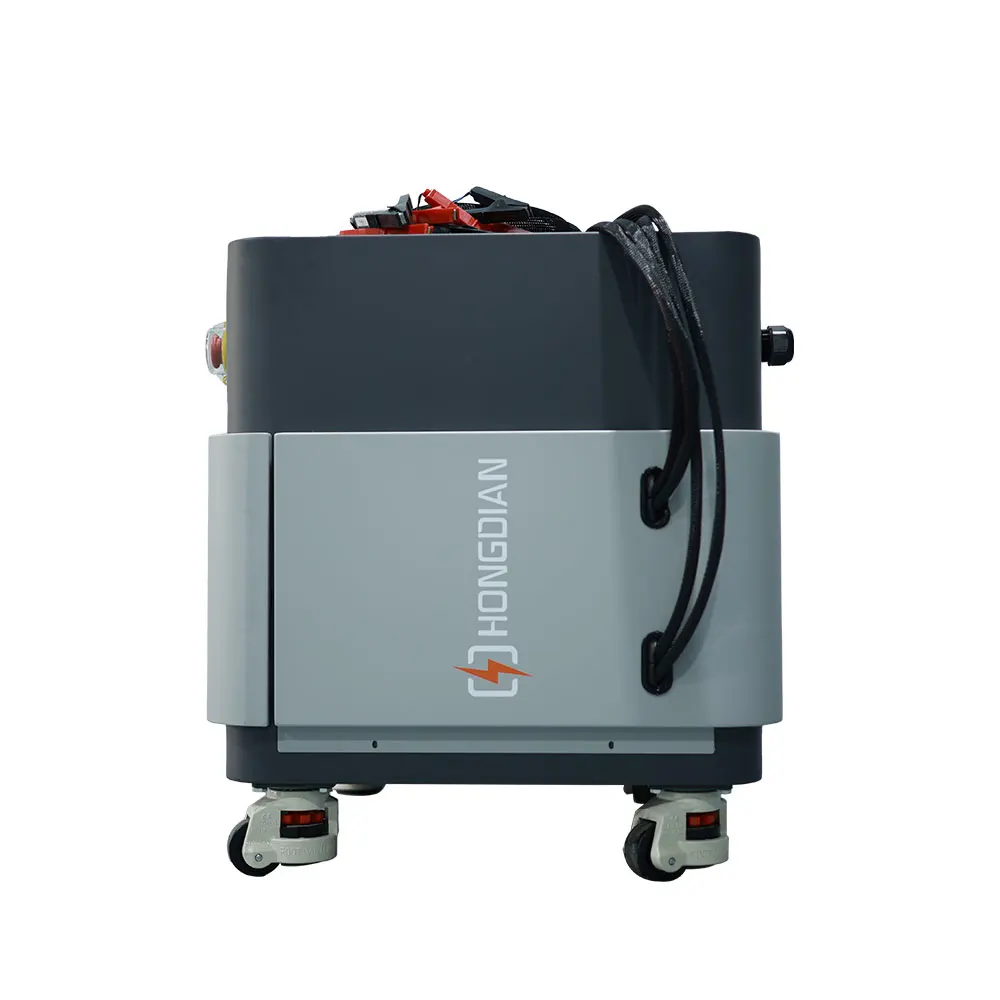

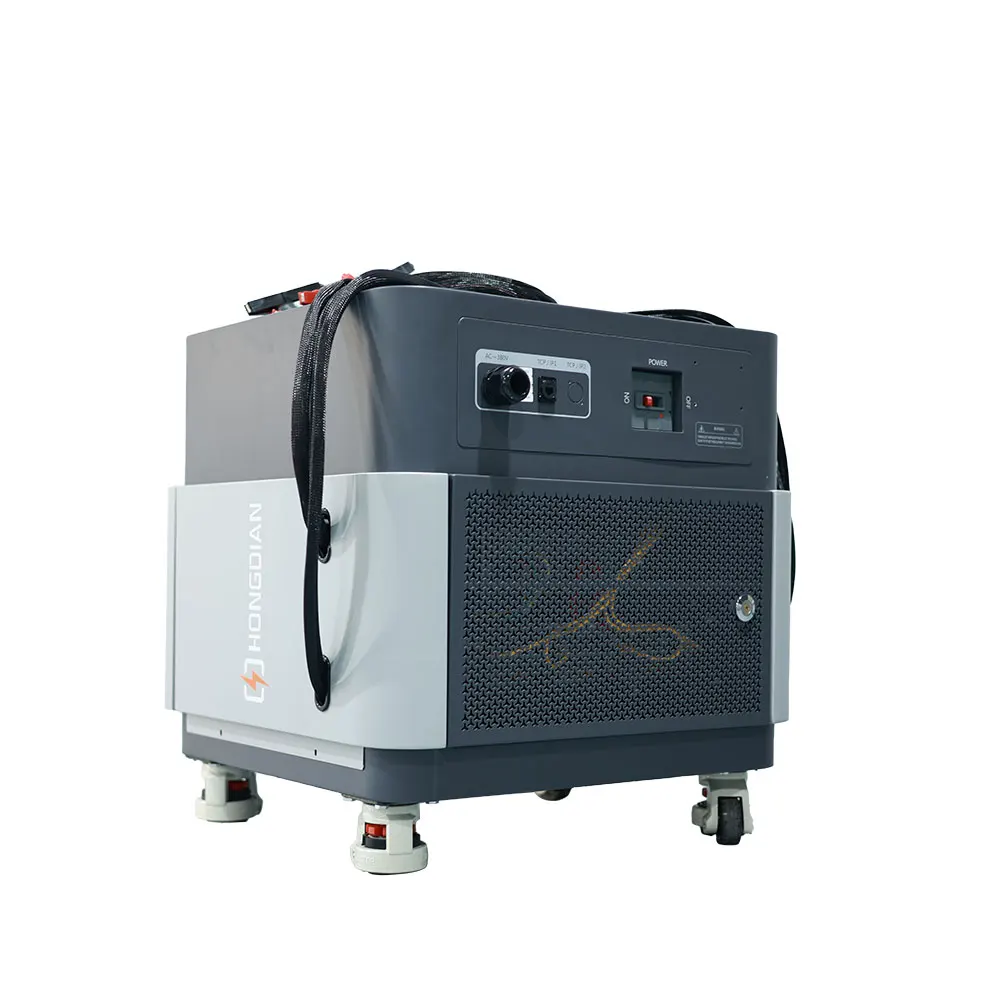

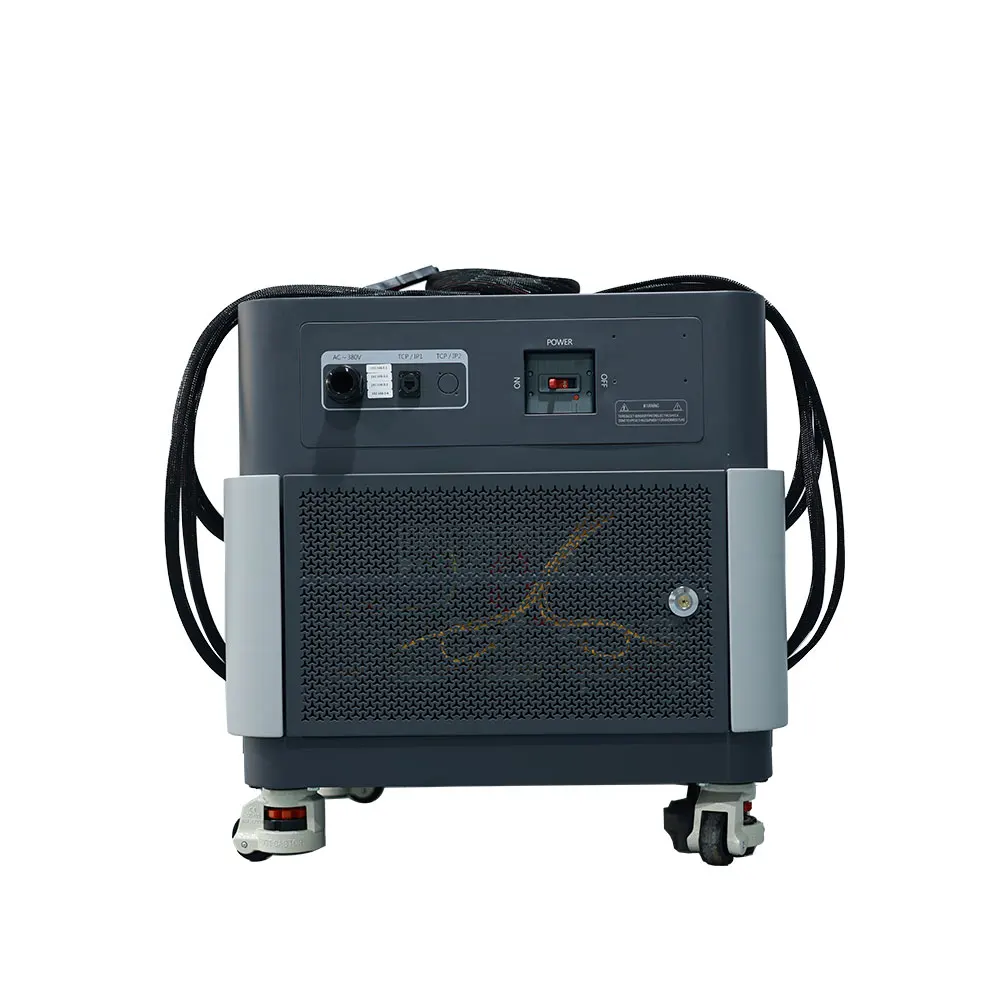

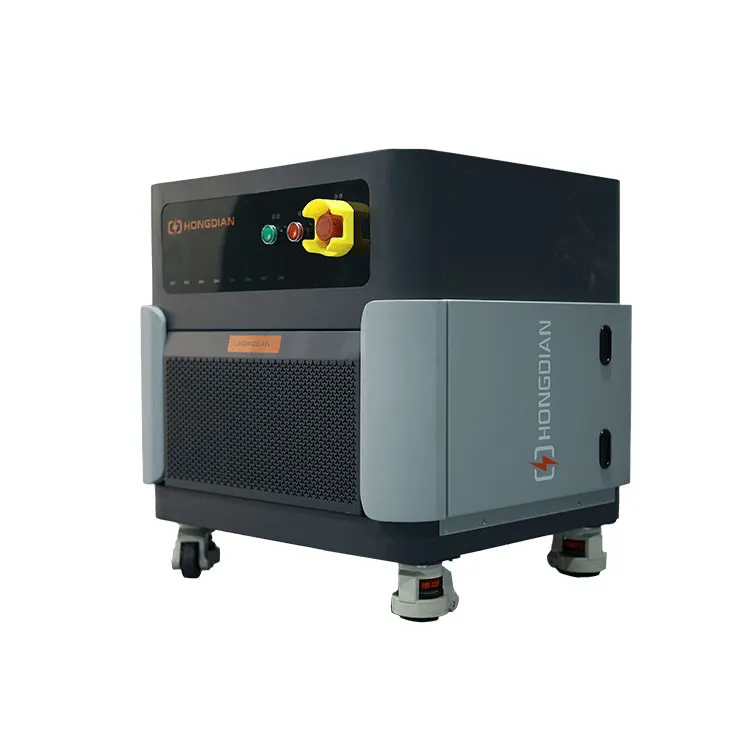

WILLPOWER Factory Car Battery Tester Battery aging 60V 100V 8 Channel Charger Analyzer Capacity Load Tester Cranking System Test
- Category: >>>
- Supplier: Shenzhen Willpower Technology Co. Ltd.
Share on (1600915339739):
Product Overview
Description
Model | Charging voltage | Discharge voltage | Current range | channels | ||||
HD-60V30A-08CH | 0-60V | 6-60V | 0~30A | 8 | ||||
HD-60V60A-04CH | 0-60V | 6-60V | 0-60A | 4 | ||||
HD-100V30A-08CH | 0-100V | 6-100V | 0~30A | 8 | ||||
HD-100V60A-04CH | 0~100V | 6-100V | 0-60A | 4 | ||||
Voltage, current, number of channels and other parameters support customization. | ||||||||
Parameter | Description | ||||||
Communication Interface | Ethernet, CAN, 485, etc. | ||||||
Charging mode | Constant current and voltage, constant power, current pulse, power pulse, DC internal resistance, etc. | ||||||
Discharge Mode | Constant current, constant voltage, constant power, current pulse, power pulse, DC internal resistance, etc. | ||||||
Noise | ≤75dB | ||||||
Cooling mod | forced air cooling | ||||||
Protection Function | Short-circuit protection, overload and over-voltage protection, under-voltage protection, islanding protection, temperature alarm, power-down data protection, trend anomaly protection, capacity protection, single-unit temperature difference protection, single-unit pressure difference protection, etc. | ||||||
Advantages
1. Charging efficiency ≥ 90%, discharge efficiency ≥ 85%
2. Comes with CAN, 485 communication interface, can customize protocol loading and DBC protocol loading
3. Support signal judgment, display and data recording
4. Voltage accuracy ±0.05%FS, current accuracy ±0.05%,
Voltage resolution 1mV, current resolution 1mA
5. The equipment comes with output overvoltage protection, output overcurrent protection, undervoltage protection, and busbar overvoltage protection
6. The number of working steps of the upper computer ≥ 9999, the number of working step cycles ≥ 9999, and the loop nesting ≥ 9999
7. There are a variety of data curve display, which supports customers to configure the curve display arbitrarily
8. Output ripple≤1%
9. Charging voltage range:0V-120V
Discharge voltage range 6V~120V
.10, current 10%~90% response time ≤10ms, charge and discharge current
-90%~90% response time≤20ms
11. Support single channel independent control
-90%~90% response time≤20ms
11. Support single channel independent control
