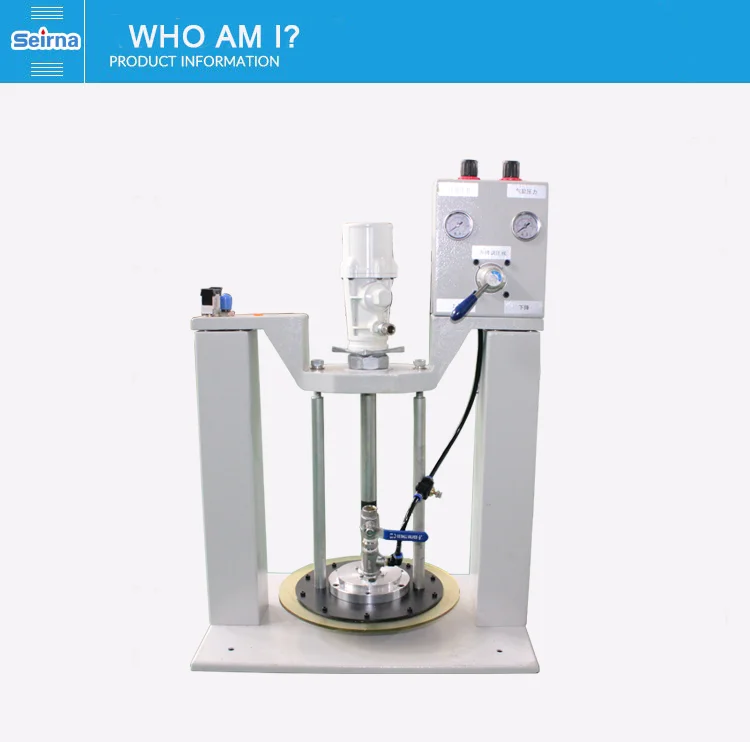

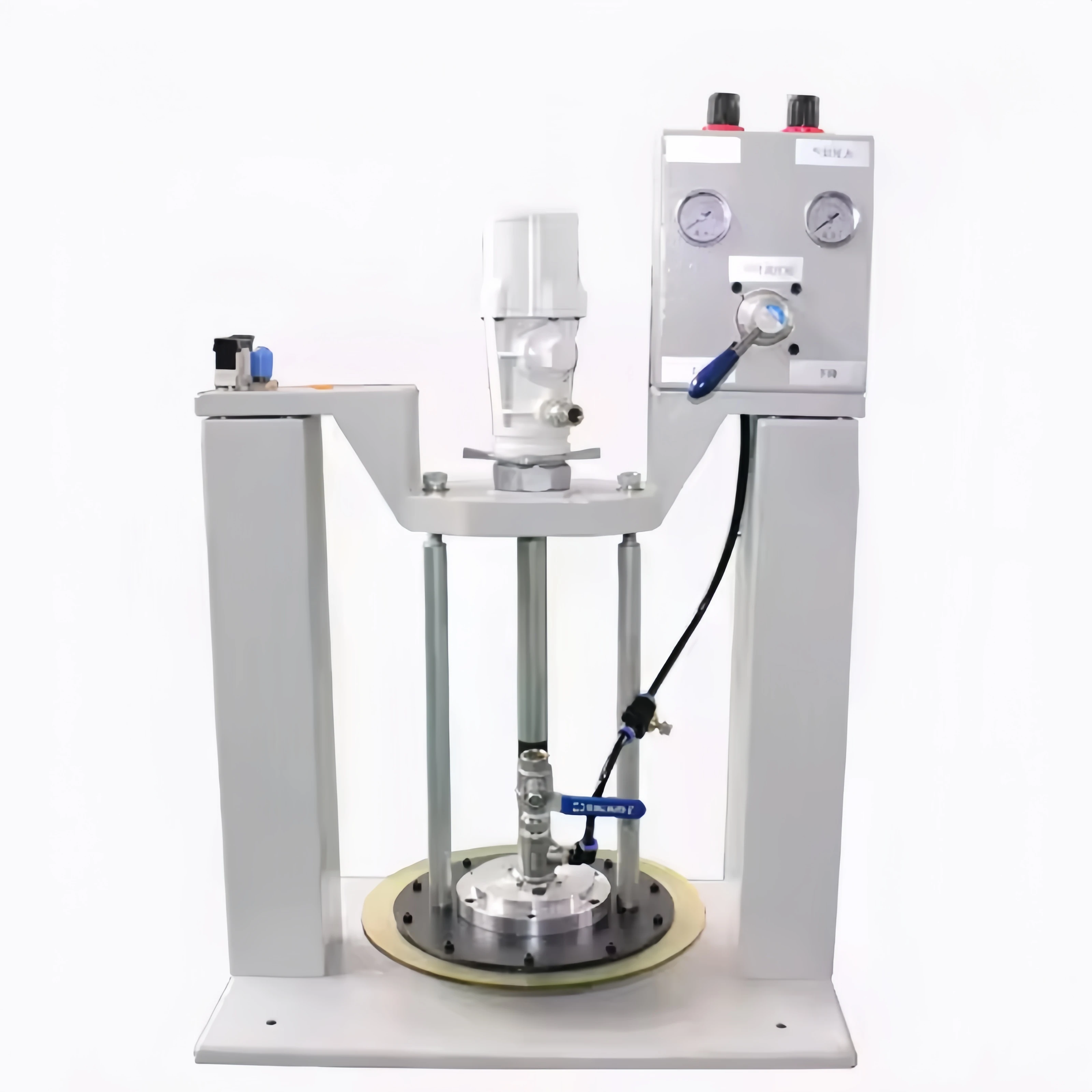

WATP03Pump Hoists is a small grease pump driven by air source for grease system. The biggest feature of this pump is that it can use the air pressure generated by the cylinder and the weight of the equipment to deliver high viscosity grease.

Application field

The pump can be widely used in engineering, transportation, machine tools, textile, light industry, forging, automated production lines and other machinery.

Grease drum volume : 17KG

Grease range  :NLGI 000 # ~ 3 #

Maximum air pressure 1 MPa

Minimum air pressure 0.3 MPa

Compression ratio 55: 1

Flow rate (displacement) :650 ml / min

Cylinder diameter :80mm

Cylinder stroke: 55mm

Reciprocating times :0~120 times / min

Air inlet thread : NPT1 / 4

Oil outlet specification  :NPT1 / 4
