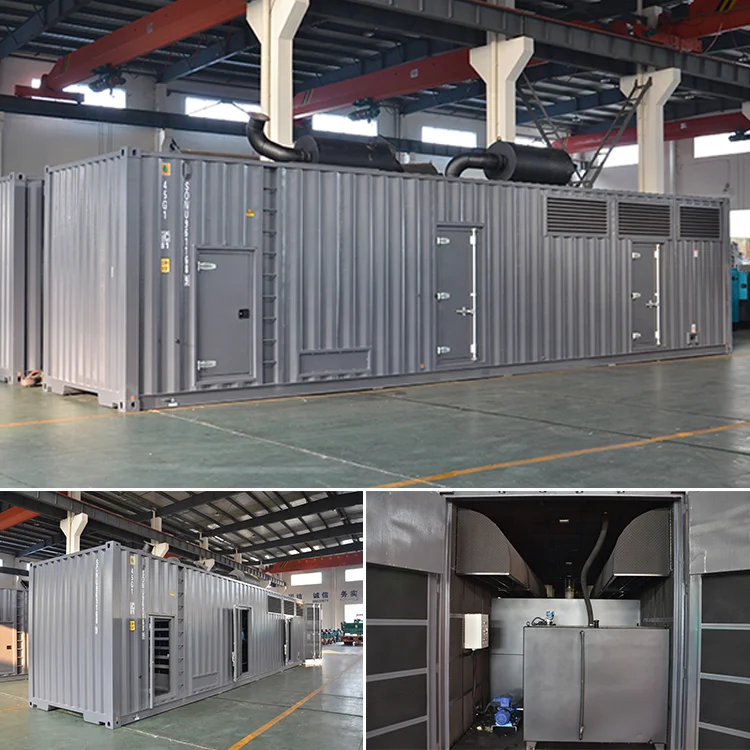

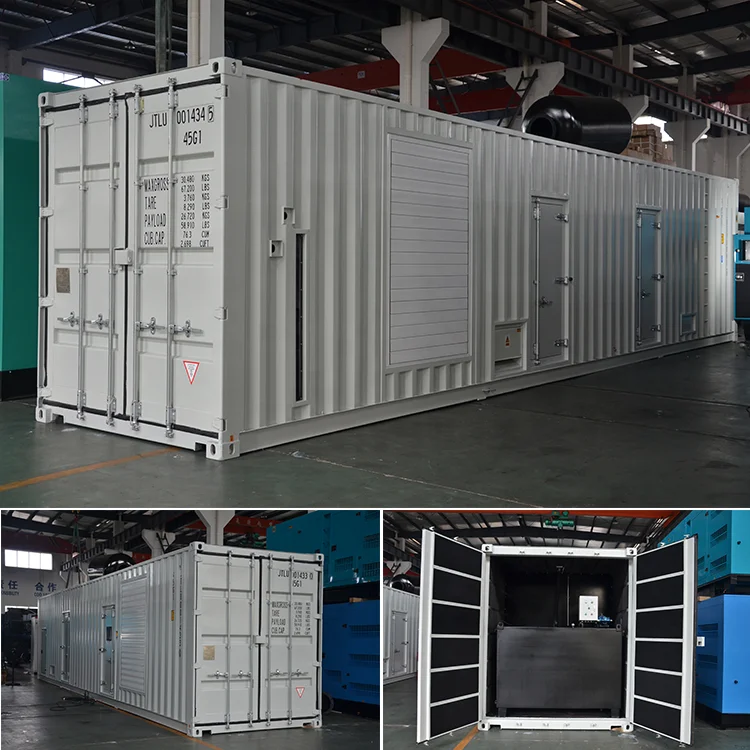

Industrial 2mw diesel generator price of 2500kva generator set containerized diesel generators
- Category: >>>
- Supplier: Jiangsu Jianghao Generator Co. Ltd
Share on (1600915466829):
Product Overview
Description
Industrial 2mw diesel generator price of 2500kva generator set containerized diesel generators
Technical data | |
Genset Model | JHM-2000GF |
Prime Power | 2000KW/2500KVA |
Rated Voltage | 400/230V |
Frequency | 50/60Hz |
Power Factor | 0.8(lagging) |
The regulating rate of steady voltage | ≤±0.5% |
The regulating rate of instantaneous voltage | ≤-15%/ +20% |
The time of steady voltage | ≤1.5sec |
The waving rate of voltage | ≤1.0% |
The regulating rate of steady frequency | ≤3% |
The regulating rate of instantaneous frequency | ≤±10% |
The time of steady frequency | 3sec |
Dimension (L×W×H) (mm) | 6800*2200*2600 |
Genset weight (kg) | 20000 |
Diesel Engine | |
Brand |
|

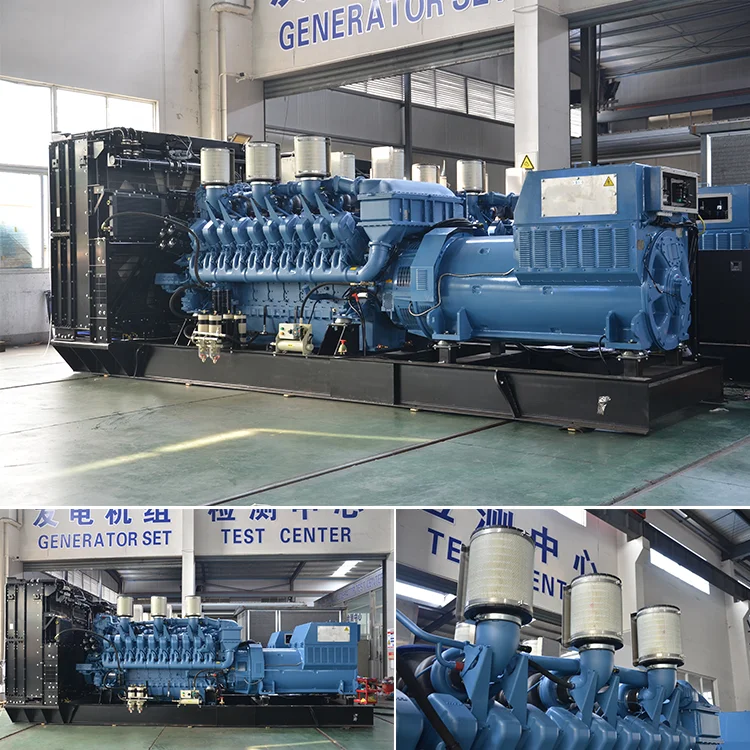

Model | 20V4000G23 |
Number of Cylinders | 20 |
Rotating Speed | 1500RPM |
Cycle | Four stroke |
Type | Exhaust gas turbocharged, direct injection pressure ignition type |
Bore×Stroke(mm) | 170*210 |
Displacement(L) | 95.4 |
Lubricating Capacity(L) | 390 |
Speed Governor | Electrical |
Cooling System | Forced closed circulation water cooling of self-equipped fan tank |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 192g/kw.h |
Starting Method | DC24V Electrical starting |
Alternator | |
Brand | ENGGA |
Model | EG630-2400G |
Number of Phase | 3 |
Connecting Type | Three Phase and Four Lines |
Number of Bearing | 1 |
Grading Protection | IP22 |
Altitude | ≤1000m |
Exciter Type | Brushless (AVR automatic voltage regulating) |
Insulation Class | H degree |
The components of the genset | |
(1) Diesel Engine; (2)ENGGA Alternator; (3) Control Panel | |
| |
