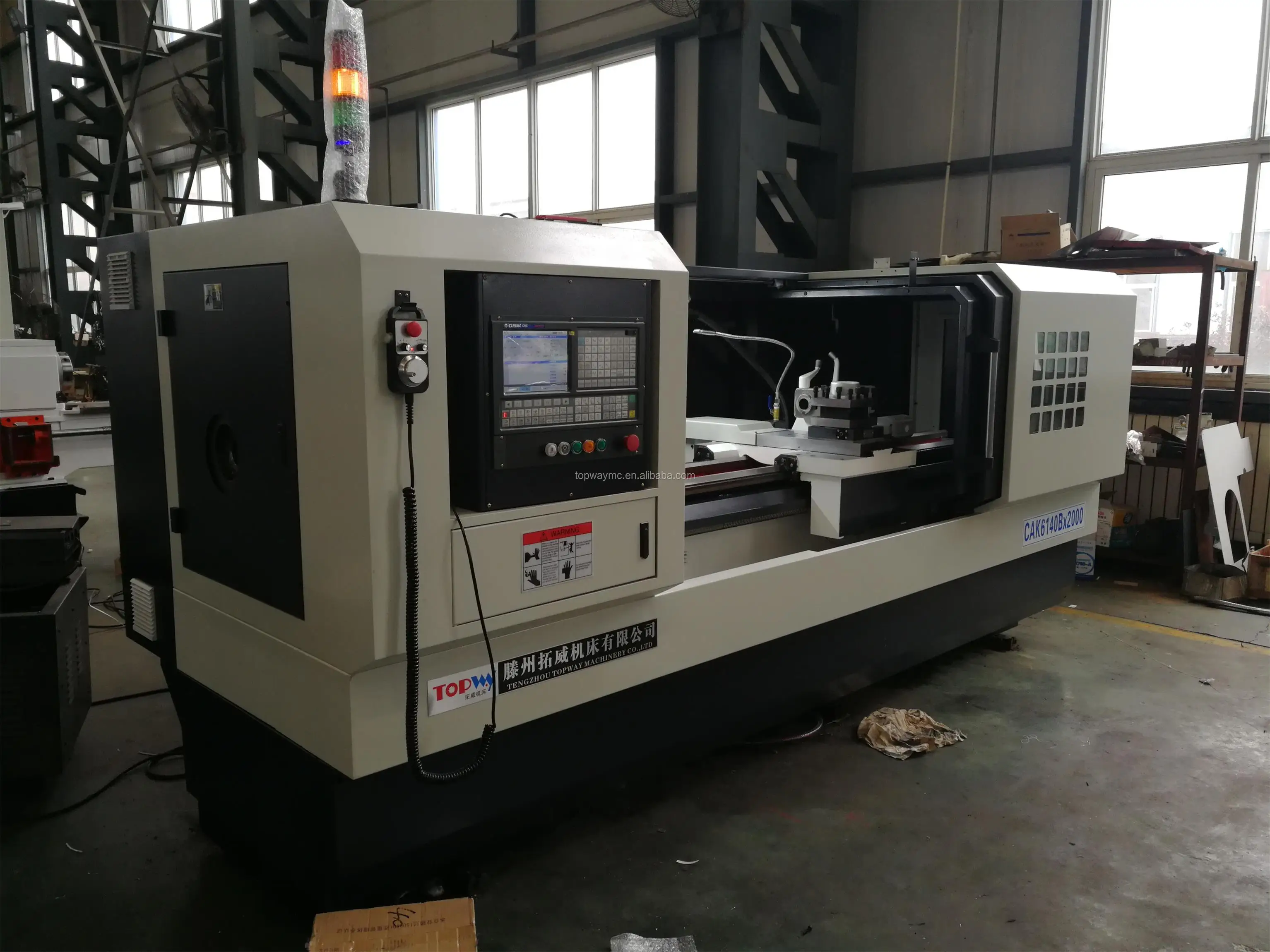

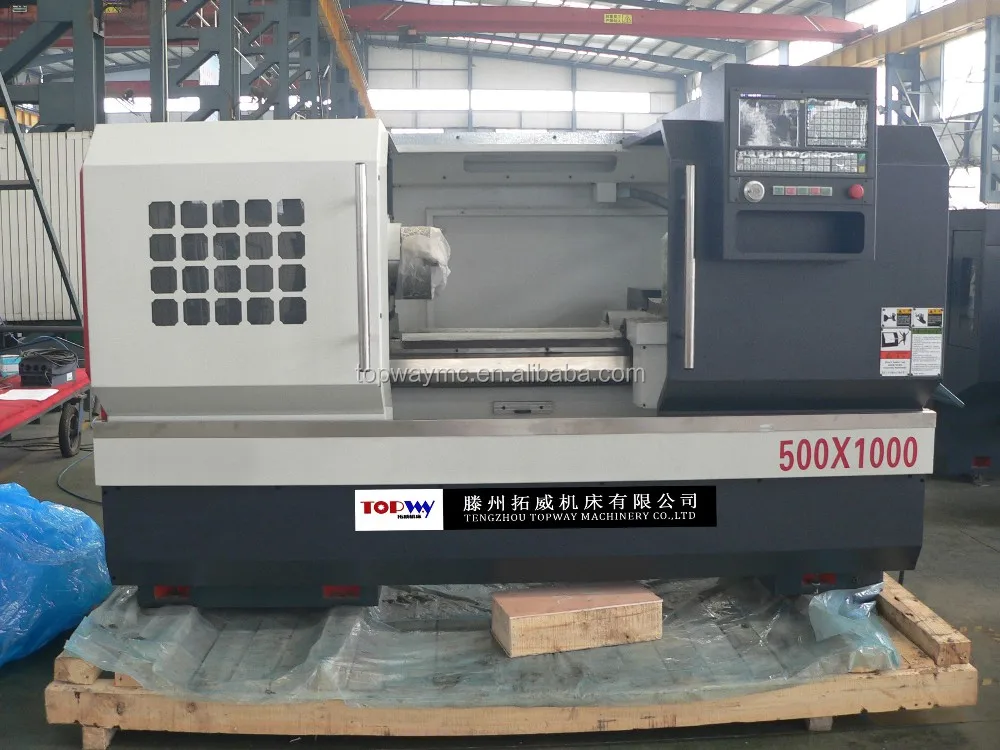

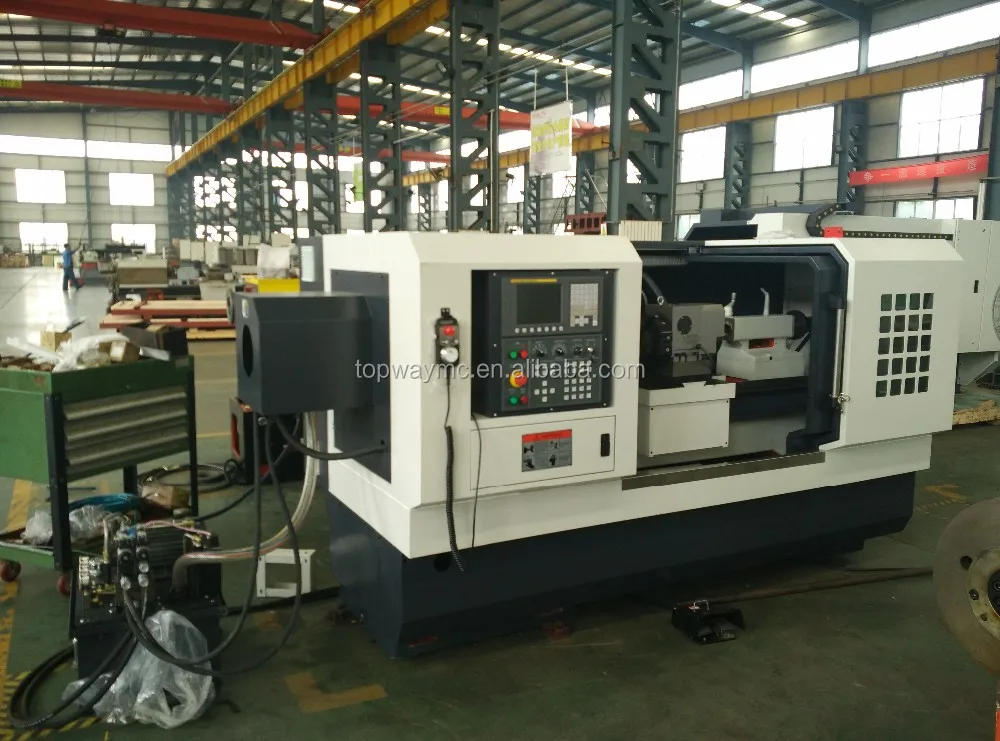

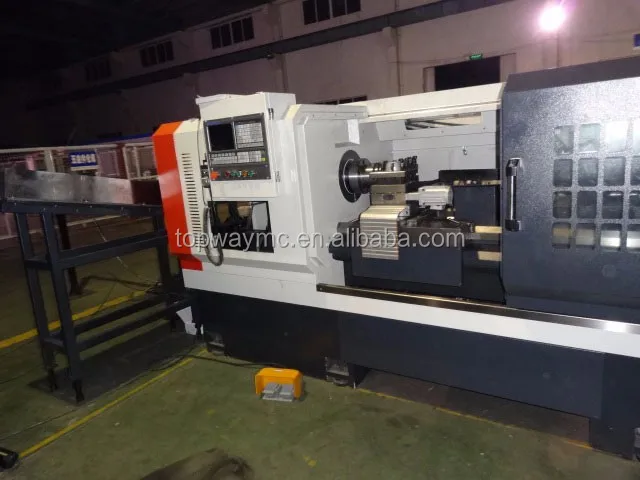

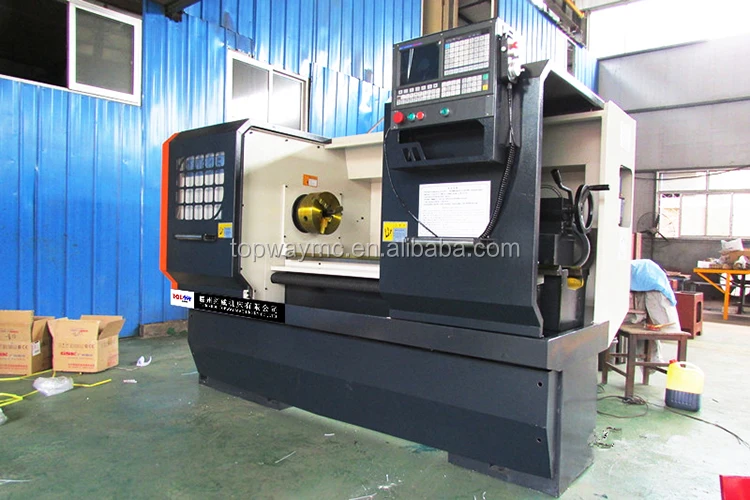

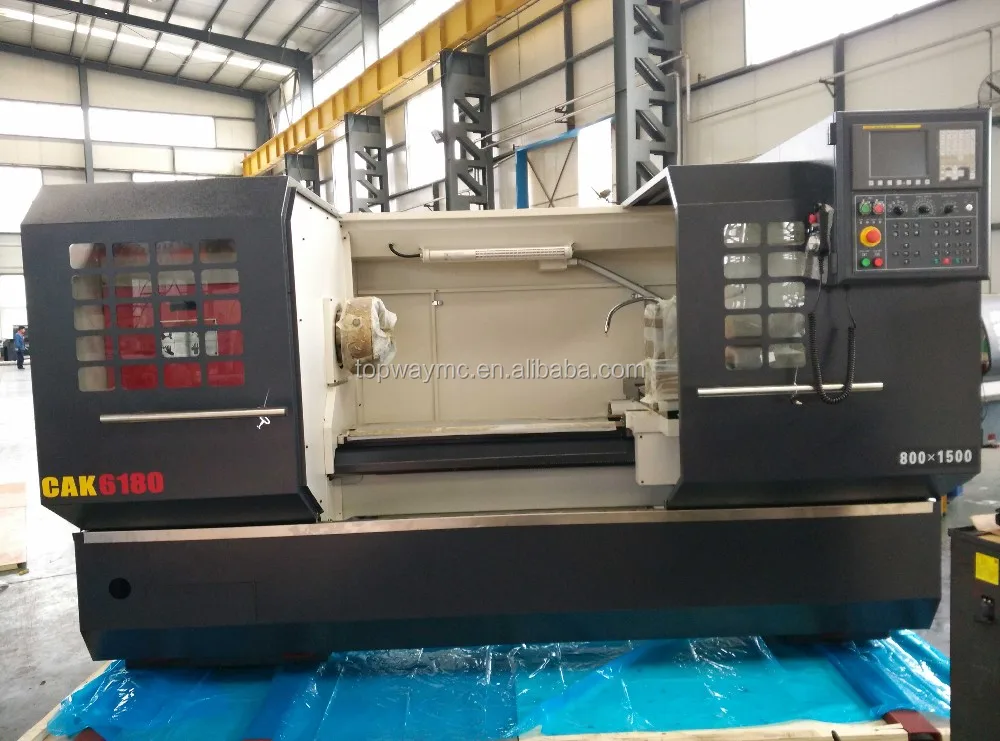

cnc lathe machine tools CK6150d sheet metal cnc spinning lathe
- Category: >>>
- Supplier: Tengzhou Topway Machinery Co. Ltd.
Share on (1600915596261):
Product Overview
Description
Product Description
Features:

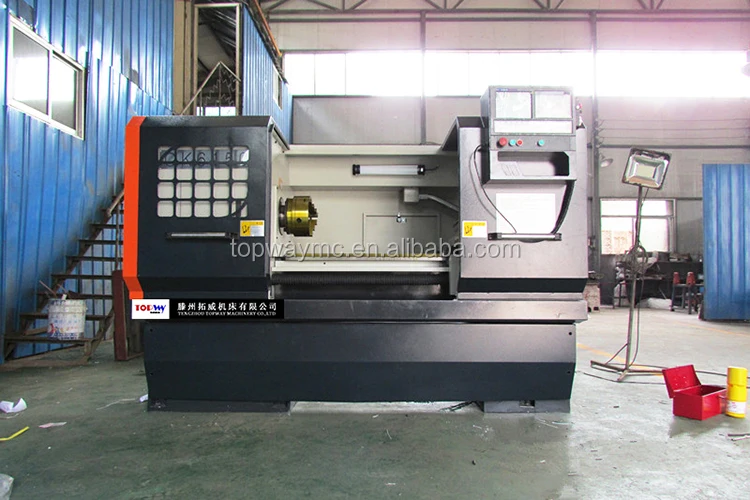

■ CAK Series CNC Lathe Machine is an enonomical, practic type machine tools with good quality.
■ The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring,
reaming of axie and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirement.
■ The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring,
reaming of axie and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirement.

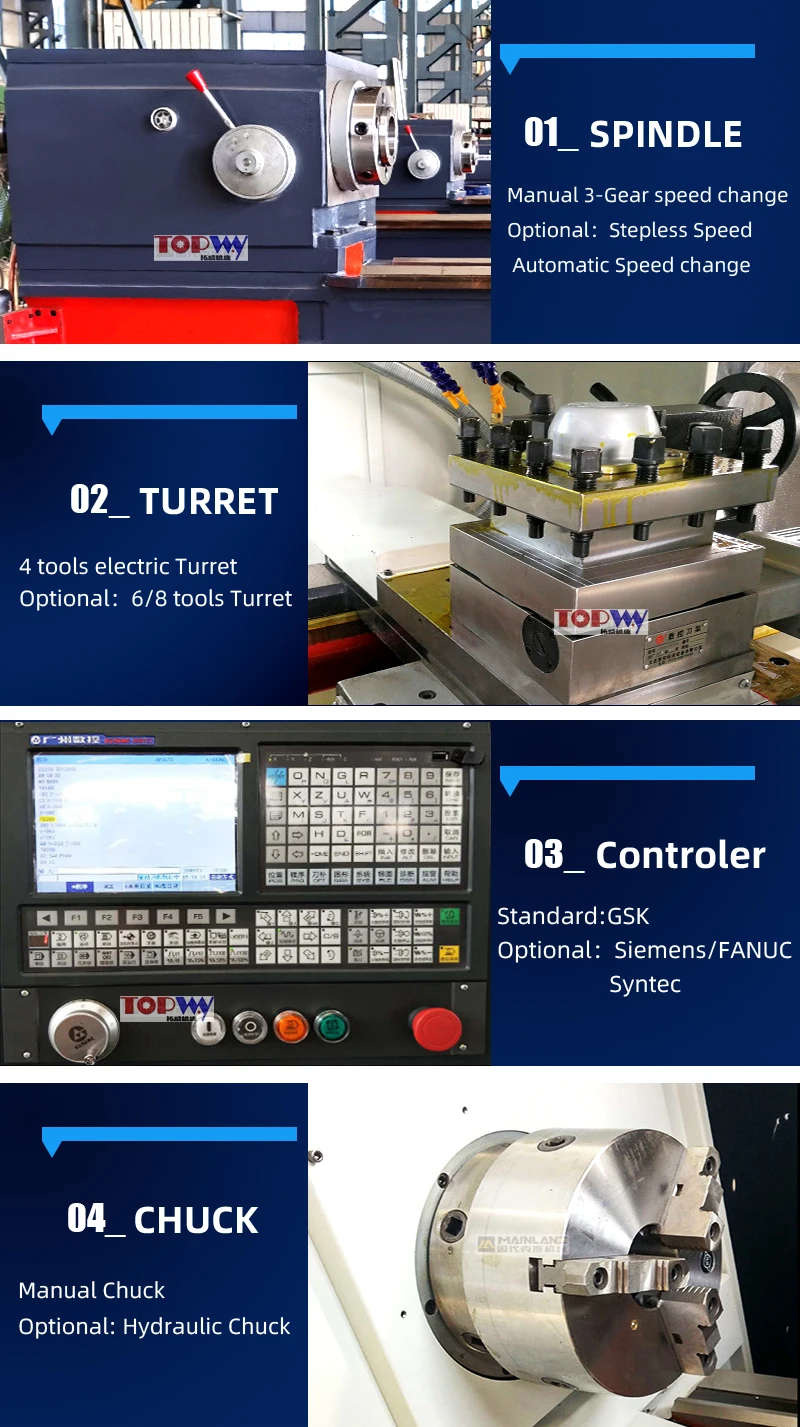

Standard:
● Frequency Spindle
● 250mm 3-jaw Manual Chuck
● 4-station turret
● Manual Tailstock
● Full-splash Guard
● 250mm 3-jaw Manual Chuck
● 4-station turret
● Manual Tailstock
● Full-splash Guard
● Stepless speed change

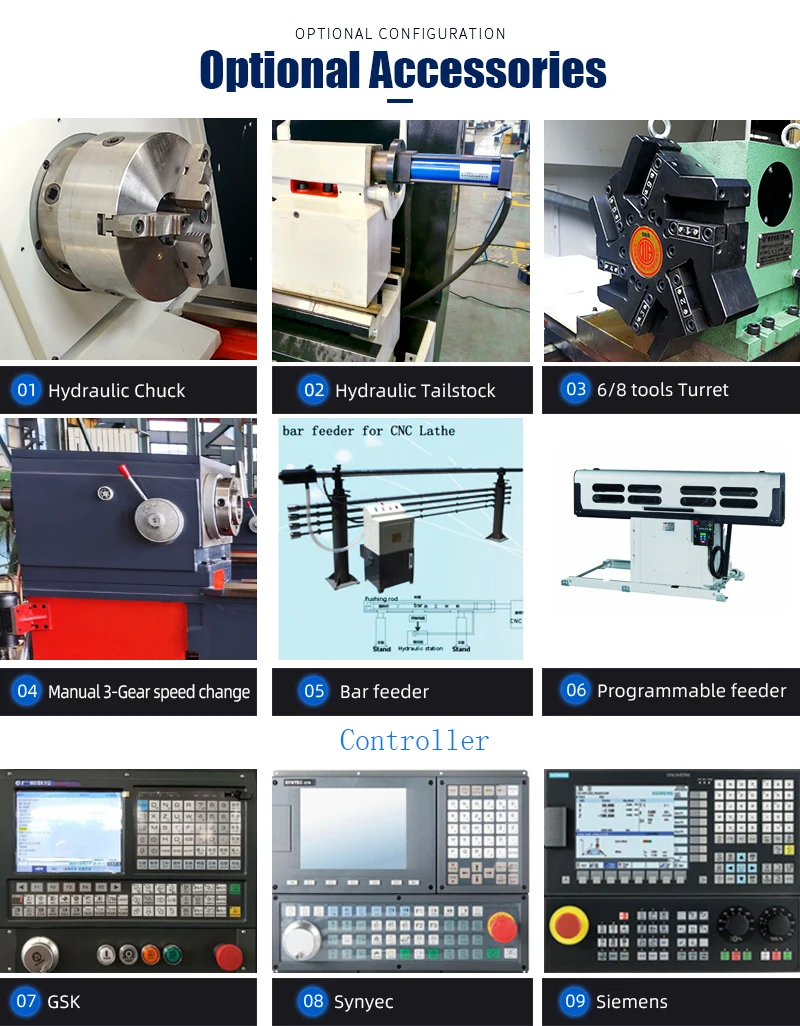

Optional :
● Hydraulic Solid Chuck;
● Hydraulic tailstock
● 3-step speed change by manual;
● Auto 3-step speed change;
● 6-station turret;
● Center Rest and follow rest;
● 4-Jaw chuck.
● Hydraulic tailstock
● 3-step speed change by manual;
● Auto 3-step speed change;
● 6-station turret;
● Center Rest and follow rest;
● 4-Jaw chuck.
SPECIFICATIONS | Units | CAK6150 CAK6150B CAK6150C |
Swing over bed | mm | 500 |
Swing over cross slide | mm | 280 |
Distance between centers | mm | 750/1000/1500/2000/3000 |
Spindle bore | mm | 52,(80 for B),[105 for C] |
Spindle bore taper | - | MT6,(φ90 1:20 for B),[φ113 1:20 for C] |
Spindle nose type | - | C6,(D8 for B),[D8 for C] |
Spindle speed steps | - | Manual 3 steps (Optional: stepless) |
Spindle speed range | rpm | 21-150,66-500,162-1500 (Optional: 100-1600 ) |
Turret/tool post | - | Electric 4 position |
Tool size | mm | 25 x 25 |
X axis travel | mm | 250 |
Z axis travel | mm | 750/1000/1500/2000/3000 |
X axis rapid traverse | mm/min | 6000 |
Z axis rapid traverse | mm/min | 10000 |
Tailstock quill diameter | mm | 75 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 150 |
Main spindle motor | kw | 7.5 |
Coolant pump motor | kw | 0.125 |
Weight for 750 | kg | 2500 |
Weight for 1000 | kg | 2600 |
Weight for 1500 | kg | 2700 |
Weight for 2000 | kg | 3150 |
Weight for 3000 | kg | 3950 |
Dimension for 750 | mm | 2550x1650x1750 |
Dimension for 1000 | mm | 2750x1650x1750 |
Dimension for 1500 | mm | 3250x1650x1750 |
Dimension for 2000 | mm | 3700x1650x1750 |
Dimension for 3000 | mm | 4710x1650x1750 |

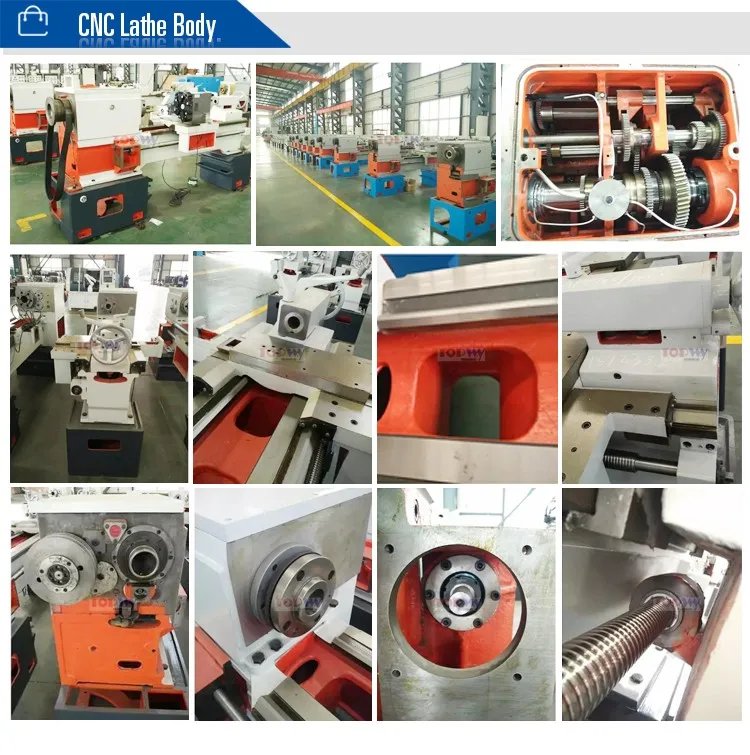

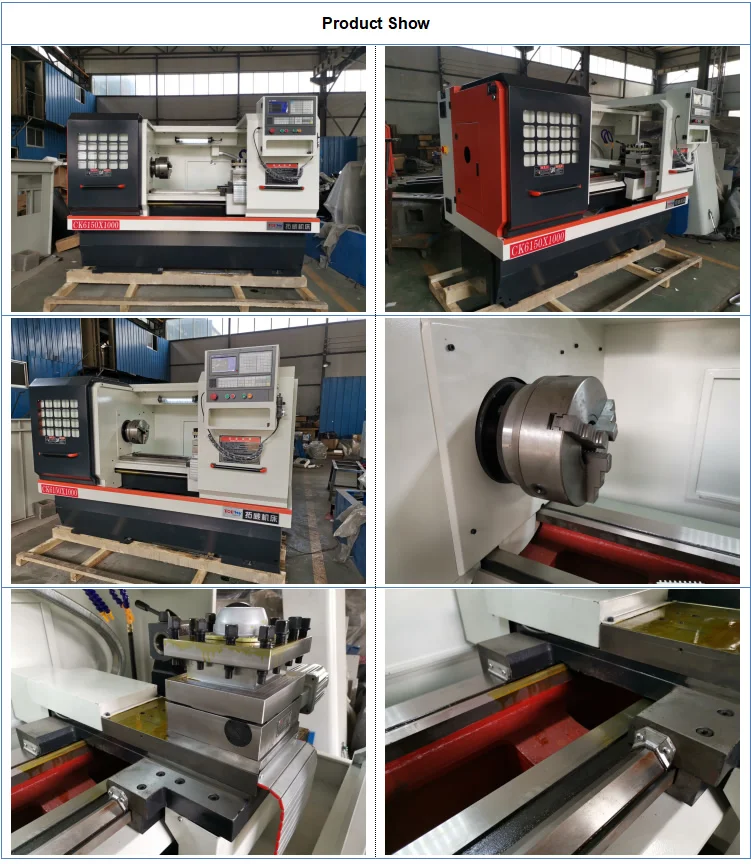

Products Details
● The Joint surfaces between Head Box, Body, Tailstock, Carriage adopts scraping by hand. The whole machine test by Laser Interferometer to make sure the Z axis and X axis has a high Positioning Accuracy, Repositioning Accuracy, Backlash and Stability.
● The machine adopts high strength casting iron. Add Copper and Chrome etc. special material. The Guideway width is 400mm, depth of quenching up to 4mm, it can make sure the machine has a good Abrasive Resistance and Stability.
● The machine adopts high strength casting iron. Add Copper and Chrome etc. special material. The Guideway width is 400mm, depth of quenching up to 4mm, it can make sure the machine has a good Abrasive Resistance and Stability.
Recommend Products

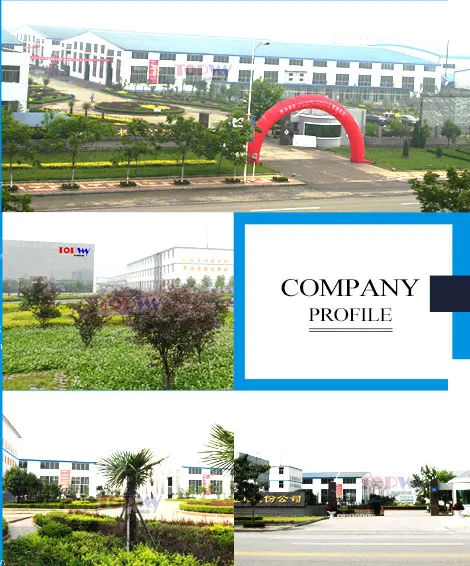

Company Profile
Tengzhou Topway Machinery Co.,Ltd
Tengzhou Topway Machinery Co.,Ltd.is a Bra-nch Company of MAINLAND Machine Tool Li-mited .Established in 2000,located in Tengzh-ou industrial area,Shandong Province,close to High speed train railway,and the G3 Beijing Sh-anghai Highway,convenient for transporation. MAINLAND Machine Tool Limited is a profe-ssional manufacturer of Lathe machine,Milling Machine,CNC Lathe machine,CNC Machining Center etc.Our company follows the concept of“Customers are our god and quality is his requirement”.our company built up quality control system and obtained the certificate of ISO9001 and CE standard,we make sure all the machines we produced are in a high quality,
our products are welcomed by market.To enla-rge the expansion of sales,MAINLAND Machi-ne Tool Limited established Branch company
“Tengzhou Topway Machinery Co.,Ltd.”,this company is a
trading company to export all kinds of machine tools in China market,such as Lathe machine,Milling Machine,CNC Lathe machine,CNC Milling Machine,CNC Machining Center,Vertical Lathe,pipe threading machine,Drilling machine,Shaping Machine,Boring Machine,Radial Drilling Machine,Shearing Machine,Bending Machine,Press brake,Hydraulic press,etc.can supply one-stop shopping for customers.Tengzhou Topway Machinery Co.,Ltd.Has a Professional inspection team,all inspector has over 10 years experience in Machine tool industry.They can make sure all the machines are in a high quality.
our customers
Superior Customer Care
Topway Promise-We return customer calls wi-thin 24 hours. When you contact us, a know- ledgeable English speaking sales engineer will be in con-tact to answer your questions. The same promise applies to service and machine supportwe have repairparts in-house and in dealer stock to handle worldwide service requests.

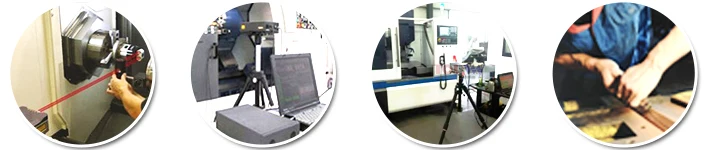

Quality inspection
Topway the product quality'as the foundation of the company, provide consumers with high quality high quality products, to make the customer satisfied, To ensure product quality is the secret of has strict perfect supply chain product safety manage ment system.
Product packaging
FAQ
Q1. How can I get a quotation?
A. Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
A. Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2.What's your main products of your company?
A.We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your sales representative for details.
Q6. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your sales representative for details.
Q6. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
Q7. What is your trade terms?
A .FOB, CFR and CIF all acceptable.
Q8.What's the Payment Terms ?
A. T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
Q9.What's the MOQ?
A.1 set .(Only some low cost machines will be more than 1 set )
