160m 180m 200m rock drill pneumatic drilling water well diesel powered drilling rig
- Category: >>>
- Supplier: China Macmax Machinery Co. Ltd.China Ltd.
Share on (1600915601073):
Product Overview
Description
Products Description
All products support OEM and CUSTOMIZATION. If you would like more relevant information, please contact us!!!

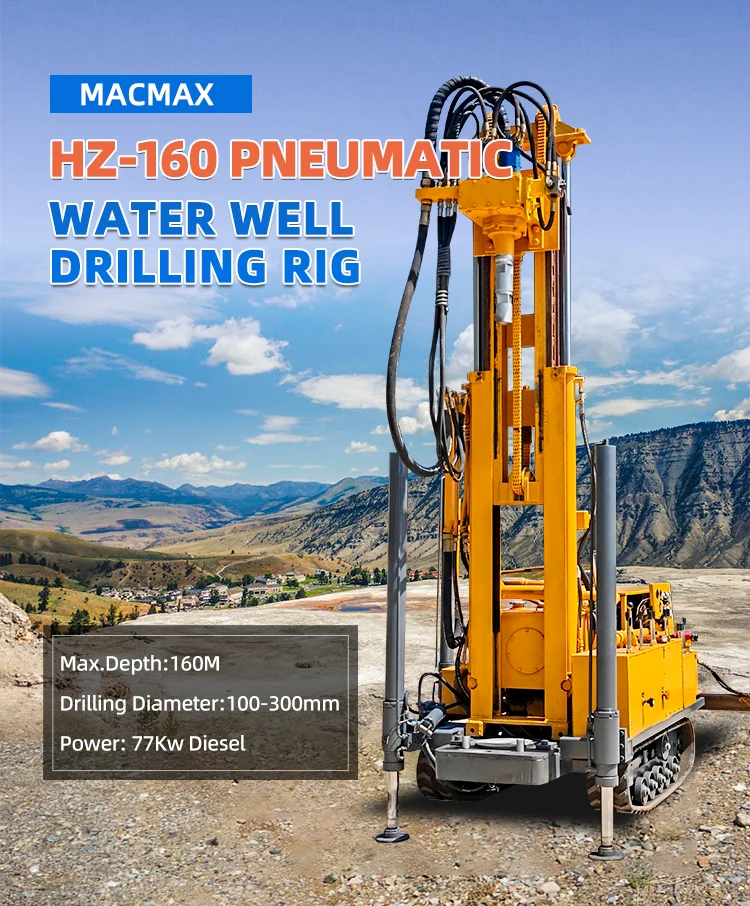

Macmax HZ series water well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.There are 180, 200, 300, 350, 400, 500, 600, 800 and other series of water well drilling rigs.
This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.
This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.
Among them, the efficiency of the HZ series pneumatic drilling rig is ten times that of traditional rotary drilling rigs, making it particularly suitable for water intake projects in mountainous areas and rock formations.
Machine Features
1. Equipped with a 77 kW high-power engine.
2. crawler mounted, trailer mounted for choice.
3. Unique hydraulic system design, parallel gearbox, separate oil pump units, lower maintenance costs.
4. Gearbox integrated casting power head, dual power design, greater torque, more durable.
5. professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads.
6. Each rig is equipped with a relief valve to raise the boom to protect the cylinder and ensure work safety.
7. Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe last longer.
Product Paramenters
Model | HZ-160L |
Dimension (mm ) | 2100 x 1200 x 1900 |
Overall weight (Kg) | 2600 |
Max.Drilling depth (m) | 160 |
Drilling diameter (mm) | 130-192 |
Diameter of Drill Rod (mm) | Φ76 / Φ89 |
Maximum Drilling Length (m) | 2 |
Traveling Speed (km/h) | 2.5 |
Climbing Ability | 25° |
Minimum Ground Clearance (mm) | 250 |
Working Air Pressure (Mpa) | 1.45 - 2.5 |
Air Consumption (m³) | 15 - 27 |
Engine Power | YUCHAI 77 KW |
Lift Force (T) | 8-12 |
Rotary Speed | 38 - 80 rpm/min |
Rotary Torque | 7800 N.m |

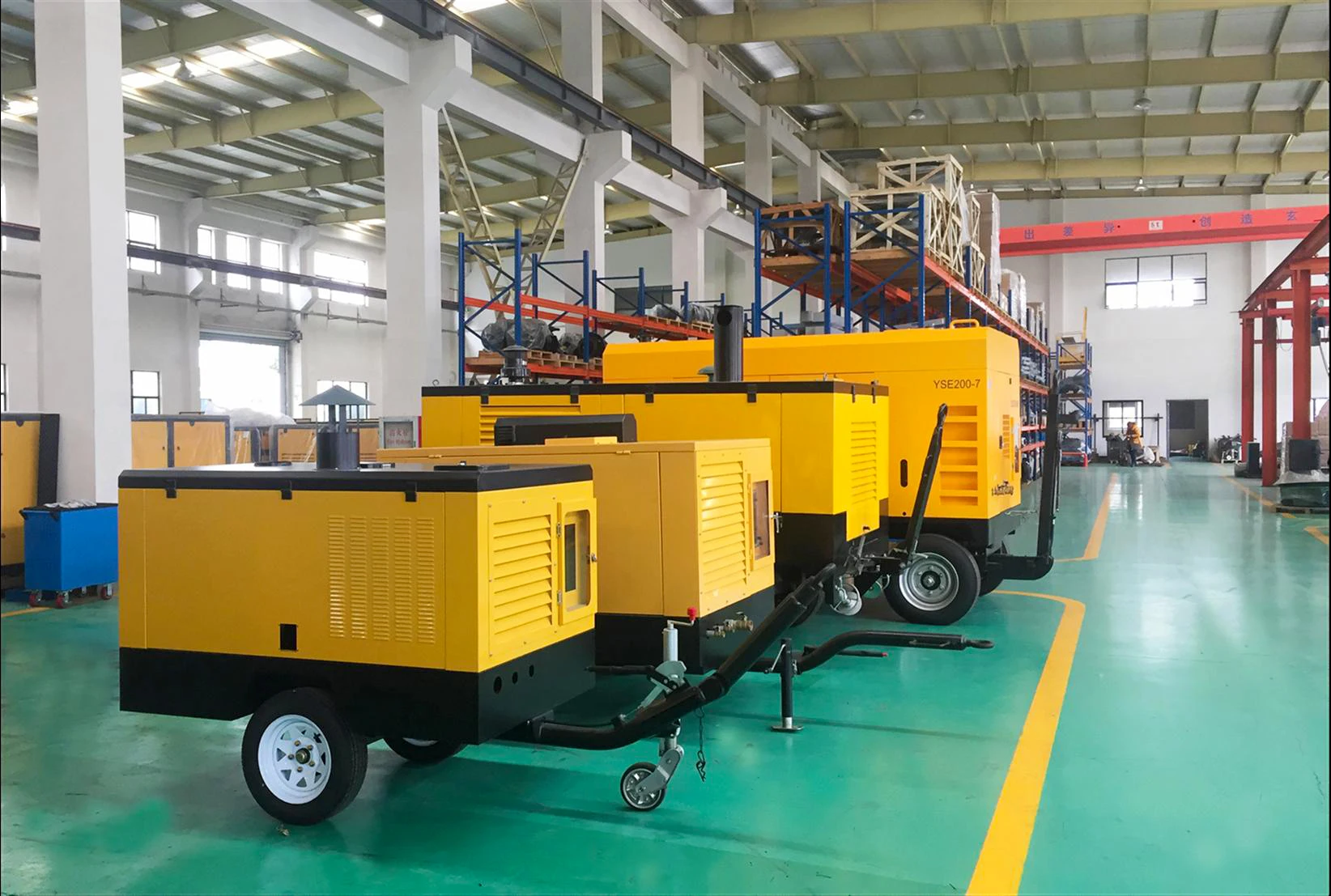

This drilling rig needs to be used with an air compressor.
If you want to buy an air compressor at the same time, please tell us your drilling depth and diameter, and we will give the corresponding recommendation.

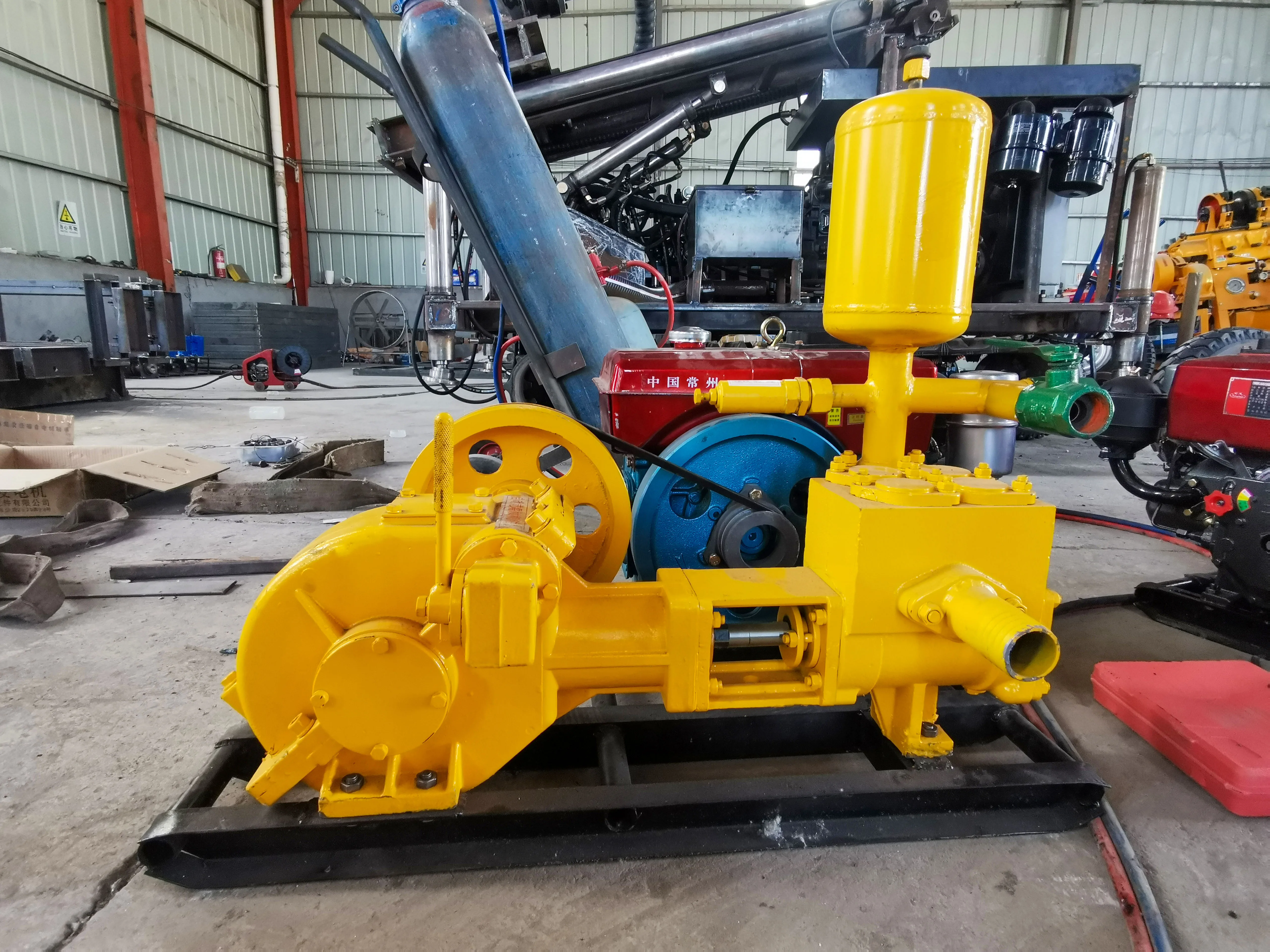

This drilling rig can also be equipped with a mud pump. If you need a mud pump, please tell us your drilling depth and diameter, and we will give the corresponding recommendation.

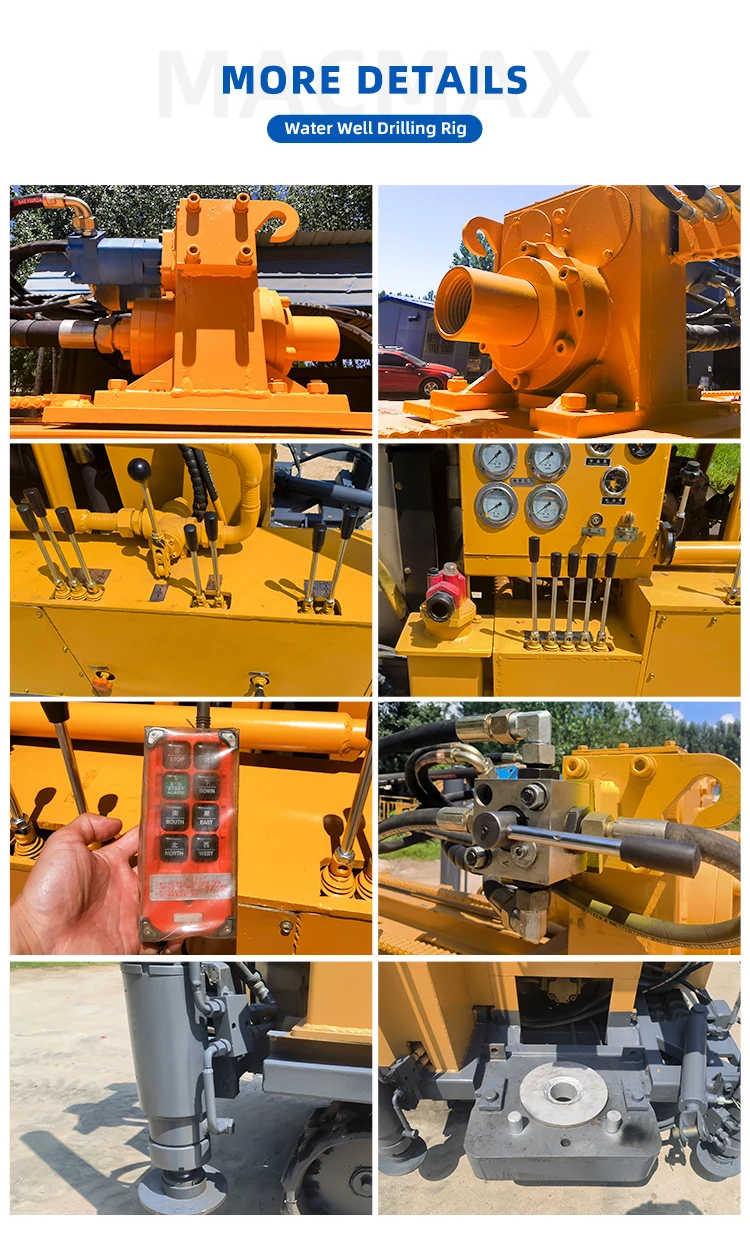

Details Images

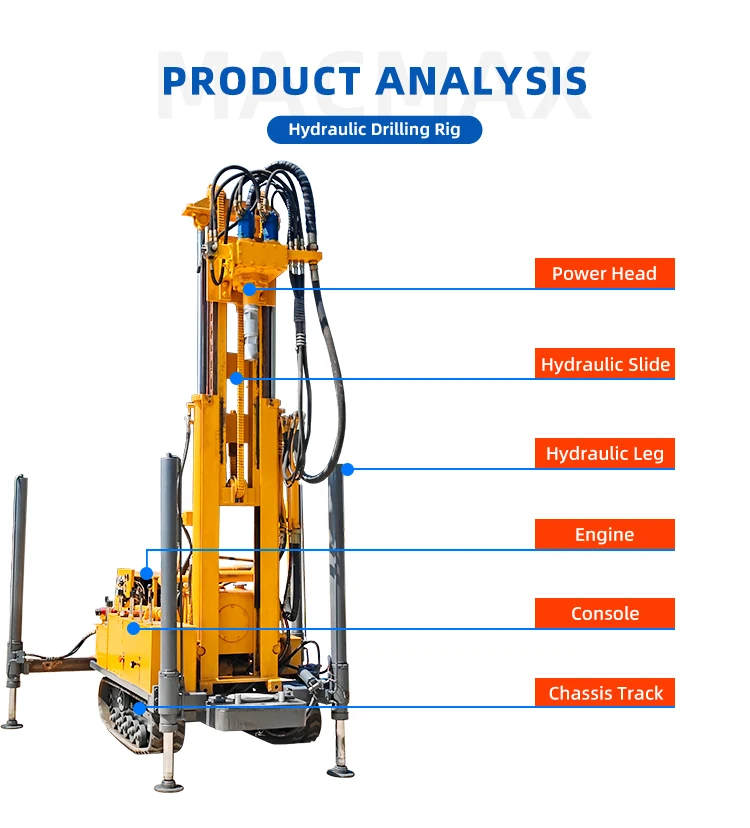

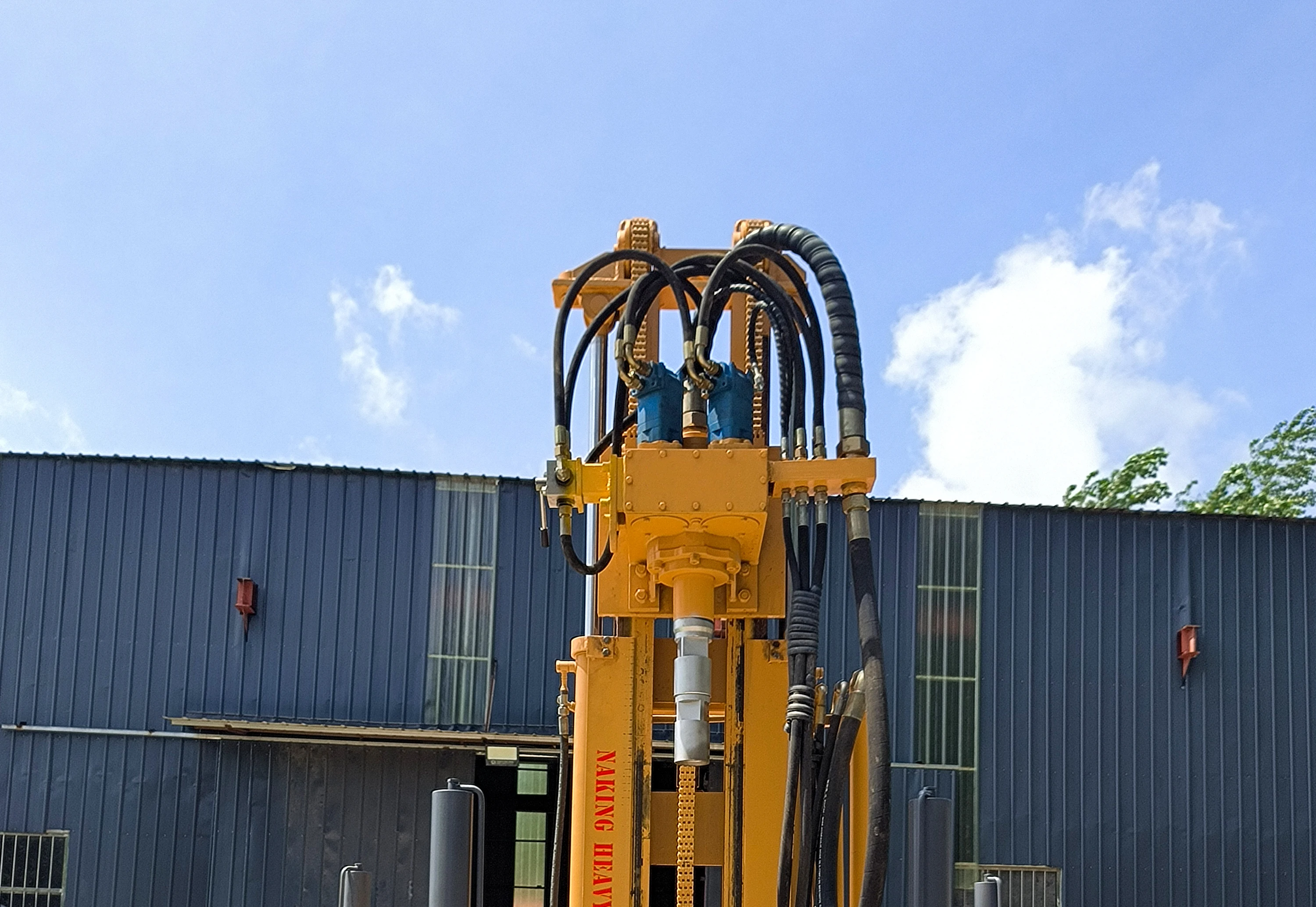

Double hydraulic power head
Double hydraulic power head, the power is more powerful, with greatertorque and faster drilling.

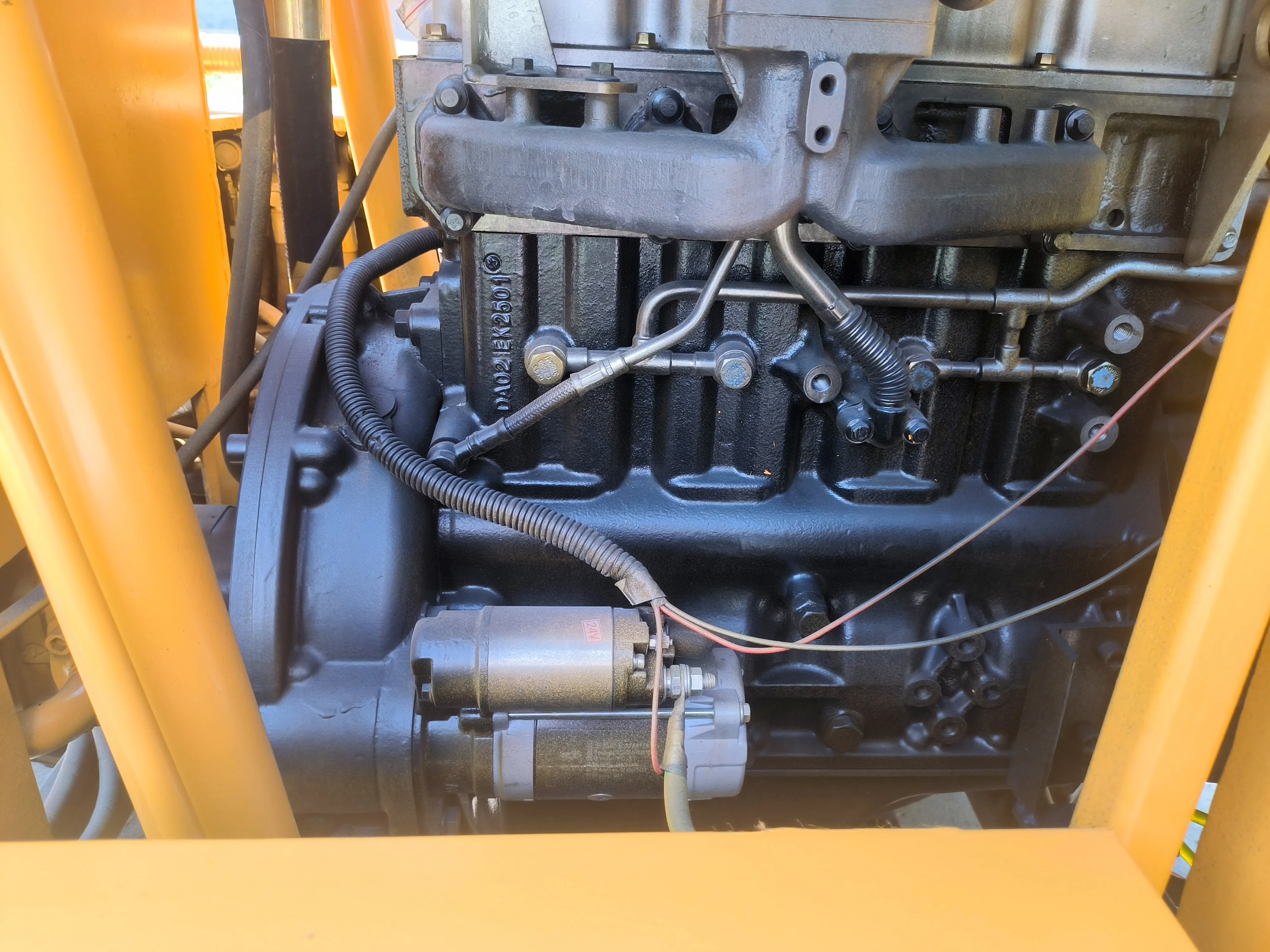

High power engine
It adopts domestic famous 77kw high-power diesel engine, which has strong power and canmeet the requirements of a variety of complex environments.

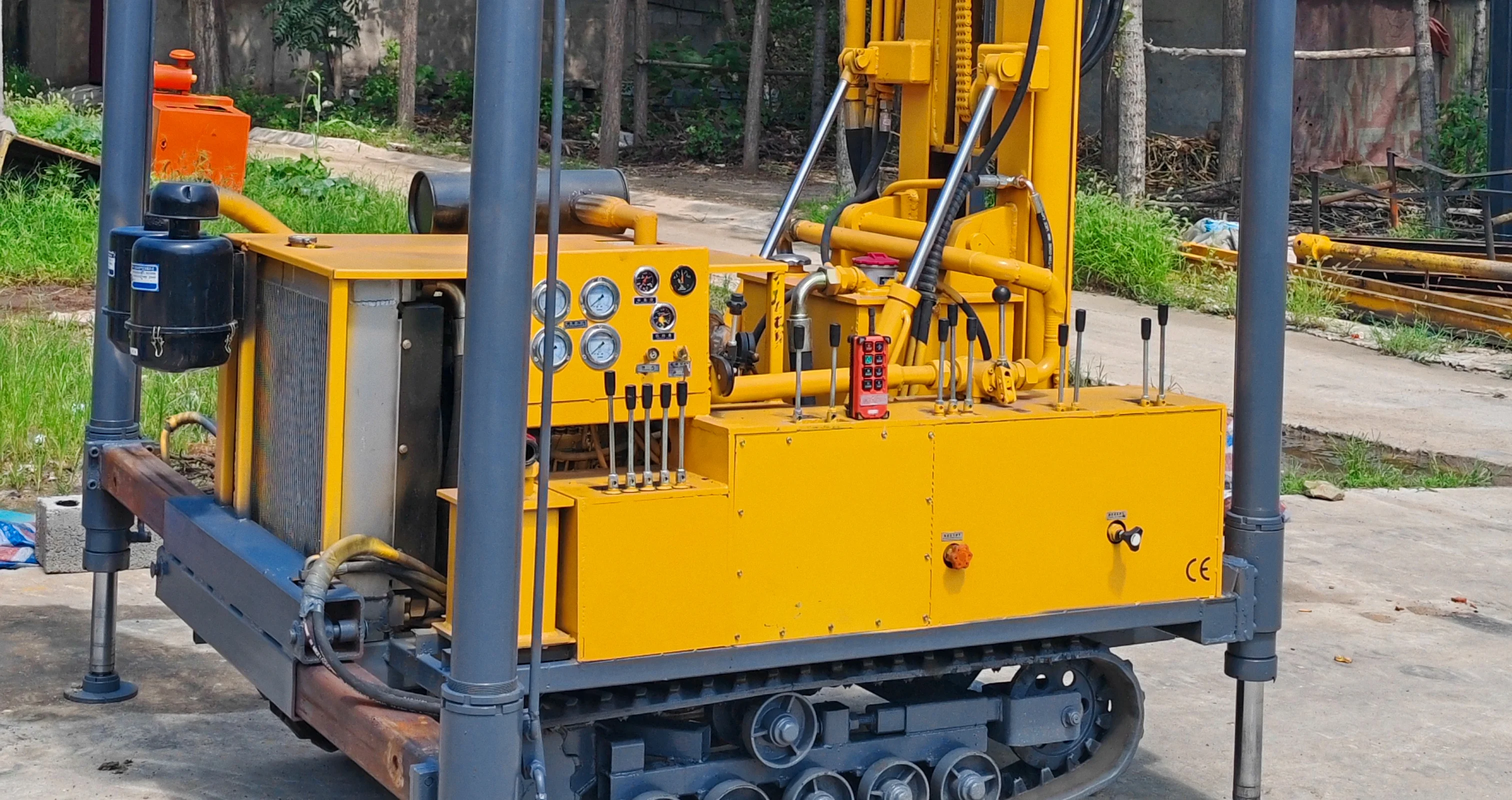

Operating handle
Dual handle operation, hydraulic drive, simple and convenient

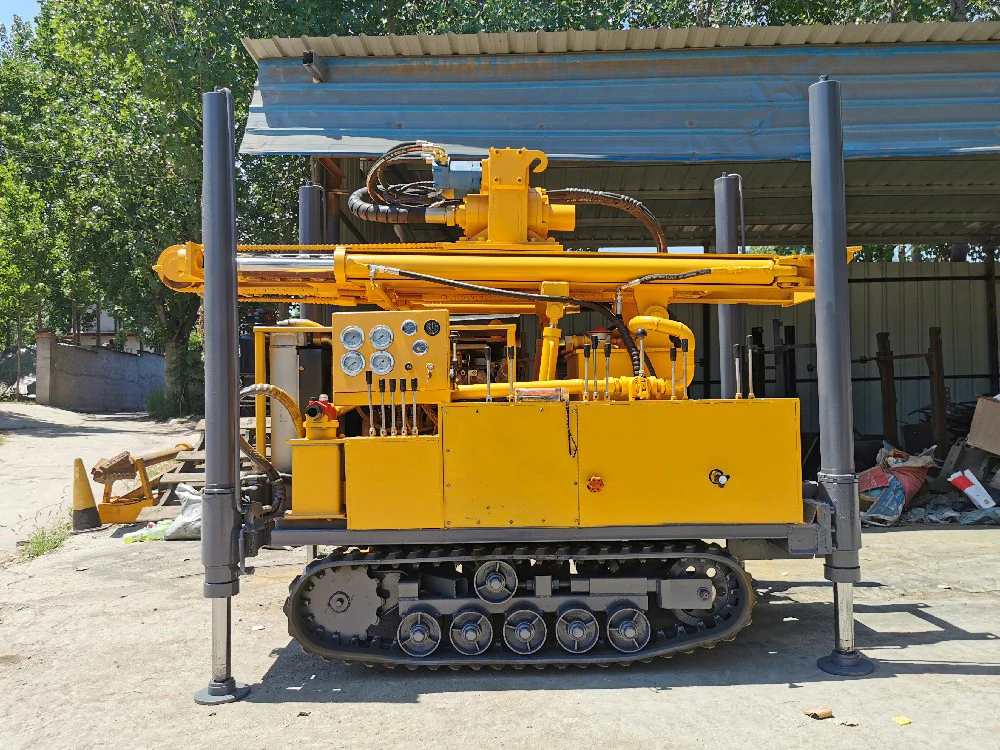

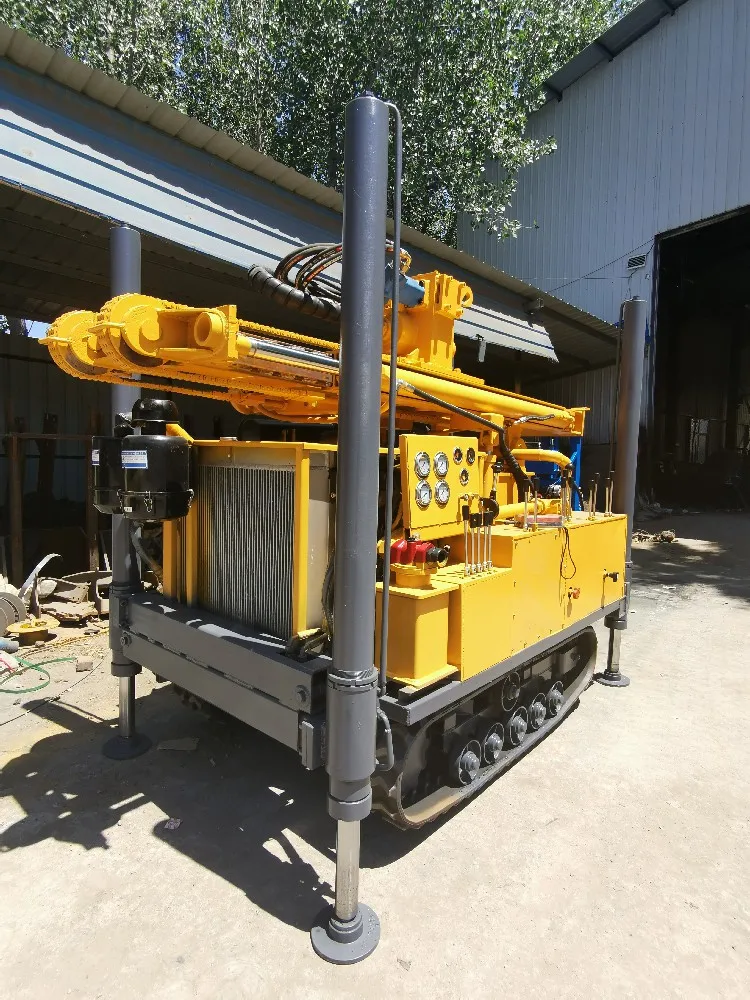

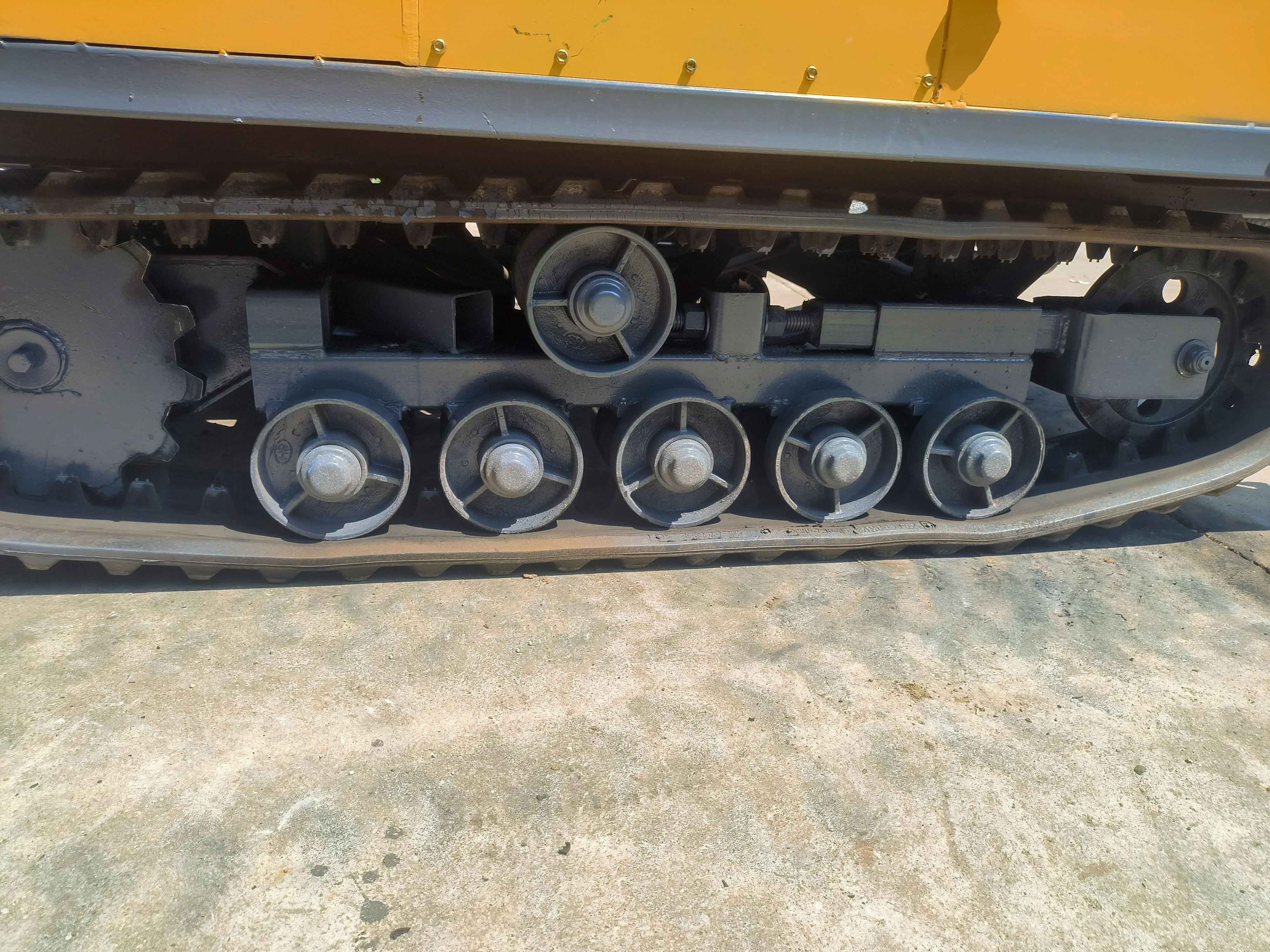

Crawler Chassis
The High quality wear-resistant track is stronger and the climbing abilityis stronger.It can adapt to a variety of roads.

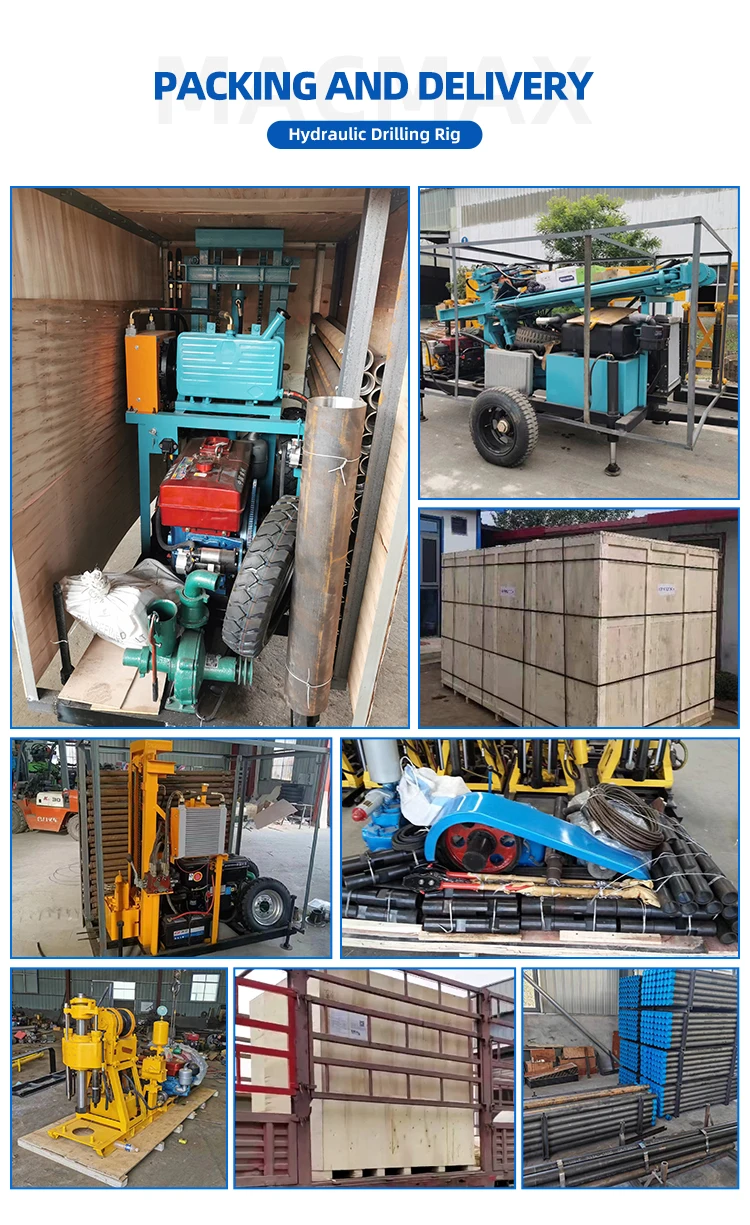

Product packaging

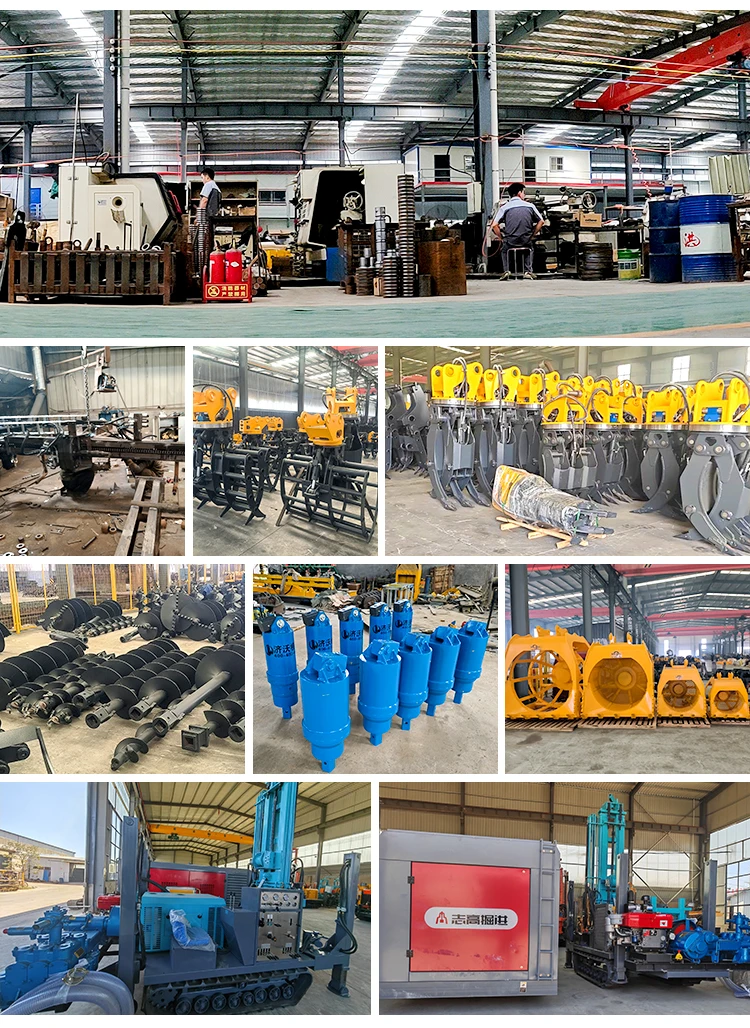

Company Profile
Macmax Machinery Co., LTD. was founded in 2000 and is an enterprise that integrates the design and production of drilling rigs and engineering machinery accessories. The factory covers an area of 12000 square meters and has 10 technical R & D personnel, 150 producers, and 30 sales.
Our company has independent research and development products including drilling rig (pneumatic rig, hydraulic rig, exploration rig) for exploration, wells, oil etc., which can reach 2000 meters in depth; Excavator accessories (Auger, Pile driver, crushing bucket, screening bucket etc.) Meet the needs of various working conditions of different types of excavators in small, medium and large models.
All products support customization, have obtained multiple certification standards both domestically and internationally, and have been exported to Europe，Southeast Asia , Asia, South America and Africa.
Now you have chosen MACMAX, and you will measure the advantages and disadvantages of the product with MACMAX as the standard in the future.
FAQ
1. Are you manufacture?
Ans: Yes, we are factory with more than 10 years of manufacturing experience.
2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages beforeyou pay the balance.
3. What is your terms of delivery?
Ans.: EXW,FOB,CFR,CIF.
4. How about your delivery time?
Ans: Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What is the warranty of our machine?
Ans.:Our main machine enjoys a l year warranty, during this time all accessories broken can be changed for a new oneAnd we provide videos for machine install and operation.
6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
8. Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have records for your clients, and will prefer providing accessories to clients.
9. How do you make our business long-term and good relationship?
Ans.: 1 We keep good quality and competitive price to ensure our customers benefits;2.We respect every customer as our friend and we sincerely do business and make friends with themno matterwhere they come from.
10. Do you have any certificates for your machine?
Ans.: All ofour products coming with the certificates of CE, ISO9001.
