Crane Electromagnet,Electro Magnetic Chuck,Circular Electromagnetic Chunk
- Category: >>>
- Supplier: Zhongpu Crane Co. Ltd.
Share on (1600915614037):
Product Overview
Description
Products Description

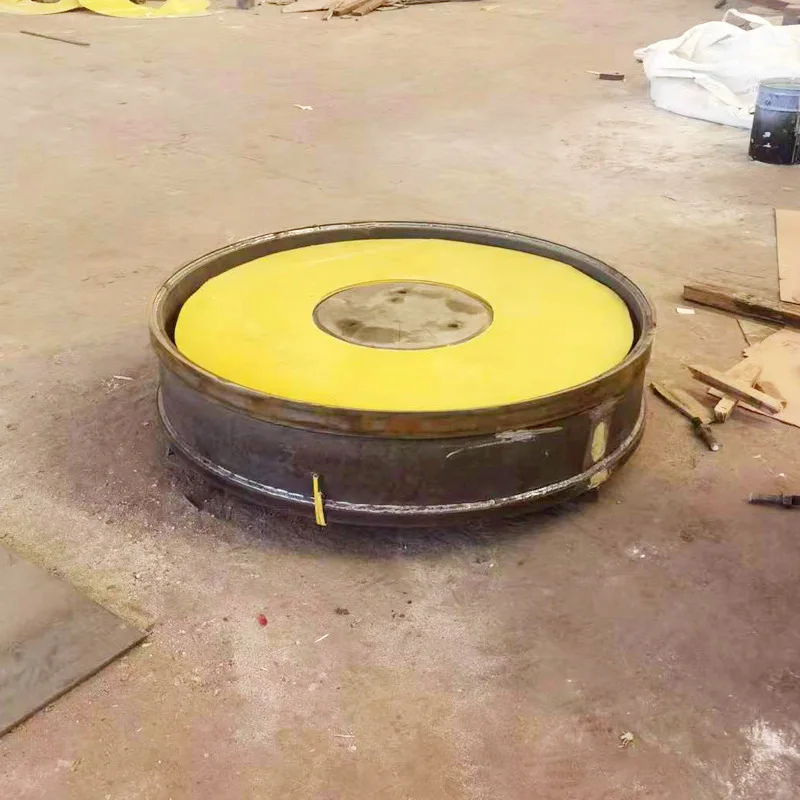

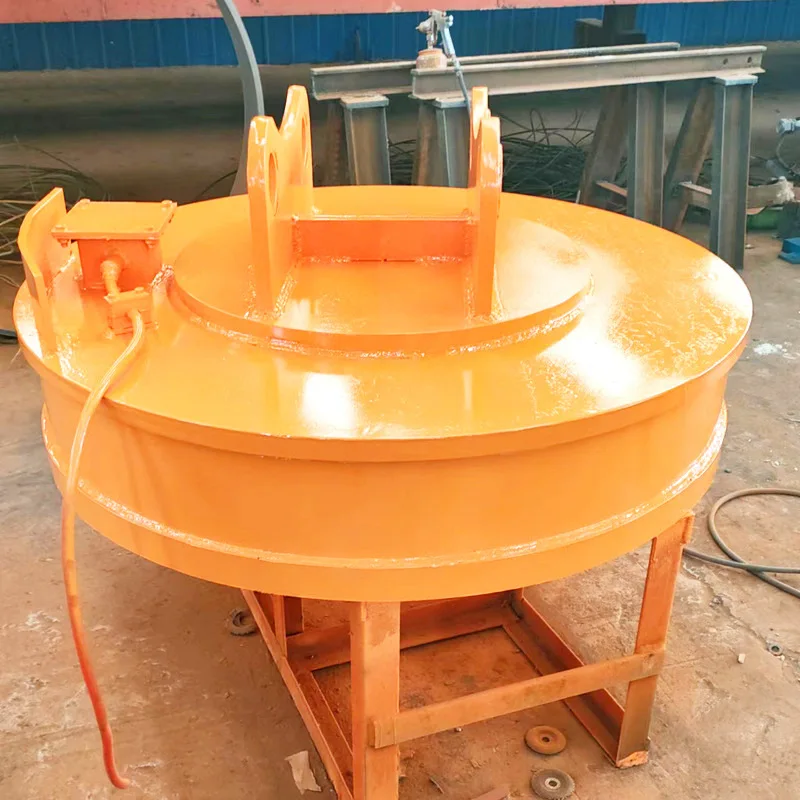

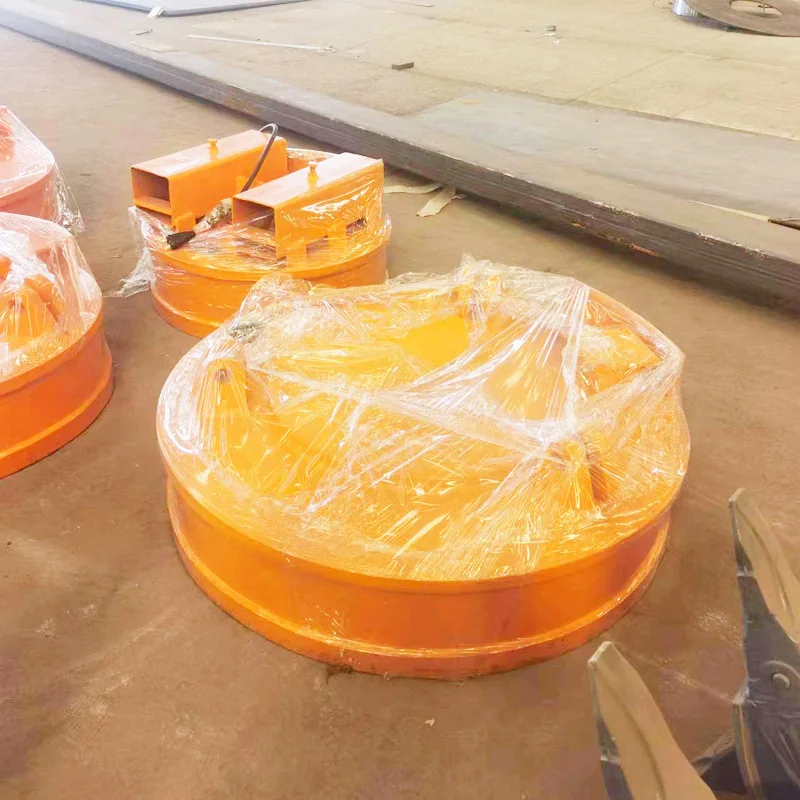

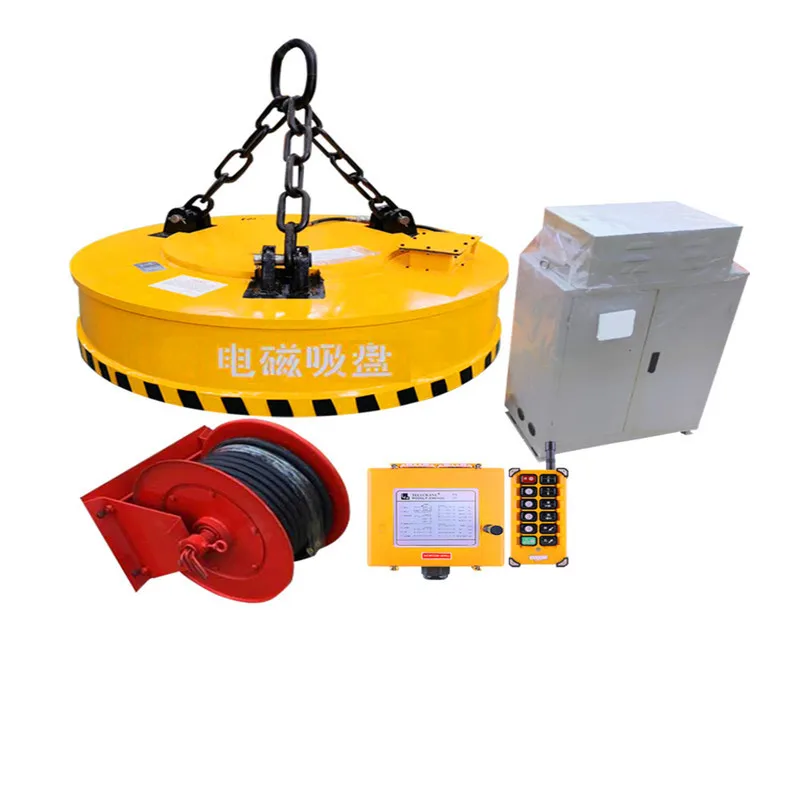

Details Images
Product Paramenters
Model | MW5-70 | MW5-80 | MW5-90 | MW5-100 | MW5-110 | MW5-120 | ||||||
Form factor | A | mm | 700 | 800 | 900 | 1000 | 1100 | 1200 | ||||
B | mm | 800 | 800 | 1090 | 1090 | 1140 | 1180 | |||||
C | mm | 160 | 160 | 200 | 200 | 220 | 220 | |||||
D | mm | 90 | 90 | 125 | 150 | 150 | 150 | |||||
E | mm | 30 | 30 | 40 | 45 | 45 | 45 | |||||
weight | kg | 570 | 680 | 820 | 994 | 1196 | 1380 | |||||
ability | manner | power | kw | 2.55 | 3.1 | 4.6 | 5.9 | 6.1 | 7.4 | |||
current | A | 11.6/7.6 | 14.1/9.2 | 21/13.6 | 24.4/15.8 | 27.7/18 | 33.6/21.9 | |||||
Ingot | kg | 2500 | 3000 | 4500 | 5500 | 6500 | 7500 | |||||
Iron ingots | kg | 380/200 | 480/250 | 600/400 | 750/500 | 1000/800 | 1200 | |||||
Chips | kg | 120/100 | 150/130 | 250/200 | 350/300 | 450/400 | 600 | |||||
manner | power | kw | 13.4/6.4 | |||||||||
current | A | 46.3/32 | ||||||||||
Iron ingots | kg | 1050/900 | ||||||||||
equipment | Electric cabinet | cm | 110*60*38 | 110*60*38 | 110*60*38 | 110*60*38 | 110*60*38 | 110*60*38 | ||||
Electric cabinet Cable barrel | kg | 46 | 46 | 46 | 46 | 46 | 46 | |||||
kg | 75 | 75 | 75 | 75 | 75 | 75 | ||||||
Cables | 2*10² | 2*10² | 2*10² | 2*10² | 2*10² | 2*10² | ||||||
Total weight | kg | 691 | 801 | 941 | 1115 | 1317 | 1501 | |||||
Model | MW5-130 | MW5-150 | MW5-165 | MW5-180 | MW5-210 | MW5-240 | ||||||
Form factor | A mm | 1300 | 1500 | 1650 | 1800 | 2100 | 2400 | |||||
B | mm | 1240 | 1250 | 1590 | 1490 | 1860 | 2020 | |||||
C | mm | 250 | 350 | 370 | 370 | 400 | 450 | |||||
D | mm | 175 | 210 | 230 | 230 | 250 | 2800 | |||||
E | mm | 50 | 60 | 75 | 75 | 80 | 90 | |||||
weight | kg | 1700 | 2300 | 2720 | 3260 | 4600 | 6300 | |||||
ability | manner | power | kw | 9 | 11.3 | 12.2 | 16.3 | 21.7 | 25.9 | |||
current | A | 40.9/26.6 | 51.4/33.4 | 55.5/36 | 74.1/48.2 | 98.6/64.1 | 117.7/76.5 | |||||
Ingot | kg | 8500 | 11000 | 12500 | 14500 | 21000 | 23000 | |||||
Iron ingots | kg | 1400/1100 | 1900/1500 | 2300/1800 | 2750/2100 | 3500/2800 | 4800/3800 | |||||
Chips | kg | 700/600 | 1100/900 | 1300/1100 | 1600/1350 | 2200/1850 | 2850/2250 | |||||
manner | power | kw | 20.7/9.8 | 27.2/12.9 | 28.7/13.6 | 39.1/18.6 | 47/22.4 | 50.8/24.2 | ||||
current | A | 71.3/49 | 93.8/64.7 | 98.9/68.2 | 135/93 | 162/112 | 175/121 | |||||
Iron ingots | kg | 1500/1250 | 2000/1700 | 2500/2100 | 2900/2400 | 3700/3100 | 5000/4200 | |||||
equipment | Electric cabinet | cm | 110*60*38 | 110*60*38 | 110*60*38 | 128*65*35 | 128*65*35 | 128*65*35 | ||||
Electric cabinet Cable barrel | kg | 48 | 48 | 48 | 42 | 42 | 42 | |||||
kg | 80 | 80 | 80 | 97 | 100 | 100 | ||||||
Cables | 2*16² | 2*16² | 2*16² | 2*25² | 2*352 | 2*35² | ||||||
Total weight | kg | 1836 | 2428 | 2848 | 3399 | 4742 | 6442 | |||||

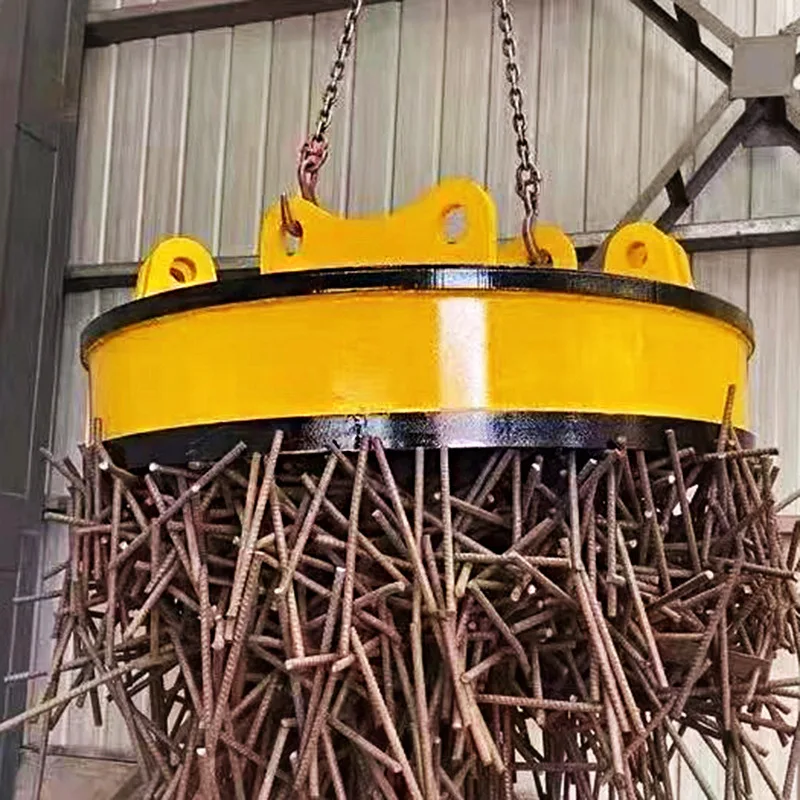

Application scenarios
Our Advantages
Why Choose Us
FAQ
1. What is a magnetic lift?
A magnetic lift is a kind of equipment that uses the principle of electromagnetic force to realize the lifting of objects. By controlling the strength of the magnetic field, it can provide stable lifting function, suitable for handling and lifting needs in various industries.
2. How does a magnetic lift work?
The working principle of magnetic lifts is based on the principle of magnetic field attraction and repulsion. By controlling the current of the electromagnet, magnetic fields of different intensities can be generated that attract or repel objects above. By changing the strength of the magnetic field, the lifting and lowering of the object can be achieved.
3. What scenarios are magnetic lifts suitable for?
Magnetic lifts are suitable for a variety of scenarios where fast, stable and reliable objects are required to lift and lower. It can be used for material handling on industrial production lines, lifting and lowering of warehouse goods, adjustment of medical equipment, etc.
4. What are the advantages of magnetic lifts?
Magnetic lifts have the following advantages:
- Fast and smooth lifting speed to improve work efficiency.
- Flexible lifting height adjustment to meet different needs.
- Independent control and precise control of the lifting process for easy operation and management.
- Customizable design to adapt to different loads and sizes of objects.
5. How to ensure the safety of magnetic lifts?
Magnetic lifts are designed and manufactured with safety factors in mind. Common security measures include:
- High-strength materials and stable structure are adopted to ensure load capacity and stability.
- Install safety protection devices such as overload protection, power failure protection, limit switches, etc. to prevent unexpected situations.
- Provide operation training and instructions to ensure that the staff can use and operate the magnetic lift correctly.
A magnetic lift is a kind of equipment that uses the principle of electromagnetic force to realize the lifting of objects. By controlling the strength of the magnetic field, it can provide stable lifting function, suitable for handling and lifting needs in various industries.
2. How does a magnetic lift work?
The working principle of magnetic lifts is based on the principle of magnetic field attraction and repulsion. By controlling the current of the electromagnet, magnetic fields of different intensities can be generated that attract or repel objects above. By changing the strength of the magnetic field, the lifting and lowering of the object can be achieved.
3. What scenarios are magnetic lifts suitable for?
Magnetic lifts are suitable for a variety of scenarios where fast, stable and reliable objects are required to lift and lower. It can be used for material handling on industrial production lines, lifting and lowering of warehouse goods, adjustment of medical equipment, etc.
4. What are the advantages of magnetic lifts?
Magnetic lifts have the following advantages:
- Fast and smooth lifting speed to improve work efficiency.
- Flexible lifting height adjustment to meet different needs.
- Independent control and precise control of the lifting process for easy operation and management.
- Customizable design to adapt to different loads and sizes of objects.
5. How to ensure the safety of magnetic lifts?
Magnetic lifts are designed and manufactured with safety factors in mind. Common security measures include:
- High-strength materials and stable structure are adopted to ensure load capacity and stability.
- Install safety protection devices such as overload protection, power failure protection, limit switches, etc. to prevent unexpected situations.
- Provide operation training and instructions to ensure that the staff can use and operate the magnetic lift correctly.
If youhave other questions or need to know more about our lifting products sales service, please feel free to call our sales
hotline+8618003732780 or email 18003732780@163.com. Our sales team will reply to your inquiry as soon as possible.
hotline+8618003732780 or email 18003732780@163.com. Our sales team will reply to your inquiry as soon as possible.
