LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00
3 Ton Single Girder Bridge Crane New Product Provided Used Engineering & Construction Machine Crane Eastwood 2 Ton Engine Crane
- Category: >>>
- Supplier: Zhongpu Crane Co. Ltd.
Share on (1600915659166):
Product Overview
Description
Products Description

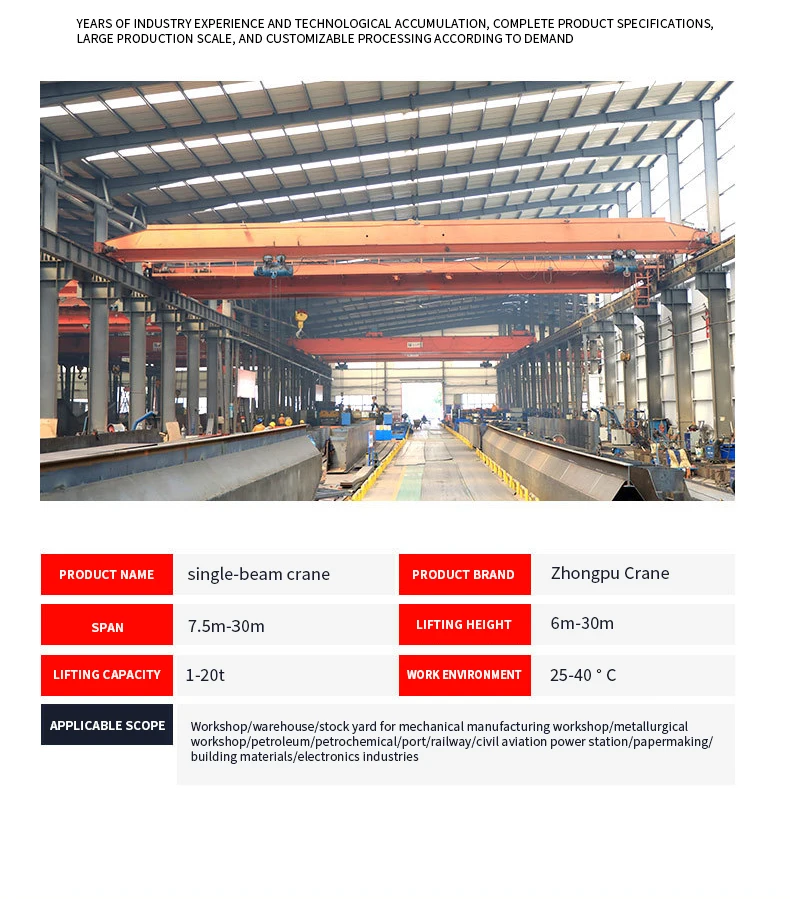

Details Images
Product Paramenters
CD/MD Electric Hoist | ||||||||||||||
Lifting weight(t) | 1T | 2T | 3T | 5T | 10T | |||||||||
Lifting height(m) | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | |||||||||
Lifting speed (m/min) | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 77/0.7 | |||||||||
Running speed(m/min) | 20 | 20 | 20 | 20 | 20 | |||||||||
Bonding number(n/hr) | 120 | 120 | 120 | 120 | 120 | |||||||||
Wire rope | Diameter | 7.4m/m | 11mm | 13mm | 15mm | 15mm | ||||||||
Structure | D-6*37+1 | D-6*37+1 | D-6*37+1 | D-6*37+1 | D-6*37+1 | |||||||||
I-beam models | 16-28b | 20a-32c | 20a-32c | 25a-45c | 32a-63c | |||||||||
Motor | Hoist | Power | 1.51.5/0.2 | 3 3/0.4 | 4.54.5/0.4 | 7.5 7.5/0.8 | 13 13/2.0 | |||||||
Speed | 1380 | 1380 | 1380 | 1400 | 1400 | |||||||||
Oper ation | Power | 0.2 | 0.4 | 0.4 | 0.8 | 0.8 | ||||||||
Speed | 1380 | 1380 | 1380 | 1380 | 1380 | |||||||||
Type of work | M3 | M3 | M3 | M3 | M3 | |||||||||
Institution level | 25% | 25% | 25% | 25% | 25% | |||||||||
HC/HM Electric Hoist | ||||||||||||||
Lifting weight(t) | 16T | 20T | 25T | 32T | 50T | |||||||||
Lifting height(m) | 9/12/16/18/20/24/30/35/40/45 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/ 30 | |||||||||
Lifting speed(m/min) | 6(6/0.6) 4.2(0.42/4.2) | 3.3(0.33/3.3) 4.2(0.42/4.2) | 3(0.3/3) | 3(0.3/3) | 2.4(0.24/2.4) | |||||||||
Running speed(m/min) | 18 | 14 | 18 | 16 | 20 | |||||||||
Bonding number(n/hr) | 120 | 120 | 120 | 120 | 120 | |||||||||
Wire rope | Diameter | 26/17.5mm | 21.5mm | 21.5mm | 26mm | 15mm | ||||||||
Structure | 6*37 | 6*37 | 6*37 | 6*37 | 6*37 | |||||||||
-beam models | 50a-63c | 56a-63c | 56a-63c | >63c | 32a-63c | |||||||||
Motor | Hoist | Power | 18.5(2.2/18.5) | 18.5(2.2/18.5) | 18.5(2.2/18.5) | 18.5(2.2/18. 5) | 1313/2.0 | |||||||
Speed | 960 | 1400 | 1400 | 960 | 1400 | |||||||||
Operati on | Power | 0.8*4 | 0.8*4 | 0.8*4 | 0.8*4 | 0.8*4 | ||||||||
Speed | 1380 | 1380 | 1380 | 1380 | 1380 | |||||||||
Type of work | M3 | M6 | M6 | M6 | M6 | |||||||||
Institution leve | 25% | 25% | 25% | 25% | 25% | |||||||||
Application scenarios

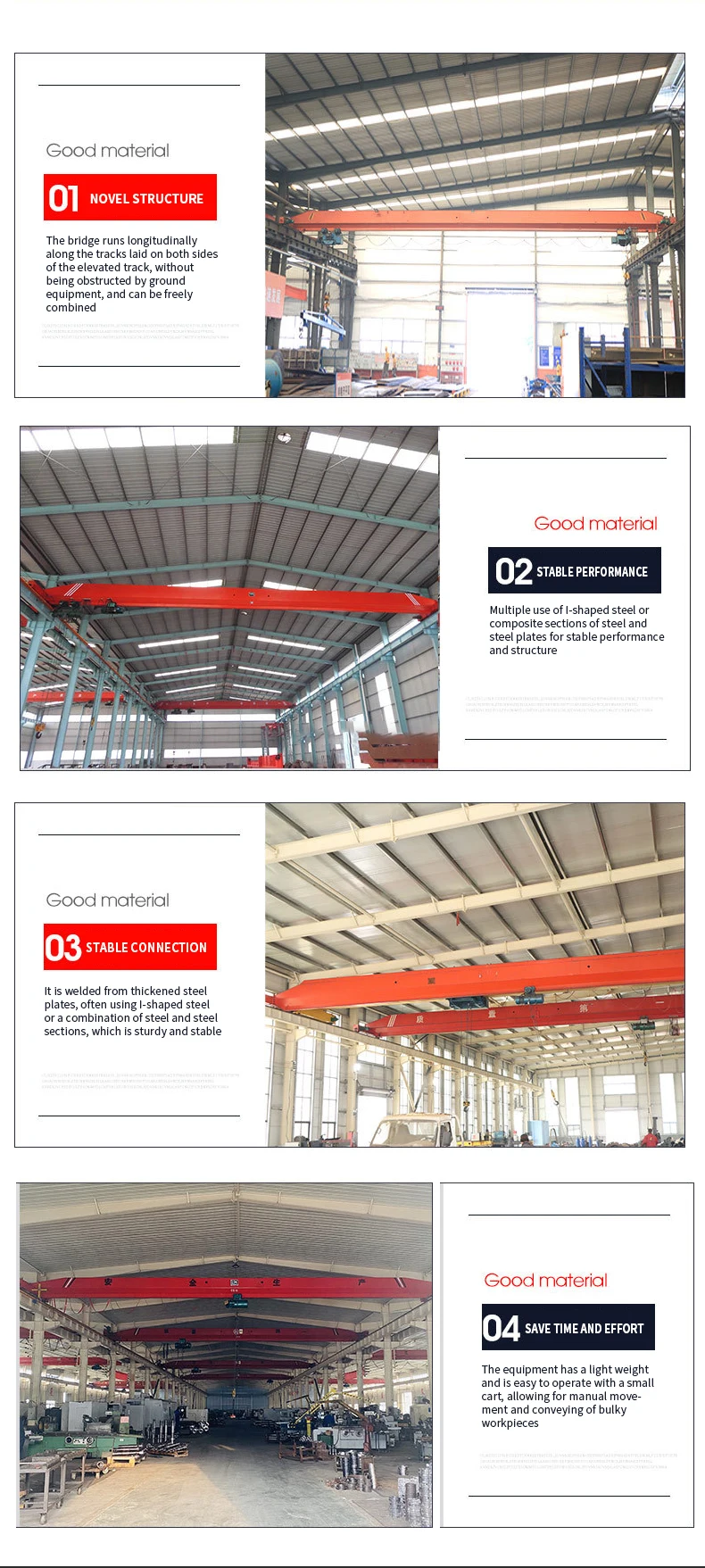

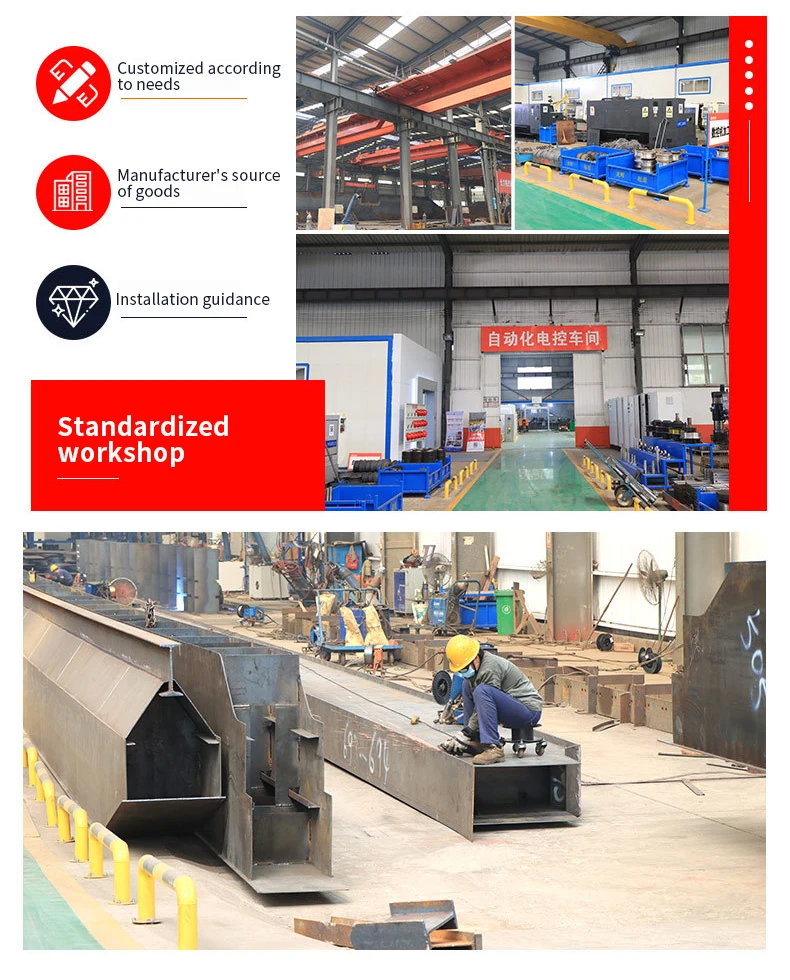

Our Advantages

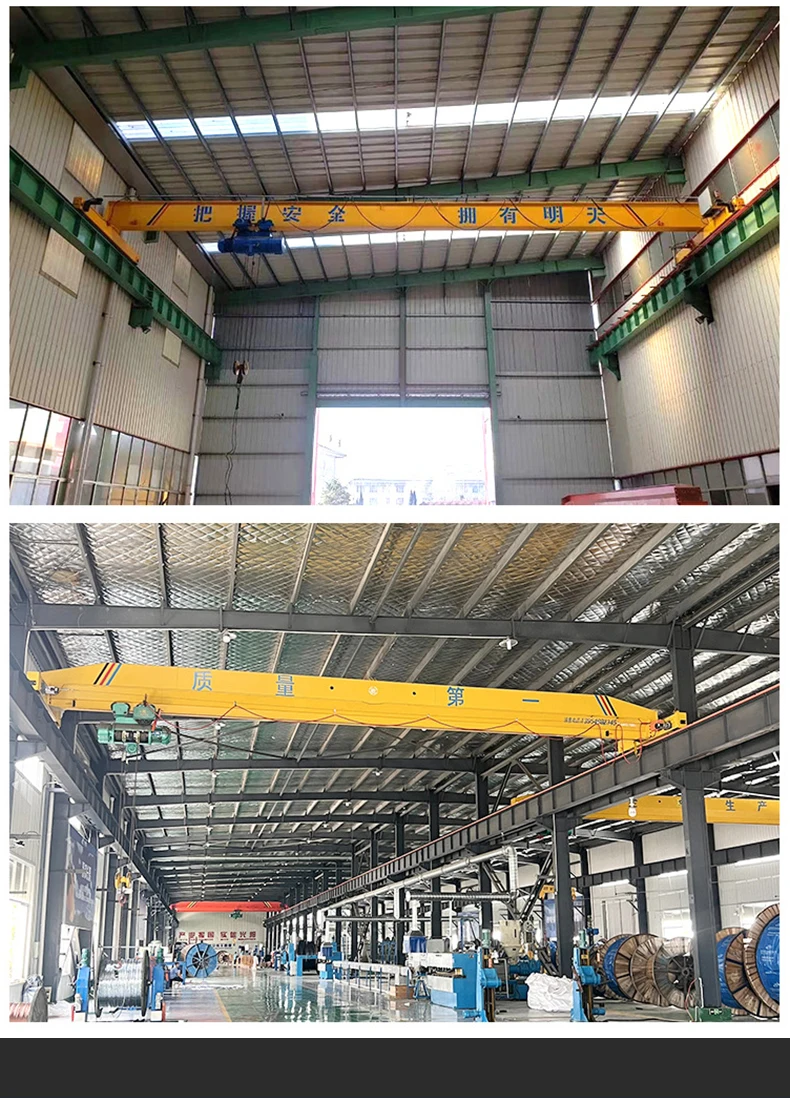

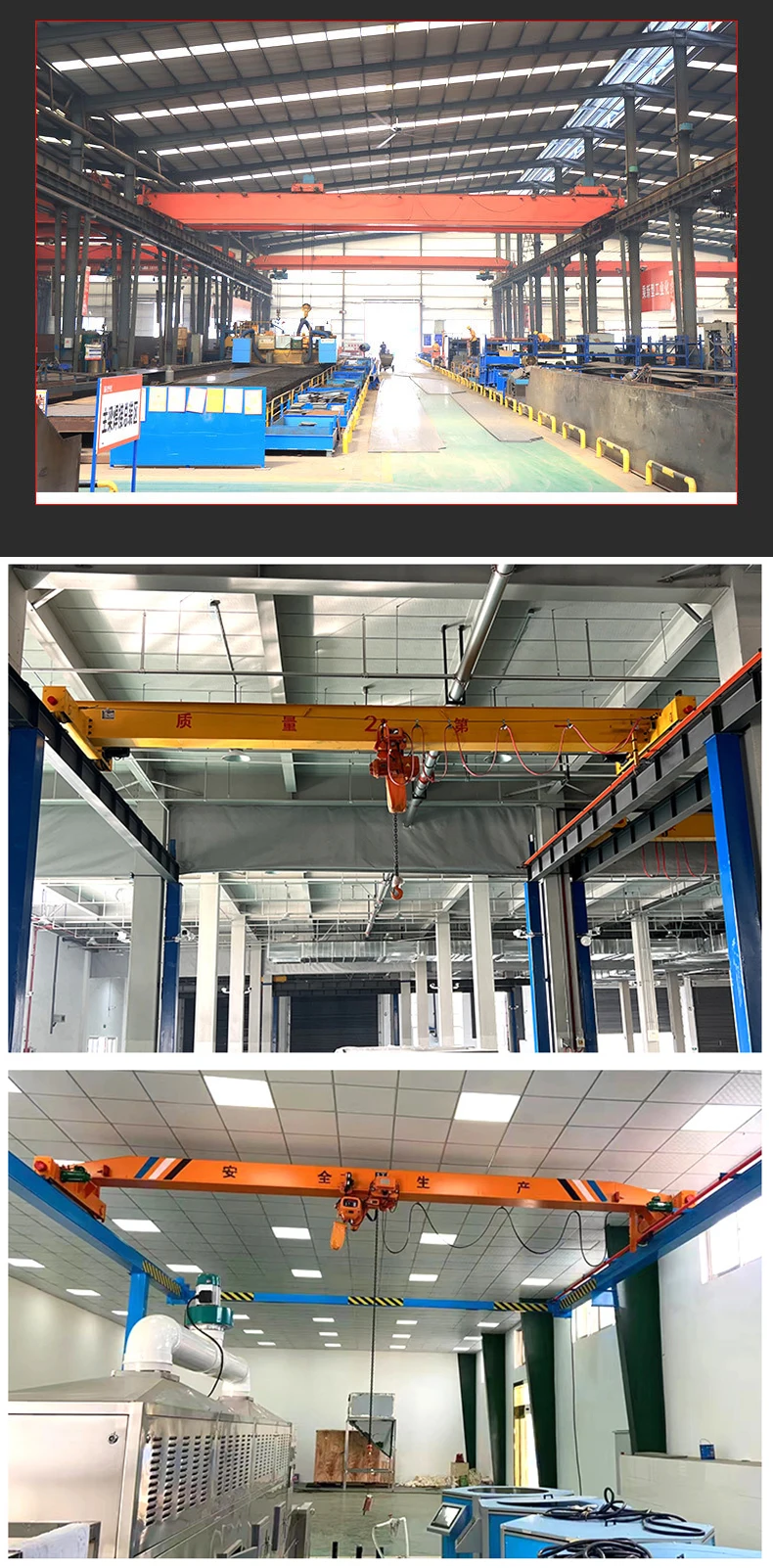

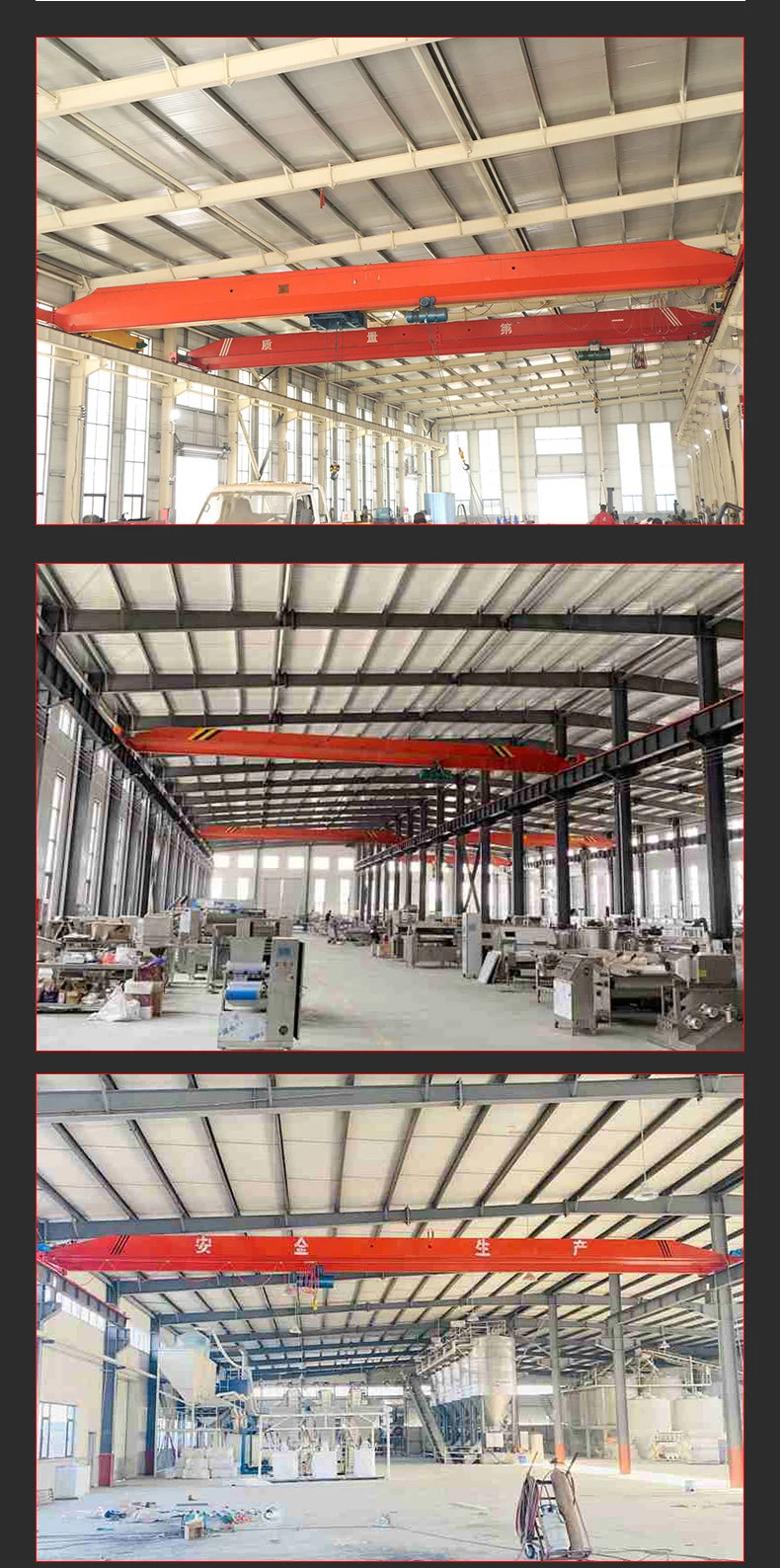

Real cases
FAQ
Q: What are the characteristics of single girder crane?
A: Single girder crane has the following characteristics:
1. Simple structure: Since there is only one beam support, the structure is relatively simple, and installation and maintenance are more convenient.
2. Light weight: Compared with other crane types, the single girder crane itself is lighter in weight and is suitable for some places with limited space.
3. Flexible operation: horizontal movement and vertical lifting can be carried out, which can meet different work needs.
4. Lower cost: Compared with other lifting equipment, the cost of single girder crane is lower and suitable for small and medium-sized enterprises.
Q: Where is the single girder crane used?
A: Single girder crane is suitable for the following occasions:
1. Light manufacturing industry: suitable for loading and unloading and handling operations in light machinery, electronics, food and other industries.
2. Warehouse and logistics industry: used for cargo handling, unloading and stacking operations in warehouses and logistics.
3. Workshop production line: it can be used for workpiece loading and unloading, processing and assembly on the production line.
4. Building construction: suitable for all kinds of lifting operations on construction sites, such as lifting steel beams, installing equipment, etc.
Q: Safety precautions for single girder crane?
A: When using a single girder crane, you need to pay attention to the following safety precautions:
1. The operator should be professionally trained and hold the operation certificate.
2. Check the working condition of the crane and the reliability of related safety devices.
3. Ensure that the weight of the lifting object does not exceed the rated load-bearing capacity of the crane.
4. Stay away from under the lifting object during operation to avoid accidental injury.
5. Stop using the crane in rainy weather or bad environment.
6. Regularly check the maintenance and maintenance of the crane to ensure the normal operation and safety of the equipment.
A: Single girder crane has the following characteristics:
1. Simple structure: Since there is only one beam support, the structure is relatively simple, and installation and maintenance are more convenient.
2. Light weight: Compared with other crane types, the single girder crane itself is lighter in weight and is suitable for some places with limited space.
3. Flexible operation: horizontal movement and vertical lifting can be carried out, which can meet different work needs.
4. Lower cost: Compared with other lifting equipment, the cost of single girder crane is lower and suitable for small and medium-sized enterprises.
Q: Where is the single girder crane used?
A: Single girder crane is suitable for the following occasions:
1. Light manufacturing industry: suitable for loading and unloading and handling operations in light machinery, electronics, food and other industries.
2. Warehouse and logistics industry: used for cargo handling, unloading and stacking operations in warehouses and logistics.
3. Workshop production line: it can be used for workpiece loading and unloading, processing and assembly on the production line.
4. Building construction: suitable for all kinds of lifting operations on construction sites, such as lifting steel beams, installing equipment, etc.
Q: Safety precautions for single girder crane?
A: When using a single girder crane, you need to pay attention to the following safety precautions:
1. The operator should be professionally trained and hold the operation certificate.
2. Check the working condition of the crane and the reliability of related safety devices.
3. Ensure that the weight of the lifting object does not exceed the rated load-bearing capacity of the crane.
4. Stay away from under the lifting object during operation to avoid accidental injury.
5. Stop using the crane in rainy weather or bad environment.
6. Regularly check the maintenance and maintenance of the crane to ensure the normal operation and safety of the equipment.
7. If you have other questions or need to know more about our lifting products sales service, please feel free to call our sales hotline+8618003732780 or email 18003732780@163.com. Our sales team will reply to your inquiry as soon as possible.
