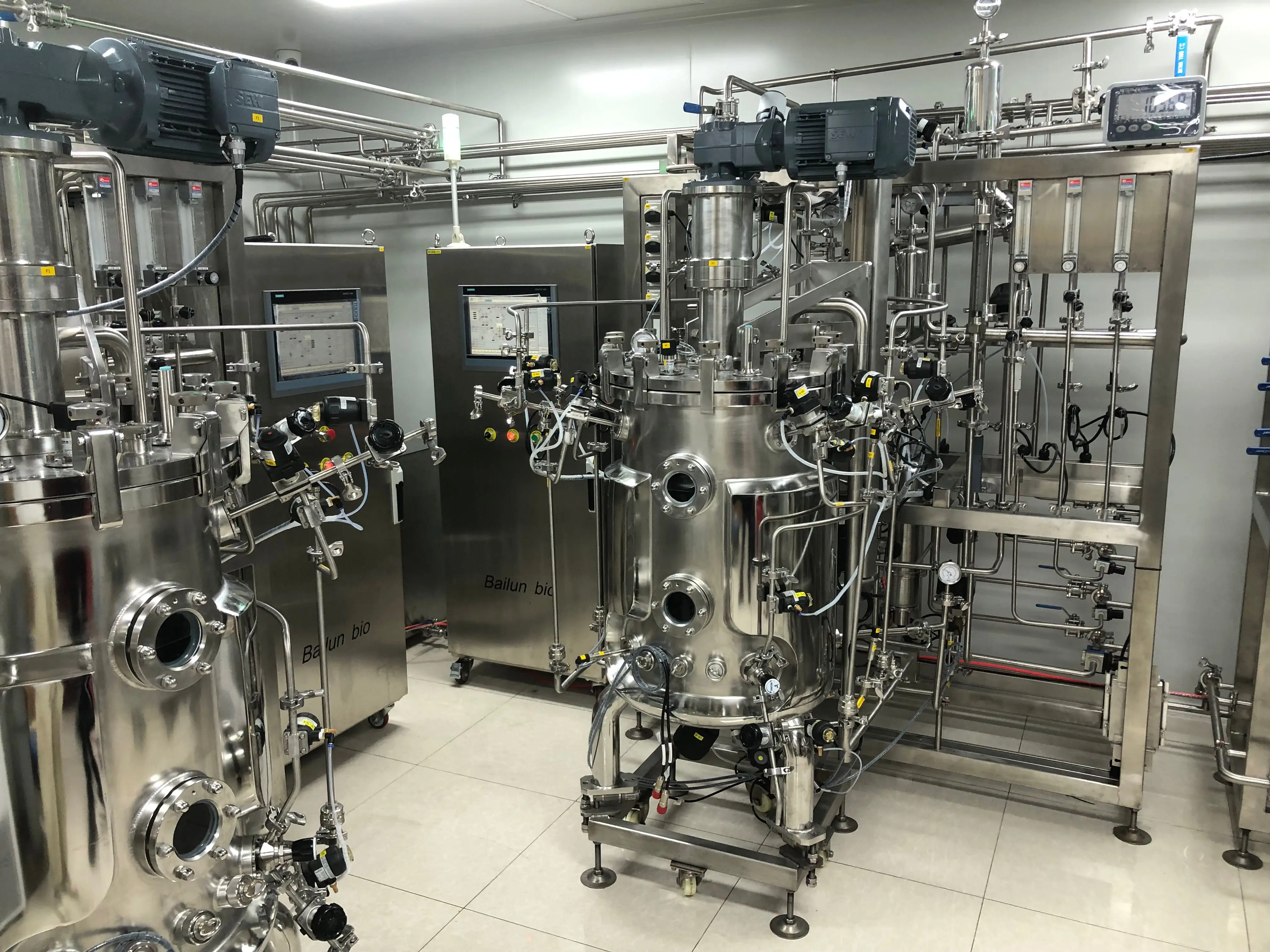

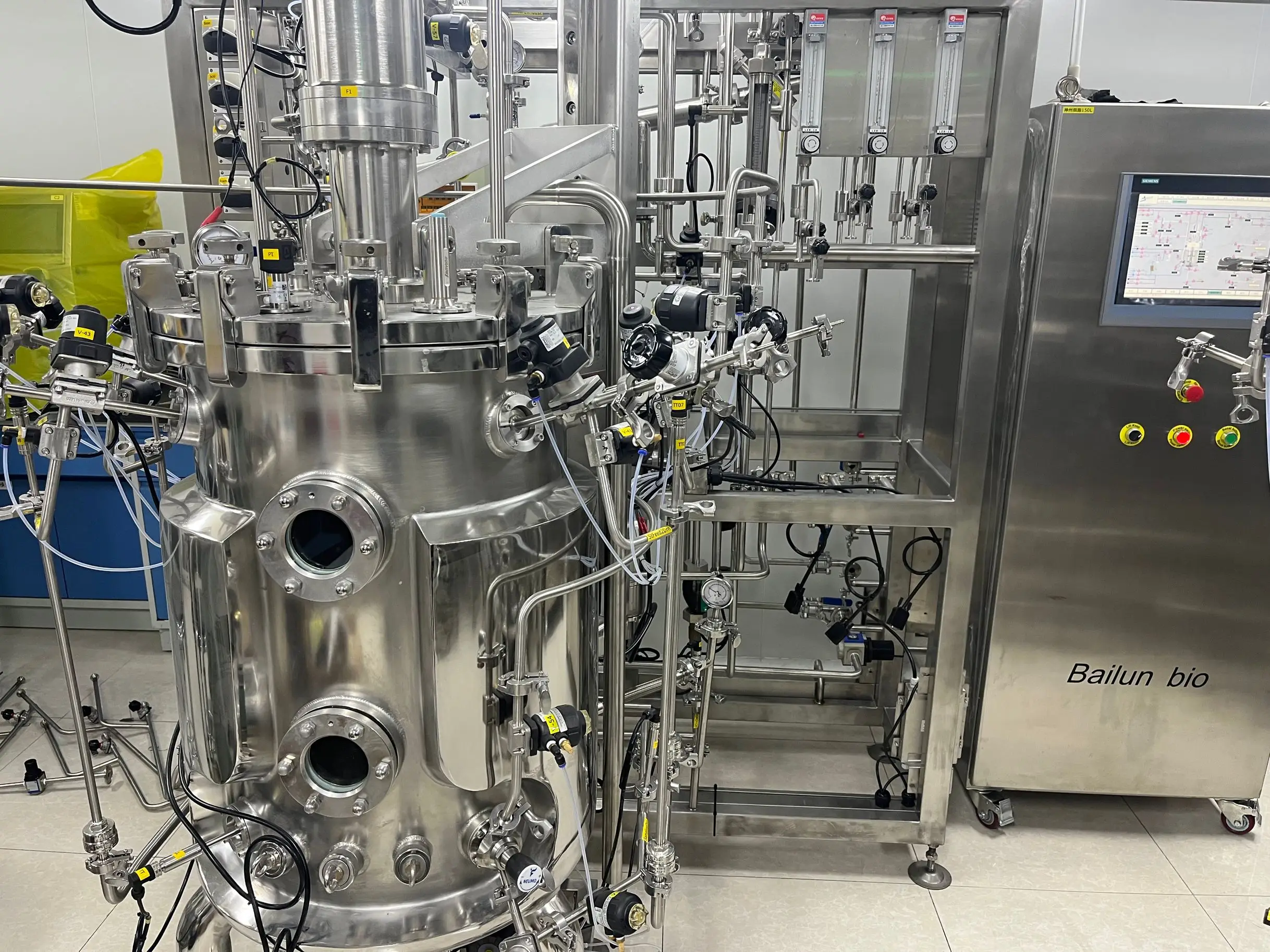

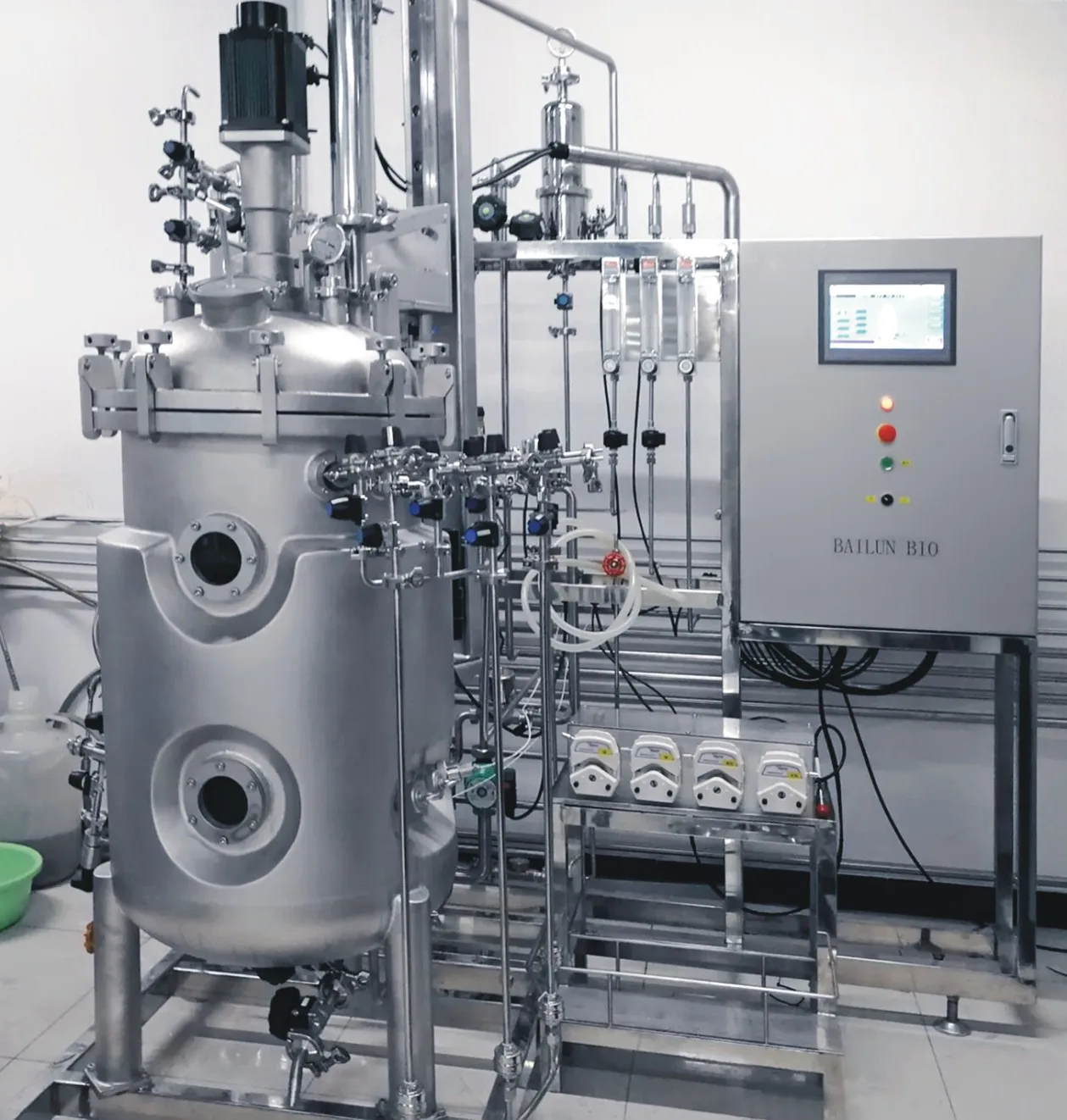

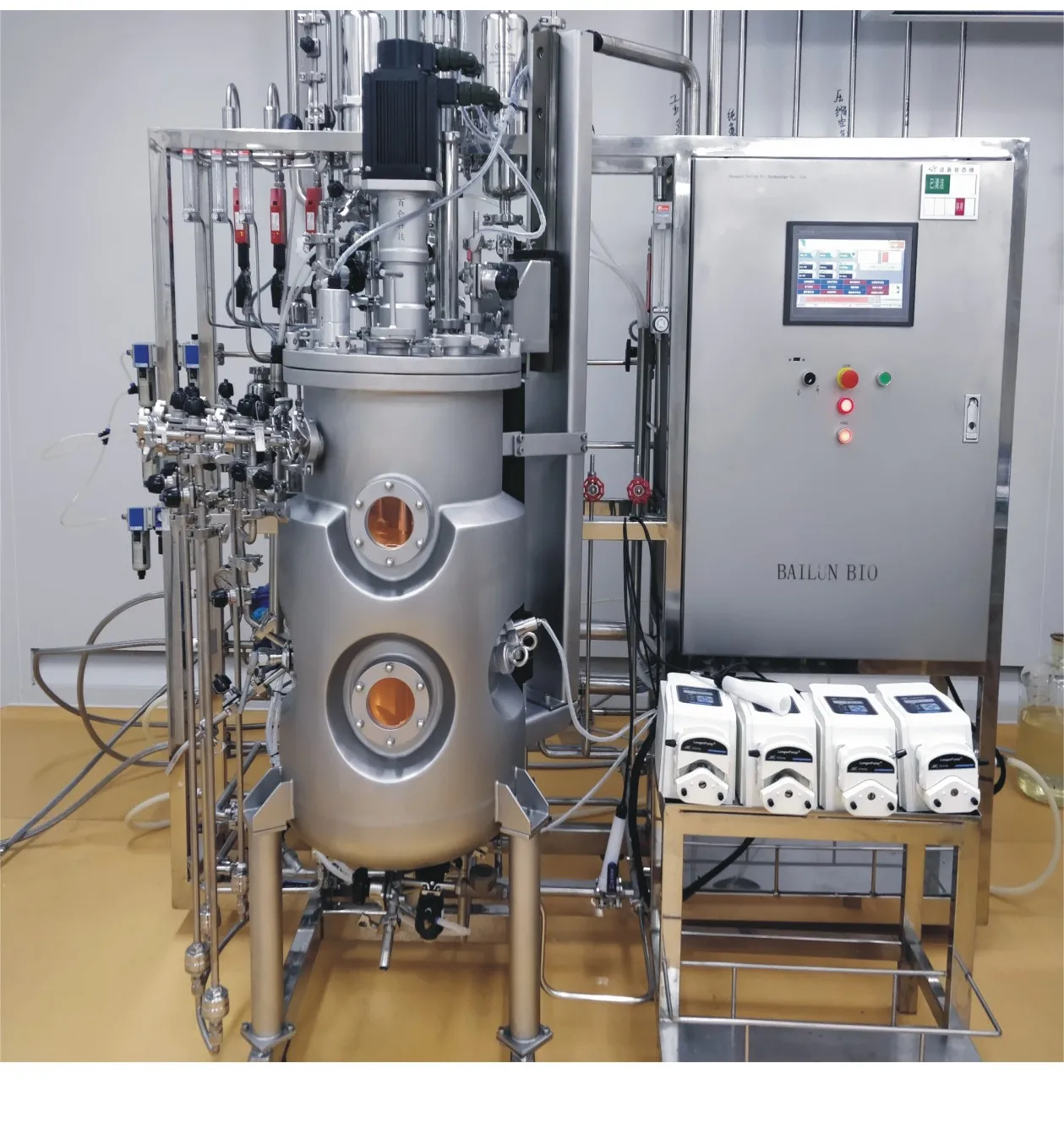

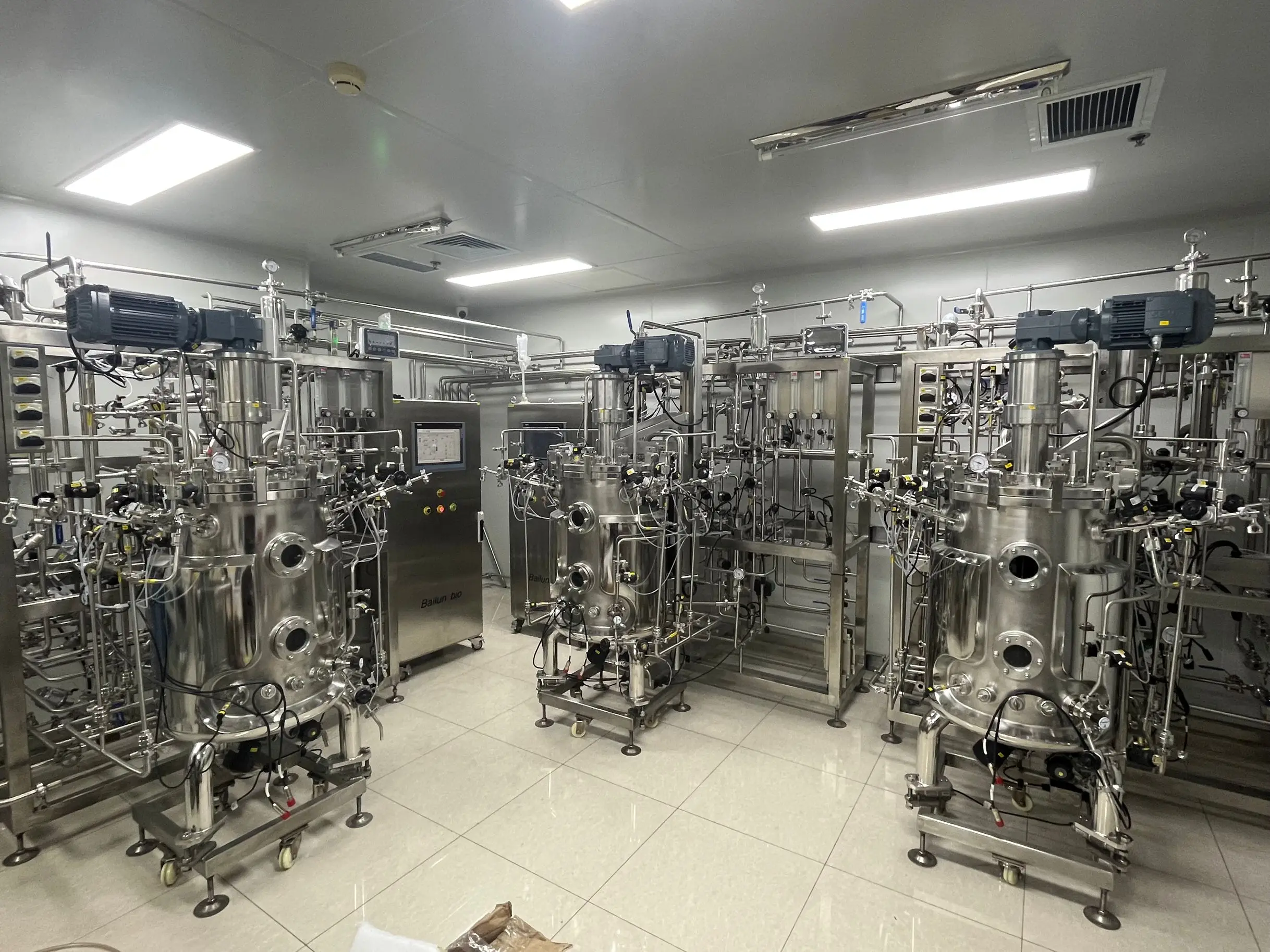

Wholesale products mammalian cell bioreactor with BLBIO SCUC model which is suitable for avian influenza vaccine

Product Name

Mammalian cell bioreactor

Material

Stainless steel 316L and 304

Minimum volume

110*80*175cm

Selling point

Internal and external polishing, internal electrolytic polishing, precision: 0.2-0.4um, internal no blind angle; tank material is
316L stainless steel material, clip material is stainless steel 304. Internal tank large visual angle liquid level observation
sight glasses, 12V automatic delay Philips safety sight lamp; Two 25mm side holes can connect pH, DO and other sensors, with
temperature, pH, DO

Tank: design pressure 0.3 Mpa Clip: design pressure is 0.3 Mpa, use the optimization diversion design, improve the exchange
efficiency and tank temperature uniformity.
Aspect Ratio (Height: Diameter ratio): about 2:1.5

Provision for mixing at least four gases (Air, Oxygen, Nitrogen and CO2)

With pH/DO electrode, weight electrode from Hamilton/ Mettle,Switzerland

Cooling system with exhaust (organic matter and water of tank will not be lost with the gas exhaust) diaphragm valve control the
exhaust not to be infected, specially designed exhaust pipe without the accumulated liquid and bacterium. Using special low shear
mixer (turbine) when suspension cell culture.

Siemens S7-200 series PLC + 10-inch tablet computer touch screen display, direct on-site operation (menu type), full English menu
and interface; data transmission with the upper computer, sampling and display of tank data, browsing and analysis of system data,
Read settings. Control or collect parameters such as pH, DO, tank pressure, temperature, speed, air flow, feed weighing,
fermentation broth volume, etc., and can easily calibrate pH and DO electrodes through software; set the initial control state of
parameters; have an independent Curve analysis system; directly analyze the historical curve
