Grosper double pair roller dehuller D4150 44KW dehuller for cotton seeds
- Category: >>>
- Supplier: Dalian Gaochang Machinery Manufacturing Co. Ltd.
Share on (1600916057937):

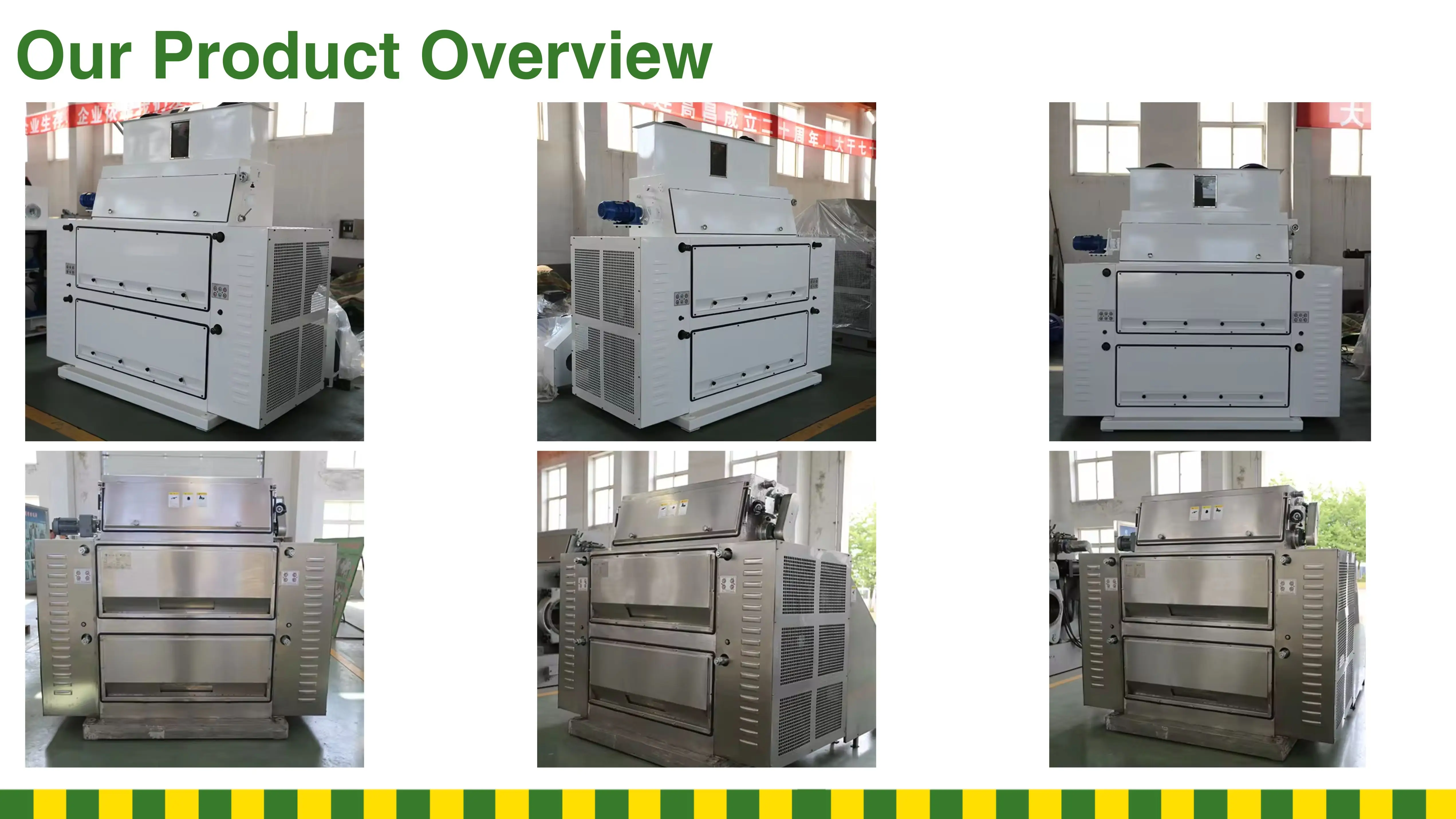

Product Overview
Description
Model | Capacity（T/D） | Dehulling rate | Roller size（mm） | power(kW) | Dimensions（mm） | Weight(≈t) |
D4125 | 260-300 | ≥99% | 400*1250 | 22*2+0.55 | 2300*1250*1950 | 6.5 |
D4100 | 200-260 | ≥99% | 400*1000 | 18.5*2+0.55 | 2000*1250*1800 | 5 |
D3125 | 200-260 | ≥99% | 300*1250 | 22*2+0.55 | 2200*1100*1800 | 4.2 |
D3100 | 150-200 | ≥99% | 300*1000 | 18.5*2+0.55 | 1900*1100*1800 | 3.8 |
D25125 | 150-200 | ≥99% | 250*1250 | 18.5*2+0.55 | 2200*920*1700 | 3.5 |
D25100 | 100-150 | ≥99% | 250*1000 | 15*2+0.55 | 1900*920*1700 | 3 |
Product Description

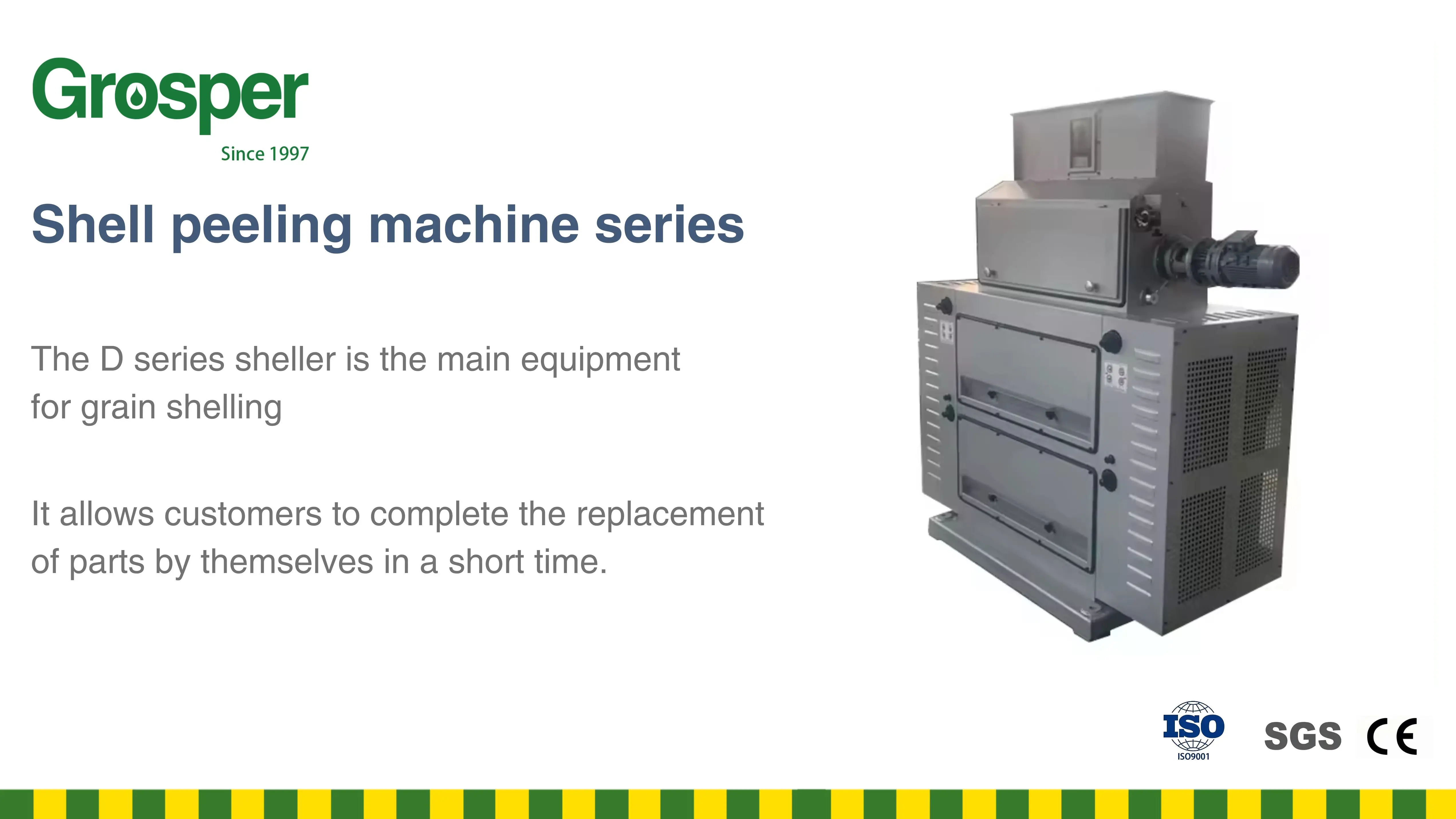

This kind of dehuller is used for edible oil pretreatment . The base configuration is as follows,

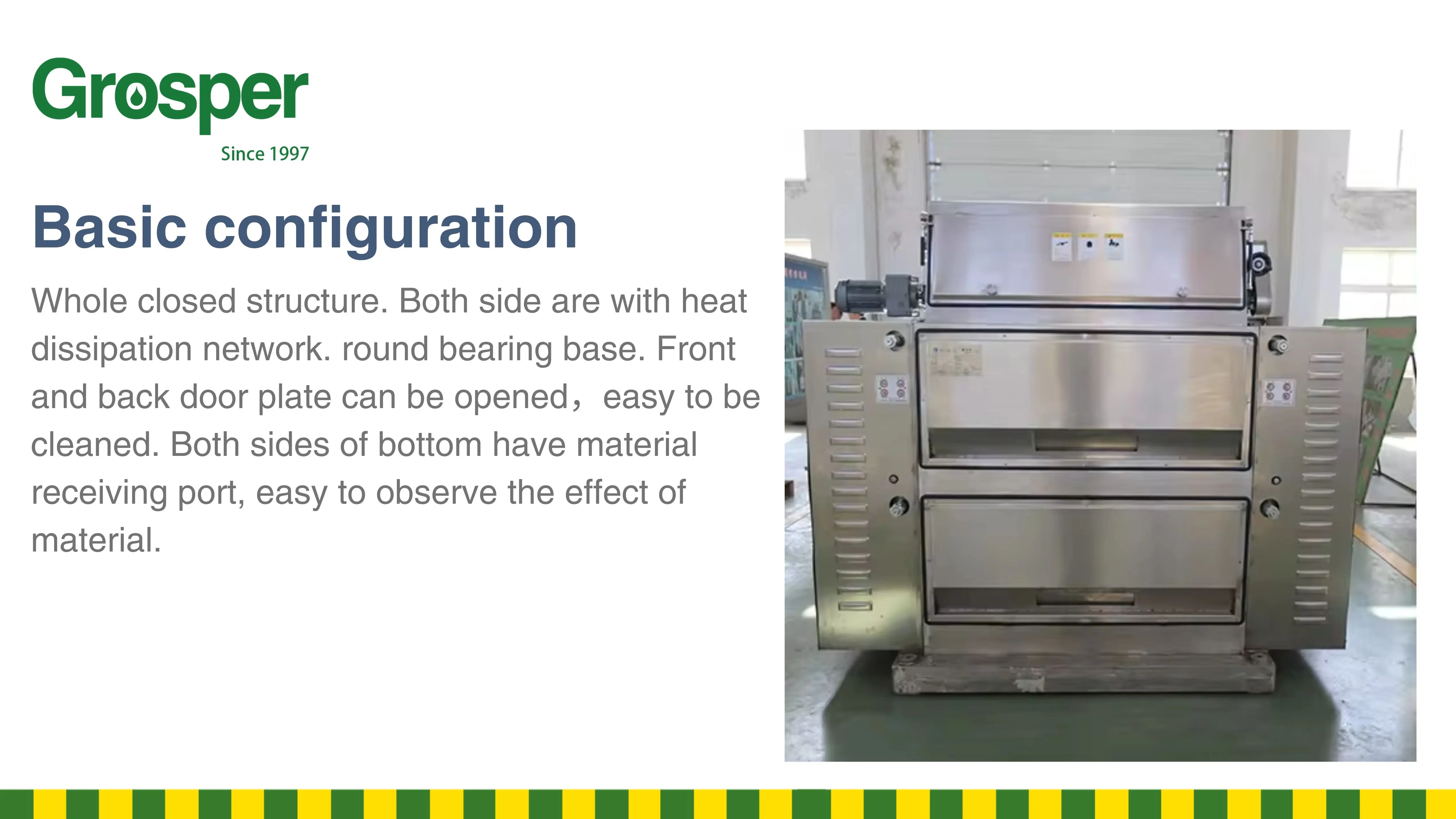

● Whole closed structure.Both sides have a heat dissipation network. Front and back door plates can be opened，easy to be cleaned.Both sides of bottom have a material receiving port，easy to observe the effect of material.

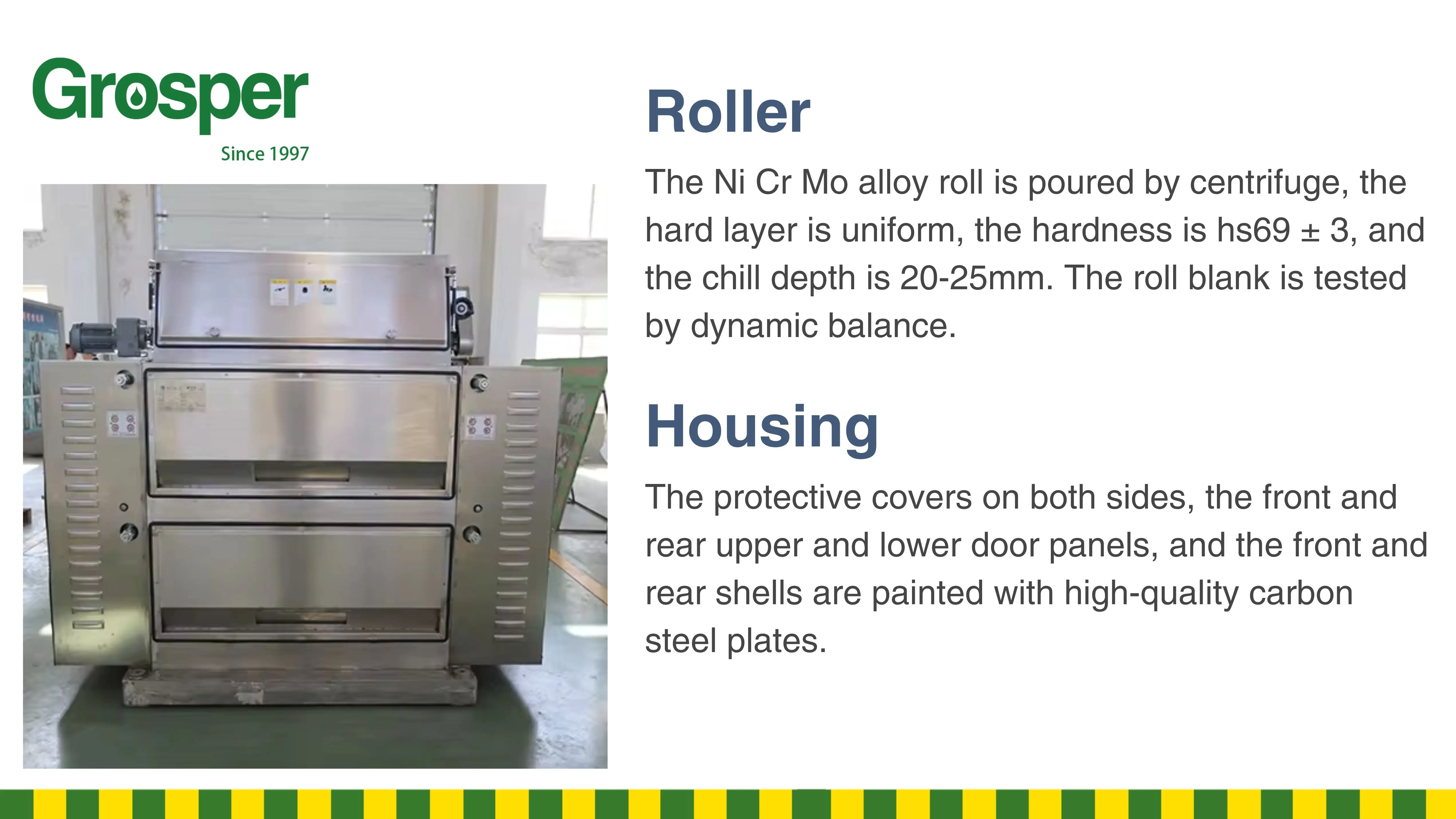

● Brand：The Ni Cr Mo alloy roll is poured by centrifuge, the hard layer is uniform, the hardness is hs69± 3, and the chill depth is 25+/-5mm. The roller is tested by dynamic balance.
● Protecting cover、 front、back、up and down door plate are made of carbon plate.
● Equipment base: carbon steel welded base.
● Tight-roll function:Spring-tightened roller adopts round bearing seat.
● Leak proof device:Leakage proof material by pinnacle baffle.
● Pulley : CPT brand
● Bearing: ZWZ brand
● Driven motors: Famous brand of domestic
● Brand：The Ni Cr Mo alloy roll is poured by centrifuge, the hard layer is uniform, the hardness is hs69± 3, and the chill depth is 25+/-5mm. The roller is tested by dynamic balance.
● Protecting cover、 front、back、up and down door plate are made of carbon plate.
● Equipment base: carbon steel welded base.
● Tight-roll function:Spring-tightened roller adopts round bearing seat.
● Leak proof device:Leakage proof material by pinnacle baffle.
● Pulley : CPT brand
● Bearing: ZWZ brand
● Driven motors: Famous brand of domestic
Product Paramenters
Item | Unit | Parameter |
Model | - | D4150 |
Trade Mark | Grosper | |
Capacity | T/24H | 400-450 |
Raw material | cottonseeds,sunflower seeds | |
Roller size | MM | 400*1500 |
Chill depth | MM | 25+/-5 |
Chill hardness | HS | 69+/-3 |
Shelling rate | above 99% | |
Roller speed | RPM | 710/321 |
Total motor power | KW | 44.55 |
Drive motor power | KW | 44 |
Reducer power | KW | 0.55 |
Approach weight | TON | 7.5 |
Overall dimension(length× width× height) | MM | 2700*1250*1950mm |
Customer cases
FAQ
1: What kind terms of payment can be accepted?
2: What certificates are available in Machinery?
3: What about the delivery time?
4: What about the warranty time?
5. What about the Minimum Order Quantity?
A: For terms of payment, by T/T
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO certificate .
3: What about the delivery time?
A: 60 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 set
