ZEWO High Quality Vertical Hydroponic Nft System Customized Drip Irrigation Water Fertilizer Machine Green House Kit Large
- Category: >>>
- Supplier: Wuxi Zewo Special Steel Co. Ltd.
Share on (1600916191804):
Product Overview
Description
Products Description

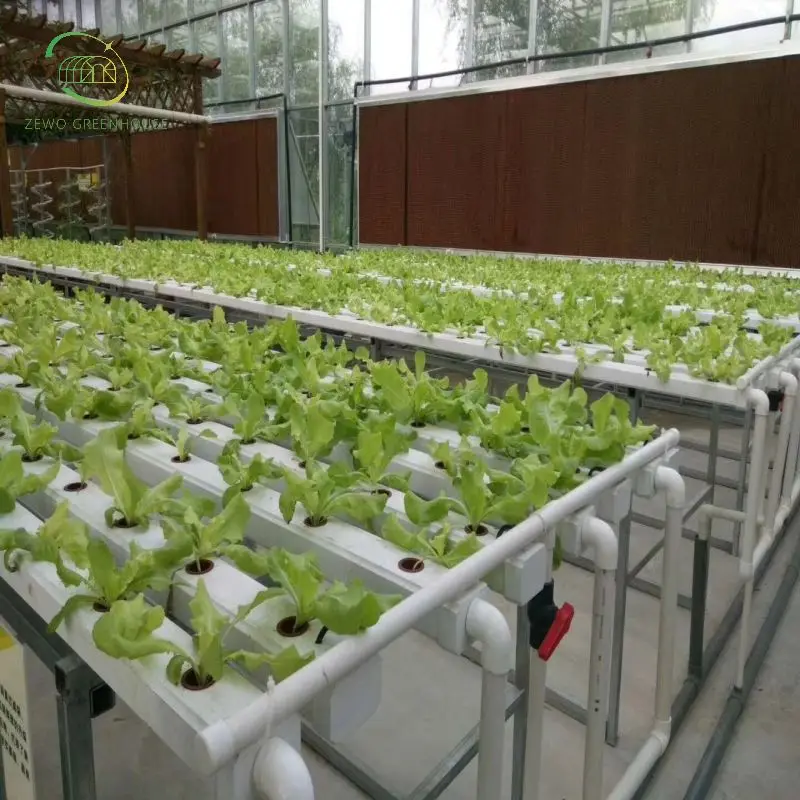

NFT is a hydroponic technique in which the root system of a plant grows in a plastic film tank or a fixed channel through which the nutrient solution is constantly circulated, thus providing the plant with the necessary nutrients and water.
Although NFT systems are designed in a variety of ways (tiled structure, A-frame structure, spiral structure, S-shaped pipe structure, etc.), they all have the same characteristics, that is, a very shallow nutrient solution circulates through the cultivation pipe, and the roots of the plant come into contact with the nutrient solution, absorbing water and nutrients from it.

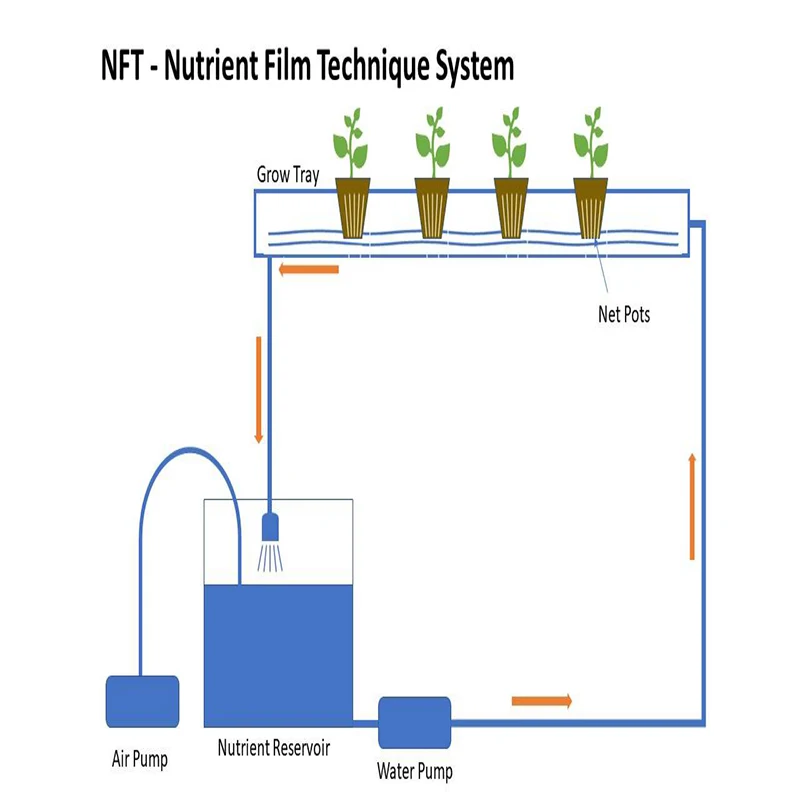

How the NFT hydroponic system works
How the NFT hydroponic system works

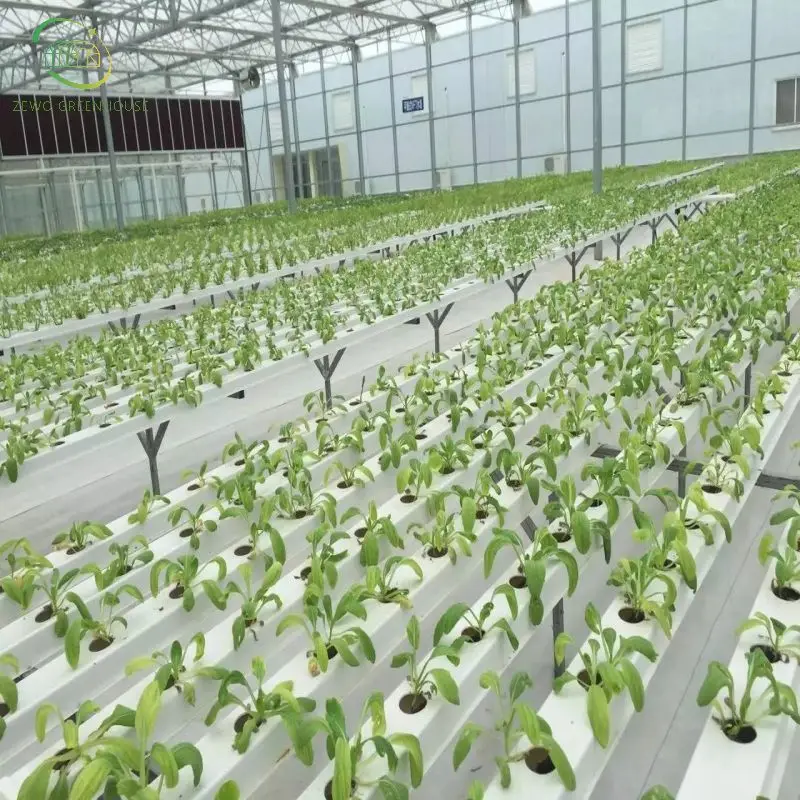

The seedlings are transplanted into the colonization cup and put into the small hole at the top of the cultivation tube, so that the roots of the seedlings hang down to the bottom of the cultivation pipe, the NFT hydroponic system nutrient solution flows to the head of each cultivation pipe through the liquid supply pipeline, the pipe has a certain slope, the nutrient solution will form a layer of nutrient solution film at the bottom of the pipe, slowly flow through each plant, and infiltrate the roots of the plant, and finally flow from the return liquid line at the end to the nutrient solution pool, ready for the next cycle irrigation.
Although the nutrient solution flowing through the pipe is very shallow, the roots of the whole plant will always be moist and can absorb the required nutrients at any time, and its hanging roots have a large contact area with air, and there is sufficient oxygen, which is also helpful for the growth of plants.
The seedlings are transplanted into the colonization cup and put into the small hole at the top of the cultivation tube, so that the roots of the seedlings hang down to the bottom of the cultivation pipe, the NFT hydroponic system nutrient solution flows to the head of each cultivation pipe through the liquid supply pipeline, the pipe has a certain slope, the nutrient solution will form a layer of nutrient solution film at the bottom of the pipe, slowly flow through each plant, and infiltrate the roots of the plant, and finally flow from the return liquid line at the end to the nutrient solution pool, ready for the next cycle irrigation.
Although the nutrient solution flowing through the pipe is very shallow, the roots of the whole plant will always be moist and can absorb the required nutrients at any time, and its hanging roots have a large contact area with air, and there is sufficient oxygen, which is also helpful for the growth of plants.

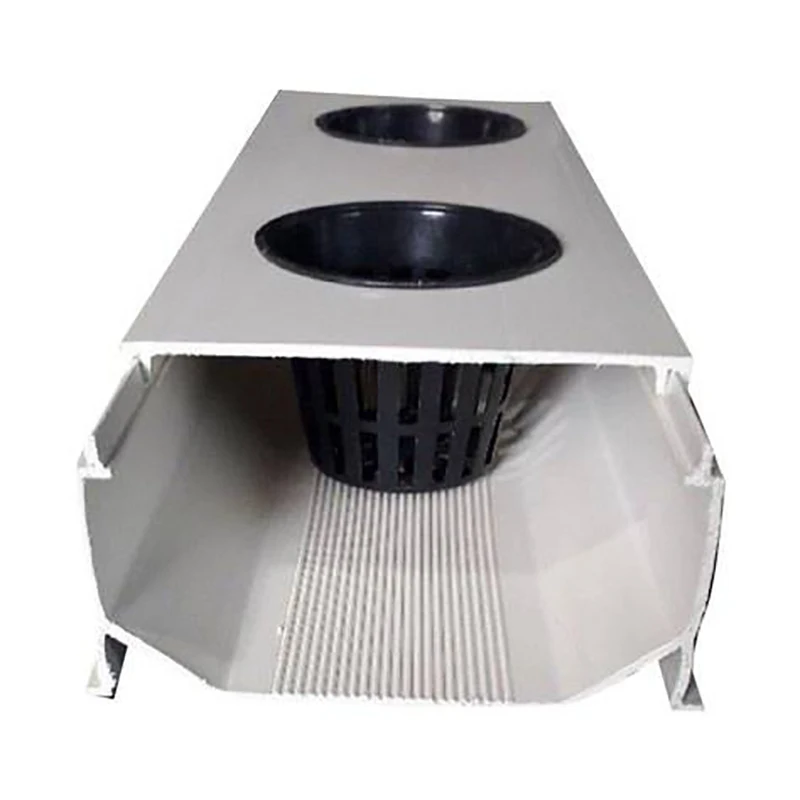

Item Name | Hydroponic NFT Channel |
Size | 100*50mm |
Material | PVC |
Thickness | 2.0mm/1.8mm |
Length | Customized |
Application | Agriculture Planting |
The main advantages of the NFT system
Greatly reduces water and nutrient consumption.
Matrix-related supply, handling, and cost issues are excluded.
Relatively easy to disinfect roots and devices compared to other system types.
Since no substrate is used, it is easy to check the roots for signs of disease, adequate nutrition, etc.
Regular nutrient supply (and associated flushing) prevents the accumulation of local inorganic salts in the root zone and maintains the root pH and EC unchanged.
Environmentally friendly, reducing sewage pollution.
Matrix-related supply, handling, and cost issues are excluded.
Relatively easy to disinfect roots and devices compared to other system types.
Since no substrate is used, it is easy to check the roots for signs of disease, adequate nutrition, etc.
Regular nutrient supply (and associated flushing) prevents the accumulation of local inorganic salts in the root zone and maintains the root pH and EC unchanged.
Environmentally friendly, reducing sewage pollution.
There are four common hydroponics techniques:
1.Deep flow technology, referred to as DFT(Deep Flow Technique)
2.Nutrient film technique, abbreviated as NFT(Nutrient Film Technique)

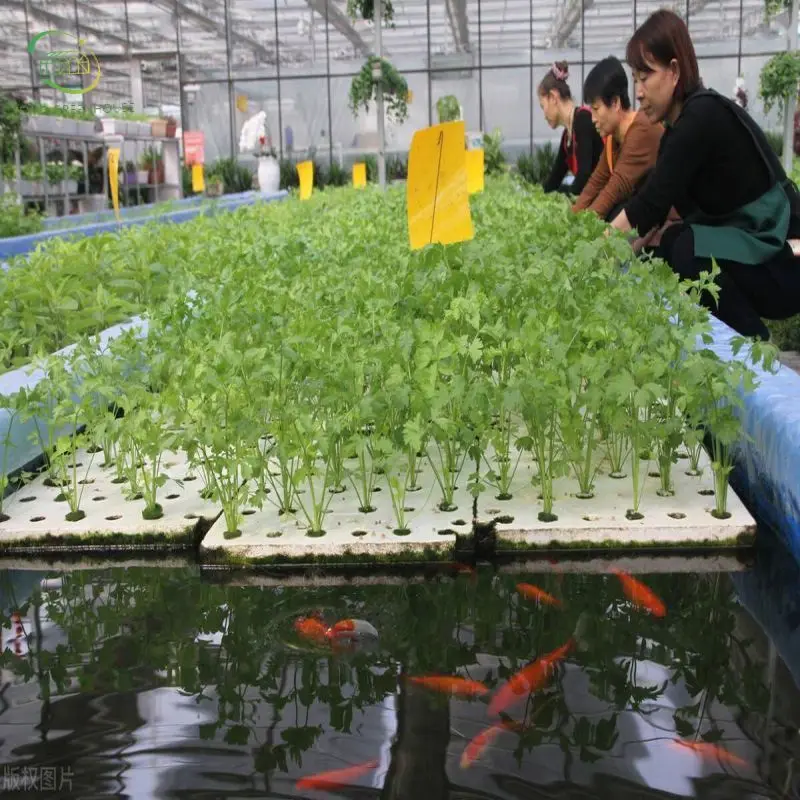

3.Floating capillary cultivation technique, abbreviated as FCH (Floating Capillary Hydroponics)
4.Fog culture technology, also known as spray culture and Aeroponics.
2.Nutrient film technique, abbreviated as NFT(Nutrient Film Technique)
3.Floating capillary cultivation technique, abbreviated as FCH (Floating Capillary Hydroponics)
4.Fog culture technology, also known as spray culture and Aeroponics.
Main Products
Why Choose Us
Company Profile

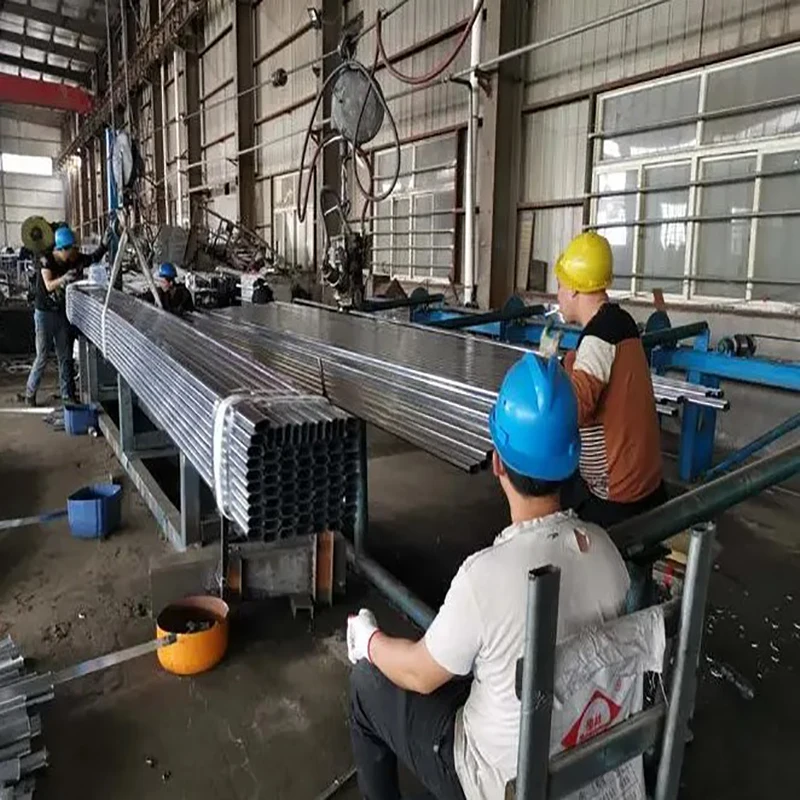

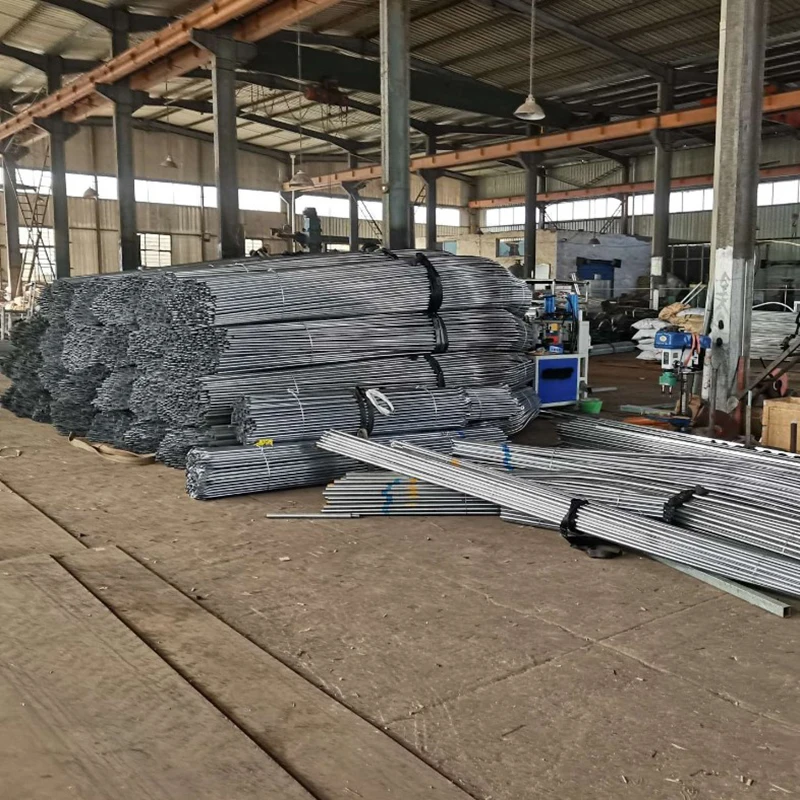

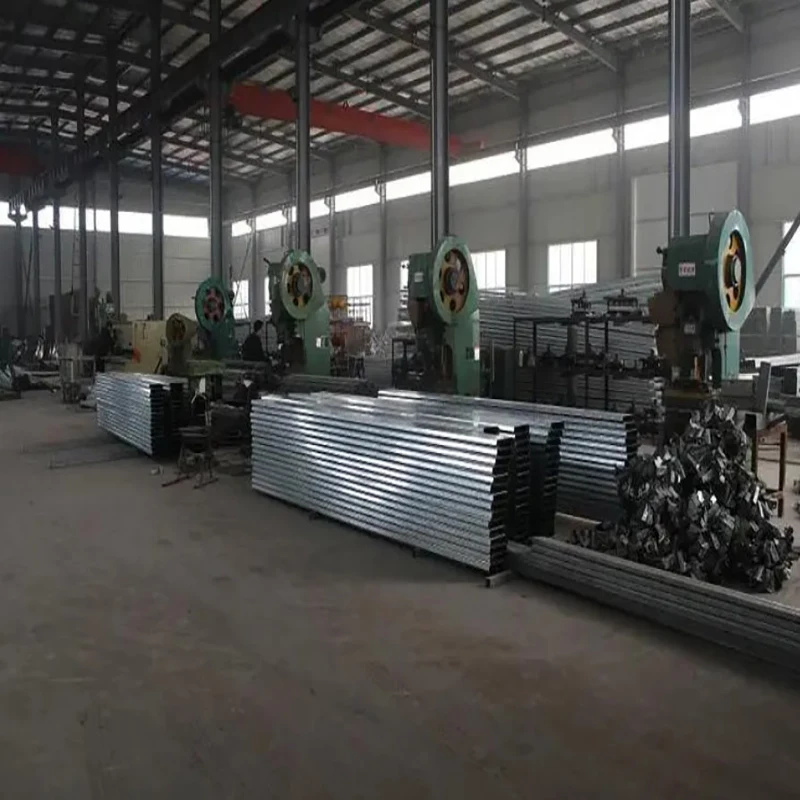

Wuxi Zewo Special Steel Co., Ltd. began to specialize in the production of greenhouse and greenhouse components in 2005.Our products are widely used in agricultural planting, scientific and technological research and development, leisure catering/entertainment, and other occasions and fields.Our products are reliable and long-lasting and backed by years of experience.
90% of our products are exported to all parts of the world.By leveraging our hard-won reputation for honesty, reliability and quality, Wuxi Zewo Special Steel Co., Ltd. aims to continue to be a pioneer in sales.
At the same time we are looking overseas for global partners. If your company is an end user, distributor or agent of greenhouse products, please contact us.
We look forward to working with you in the near future.
At the same time we are looking overseas for global partners. If your company is an end user, distributor or agent of greenhouse products, please contact us.
We look forward to working with you in the near future.
FAQ
1. who are we?
we are manufacturer for types of greenhouse for 9 years.
With professional engineer team for greenhouse design, complete after-sale service and factory direct sale for you now!
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?

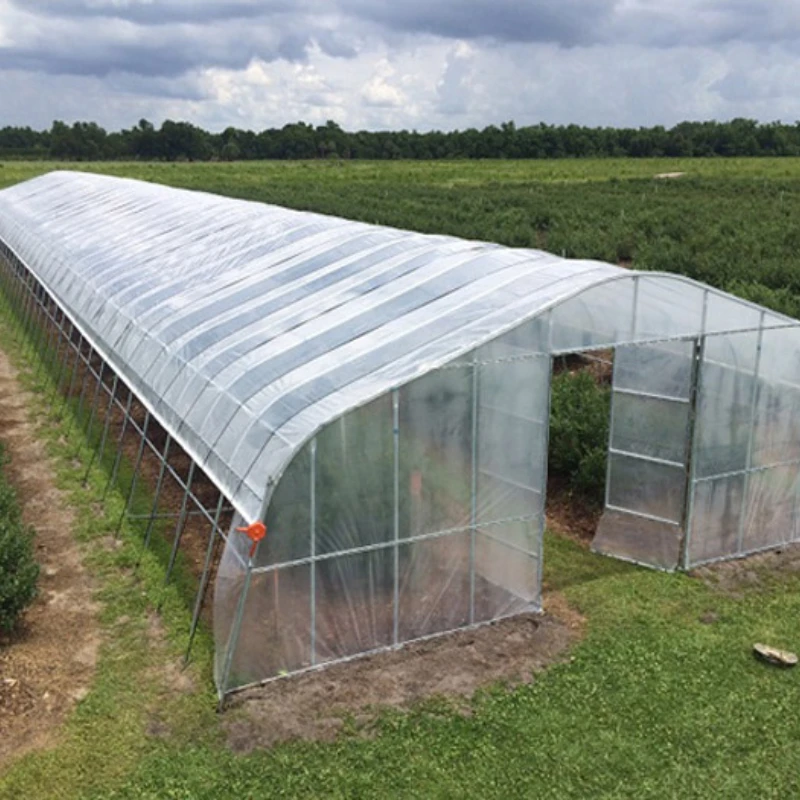

Greenhouse,Multi-Span Greenhouse,Glass Greenhouse,Plastic Film Greenhouse,Greenhouse Accessories.
4.Is there any instruction or manual guide installation?
Yes, English manual with drawing and video shipped together with goods for guiding your installation easily.
we are manufacturer for types of greenhouse for 9 years.
With professional engineer team for greenhouse design, complete after-sale service and factory direct sale for you now!
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Greenhouse,Multi-Span Greenhouse,Glass Greenhouse,Plastic Film Greenhouse,Greenhouse Accessories.
4.Is there any instruction or manual guide installation?
Yes, English manual with drawing and video shipped together with goods for guiding your installation easily.
