Product Overview
Description
Product Description
CNB-218D Home Security System 20M Alarm Single Infrared Beam Photoelectric sensor Switch
Active infrared safety beam photocell sensor (light barrier) for automatic sliding door safety presence detect. Available in single line or double beam.

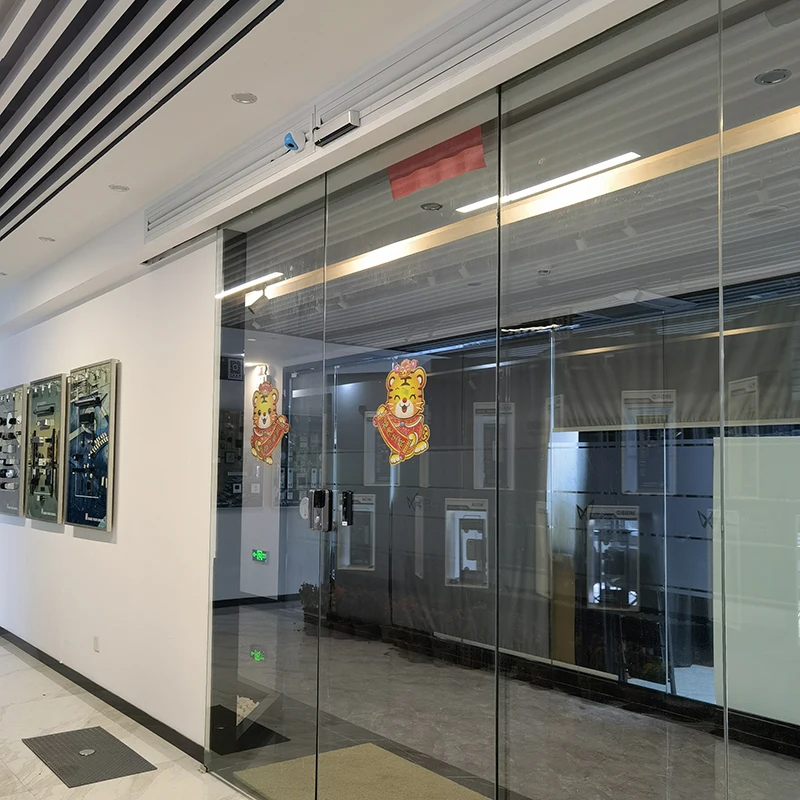

Mounting a safety beam sensor or light barrier is an effective safety solutions for automatic sliding door, electric glass door, automatic aluminium door or automatic frameless glass door systems.
Infrared signal emission from an eye on one side of door frame reaches the receiver eye on the other side, it will build a
straight light path. As long as the ray path blocked by kids, pets, disables, or any persons standing in the passage, the safety beam sensor or light barrier will immediately detect the obstacle and stop the door from closing, prevent the people or objects in between from being clamped.
In default, automatic sliding door will automatically close after holding a specific time. Hence, a safety monitor device has to be mounted on the door for presence detection. It can be a safety beam photocell sensor, light barrier or an active infrared safety sensor.
CNB-218D Single Beam Double Beams Sensor
CNB-218E Single Beam Double Beams Sensor
CNB-218F Three beams Safety Presence Detect
CNB-218H Three beams Active Infrared Safety Sensor
CNB-218JD Three beams Light Barrier
CNB-218A Four Beams Safety Sensor
CNB-218G Beams Sensor Bracket
Specification
Item | Safety beam sensor | Safety beam sensor | Safety beam sensor |
Brand | Canbo | Canbo | Canbo |
Model | CNB-218D/218E | CNB-218F/218H/218HT/218JD | CNB-218A |
Application | building/office/mall/hospital | building/office/mall/hospital | building/office/mall/hospital etc |
Certificate | ISO9001, CE | ISO9001, CE | ISO9001, CE |
Power input | AC/DC 12V~30V | AC/DC 12V~30V | AC/DC 12V~30V |
Beams | Single beams/double beams | Three/double/single beams | Independent four beams |
Diamension | 105.5(L×53.4(W×28.5(H)mm | 123(L×50(W×32(H)mm | 136.5(L×56(W×29.5(H)mm |
Diamension | 19mm(L)×13mm(D) | 19mm(L)×13mm(D) | 19mm(L)×13mm(D) |
Warranty | 1 Year | 1 Year | 1 Year |
Details Images

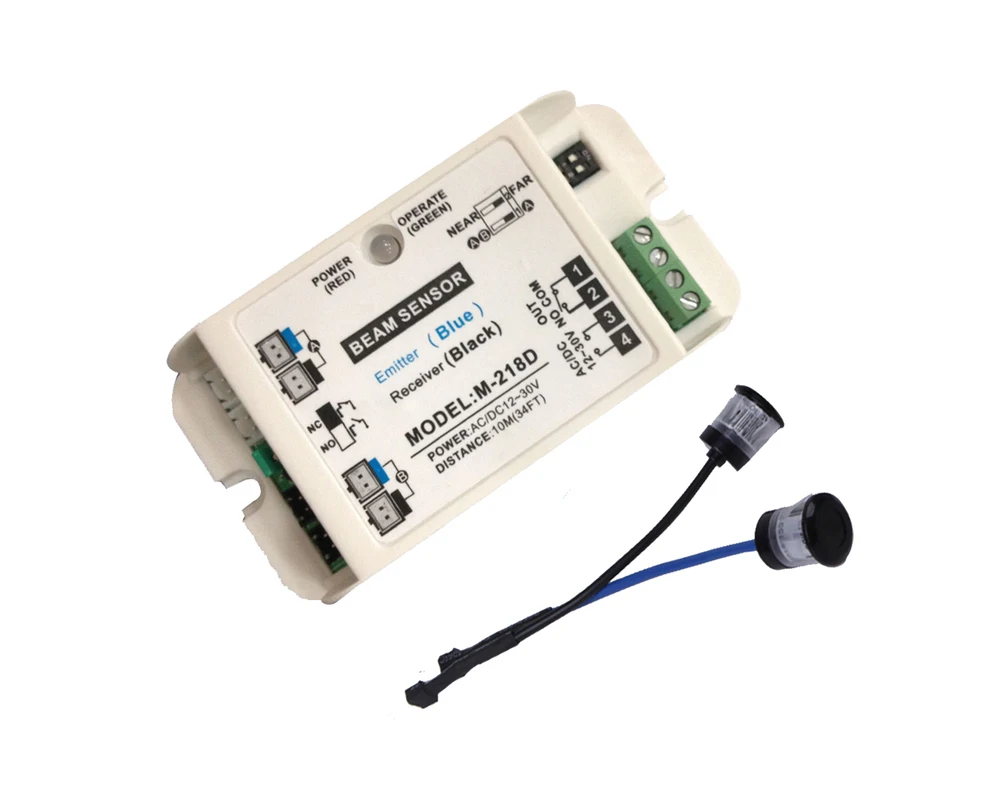

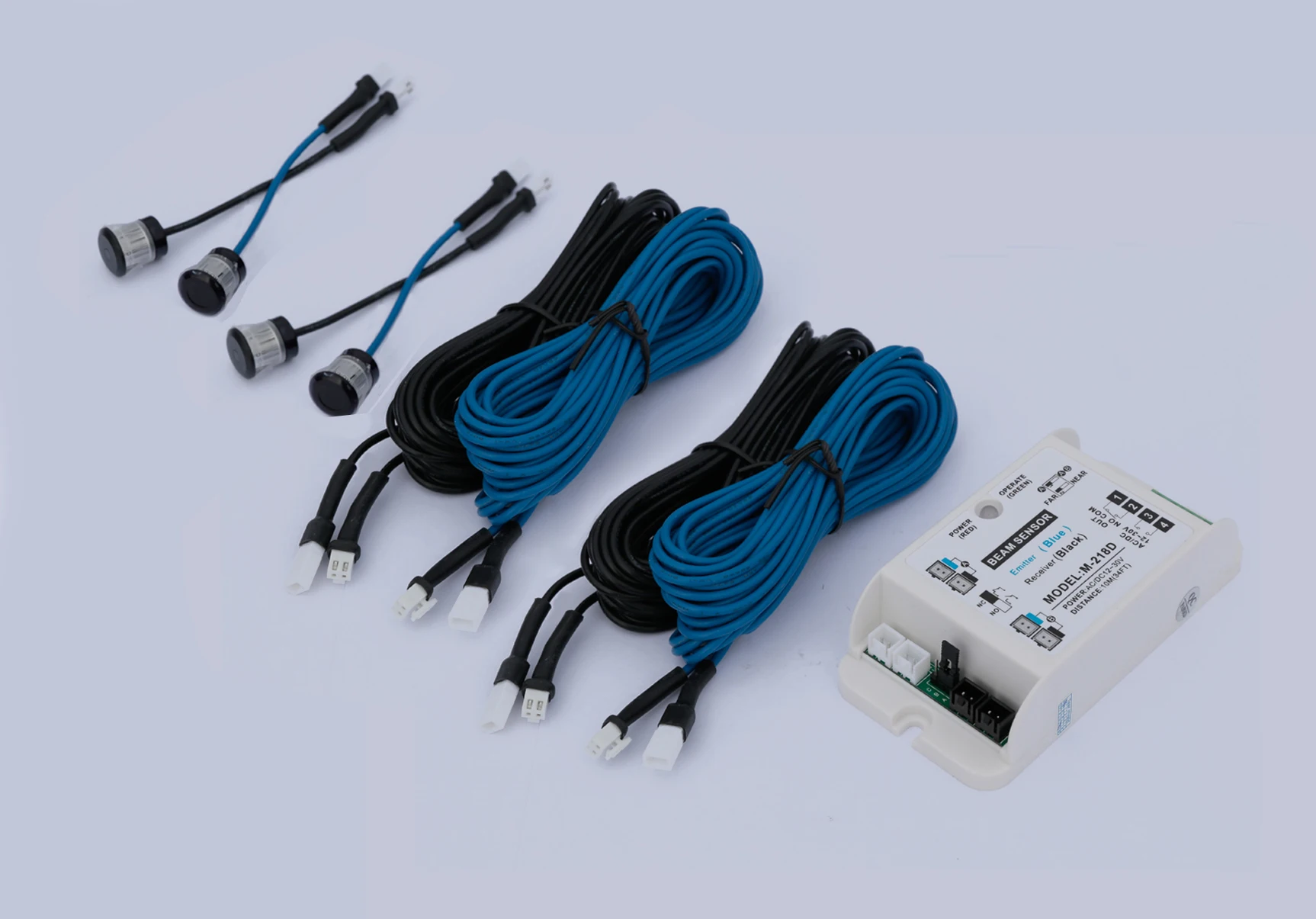

CNB-218D/218E
* Microcomputer control technology
* High system integration
* Strong stability
* Color corresponding plug - in socket, easy installation and wiring
* With the receiving head short - connection fault alarm function
* Max. working distance 10m (34ft)
* Available in single line or double beam.
* Single beam installation position: recommend 60cm from ground.
* Double beam installation position: recommend 30cm from ground for first beam and 90cm from ground for the second.
* Double beam installation position: recommend 30cm from ground for first beam and 90cm from ground for the second.
CNB-218F/218H/218JD
* Microcomputer control technology
* High system integration
* Strong stability
* Color corresponding plug - in socket, easy installation and wiring
* With the receiving head short - connection fault alarm function
* Max. working distance 10m (34ft)
* Available in single line or double beam or three beams
* Strong stability
* Color corresponding plug - in socket, easy installation and wiring
* With the receiving head short - connection fault alarm function
* Max. working distance 10m (34ft)
* Available in single line or double beam or three beams
* Single beam installation position: recommend 60cm from ground.
* Double beam installation position: recommend 30cm from ground for first beam and 90cm from ground for the second.
* Double beam installation position: recommend 30cm from ground for first beam and 90cm from ground for the second.
CNB-218A
* Launch receiving terminal distance
* Strong anti-interference
* Terminal connector, easy installation and wiring
* With the receiving head short - connection fault alarm function
* Max. working distance 8m
* Available in independent four beams
* Terminal connector, easy installation and wiring
* With the receiving head short - connection fault alarm function
* Max. working distance 8m
* Available in independent four beams
* To install at least 20cm above the gound
Packing & Delivery
Packing: poly bag + PE foam + inner box + outer box, screws will be packed into a zipcode bag.
(Maybe there will be some differences in the way of packing for different models of products )
Recommend Products
Single beam and double beams sensor
Single beam and double beams sensor
All are three beams detact sensor, or single and double beams available.
Four beams detact sensor
Certifications

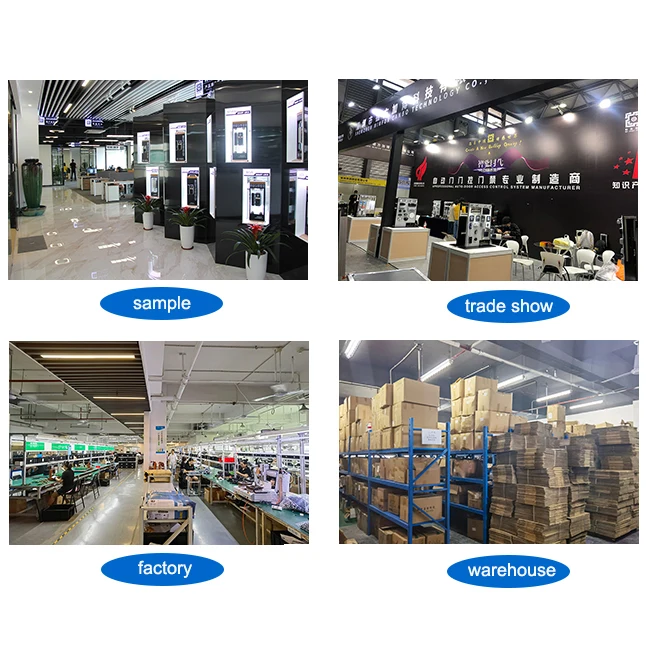

Company Profile
Shenzhen Winfor Canbo Technology Co., Ltd.
We are a professional manufacturer engaged in research and manufacture of automatic door control and access & attendance products. We have rich experience in development of automatic door controlling system and product application on the market. "Canbo"(CANBO) series automatic door controlling products are widely used in auto door control system, business/office building access control and attendance checking systems, bank management system and medical purification control system.
With strong applicability, high stability, and exquisite appearance, CANBO products are regularly provided for many large scale automatic door manufactures, engineer contractors and export merchants. Winfor Canbo Company has become a globalized professional manufacturer in this field since our products sold to domestic and oversea markets such as Europe, United States and Asian markets, enjoying good reputation. In the spirit of innovative, pragmatic and high efficient, Winfo Canbo focus on providing high quality, advanced & pragmatic product to serve worldwide markets, in the fields of automatic door access control, intelligent security guard and medical purification. Winfor Canbo Company owns the following advantages: rich technology resources, a number of core techniques with proprietary intellectual property rights and exchanged European and US cooperation techniques. What's more, we have established long-term technical and business cooperative relationships with automatic door machine and matching product manufactures and system integrators of Germany, France, Spanish, Japan, Korea and Malaysia etc. we are providing all kinds of matching services for many large scale domestic automatic door manufacturers. With the characteristic of advanced technology, excellent quality and exquisite technics, our products have rather high cost performance and strong market competitiveness.
Pursuing for practical product applicability is the unremitting striving direction and also the enterprise mission of Winfor's
staff. Specific products are as follows: ATM card reader, magnetic card access controller, infrared presence sensor, passive infrared sensor, infrared presence detector, microwave sensor, palm inductive switch, wireless touch switch, auto-door switch for disable, pedal inductive switch, automatic door sensor beam, enhanced type remote controller, pet presence detector, automatic door function extender, five range programmed switch, ID card& password access controller, access controller and attendance integrated controller, fingerprint and attendance access controller, automatic timing switch, bad debt controller, electric mortise lock(anode lock) electric lock cath (cahode lock), magnetic lock, ID(IC) smart card, dedicated power for access control. Different kinds of metal accessory lockers and exit switch buttons etc. Automatic access control access series.
CANBO product has passed CE certification of European Union with CE certificate issued.
Pursuing for practical product applicability is the unremitting striving direction and also the enterprise mission of Winfor's
staff. Specific products are as follows: ATM card reader, magnetic card access controller, infrared presence sensor, passive infrared sensor, infrared presence detector, microwave sensor, palm inductive switch, wireless touch switch, auto-door switch for disable, pedal inductive switch, automatic door sensor beam, enhanced type remote controller, pet presence detector, automatic door function extender, five range programmed switch, ID card& password access controller, access controller and attendance integrated controller, fingerprint and attendance access controller, automatic timing switch, bad debt controller, electric mortise lock(anode lock) electric lock cath (cahode lock), magnetic lock, ID(IC) smart card, dedicated power for access control. Different kinds of metal accessory lockers and exit switch buttons etc. Automatic access control access series.
CANBO product has passed CE certification of European Union with CE certificate issued.
FAQ
1. Can i get one piece sample each model?
Yes, sample can be available.
2. How long will i get my products?
Generally, for sample and small quantity order, we will arrange delivery within 1 week.
5. what services we can choose?
Accepted Delivery Terms: FOB,EXW, etc.
Accepted Payment Currency: USD,EUR,HKD,CNY;
Accepted Payment Type: T/T, Escrow;
Yes, sample can be available.
2. How long will i get my products?
Generally, for sample and small quantity order, we will arrange delivery within 1 week.
for customized products and large quantity order, we will confirm and let you know the delivery time before order.
3. Can you add my logo? Or custom function according to our requirements?
Yes, color, logo, packaging, product function all can be customized.
4. Are you a Manufacturer or a trader? Can i be the agent of your brand in our country?
Shenzhen Winfor Canbo Technology Co.,Ltd is a professional factory engaged in research and manufacturer of automatic door access and attendance series products over 13 years.
3. Can you add my logo? Or custom function according to our requirements?
Yes, color, logo, packaging, product function all can be customized.
4. Are you a Manufacturer or a trader? Can i be the agent of your brand in our country?
Shenzhen Winfor Canbo Technology Co.,Ltd is a professional factory engaged in research and manufacturer of automatic door access and attendance series products over 13 years.
Yes, Welcome to discuss any kind of cooperation with us.
5. what services we can choose?
Accepted Delivery Terms: FOB,EXW, etc.
Accepted Payment Currency: USD,EUR,HKD,CNY;
Accepted Payment Type: T/T, Escrow;
