Product Overview
Description

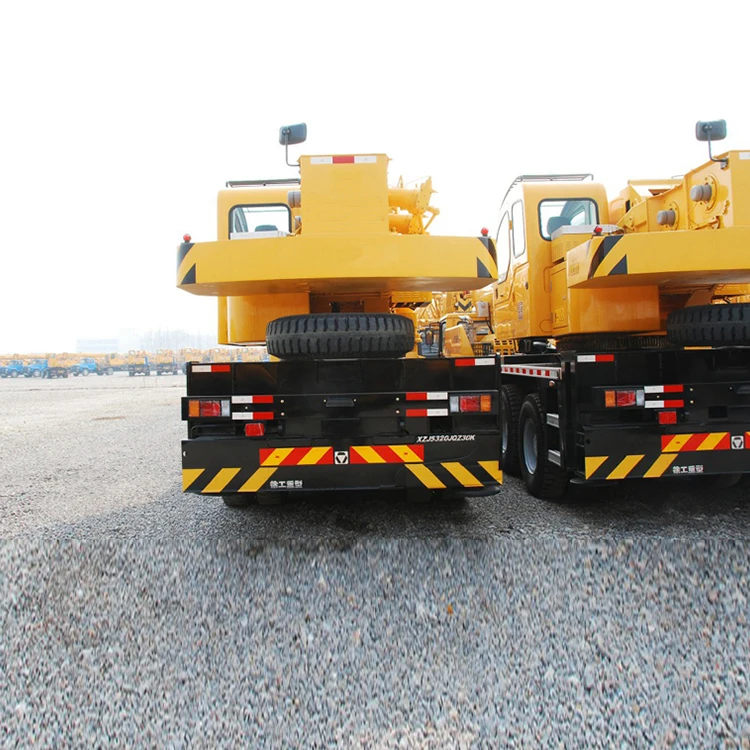

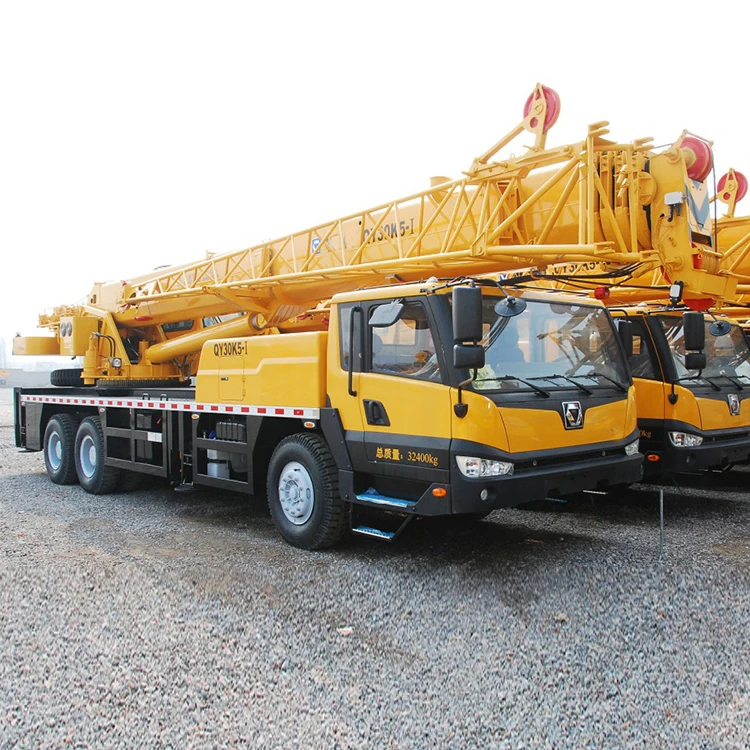

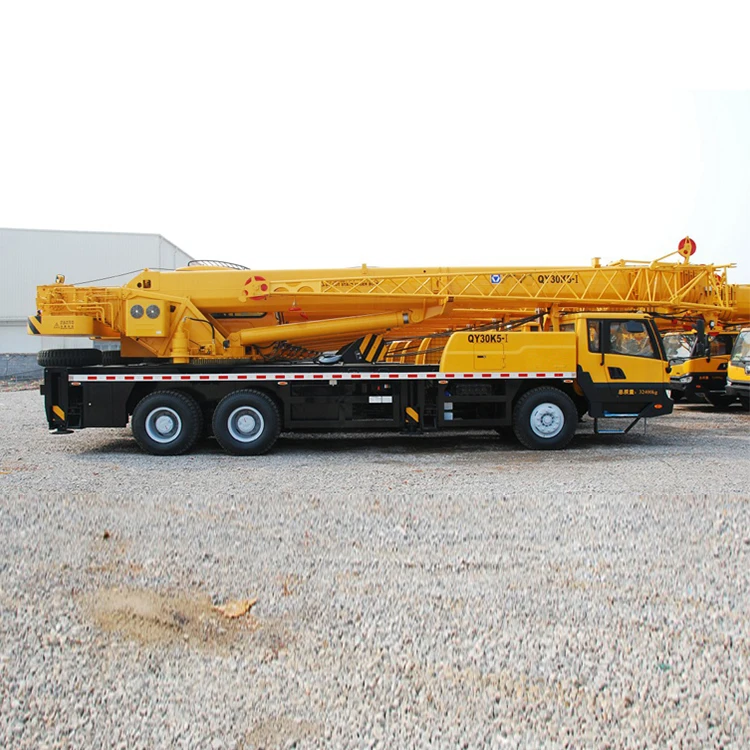

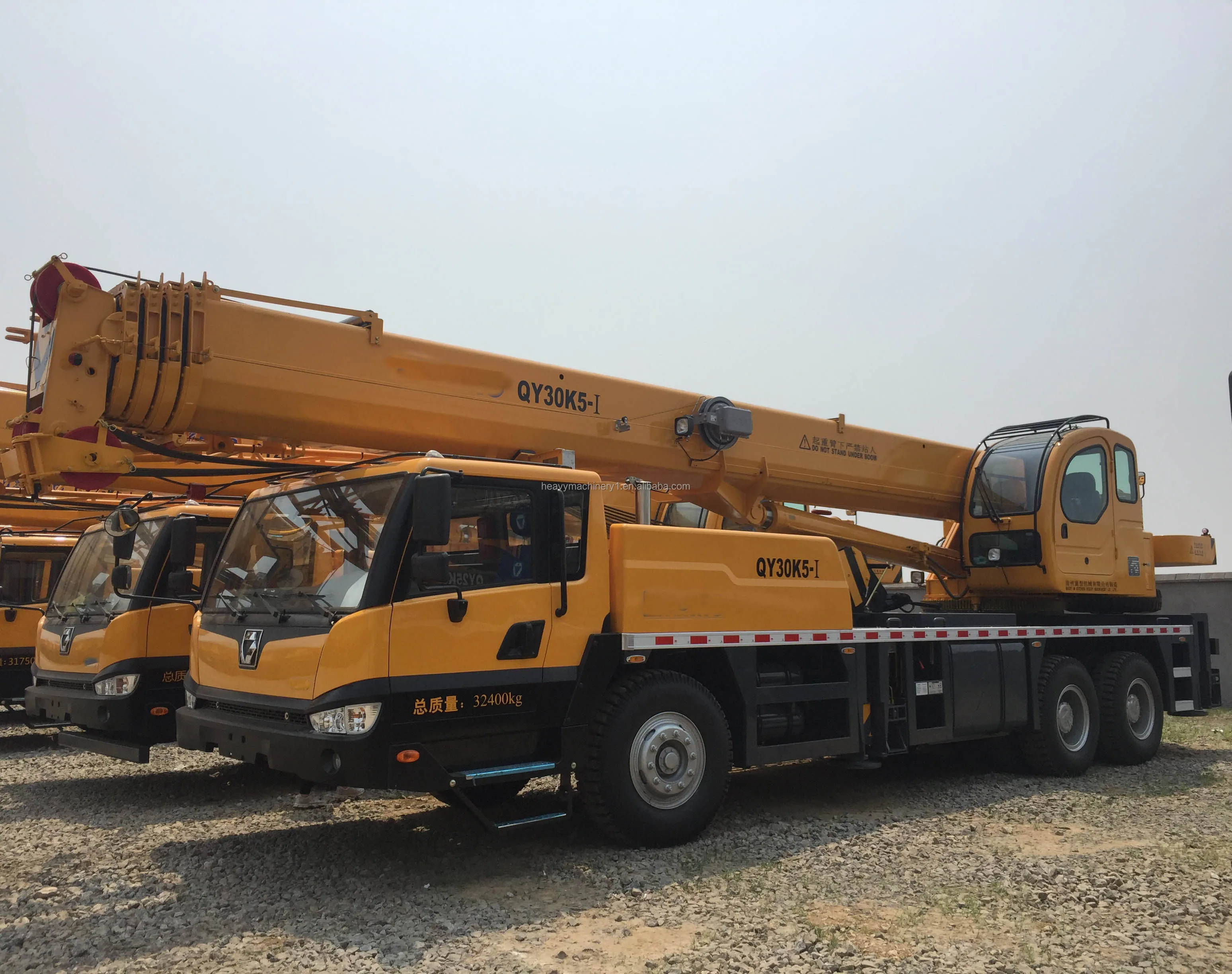

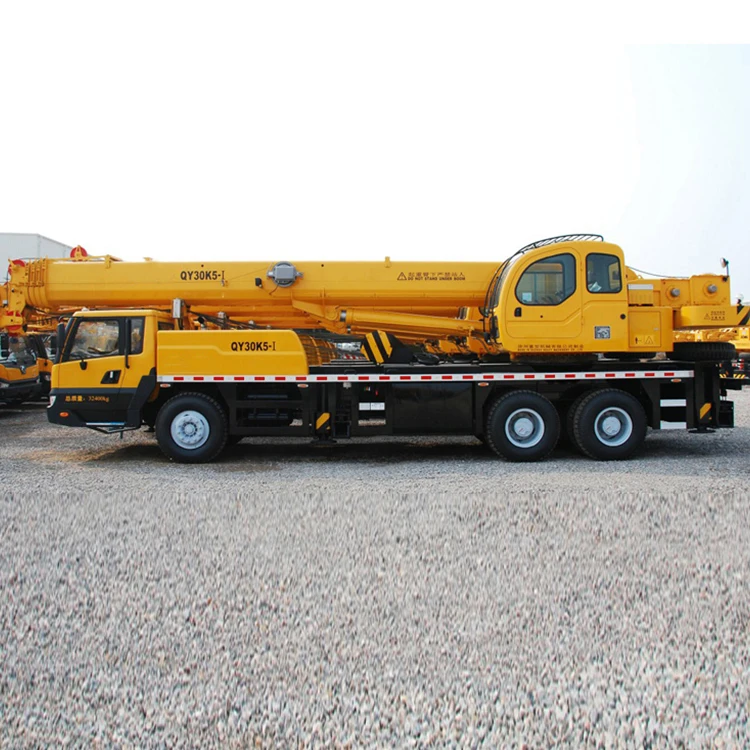

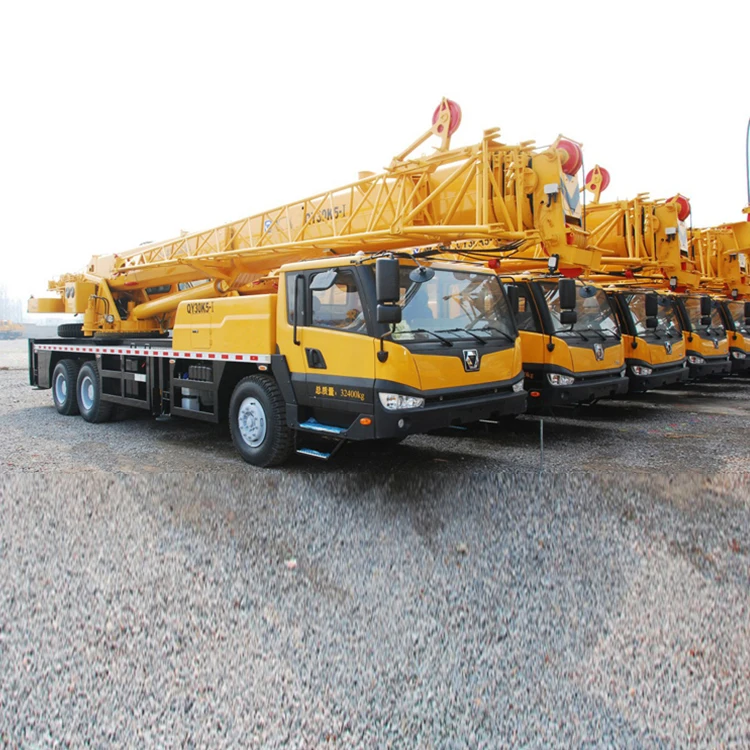

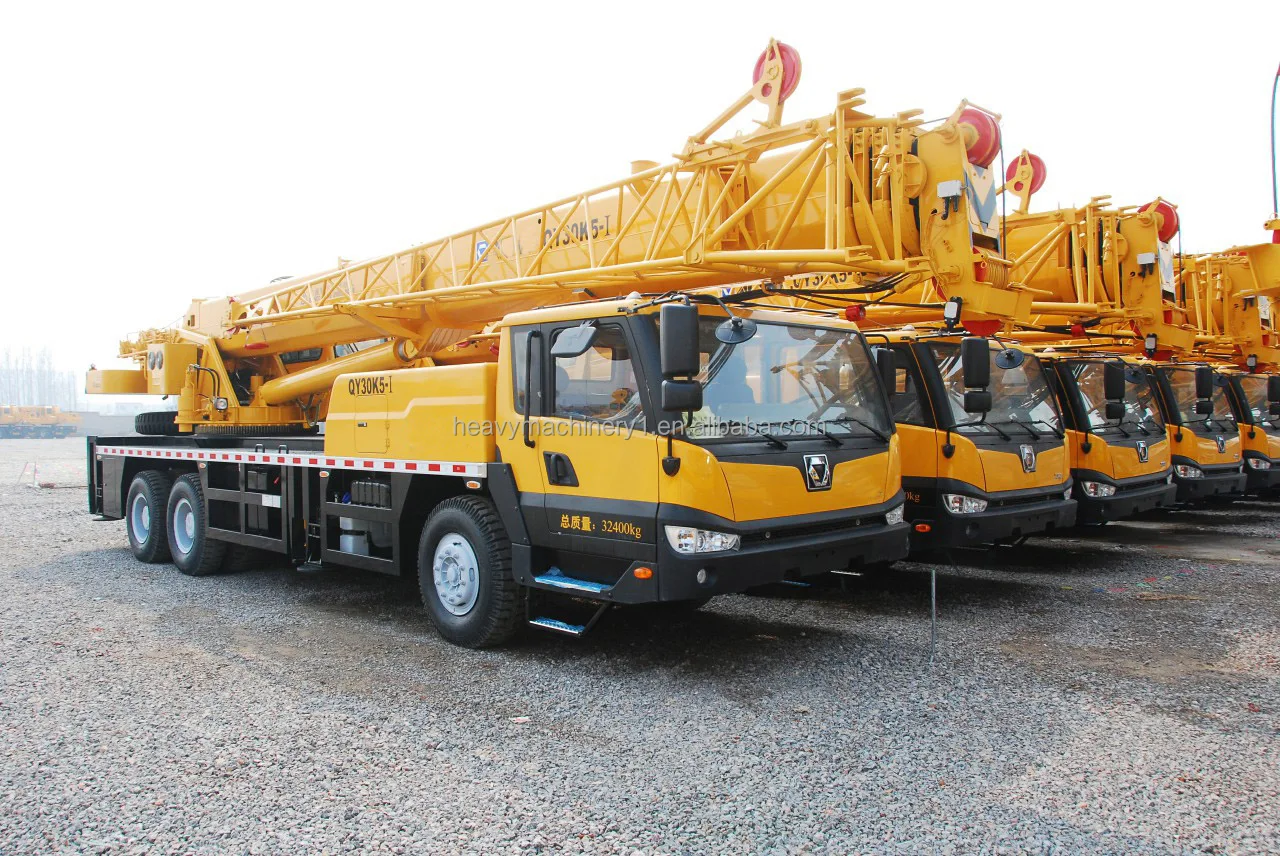

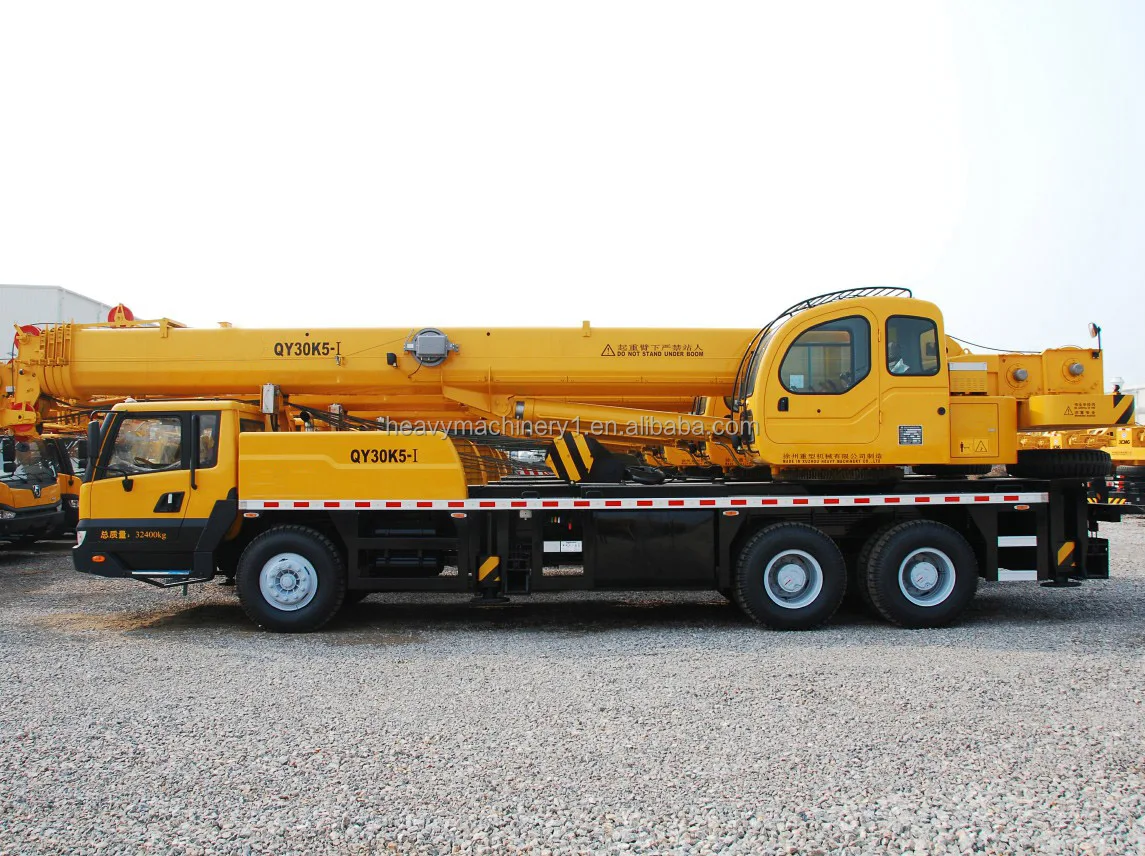

QY30K5-I 30 ton hydraulic lift truck crane
1.Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
2.Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing
capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
3.Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and
guide pulley bearing are imported parts and have reliable performance.
4.Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
5.Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.
1.Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
2.Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing
capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
3.Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and
guide pulley bearing are imported parts and have reliable performance.
4.Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
5.Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.
Category | Item | Unit | Parameter | ||
Outline Dimensions | Overall length | mm | 12570 | ||
Overall width | mm | 2500 | |||
Overall height | mm | 3390 | |||
Wheel base | mm | 5025+1350 | |||
Track | mm | 2074/1834/1834 | |||
Weight | Total vehicle mass in travel configuration | kg | 32400 | ||
Axle load | 1st axle | kg | 7600 | ||
2nd and 3rd axle | kg | 24800 | |||
Power | Model | SC8DK280Q3 | |||
Engine rated power | kw/(r/min) | 206/2200 | |||
Engine rated torque | N.m/(r/min) | 1112/1400 | |||
Travel Performance | Max. travel speed | km/h | 80 | ||
Min. turning diameter | m | 22 | |||
Min. ground clearance | mm | 291 | |||
Max. grade ability | % | 40 | |||
Approach angle | ° | 19 | |||
Departure angle | ° | 13 | |||
Braking distance (at 30 km/h, full load ) | m | ≤10 | |||
Oil consumption per 100km | L | 40 | |||
Noise | Exterior noise level during acceleration traveling | dB (A) | 88 | ||
Noise level at seated position | dB (A) | 90 | |||
