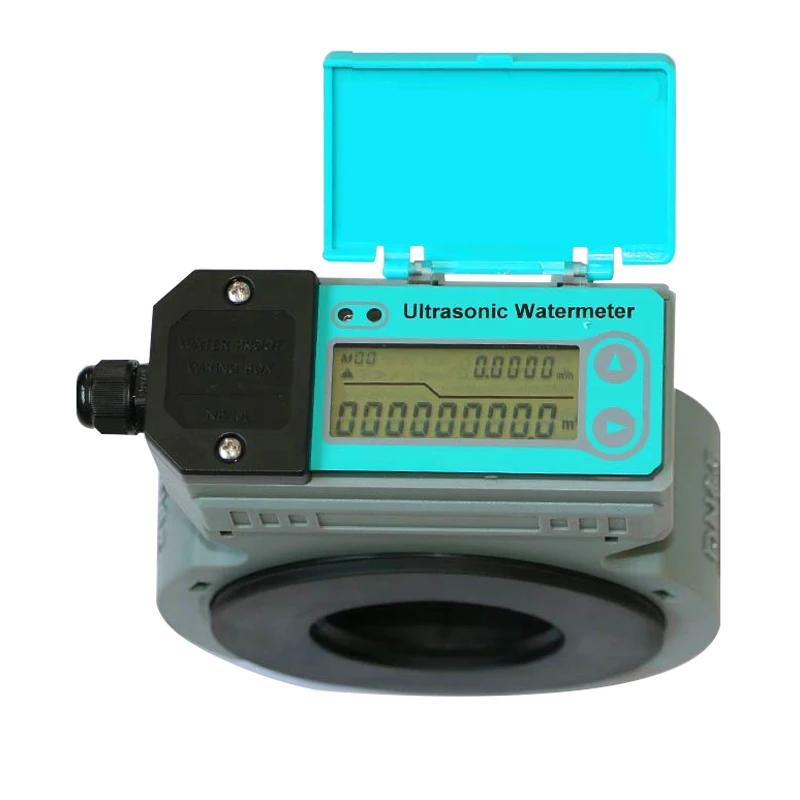

Высокопроизводительный ультразвуковой водомер с защитой IP68
- Category: >>>
- Supplier: Taian Xin Haitai Sensor Co. Ltd.
Share on (1600916238282):
Product Overview
Description
Product Introduction

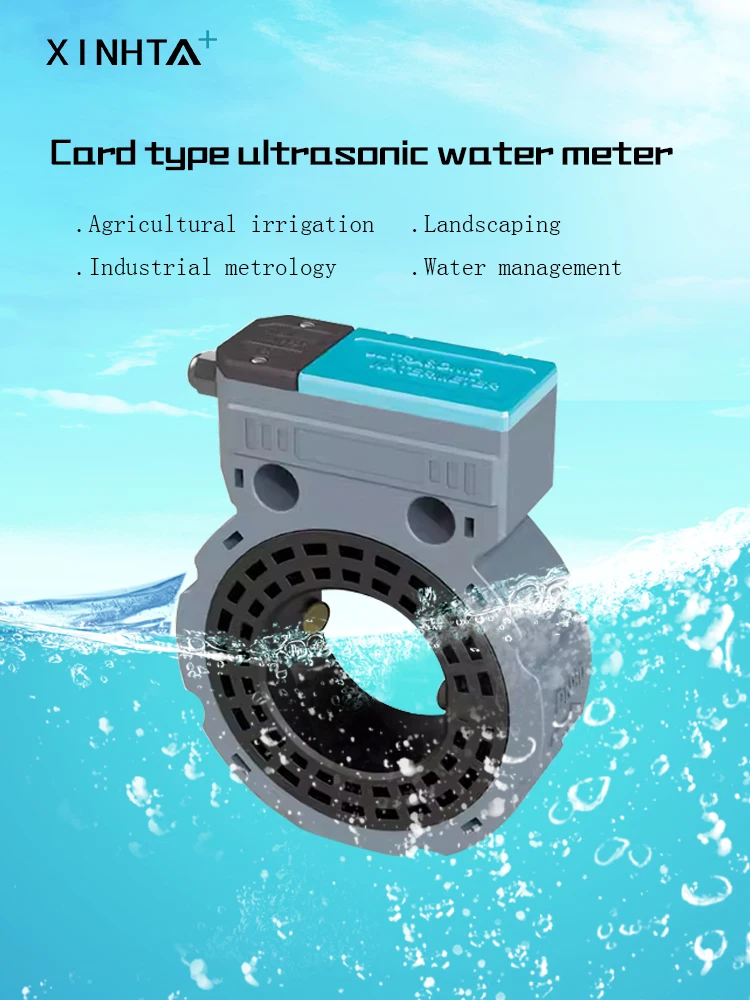

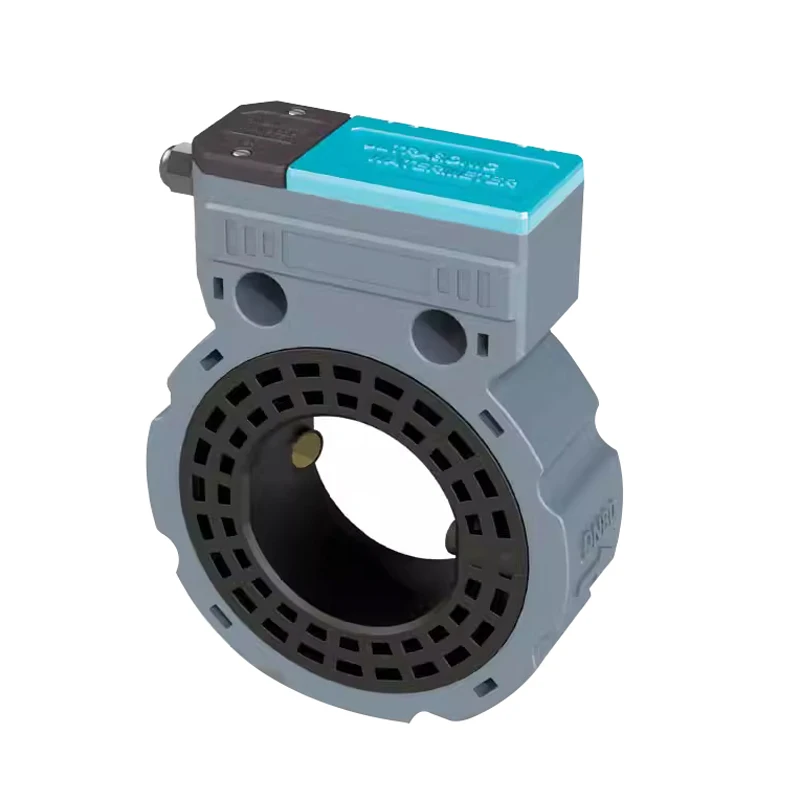

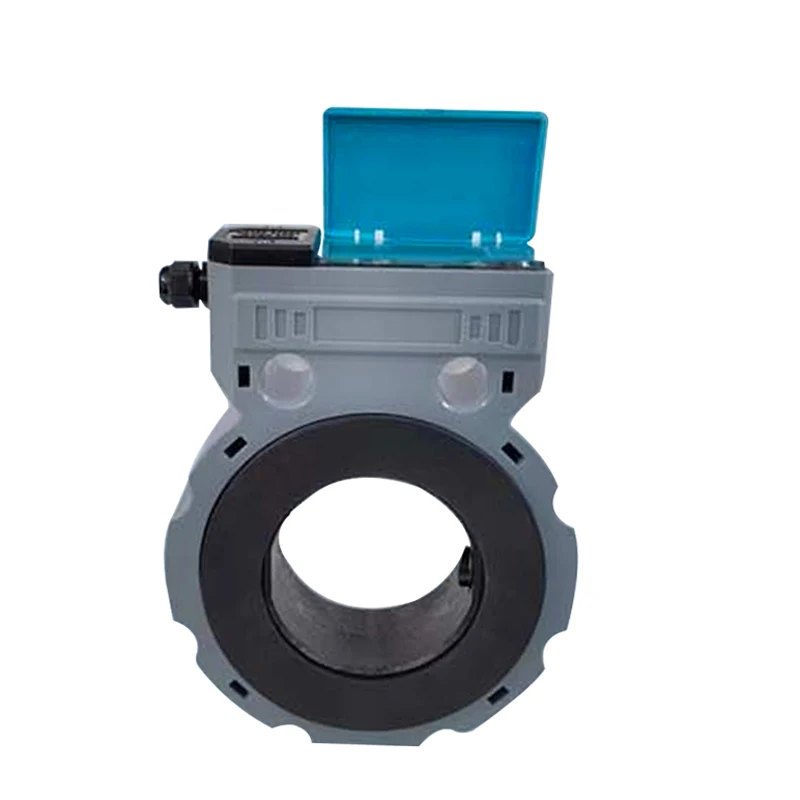

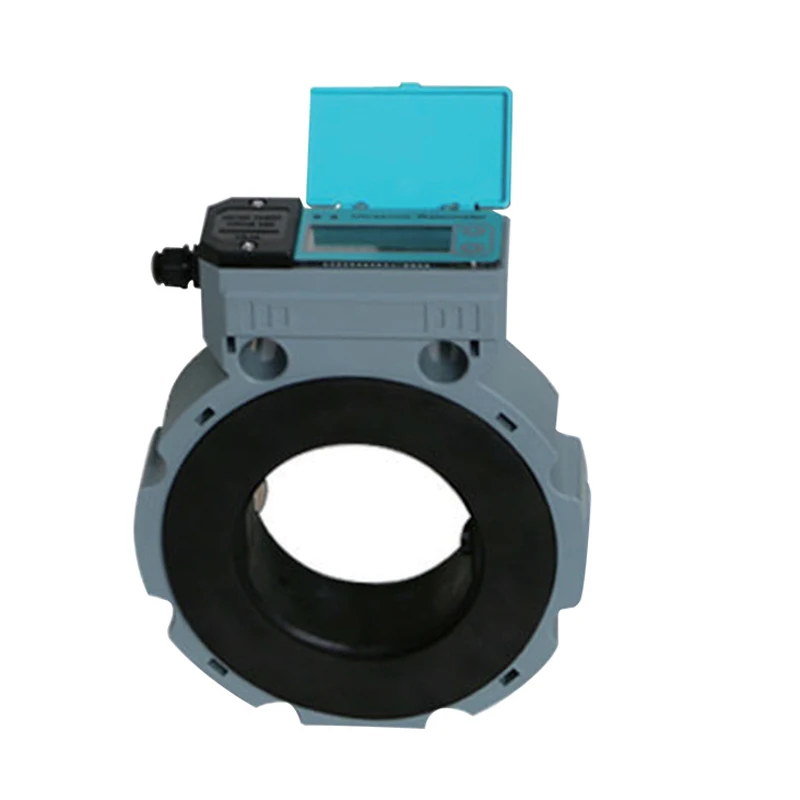

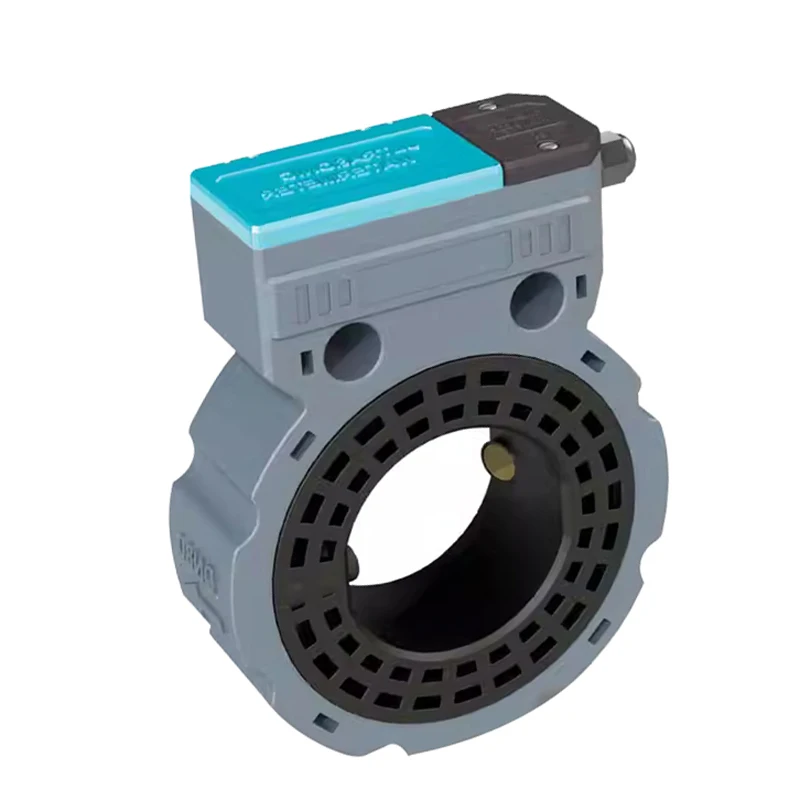

The card type ultrasonic water meter is a new type of water meter designed specifically for agricultural irrigation, garden management, and water resource monitoring, based on ISO4064-2014 and GB/T778-2018.This water meter has the advantages of low cost, high measurement accuracy, low power consumption, and stable and reliable operation. The thickness of the water meter is only 2 inches (50.8mm), saving installation space, and adopting the IP68ization scheme for all components, making the water meter suitable for various harsh working environments. The unique design structure of this water meter ensures that the measurement is basically unaffected by water quality and has no pressure loss, making it a major innovation in agricultural irrigation water measurement.
1. Ultra low power consumption, over 15 years
2. High reliability and wide range ratio
3. Protection level P68
2. High reliability and wide range ratio
3. Protection level P68
4. RS485 connection to well control cabinet
5. NB lot module wireless networking
5. NB lot module wireless networking

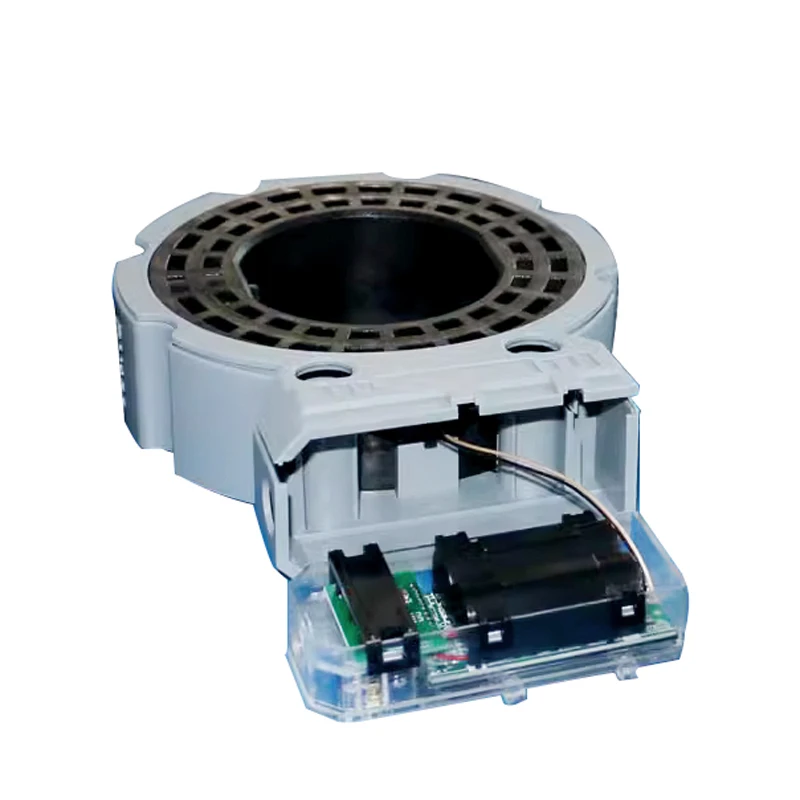

6. The independent probe structure is stable and reliable
7. Ultrasonic measurement, no worn parts
7. Ultrasonic measurement, no worn parts
8. 2 inches thick (approximately 50mm)
Save installation space
Save installation space
Technology parameters | ||
Executive standard | ISO4064-2014、GBT778-2018 | |
Measured fluid | Water、sewage、seawater(Measuring other liquids requires customization) Ensure that water fills the pipe | |
Fluid temperature | 0.1-30℃ | |
Working environment | Temperature：-30-45℃；Humidity100%( RH ) | |
Working pressure | 1.6MPa | |
Pressure loss | No pressure loss | |
Sensitivity level of upstream flow field | U5 | |
Sensitivity level of downstream flow field | D3 | |
Climate and mechanical safety leve | Level C | |
Electromagnetic compatibility level | Level E2 | |
Communication interface | RS485/USART/Infrared interface,optional M-BUS, NB-IOT wireless transmission | |
Output signal | Optional OCT | |
Power supply | Built-in lithium battery/External DC 8-24V power supply | |
Protection level | IP68 | |

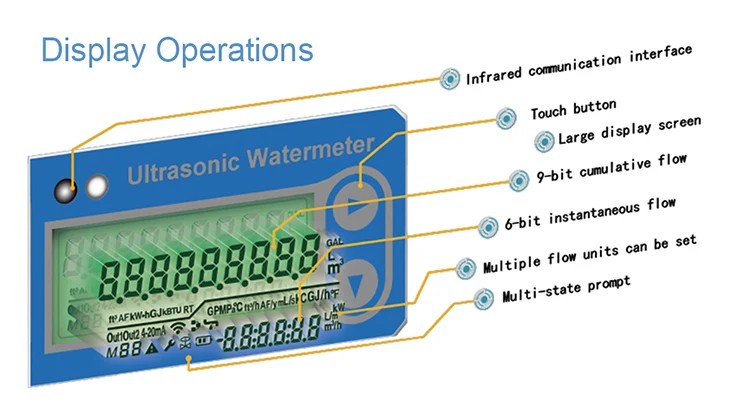

Local display | Two lines show 9-bit cumulative flow,6-bit instantaneous flow,various status prompts and units | |
Data storage | Lithium battery power is required for storing parameters. It can automatically record the cumulative flow of 31 months and the daily flow of the 32nd month. | |
Flow measurement period | Application status:once/second;Verification status:4times/second | |
Material | Measuring tube:nylon+GF;Sensor:PEEK;Housing:ABS | |
Flow range | ||||||||||||
Nominal Diameter （mm） | Measurement Range Ratio R | Flow Rate（m³/h） | ||||||||||
Initial flow rate | Minimum flow rate Q1 | Boundary flow Q2 | Common traffic Q3 | Overload flow Q4 | ||||||||
DN50 | 63 | 0.159 | 0.635 | 1.016 | 40.0 | 50.00 | ||||||
DN65 | 63 | 0.250 | 1.000 | 1.600 | 63.0 | 78.75 | ||||||
DN80 | 63 | 0.397 | 1.587 | 2.540 | 100.0 | 125.00 | ||||||
DN100 | 63 | 0.635 | 2.540 | 4.063 | 160.0 | 200.00 | ||||||
DN125 | 63 | 0.992 | 3.938 | 6.349 | 250.0 | 312.50 | ||||||
DN150 | 63 | 1.587 | 6.349 | 10.159 | 400.0 | 500.00 | ||||||
Tai'an xinhaitai sensor Co., Ltd. is a high-tech enterprise specializing in the design, R&D and production of ultrasonic flowmeter series products. The company has a united and confident production and sales team, an R&D team that strives for perfection, the introduction of foreign advanced R&D, production and testing equipment, and the establishment of a modern enterprise management mode and standardized production process.
After years of development and honing, and long-term research and summary, the production and operation, management strategy and service concept of the enterprise have become more professional, scientific, large-scale and humanized. In addition to cooperating with the domestic ace enterprises in the heat meter industry and the water meter industry, with the strong support of the municipal Party committee and the municipal government, our company has attracted the eyes of foreign enterprises relying on the e-commerce platform. After profound communication and exchange, we have achieved good cooperation relations. Now our products have been exported to the United States, Russia, France, India, Turkey, Iran and many other countries and regions, It has become a mature foreign trade R&D and production enterprise in Tai'an City.
While learning about the changes in the market, we xinhaitai sensor timely improved and upgraded our products, and refined and customized products according to the needs of different customers, so as to meet the needs of customers and the market to the greatest extent.
After years of development and honing, and long-term research and summary, the production and operation, management strategy and service concept of the enterprise have become more professional, scientific, large-scale and humanized. In addition to cooperating with the domestic ace enterprises in the heat meter industry and the water meter industry, with the strong support of the municipal Party committee and the municipal government, our company has attracted the eyes of foreign enterprises relying on the e-commerce platform. After profound communication and exchange, we have achieved good cooperation relations. Now our products have been exported to the United States, Russia, France, India, Turkey, Iran and many other countries and regions, It has become a mature foreign trade R&D and production enterprise in Tai'an City.
While learning about the changes in the market, we xinhaitai sensor timely improved and upgraded our products, and refined and customized products according to the needs of different customers, so as to meet the needs of customers and the market to the greatest extent.
Wrapped in film paper and placed in a carton，Or you can customize the packaging according to your requirements.
Every year, customers from all over the world come to visit our factory, and our company will also travel to many countries to participate in exhibitions from all over the world. We sincerely invite you to visit our factory and the exhibition site, and
sincerely invite you to join us!
sincerely invite you to join us!
Q: Why did you choose us?
A: High precision, high efficiency, and high quality。
Q: Are you a trading company or a manufacturer?
Q: Are you a trading company or a manufacturer?
A: We are a factory。
Q: Could you customize the products according to my requirements?
A: Yes. We could customize the products for you.
Q: How long is your delivery time?
A: Yes. We could customize the products for you.
Q: How long is your delivery time?
A: We have it in stock, if you place a order we will deliver it promptly。
Q: Do you provide samples Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight。
Q: What is your terms of payment?
A: We can negotiate through email。
Q：Can we visit your factory?
A:Of course, we sincerely invite you to visit our factory.
