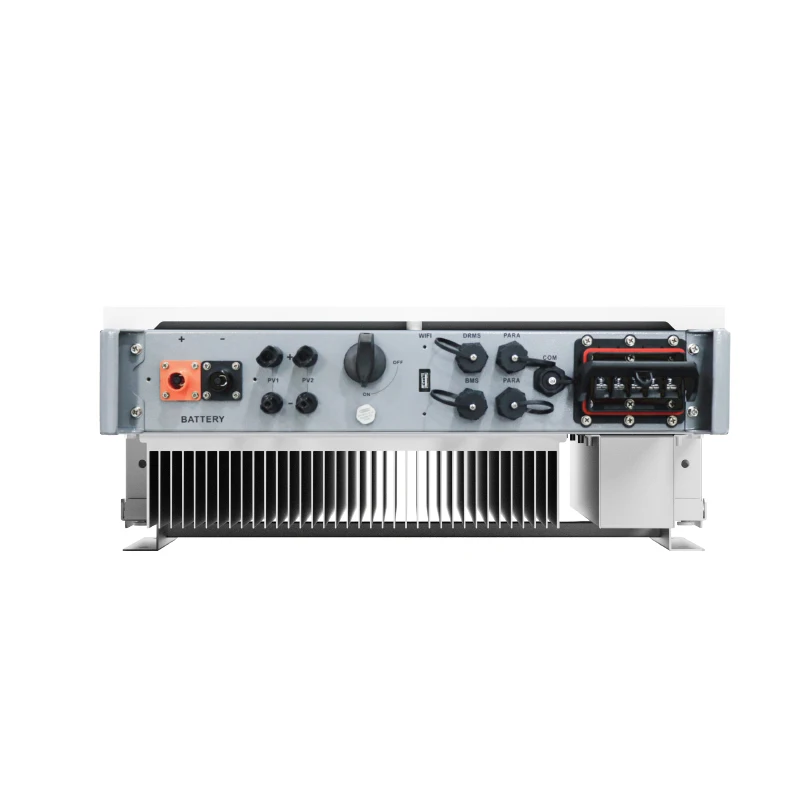

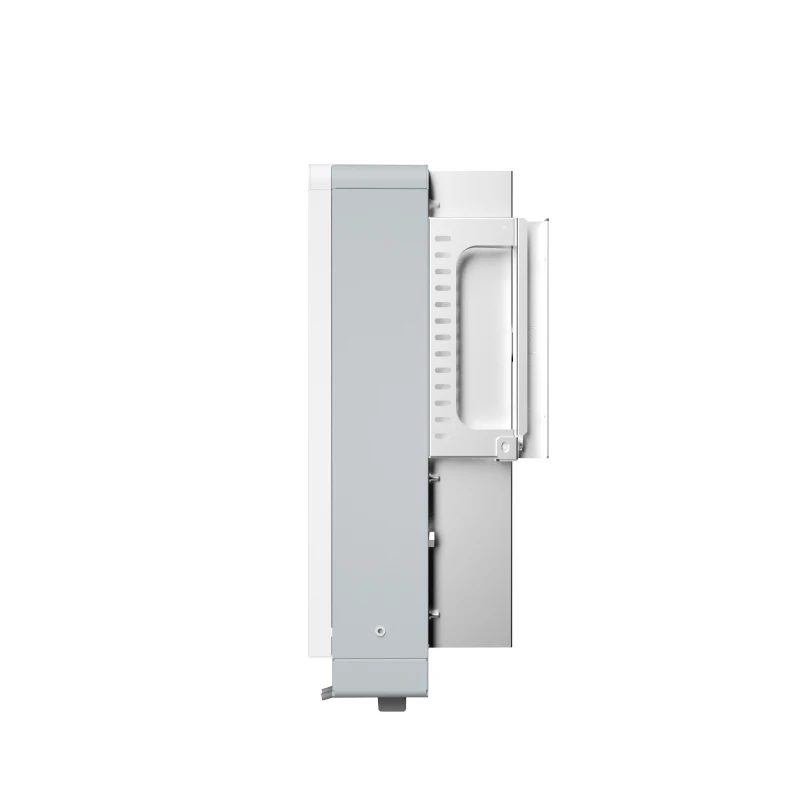

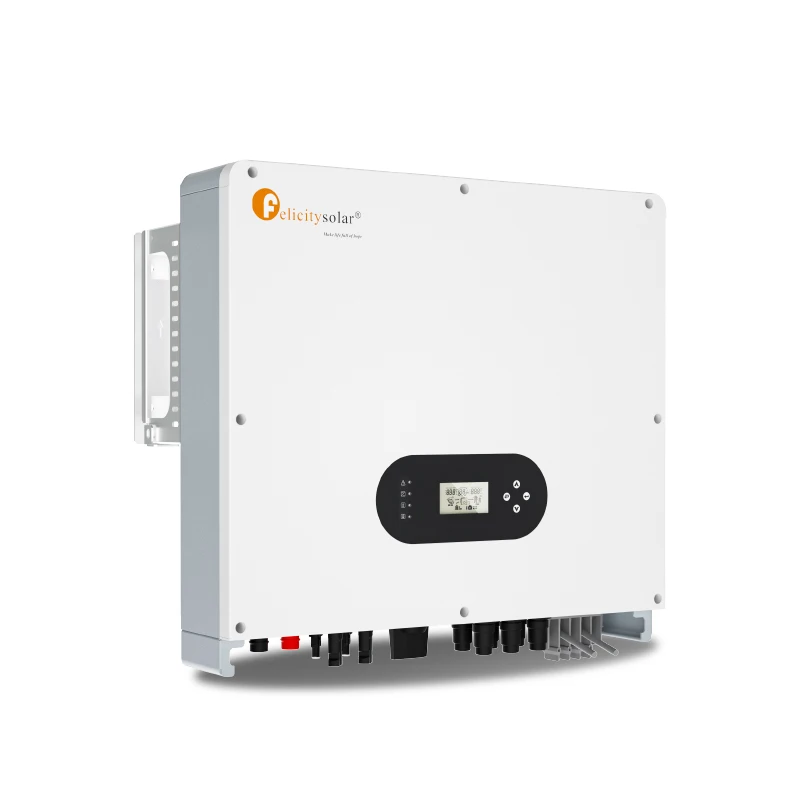

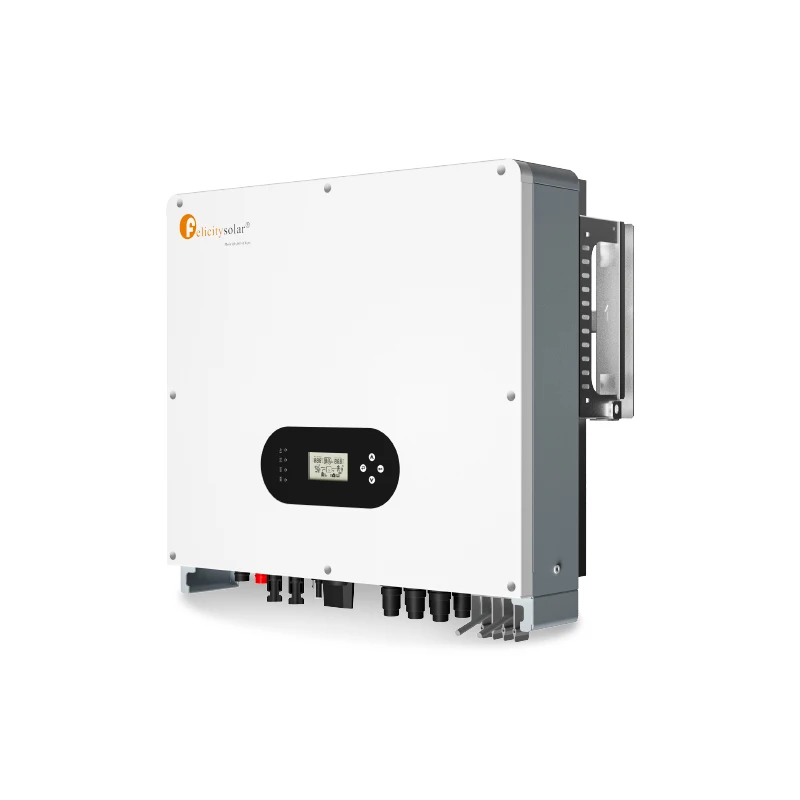

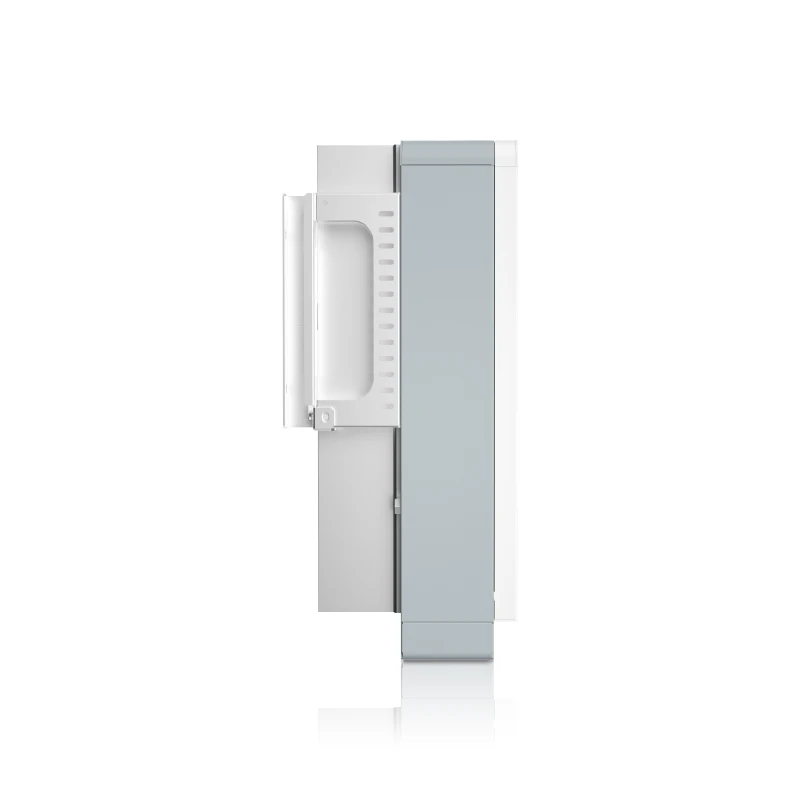

10 Years Warranty On/ Off Grid Hybrid Inverter Built in 100A MPPT Charge Controller support Wifi for Mobile Monitoring Inverter
- Category: >>>
- Supplier: Guangzhou Felicity Solar Technology Co. Ltd.
Share on (1600916243333):
Product Overview
Description
Features
·SupportWi-Fi for mobile monitoring
·48Vlowvoltage battery,transformerisolation topology
·Max.charging/discharging currentof100A
·AC couple to retrofit existing solar system
·Support storing energy from diesel generator
·Power supplycan be switched automatically and switching time within 20ms
·48Vlowvoltage battery,transformerisolation topology
·Max.charging/discharging currentof100A
·AC couple to retrofit existing solar system
·Support storing energy from diesel generator
·Power supplycan be switched automatically and switching time within 20ms
Model | IVGM5048-LS | |
Battery Input Data | ||
Bttery Voltage Range | 40V~60V | |
Max. charging and discharging current | 100A/100A | |
Max. charging and discharging power | 5000W | |
Battery type | Li/Lead-acid | |
DC Input Data (PV side) | ||
Max.recommended PV power | 6500W | |
Max.PV voltage | 550V | |
Start voltage | 130V | |
PV voltage range | 90V~550V | |
MPPT voltage range | 100V~500V | |
MPPT Voltage Range for Full Load | 220V~500V | |
Nominal voltage | 360V | |
Max.input current | 15A/15A | |
Max.shorted curent | 18A/18A | |
Number of MPP trackers/strings per MPP tracker | 2/1 | |
Grid Data | ||
Nominal Input Voltage | 230Vac | |
Input Voltage Range | 184~264.5Vac | |
Nominal grid frequency | 50/60Hz | |
Max.input current | 40A | |
Max.Charge Current | 100A | |
Max.AC output power | 5000W | |
AC Output Rated Current | 21.7A | |
Max. output current | 25A | |
Max.Continuous AC Passthrough | 30A | |
Power factor | >0.99 | |
Displacement power factor | 0.8leading-0.8lagging | |
THDI | <3% | |
AC Output Data(Back Up) | ||
Rated output power | 5000VA/5000W | |
Max.Output current | 30A | |
Rated AC output voltage | 230Vac | |
Rated AC output frequency | 50/60Hz | |
Efficiency | ||
Max.efficiency | 97.6% | |
Euro efficiency | 97.0% | |
MPPT efficiency | 99.90% | |
Protection | ||
Output over current protection | Integrated | |
Output over power protection | Integrated | |
Output shorted protection | Integrated | |
Anti-islanding protection | Integrated | |
GFCI Protection | Integrated | |
Insulation Resistor Detection | Integrated | |
General Data | ||
Operating temperature range | -25℃~60°℃,>45℃ Derating | |
Protection degree | IP65 | |
Relative humidity | 100% | |
Cooling concept | Nature | |
Altitude | 2000m | |
Communication | RS232/RS485 | |
BMS Communication | CAN/RS485 | |
Monitor module | Wi-Fi/GPRS | |
Display | LCD+LED | |
Installation Style | Wall-mounted | |
Warranty | 10 years | |
Grid Regulation | VDE-AR-N 4105; G99/1; EN50549-1; CEI 0-21; AS 4777.2: NRS 097-2-1; | |
Safety Regulation | IEC 62109-1/2, IEC 62040-1 | |
EMC | EN61000-6-1, EN61000-6-3 | |
Net Weight | 34.2KG | |
Gross Weight | 38.6KG | |
Product Dimension | 493*530*203mm | |
Package Dimension | 632*585*315mm | |
Company Profile
Guangzhou Felicity Solar Technology Co., Ltd. (hereinafter referred to as "Felicity") is a photovoltaic high-tech enterprise integrating R&D, production, sales, engineering design, installation guidance and after-sales service. Founded in 2010, the company covers an area of 35 acres, and has an annual output value of nearly 1 billion yuan. At present, the company has more than 600 employees, including more than 100 senior experts in new energy and professional technical personnel in various disciplines. There are 6 production plants, 3 research and development institutions, and 25 product technology patents, including 20 practical invention patents and 5 invention patents.
The company focusing on the design, development and production of solar inverters, solar charge controllers, battery packs, solar panels, solar street lights and other series of products to meet the needs of domestic and foreign markets for solar system products. The products have passed CE, ROHS, SONCAP and other international certifications, and have business cooperation with the United States, Australia, Turkey, Japan, the United Arab Emirates, Singapore, Nigeria and other countries, covering more than 40 countries and regional markets, and have established 25 overseas branches .
The company focusing on the design, development and production of solar inverters, solar charge controllers, battery packs, solar panels, solar street lights and other series of products to meet the needs of domestic and foreign markets for solar system products. The products have passed CE, ROHS, SONCAP and other international certifications, and have business cooperation with the United States, Australia, Turkey, Japan, the United Arab Emirates, Singapore, Nigeria and other countries, covering more than 40 countries and regional markets, and have established 25 overseas branches .

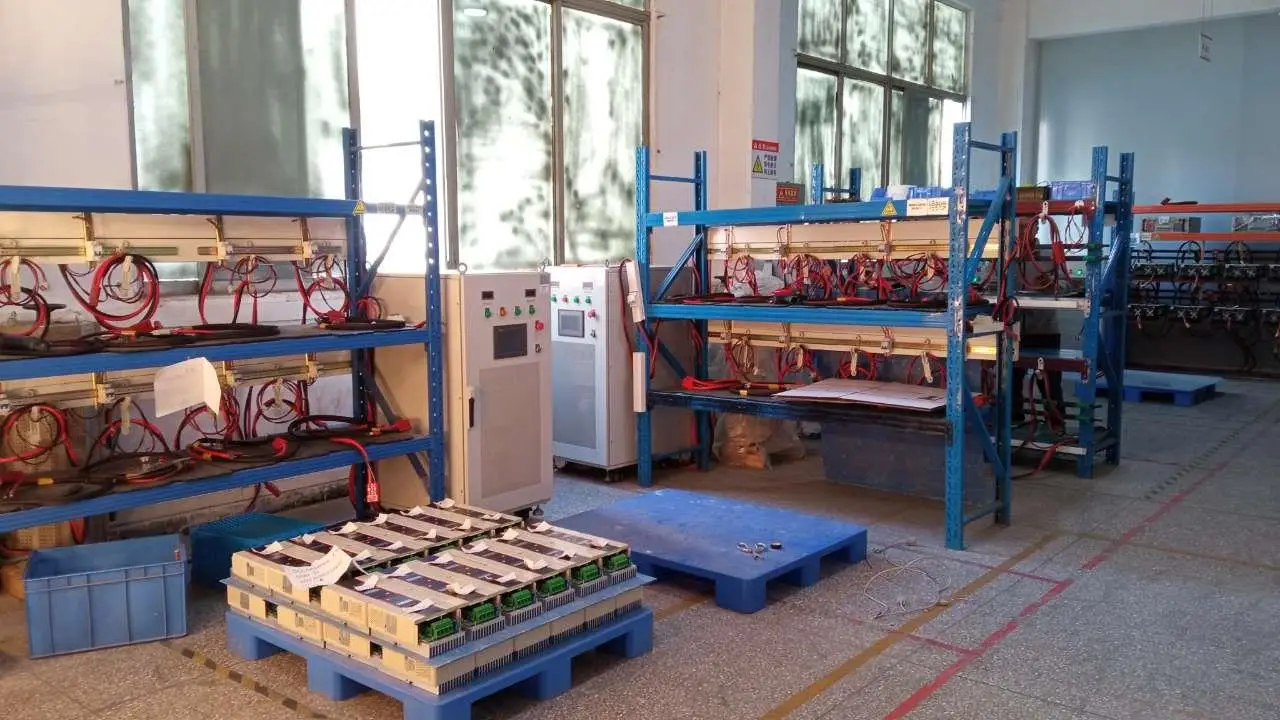

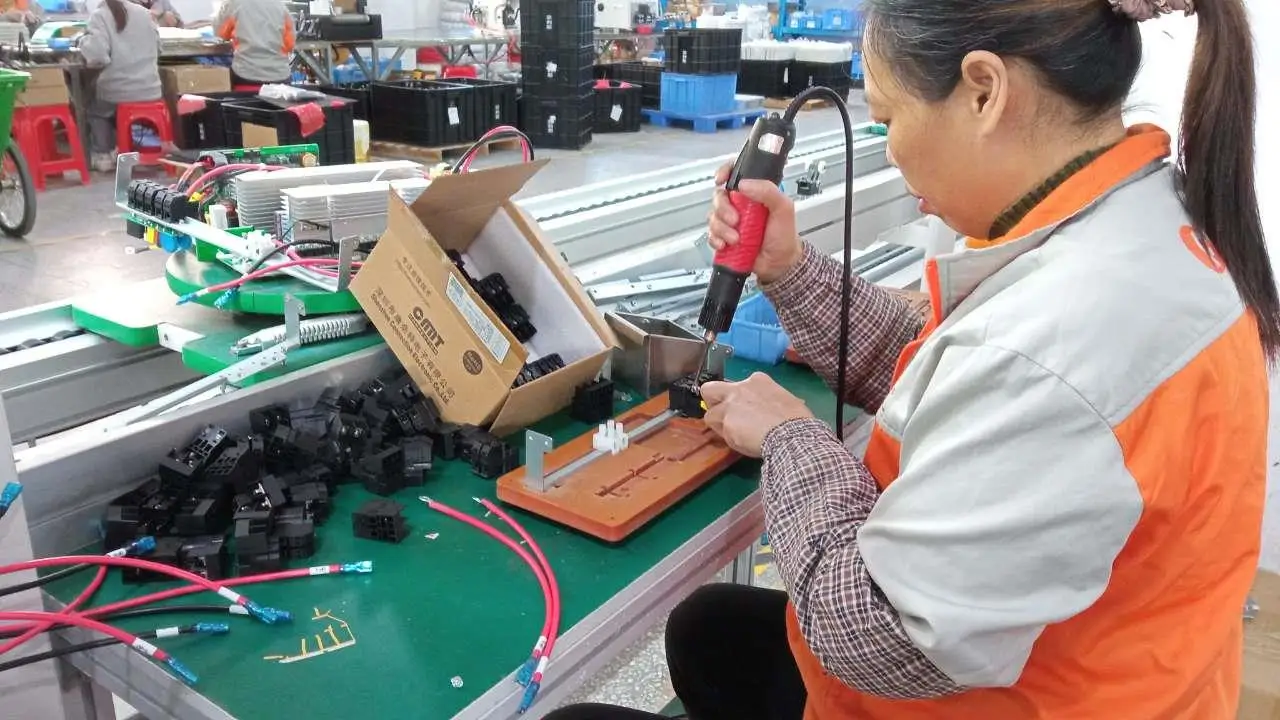

Production line
R & D technology

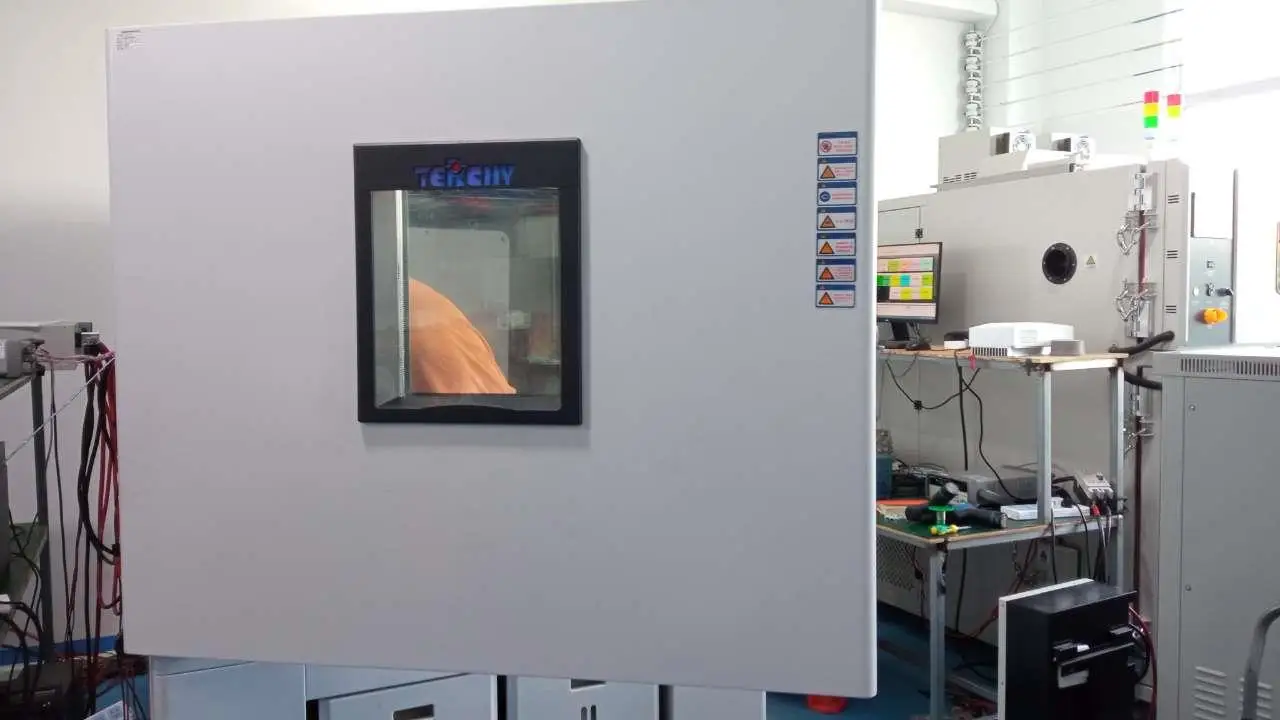

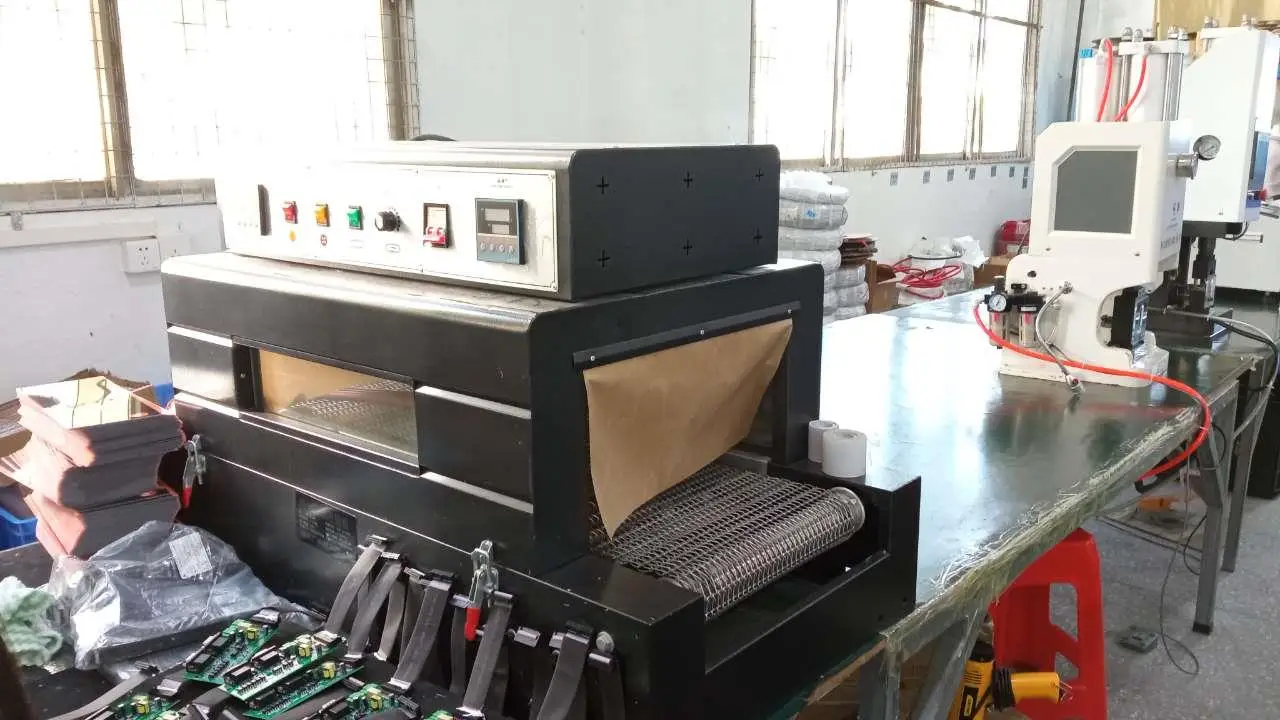

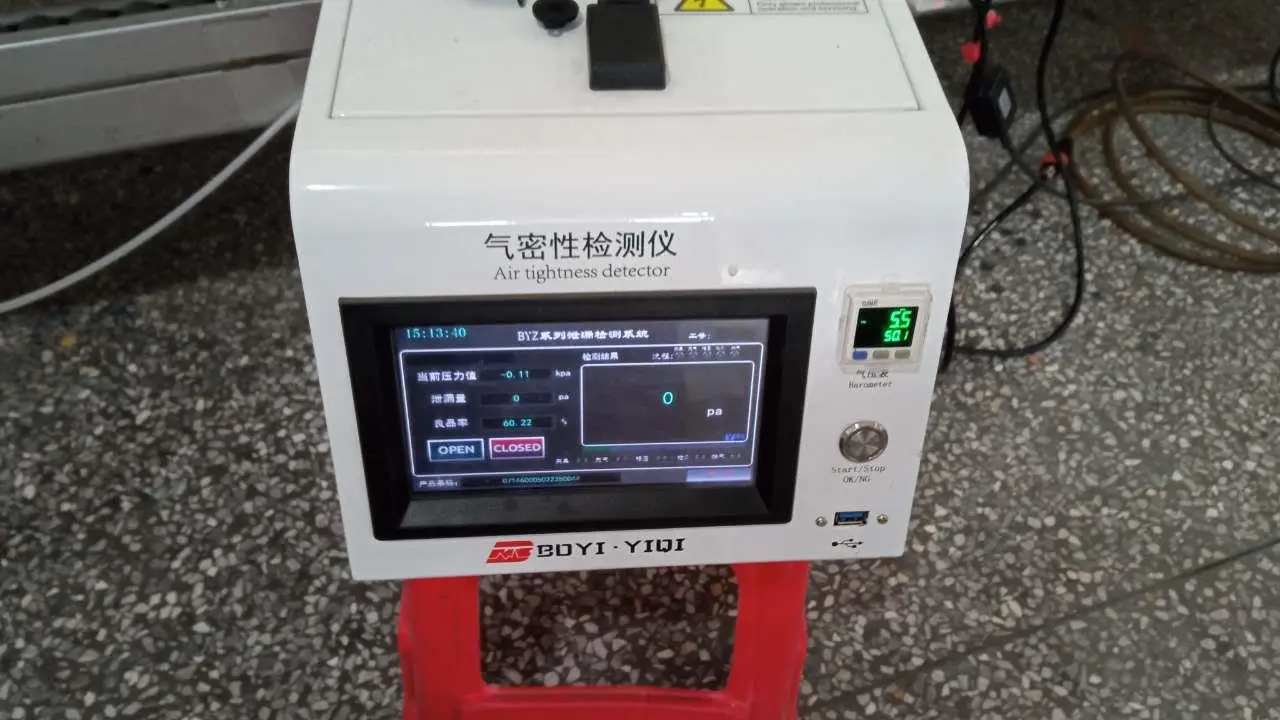

Advanced Equipment

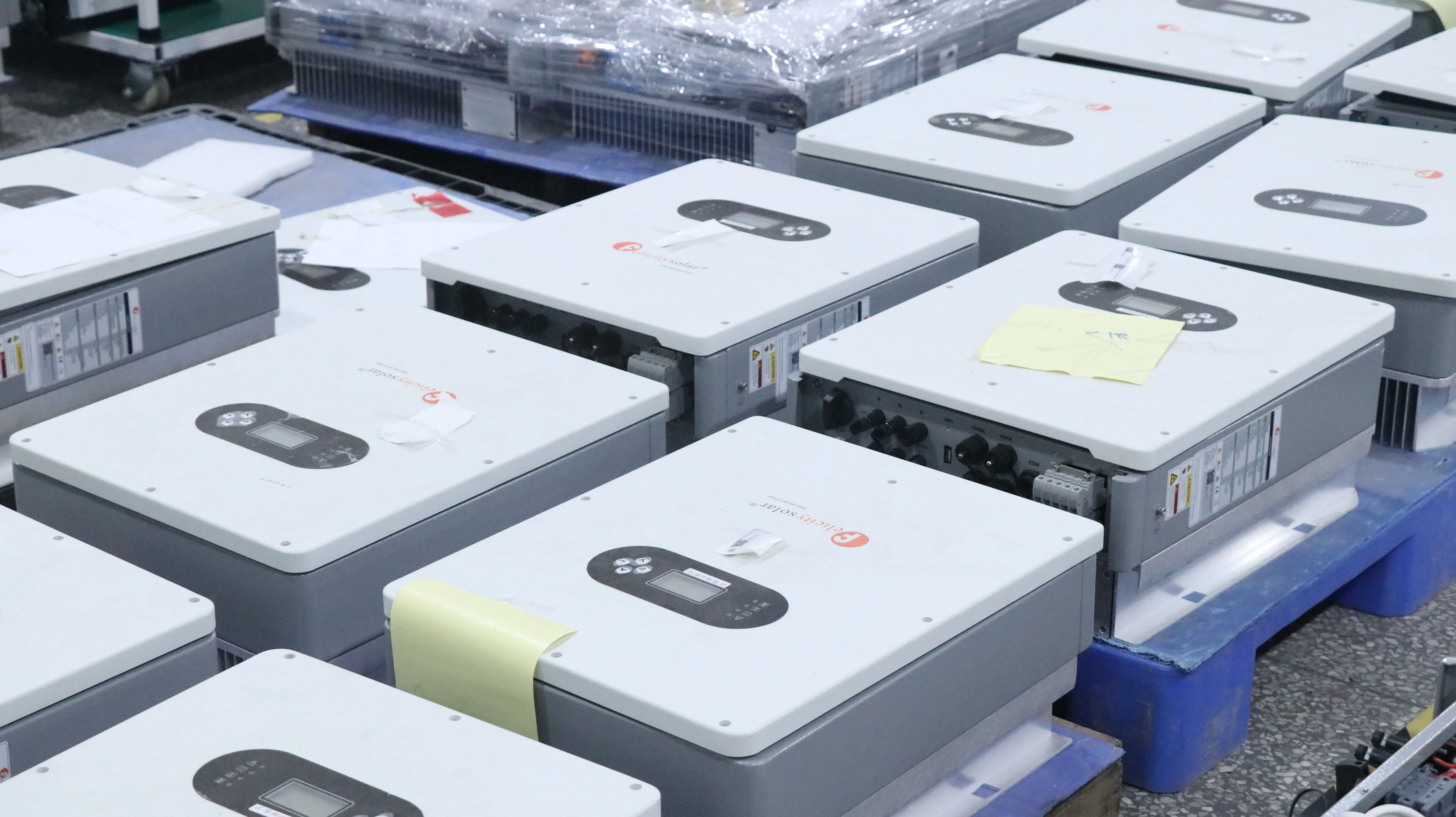

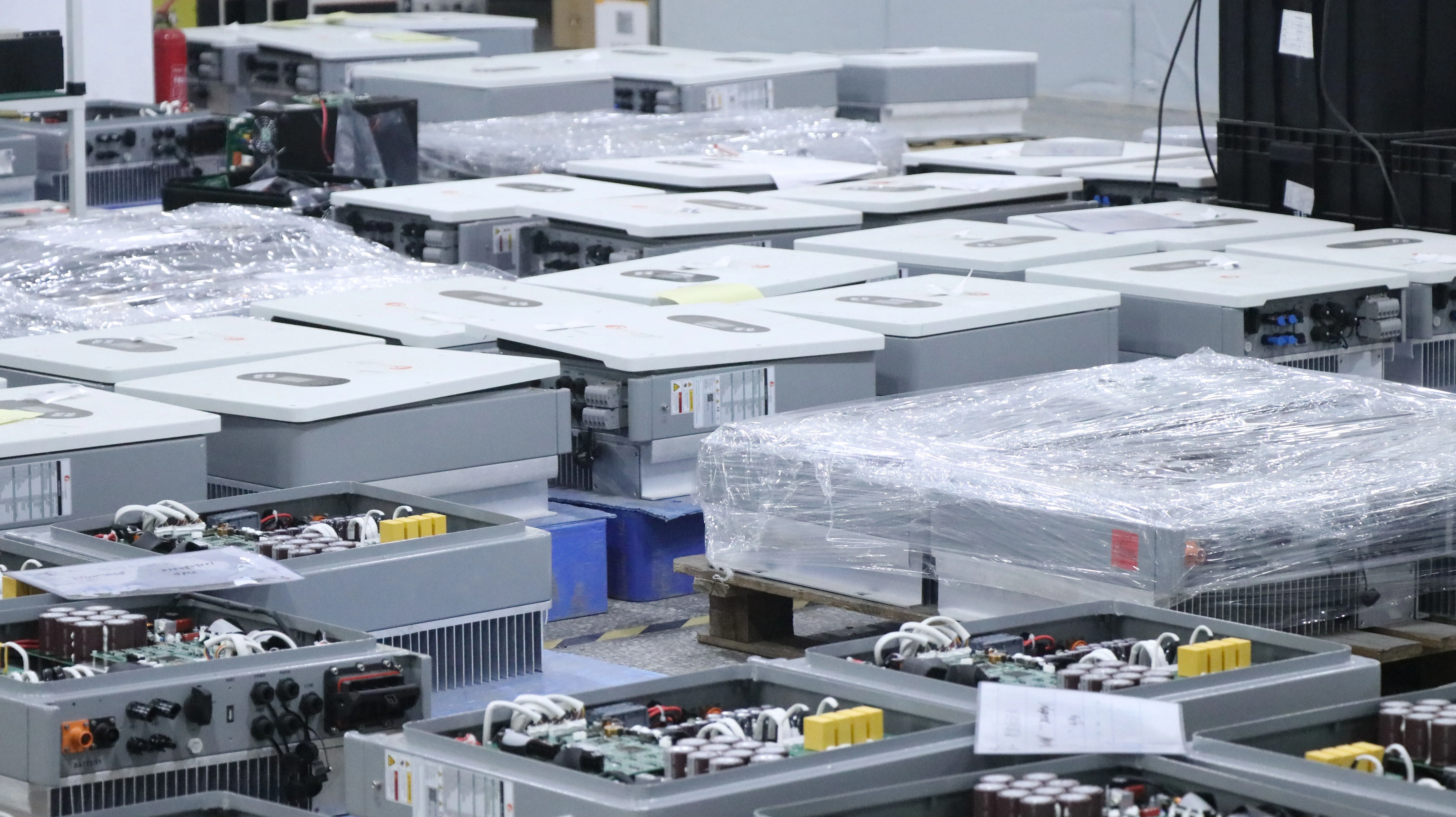

Warehouse Stock

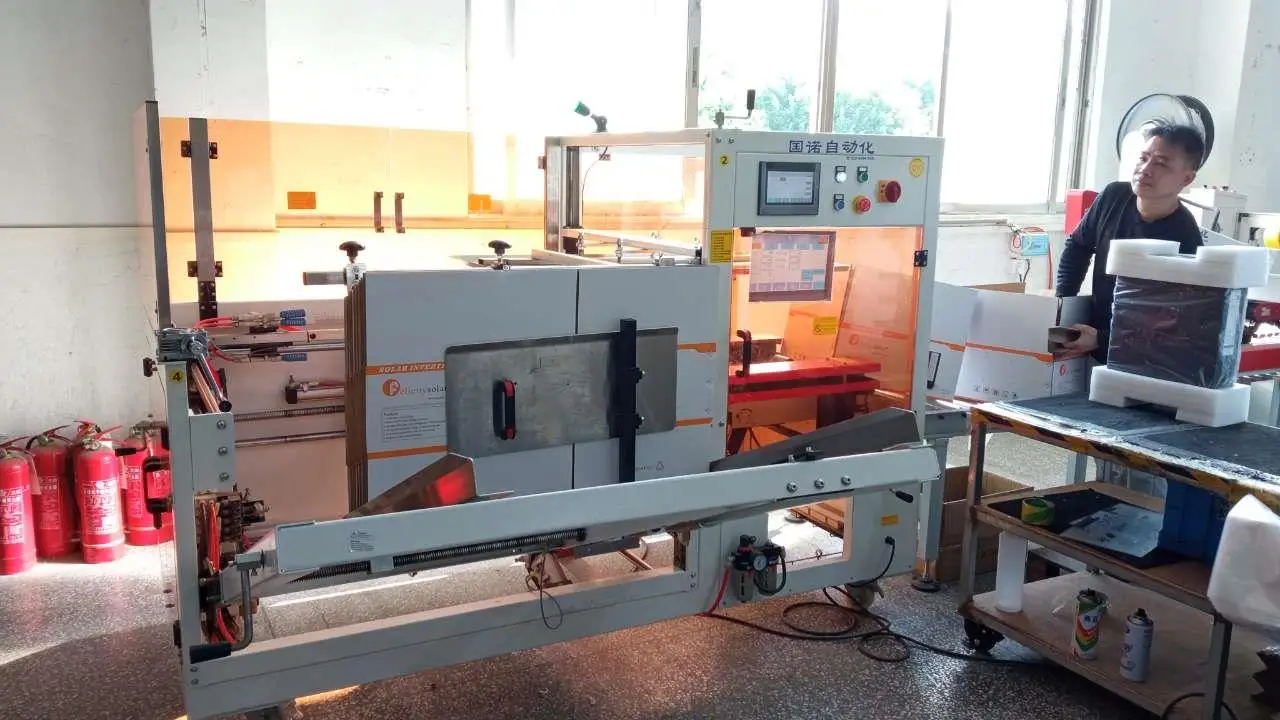

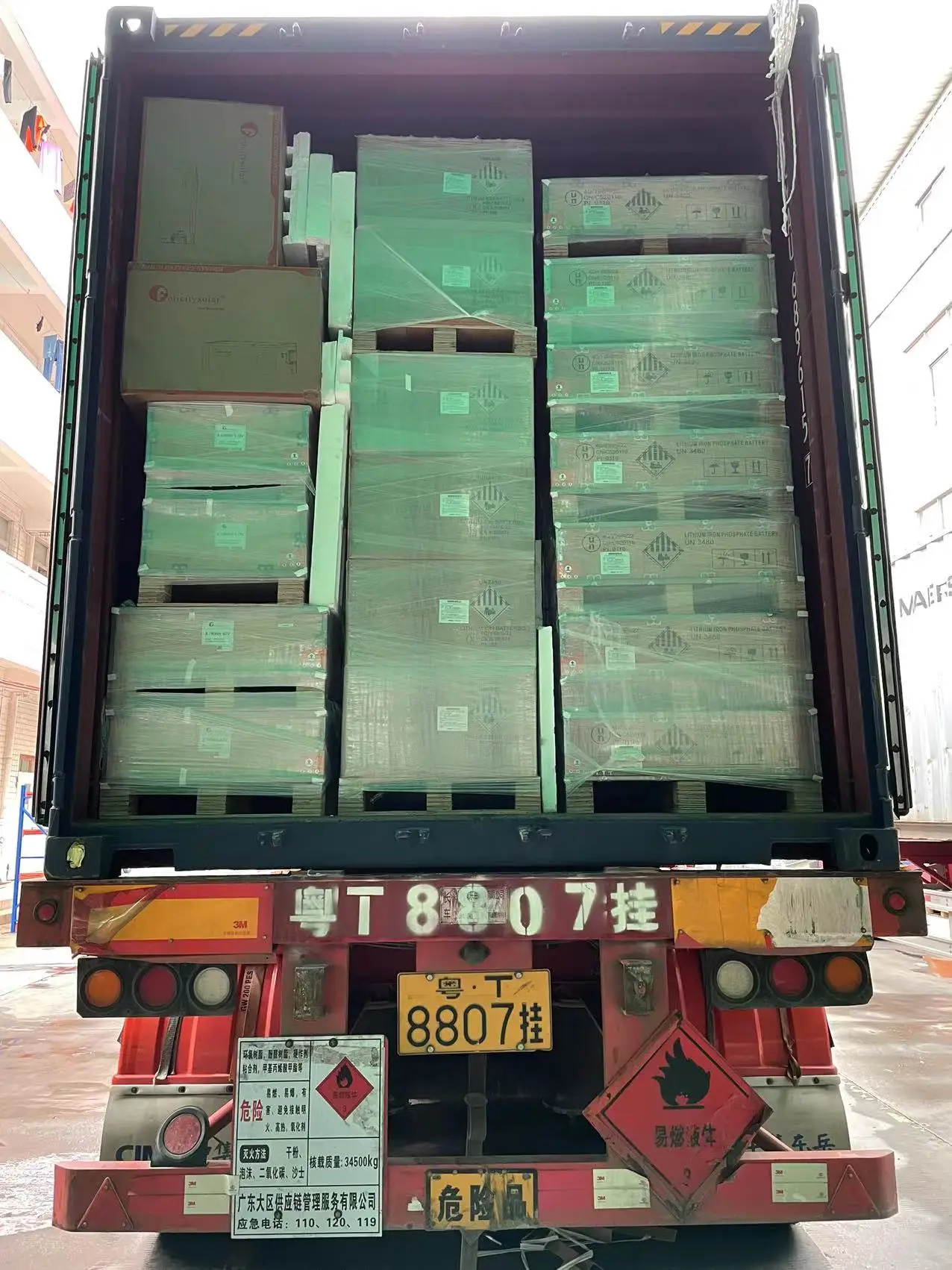

Packaging & Transportation
Exhibition

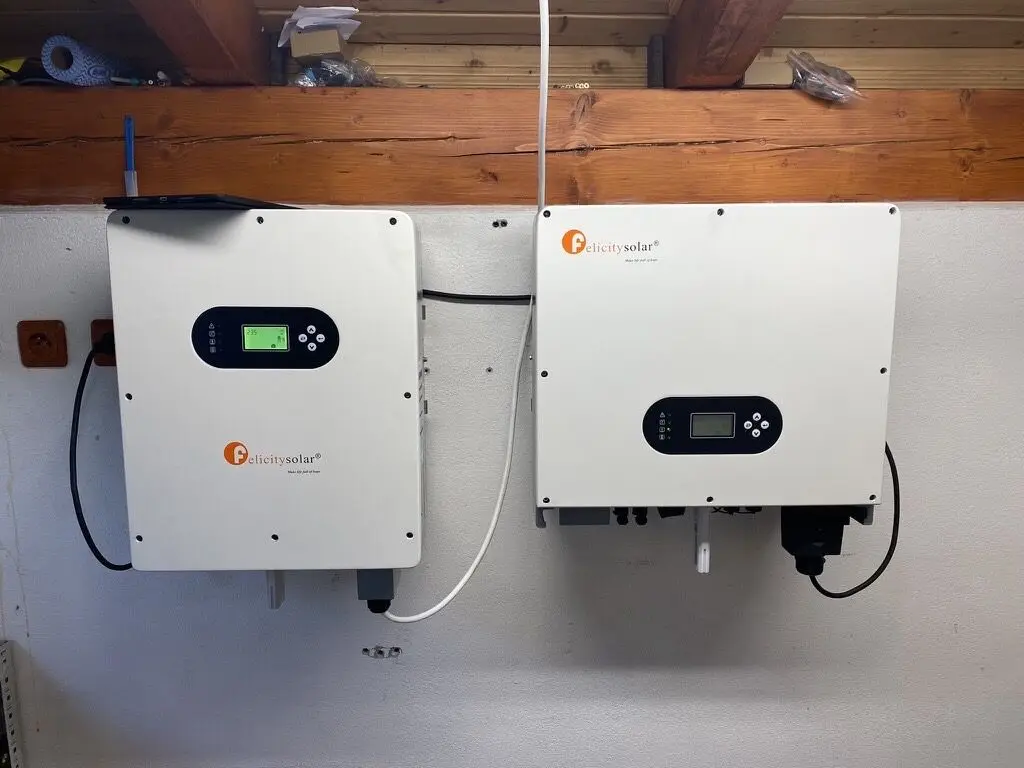

Customer Case

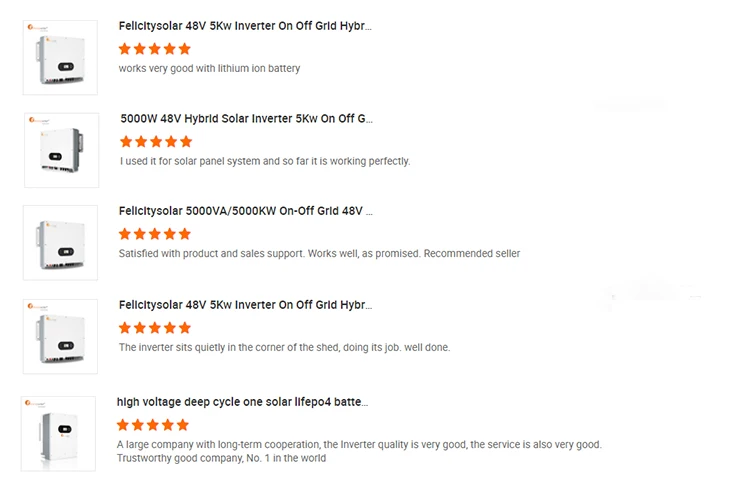

Feedback
