M5x8 Stainless Steel Capacitor Discharge CD Flanged Threaded Metric Weld Studs
- Category: >>>
- Supplier: Anping County Huihao Hardware Mesh Product Co. Ltd.
Share on (1600916288643):
Product Overview
Description
Quick Details
Quick Details Of The M5x8 Stainless Steel CD Flanged Threaded Metric Weld Studs
CD Flanged Threaded Metric Weld Studs in stainless steel material provide extra corrosion resistance and can be used in marine applications. They are available in a huge range of sizes and provide an incredibly versatile and portable method of joining small diameter studs to thin sheet metals.

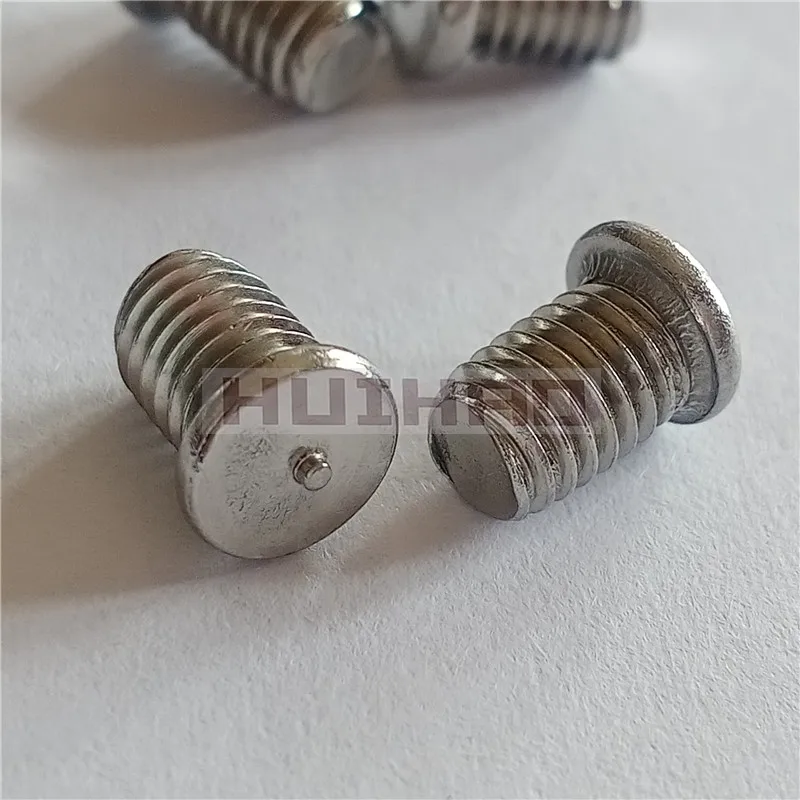

CD Flanged Threaded Metric Weld Studs have a small pip under the weld end which melts during the arc and welds the end of the fastener to the material, this is assisted by spring pressure from the welding gun. The fast weld times minimize heat buildup, resulting in welds with very little distortion, discoloration or burning.
CD Flanged Threaded Metric Weld Studs have a small pip under the weld end which melts during the arc and welds the end of the fastener to the material, this is assisted by spring pressure from the welding gun. The fast weld times minimize heat buildup, resulting in welds with very little distortion, discoloration or burning.
Product Description
M3 - M10 CD Flanged Threaded Metric Weld Studs
1) CD Flanged Threaded Metric Weld Studs are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.
2) CD Flanged Threaded Metric Weld Studs are available in many different sizes, from a base diameter of a 2 mm stud up to 12 mm.
3) CD Flanged Threaded Metric Weld Studs are: copper coated steel, stainless steel, aluminium alloy, and brass.
4) Other grades, i.e. AISI 316 (A4), AISI 310 are available on request.
5) The stud flange is designed according to EN ISO 13918.
2) CD Flanged Threaded Metric Weld Studs are available in many different sizes, from a base diameter of a 2 mm stud up to 12 mm.
3) CD Flanged Threaded Metric Weld Studs are: copper coated steel, stainless steel, aluminium alloy, and brass.
4) Other grades, i.e. AISI 316 (A4), AISI 310 are available on request.
5) The stud flange is designed according to EN ISO 13918.
Capacitor Discharge (CD) Weld Studs | ||||||
D | FD | FD Thickness | MIN L | |||
M3 | 4.5 | 0.7-1.4 | 6 | |||
M4 | 5.5 | 0.7-1.4 | 6 | |||
M5 | 6.5 | 0.8-1.4 | 10 | |||
M6 | 7.5 | 0.8-1.4 | 10 | |||
M8 | 9.0 | 0.8-1.4 | 12 | |||
M10 | 11.0 | 0.8-1.4 | 12 | |||
*All dimensions in millimeters | ||||||
Image details
M5x12 Copper Plated Steel CD Flanged Threaded Metric Weld Studs
M6x15 Aluminum CD Flanged Threaded Metric Weld Studs

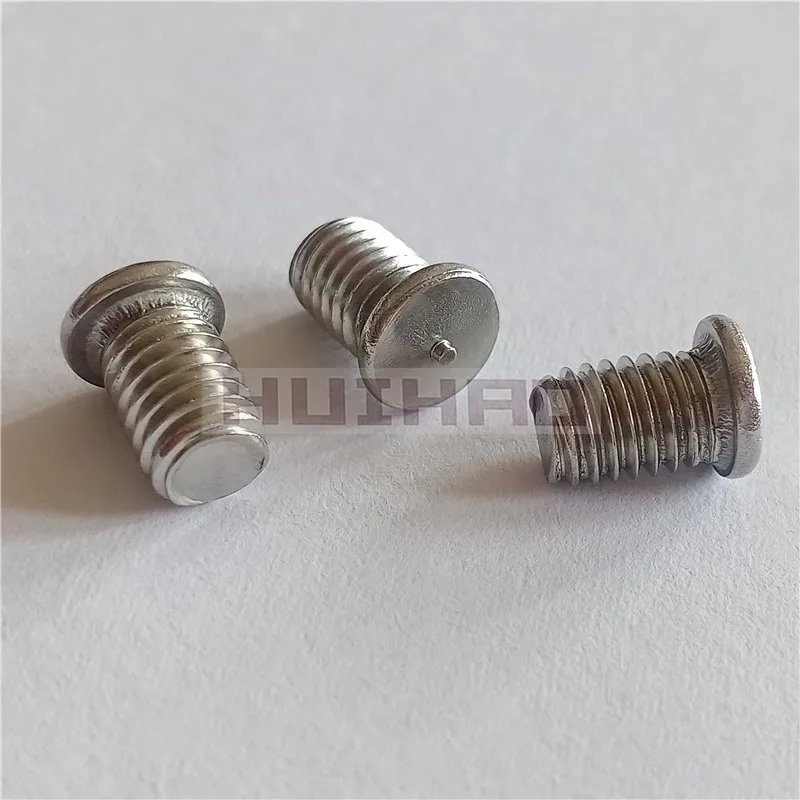

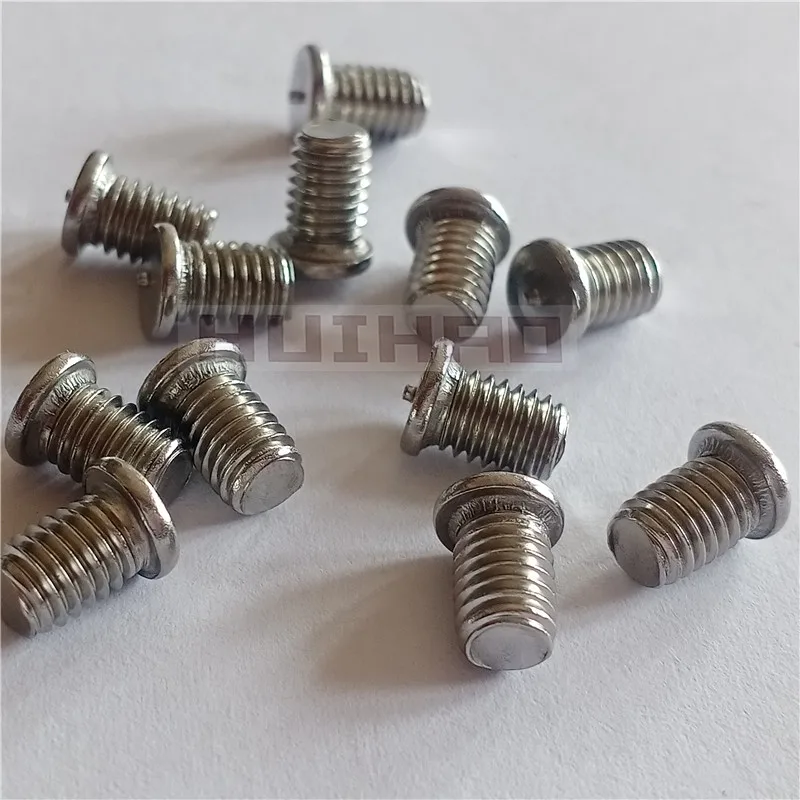

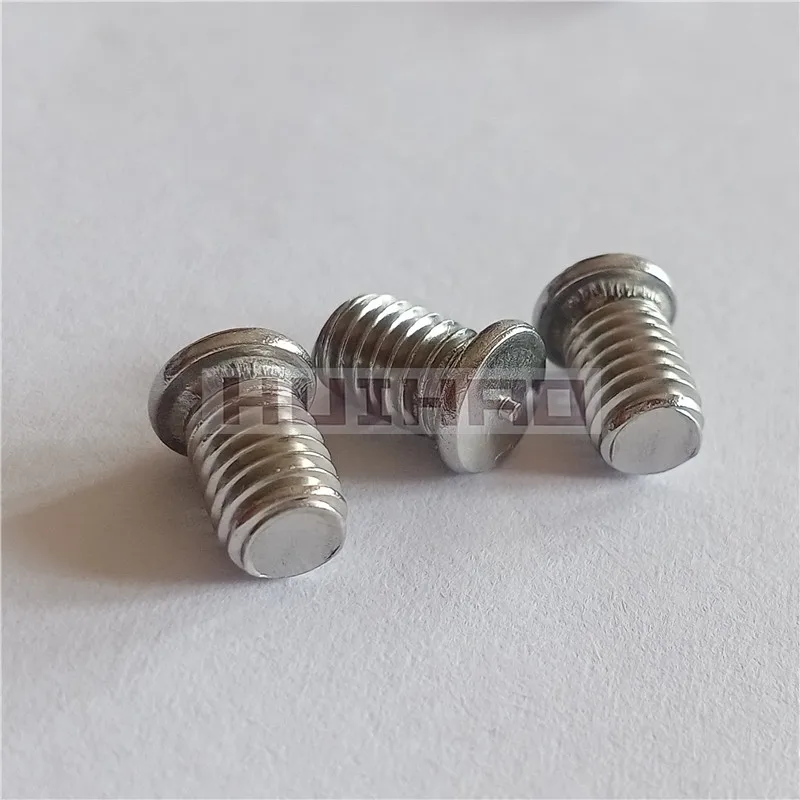

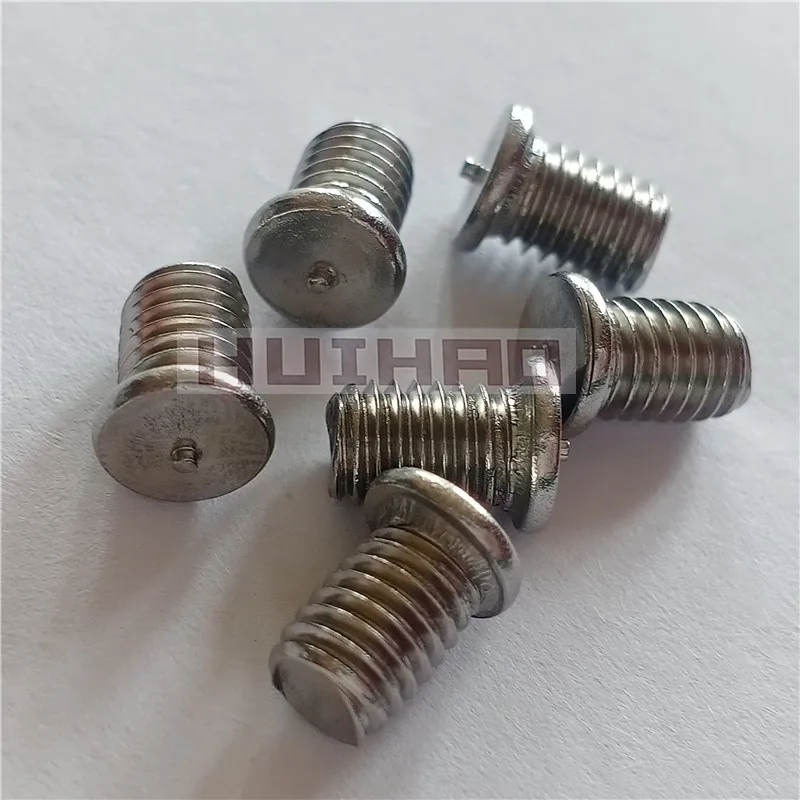

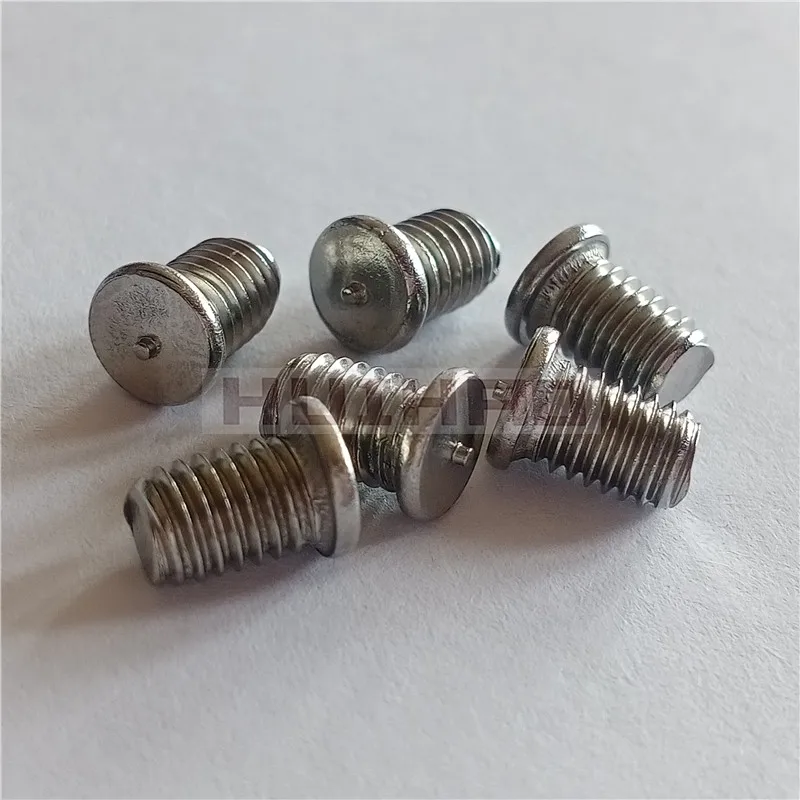

M5x8 Stainless Steel CD Flanged Threaded Metric Weld Studs
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, stud size all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. Do you accept small order?
Yes, for common size and material, we could accept small order.
5. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
6. Advantage Of Huihao Hardware Mesh Product Limited.
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, stud size all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. Do you accept small order?
Yes, for common size and material, we could accept small order.
5. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
6. Advantage Of Huihao Hardware Mesh Product Limited.
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.

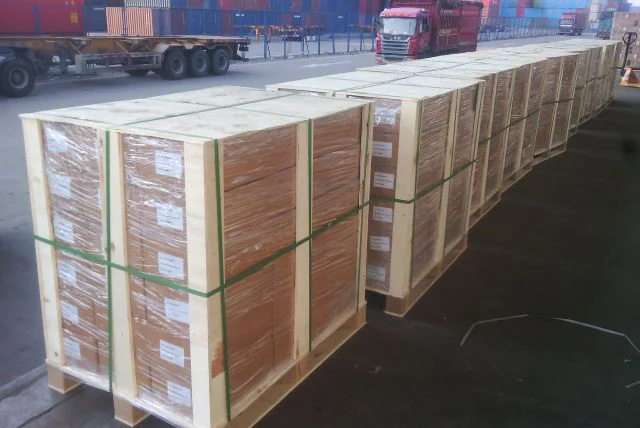

Package & Delivery

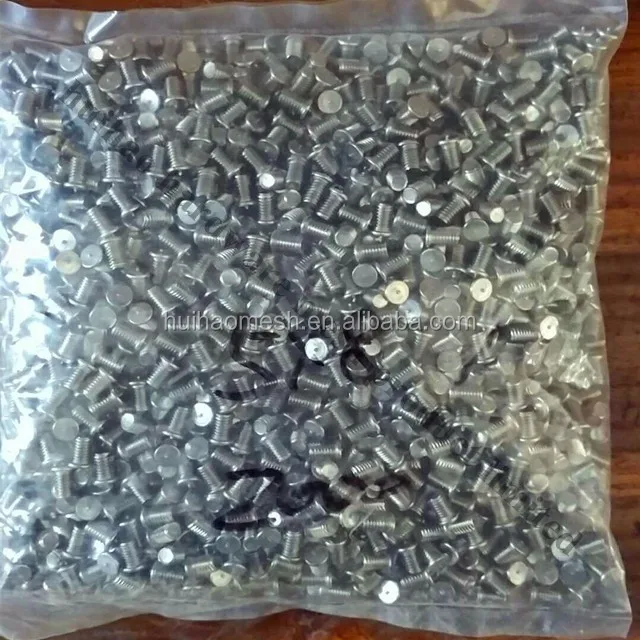

Package:
50 pcs per cases, 6 small cases in a box, 48 boxes on a pallet.
Delivery:
Sample or small order: DHL/EMS/UPS/TNT/EXPRESS
Large order: we recommend you by SEA ,or by AIR if in an emergency.
Delivery:
Sample or small order: DHL/EMS/UPS/TNT/EXPRESS
Large order: we recommend you by SEA ,or by AIR if in an emergency.
Quality Control
common inspection facilities
micrometers
vernier caliper
thread plug
thread ring gauge
common inspection measurements
exterior inspection:surface finish judgement
size inspection:within common difference
thread inspection:mainlander the precision of the thread,inspected by Go/No gogage
physico-chemical inspection facilities
salt-fog test machine
rally machine
hardness machine
spectrum analyzer
toolmaker microscope
altimeter
projector
stud welder
physico-chemical inspection measurements
decay preservation inspection:mainly under the test of salt-fog experiments to inspect the surface finish and the reservation from decay
intensity inspection
material inspection
thread inspection
hardness inspection
welding inspection
