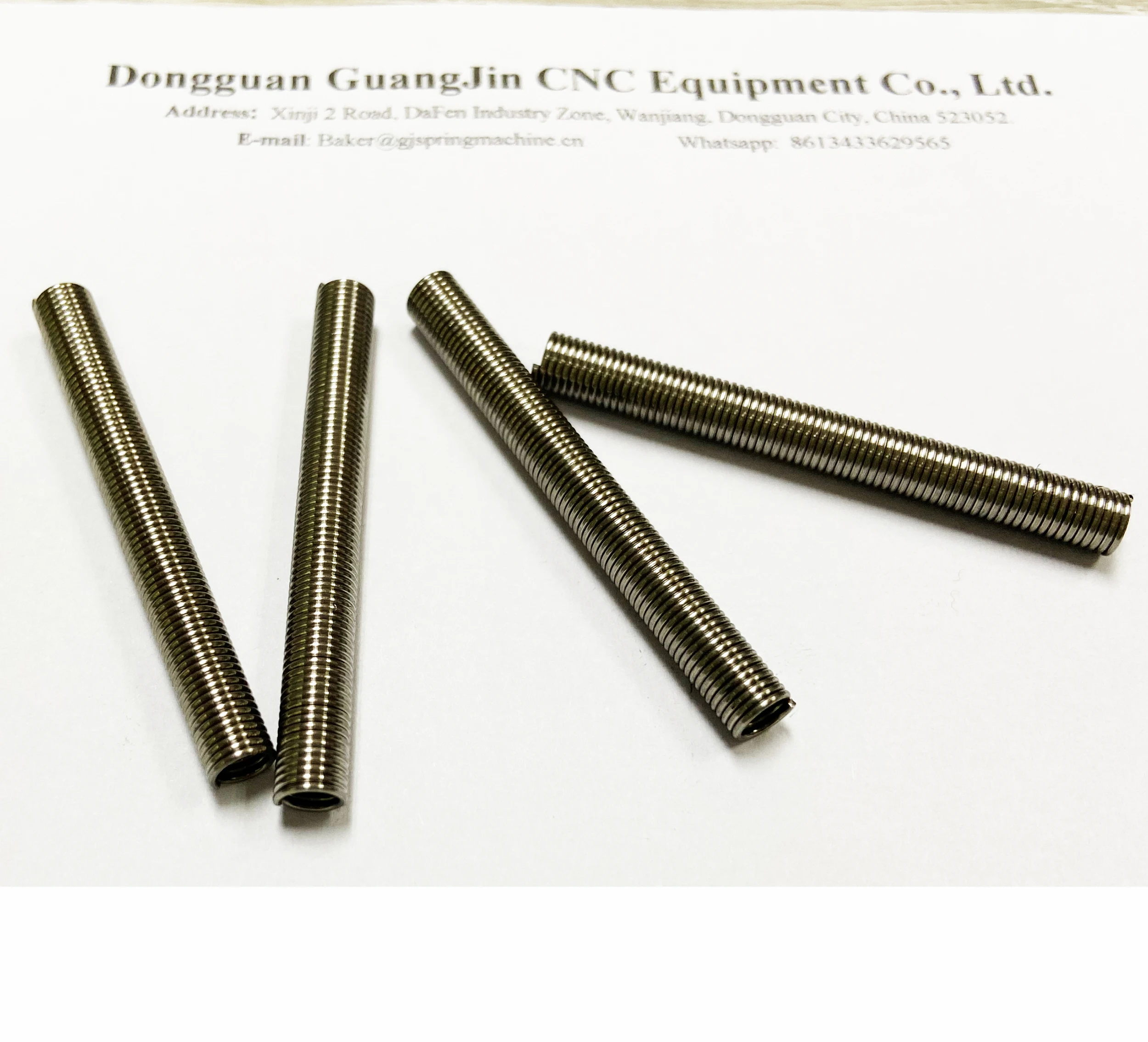

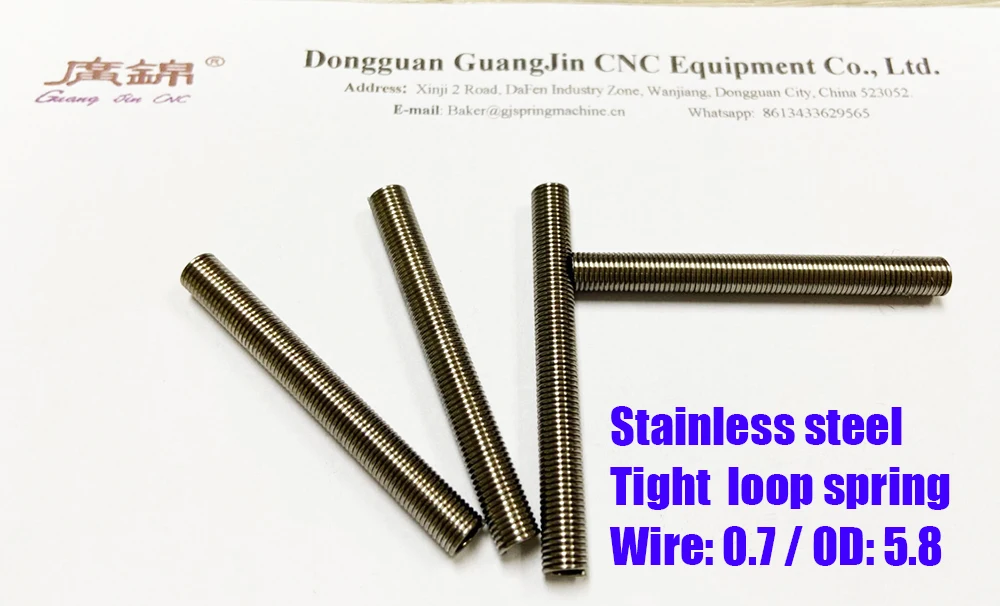

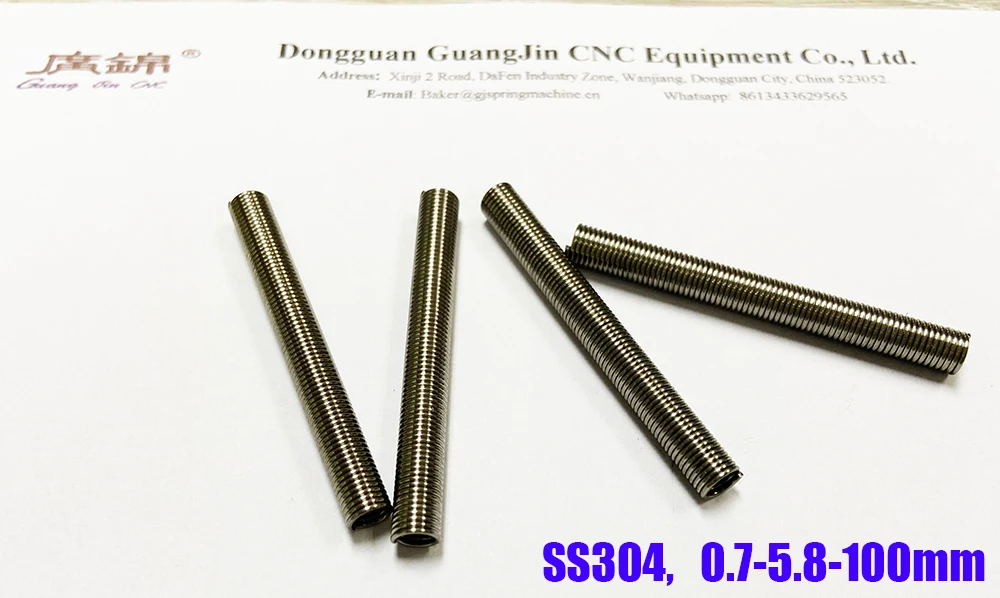

2 Axis 1 mm Precise Spring Coiling Machine For stainless steel 0.7mm into cable guide sleeve spring
- Category: >>>
- Supplier: Dongguan Guangjin Cnc Equipment Co. ltd.
Share on (1600916326263):
Product Overview
Description
Product Description
2 Axis 1 mm Precise Spring Coiling Machine For stainless steel 0.7mm into cable guide sleeve spring
Model: GJ-8

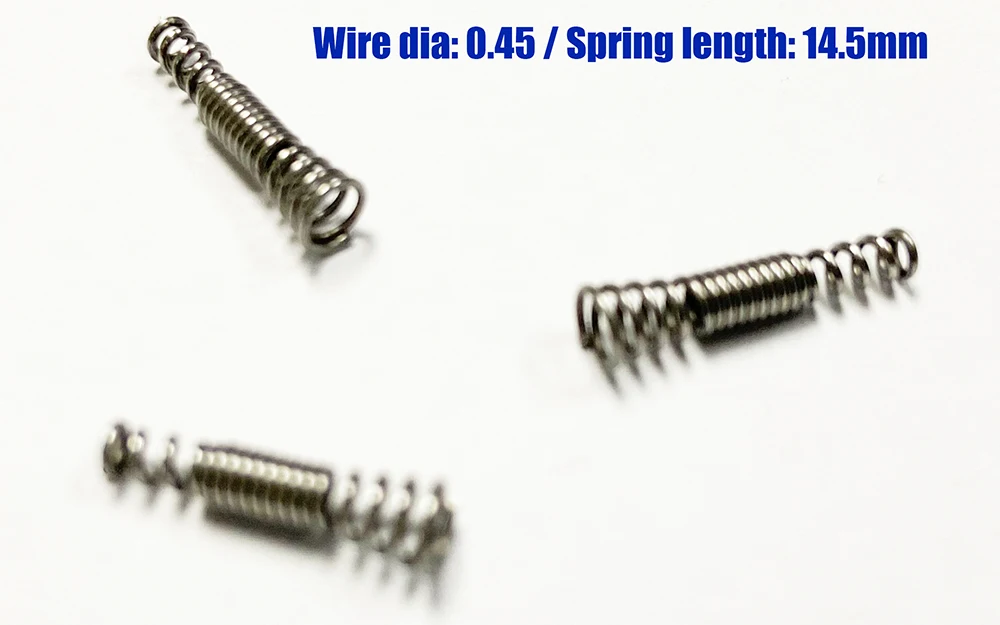

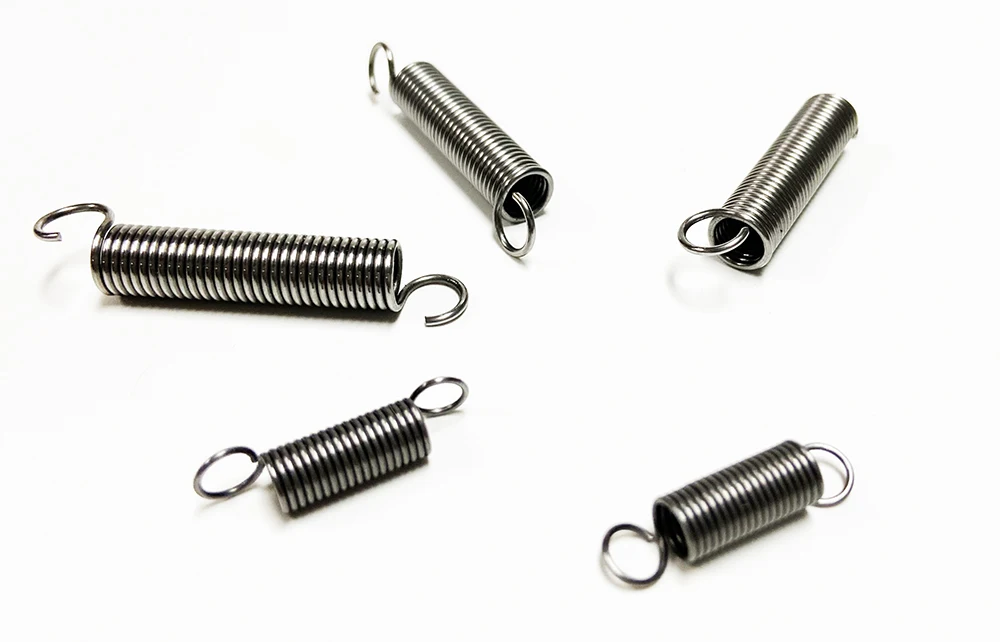

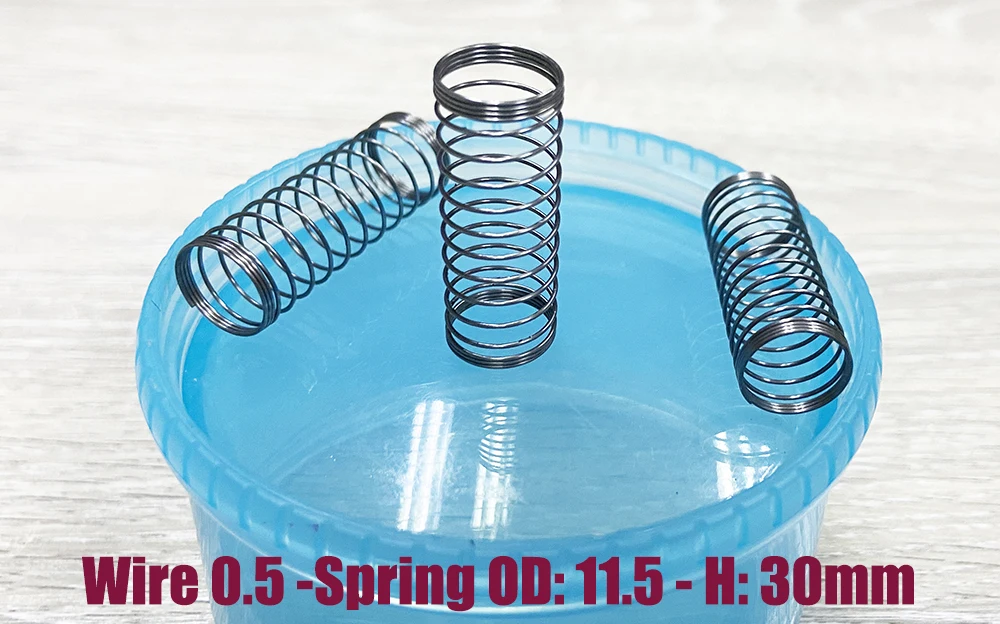

Some more mostly examples
- Anti-Theft Buckle spring
- Retail security magnetic bulkle spring
- Umbrella mini extension spring
- Ball pen spring
- Lotion pump spring
- Trigger Sprayer spring
Key features and advantages:
1. Precision into 0.08mm.
2. Steel gear, powerful enough for wire max 1.4mm
3. Wire feeding mechanism’s gear always immersed in oil for best lubrication.
4. 2x1KW Sanyo Denki Servo Motors, capable of feeding and coiling wire larger 0.8mm, max to 1.40mm.

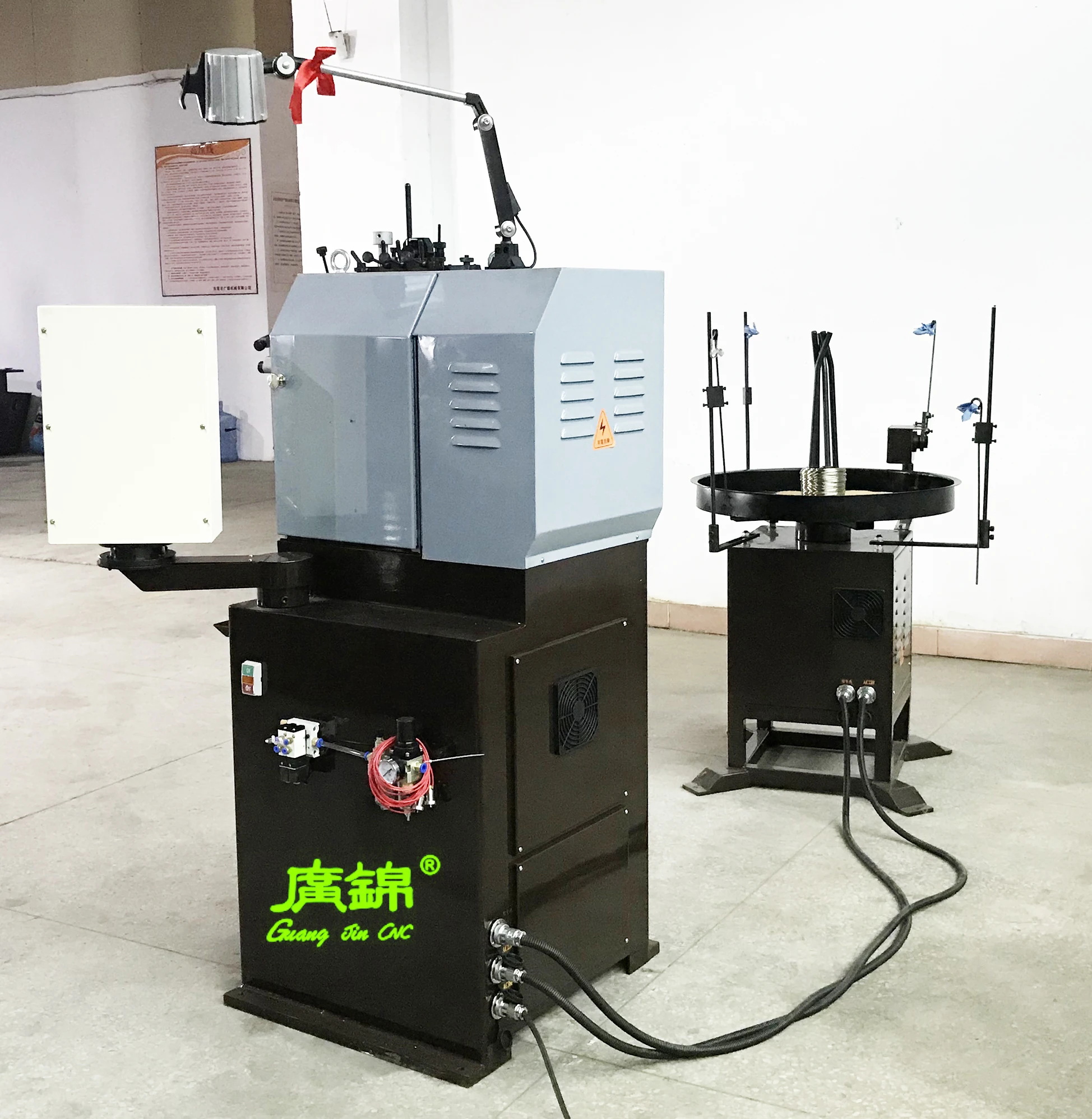

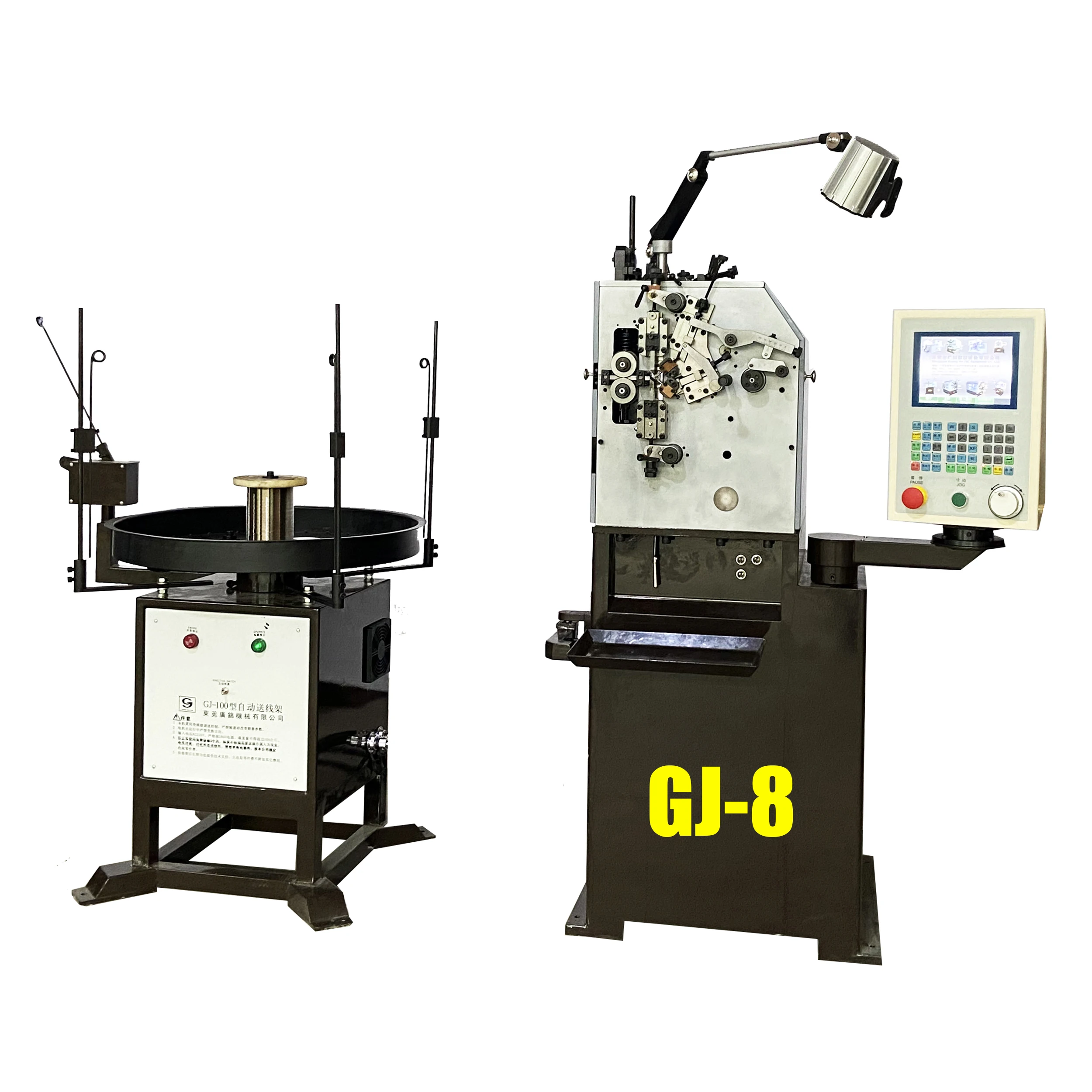

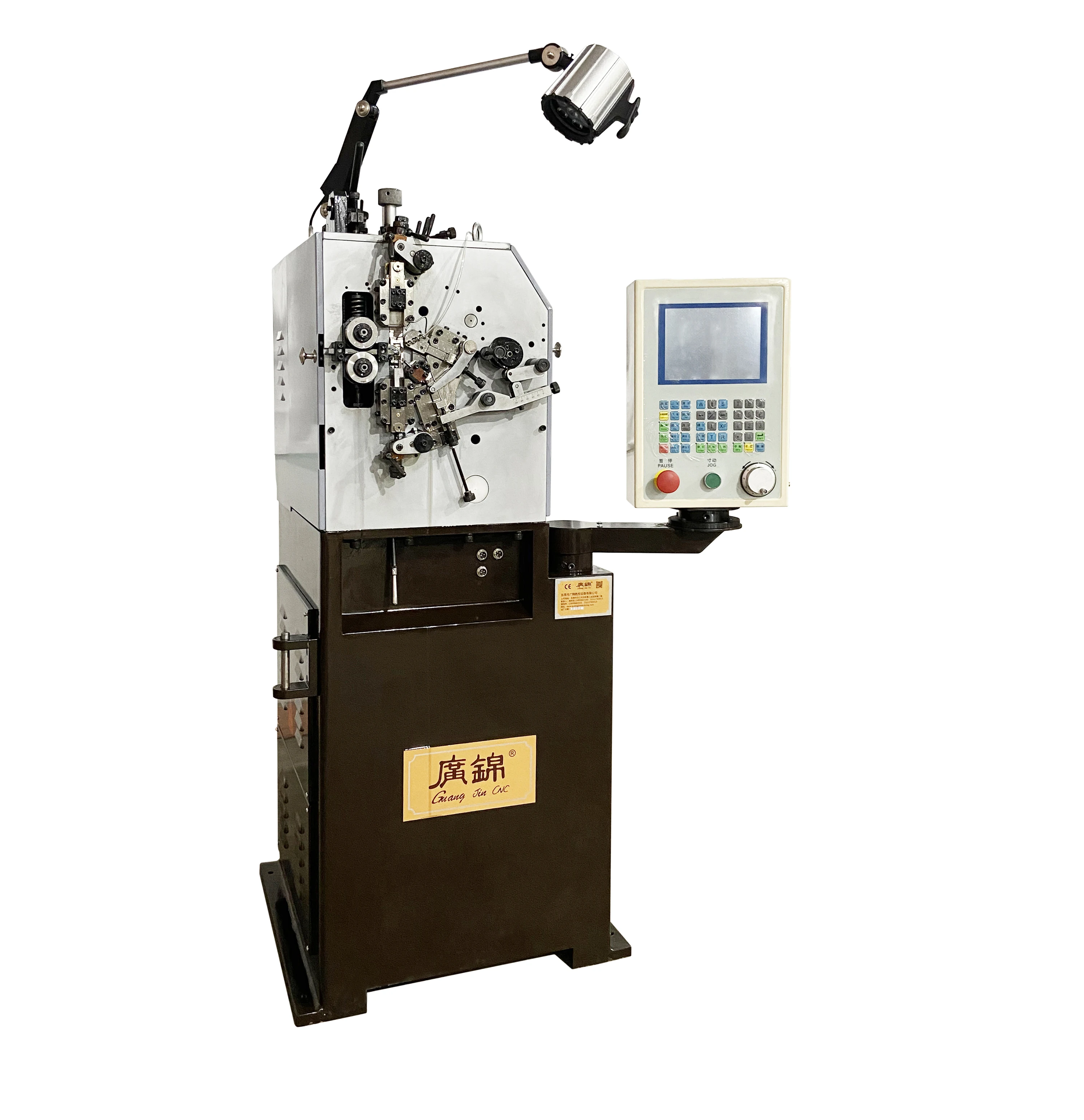

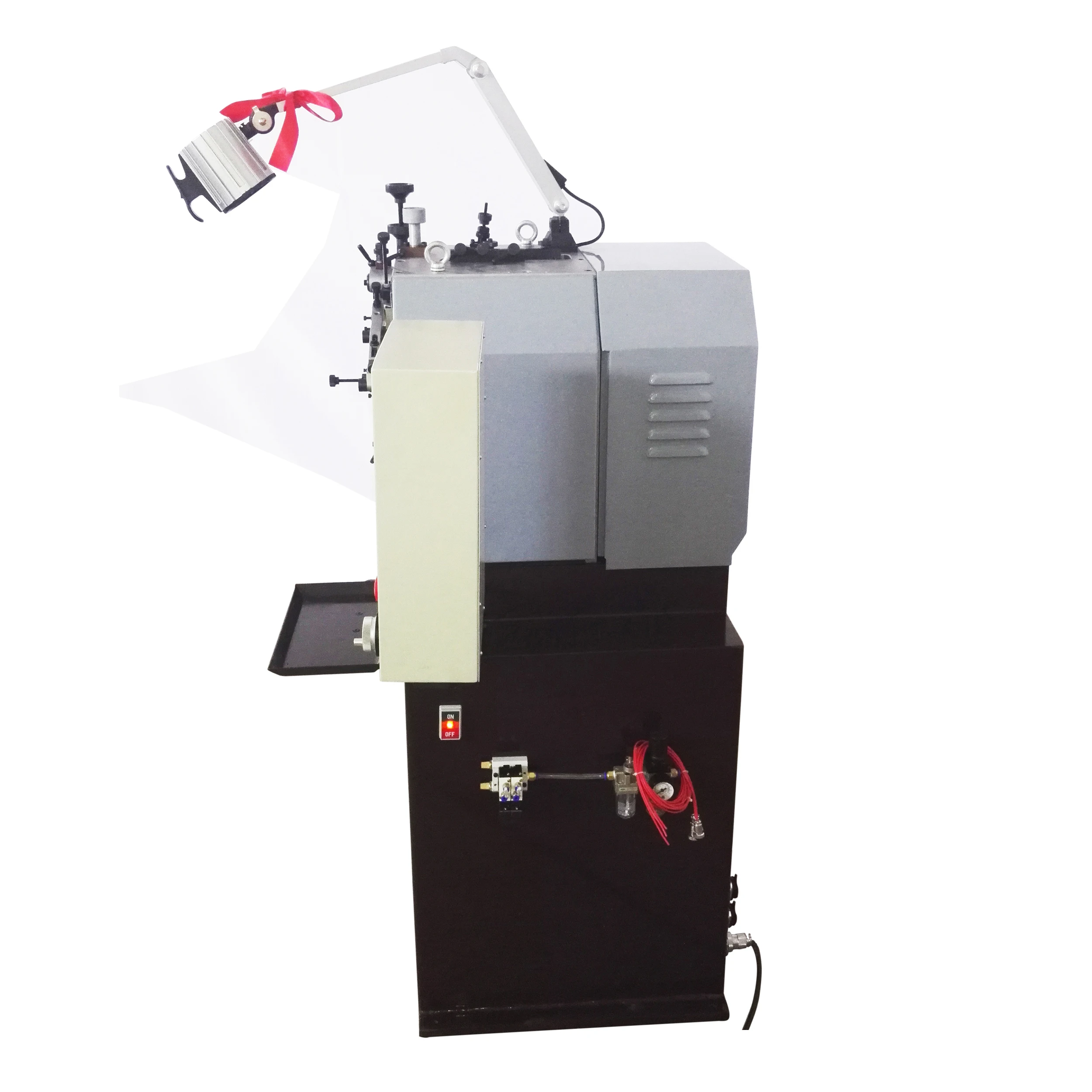

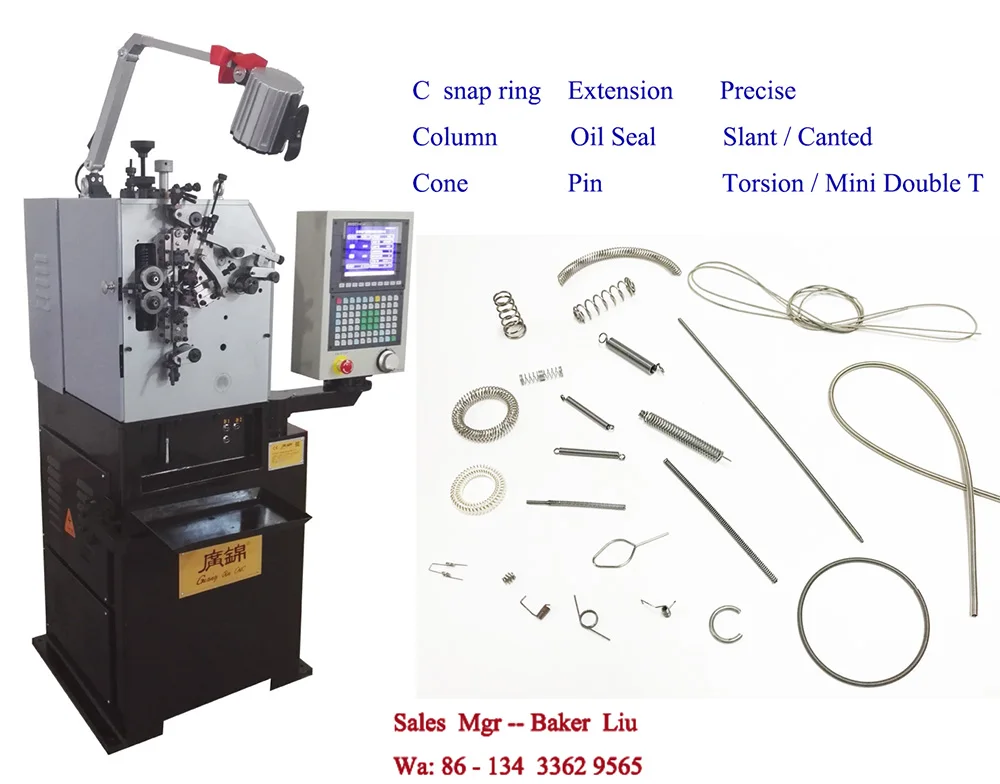

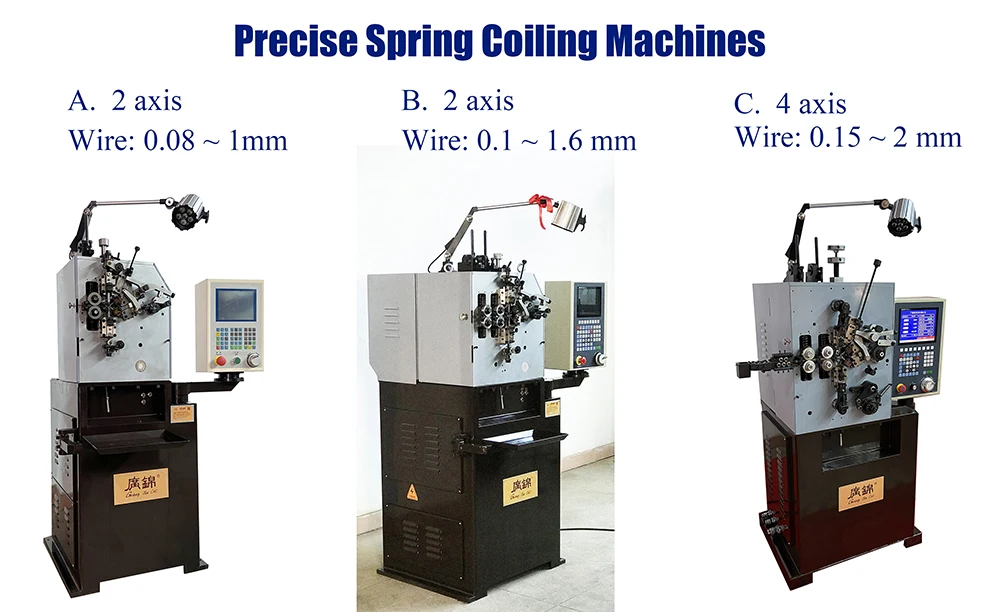

Machine pictures
Details
Technical Parameters
Producing: Oil seal, ballpoint pen, umbrella torsion, mini torsion, slant, canted, precision | |
Feeding Wire Size | Φ0.08 - 1 mm |
Number of Axis | 2 axis (servo motors) 2 x 1KW |
Input / Power Supply | 380V, AC, 3 phase / Customized. |
Total Power / Work Consumption | 2.2KW / 0.6KW |
Control System | Arcuchi, En / Cn, or customized 3rd Lag. |
Spring OD | Up to 25mm |
Program Saved | Max 100 products. |
Wire Feeding Precision | ±0.01mm @ 100 mm |
Avg Producing Speed | 150 ~180 pcs per minute. |
Optional | Torsion spring fixture |
Wire Feeding Roller | 1 Pairs x (50 x 12 mm ) |
Wire Decoiler | Max load: 100kg, Automatic pace. |
Full set machine space occupy | WDH: 270x130x175cm |
Eexport Package | 2 CTN / 460kgs/ 2.10CBM |
Company Information
.Exhibition
Client Witness:
Dongguan GuangJin CNC Equipment Co., Ltd.

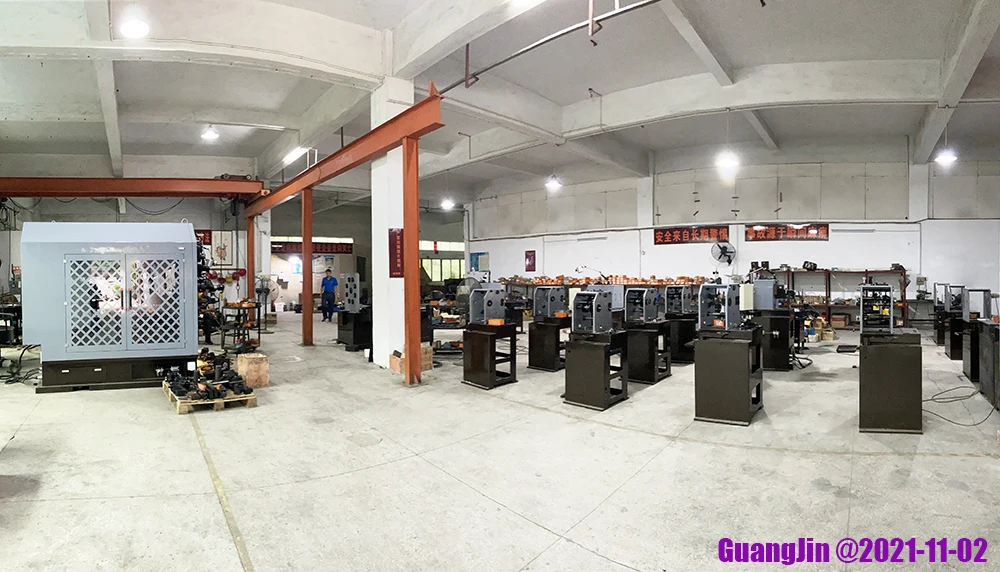

( Factory: Spring Coiling and Wire Forming Machine )
Sales: Baker Liu / WA: +8613433629565
Add: Dongguan City, South China, 523052.
Our machines making:
1. Vary type springs, Converyor Blet, Constant Force,
2. Customized wire forming products. C-Washer
3. Fishing snap, fish clasp, Flat spiral, Garter,
4. O-Ring, Oil seal, Wire Pin
5. Slant spring, Rake teeth.
6. Trigger sprayer spring.
