SR201 1.5KW Solar Controllers for Compact Non Pressurized Solar Water Heater

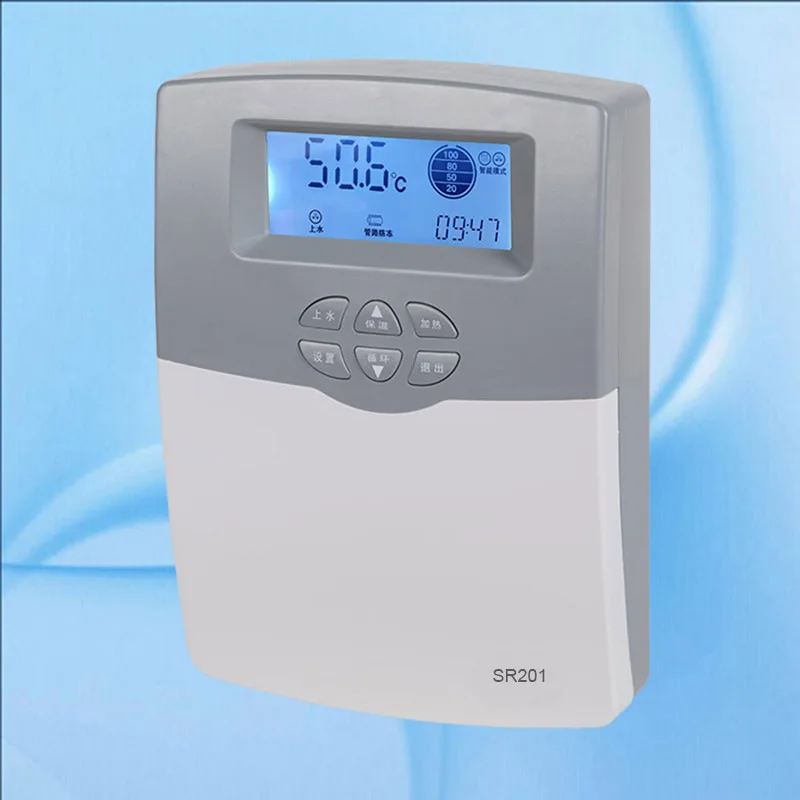

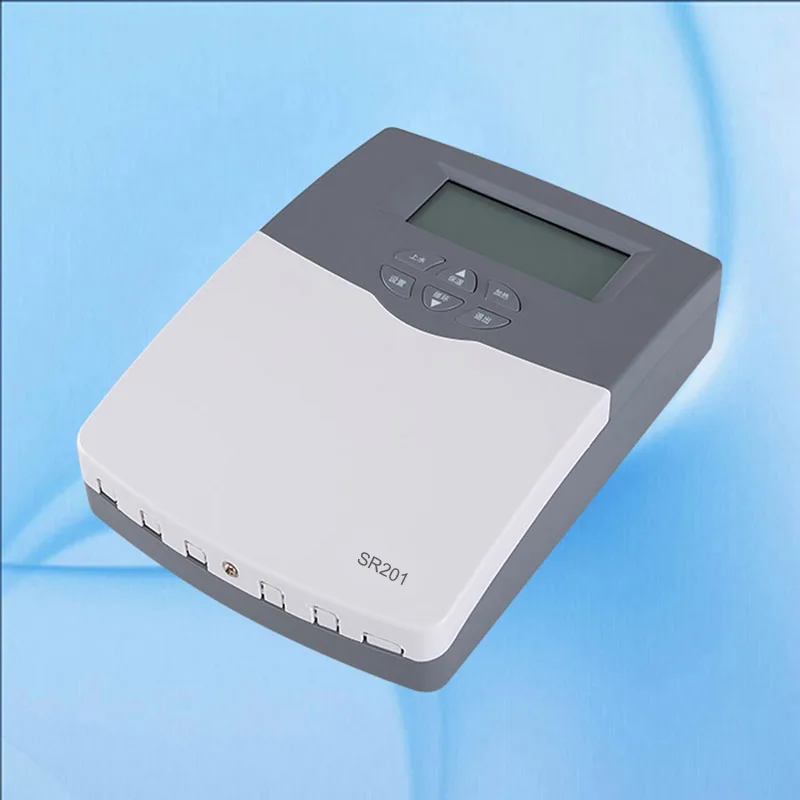

SR201 microcomputer automatic controller is used for intelligent control of Integrated non-pressure solar water heater. It is developed with the latest NEC high-performance single-chip microcomputer and realizes intelligent control. All devices adopt industrial grade standard and can operate freely in cold, high temperature and humid environment. At the same time, the clock chip is used to make the time control accurate. The controller LCD liquid crystal display, beautiful appearance, stable and reliable performance, easy installation, is the most ideal accessory product for Integrated non-pressure solar water heaters.

The SR201 solar controller can display the water temperature and water level; control the water tank water supply through water temperature, water level and time setting; and can control the electric heating and other ancillary equipment to fully control the solar water heater. The list of more features is as follows:

1.Time setting
2.Timing filling and heating with three time-sections
3.Pipe insulation (belt-cable heating) function
4.Booster pump function
5.Hot water circulation
6.Delay time of water filling when tank is lack-of water
7.Celsius degree and Fahrenheit unit switch
8.BEEP Beeper error warning
9.Compulsive water filling function
10.Manual water filling
11.Manual heating
12.Tank high temperature protection function
13.High temperature protection of collector tube
14.Tank anti-freezing protection
15.low water pressure protection

16.Overflow protection
17.Memory protection
18.Screen protection

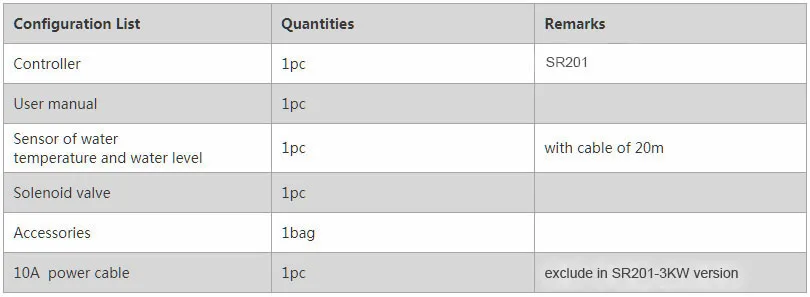

1.3 Packing list

• Power supply:AC100-240V,50-60Hz
• Power consumption:< 3W
• Accuracy of temperature measuring: ±1℃
• Range of tank temperature measuring: 0 ~100 ℃
• Outputs:4 electromagnetic relays
• Ambient temperature :-10℃ ~ 50℃
• Water proof grade:IP40

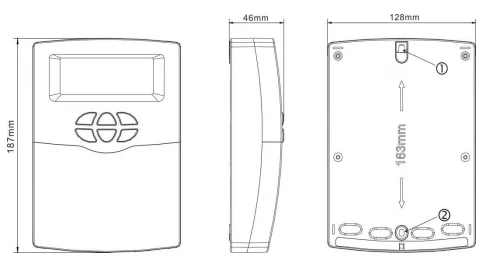

205mm×150mm×50mm

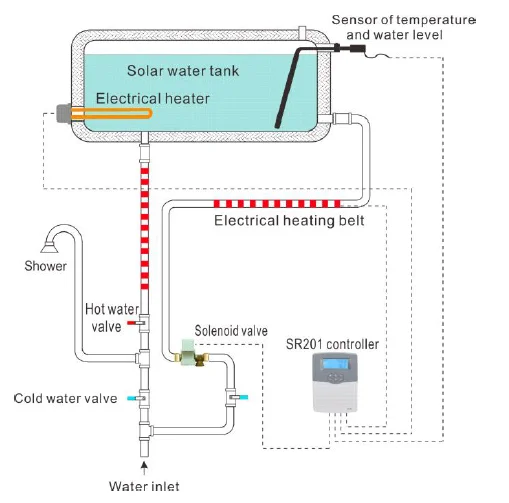

3.1 SR501 installation diagram ia as follows:
