TR electromagnetic relay protection 1A 0.5mA open close outdoor waterproof residual current transformer 2000:1
- Category: >>>
- Supplier: Hubei Tianrui Electronic Co. Ltd. Nanjing Branch
Share on (1600916343337):
Product Overview
Description
Related products
PRODUCT OVERVIEW

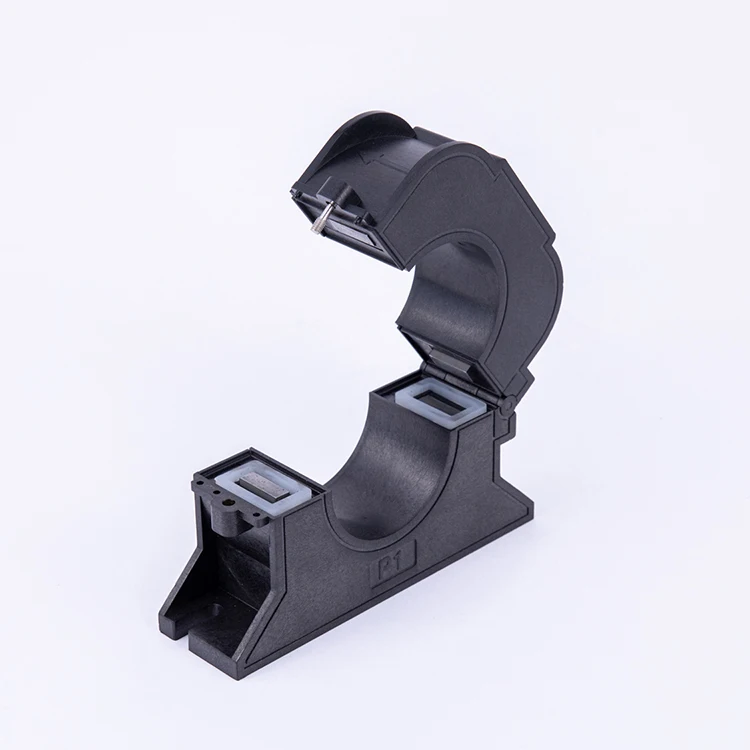

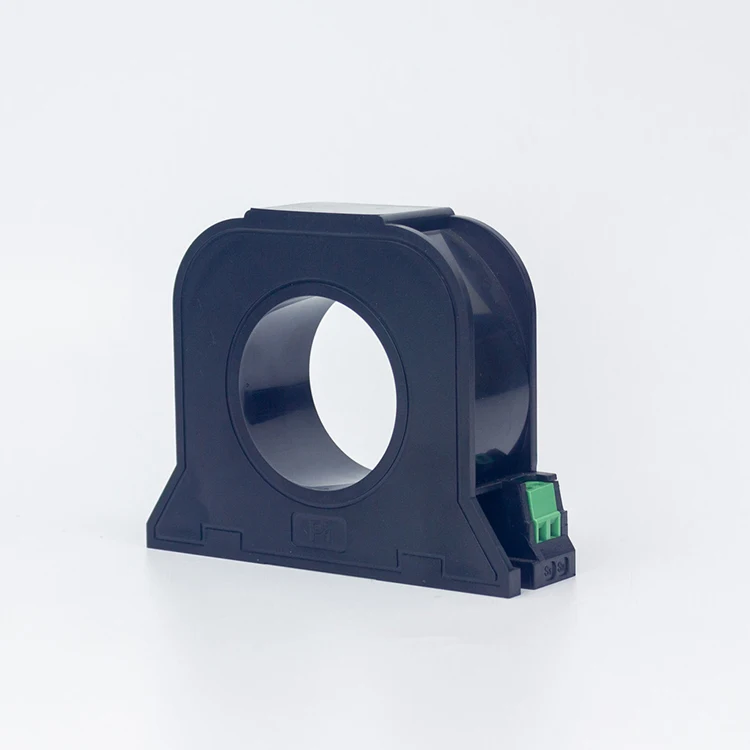

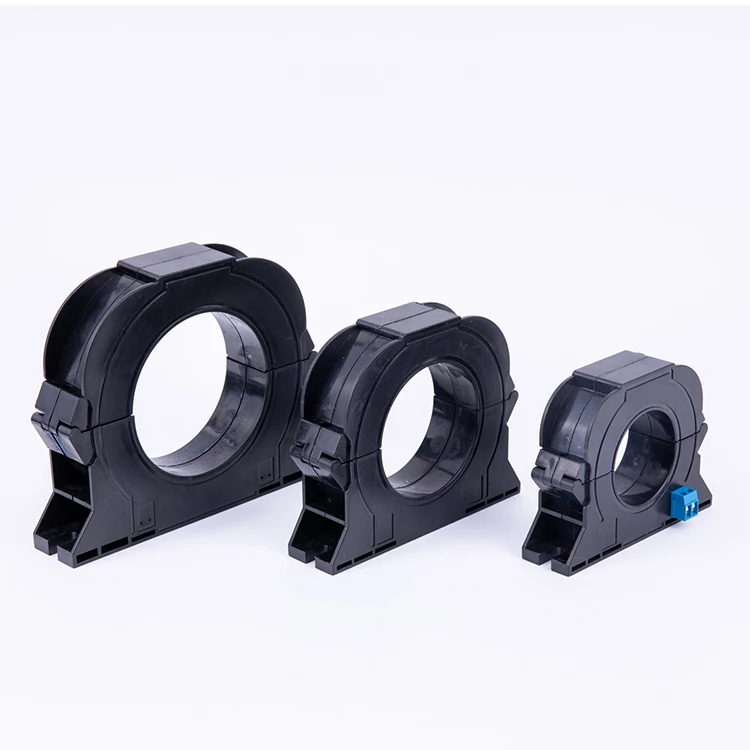

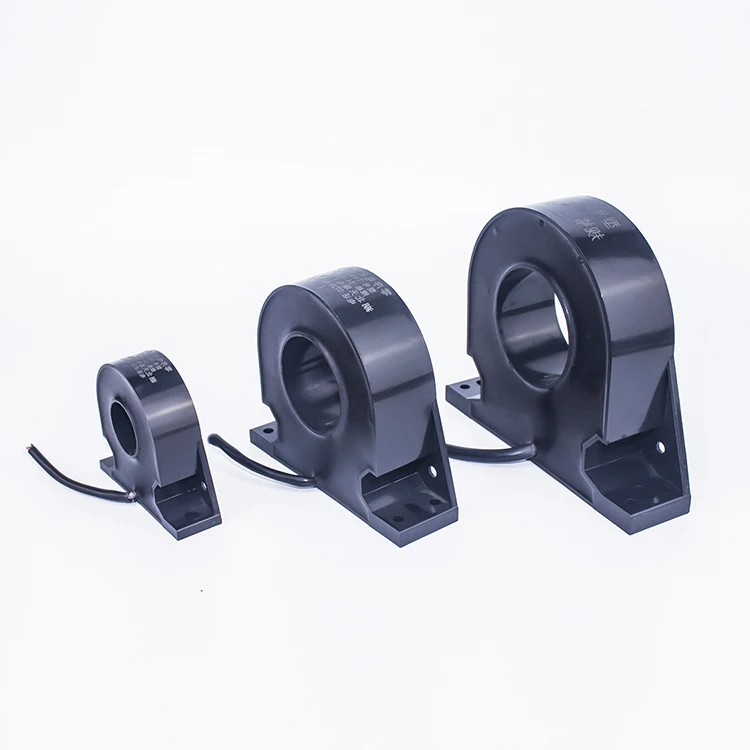

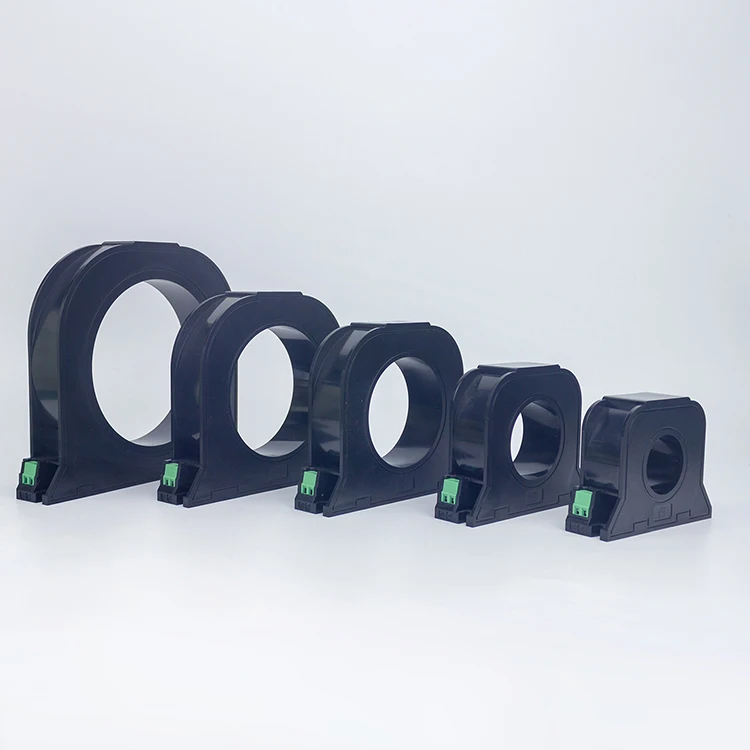

B series open and close residual current transformer, 90 degrees open and close freely, can be used outdoors. It can be quickly
installed and disassembled in the state of no power failure and continuous line, and the operation is simple. This series of
products has a variety of apertures corresponding to the cable specifications used in the main circuit to meet different use and
installation needs. The use of high magnetic permeability magnetic core improves the response time of the transformer to residual
current. The unbalanced current monitoring value is better than 5mA, which greatly reduces the false alarm and malfunction caused
by the main circuit current magnetic field interference, which provides a sufficient guarantee for the reliability of the
equipment.
installed and disassembled in the state of no power failure and continuous line, and the operation is simple. This series of
products has a variety of apertures corresponding to the cable specifications used in the main circuit to meet different use and
installation needs. The use of high magnetic permeability magnetic core improves the response time of the transformer to residual
current. The unbalanced current monitoring value is better than 5mA, which greatly reduces the false alarm and malfunction caused
by the main circuit current magnetic field interference, which provides a sufficient guarantee for the reliability of the
equipment.
Electric Performance Parameters | Operating Temperature | -40℃～+70℃ | Relative Humidity | ≤90% |
Voltage Level | 0.4/0.66/0.72KV | Linear Range | 5%～1000% | |
Rated Input Current | 0～1A | Rated Frequency | 50/60Hz | |
Rated Output | 0～0.25mA or 0～1V | Power Frequency Withstand Voltage | 3KV/min | |
Accuracy Class | 0.5、1.0 | Insulation Strenth | 1000MΩ/500V/min | |
Mechanical Structure Parameters | Shell and Skeleton | PBT/PC Flame Retardant Grade 94-V0 | Output Method | Sheathed Lines |
Iron Core Material | Nanocrystalline | Split-core Structure | “304”Fastening with inseparable screw | |
Sealing and Filling | Epoxy Resin | Construction Plan | Base mounting screw fixing |
1.Split-core structure, easy to install on site and easy to operate;
2.The magnetic core winding structure is cast with epoxy resin, and the end faces of the incision are matched, and the stability isgood;
3.Adopt high-permeability ultra-microcrystalline core, with good linearity and high sensitivity;
Scope of Application
Electrical fire monitoring system, fire-fighting equipment power monitoring system, rural power grid reconstruction project,
intelligent power consumption system, low-current grounding system, electromagnetic relay protection, online environmentalmonitoring, etc.
