Hot sale 86CM35 Leadshine manufacturer stepper motor or phase Nema 34 DC hybrid stepper motor for CNC
- Category: >>>
- Supplier: Dongguan Feitong Intelligent Technology Co. Ltd.
Share on (1600916364027):
Product Overview
Description
Related Products
FAQ
Q : What about the price of the product? | A : Our products are original products, with factory prices, support inspection. | ||||||
Q : Do you have the products in stock ? | A : We have almost all product in stock ,except for non-standard orders. | ||||||
Q : whats the delivery time ? | A : Spot delivery time is about 3 working days , but the exact delivery time might be different for different order or at different time . | ||||||
Q : How does your factory do regarding quality control ? | A : Quality is the first ,our product quality assurance is 2 years,so you can rest assured to buy. | ||||||
Product Description

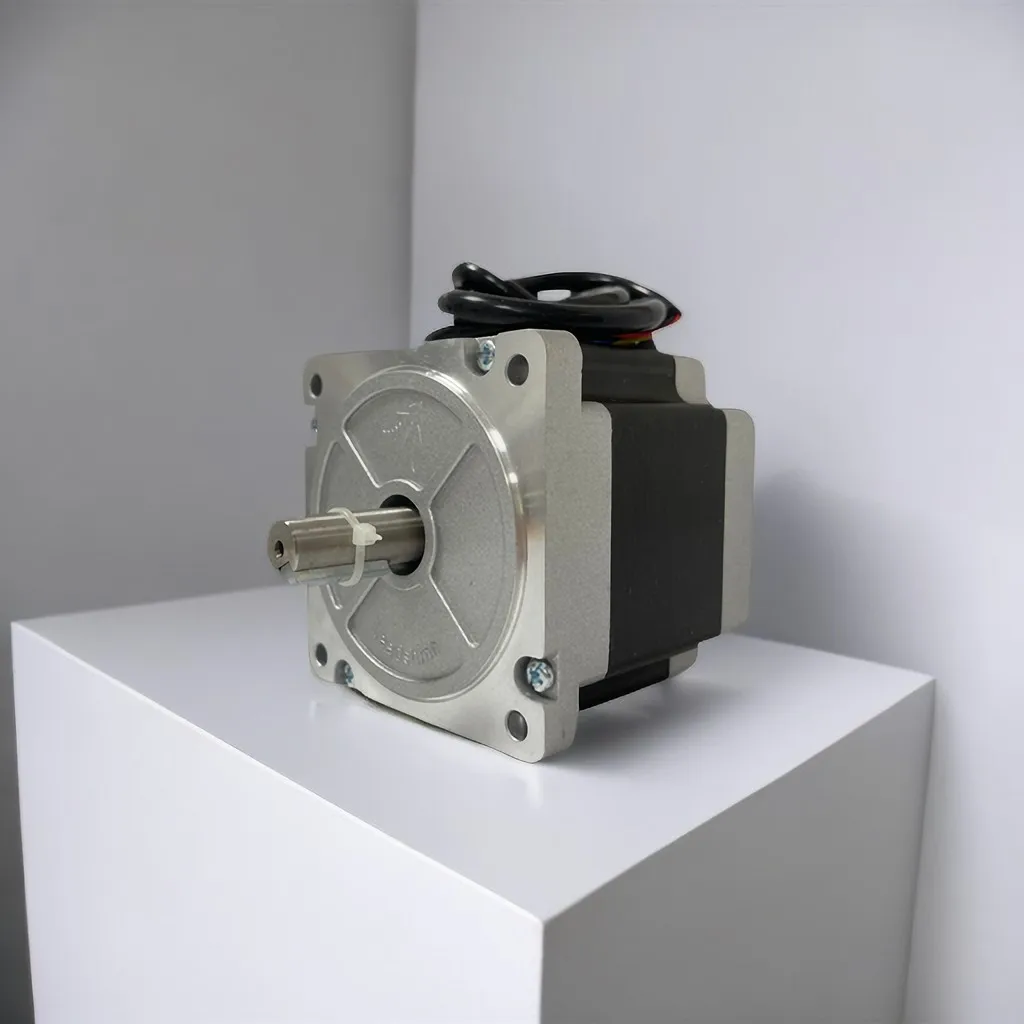

86CM35
86CM35 can be implemented in many industrial metion control applications.
Built with premium quality materials
including bearings and shaft made by
famous manufacturers.
They can move the attached load at high precision and with very low motor heating & vibration.
Model | 86CM35 |
Frame Size(NEMA) | 34 |
Length(mm) | 65 |
Holding Torque(N.m) | 3.5 |
Phase Current(A) | 4 |
Shaft Diameter(mm) | 12.7 |
Center Diameter(mm) | 73 |
IP Rate | IP40 |
Characteristics | Standard |
Resistance(ohm) | 0.42 |
Inductance(mh) | 2.67 |
Inertia(kg/cm2) | 1.0 |
Weight(kg) | 1.8 |
Other product
Model | Phase | Frame Size (NEMA) | Length (mm) | Holding Torque (N.m) | Phase Current (A) | Shaft Diameter (mm) | Center Diameter (mm) | Type |
60CM22X | 2 | 24 | 67 | 2.2 | 5 | 8 | 36 | Standard |
60CM30X | 2 | 24 | 85 | 3 | 5 | 8 | 36 | Standard |
60CM30X-SZ | 2 | 24 | 85 | 3 | 5 | 8 | 36 | Dual shaft |
60CM30X-BZ | 2 | 24 | 85 | 3 | 5 | 8 | 36 | Brake |
60CM30X-0-I10 | 2 | 24 | 85 | 3 | 5 | 10 | 36 | Standard |
86CM35 | 2 | 34 | 65 | 3.5 | 4 | 12.7 | 73 | Standard |
86CM45 | 2 | 34 | 80 | 4.5 | 6 | 12.7 | 73 | Standard |
86CM45-BZ | 2 | 34 | 123 | 4.5 | 4.2 | 14 | 73 | Brake |
86CM45-FS | 2 | 34 | 90 | 4.5 | 6 | 14 | 73 | Water proof |
86CM45-0-I14 | 2 | 34 | 80 | 4.5 | 6 | 14 | 73 | Standard |
86CM80 | 2 | 34 | 98 | 8 | 6 | 12.7 | 73 | Standard |
86CM80-0-I14 | 2 | 34 | 98 | 8 | 6 | 14 | 73 | Standard |
86CM80-ZK | 2 | 34 | 98 | 8 | 6 | 14 | 73 | Hollow shaft |
86CM85 | 2 | 34 | 118 | 8.5 | 6 | 12.7 | 73 | Standard |
86CM85-BZ | 2 | 34 | 161 | 8.5 | 6 | 14 | 73 | Brake |
86CM85-FS | 2 | 34 | 130 | 8.5 | 6 | 14 | 73 | Standard |
86CM85-0-I14 | 2 | 34 | 118 | 8.5 | 6 | 14 | 73 | Standard |
86CM120C | 2 | 34 | 129 | 12 | 6 | 14 | 73 | Standard |
86CM120-BZ | 2 | 34 | 172 | 12 | 6 | 14 | 73 | Standard |
86CM120-FS | 2 | 34 | 164 | 12 | 6 | 14 | 73 | Water proof |
110CM20 | 2 | 42 | 150 | 20 | 6.5 | 19 | 55.5 | Standard |
110CM28 | 2 | 42 | 201 | 28 | 6.5 | 19 | 55.5 | Standard |
Certifications
Product application

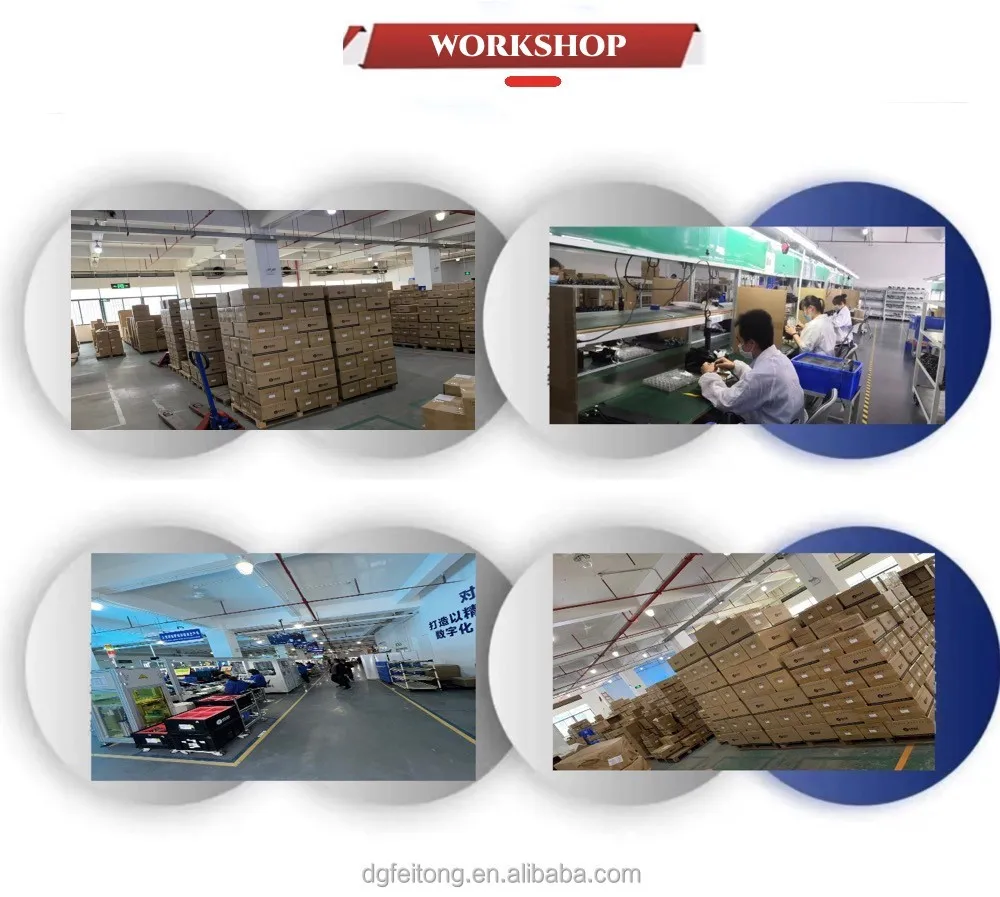

Company Introduction

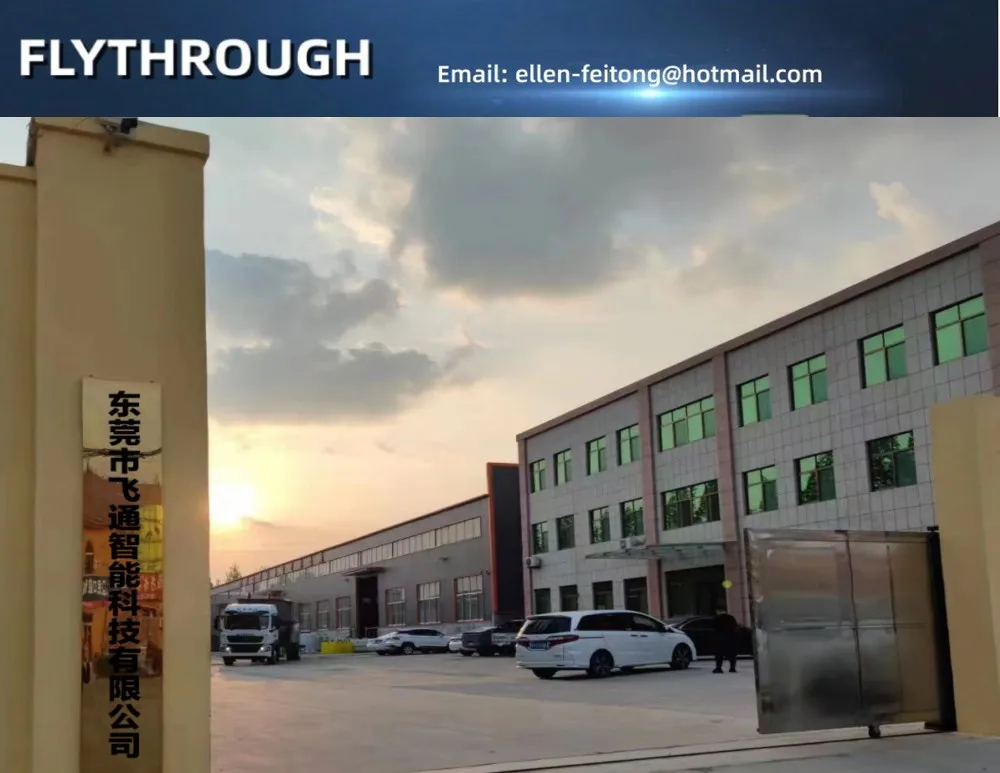

Dongguan Feitong Intelligent Technology Co., Ltd is a professional enterprise in the field of intelligent equipment motion control. We are located in Dongguan, China, with convenient transportation,covering an area of more than 30,000 square meters.
Our products are CE and ROHS certified, and we offer a two year warranty on all products. The
company has a standard production workshop,professional and technical personnel,rich experience in operation ,so we not only support you with competitive prices,but also let you satisfied with our service.
After more than 20 years of product innovation,market development and application services,our products have the dual advantages of stability,reliability and superior performance.
In the electronic,robot ,laser,new energy,logistics,medical ,woodworking and other industries have
been by thousands of excellent equipement manufacturers for a long time , and exported to more
than countries such as the United States,Germany,India.
