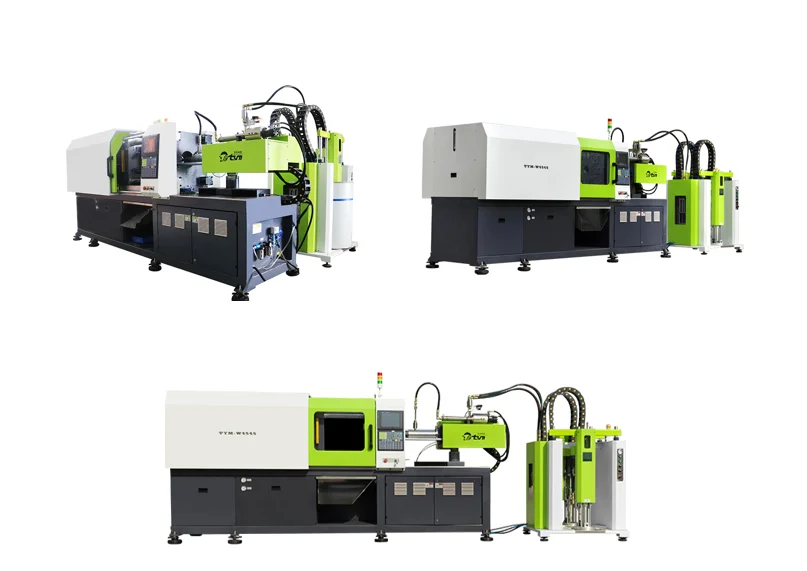

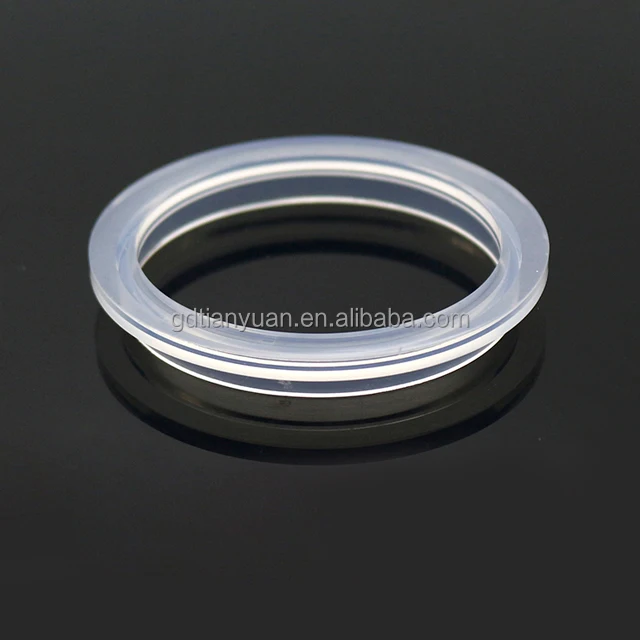

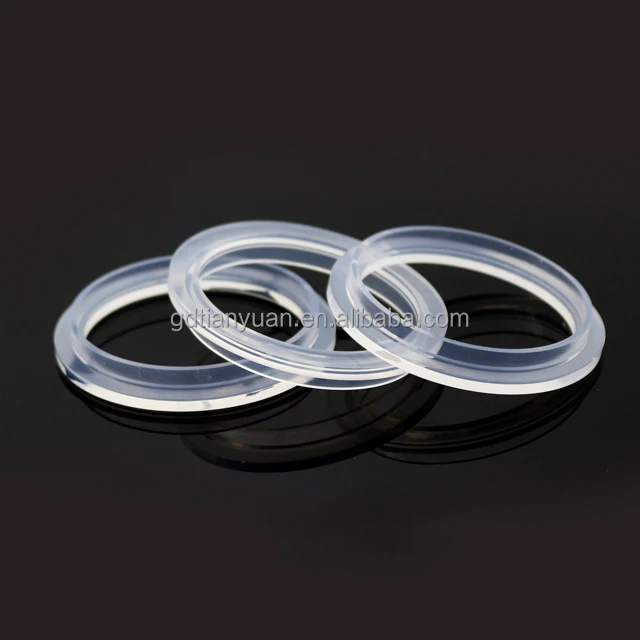

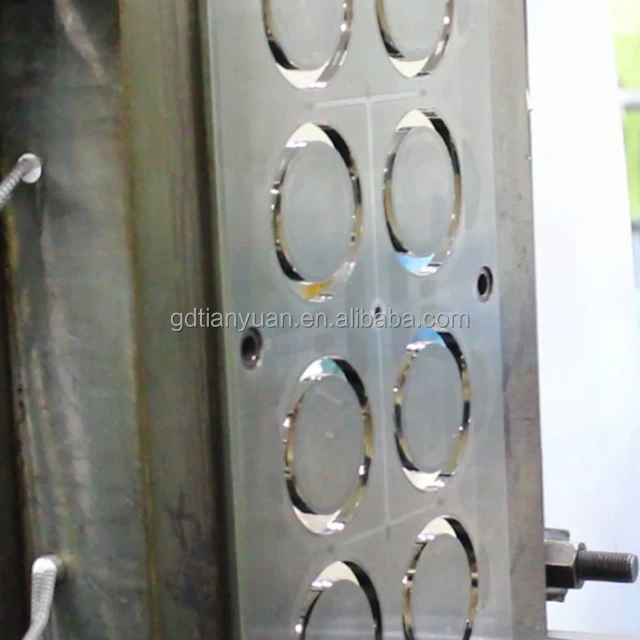

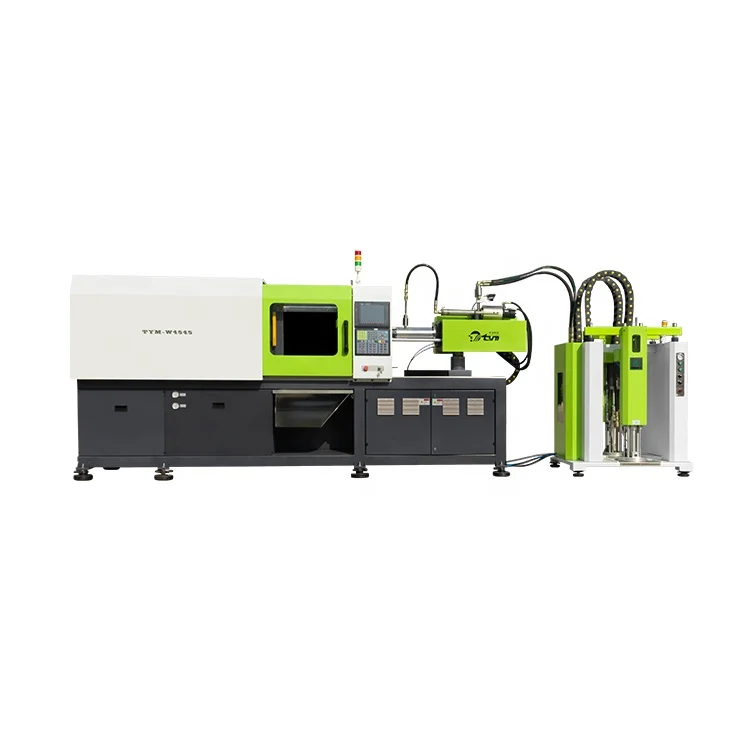

Automated silicon injection machine for hemodialysis sealing ring
- Category: >>>
- Supplier: Guangzhou Tianyuan Silicone Machine Technology Co. Ltd.
Share on (1600916405889):
Product Overview
Description
Products Description
1.Newly-optimized integrated all-in-one design.
2.Meet multiple requirements on the automatic manufacturing technique for LSR products.
3.Shorter the mould closing and opening time, improve the production efficiency.
4.Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.
5.Multi-section mould closing and opening and injection, speed adjusting stepless.
6.High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-saving.
7. Adopts the international brand component for keeping machine running stable, reliable and accurately.
8. User-friendly LCD display which owns diverse languages system indicates various functions and working situation.

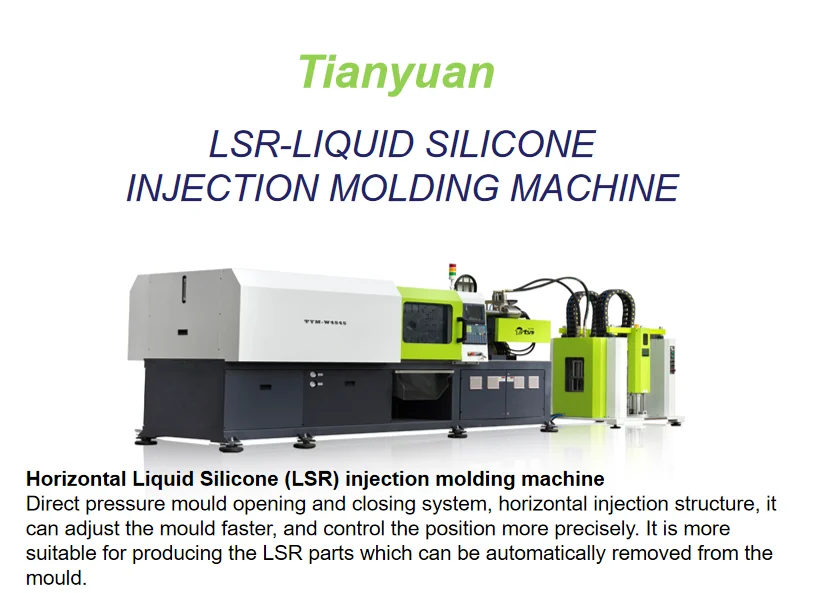

9. TYM horizontal injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time.
2.Meet multiple requirements on the automatic manufacturing technique for LSR products.
3.Shorter the mould closing and opening time, improve the production efficiency.
4.Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.
5.Multi-section mould closing and opening and injection, speed adjusting stepless.
6.High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-saving.
7. Adopts the international brand component for keeping machine running stable, reliable and accurately.
8. User-friendly LCD display which owns diverse languages system indicates various functions and working situation.
9. TYM horizontal injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time.
UNIT | DESCRIPTION | UNIT | TYM-W4040 | TYM-W4545 | TYM-W5050 | TYM-W5555 | TYM-W55T200 |
Injection Unit | Shot Volume | g | 165 | 165 | 165 | 165 | 165 |
Injection Rate | g/s | 100 | 100 | 100 | 100 | 100 | |
Injection Pressure | kg/cm² | 700 | 700 | 700 | 700 | 700 | |
ClampingUnit | Clamping Force | T | 95 | 130 | 150 | 160 | 200 |
Opening Stroke | mm | 200-700 | 200-700 | 200-700 | 200-700 | 300-1050 | |
Tie-Bars Space | mm | 400*400 | 450*450 | 500*500 | 550*550 | 550*550 | |
Ejection Force | T | 4 | 4 | 4 | 4 | 4 | |
Ejection Stroke | mm | 150 | 150 | 150 | 150 | 150 | |
Pump Pressure | Mpa | 20 | 20 | 20 | 20 | 20 | |
Others | Motor Power | KW | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
Machine Weight | T | 4.5 | 5.2 | 5.8 | 9.0 | 9.5 | |
Machine Dimension | m | 4.3*1.3*1.9 | 4.3*1.4*2.0 | 4.3*1.4*2.0 | 4.3*1.5*2.1 | 4.7*1.7*2.2 |
