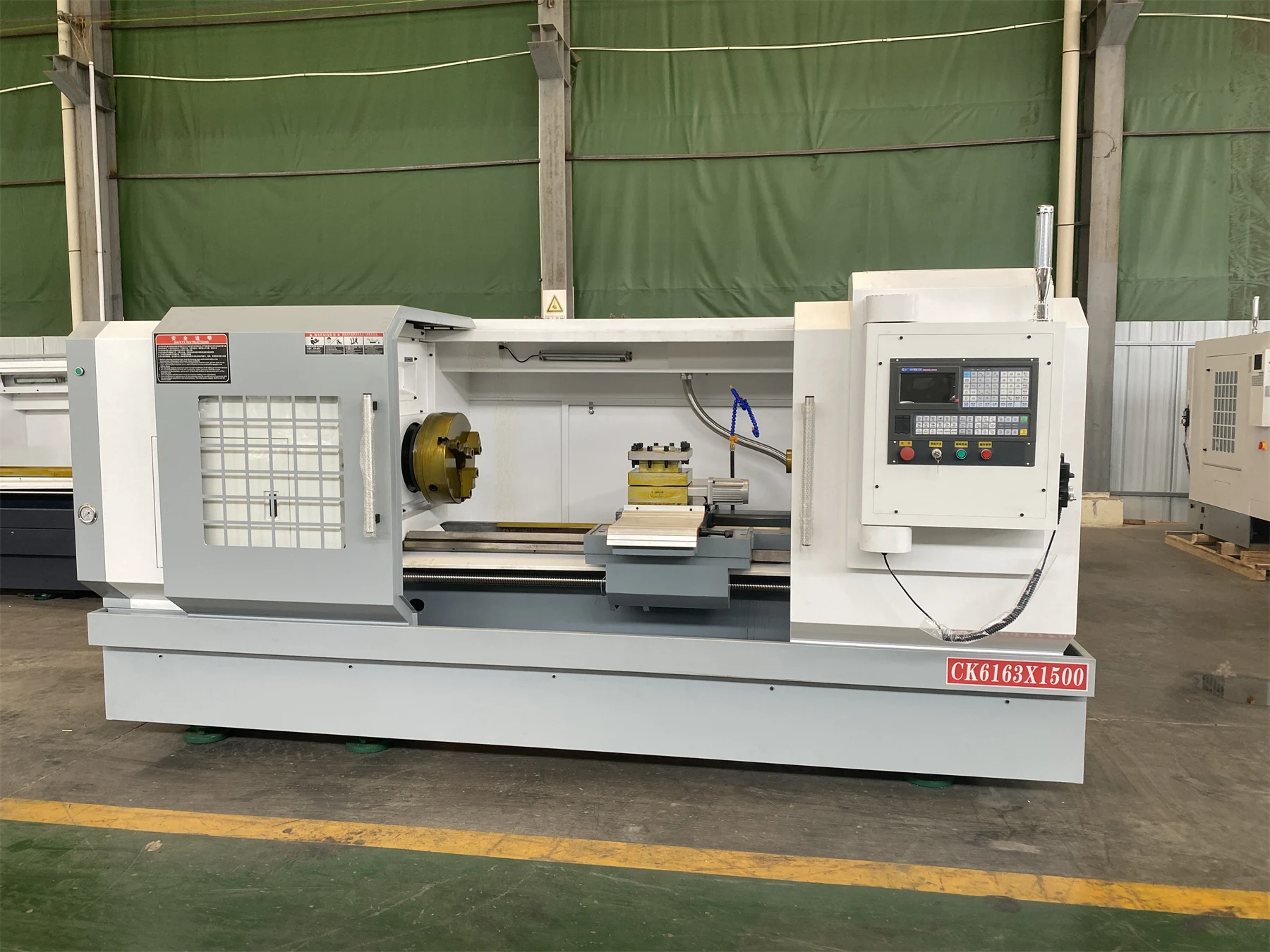

CNC lathe CK6163 metal machine flat bed three speed frequency horizontal CNC lathe
- Category: >>>
- Supplier: Zaozhuang No. 1 Cnc Machine Tool Co. Ltd.
Share on (1600916486328):
Product Overview
Description
Products Description
Specifications
Specifications | Uints | CK6163 | ||
Max.swing over bed | mm | Φ630 | ||
Max.swing over cross slide | mm | Φ350 | ||
Max.length of workpiece | mm | 750/1000/1500/2000/3000 | ||
Spindle hole dia. | mm | 52mm(82mm) | ||
Spindle nose | ISO-C6(D8) | |||
Spindle tap | MT6 | |||
Spindle speeds | rpm | 3 Steps auto change gear 21-1500rpm(I 162-1500 II66-660 III21-210) | ||
Rapid traverse X/Z | m/min | 3/6 | ||
Min input X/Z | mm | 0.001 | ||
Tailstock sleeve taper | MT5 | |||
Tailstock travel | Mm | 150 | ||
Cutting tool quantity | 4 | |||
Tool size | mm | 32*32 | ||
Repeating positing accuracy | mm | 0.01 | ||
Main motor power | K.W | 7.5/11 | ||
Packing dimensions(LxWxH mm) | ||||
Overall diamensions for 750mm | Mm | 2550*1550*1900 | ||
Overall diamensions for 1000mm | Mm | 2750*1550*1900 | ||
Overall diamensions for 1500mm | Mm | 3250*1550*1900 | ||
Overall diamensions for 2000mm | Mm | 3700*1550*1900 | ||
Overall diamensions for 3000mm | Mm | 4710*1550*1900 | ||
Weitht(kg) | ||||
Weight for 750mm | kg | 2900 | ||
Weight for 1000mm | Kg | 3050 | ||
Weight for 1500mm | Kg | 3250 | ||
Weight for 2000mm | kg | 3450 | ||
Weight for 3000mm | kg | 4300 | ||
Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
