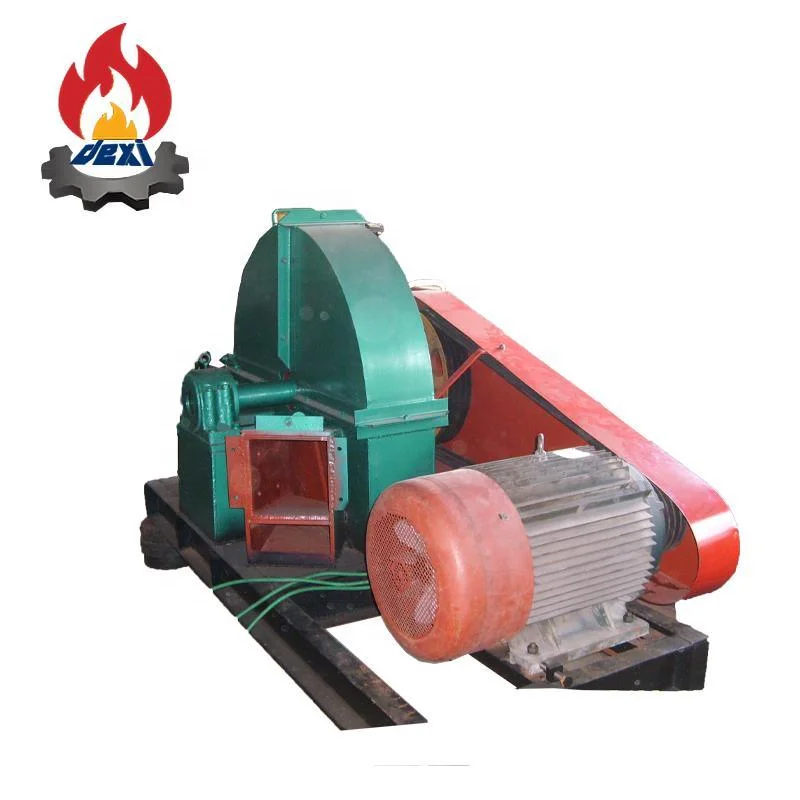

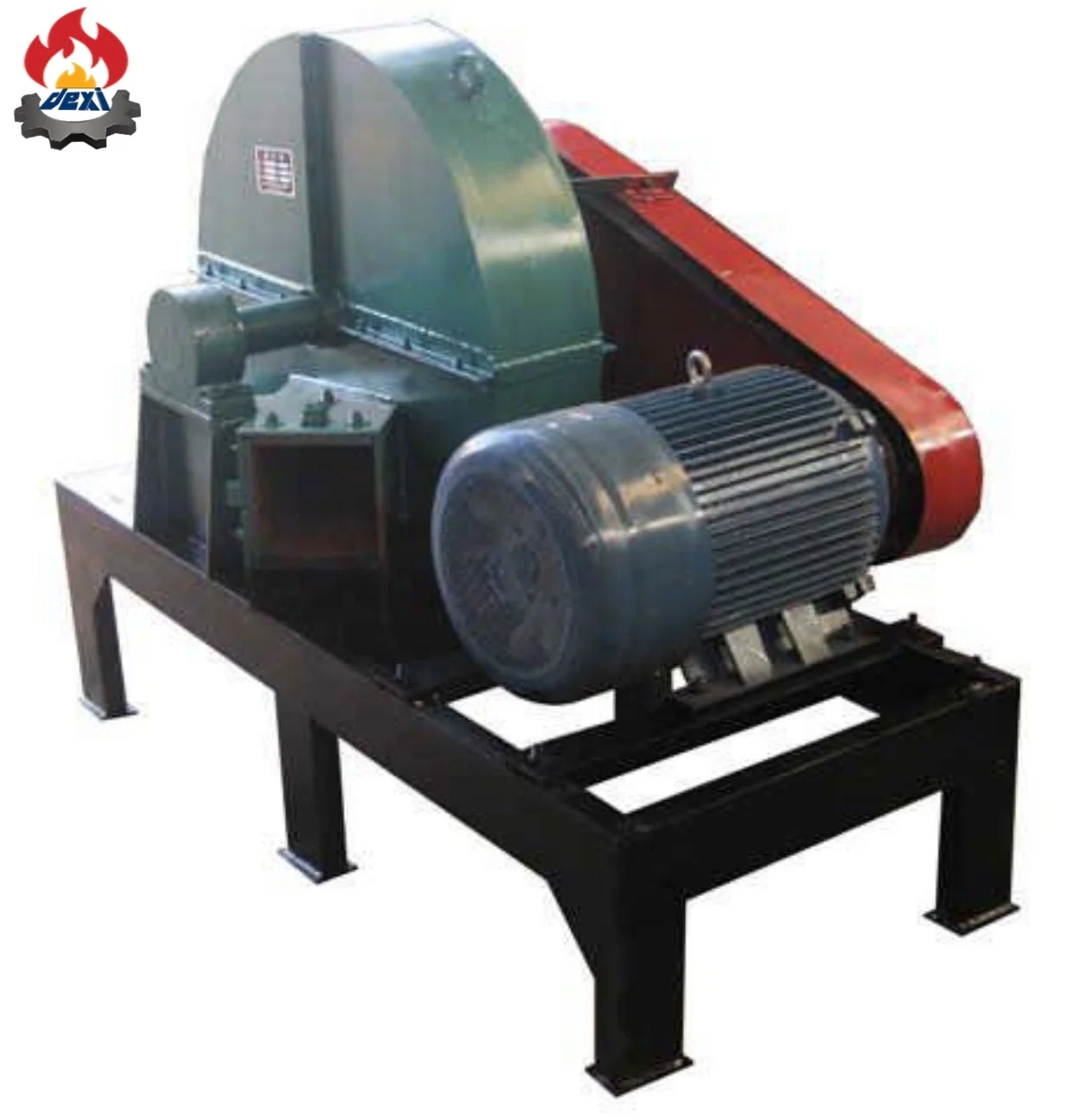

Professional Produces Disc Wood Chipper for Paper Industry Shredder Machine Reference FOB Price
Introduction:

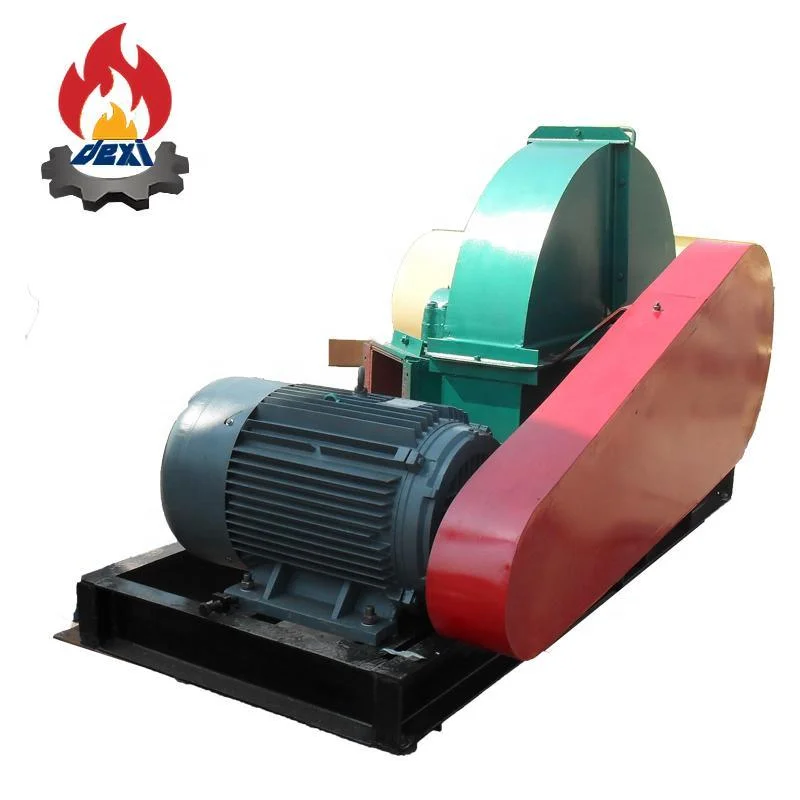

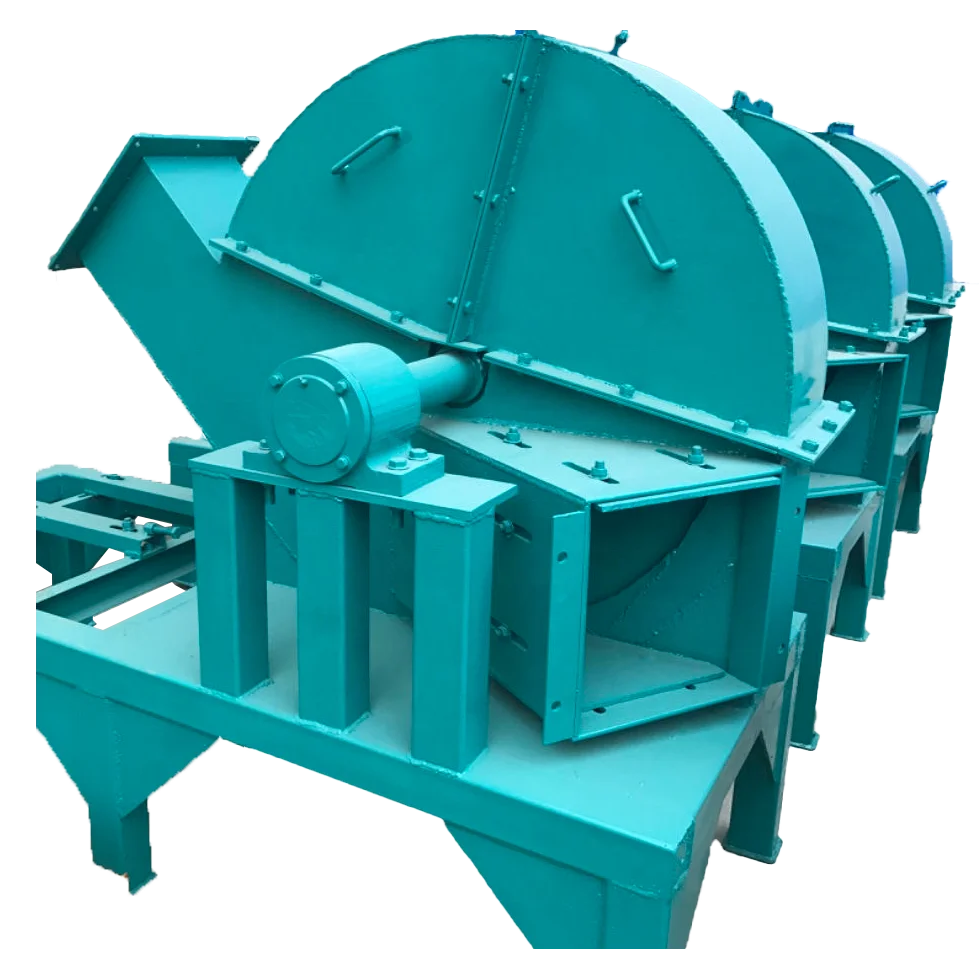

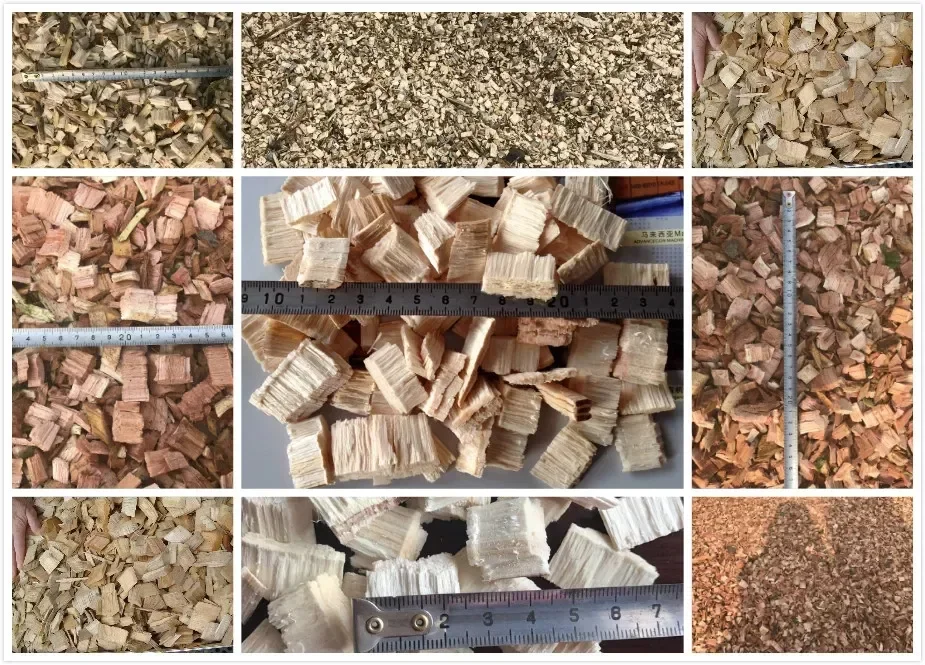

1. PX disc wood chipper is mainly used to crush raw wood logs into 1-3cm Wood chips, the thickness of last chips is 1.5mm-3mm, length and width is 10-30mm. It could also cut long bamboo or sugarcane into small chips.
2. The difference from drum chipper is that after crushed by disc wood chipper, the outlet chip dimension is more even.

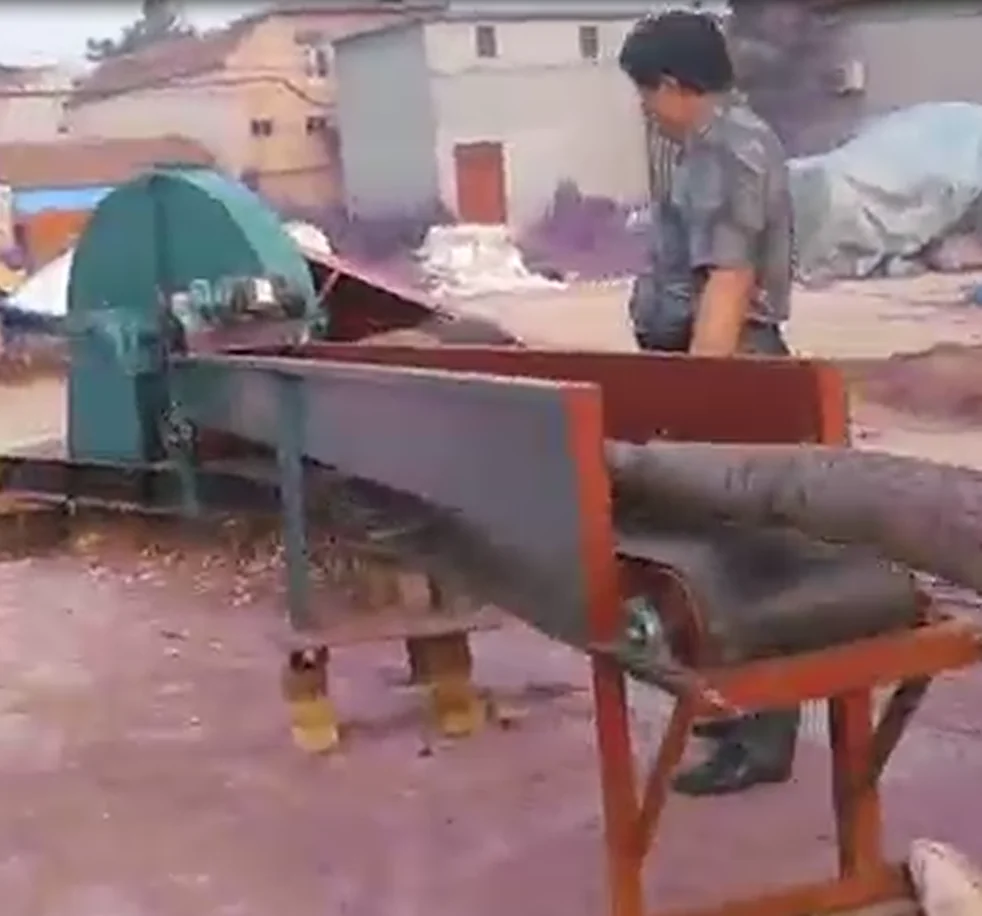

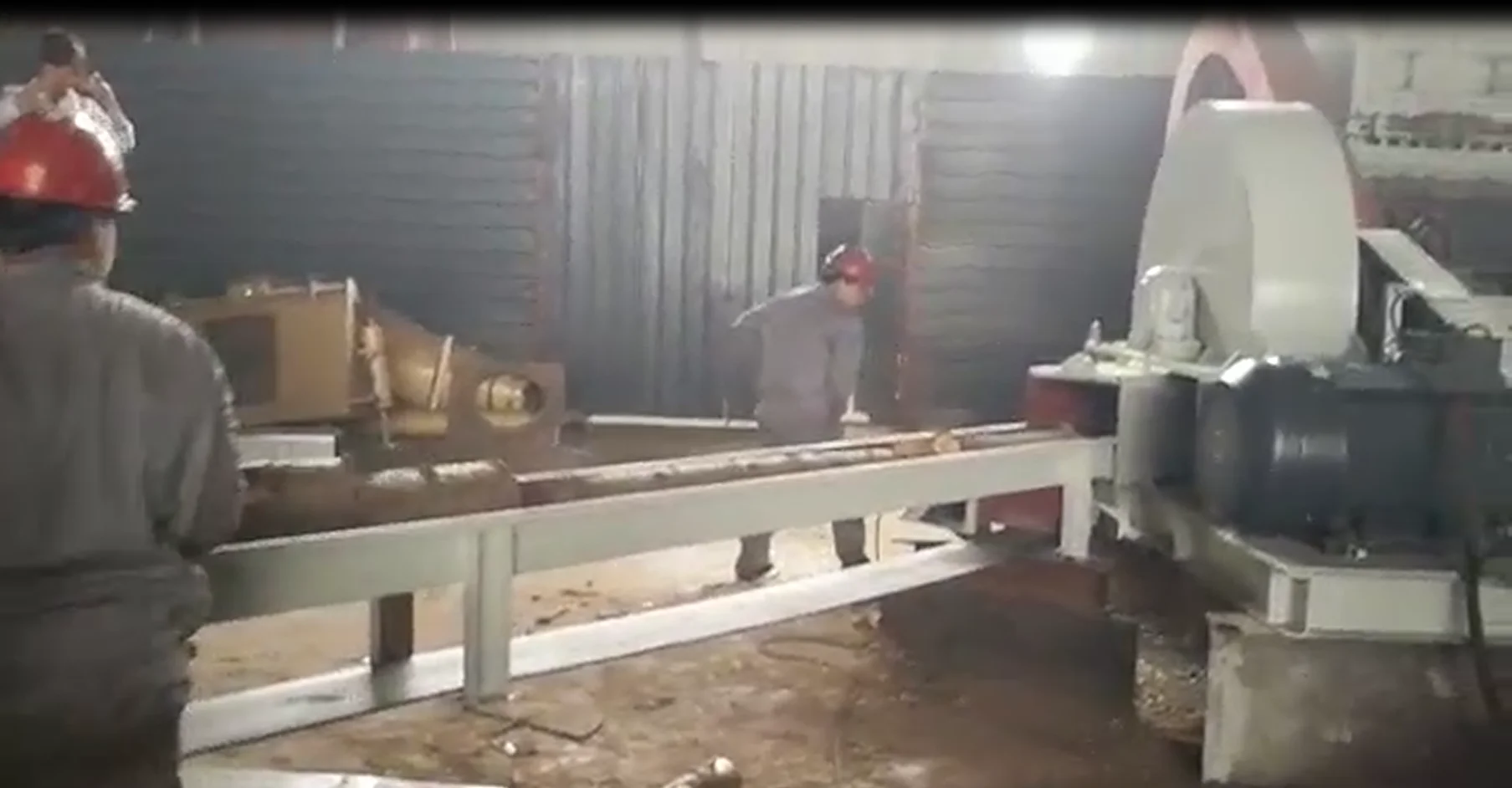

3. The disc wood chipper has two feeding type: One is to feed logs from top, second is to feed from side belt conveyor- Changeable speed feeding logs.
4. For outlet discharging chips type, there are two ways, one is the outlet is from the other top door, the other is the outlet is from bottom, both structure and operating are very easy.
5. It can be driven by both diesel engine and electric motor, very easy to be operated.
Product Parameters
| Model | PX15*15 | PX27*27 | PX35*35 | PX42*42 | PX50*50 |
| Knife disk diameter (mm) | 1000 | 1150 | 1300 | 1600 | 1800 |

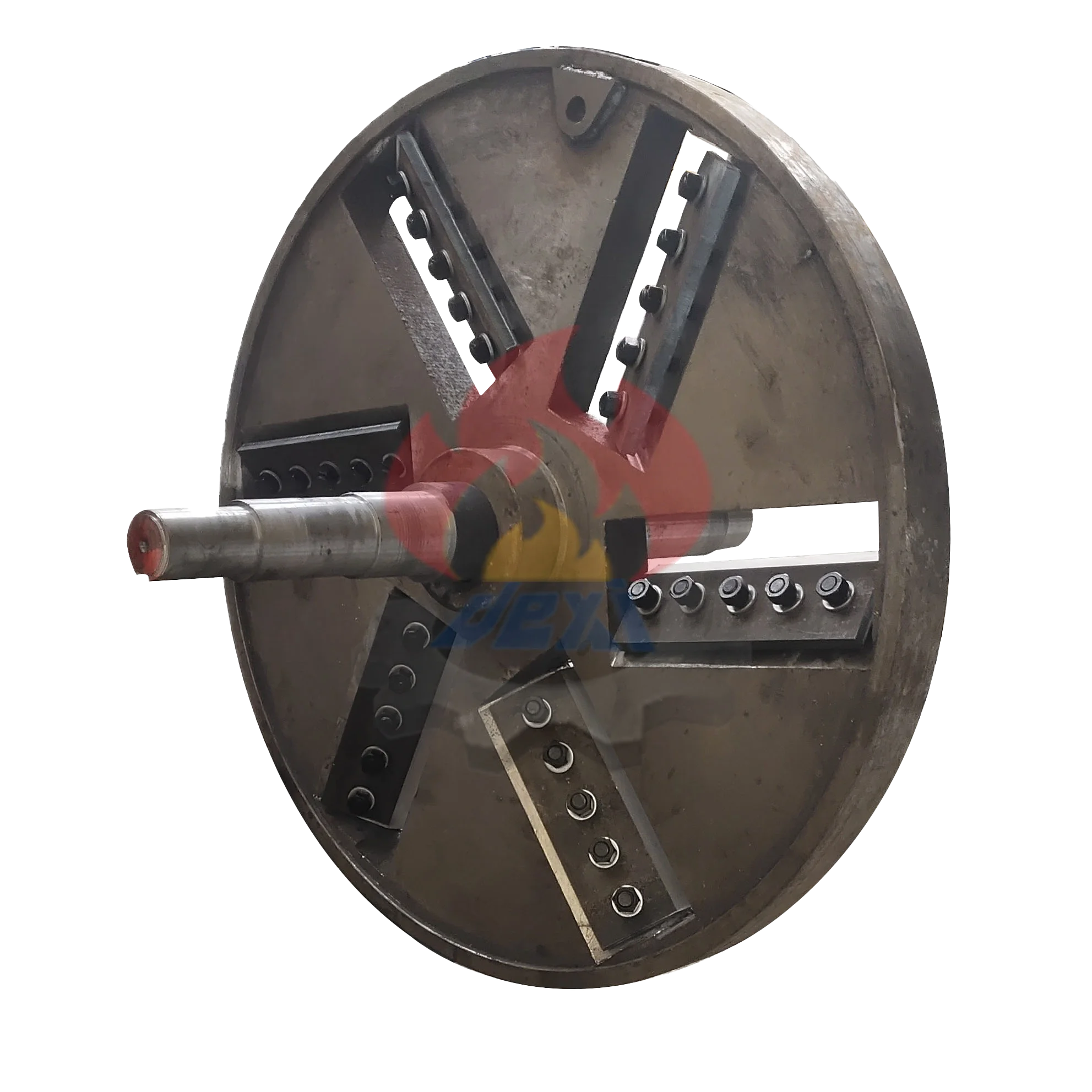

| Knife quantity (pcs) | 3 | 3 | 6 | 6 | 6 |
| Feeder Size (cm) | 15*15 | 27*27 | 35*35 | 42*42 | 50*50 |
| Main motor (kw) | 30 | 75+3 | 90+3 | 110+3 | 160+5.5 |
| Output (T/H) | 1-3 | 5-10 | 13-18 | 15-25 | 20-40 |
| Chips Size (mm) | 10-30 | 10-30 | 30 | 30 | 30 |
| Note | Feeding belt 4 meters | ||||

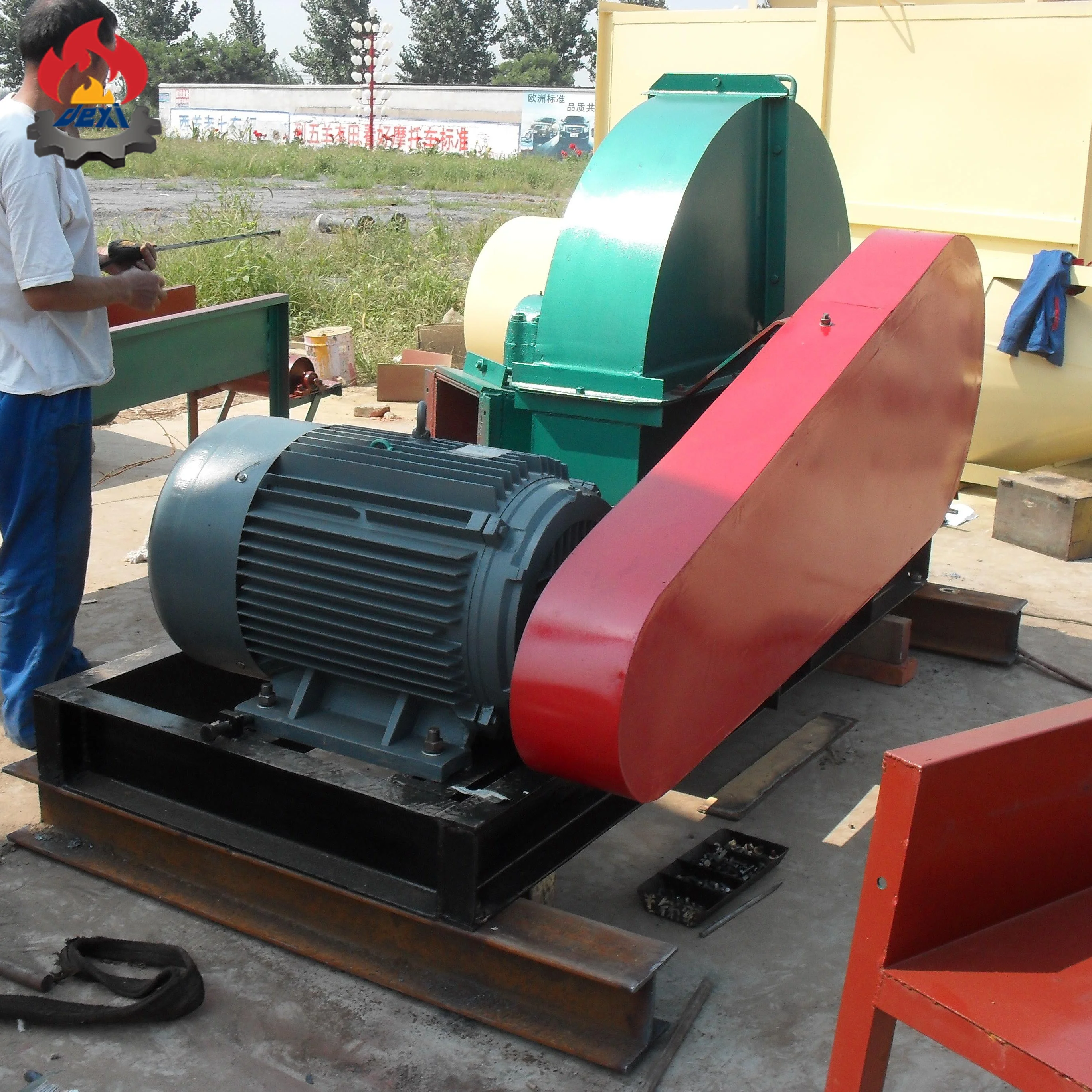

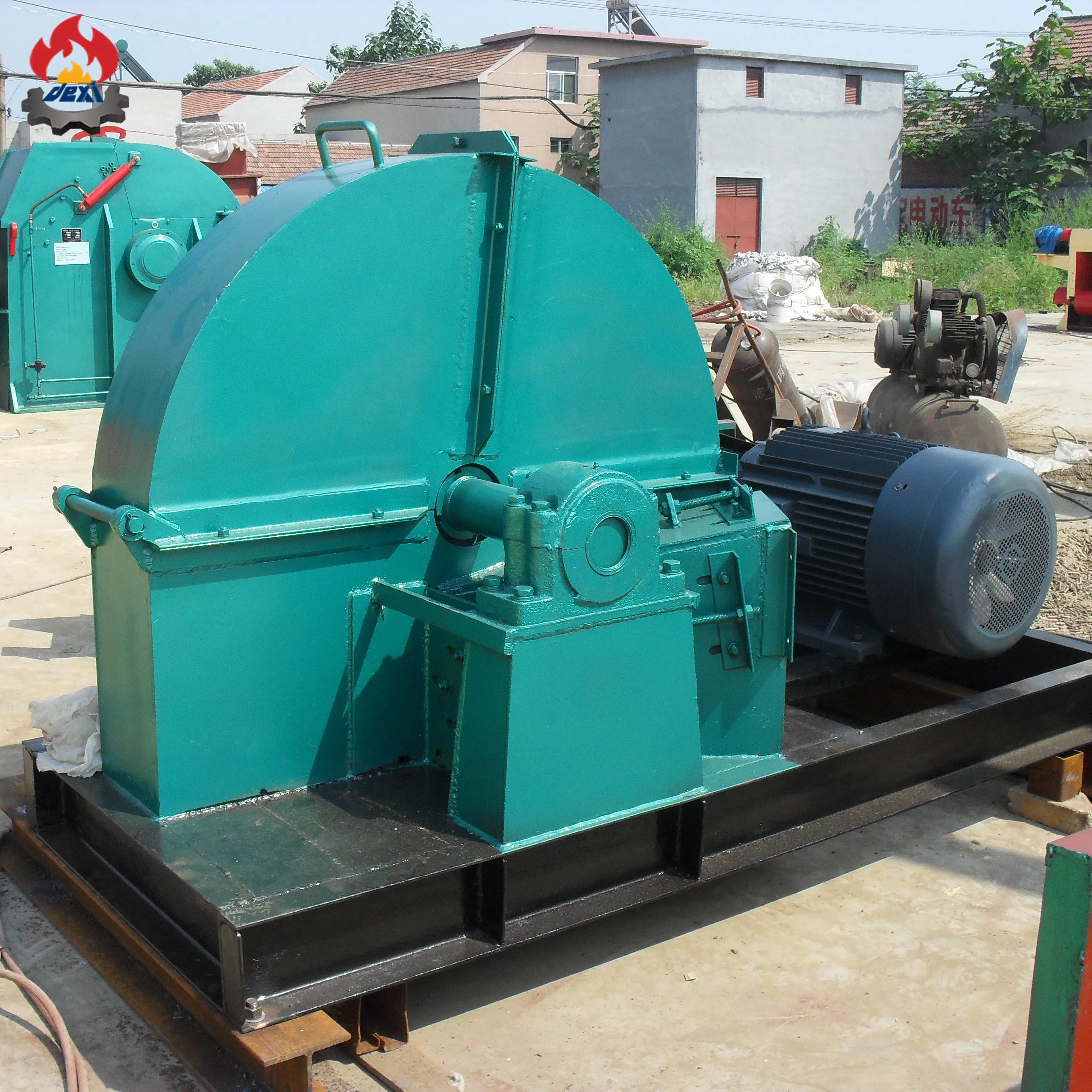

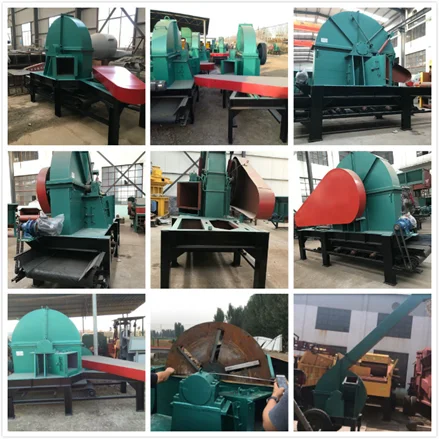

Detailed Photos
Products Features
| 1. It is an ideal equipment of processing the raw materials including wood branch, round logs, square blocks, and wood pieces into wood chips with settled dimensions. |
| 2. The durable feeding conveyor solves the problem of the large difficult wood feeding. |
| 3. It is widely used in the production of paper making, edible fungus, shaving board, sawdust, high density board, and fiberboard etc. |

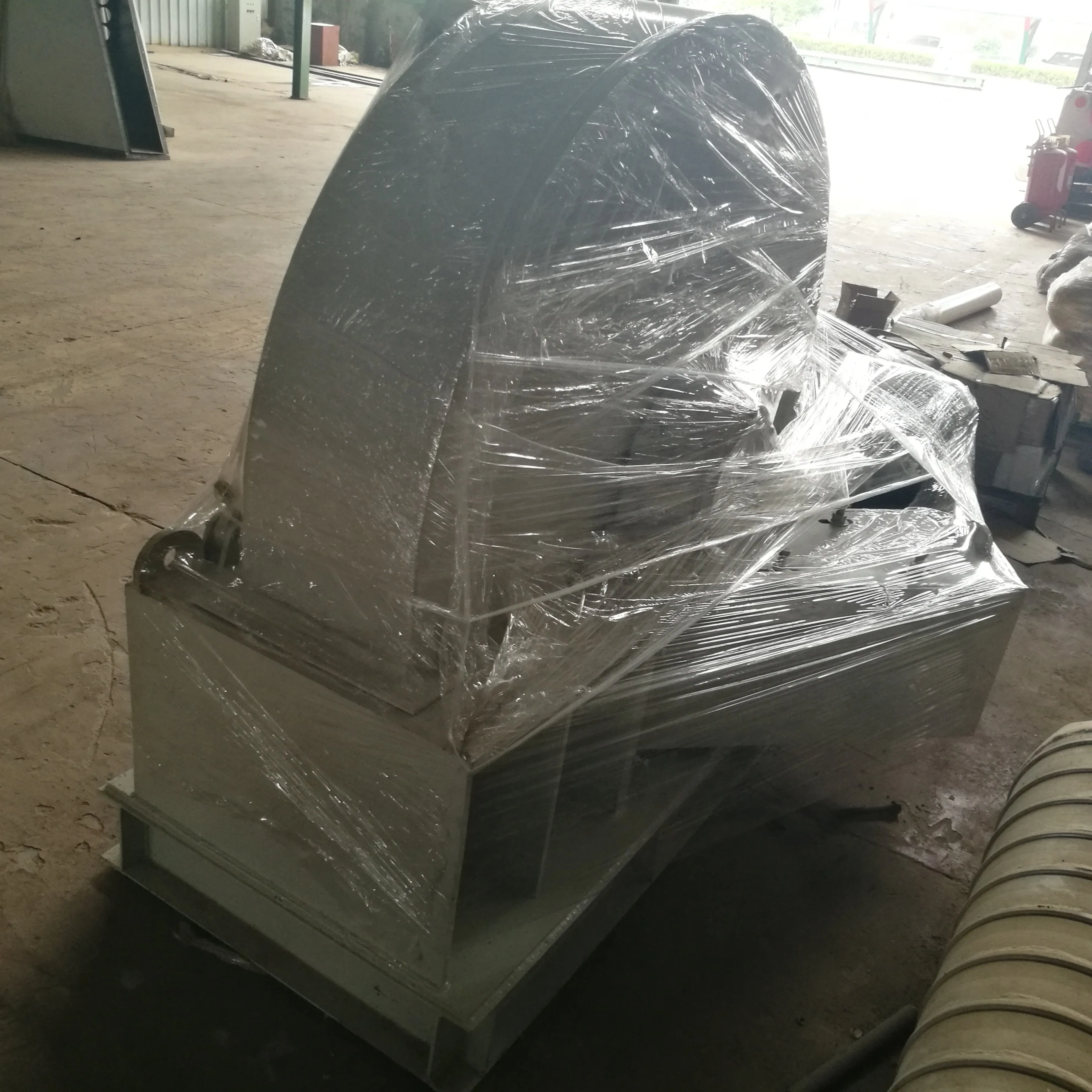

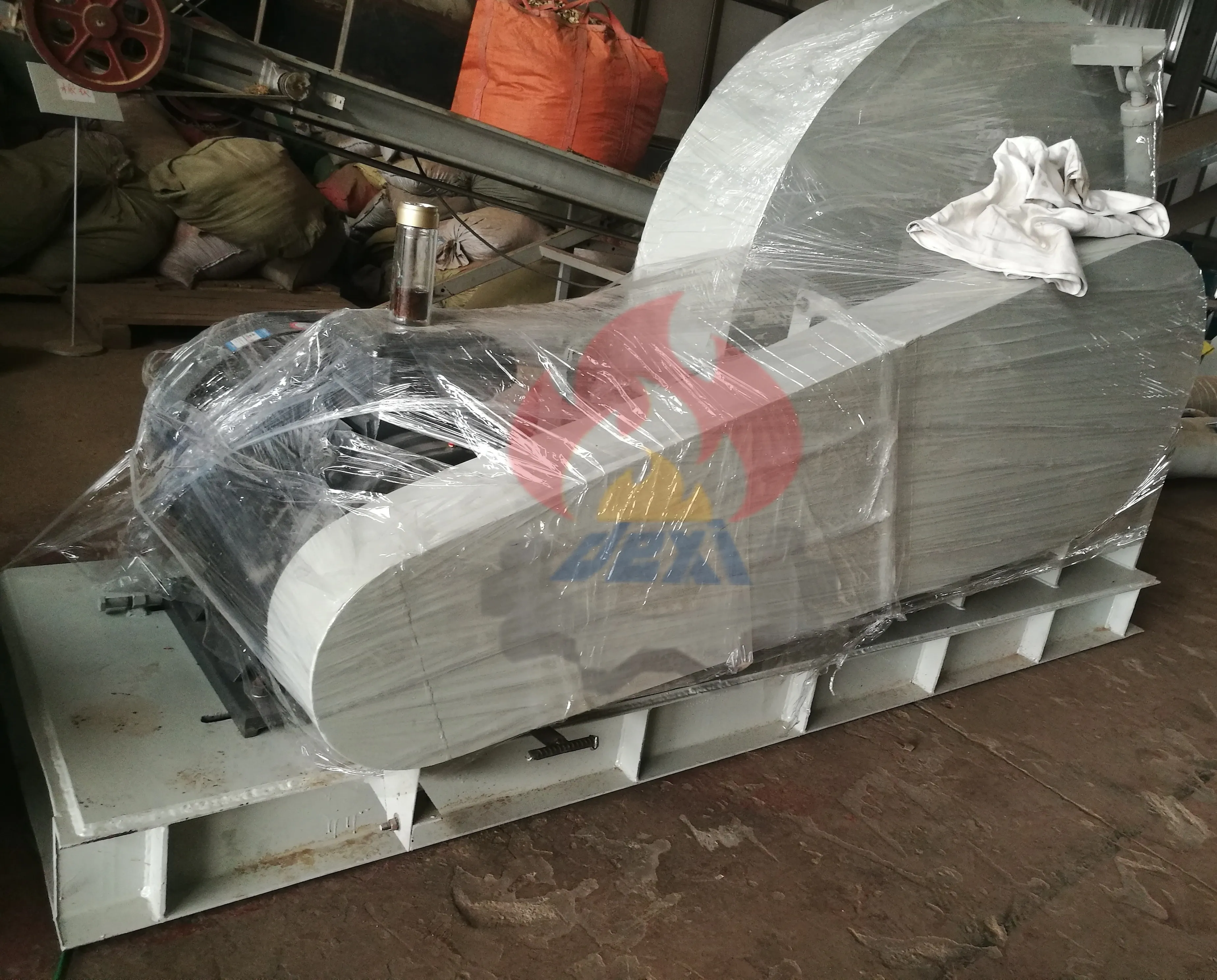

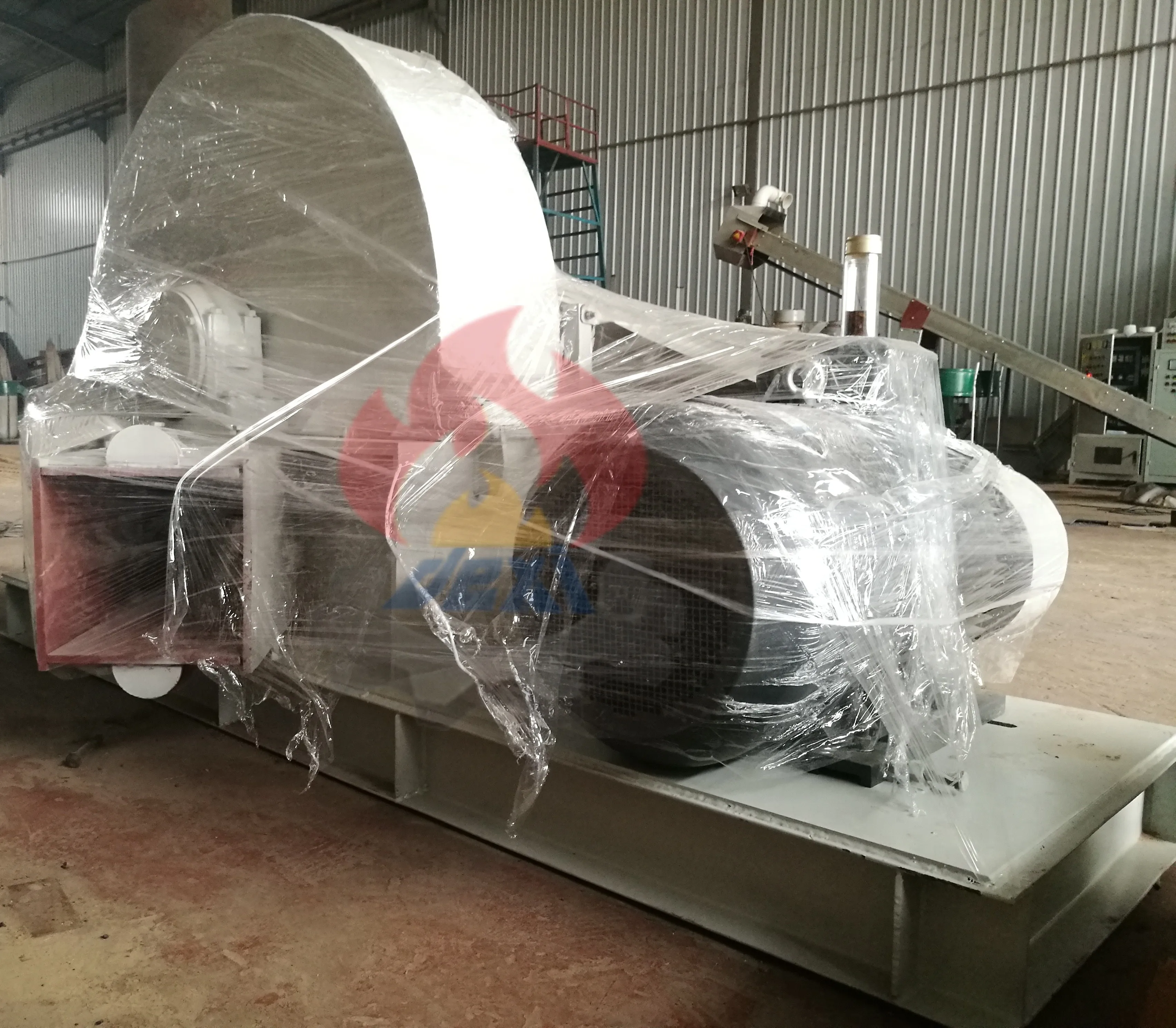

Packaging & Shipping
Certifications

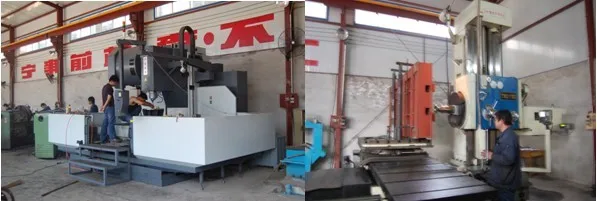

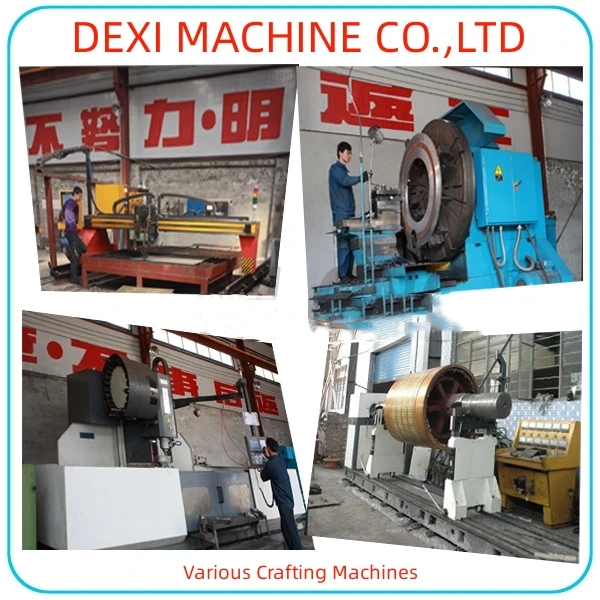

Company Profile

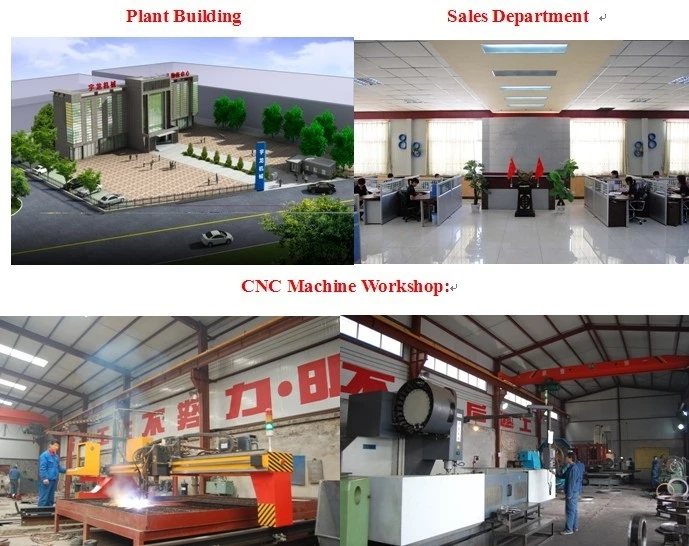

Shandong Dexi Machine Co., Ltd Located at Licheng, Jinan, Shandong Province China.We are professional supplier for the biomass pellet machines and complete pellet production line.
Our products involve, wood chipper, wood sawdust making machine, hammer mill, drum rotary dryer, pellet making machine, pellet cooling machine, pellet packing machine and other equipment, such as animal feed pellet line, organic fertilizer pellet making line.
We also provide design, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the pellet making machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the client's specific requirement, we also accept customize design and machine producing order. Through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.
Whatever pellet making machine you need from China, contact: Shandong Dexi Machine Co., Ltd. A one stop shop in the middle of China.
Whatever pellet making machine you need from China, contact: Shandong Dexi Machine Co., Ltd. A one stop shop in the middle of China.
FAQ
| 1) What is the maximum diameter of the raw wood? 2) How many kgs wood chips do you need per hour? 3). What is your requirement for the final wood chips? Our service: 1. One -year Warranty Except the Wearing Parts. 2. Professional after-sales Service 3. CE Certificate. |
