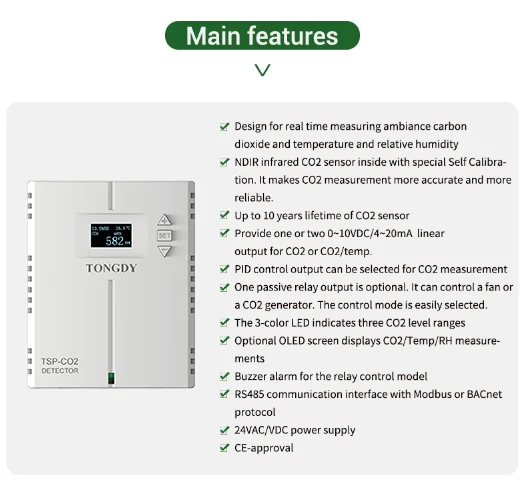

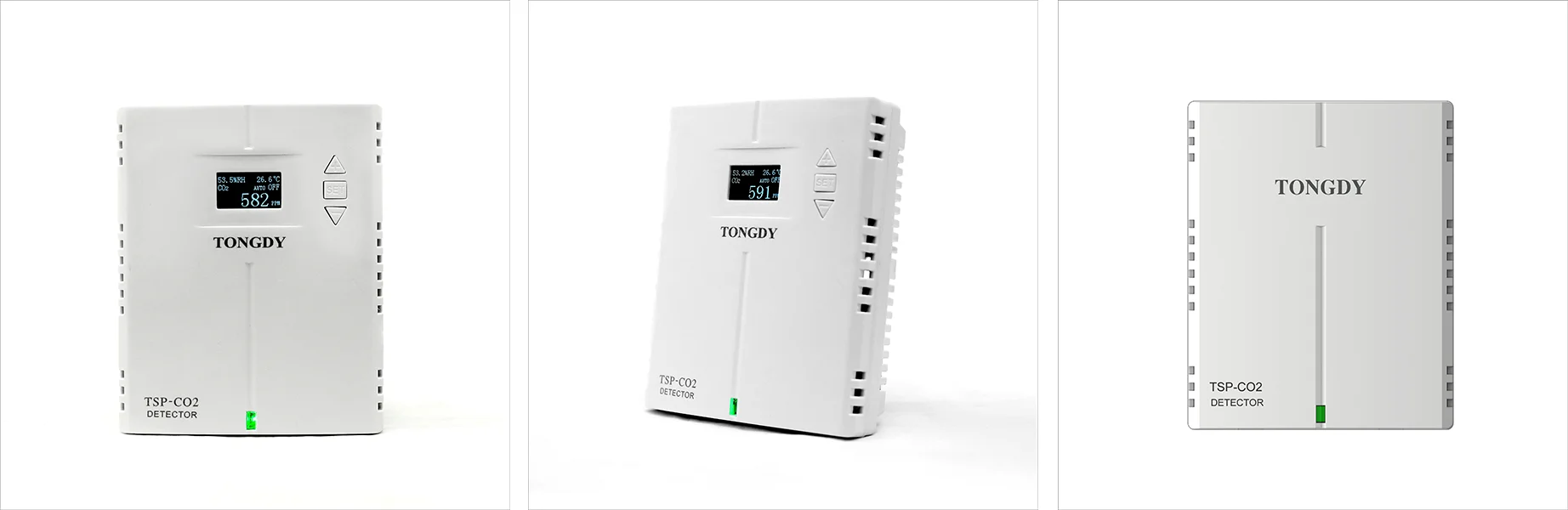

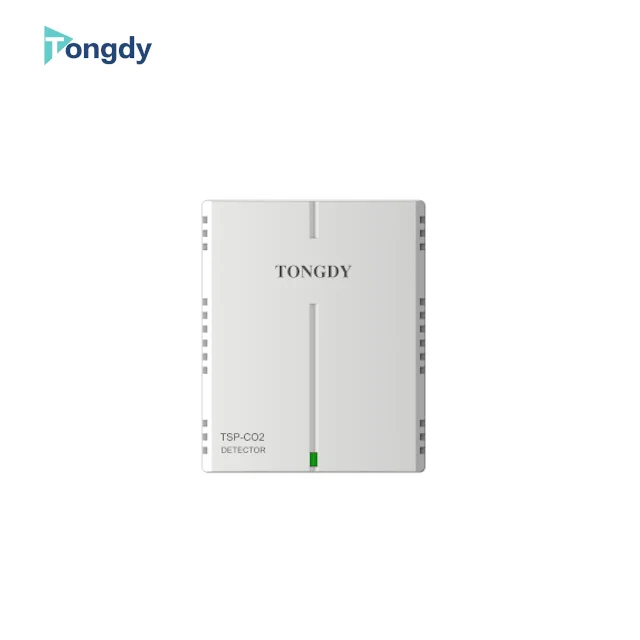

Wall Mounting CO2 Controller with Temperature and Humidity 0 5000ppm 24VAC/VDC

General Data

Power supply

24VAC/VDC± 10%

Consumption

3.5 W max. ; 2.0 W avg.

Analog outputs

One 0~10VDC/4~20mA  for CO2 measurement

Two 0~10VDC/4~20mA  for CO2/Temperature measurements

PID control output is selectable

Relay output

One passive relay output (max.5A)  with the control mode selection (control a fan or a CO2 generator)

RS485 interface

Modbus protocol or BACnet protocol, 4800/9600(default)/19200/38400bps; 15KV antistatic protection, independent base address.

LED light selectable

3-color mode (default)

Green:   ≤1000ppm

Orange:  1000~1400ppm

Red:     >1400ppm

Red flashing: CO2 sensor faulty

Working light mode

Green on: working

Red flashing: CO2 sensor faulty

OLED Display

Display CO2 or CO2/temp. or CO2/Temp./ RH measurements

Operation condition

0~50℃; 0~95%RH, non condensing

Storage condition

-10~60℃, 0~80%RH

Net Weight / Dimensions

190g /117mm(H)×95mm(W)×36mm(D)

Installation

wall mounting with 65mm×65mm or 2”×4”wire box

Housing and IP class

PC/ABS fireproof plastic material, protection class: IP30

Standard

CE approval

Carbon Dioxide

Sensing element

Non-Dispersive Infrared Detector (NDIR)

CO₂ measuring range

0~2000ppm (default)

0~5000ppm (selected in the advanced setup)

CO₂ Accuracy

±60ppm + 3% of reading or ±75ppm (whichever is greater)

Temperature dependence

0.2% FS per℃

Stability

<2% of FS over life of sensor (10 year typical)

Pressure dependence

0.13% of reading per mm Hg

Calibration

ABC Logic  Self Calibration Algorithm

Response time

<2 minutes for 90% step change typical

Signal update

Every 2 seconds

Warm-up time

2 hours (first time) / 2 minutes (operation)

Temperature and RH (option)

Temperature sensor (selectable)

Digital integrated temperature and humidity sensor SHT,

or NTC thermistor

Measuring range

-20~60℃/-4~140F (default)         0~100%RH

Accuracy

Temp.: <±0.5℃@25℃     RH: <±3.0%RH (20%~80%RH)
