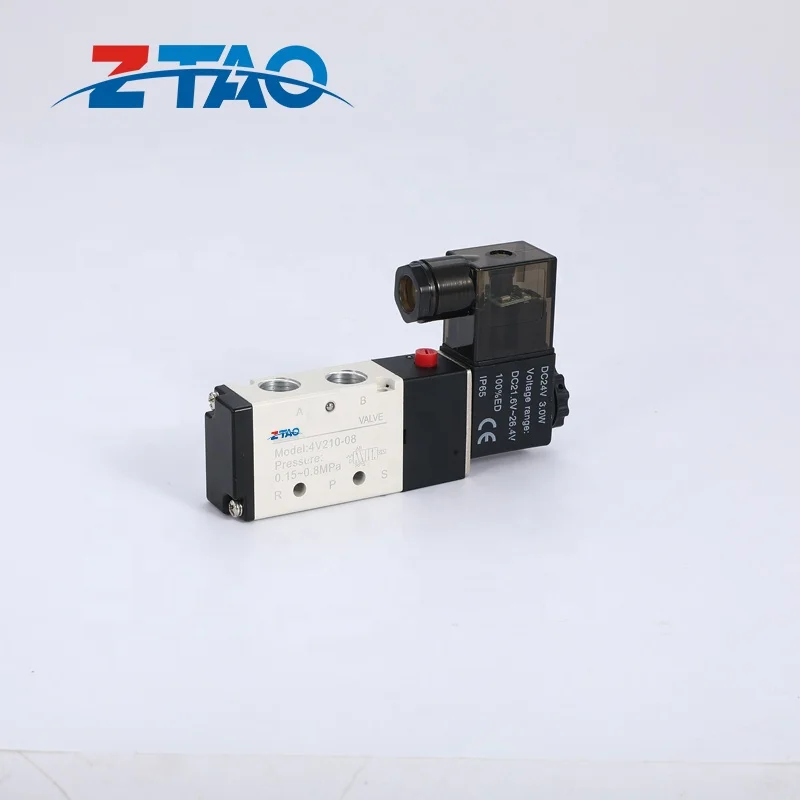

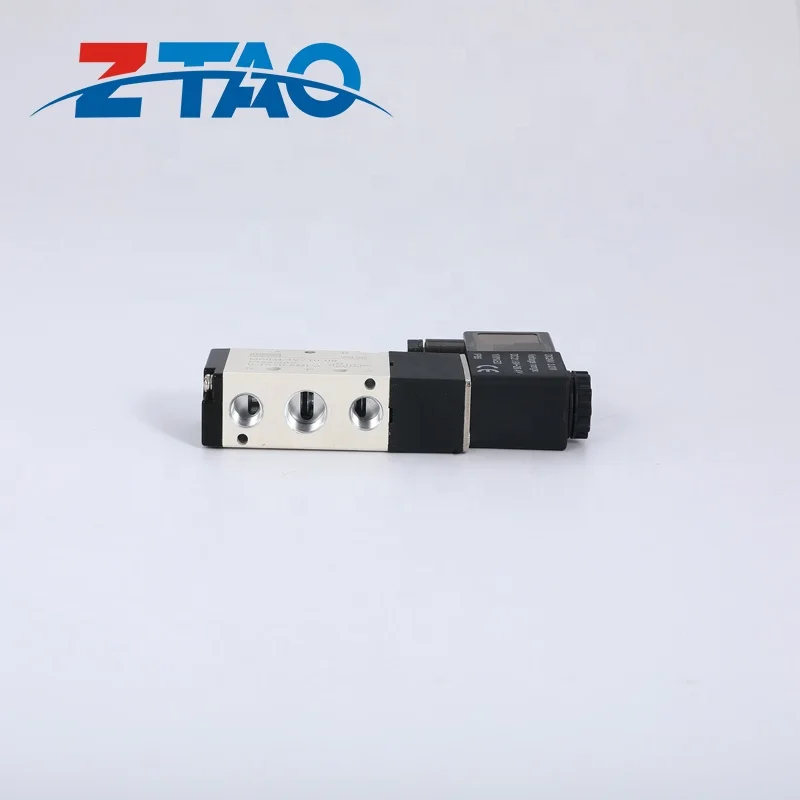

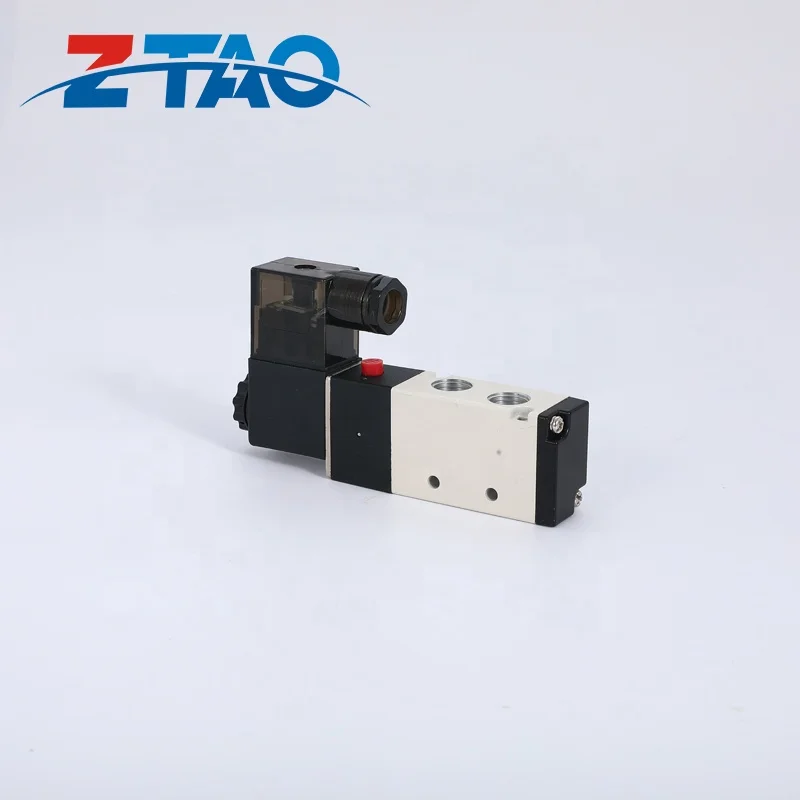

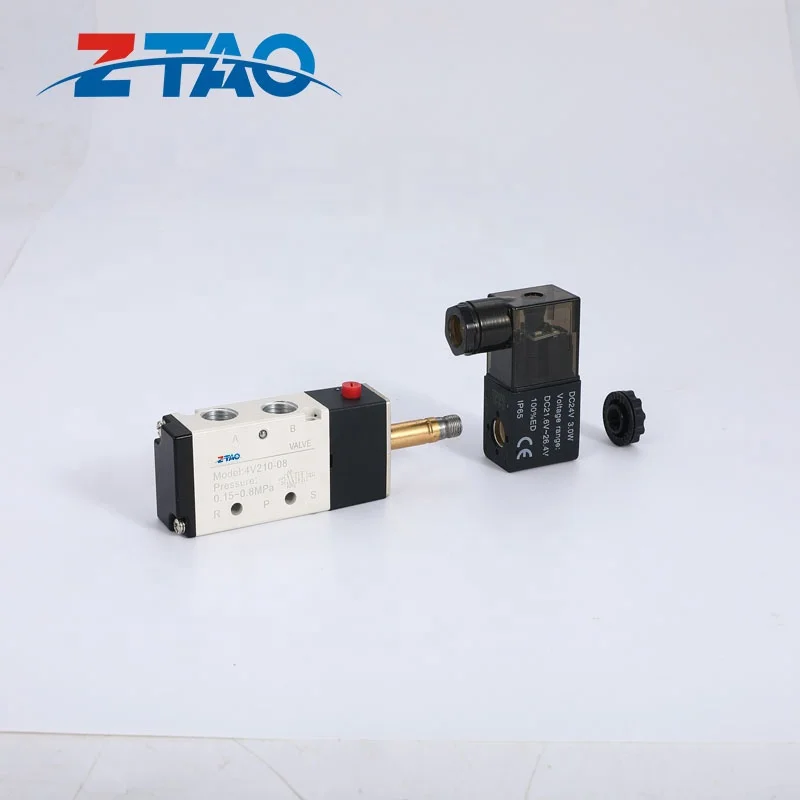

4V210 08 5/2 way electric coil pneumatic air control solenoid valve
- Category: >>>
- Supplier: Zhitao Electric Group Co. Ltd.
Share on (1600916535675):
Product Overview
Description
Product Description
Specification
MODEL | 4V210-08 | 4V220-08 | |
Fluid | Air | Air | |
Action | Intemally piloted acting type | Intemally piloted acting type | |
Valve Type | 2/5Way | ||
Effective area(mm²) | 16mm²(CV=0.89) | 16mm²(CV=0.89) | |
Port size | In=PT1/4Out=PT1/8 | In=PT1/4Out=PT1/8 | |
Lubrication | Not required | Not required | |
Operating pressure | 1.5~8.0kgf/cm² | 1.5~8.0kgf/cm² | |
Proof pressure | 1.2Mpa | 1.2Mpa | |
Ambient&fluid temperature | 5~60°C | 5~60°C | |
Vottage range | -15%~±10% | -15%~±10% | |
Power consumption | Power consumption | Power consumption | |
Insulation grade | B grade | B grade | |
Protection | IP65 | IP65 | |
Max.frequency | 4cycle/sec | 4cycle/sec | |
Body parts material | Aluminum alloy | ||
Seal parts material | NBR | ||
Product Usage
FAQ
Q: *What is the diameter of the coil hole?
A: * The diameter of the coil hole is 8mm.
Q: Difference between DC24V and AC24V
A: * DC indicates direct current, and AC indicates alternating current.
Q: * The nozzle aperture of 4V210-08?
A: * 2''for entry and exit holes, 1'' for silence holes
Q: * What does a muffler do?
A: * Mufflers reduce noise and dust.
Q: * Can it be powered on for a long time?
A: * Yes, the coil with 100% mark.
Q: * What is the function of the button below the wiring hole?
A: * Manual conversion of air vents.
Q: * Will the coil block the interface?
A: * No, the coil can rotate the direction.
Q: * What is the port aperture of the matching busbar?
A: * Air inlet and outlet and silencer are both 2''.
