G NiceRF SW433 TH22 Gold Plated Spring Antenna 2.15dBi height 22mm 433MHz helical Antenna
- Category: >>>
- Supplier: NiceRF Wireless Technology Co. Limited
Share on (1600916616200):
Product Overview
Description

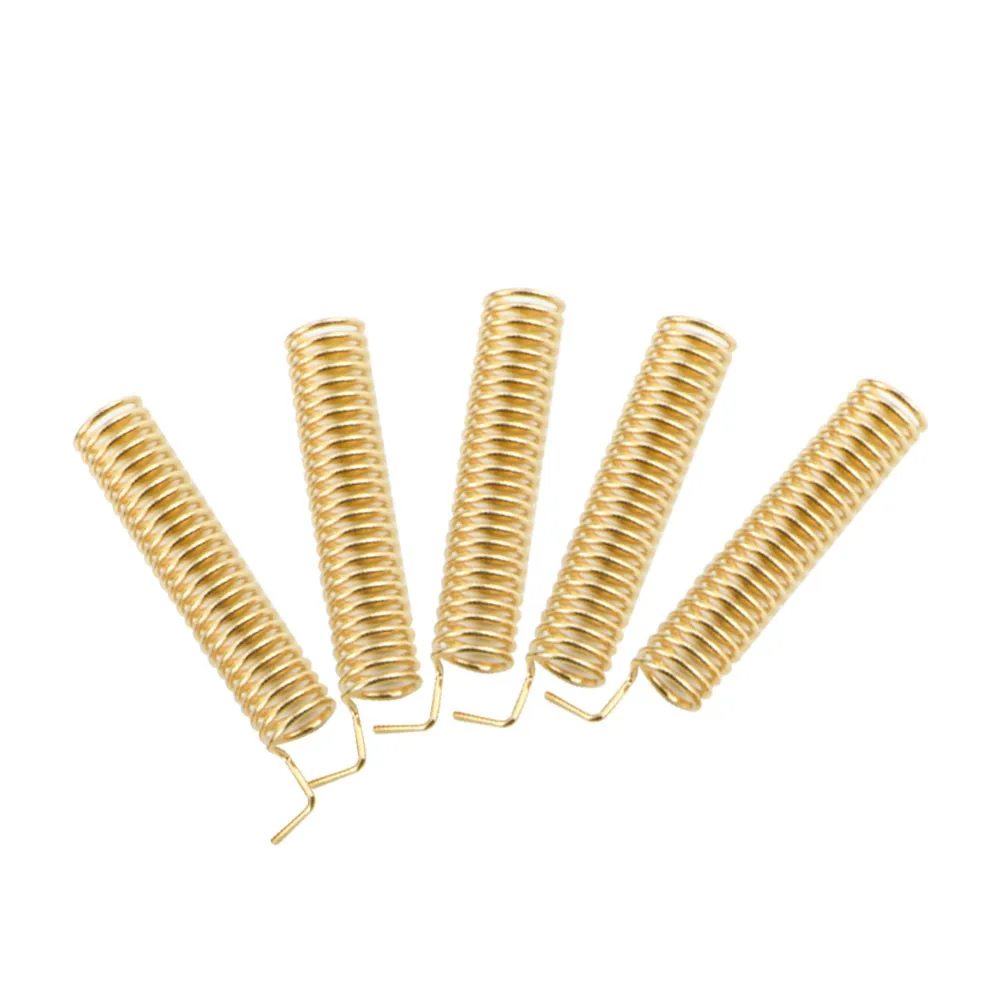

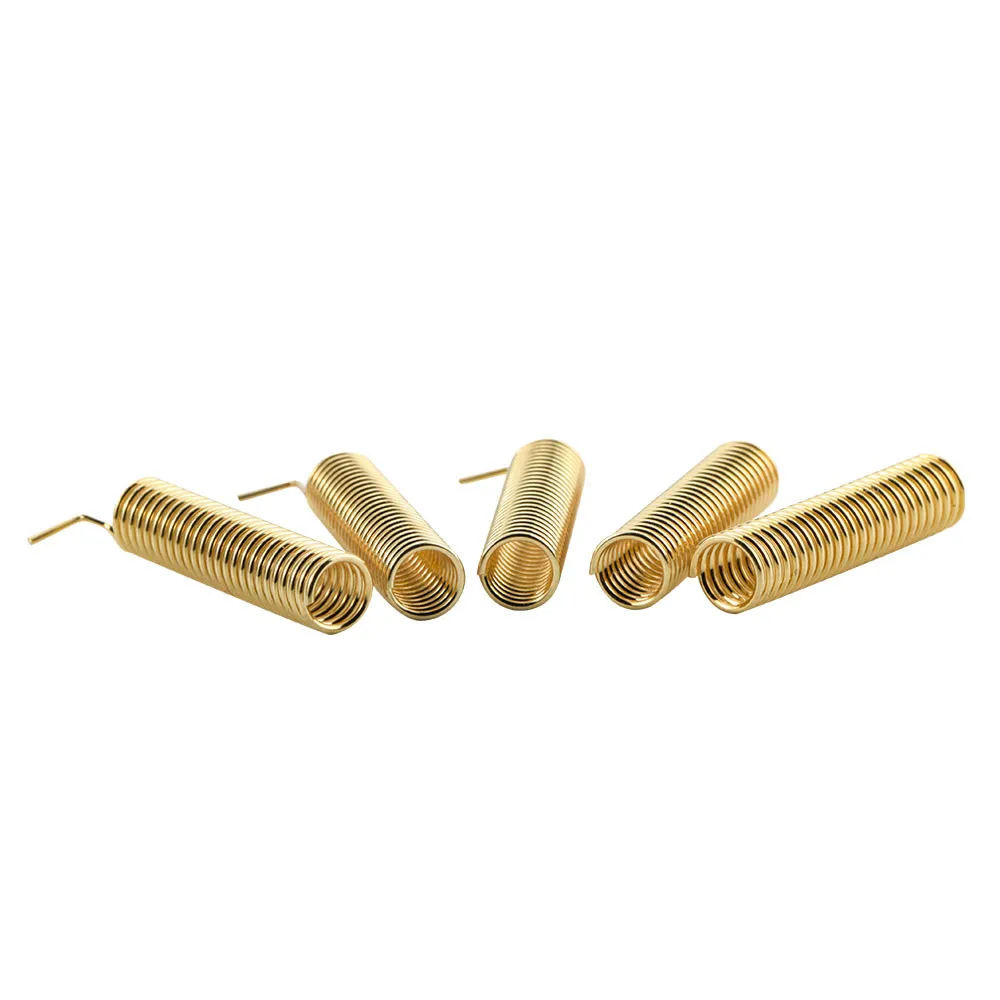

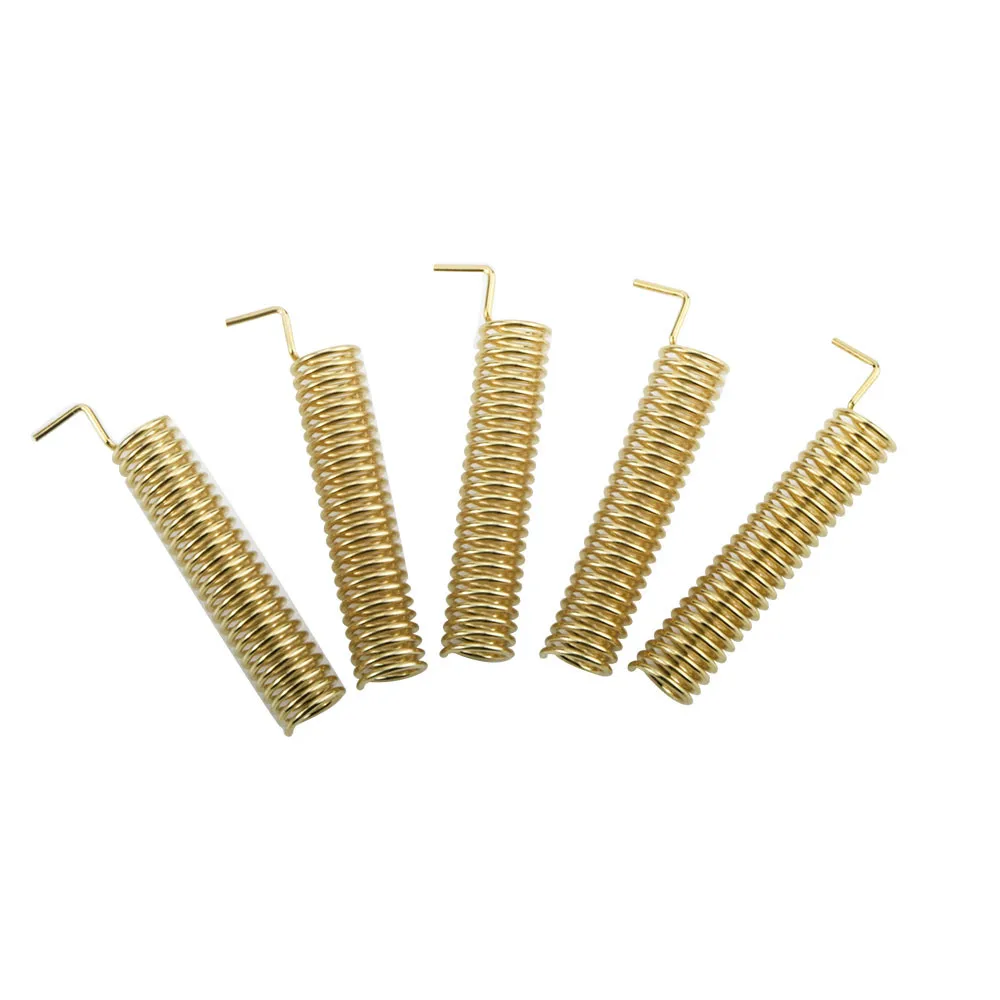

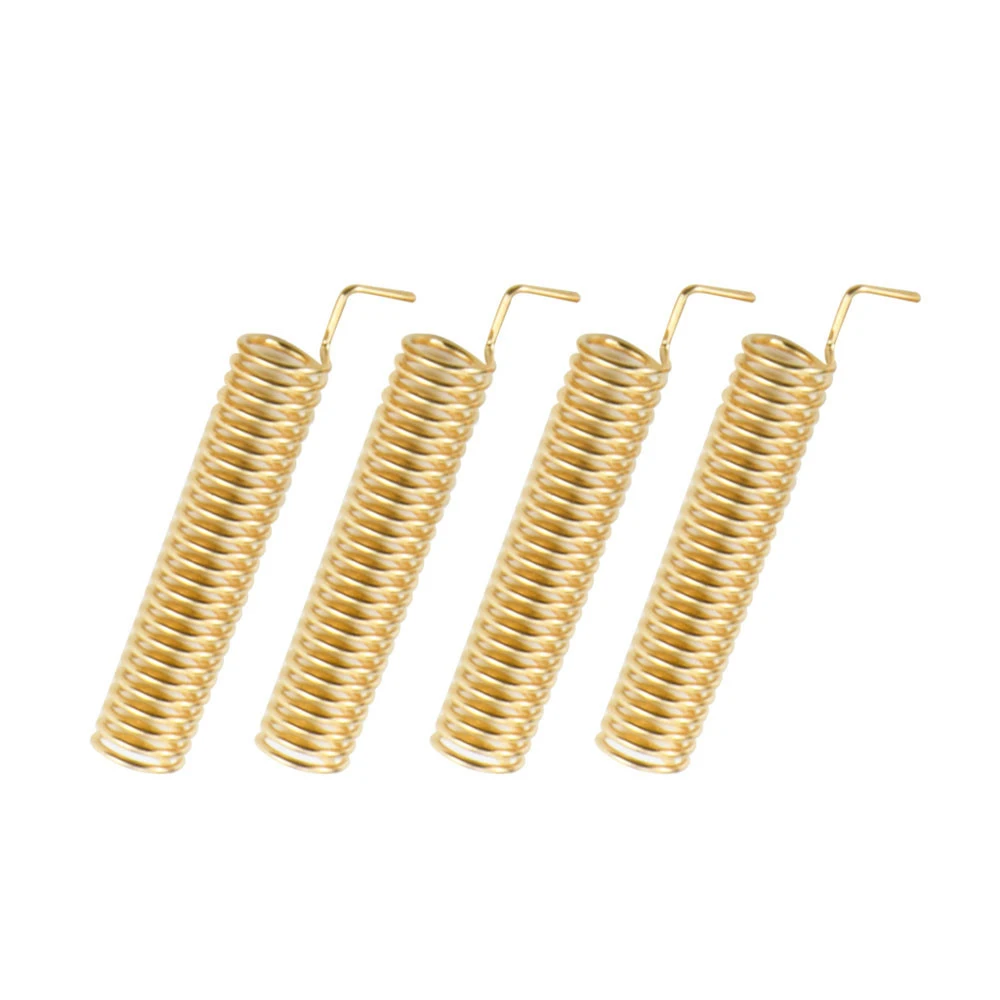

G-NiceRF SW433-TH22 Gold Plated Spring Antenna 2.15dBi height 22mm 433MHz helical Antenna
Product Description
SW433-TH22, gold plated spring antenna, designed specially for 433MHz wireless communication. it
has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration
and anti-aging ability.
| Features | |
| Frequency range | 433±8 MHz |
| VSWR | <= 1.5 |
| Input impedance | 50 Ω |
| Max power | 5W |
| Gain | 2.15 dBi |
| Weight | 1g |
| Wire diameter | 0.5mm |
| Antenna color | gold |
Height | 22±1 mm |

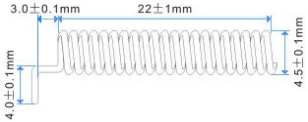

Size (Unit:mm):

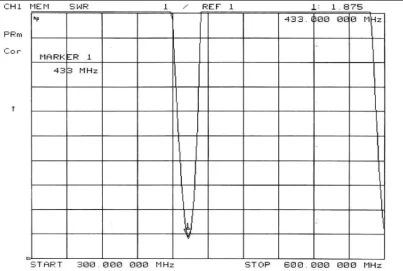

VSWR Chart:
Antennas have been tested under wireless simulated environment by Network Analyzer.
Frequency:434 MHz RL:14.44dB SWR:1.464
Company Profile
NiceRF is a technical company which engaged in researching, developing, producing and selling IOT(internet of things) products.We devoted ourselves on providing good RF modules, walkie talkie modules and integrated digital sensor modules. Meanwhile, ODM and OEM projects are welcomed.With more than 10 years experience of product design in RF and sensors, we have earned a good reputation among our customers.
Our Advantage
Packaging & Shipping
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer with our own R&D team, and all of our products are developed in-house.
Q: Do you offer technology support?
A: Yes, we provide technology support and ODM & OEM services.
Q: Do you provide samples?
A: Yes, we offer paid samples and can send out the package promptly.
Please leave positive feedback and a 5-star rating if you are happy with our products and services.
If you encounter any issues, please reach out to us before leaving negative feedback.
We will strive to resolve any problems and provide excellent customer service.
If you need further assistance, feel free to contact us.
