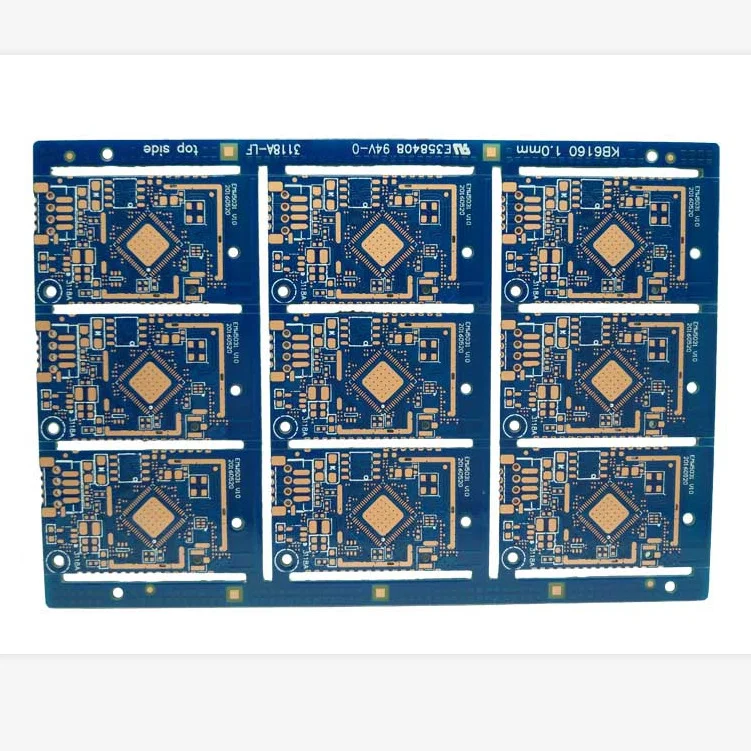

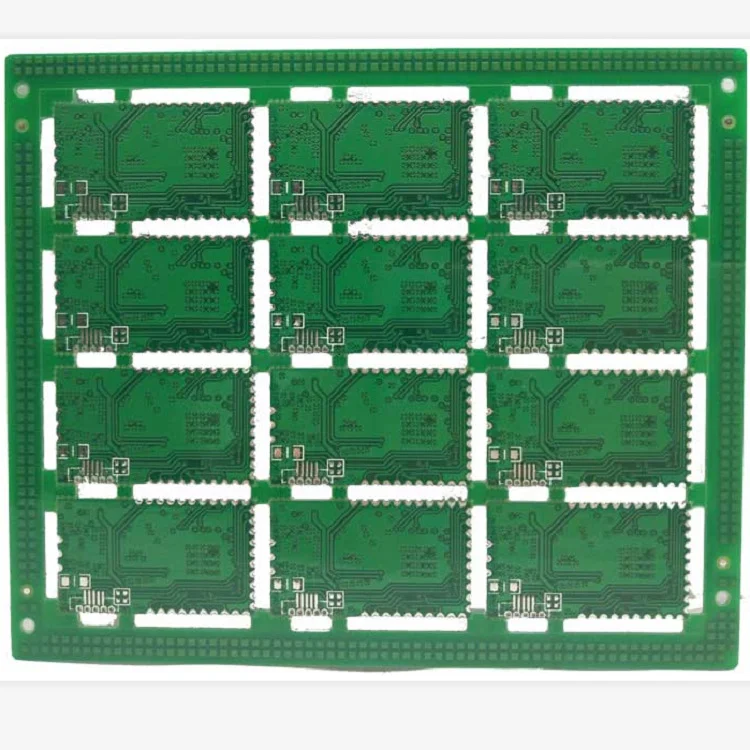

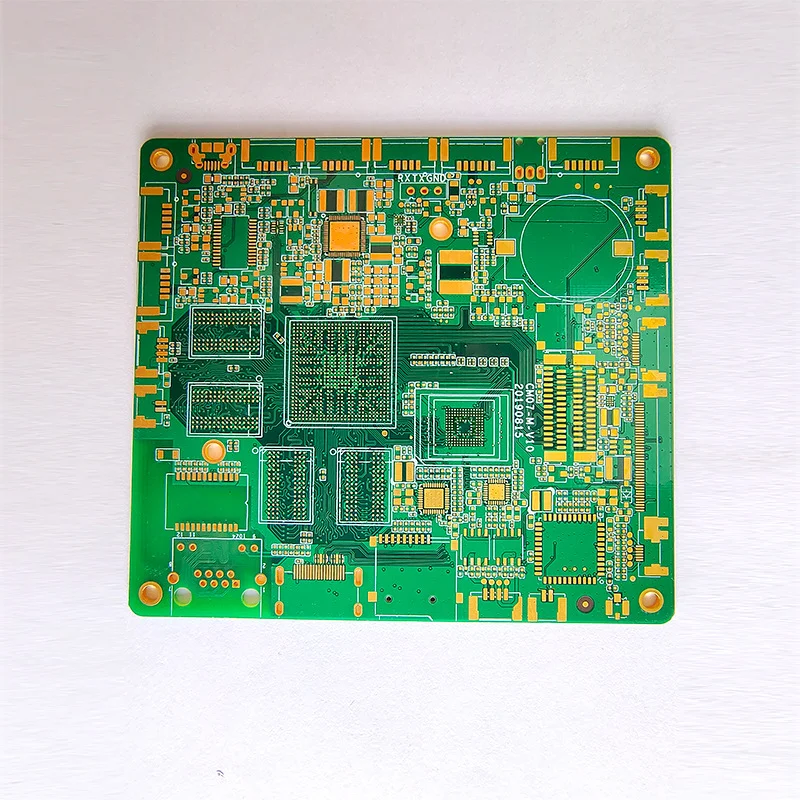

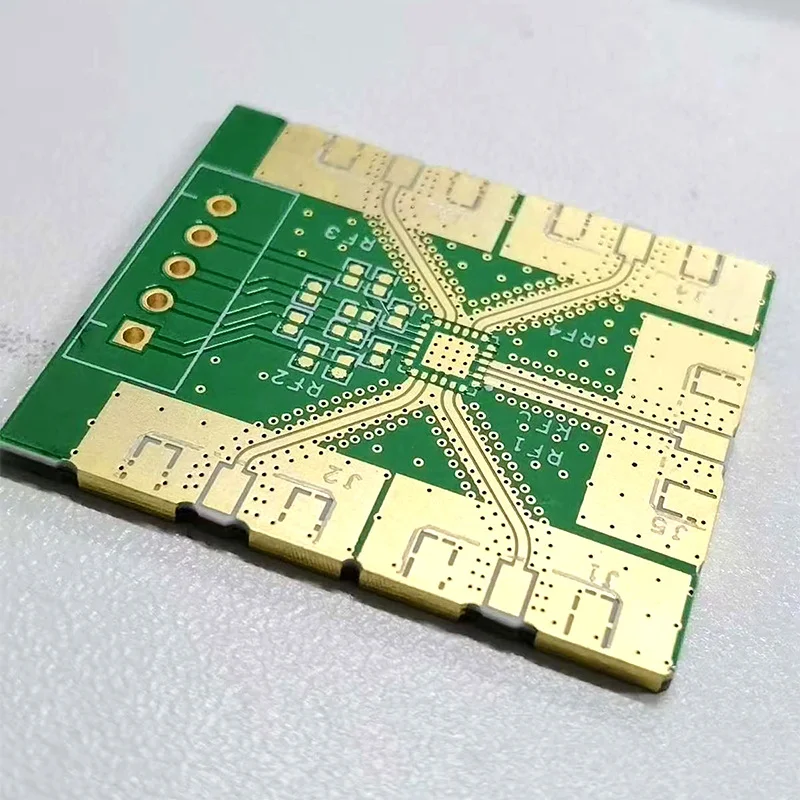

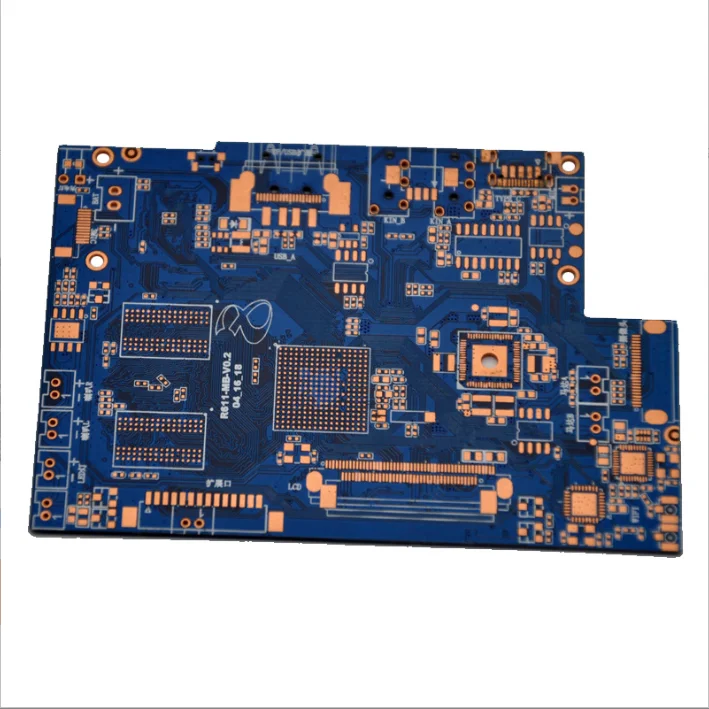

China OEM customized pcb circuit board assembly for motor controller

PCB(printed circuit board) is a printed circuit board, referred to as printed board, is one of the important components of the electronics industry. Almost every electronic device, small to electronic watches, calculators, large to computers, communication electronic equipment, military weapon systems, as long as there are electronic components such as integrated circuits, in order to make the electrical interconnection between the various components, to use printed boards. The printed circuit board is composed of an insulating base plate, a connecting wire and a welding pad for assembling welded electronic components, and has the dual function of conducting circuit and insulating base plate. It can replace the complex wiring, realize the electrical connection between the components in the circuit, not only simplifies the assembly of electronic products, welding work, reduce the traditional way of wiring workload, greatly reduce the labor intensity of workers; It also reduces the volume of the whole machine, reduces the cost of the product, and improves the quality and reliability of the electronic equipment. The printed circuit board has good product consistency, and it can adopt standardized design, which is conducive to mechanization and automation in the production process. At the same time, the whole assembled and adjusted printed circuit board can be used as an independent spare part, which is convenient for the exchange and maintenance of the whole machine product. At present, printed circuit boards have been extremely widely used in the manufacturing of electronic products.

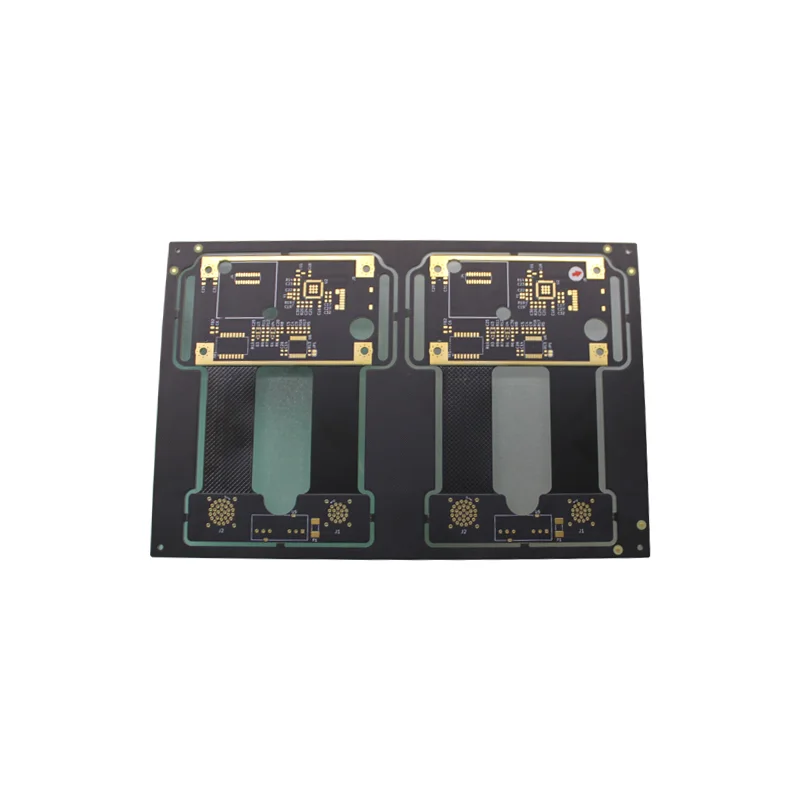

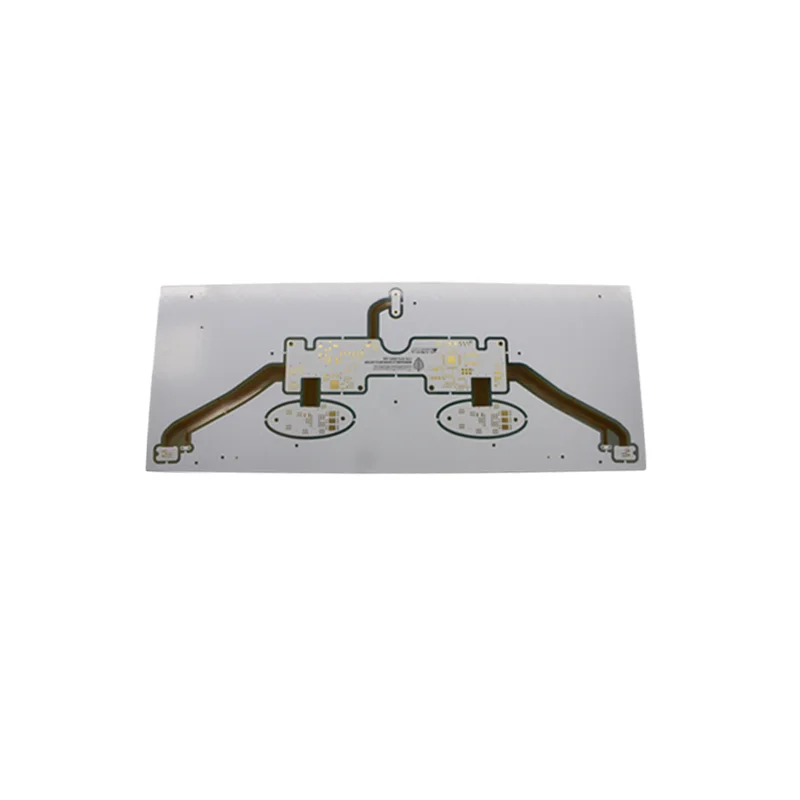

  Combination of soft and hard(PCB)

          Single-sided circuit Board (PCB)

        Double-sided circuit Board (PCB)
