TESmart KVM Extender over Fiber Many to Many Video Audio Transmitter Receiver 100M 2560*1440@60Hz HDMI KVM Extender
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd
Share on (1600916637488):
Product Overview
Description
Customized Products
Product Description
100M HDMI KVM+Audio Extender
# HKE1011A7H

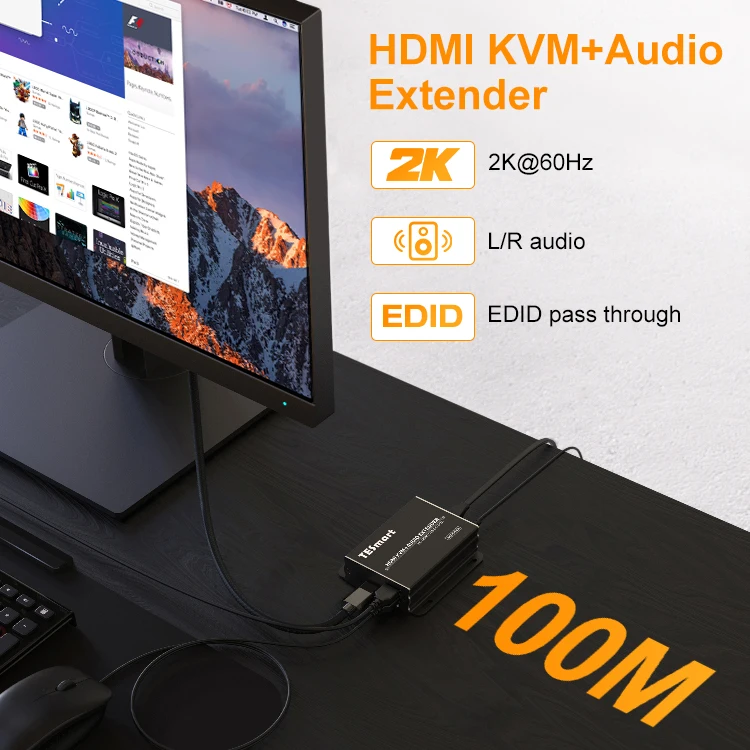

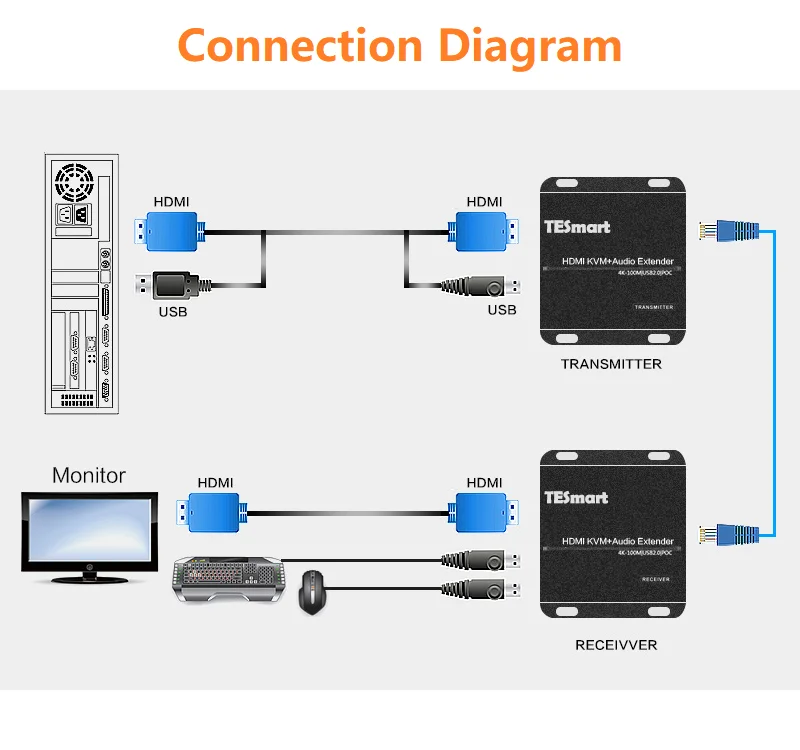

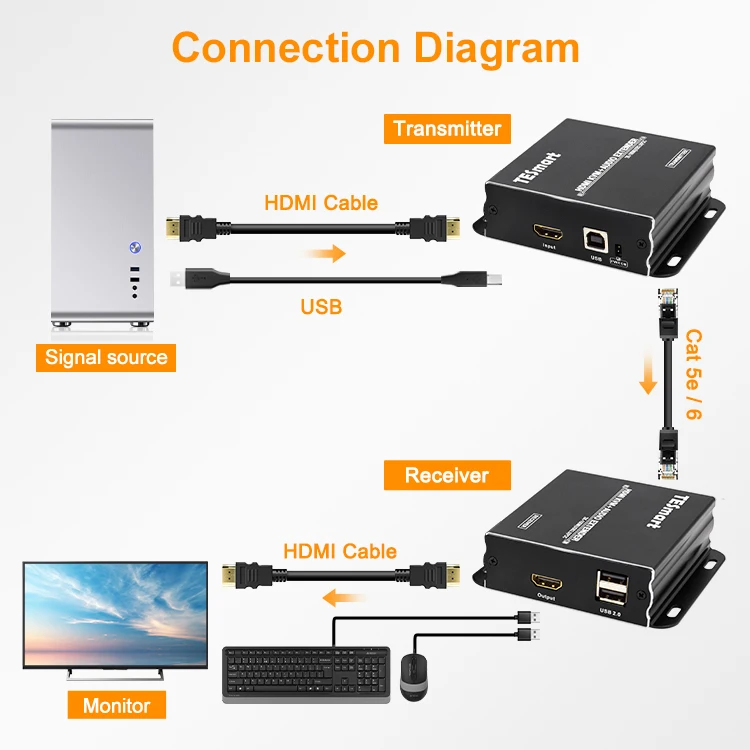

This HDMI KVM Extender with audio out, HKE1011A7H, extends HDMI and USB up to 100 meters over a single CAT5e/6 cable.
Providing access to keyboard, mouse, touch-panel, printers, and USB drive. Support resolutions up to 2560*1440@60Hz.
Support EDID pass though, best compliant with different display devices.
Support power over UTP cable, only receiver should be powered.
Features
1. | Resolution up to 2560*1440@60Hz (For 100M UTP) |
2. | Support TMDS equalization and enhancement |
3. | Support EDID pass through via LAN, for best compliance with most display devices |
4. | Providing access to keyboard, mouse, touch-panels, printers, and USB drive etc |

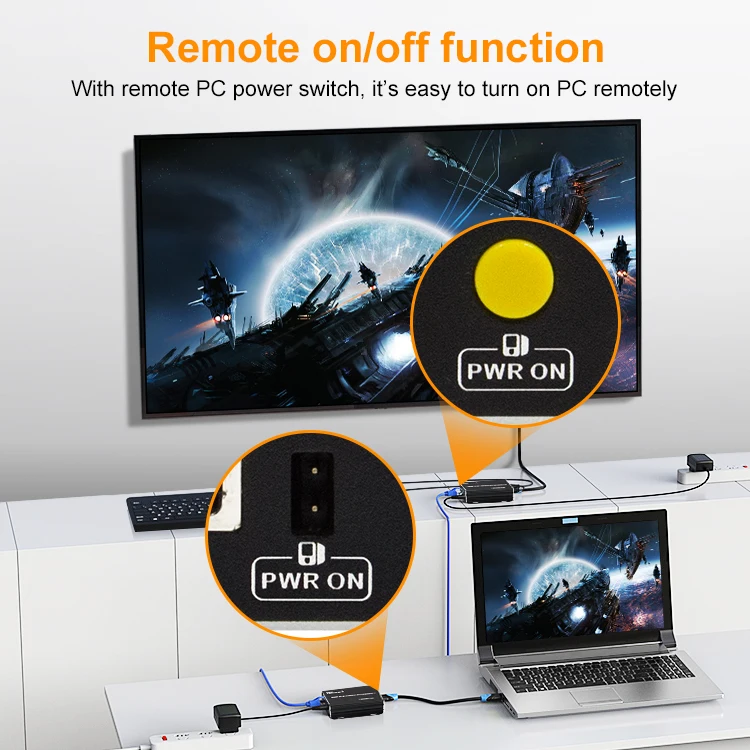

5. | With remote PC power switch button, it is easy to turn on PC remotely |
6. | Support PoC (Power Over Cable), transmitter powered by receiver |
7. | Support DVI source and display with the use of HDMI-to-DVI adapters |

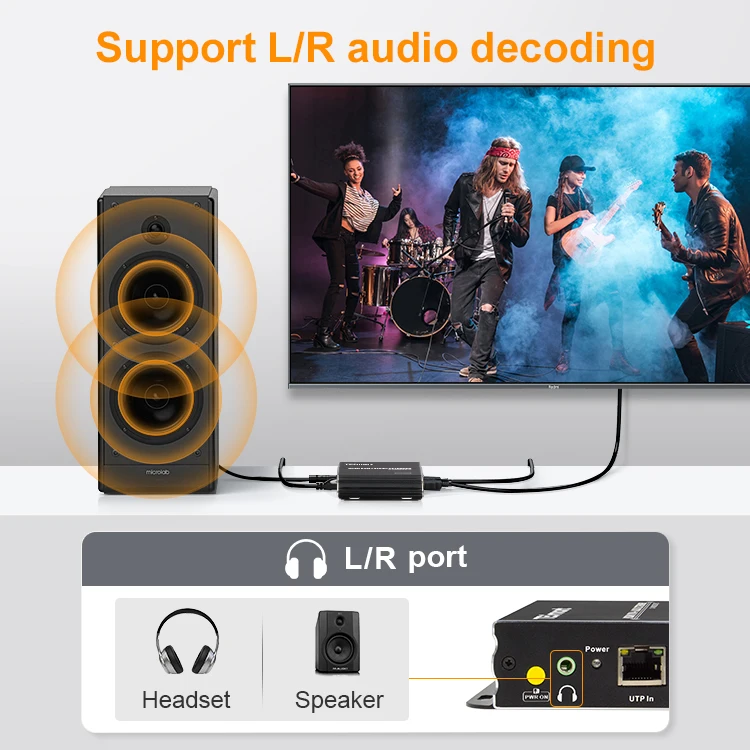

8. | Support audio out from receiver |
Product Parameters
HKE1011A7H | 100M HDMI KVM+Audio Extender | |
HDCP compliance | No | |
Data rate | 10.2 Gbps | |
Max. Resolution | 2560*1440@60Hz ( For 100M UTP cable) | |
ESD protection | Human body model - ±8kV (Air-gap discharge) | |

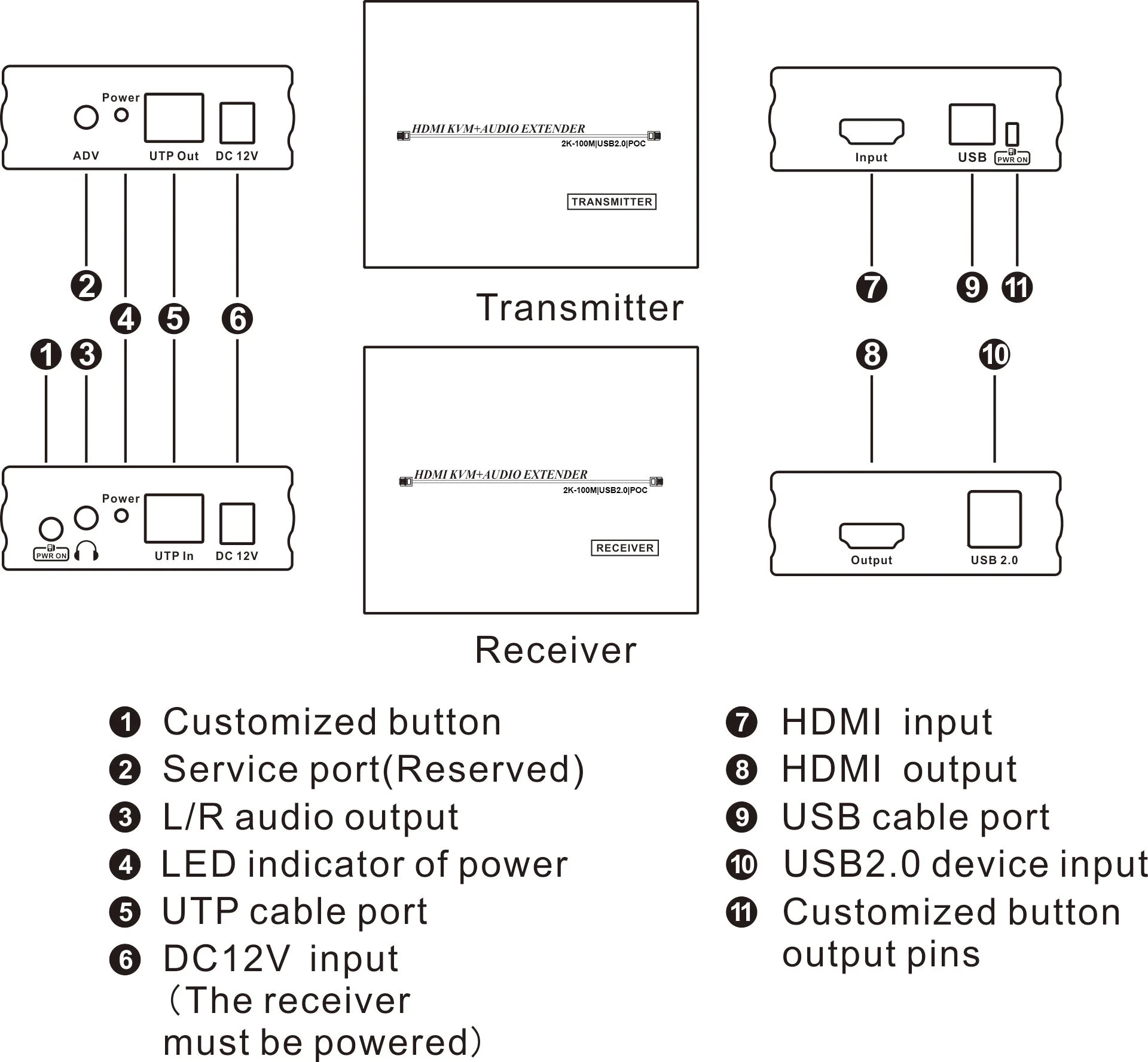

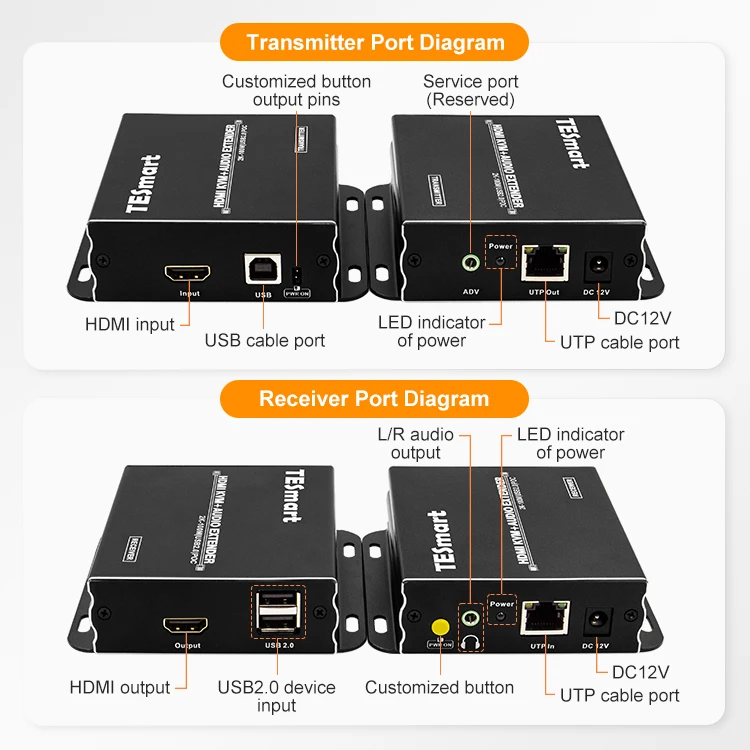

Input | Transmitter: 1* HDMI Type A, 1* AUX(Reserved for service) Receiver: 1* RJ45, 2* USB Type A (USB2.0) | |
Output | Transmitter: 1* RJ45, 1* USB Type B Receiver: 1* HDMI Type A, 1* AUX(for Audio out) | |
Material | Aluminum Alloy | |
Product Dimensions | RX: 90 (W) x 84 (D) x 30 (H) mm TX: 90 (W) x 84 (D) x 30 (H) mm | |
Item Weight | 330g | |
Power supply | DC 12V 2A | |
Operating/Storage temperature | 0 to 70 degree/-40 to 85 degree | |
Operating Humidity | 10 to 90% RH | |
