Industrial 100ton capacity Wood Chipper Shredder Machine Wood Crusher Price
- Category: >>>
- Supplier: Shandong Zouping Shuanghuan Machinery Manufacturing Co. Ltd.
Share on (1600916646376):
Product Overview
Description
Product Description

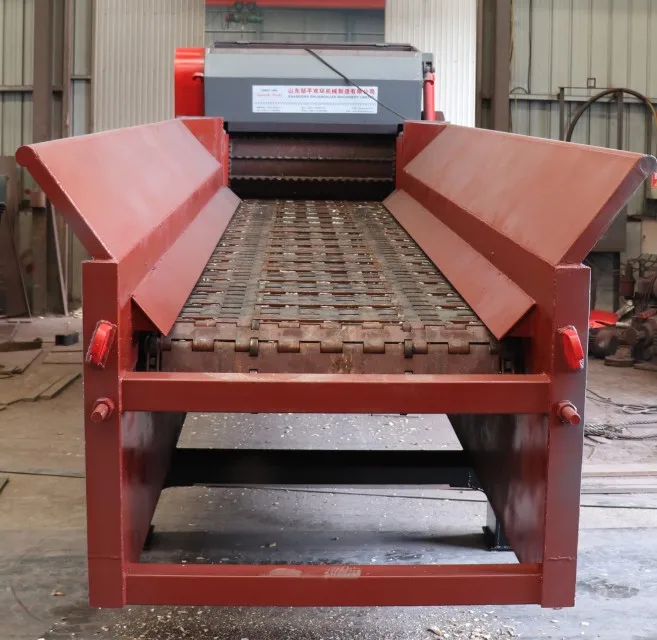

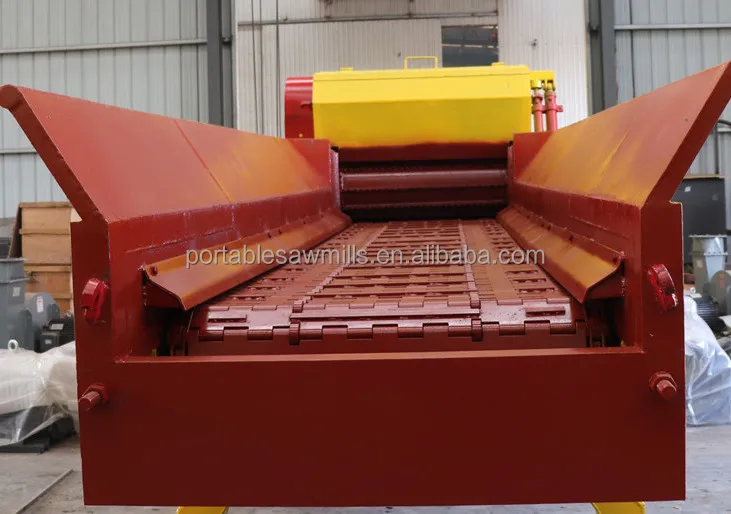

SH1400-600 Series crusher is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time.
Model | SH1400-600 |
Feeding Inlet | 1400*600MM |
Blade Roller Diameter | 850mm |
Blade Roller Speed | 850RPM |
Capacity | 18-20ton/hour |
YG8 Hammer Blade Quantity | 2groups/ 4 tablets |
Max Process Wood Diameter | 450mm |
Engine Power | 200kw or 400HP diesel |
Wood Chipper Size | 30-50mm |
Working Life Hammer Blades | 4000T-6000T |
Direction for use
Easily and reliably convert scrap pallets and industrial packaging into marketable wood fiber with sawmill-world's industry proven, low
maintenance pallet grinders. Materials processed include scrap pallets, deck boards, stringers, short blocks, trim ends, edgings, panel scrap, plywood, and
other industrial packaging waste.
maintenance pallet grinders. Materials processed include scrap pallets, deck boards, stringers, short blocks, trim ends, edgings, panel scrap, plywood, and
other industrial packaging waste.
Optional metal removal is highly effective and helps to maximize finished fiber value.
Description of application effect
使用效果描述
It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.
Detailed Images

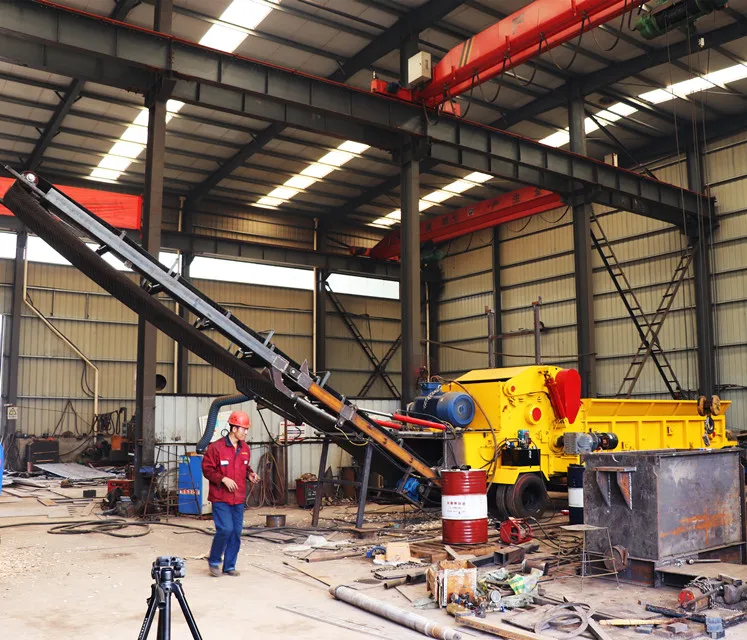

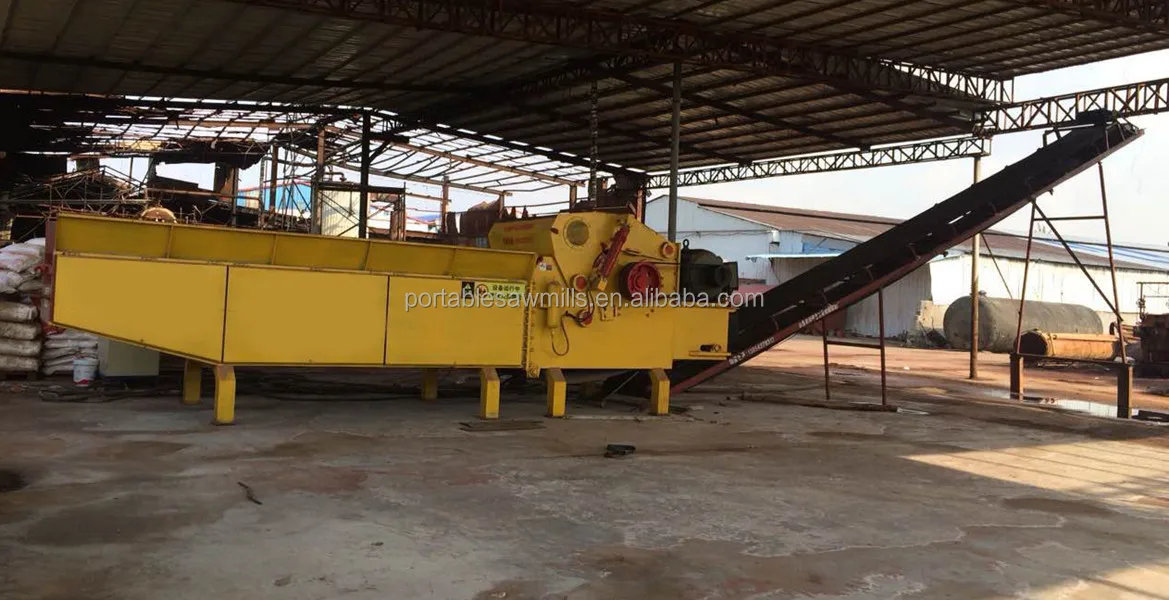

Electric type

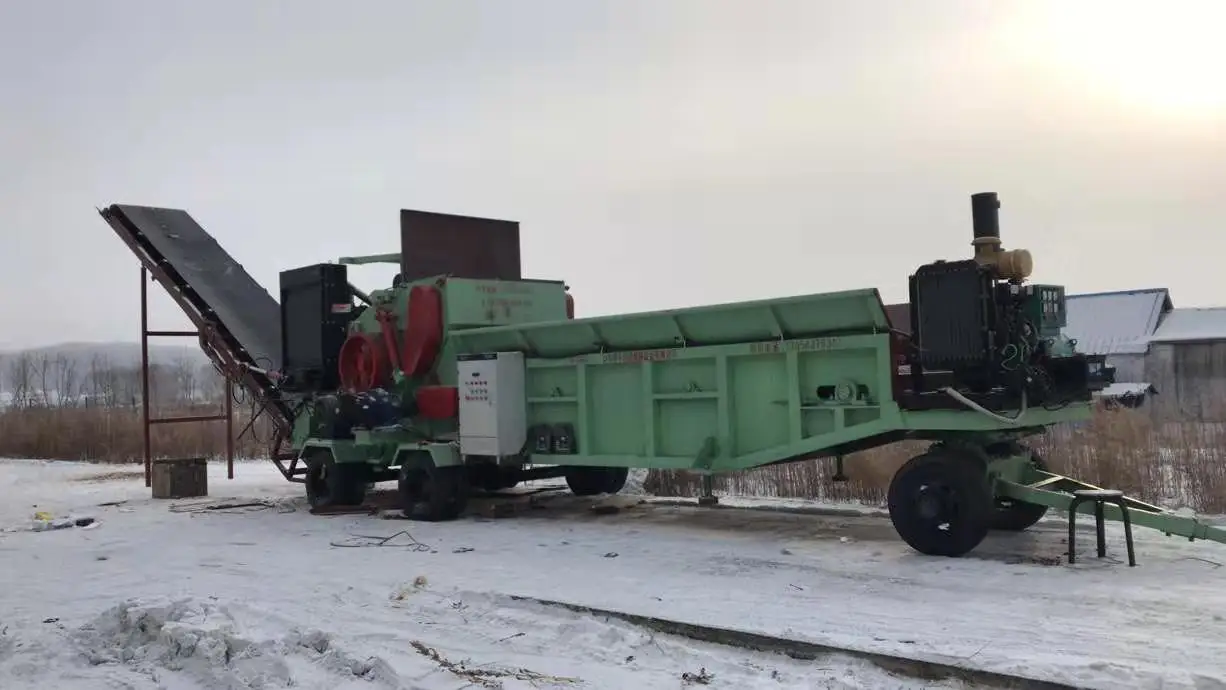

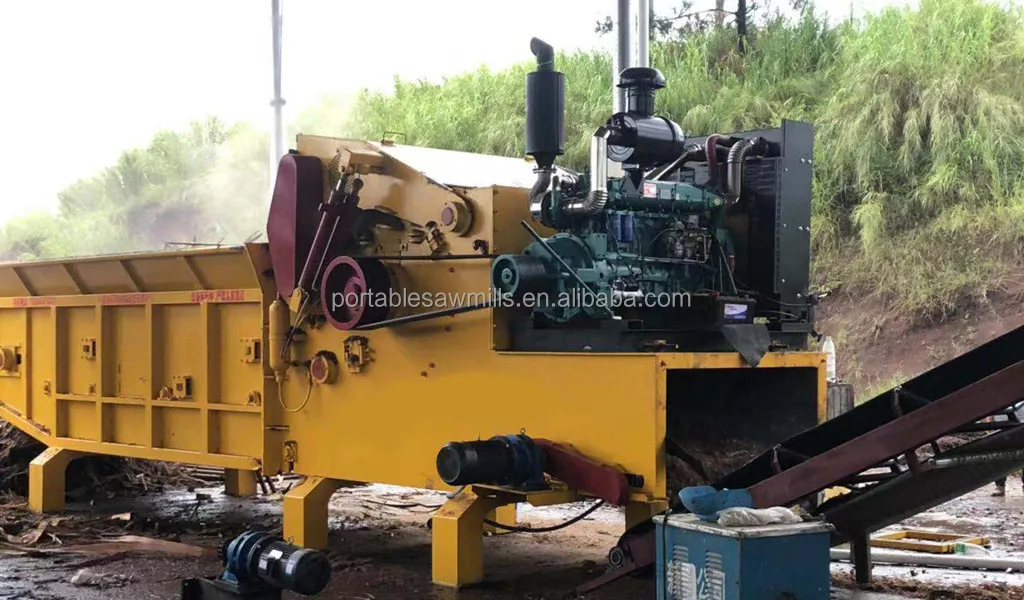

Diesel Type
With 400HP diesel engine +50KW generator
Optional Configuration List:
Optional List

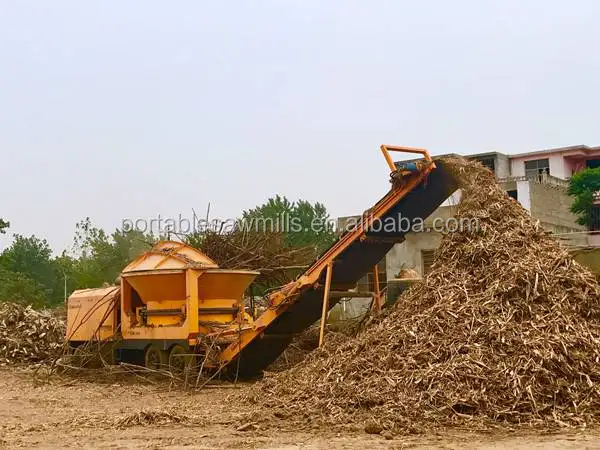

1. Wheels for mobile usage
2. Hydraulic foldable outlet conveyor
3. Magnetic Roller
4. Hammer blade type for wasted pallets, etc

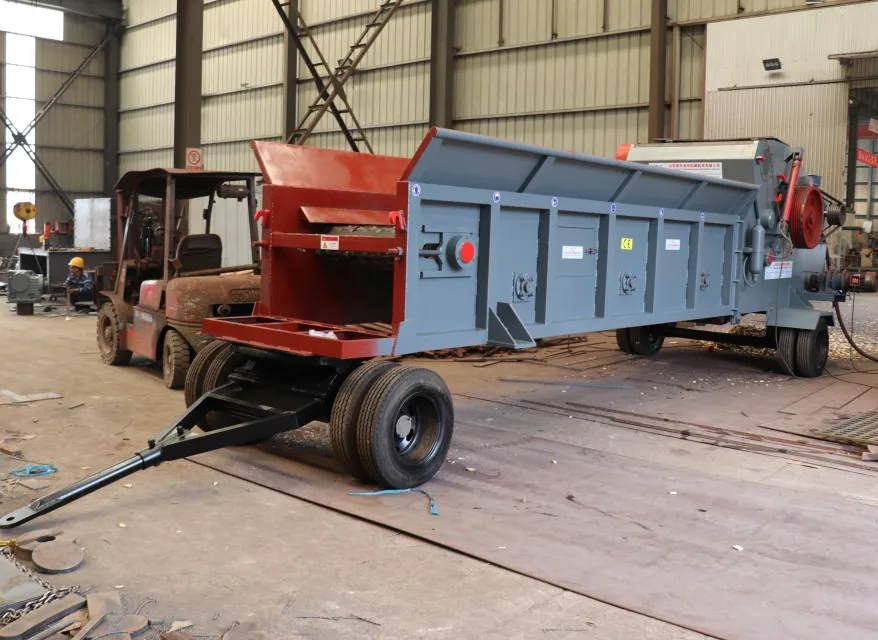

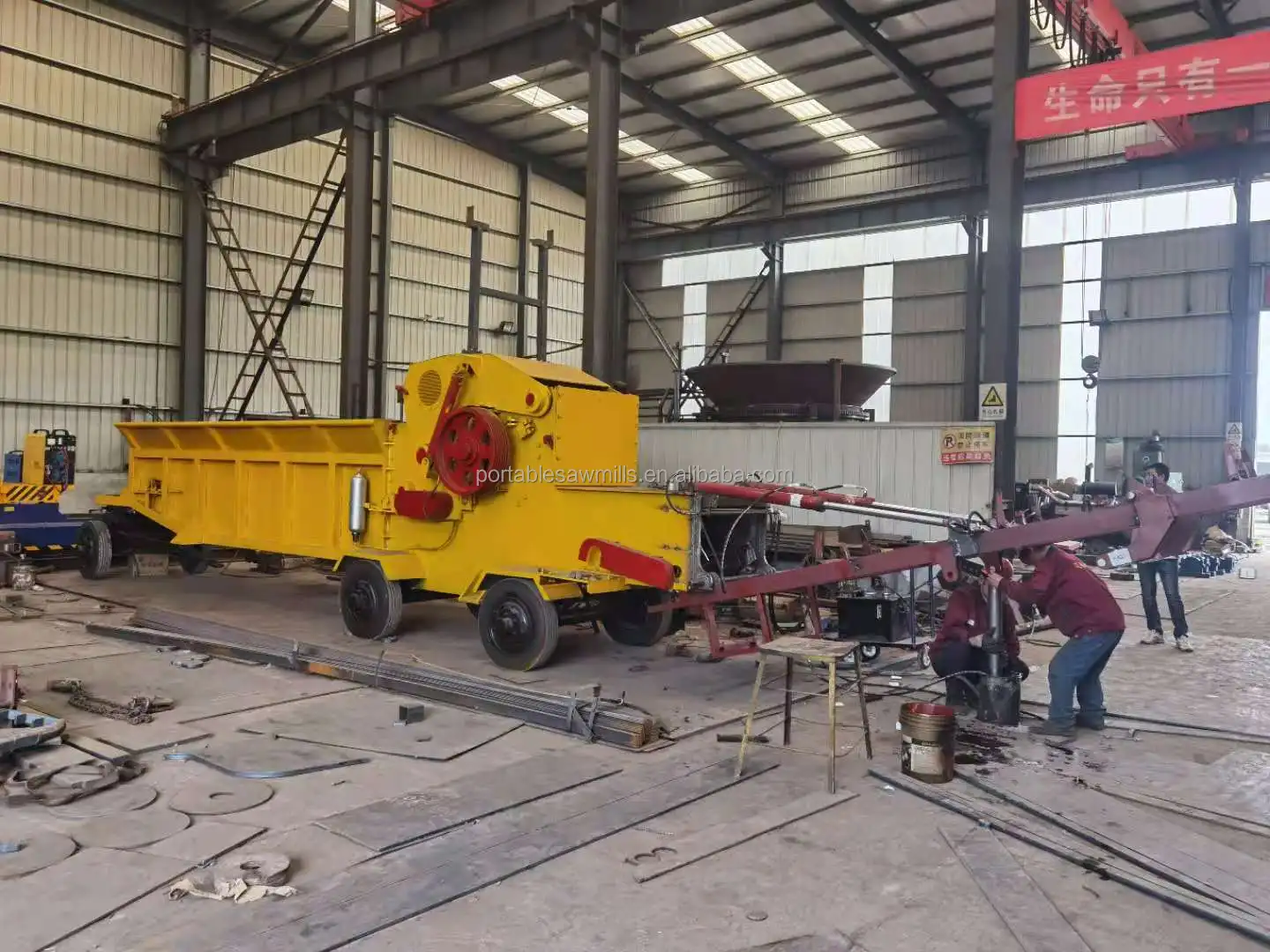

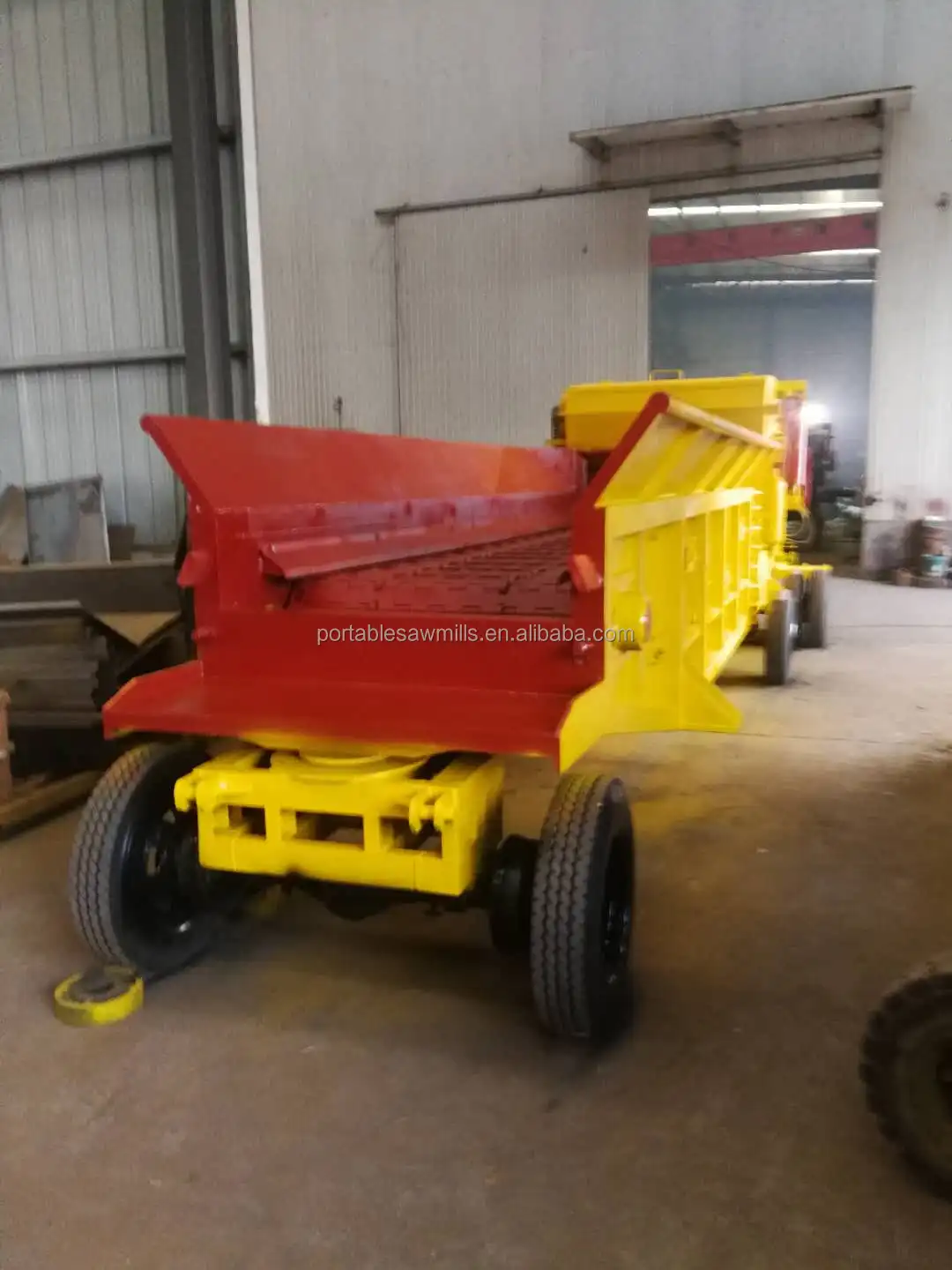

Wheels for mobile usag

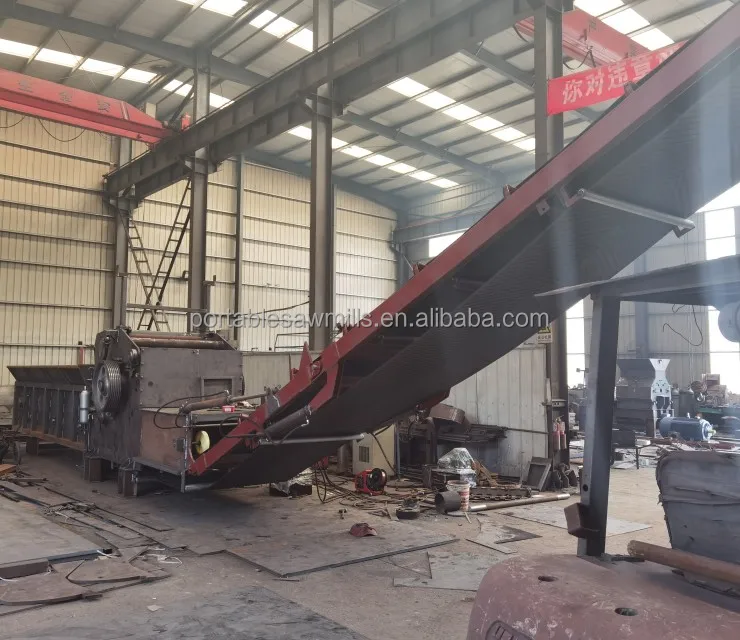

hydraulic foldable conveyor

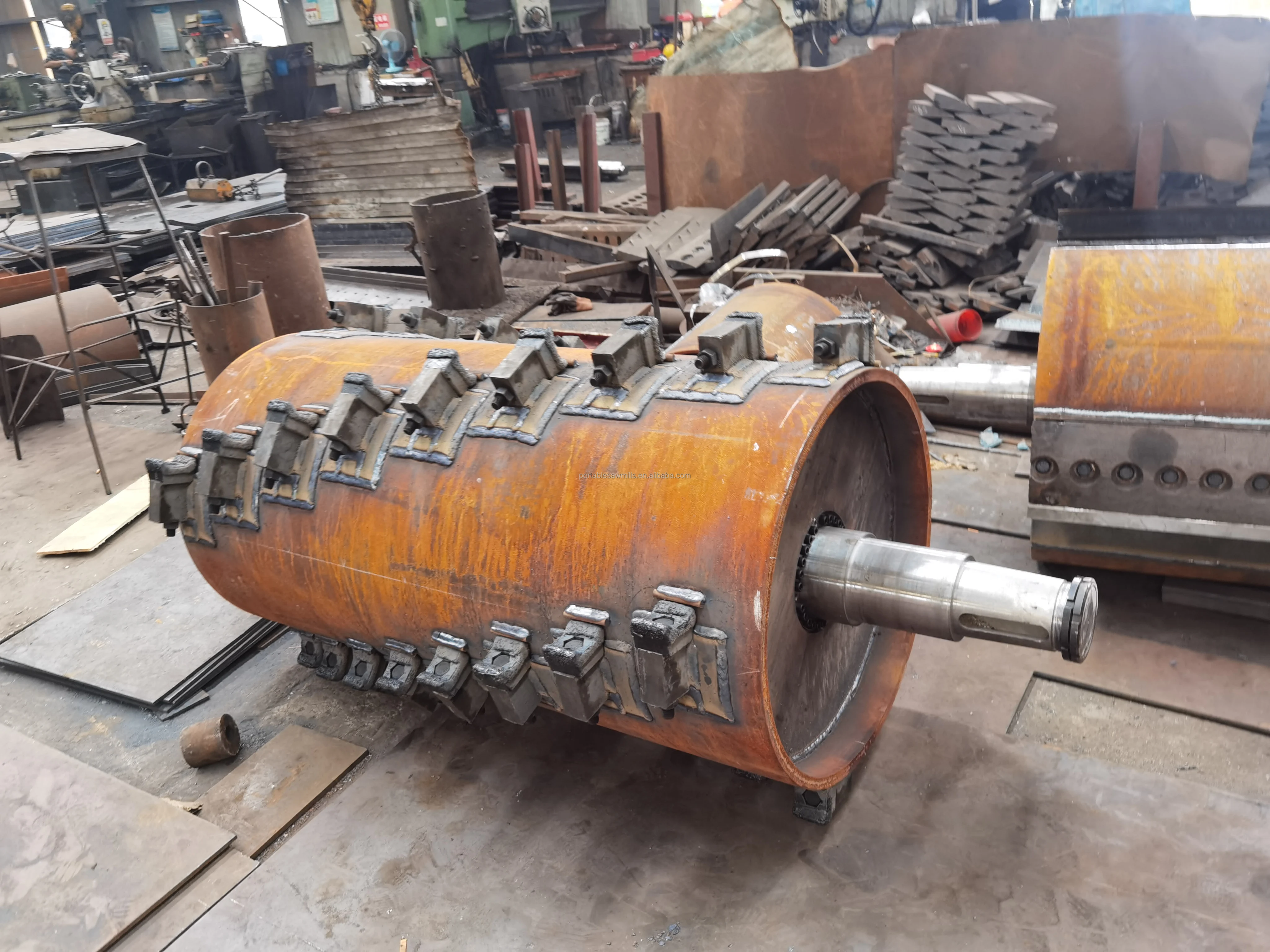

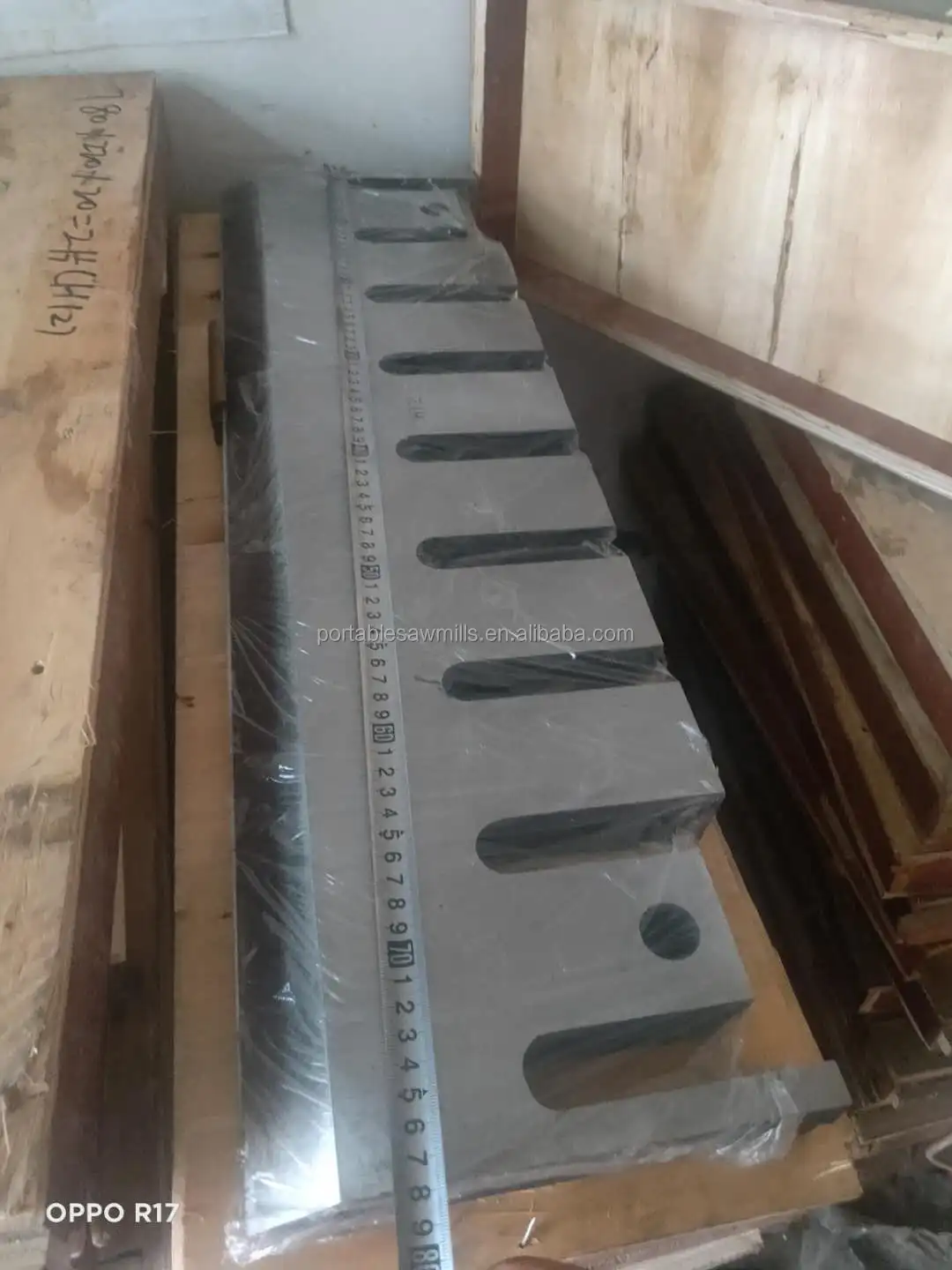

Spare Parts- blade, hammer blade
Size Information
Different Models with different production capacity for your choice
Model | SH2000-1000 | SH1400-600 | SH1600-600 | SH800-500 | ||||
Feeding inlet size | 2000*1000mm | 1400*600mm | 1600*600mm | 800*500mm | ||||
Blade roller diameter | 1400mm | 850mm | 850mm | 4000T-6000T | ||||
Blade roller speed | 750rpm | 850rpm | 850rpm | 850rpm | ||||
Capacity | 70-100ton/hour | 18-20ton/hour | 25-30ton/hour | 8-10ton/hour | ||||
YG8 hammer blade qty | 86pcs | 24pcs | 28pcs | 16pcs | ||||
Blade qty | 3groups/9pcs | 2groups/4pcs | 2groups/4pcs | 2groups/4pcs | ||||
max. processing wood diameter | <800mm | 450mm | 450mm | 300mm | ||||
Main motor power | 450kw | 200kw | 250kw | 110kw | ||||
Wood chipper size | 3-5cm | 2-4cm | 2-4cm | 2-4cm | ||||
working life of hammer blades | 4000T-5000T | 4000T-6000T | 4000T-6000T | 4000T-6000T | ||||
Optional : 1. Diesel engine power 400HP 2. Wheels for mobile usage 3. Magnetic machine for sucking out iron products 4. Hydraulic foldable outlet conveyor | ||||||||
SH800-500 with capacity8- 10 tons per hour
SH1600-600 with capacity 25-30tons per hour

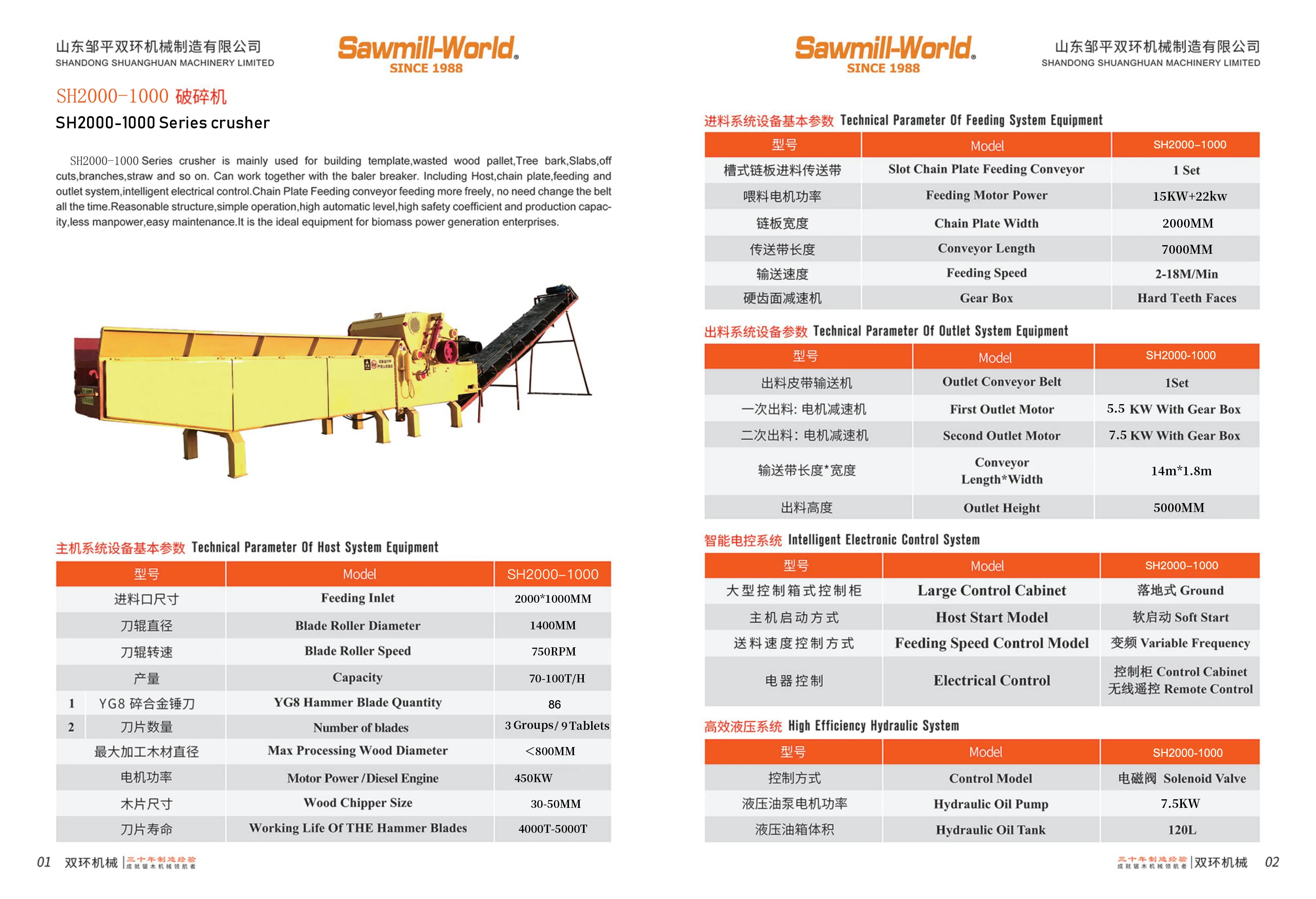

SH2000-1400 with capacity 70-100tons per hour
SH1400-600 with capacity 18-20tons per hour

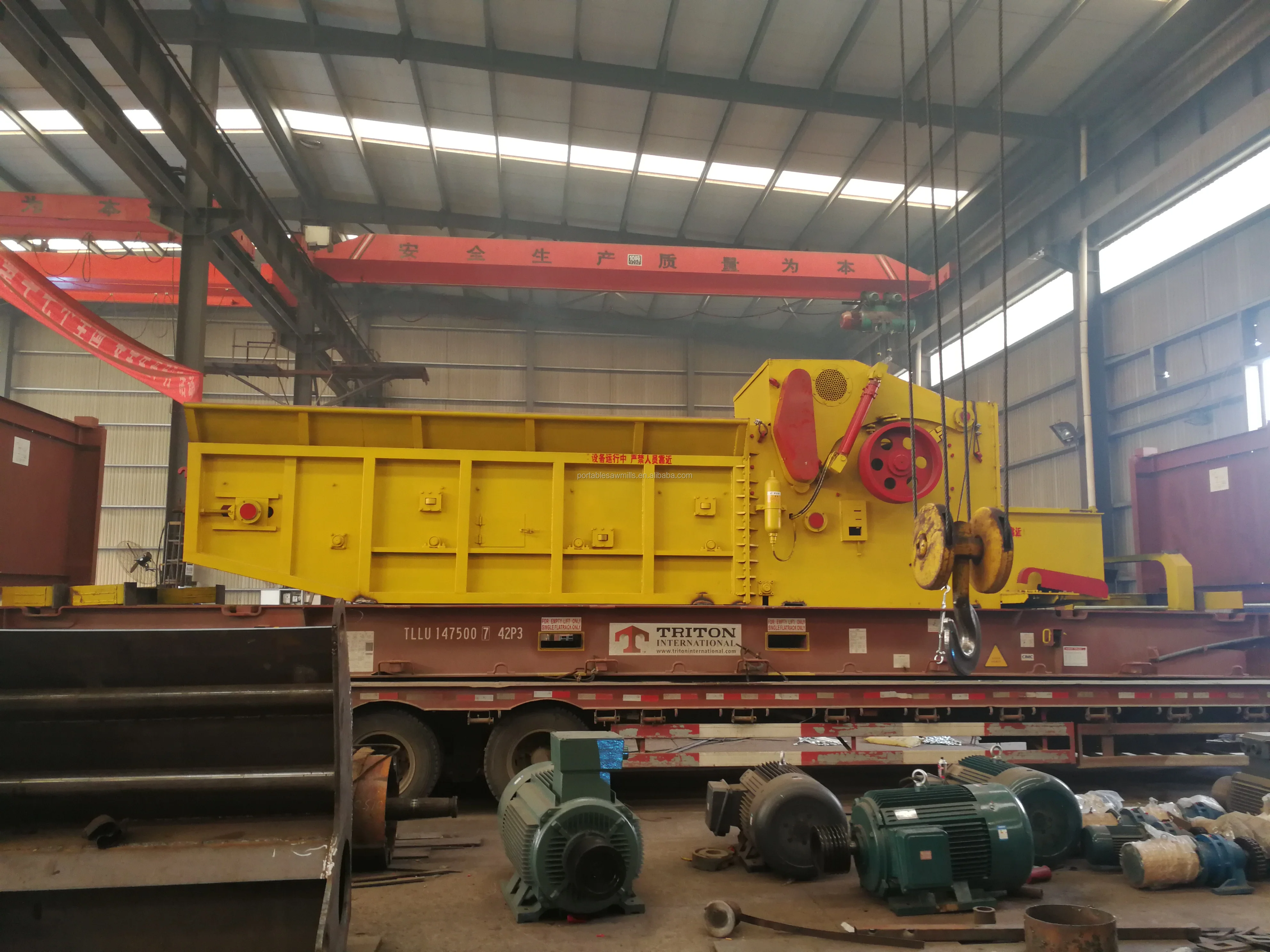

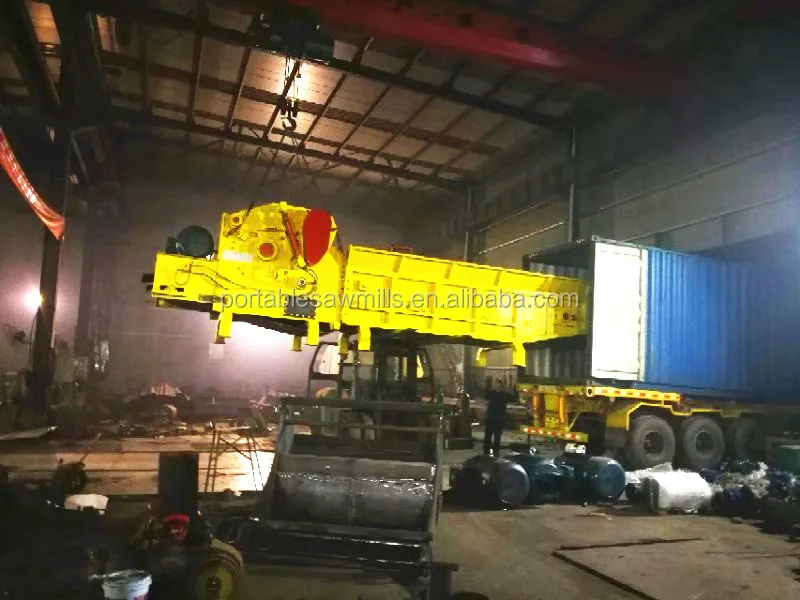

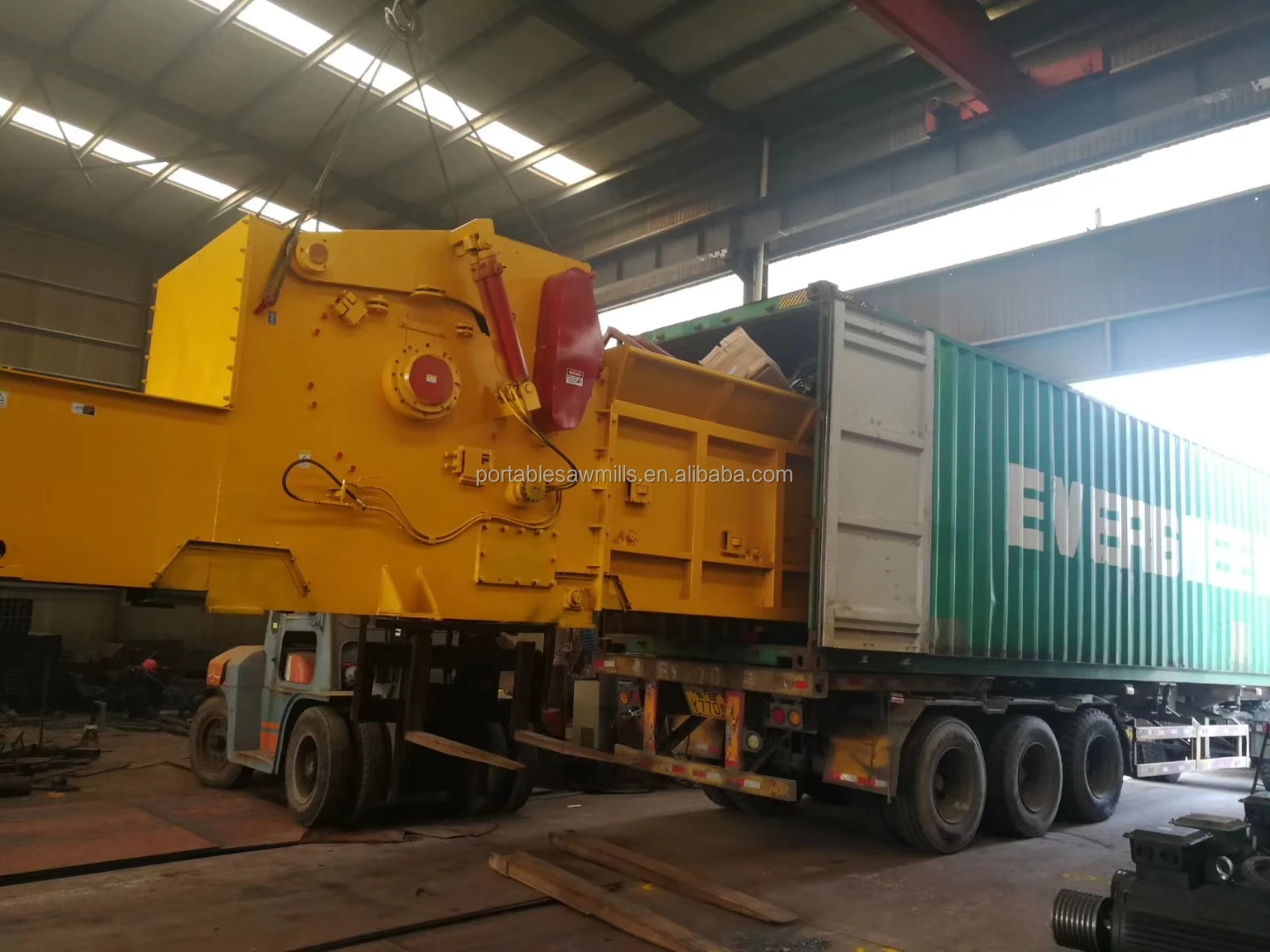

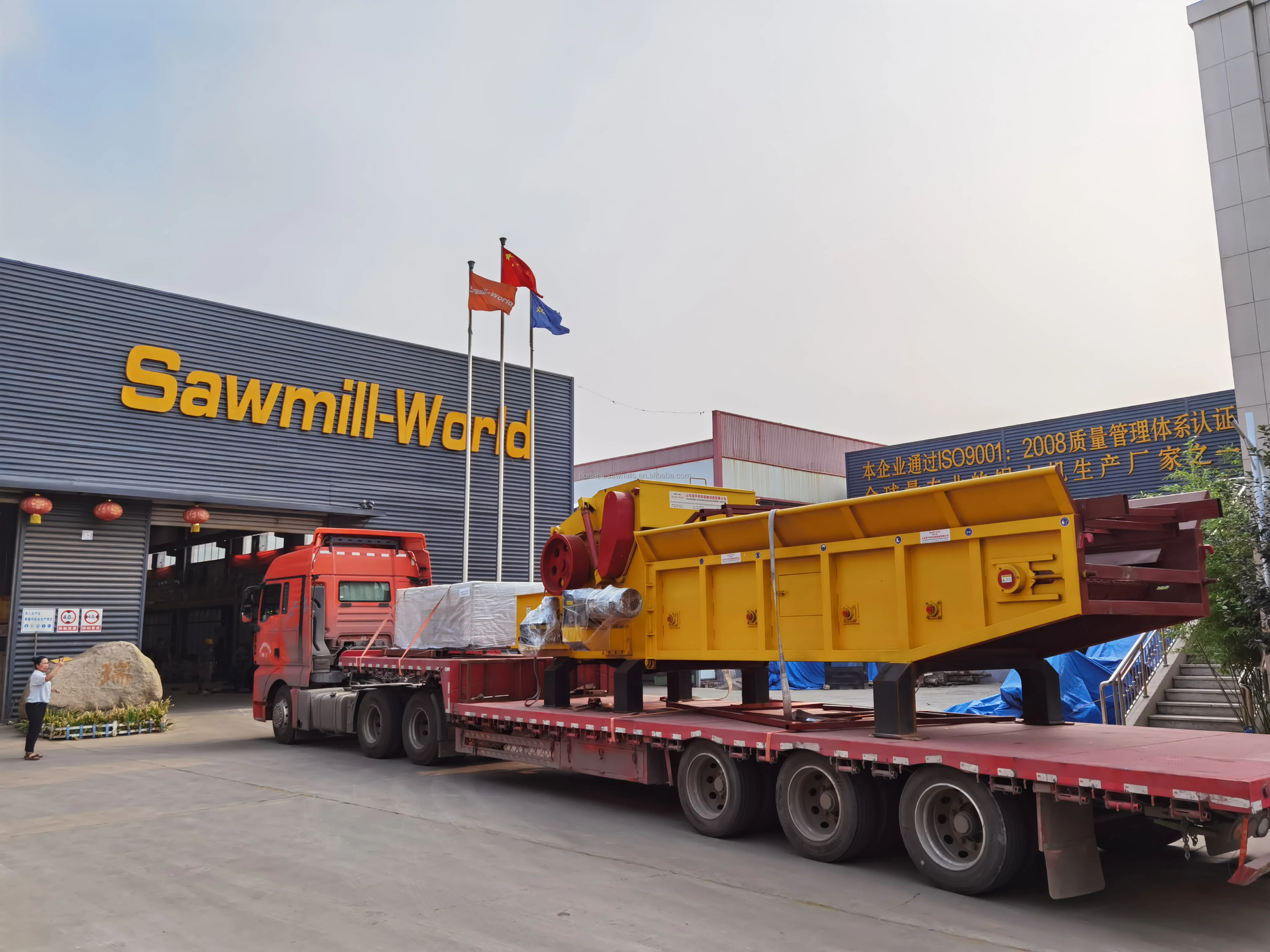

Packing&Shipping
Related Products

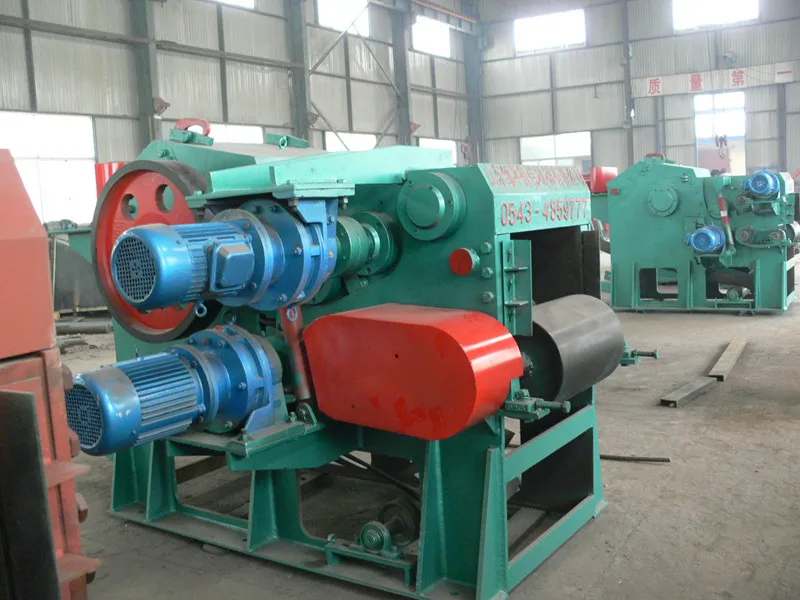

Drum wood chipper
