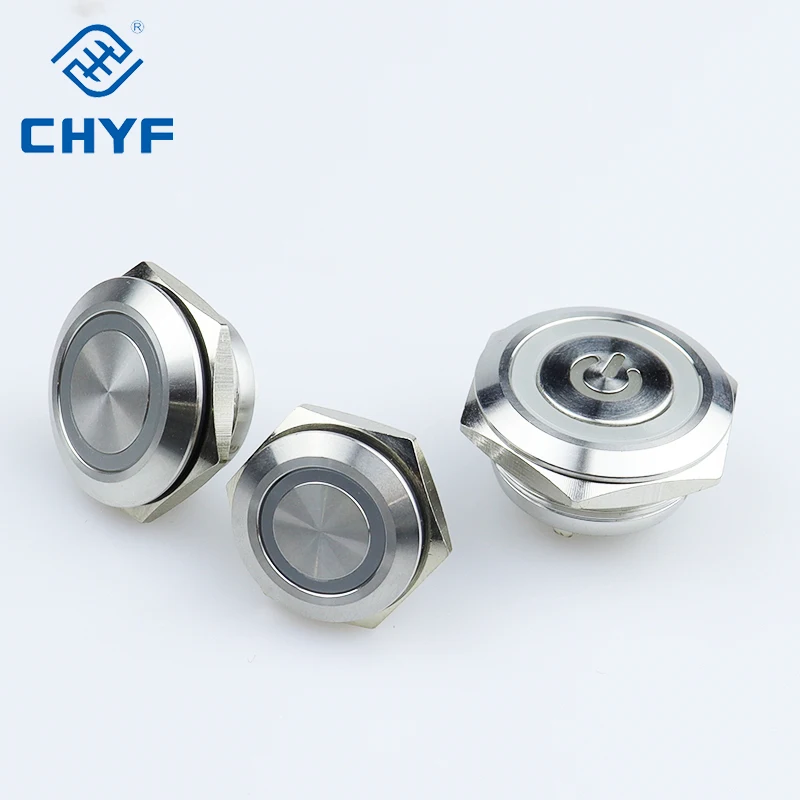

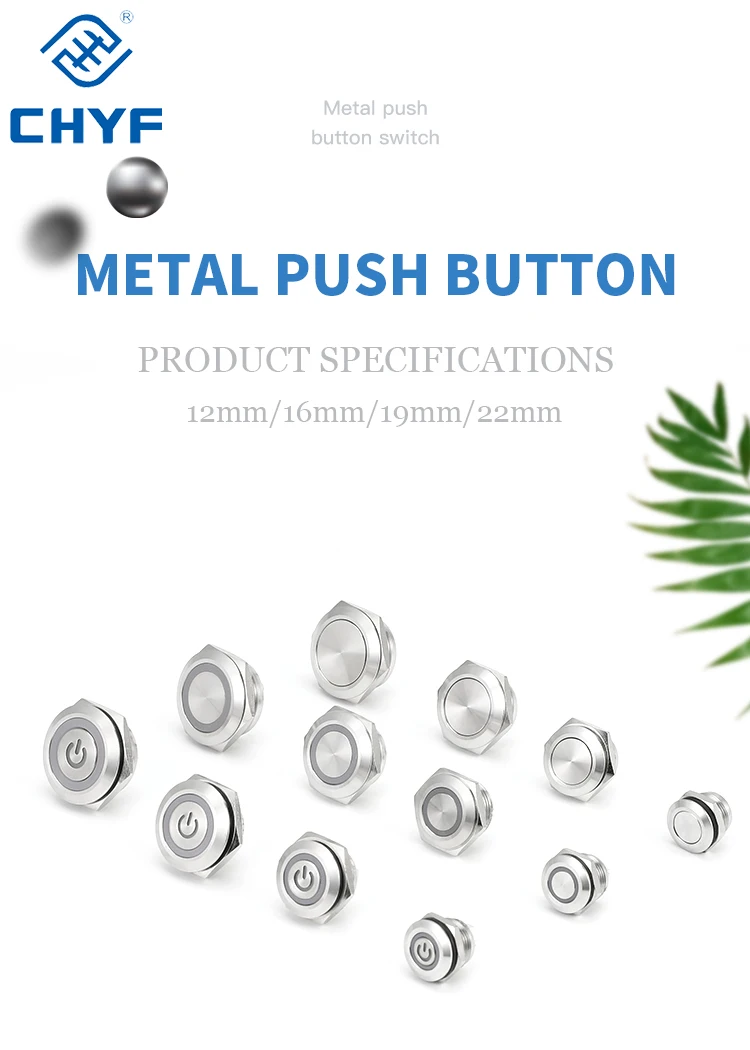

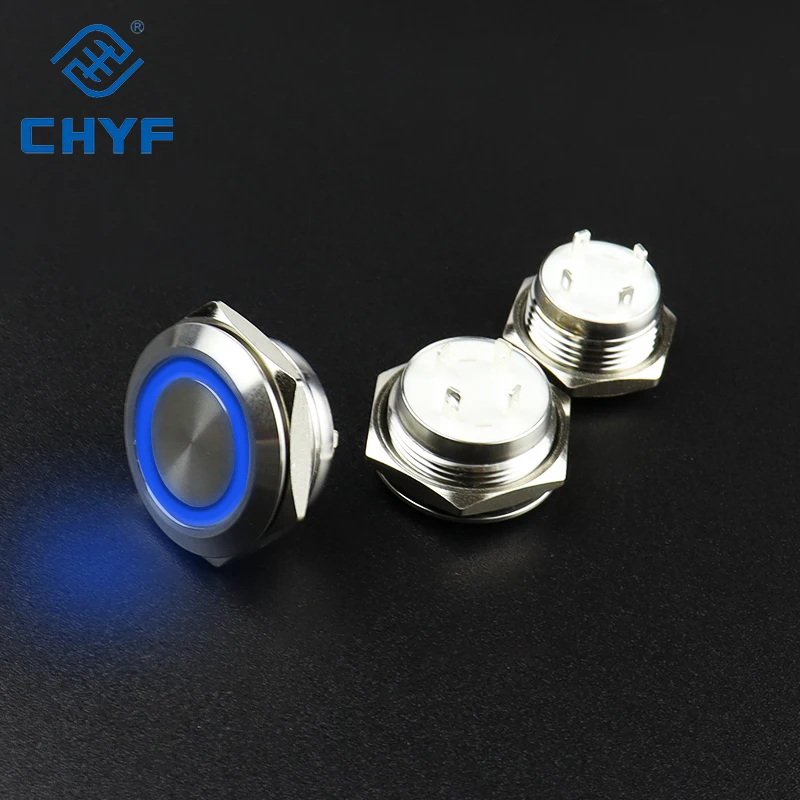

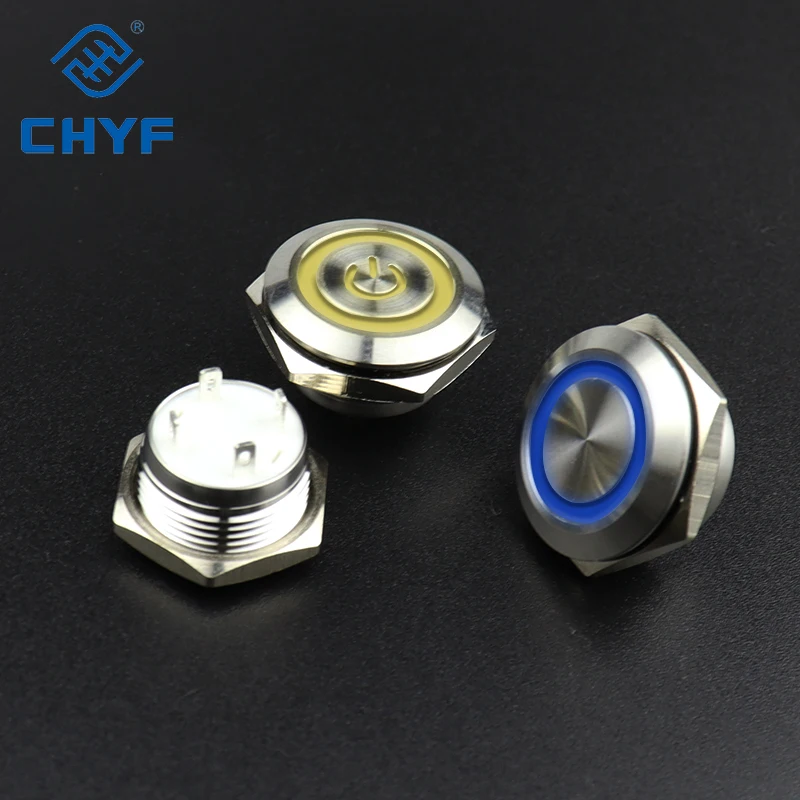

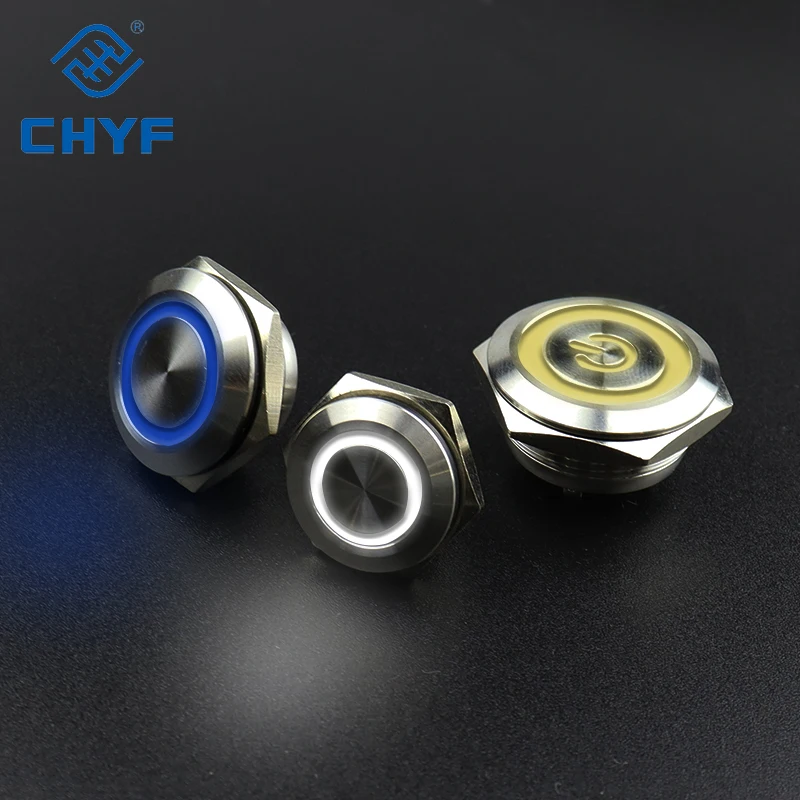

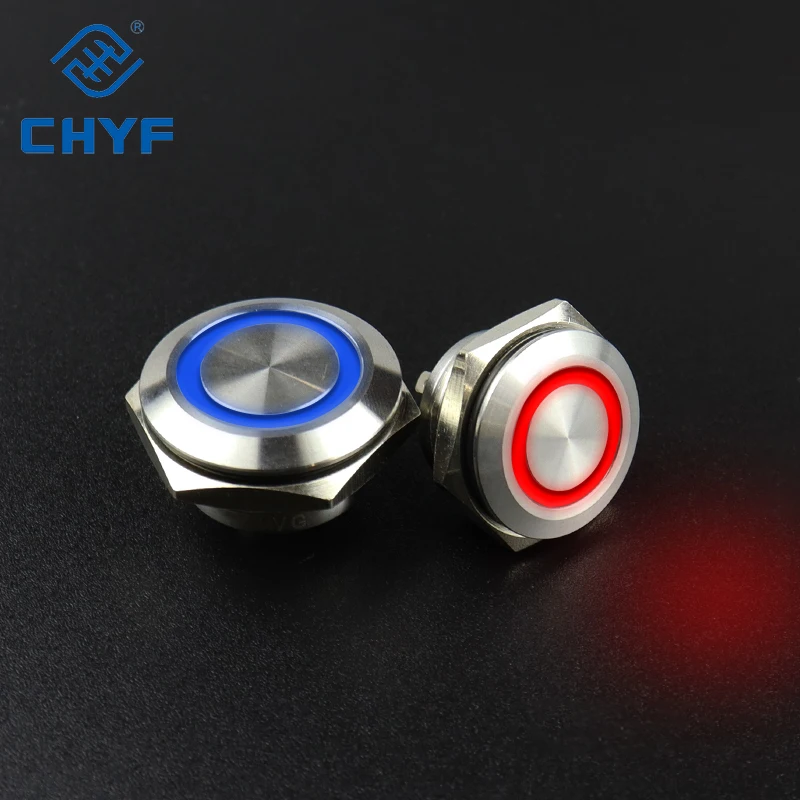

12mm 16mm 19mm 22mm short mini micro travel rgb 6v led pushbutton 16mm momentary led 6v stainless steel switch
- Category: >>>
- Supplier: Wenzhou Yufeng Import& Export Co. Ltd.
Share on (1600916752200):
Product Overview
Description

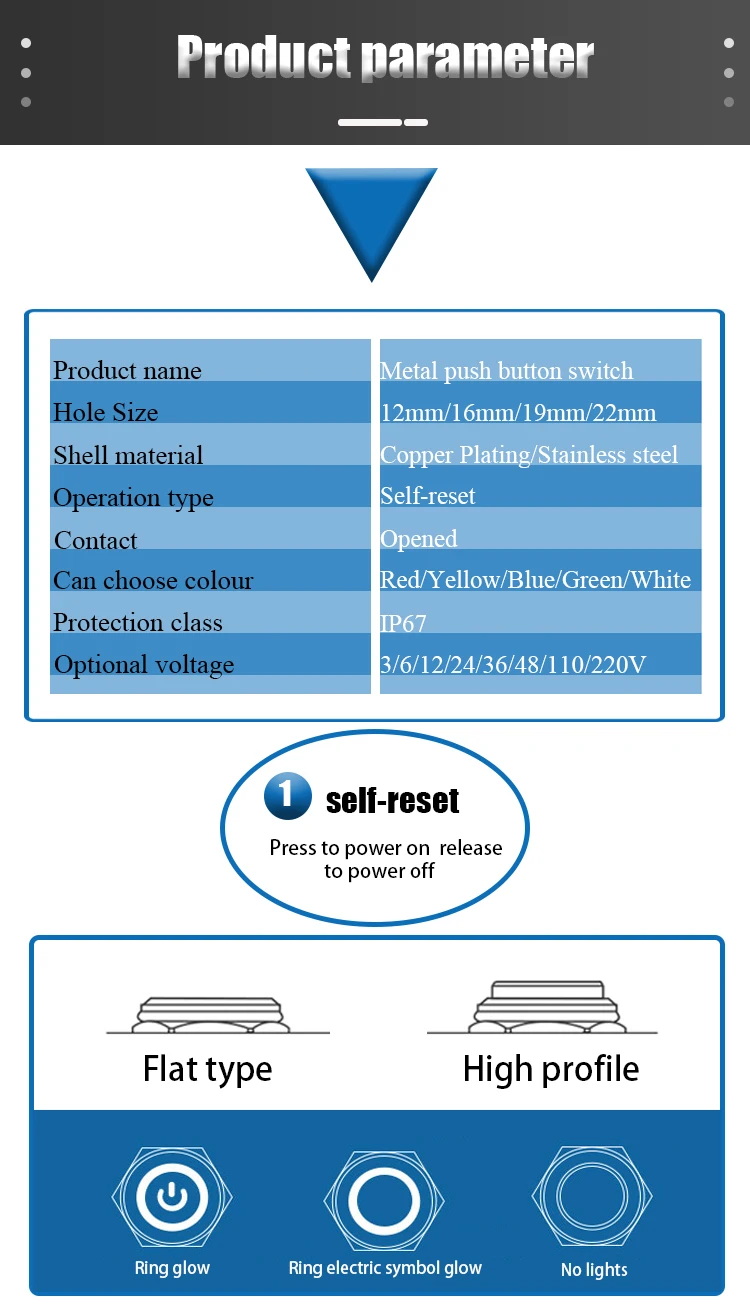

Product name | Push Button Switch |

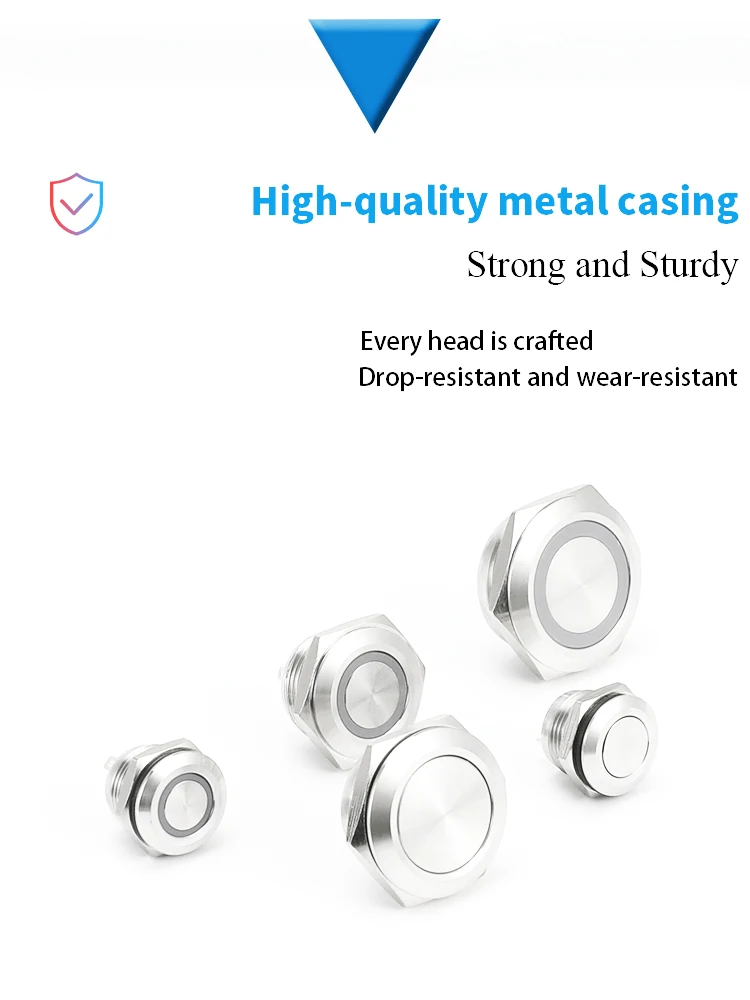

Material | Stainless steel/Nickel plated brass/ |
Switch rating | 2A/36VDC |
Terminal type | Pin terminal |

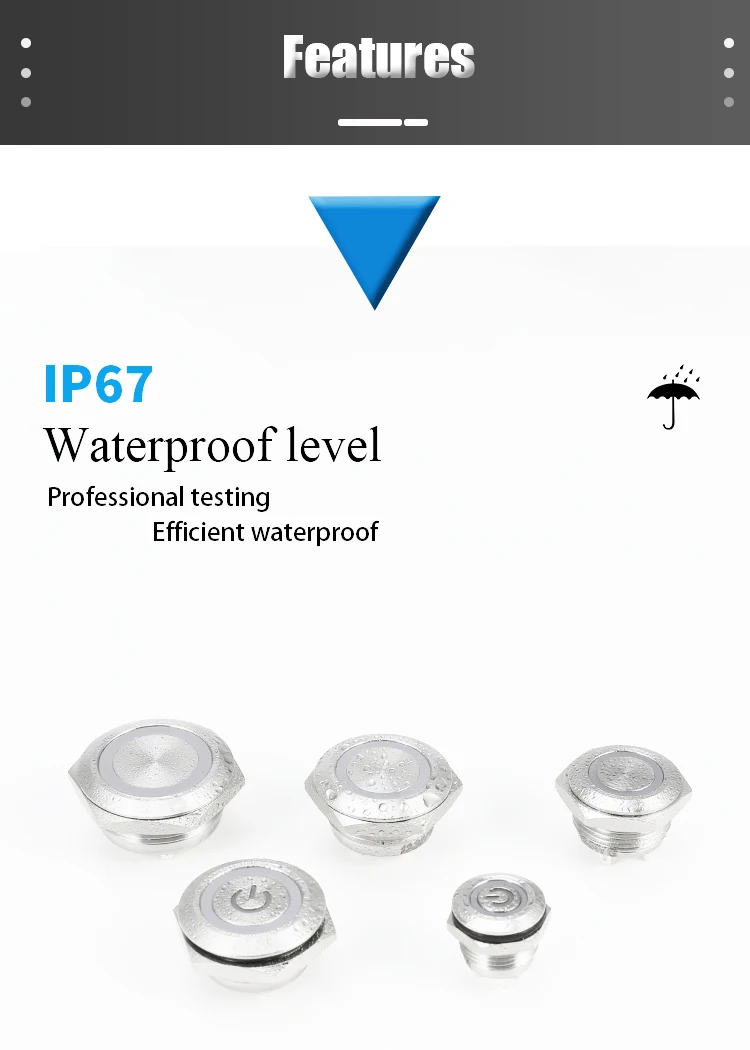

IP degree | IP65 |
The material of contact | Silver alloy |
Led type | High brightness LED lamp,cool |

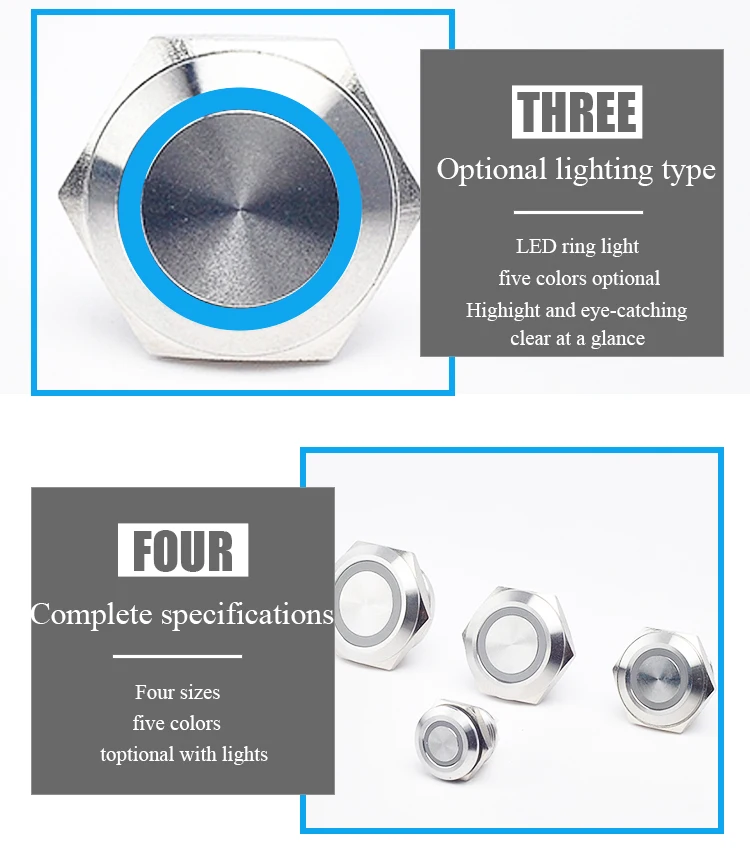

Luminous color | Red, Green, Blue, Yellow, White, Orange, Purple |
Rated voltage | AC/DC 3V,5V,6V,12V,24,36V,48V,110V,220V |
Rated current | ≤20 mA |
Product name | Push Button Switch |
Material | Stainless steel/Nickel plated brass/ |
Switch rating | 2A/36VDC |

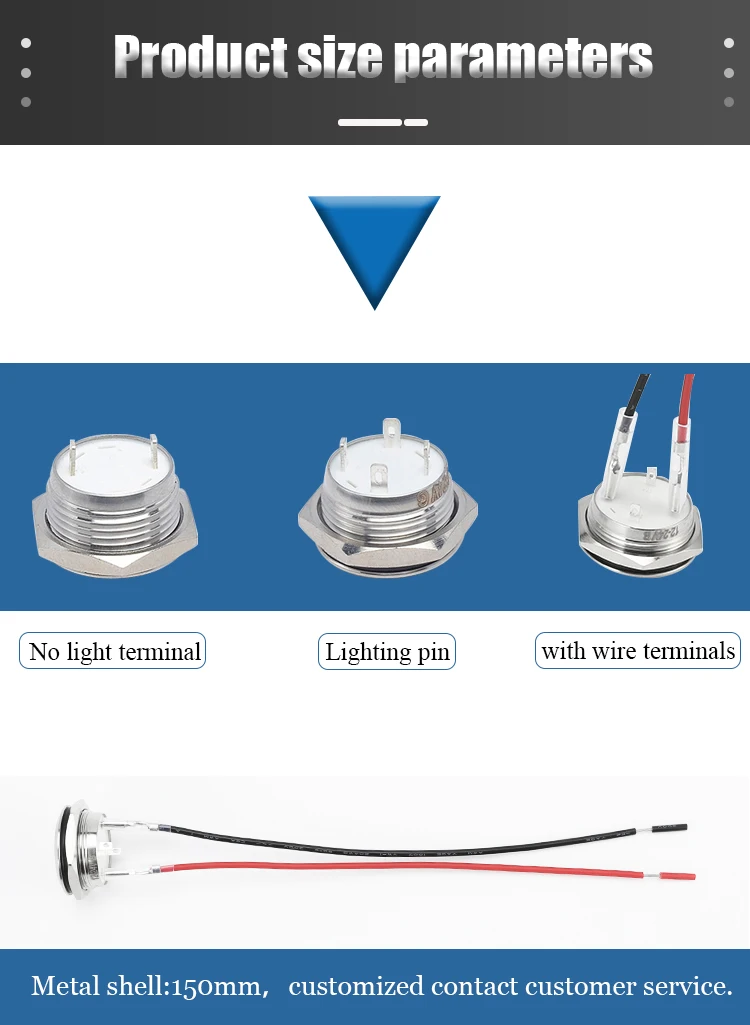

Terminal type | Pin terminal |
Point resistanc | Max50MΩ |
Isolation resistance | ≥1000MΩ |
Isolation intensity | 1500VAC，50Hz/60Hz |
Operating temperature | -25℃~+55℃ |
Mechanical life | More than 500000 times |
Electrical life | More than 100000 times |

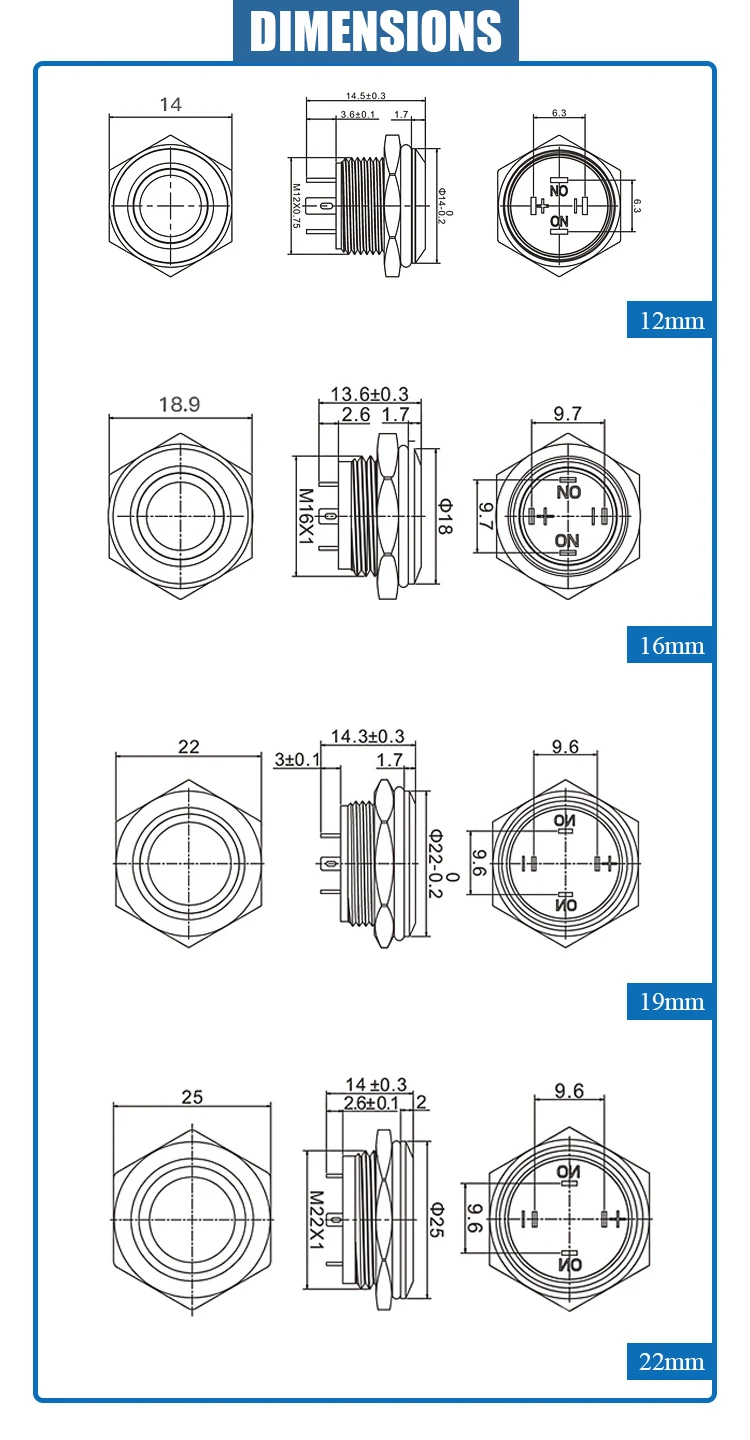

Panel thickness | 1~15mm |
Operating pressure | Abou4N |
Operation travel | About2mm |
IP degree | IP65 |
The material of contact | Silver alloy |
Led type | High brightness LED lamp,cool |
Luminous color | Red, Green, Blue, Yellow, White, Orange, Purple |
Rated voltage | AC/DC 3V,5V,6V,12V,24,36V,48V,110V,220V |
Rated current | ≤20 mA |
