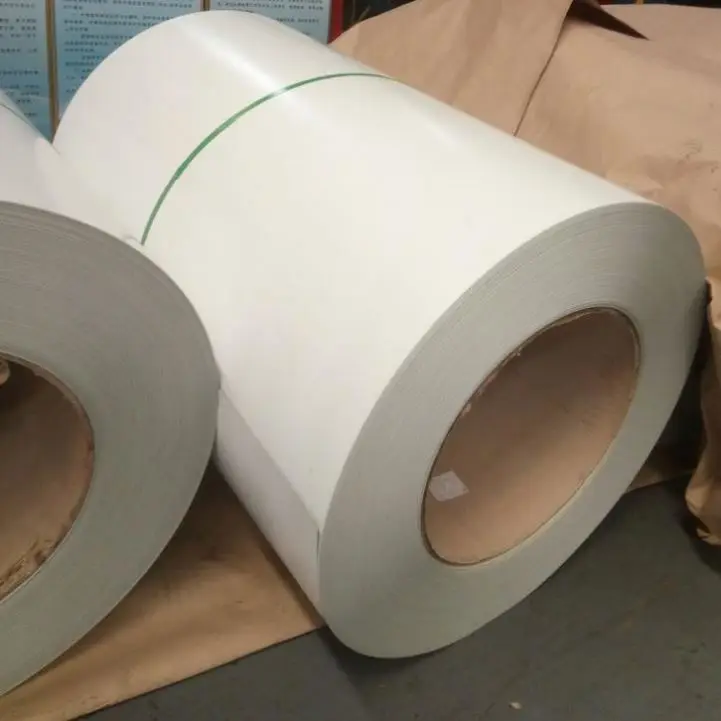

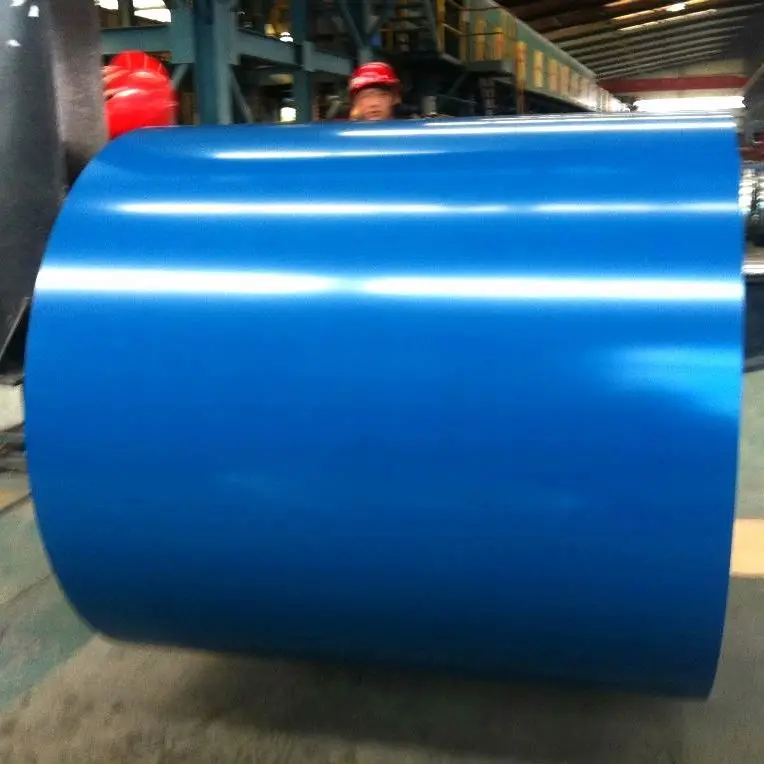

Factory ral 3020 ral 9003 ral 8017 pre painted coils new type ppgi color coated steel coil
- Category: >>>
- Supplier: Shandong Tata iron and Steel Co. Ltd
Share on (1600916772403):
Product Overview
Description
Products Details
PPGI also known as pre-coated steel or color coated steel coil, It is a product made of hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, electro galvanized steel sheet, etc. After surface pretreatment, one or several layers of organic coating are applied on the surface, and then baked and solidified. The color coated steel coil is light in weight, beautiful in appearance, and has good anti-corrosion performance, and can be directly processed. The color is generally divided into gray, sea blue, brick red, etc. It is mainly used in advertising, construction, decoration, home appliances, electrical appliances, Furniture industry and transportation industry. The coatings used for color coated steel coils are based on the environment in which the resin is selected, such as polyester silicon modified polyester, polyvinyl chloride plastisol, polyvinylidene chloride, and the like.
Technical Standard | EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653 |
Steel Grade | DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ, SECC, SECE, BLCE+Z, BLDE+Z, BUSDE+Z or Customer’s Requirement |
Base Steel | Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel |
Width | 600-1500mm |
Thickness | 0.12-6.0mm |
Length | According to customer requirements |

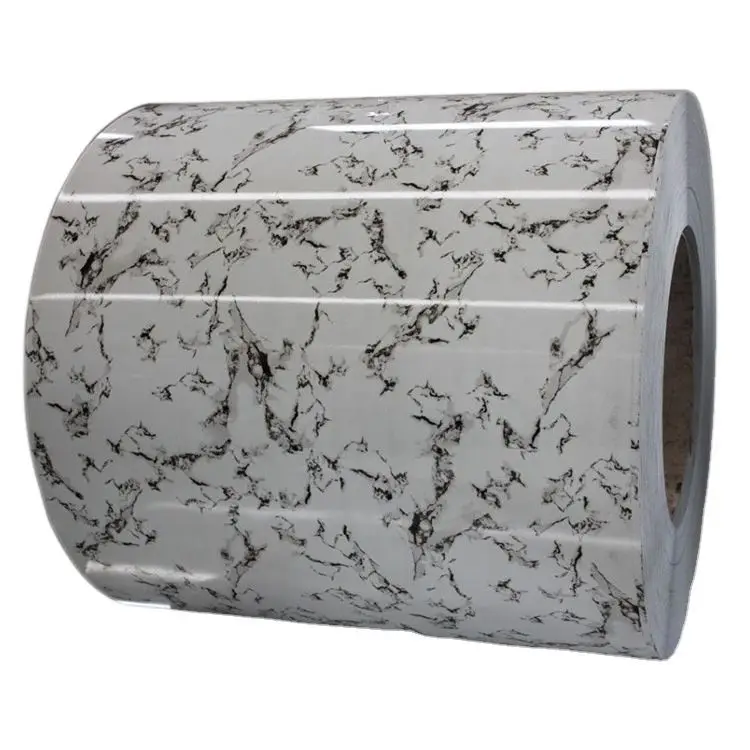

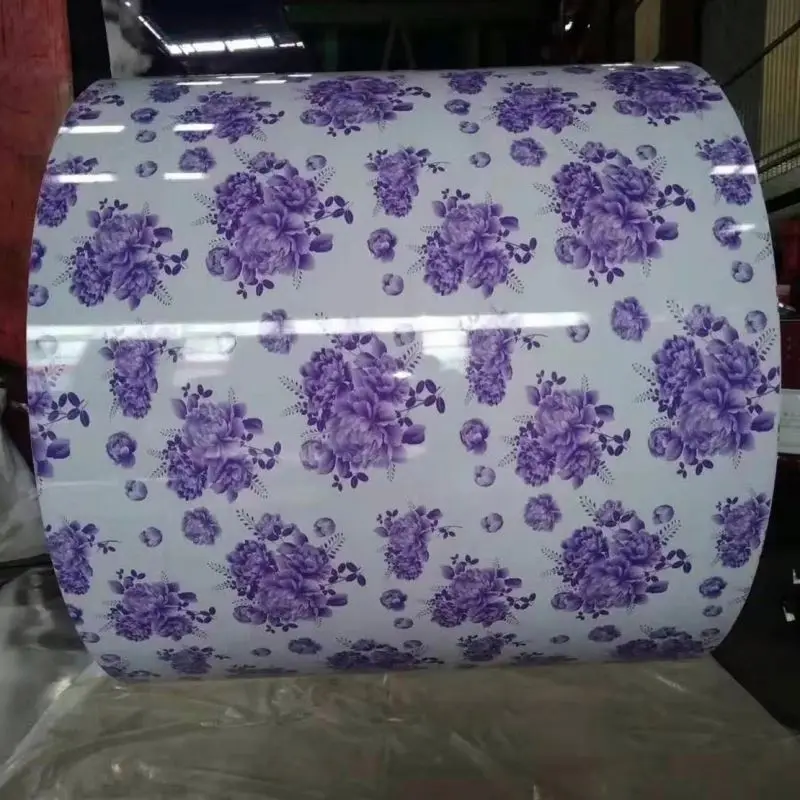

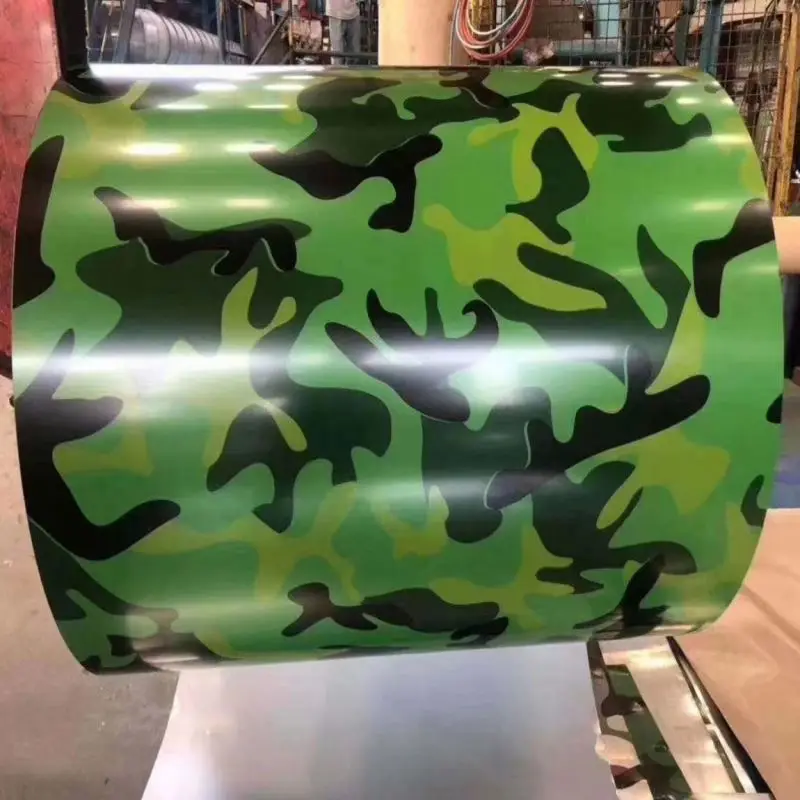

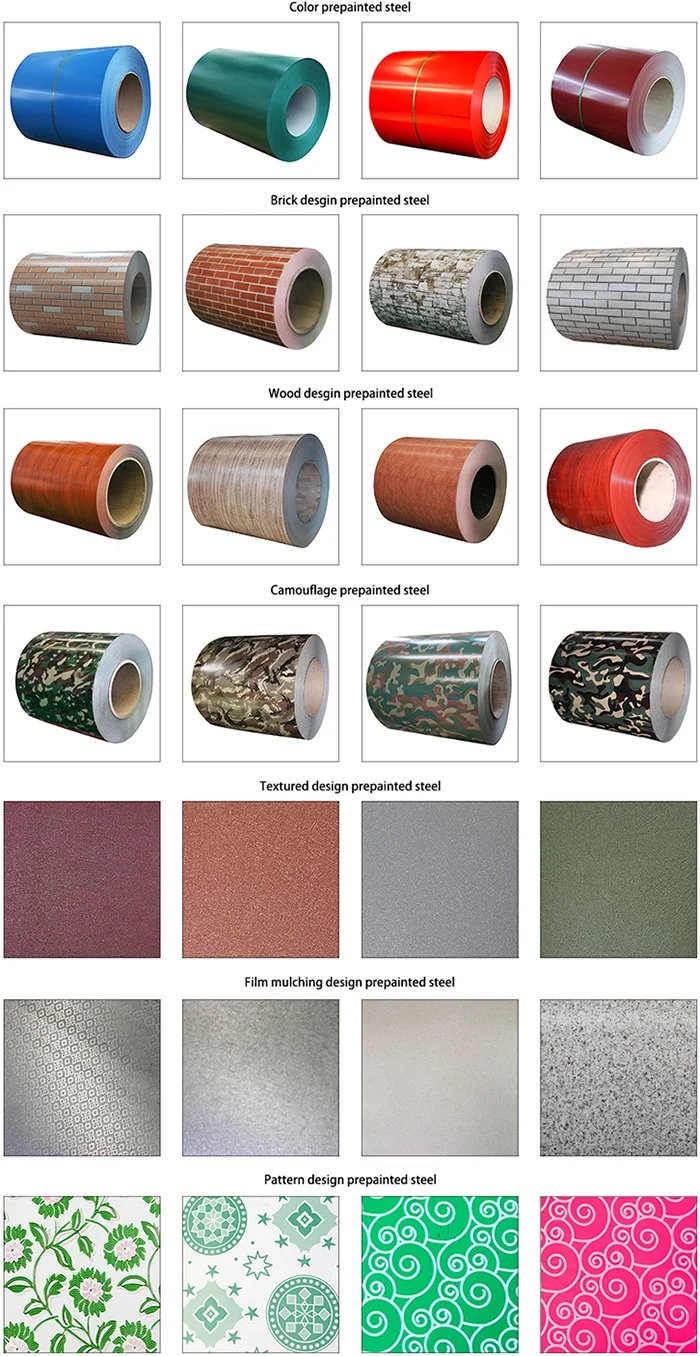

Surface Color | RAL,wood grain pattern, camouflage pattern , stone pattern, matte pattern , high gloss pattern , flower pattern, etc.All color,custom requirement |
Coil Weight | 3-20metric ton per coil |
Certification | CE, ISO, SGS , ETC |

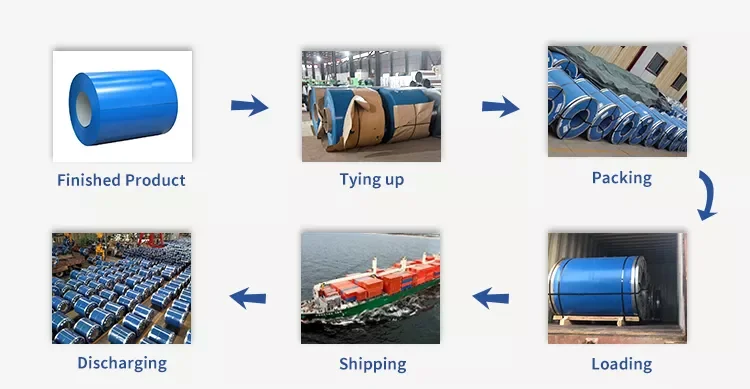

Package | Standard seaworthy export packing: waterproof paper+steel trippacked+wooden case seaworthy package.or according to customer's requirement |
Delivery | Within 7-15days |
Type of coating process | Front:double coated&double drying; Back:double coated&double drying;single coated&double drying; |
Payment terms | TT/LC/After Copy of the BL,etc |
Export market | Europe,Africa,Central Asia,Southeast Asia,Middle East,South America,North America, etc |
Customize Colors According To Your Needs
Coating Type
Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.
Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability and chalking resistance, gloss retention, general flexibility, and medium cost.
High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and anti-pulverization, good paint film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and high cost.
Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.
Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability and chalking resistance, gloss retention, general flexibility, and medium cost.
High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and anti-pulverization, good paint film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and high cost.
Company Profile

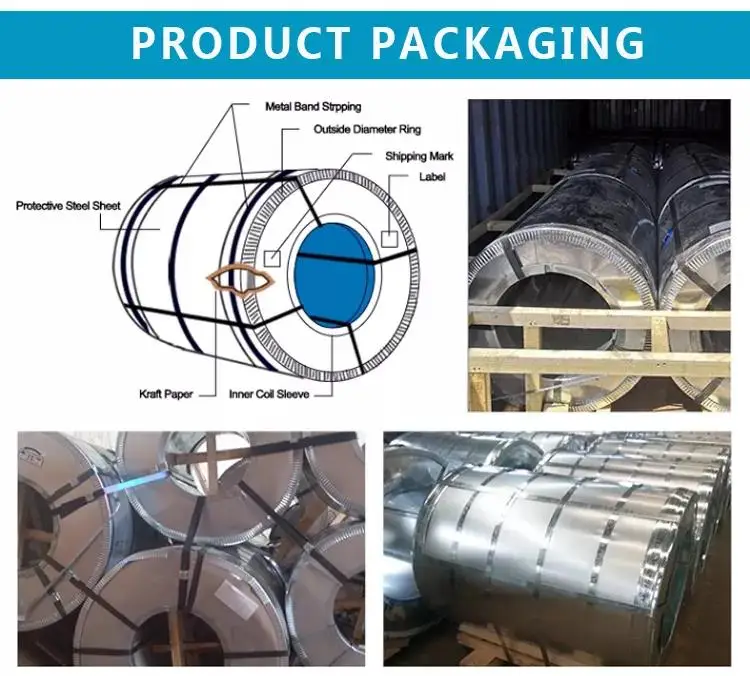

Product packaging
FAQ
Q1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
Q2. How I believe you?
A : We consider honest as the life of our company, Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
Q3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
Q4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
Q5:How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q6: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q7.Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawin
A: Honest business with competitive price and professional service on export process.
Q2. How I believe you?
A : We consider honest as the life of our company, Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
Q3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
Q4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
Q5:How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q6: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q7.Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawin
